3-78 — FIXING PARTS; AIR PIPING (#66395) — 92 parça

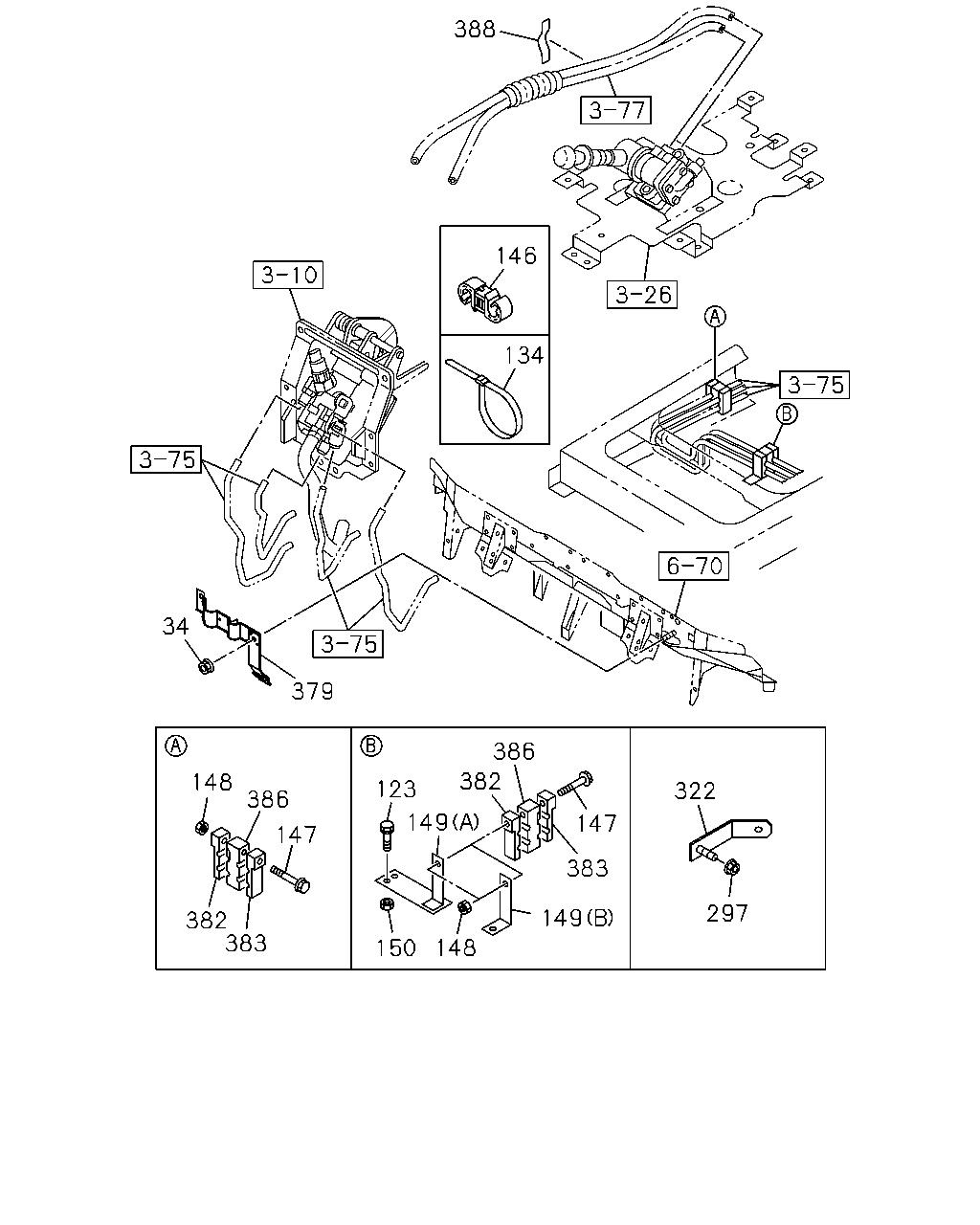

388 146 134 34 379 386 382 148 123 322 386 149 147 147 383 297 149 382 383 148 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0803-
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0803-0803
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0804-0901
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0902-
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0804-
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	07	1	0803-
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	05	1	0803-
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0803-
149	BRACKET; PIPE CLIP (A)	8-98090-114-0	01	1	0803-
149	BRACKET; PIPE CLIP (B) L=85	8-98094-937-0	01	1	0803-
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0803
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0804-
297	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	02	1	0803-0808
297	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	02	1	0809-
297	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	01	1	0803-0808
297	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	01	1	0809-
322	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W)	1-47479-936-1	02	1	0803-0808
322	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM>	1-47479-936-1	02	1	0809-
322	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W)	1-47479-936-1	01	1	0803-0808
322	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM>	1-47479-936-1	01	1	0809-
379	BRACKET; NYLON TUBE	8-98112-515-1	01	1	0803-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	05	1	0803-
383	CLIP; LWR ID=10 & 10	1-09709-241-0	05	1	0803-
386	CLIP; CENTER ID=10	1-09709-242-0	05	1	0803-
388	SEAL 100X40	1-72498-022-1	03	1	0803-0808
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	0809-

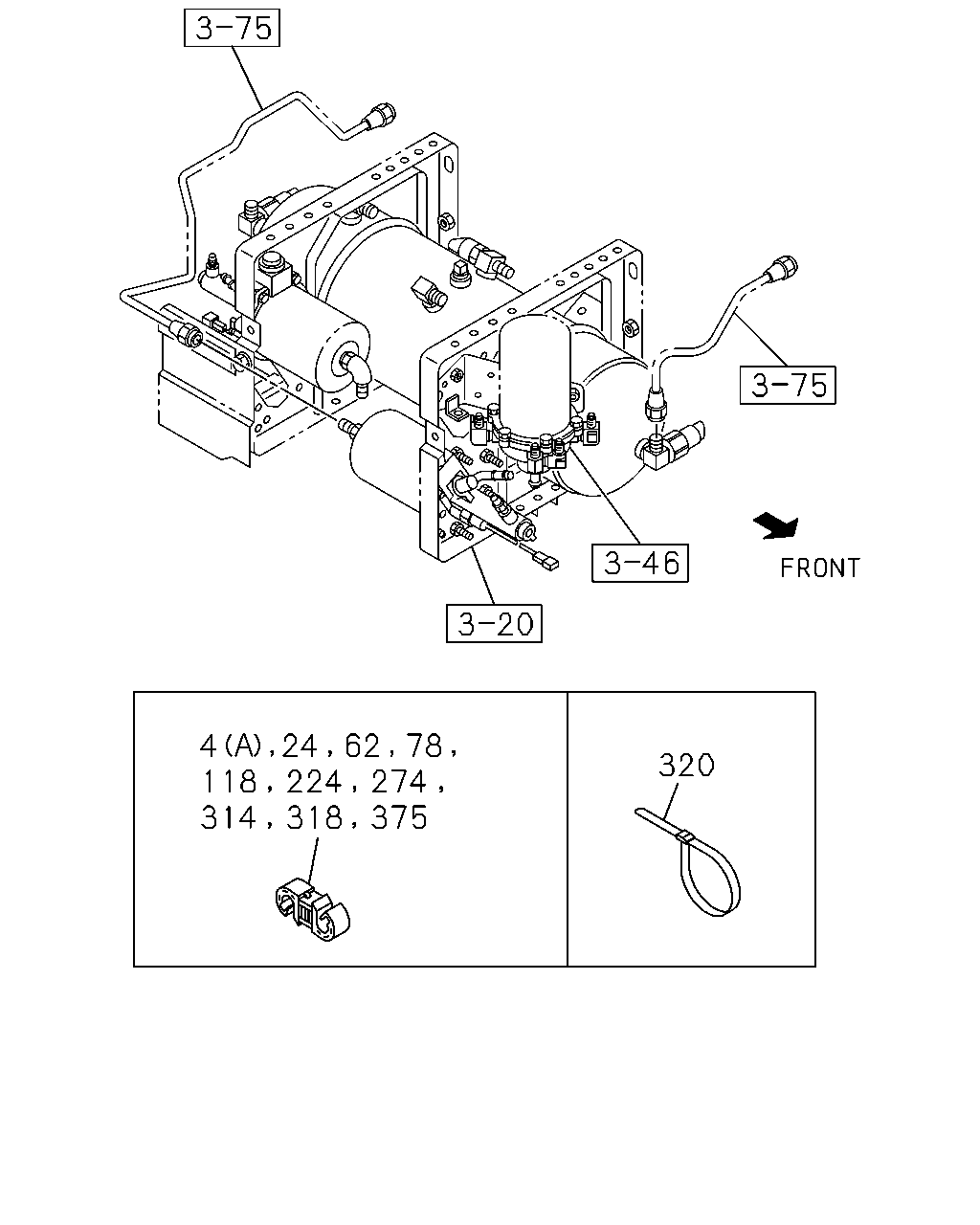

320 4 24 62 78 118 224 274 314 318 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-0808
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0803-
24	CLIP; PIPE EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> ID=6.35 & 10.0	1-09709-274-1	01	1	0812-1107
24	CLIP; PIPE TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> ID=6.35 & 10.0	1-09709-274-1	01	1	1108-
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0810-0901
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0803-0809
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	02	1	0810-0901
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0803-0901
118	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=6.35 & 12	1-09709-275-1	01	1	0812-1107
118	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=6.35 & 12	1-09709-275-1	01	1	1108-
118	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=4.76 & 6.35	1-09709-304-0	01	1	0812-1107
118	CLIP; AIR PIPE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> ID=4.76 & 6.35	1-09709-304-0	01	1	1108-
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 12	1-09709-275-1	01	1	0809-0809
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 10.0	1-09709-274-1	01	1	0809-
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0803-0808
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0809-0809
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0809-0901
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0809-0901
224	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0809-0901
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0902-
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0902-
224	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	03	1	0803-0901
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0808
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	03	1	0803-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0803-0808
274	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0809-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	04	1	0803-0901
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	05	1	0902-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0	1-09709-305-0	01	1	0803-
314	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0901
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=6.35 & 15	1-09709-276-1	01	1	0812-1107
318	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=6.35 & 15	1-09709-276-1	01	1	1108-
320	CLIP; BAND,FLEX FIX EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	0812-1107
320	CLIP; BAND,FLEX FIX TURBO - CONVENTIONAL<Q5T> L=250	5-09707-030-1	01	1	1108-
375	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	02	1	0803-0901

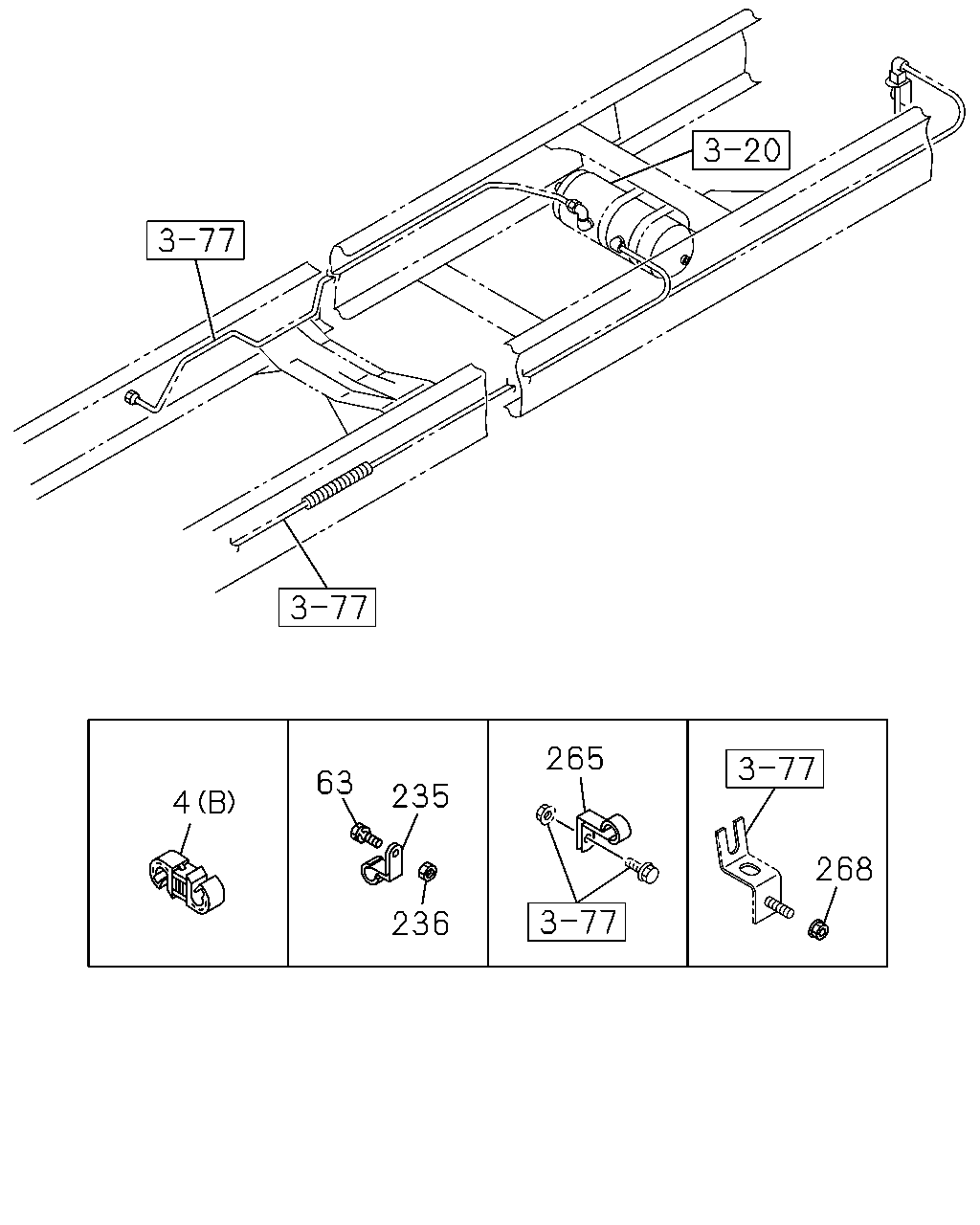

265 63 235 4 268 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-0808
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0803-
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) M8X25 FLANGE	0-28650-825-0	03	1	1012-
63	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	02	1	0803-0808
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0809-1011
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE	0-28650-825-0	02	1	1012-
63	BOLT; CLIP WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	04	1	0803-0808
63	BOLT; CLIP WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	04	1	0809-
63	BOLT; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	06	1	0803-0808
63	BOLT; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	06	1	0809-
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) ID=11 H=20 L=20	8-98033-780-0	03	1	1012-
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) ID=11 H=20 L=20	8-98033-780-0	02	1	0803-0808
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	02	1	0809-1011
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) ID=11 H=20 L=20	8-98033-780-0	02	1	1012-
235	CLIP; AIR PIPE WHEEL BASE 4300MM(43W) ID=11 H=20 L=20	8-98033-780-0	04	1	0803-0808
235	CLIP; AIR PIPE WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	04	1	0809-
235	CLIP; AIR PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) ID=11 H=20 L=20	8-98033-780-0	06	1	0803-0808
235	CLIP; AIR PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	06	1	0809-
236	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	0803-0808
236	NUT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0809-
236	NUT; CLIP WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	04	1	0803-0808
236	NUT; CLIP WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	0809-
236	NUT; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	0803-0808
236	NUT; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	06	1	0809-
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0803-0808
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0809-
268	NUT; CLIP BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	01	1	0803-0808
268	NUT; CLIP BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	0809-
