3-77 — BRAKE PIPING; AIR,REAR (#66394) — 122 parça

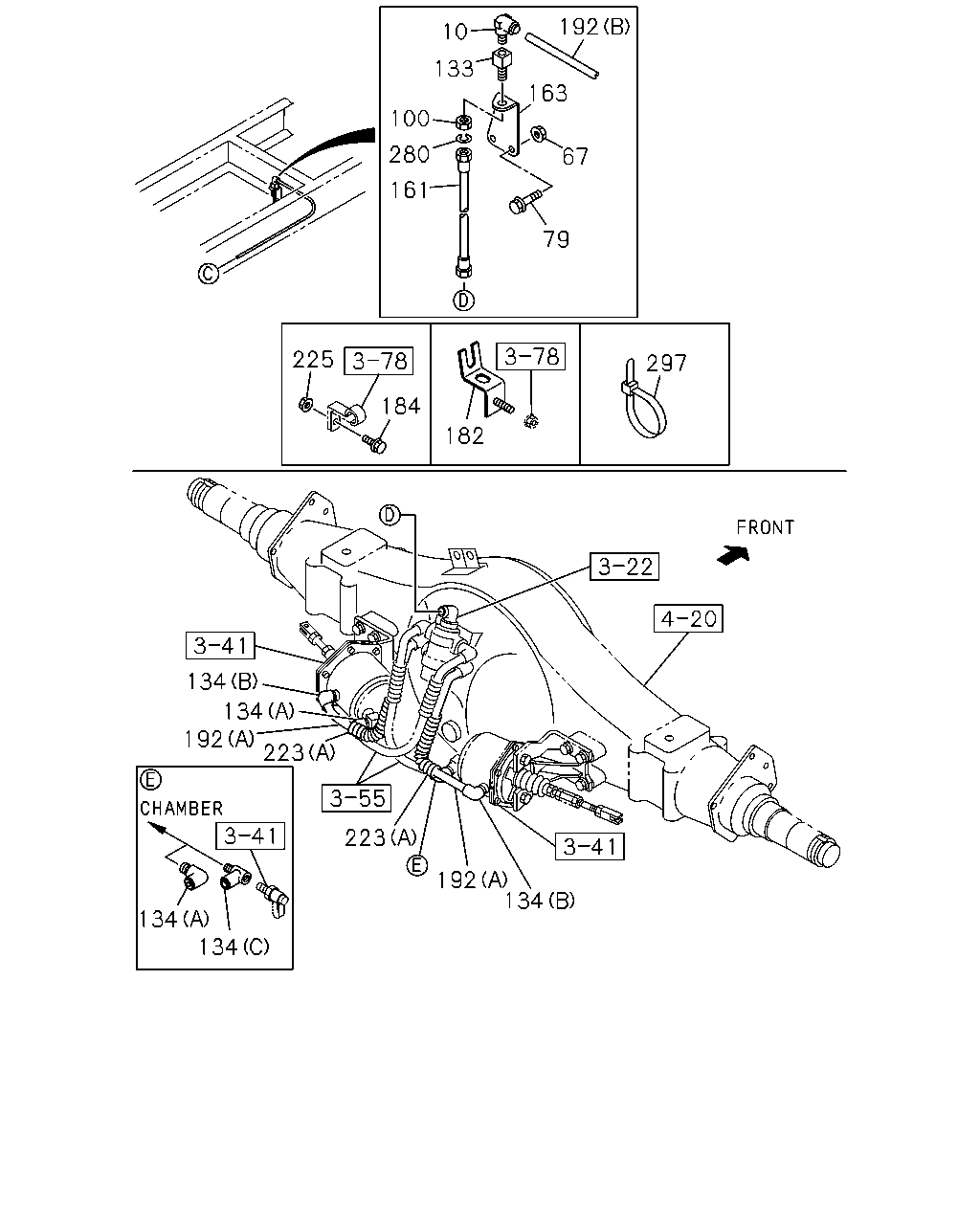

çizim 121735
10 133 192 163 67 100 280 161 79 297 182 184 225 134 134 192 223 223 192 134 134 134
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0803-0808
10 CONNECTOR; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803-0808
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0809-
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0808
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
100 NUT; UNION
M16 		0-91111-516-0 01 1 0803-0808
100 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0809-
133 UNION; NIPPLE 1-09654-258-2 01 1 0803-0808
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09654-258-2 01 1 0809-1111
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1112-
134 CONNECTOR
BRAKE REGULATION ECE(TDV) (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0803-0808
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0809-
134 CONNECTOR
BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0803-0808
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0809-
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0803-0808
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0809-
134 CONNECTOR
EXC. BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0803-0808
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 0803-0808
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460 		1-09363-963-0 01 1 0809-
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 0803-0808
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-842-0 01 1 0809-
182 BRACKET; TUBE CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) 		8-98096-272-0 01 1 0803-0808
182 BRACKET; TUBE CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98096-272-0 01 1 0809-
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0808
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0803-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0803-
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0803-
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0803-
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0803-
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0808
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0809-1107
280 WASHER; LK
ID=16.2 		0-91510-816-0 01 1 0803-0808
280 WASHER; LK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2 		0-91510-816-0 01 1 0809-0809
297 CLIP; BAND
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 12 1 1110-
297 CLIP; BAND
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 12 1 1110-
297 CLIP; BAND
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 02 1 0911-1109
297 CLIP; BAND
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 14 1 1110-
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 05 1 0803-0808
297 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 05 1 0809-1109
297 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 05 1 1110-
297 CLIP; BAND
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) L=350 		1-09707-183-0 09 1 0803-0808
297 CLIP; BAND
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 0809-1109
297 CLIP; BAND
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 09 1 1110-
297 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 09 1 1110-
297 CLIP; BAND
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 12 1 0803-0808
297 CLIP; BAND
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 12 1 0809-1109
297 CLIP; BAND
WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 11 1 1110-

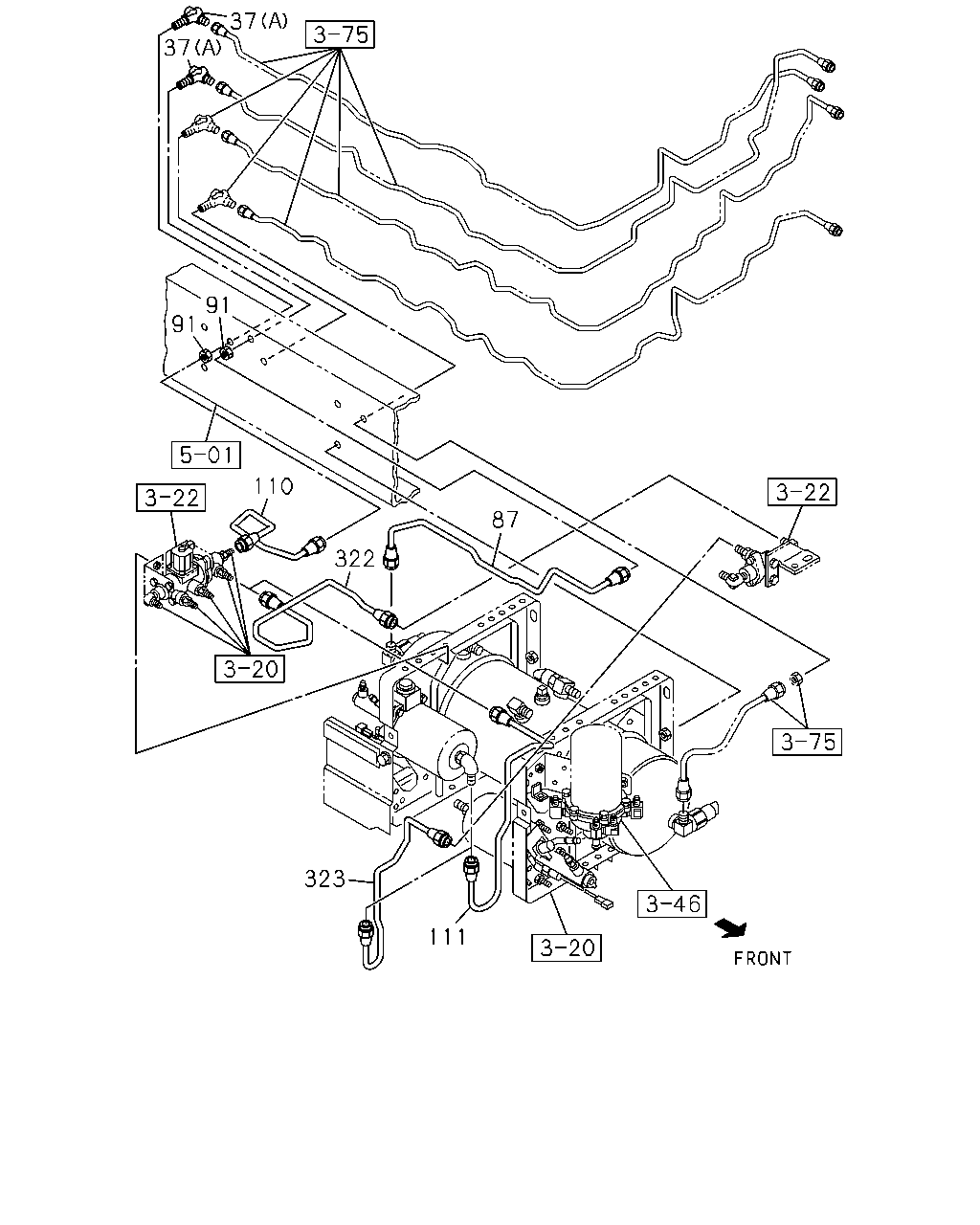

çizim 121764
37 37 91 91 110 322 87 111 323
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0803-0808
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0809-
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0803-
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0803-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0803-
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 0803-
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600 		1-47428-868-0 01 1 0803-
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 0803-
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600 		1-47428-868-0 01 1 0803-

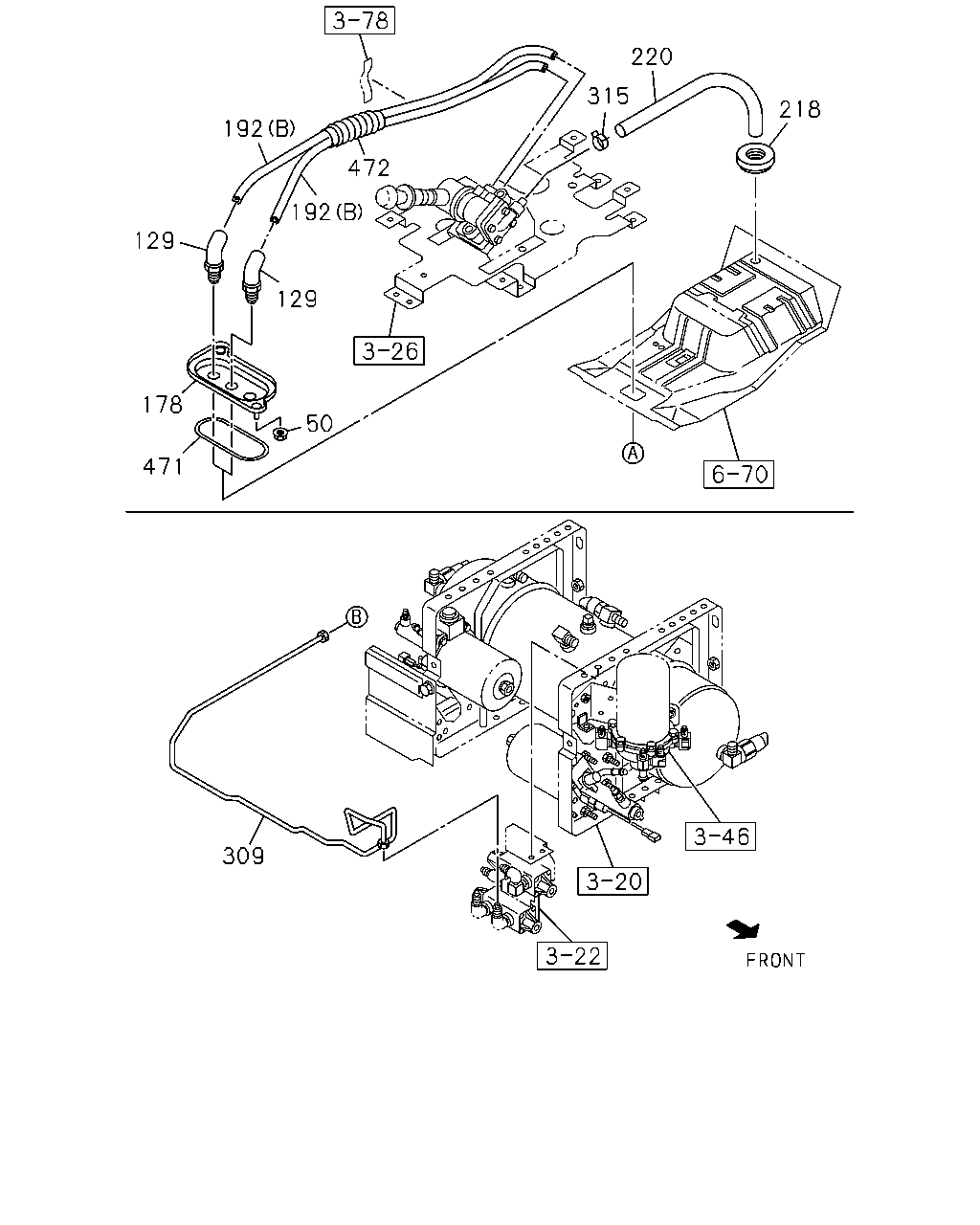

çizim 122250
472 192 129 178 471 309 315 220 218 50 129 192
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803-
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0803-0808
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0809-
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-052-1 01 1 0809-
178 BRACKET; UNION 8-98017-054-1 01 1 0803-0808
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-054-1 01 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0803-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0803-
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0803-0808
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 0809-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0803-0808
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0809-
309 PIPE; AIR,MPV TO UNION
L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0803-0808
309 PIPE; AIR,MPV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0809-
315 CLIP
ID=14 		8-94238-572-0 01 1 0803-0808
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		8-94238-572-0 01 1 0809-
471 SEAL; BRKT 1-79738-832-0 01 1 0803-
472 TUBE; SPUTTER 8-98067-708-0 01 1 0803-0808
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 0809-
çizim 193045
318 97 144 98 37 192 223
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0803-0808
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0809-
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0803-
97 UNION; AIR PIPE
M16 STRAIGHT L=42 		0-92123-010-0 01 1 0803-0808
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 0809-
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-0808
98 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0809-
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 0803-0808
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 0809-
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 0803-0808
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0803-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0803-
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0803-
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0803-
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0803-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 0803-0808
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 0809-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ECE(TDV) L=537 SERVICED BY L=550 		1-47428-867-0 01 1 0803-0808
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=537 SERVICED BY L=550 		1-47428-867-0 01 1 0809-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE REGULATION ECE(TDV) L=1158 SERVICED BY L=1250 		1-47428-876-0 01 1 0803-0808
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=1158 SERVICED BY L=1250 		1-47428-876-0 01 1 0809-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. BRAKE REGULATION ECE(TDV) L=1076 SERVICED BY L=1100 		1-47428-875-0 01 1 0803-0808
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=1076 SERVICED BY L=1100 		1-47428-875-0 01 1 0809-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5500MM(55W) BRAKE REGULATION ECE(TDV) L=1856 SERVICED BY L=1900 		1-47428-881-0 01 1 0803-0808
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=1856 SERVICED BY L=1900 		1-47428-881-0 01 1 0809-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5500MM(55W) EXC. BRAKE REGULATION ECE(TDV) L=1776 SERVICED BY L=1900 		1-47428-881-0 01 1 0803-0808
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=1776 SERVICED BY L=1900 		1-47428-881-0 01 1 0809-

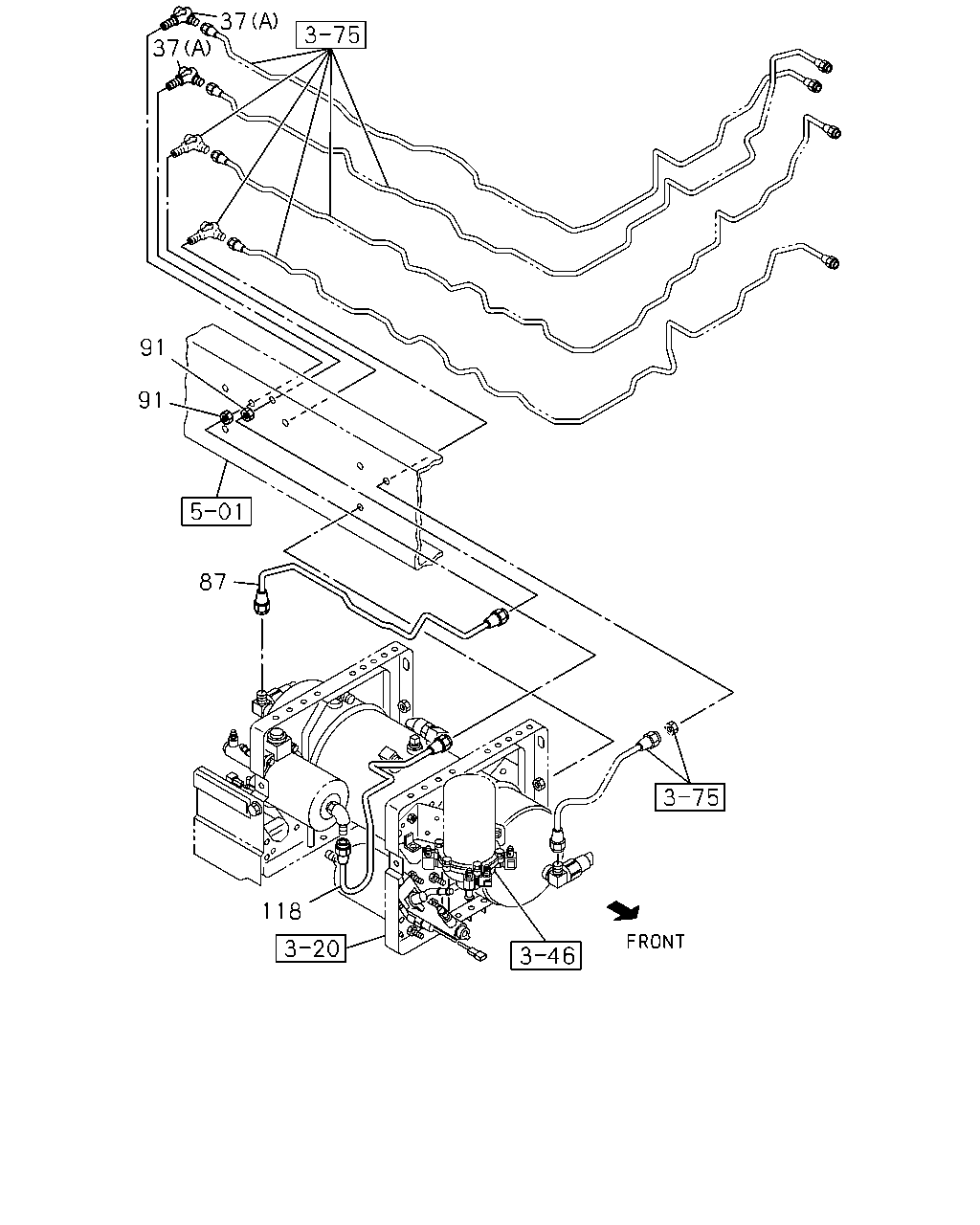

çizim 193059
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0803-0808
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0809-
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0803-
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0803-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0803-
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700 		1-47428-870-0 01 1 0803-0811
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=830 SERVICED BY L=900 		1-47428-873-0 01 1 0812-
