3-75 — BRAKE PIPING; AIR,FRONT (#66393) — 48 parça

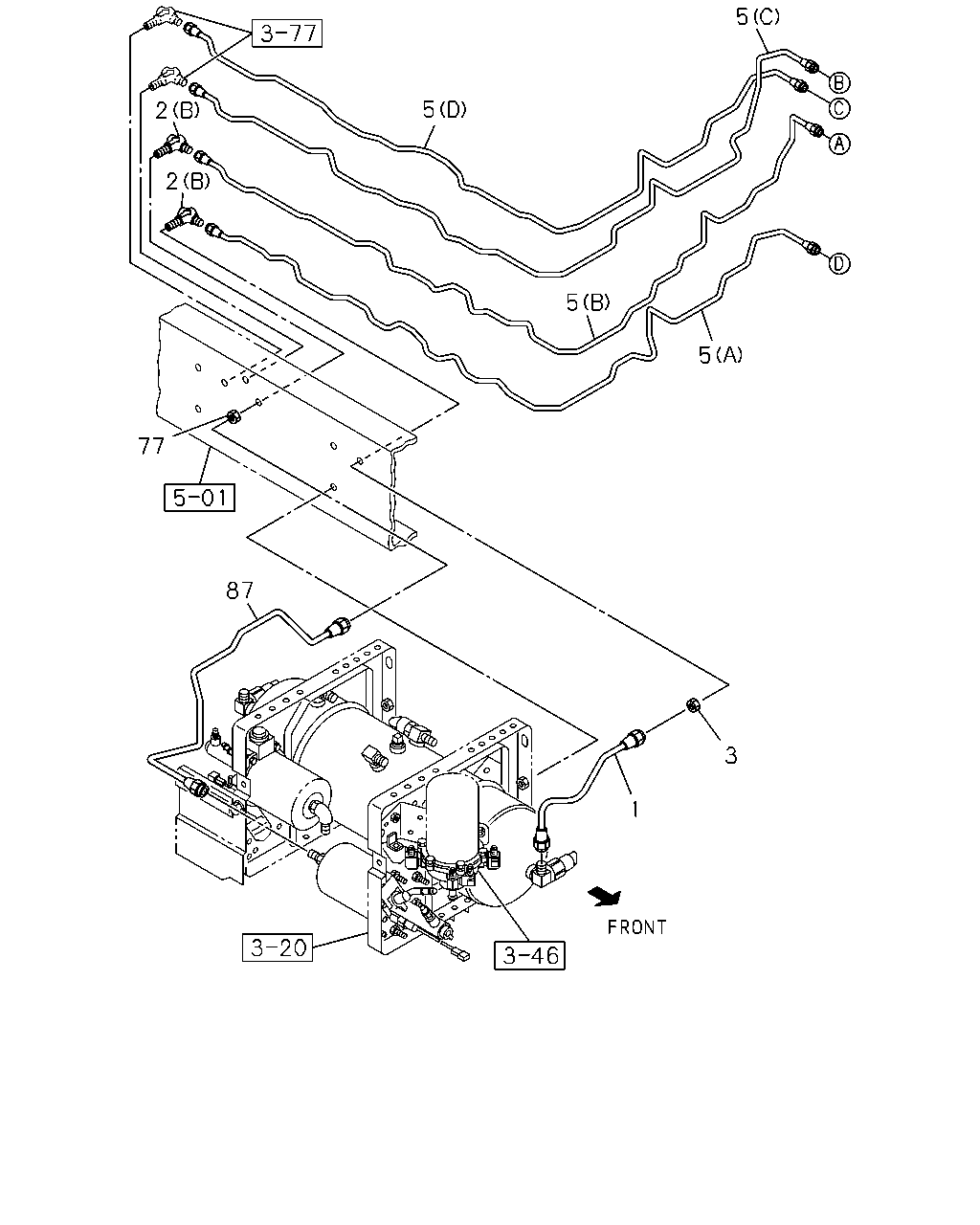

çizim 121791
5 5 2 2 5 5 77 87 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0803-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0803-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0803-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
5 PIPE; AIR,UNION TO UNION
(A) L=3051 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-
5 PIPE; AIR,UNION TO UNION
(B) L=3352 SERVICED BY L=3500 		1-47428-887-0 01 1 0803-1007
5 PIPE; AIR,UNION TO UNION
(B) L=3352 		8-98165-233-0 01 1 1008-
5 PIPE; AIR,UNION TO UNION
(C) L=3489 SERVICED BY L=3500 		1-47428-887-0 01 1 0803-
5 PIPE; AIR,UNION TO UNION
(D) L=3493 SERVICED BY L=3500 		1-47428-887-0 01 1 0803-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0803-
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900 		1-47428-873-0 01 1 0803-

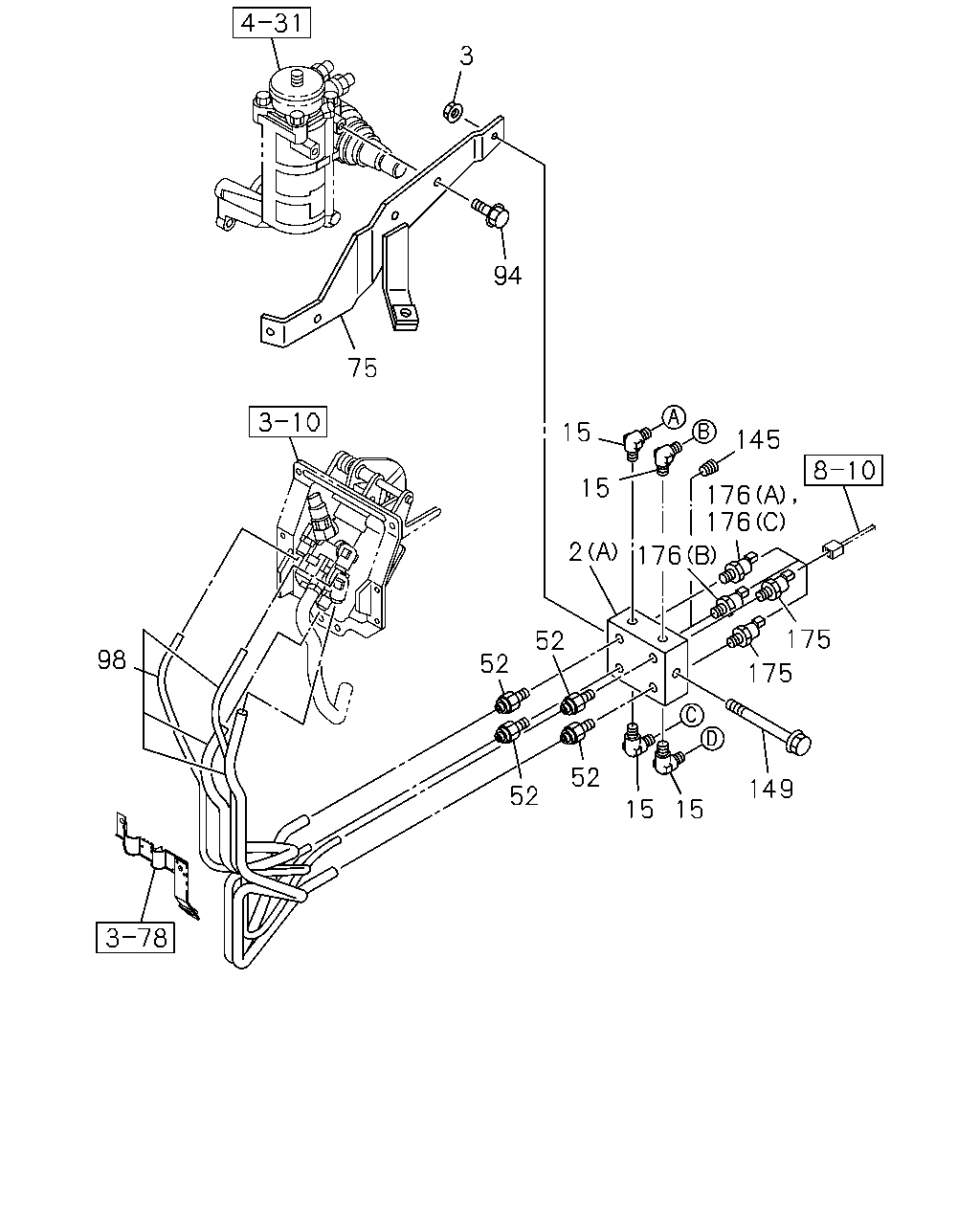

çizim 122306
3 94 75 15 145 15 176 176 2 176 175 52 98 52 175 52 149 52 15 15
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0803-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0803-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0803-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0803-
75 BRACKET; UNION 8-98112-753-0 01 1 0803-0803
75 BRACKET; UNION 8-98116-762-0 01 1 0803-0805
75 BRACKET; UNION 8-98124-802-0 01 1 0806-
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0803-0901
94 BOLT; BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0902-0902
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0902-0911
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0912-
98 TUBE; NYLON 8-98095-946-0 01 1 0803-0805
98 TUBE; NYLON 8-98123-961-0 01 1 0806-
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 0803-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0803-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0803-
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7 		8-97622-710-0 01 1 0803-
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 0803-
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> (C) STAMP 0.3 		8-98010-857-0 01 1 0803-

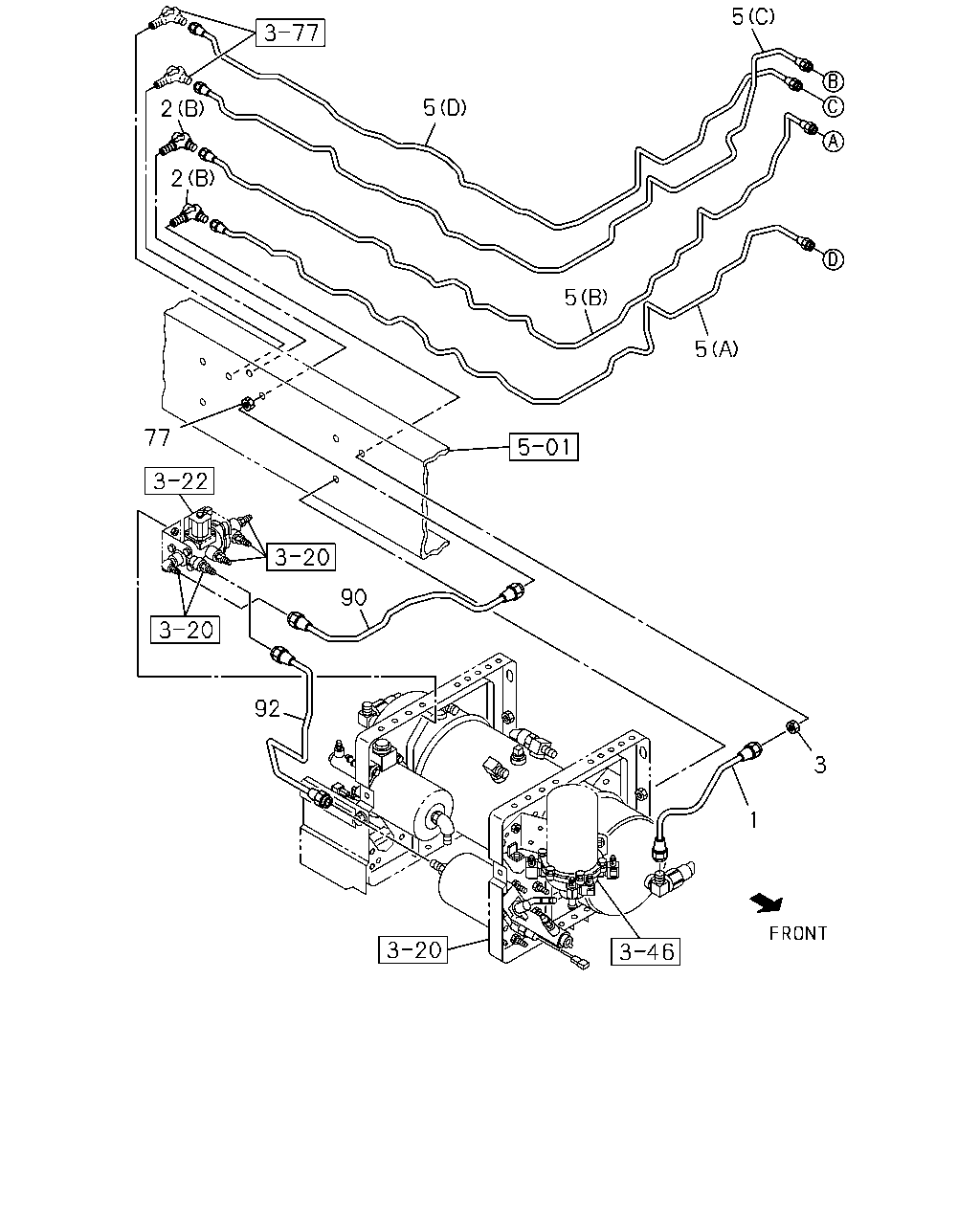

çizim 122316
5 5 2 2 5 5 77 90 92 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0803-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0803-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0803-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
5 PIPE; AIR,UNION TO UNION
(A) L=3051 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-
5 PIPE; AIR,UNION TO UNION
(B) L=3352 SERVICED BY L=3500 		1-47428-887-0 01 1 0803-1007
5 PIPE; AIR,UNION TO UNION
(B) L=3352 		8-98165-233-0 01 1 1008-
5 PIPE; AIR,UNION TO UNION
(C) L=3489 SERVICED BY L=3500 		1-47428-887-0 01 1 0803-
5 PIPE; AIR,UNION TO UNION
(D) L=3493 SERVICED BY L=3500 		1-47428-887-0 01 1 0803-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 0803-
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ECE(TDV) L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0803-
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ECE(TDV) L=532 SERVICED BY L=550 		1-47428-867-0 01 1 0803-
