Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#66392) — 511 parça

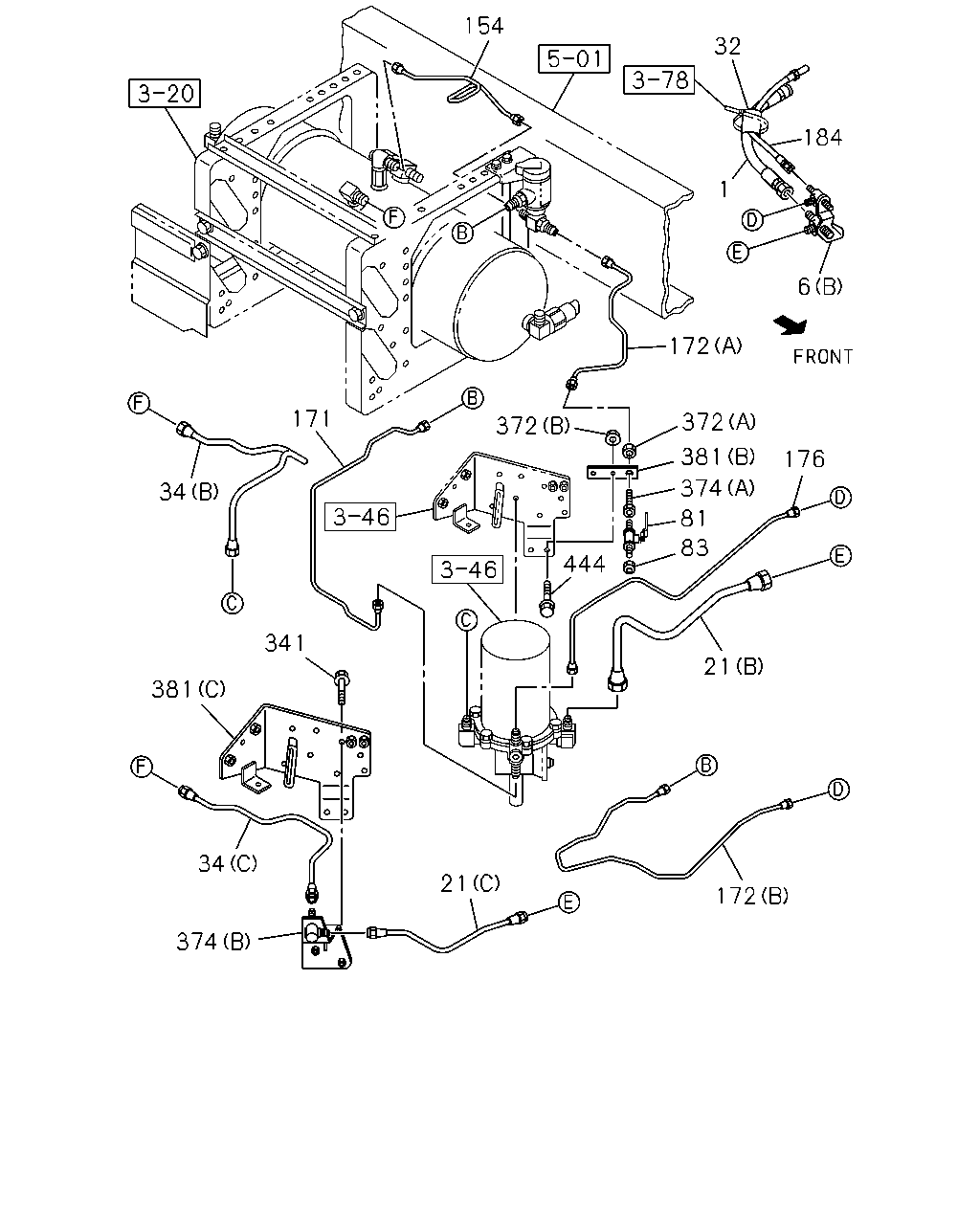

154 32 184 1 6 172 171 372 372 381 176 374 34 81 83 444 341 21 381 34 21 172 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0812-1107
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1108-
1	HOSE; FLEX,AIR TANK	8-98079-973-0	01	1	0803-0811
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4>	8-98079-973-0	01	1	0812-0904
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4>	1-09363-958-0	01	1	0905-1107
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98133-392-0	01	1	0812-1107
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98079-987-1	01	1	0803-0811
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98079-987-1	01	1	0812-1107
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=503	8-98133-371-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=503	8-98133-371-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516	8-98133-370-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516	8-98133-370-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798	8-98083-099-0	01	1	0809-0811
21	PIPE; AIR,UNION TO AIR DRYER EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798	8-98083-099-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1816	8-98083-100-0	01	1	0803-0808
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1816	8-98083-100-0	01	1	0809-0811
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) L=1816	8-98083-100-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1108-
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0812-1107
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1108-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	0812-1107
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	0812-1107
34	PIPE; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	0812-1107
34	PIPE; AIR TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1108-
34	PIPE; AIR EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660	1-49115-480-0	01	1	0809-1107
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR (A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	0803-0808
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	0809-1107
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
81	COCK; AIR EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0812-1107
81	COCK; AIR TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1108-
83	CAP; AIR COCK EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0812-1107
83	CAP; AIR COCK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1108-
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2>	8-98133-361-0	01	1	0812-1008
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2>	8-98167-336-0	01	1	1009-1107
154	PIPE; AIR,AIR TANK TO AIR GOV TURBO - CONVENTIONAL<Q5T>	8-98167-336-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=811 SERVICED BY L=900	1-47428-813-0	01	1	0812-1107
171	PIPE; AIR,GOV TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=811 SERVICED BY L=900	1-47428-813-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	0812-1107
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (A) L=426	8-98133-384-0	01	1	0812-1008
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (A) L=425	8-98167-526-0	01	1	1009-1107
172	PIPE; AIR,GOV TO UNION TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (A) L=425	8-98167-526-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	0812-1107
172	PIPE; AIR,GOV TO UNION TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=708 SERVICED BY L=800	1-47428-812-0	01	1	0812-1107
176	PIPE; AIR,AIR DRYER TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=708 SERVICED BY L=800	1-47428-812-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	0812-1107
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	1108-
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=340	1-09363-622-0	01	1	0812-1107
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=340	1-09363-622-0	01	1	1108-
341	BOLT; BRKT EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	0812-1107
341	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	1108-
372	NUT EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (B) M8 FLANGE	0-91180-108-0	02	1	0812-1107
372	NUT TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (B) M8 FLANGE	0-91180-108-0	02	1	1108-
372	NUT EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (A) M12	9-09840-280-0	01	1	0812-1107
372	NUT TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (A) M12	9-09840-280-0	01	1	1108-
374	CONNECTOR EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (A)	1-09654-280-1	01	1	0812-1107
374	CONNECTOR TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (A)	1-09654-280-1	01	1	1108-
374	CONNECTOR EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (B)	8-98135-407-0	01	1	0812-1107
374	CONNECTOR TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (B)	8-98135-407-0	01	1	1108-
381	BRACKET EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (B)	8-98135-449-0	01	1	0812-1107
381	BRACKET TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (B)	8-98135-449-0	01	1	1108-
381	BRACKET EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	0812-1107
381	BRACKET TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1108-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98119-700-0	01	1	0809-
444	BOLT; UNION EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> M8X20 FLANGE	0-28650-820-0	02	1	0812-1107
444	BOLT; UNION TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> M8X20 FLANGE	0-28650-820-0	02	1	1108-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	0809-

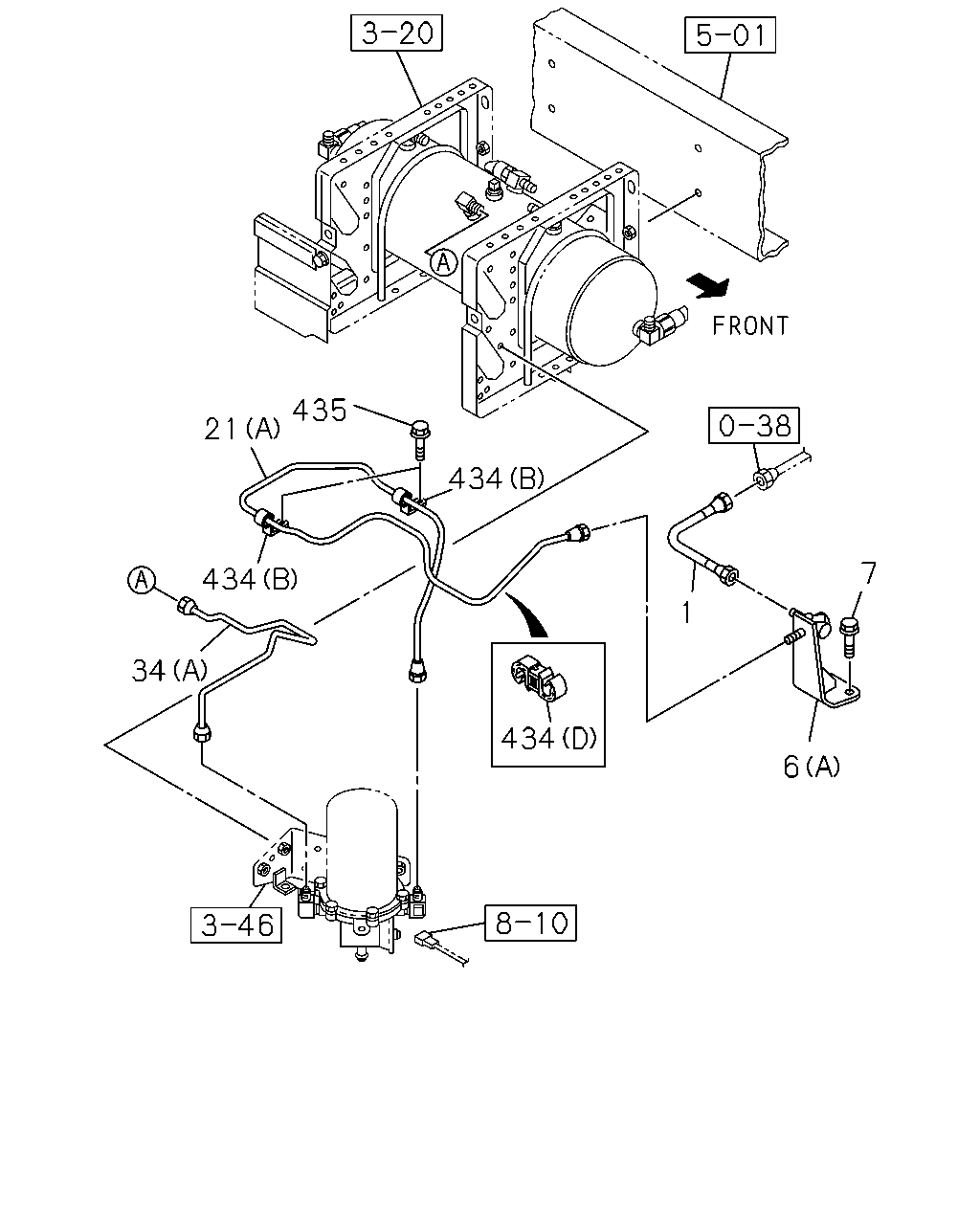

435 21 434 7 434 1 34 434 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0812-1107
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1108-
1	HOSE; FLEX,AIR TANK	8-98079-973-0	01	1	0803-0811
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4>	8-98079-973-0	01	1	0812-0904
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4>	1-09363-958-0	01	1	0905-1107
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98133-392-0	01	1	0812-1107
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98079-987-1	01	1	0803-0811
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98079-987-1	01	1	0812-1107
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1108-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0803-
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=503	8-98133-371-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=503	8-98133-371-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516	8-98133-370-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516	8-98133-370-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798	8-98083-099-0	01	1	0809-0811
21	PIPE; AIR,UNION TO AIR DRYER EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798	8-98083-099-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1816	8-98083-100-0	01	1	0803-0808
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1816	8-98083-100-0	01	1	0809-0811
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) L=1816	8-98083-100-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1108-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	0812-1107
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	0812-1107
34	PIPE; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	0812-1107
34	PIPE; AIR TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1108-
34	PIPE; AIR EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660	1-49115-480-0	01	1	0809-1107
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR (A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	0803-0808
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	0809-1107
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. RIGID SEAT WO/ARM REST<TAZ> (E) ID=24 L=24	1-09701-001-1	01	1	1009-1107
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0804-0808
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0809-0811
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0812-1008
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	02	1	1009-1109
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	02	1	1110-
434	CLIP BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0803-0803
434	CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0804-0808
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0809-0811
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0812-1008
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0812-1008
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1009-1109
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1009-1109
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1110-
434	CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1110-
434	CLIP BRAKE REGULATION ECE(TDV) (D) ID=10 & 15	1-09709-279-1	01	1	0803-0808
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) ID=10 & 15	1-09709-279-1	01	1	0809-
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	07	1	0803-0808
434	CLIP WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	07	1	0809-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	04	1	0803-0808
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	0809-0909
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	0910-1008
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	04	1	0910-1008
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1009-1109
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1009-1109
434	CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1110-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1110-
434	CLIP WHEEL BASE 4800MM(48W) (A) L=350	1-09707-183-0	06	1	0803-0808
434	CLIP WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	06	1	0809-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0803-0811
434	CLIP EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0812-1107
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1108-
434	CLIP (A) L=350	1-09707-183-0	01	1	0803-0808
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0809-1008
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-
434	CLIP (A) L=350	1-09707-183-0	12	1	0803-0808
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	0809-1109
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0809-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	0803-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0803-0811
435	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	02	1	0812-1107
435	BOLT; CLIP EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1108-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0803-

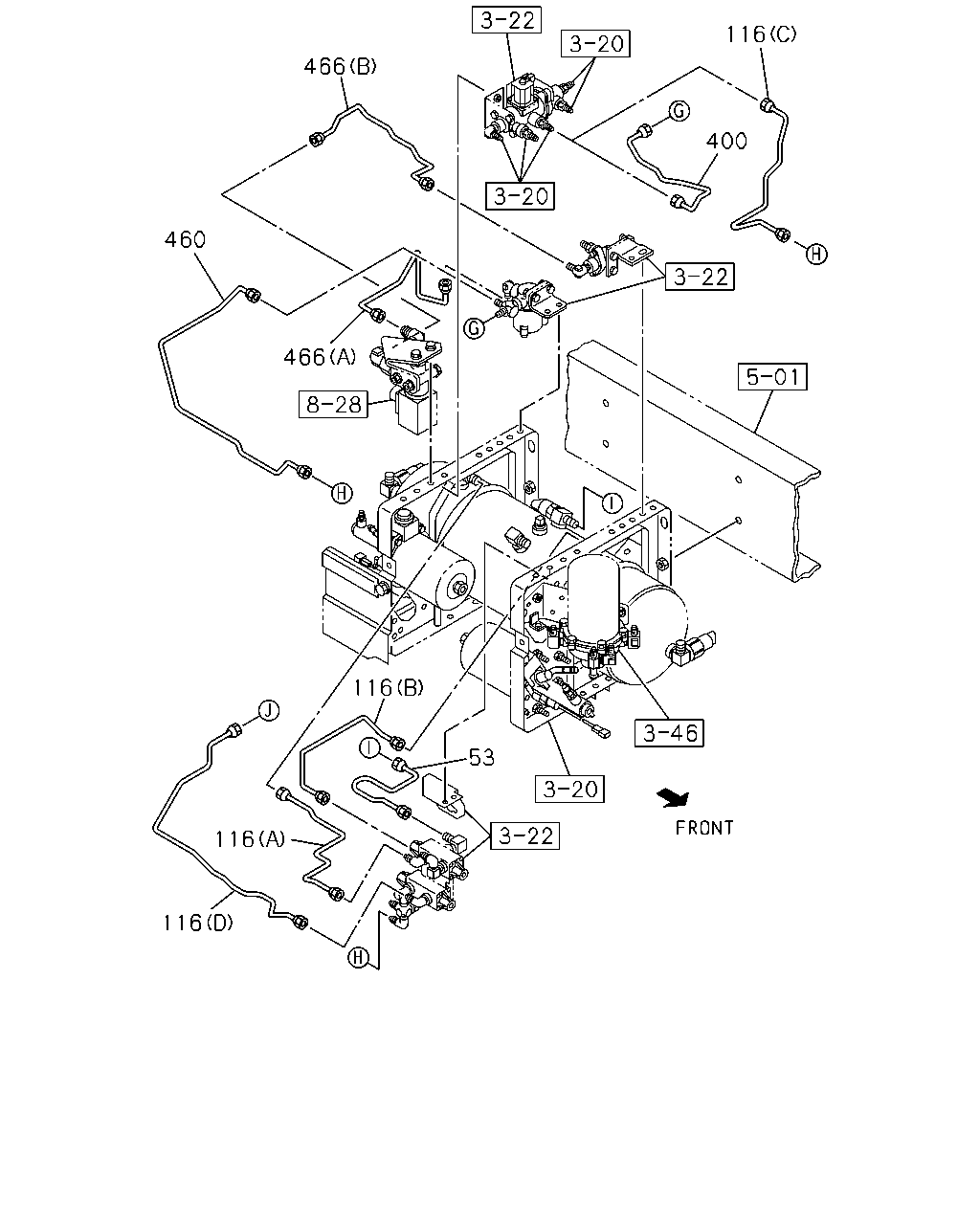

116 466 400 460 466 116 53 116 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	0803-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370	1-47428-818-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	0803-0808
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	0803-0808
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	0803-
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0803-
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	0803-
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98066-847-0	01	1	0809-
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH)	8-98066-846-0	01	1	0803-0808
460	PIPE; AIR,PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98066-846-0	01	1	0809-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800	1-47428-872-0	01	1	0803-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	0803-

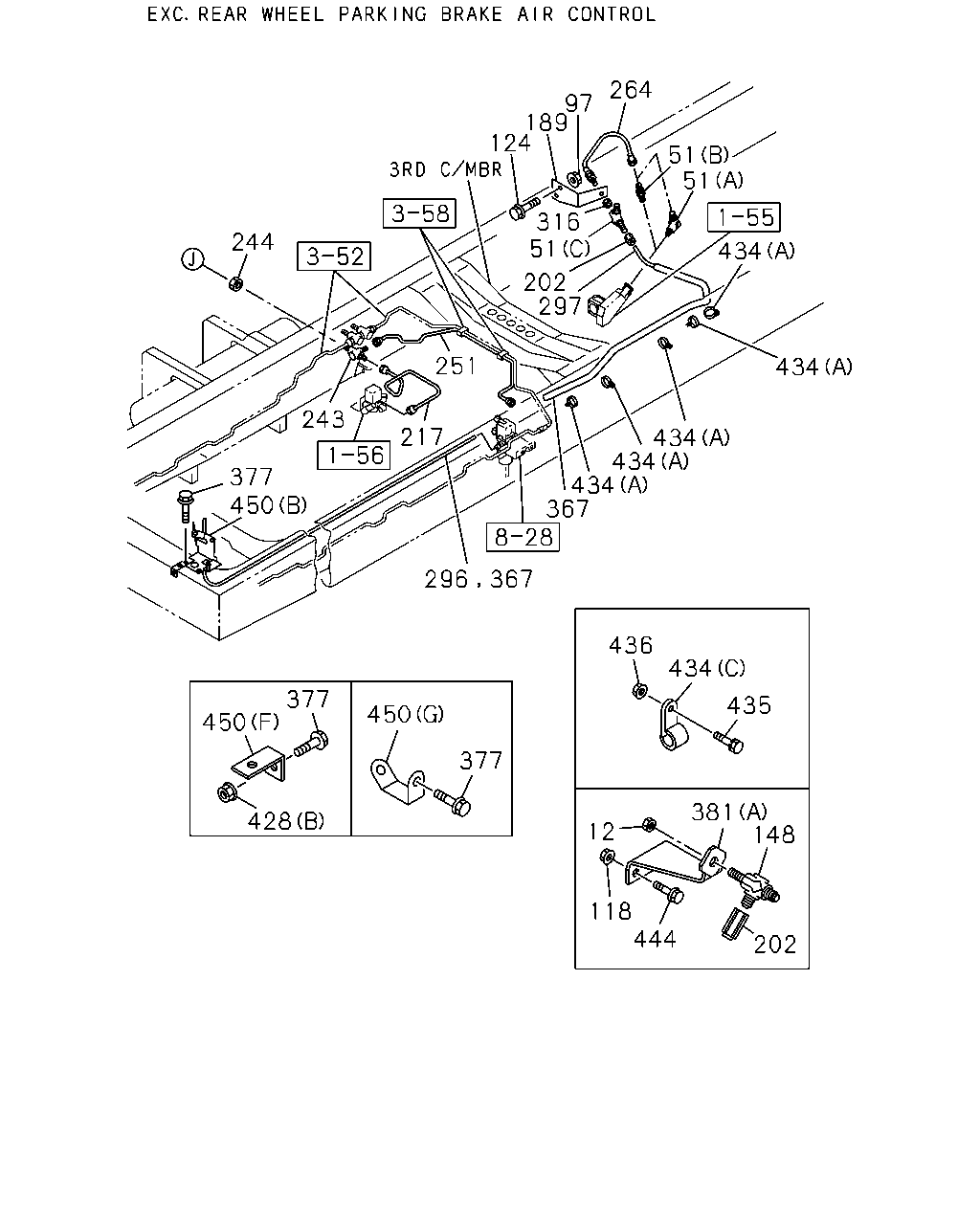

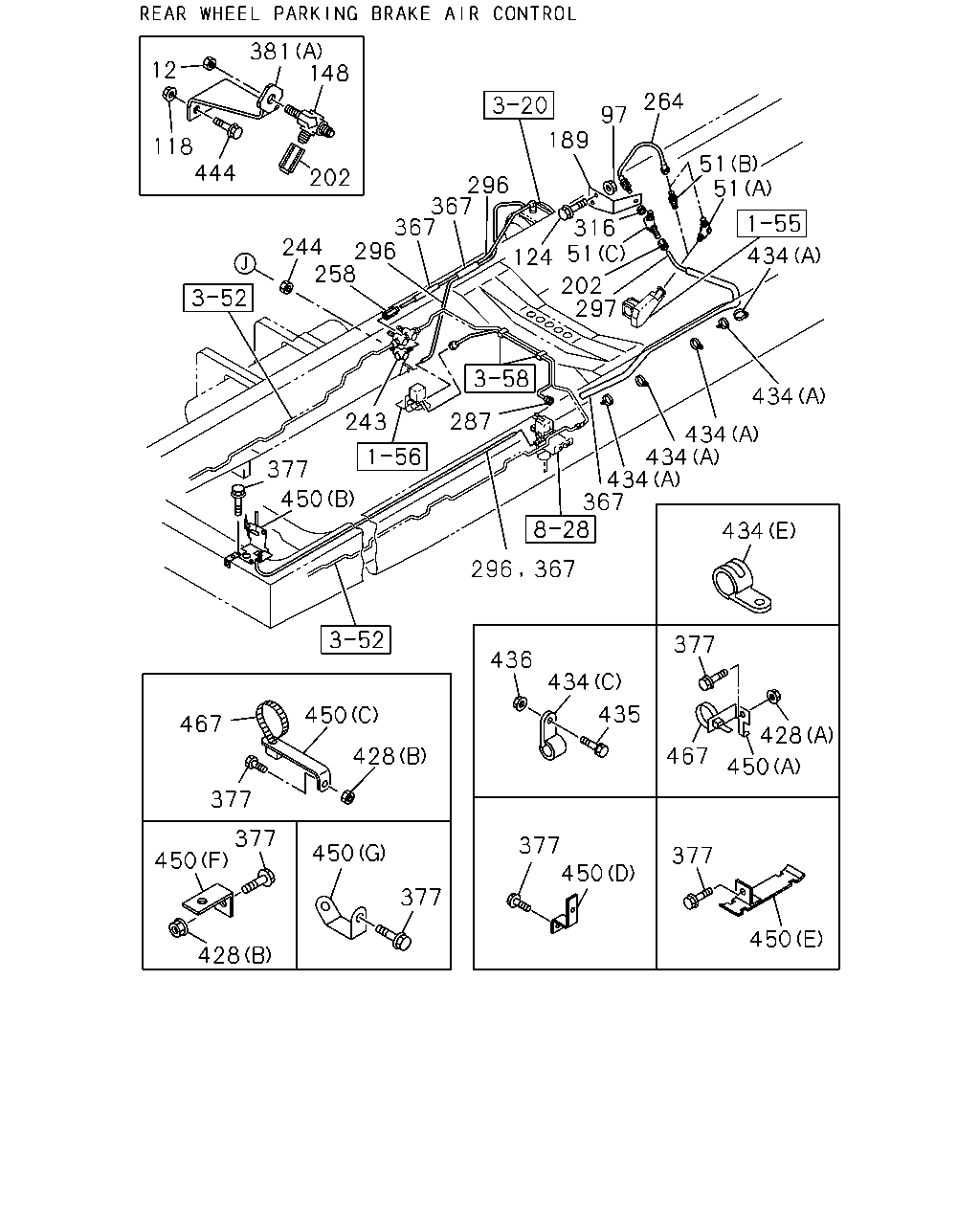

381 148 12 264 97 189 118 444 51 51 202 296 367 367 244 296 258 316 51 434 124 202 297 434 287 243 434 434 434 367 377 450 434 296 367 377 436 434 435 450 467 428 467 428 450 377 377 450 377 450 377 450 377 450 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	0809-
51	UNION WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0808
51	UNION WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-
51	UNION WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (C) M12 ELBOW	0-92125-006-0	01	1	0803-0808
51	UNION WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 ELBOW	0-92125-006-0	01	1	0809-
51	UNION WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0808
51	UNION WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0809-
97	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	02	1	0803-0808
97	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE	0-91180-210-0	02	1	0809-
97	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	02	1	0803-0808
97	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	02	1	0809-
118	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE	0-91180-210-0	02	1	0809-
124	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	02	1	0803-0808
124	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	0809-
124	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	02	1	0803-0808
124	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE	0-28650-825-0	02	1	0809-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M12 2WAY	1-09654-059-2	01	1	0809-
189	BRACKET; FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W)	8-98054-640-0	01	1	0803-0808
189	BRACKET; FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM>	8-98054-640-0	01	1	0809-
189	BRACKET; FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W)	1-47479-914-0	01	1	0803-0808
189	BRACKET; FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM>	1-47479-914-0	01	1	0809-
202	ADAPTER EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0803-0808
202	ADAPTER CATALYSIS CONTROL WITH DPD<8JM> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> M12 L=66.5	0-92113-306-0	01	1	0809-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV), CATALYSIS CONTROL WITH DPD<8JM> M12 L=66.5	0-92113-306-0	01	1	0809-
243	UNION; AIR PIPE BRAKE REGULATION ECE(TDV) M12 ELBOW	0-92125-206-0	01	1	0803-0808
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M12 ELBOW	0-92125-206-0	01	1	0809-
243	UNION; AIR PIPE EXC. BRAKE REGULATION ECE(TDV) M12 3WAY	0-92138-906-0	01	1	0803-0808
243	UNION; AIR PIPE PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CATALYSIS CONTROL WITH DPD<8JM> M12 3WAY	0-92138-906-0	01	1	0809-
243	UNION; AIR PIPE PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV),CATALYSIS CONTROL WITH DPD<8JM> M12 3WAY	0-92138-906-0	01	1	0809-
243	UNION; AIR PIPE BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROL WITH DPD<8JM> M12 3WAY	0-92138-906-0	01	1	0809-
243	UNION; AIR PIPE BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 3WAY	0-92138-906-0	01	1	0809-
243	UNION; AIR PIPE EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV),CATALYSIS CONTROL WITH DPD<8JM> M12 3WAY	0-92138-906-0	01	1	0809-
243	UNION; AIR PIPE CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ECE(TDV) M12 3WAY	0-92138-906-0	01	1	0809-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0803-
258	CONNECTOR; NYLON TUBE BRAKE REGULATION ECE(TDV) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0803-0808
258	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-
264	HOSE; FLEX WHEEL BASE 3700MM(37W) L=340	1-09363-622-0	01	1	0803-0808
264	HOSE; FLEX WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> L=340	1-09363-622-0	01	1	0809-
264	HOSE; FLEX WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) L=240	1-09363-671-0	01	1	0803-0808
264	HOSE; FLEX WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> L=240	1-09363-671-0	01	1	0809-
264	HOSE; FLEX WHEEL BASE 4800MM(48W) L=370	1-09363-621-0	01	1	0803-0808
264	HOSE; FLEX WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> L=370	1-09363-621-0	01	1	0809-
287	PIPE; AIR,MAG VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
287	PIPE; AIR,MAG VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
287	PIPE; AIR,MAG VLV BRAKE REGULATION ECE(TDV) L=862 SERVICED BY L=900	1-47428-813-0	01	1	0803-0808
287	PIPE; AIR,MAG VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> L=862 SERVICED BY L=900	1-47428-813-0	01	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0803-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0803-
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0803-0808
316	NUT; FLEX HOSE CATALYSIS CONTROL WITH DPD<8JM> M12	9-09840-280-0	01	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	0803-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0803-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	0803-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0803-
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	03	1	0806-0808
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	0809-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	0809-
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) M8X25 FLANGE	0-28650-825-0	01	1	0804-0808
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE	0-28650-825-0	01	1	0809-
377	BOLT; BRKT FIX BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	0803-0803
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	0804-0808
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	0809-0811
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	0812-1008
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	0812-1008
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	01	1	1009-
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	01	1	1009-
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	0803-0808
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0809-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	03	1	0809-
381	BRACKET EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (B)	8-98135-449-0	01	1	0812-1107
381	BRACKET TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (B)	8-98135-449-0	01	1	1108-
381	BRACKET EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	0812-1107
381	BRACKET TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1108-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98119-700-0	01	1	0809-
428	NUT; BRKT BRAKE REGULATION ECE(TDV) (A) M10 FLANGE	0-91180-210-0	01	1	0803-0803
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) (A) M10 FLANGE	0-91180-210-0	01	1	0804-0808
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) M10 FLANGE	0-91180-210-0	01	1	0809-0811
428	NUT; BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) (A) M10 FLANGE	0-91180-210-0	01	1	0812-1008
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) M10 FLANGE	0-91180-210-0	01	1	0812-1008
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) M10 FLANGE	0-91180-210-0	01	1	1009-
428	NUT; BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10 FLANGE	0-91180-210-0	01	1	1009-
428	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0803-0808
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	0809-
428	NUT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) M8 FLANGE	0-91180-108-0	01	1	0809-
428	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	0803-0805
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. RIGID SEAT WO/ARM REST<TAZ> (E) ID=24 L=24	1-09701-001-1	01	1	1009-1107
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0804-0808
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0809-0811
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0812-1008
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	02	1	1009-1109
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	02	1	1110-
434	CLIP BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0803-0803
434	CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0804-0808
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0809-0811
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0812-1008
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0812-1008
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1009-1109
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1009-1109
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1110-
434	CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1110-
434	CLIP BRAKE REGULATION ECE(TDV) (D) ID=10 & 15	1-09709-279-1	01	1	0803-0808
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) ID=10 & 15	1-09709-279-1	01	1	0809-
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	07	1	0803-0808
434	CLIP WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	07	1	0809-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	04	1	0803-0808
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	0809-0909
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	0910-1008
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	04	1	0910-1008
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1009-1109
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1009-1109
434	CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1110-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1110-
434	CLIP WHEEL BASE 4800MM(48W) (A) L=350	1-09707-183-0	06	1	0803-0808
434	CLIP WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	06	1	0809-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0803-0811
434	CLIP EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0812-1107
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1108-
434	CLIP (A) L=350	1-09707-183-0	01	1	0803-0808
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0809-1008
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-
434	CLIP (A) L=350	1-09707-183-0	12	1	0803-0808
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	0809-1109
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0809-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	0803-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0803-0811
435	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	02	1	0812-1107
435	BOLT; CLIP EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1108-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0803-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0803-
444	BOLT; UNION EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> M8X20 FLANGE	0-28650-820-0	02	1	0812-1107
444	BOLT; UNION TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> M8X20 FLANGE	0-28650-820-0	02	1	1108-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	0809-
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (E)	8-98116-680-0	01	1	0804-0808
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E)	8-98116-680-0	01	1	0809-
450	BRACKET; CLIP BRAKE REGULATION ECE(TDV) (A)	8-98100-216-0	01	1	0803-0803
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) (A)	8-98100-216-1	01	1	0804-0808
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A)	8-98100-216-1	01	1	0809-0811
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) (A)	8-98100-216-1	01	1	0812-1008
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A)	8-98100-216-1	01	1	0812-1008
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98100-216-1	01	1	1009-
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98100-216-1	01	1	1009-
450	BRACKET; CLIP (C) L=60 H=30	1-47477-716-1	01	1	0803-0806
450	BRACKET; CLIP (F)	1-47477-694-0	01	1	0807-0808
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	1-47477-694-0	01	1	0809-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (F)	1-47477-694-0	01	1	0809-
450	BRACKET; CLIP (D)	8-98021-994-1	03	1	0803-0805
450	BRACKET; CLIP (G)	8-98117-686-0	03	1	0806-0808
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98117-686-0	03	1	0809-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G)	8-98117-686-0	03	1	0809-
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0803-0808
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	0809-1107
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0809-1107
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98180-947-0	01	1	1108-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98180-947-0	01	1	1108-
467	CLIP; NYLON TUBE WHEEL BASE 4300MM(43W) BRAKE REGULATION ECE(TDV) L=250	1-09707-126-0	04	1	0803-0906

264 97 189 124 51 51 316 51 244 434 202 297 251 434 243 217 434 434 434 367 377 450 436 434 377 450 435 450 377 381 148 428 12 118 444 202 296 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	0809-
51	UNION WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0808
51	UNION WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-
51	UNION WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (C) M12 ELBOW	0-92125-006-0	01	1	0803-0808
51	UNION WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 ELBOW	0-92125-006-0	01	1	0809-
51	UNION WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0808
51	UNION WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0809-
97	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	02	1	0803-0808
97	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE	0-91180-210-0	02	1	0809-
97	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	02	1	0803-0808
97	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	02	1	0809-
118	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE	0-91180-210-0	02	1	0809-
124	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	02	1	0803-0808
124	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	0809-
124	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	02	1	0803-0808
124	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE	0-28650-825-0	02	1	0809-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M12 2WAY	1-09654-059-2	01	1	0809-
189	BRACKET; FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W)	8-98054-640-0	01	1	0803-0808
189	BRACKET; FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM>	8-98054-640-0	01	1	0809-
189	BRACKET; FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W)	1-47479-914-0	01	1	0803-0808
189	BRACKET; FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM>	1-47479-914-0	01	1	0809-
202	ADAPTER EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0803-0808
202	ADAPTER CATALYSIS CONTROL WITH DPD<8JM> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-
217	PIPE; VAC,UNION TO MAG VLV RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> L=480	8-98120-257-0	01	1	0809-
217	PIPE; VAC,UNION TO MAG VLV RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV), CATALYSIS CONTROL WITH DPD<8JM> L=480	8-98120-257-0	01	1	0809-
217	PIPE; VAC,UNION TO MAG VLV EXC. BRAKE REGULATION ECE(TDV) L=456	8-98067-434-0	01	1	0803-0808
217	PIPE; VAC,UNION TO MAG VLV PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV),CATALYSIS CONTROL WITH DPD<8JM> L=456	8-98067-434-0	01	1	0809-
217	PIPE; VAC,UNION TO MAG VLV BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=456	8-98067-434-0	01	1	0809-
217	PIPE; VAC,UNION TO MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV),CATALYSIS CONTROL WITH DPD<8JM> L=456	8-98067-434-0	01	1	0809-
217	PIPE; VAC,UNION TO MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ECE(TDV) L=456	8-98067-434-0	01	1	0809-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> M12 L=66.5	0-92113-306-0	01	1	0809-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV), CATALYSIS CONTROL WITH DPD<8JM> M12 L=66.5	0-92113-306-0	01	1	0809-
243	UNION; AIR PIPE BRAKE REGULATION ECE(TDV) M12 ELBOW	0-92125-206-0	01	1	0803-0808
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M12 ELBOW	0-92125-206-0	01	1	0809-
243	UNION; AIR PIPE EXC. BRAKE REGULATION ECE(TDV) M12 3WAY	0-92138-906-0	01	1	0803-0808
243	UNION; AIR PIPE PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CATALYSIS CONTROL WITH DPD<8JM> M12 3WAY	0-92138-906-0	01	1	0809-
243	UNION; AIR PIPE PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV),CATALYSIS CONTROL WITH DPD<8JM> M12 3WAY	0-92138-906-0	01	1	0809-
243	UNION; AIR PIPE BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROL WITH DPD<8JM> M12 3WAY	0-92138-906-0	01	1	0809-
243	UNION; AIR PIPE BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 3WAY	0-92138-906-0	01	1	0809-
243	UNION; AIR PIPE EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV),CATALYSIS CONTROL WITH DPD<8JM> M12 3WAY	0-92138-906-0	01	1	0809-
243	UNION; AIR PIPE CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ECE(TDV) M12 3WAY	0-92138-906-0	01	1	0809-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0803-
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	0809-
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	0809-
251	PIPE; AIR,UNION TO MAG VLV BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	0809-
251	PIPE; AIR,UNION TO MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	0809-
251	PIPE; AIR,UNION TO MAG VLV EXC. BRAKE REGULATION ECE(TDV) L=980 SERVICED BY L=1000	1-47428-814-0	01	1	0803-0808
251	PIPE; AIR,UNION TO MAG VLV BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=980 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
251	PIPE; AIR,UNION TO MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ECE(TDV) L=980 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
264	HOSE; FLEX WHEEL BASE 3700MM(37W) L=340	1-09363-622-0	01	1	0803-0808
264	HOSE; FLEX WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> L=340	1-09363-622-0	01	1	0809-
264	HOSE; FLEX WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) L=240	1-09363-671-0	01	1	0803-0808
264	HOSE; FLEX WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> L=240	1-09363-671-0	01	1	0809-
264	HOSE; FLEX WHEEL BASE 4800MM(48W) L=370	1-09363-621-0	01	1	0803-0808
264	HOSE; FLEX WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> L=370	1-09363-621-0	01	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0803-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0803-
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0803-0808
316	NUT; FLEX HOSE CATALYSIS CONTROL WITH DPD<8JM> M12	9-09840-280-0	01	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	0803-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0803-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	0803-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0803-
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	03	1	0806-0808
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	0809-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	0809-
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) M8X25 FLANGE	0-28650-825-0	01	1	0804-0808
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE	0-28650-825-0	01	1	0809-
377	BOLT; BRKT FIX BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	0803-0803
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	0804-0808
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	0809-0811
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	0812-1008
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	0812-1008
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	01	1	1009-
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	01	1	1009-
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	0803-0808
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0809-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	03	1	0809-
381	BRACKET EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (B)	8-98135-449-0	01	1	0812-1107
381	BRACKET TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (B)	8-98135-449-0	01	1	1108-
381	BRACKET EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	0812-1107
381	BRACKET TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1108-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98119-700-0	01	1	0809-
428	NUT; BRKT BRAKE REGULATION ECE(TDV) (A) M10 FLANGE	0-91180-210-0	01	1	0803-0803
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) (A) M10 FLANGE	0-91180-210-0	01	1	0804-0808
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) M10 FLANGE	0-91180-210-0	01	1	0809-0811
428	NUT; BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) (A) M10 FLANGE	0-91180-210-0	01	1	0812-1008
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) M10 FLANGE	0-91180-210-0	01	1	0812-1008
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) M10 FLANGE	0-91180-210-0	01	1	1009-
428	NUT; BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10 FLANGE	0-91180-210-0	01	1	1009-
428	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0803-0808
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	0809-
428	NUT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) M8 FLANGE	0-91180-108-0	01	1	0809-
428	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	0803-0805
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. RIGID SEAT WO/ARM REST<TAZ> (E) ID=24 L=24	1-09701-001-1	01	1	1009-1107
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0804-0808
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0809-0811
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0812-1008
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	02	1	1009-1109
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	02	1	1110-
434	CLIP BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	02	1	0803-0803
434	CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0804-0808
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0809-0811
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0812-1008
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	0812-1008
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1009-1109
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1009-1109
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1110-
434	CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	1110-
434	CLIP BRAKE REGULATION ECE(TDV) (D) ID=10 & 15	1-09709-279-1	01	1	0803-0808
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) ID=10 & 15	1-09709-279-1	01	1	0809-
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	07	1	0803-0808
434	CLIP WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	07	1	0809-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	04	1	0803-0808
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	0809-0909
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	04	1	0910-1008
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	04	1	0910-1008
434	CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1009-1109
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1009-1109
434	CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1110-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	03	1	1110-
434	CLIP WHEEL BASE 4800MM(48W) (A) L=350	1-09707-183-0	06	1	0803-0808
434	CLIP WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350	1-09707-183-0	06	1	0809-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0803-0811
434	CLIP EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0812-1107
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1108-
434	CLIP (A) L=350	1-09707-183-0	01	1	0803-0808
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0809-1008
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-
434	CLIP (A) L=350	1-09707-183-0	12	1	0803-0808
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	0809-1109
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0809-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	0803-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0803-0811
435	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	02	1	0812-1107
435	BOLT; CLIP EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1108-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0803-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0803-
444	BOLT; UNION EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> M8X20 FLANGE	0-28650-820-0	02	1	0812-1107
444	BOLT; UNION TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> M8X20 FLANGE	0-28650-820-0	02	1	1108-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	0809-
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (E)	8-98116-680-0	01	1	0804-0808
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E)	8-98116-680-0	01	1	0809-
450	BRACKET; CLIP BRAKE REGULATION ECE(TDV) (A)	8-98100-216-0	01	1	0803-0803
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE REGULATION ECE(TDV) (A)	8-98100-216-1	01	1	0804-0808
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A)	8-98100-216-1	01	1	0809-0811
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) (A)	8-98100-216-1	01	1	0812-1008
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A)	8-98100-216-1	01	1	0812-1008
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98100-216-1	01	1	1009-
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98100-216-1	01	1	1009-
450	BRACKET; CLIP (C) L=60 H=30	1-47477-716-1	01	1	0803-0806
450	BRACKET; CLIP (F)	1-47477-694-0	01	1	0807-0808
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	1-47477-694-0	01	1	0809-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (F)	1-47477-694-0	01	1	0809-
450	BRACKET; CLIP (D)	8-98021-994-1	03	1	0803-0805
450	BRACKET; CLIP (G)	8-98117-686-0	03	1	0806-0808
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98117-686-0	03	1	0809-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G)	8-98117-686-0	03	1	0809-
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0803-0808
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	0809-1107
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0809-1107
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98180-947-0	01	1	1108-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98180-947-0	01	1	1108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
