◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11120 - FRR-L EU2/4 EXC.SPAC ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#66391) — 40 parça

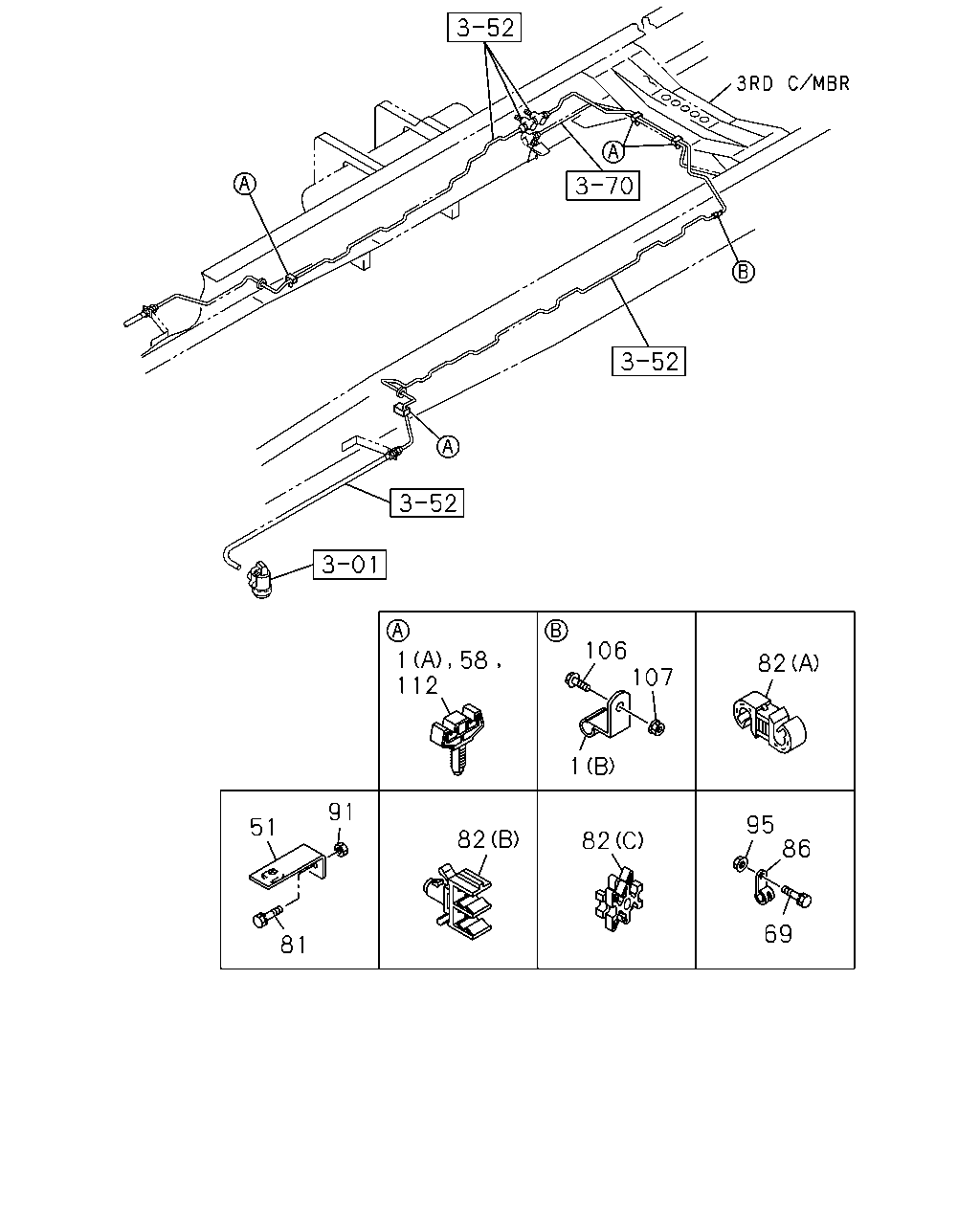

çizim 121117
106 107 112 82 1 91 95 86 51 82 82 69 81 1 58
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 07 1 0803-
1 CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20 		8-98040-714-0 05 1 0803-
51 BRACKET; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) L=105 B=25 		1-47476-161-0 01 1 0803-0803
58 CLIP; OIL PIPE 8-98012-254-1 05 1 0803-
69 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0803-
81 BOLT; BRKT,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (C) ID=4.7X4 		1-09701-304-0 02 1 0803-0805
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 4.76 		1-09709-303-0 02 1 0806-
82 CLIP; OIL PIPE
(C) ID=4.7X4 		1-09701-304-0 03 1 0803-0803
82 CLIP; OIL PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 0803-0803
82 CLIP; OIL PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 0804-
82 CLIP; OIL PIPE
(A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0803-0803
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0803-0901
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0902-
82 CLIP; OIL PIPE
(A) ID=4.76 & 10.0 		1-09709-305-0 01 1 0803-0910
82 CLIP; OIL PIPE
(A) ID=4.76 & 10.0 		1-09709-305-0 01 1 0911-
82 CLIP; OIL PIPE
(A) ID=4.76 & 10.0 		1-09709-305-0 01 1 0911-
82 CLIP; OIL PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 0803-0803
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (B) ID=4.8X2 		8-94316-410-0 01 1 0803-0803
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (C) ID=4.7X4 		1-09701-304-0 03 1 0803-0901
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (C) ID=4.7X4 		1-09701-304-0 03 1 0902-
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 02 1 0803-0803
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 04 1 0803-
86 CLIP; OIL PIPE 8-98085-372-0 02 1 0803-
91 NUT; BRKT,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M8 FLANGE 		0-91180-108-0 01 1 0803-0803
95 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0803-0909
106 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 05 1 0803-
107 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 05 1 0803-
112 CLIP; OIL PIPE
WHEEL BASE 3700MM(37W) 		8-98012-254-1 02 1 0803-
112 CLIP; OIL PIPE
WHEEL BASE 4300MM(43W) 		8-98012-254-1 04 1 0803-
112 CLIP; OIL PIPE
WHEEL BASE 4800MM(48W) 		8-98012-254-1 05 1 0803-
112 CLIP; OIL PIPE
WHEEL BASE 5500MM(55W) 		8-98012-254-1 07 1 0803-

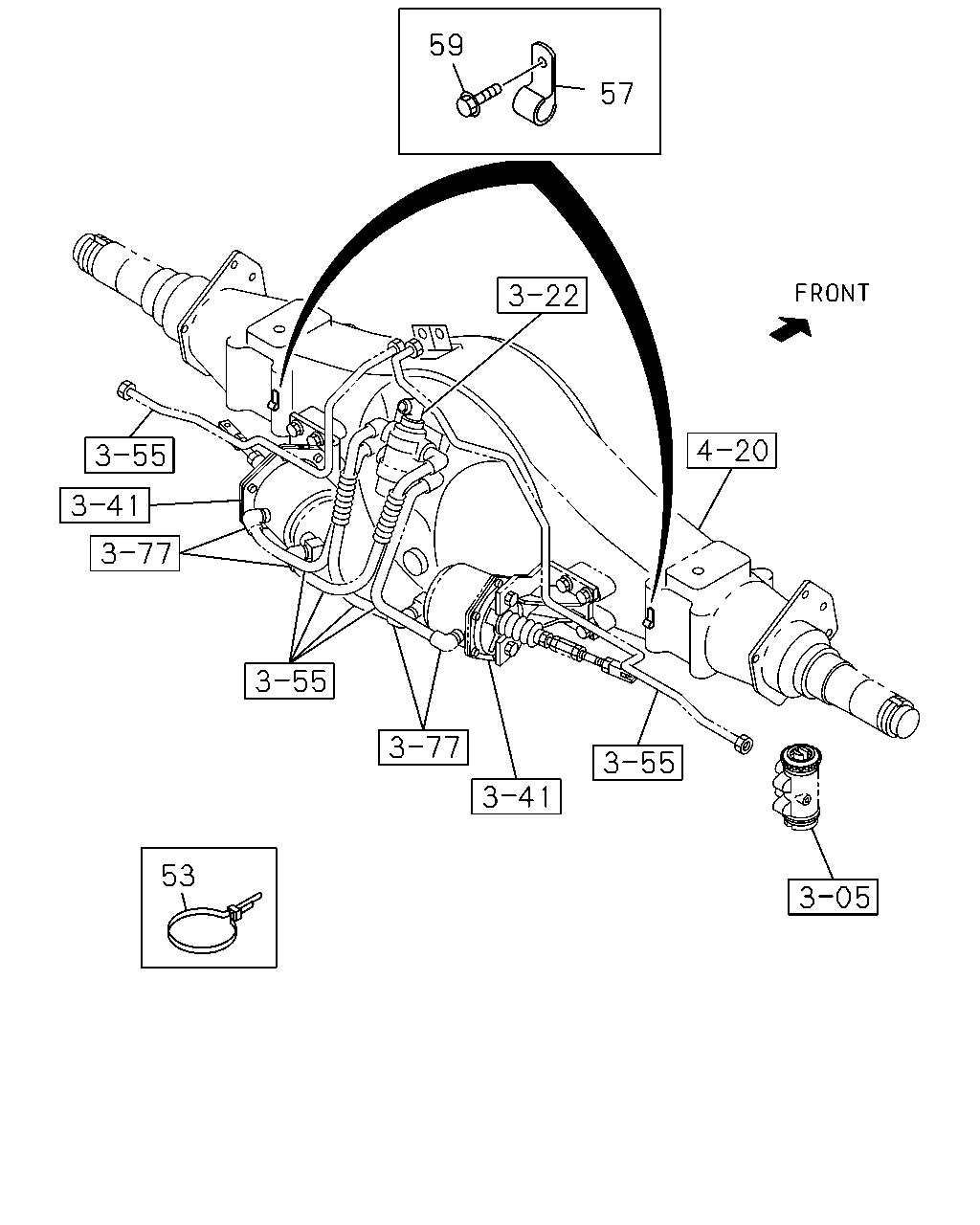

çizim 193046
59 57 53
BalonParca AdiParca NoAdetTipApplied Date
53 CLIP; UNION
L=250 		1-09707-126-0 05 1 0803-0808
53 CLIP; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 05 1 0809-
57 CLIP; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20 		0-95234-635-0 04 1 1012-
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 02 1 0803-1011
57 CLIP; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20 		0-95234-635-0 02 1 1012-
59 BOLT; BRK PIPE,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE 		0-28050-810-0 04 1 1012-
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 02 1 0803-1011
59 BOLT; BRK PIPE,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE 		0-28050-810-0 02 1 1012-
