◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#66385) — 63 parça

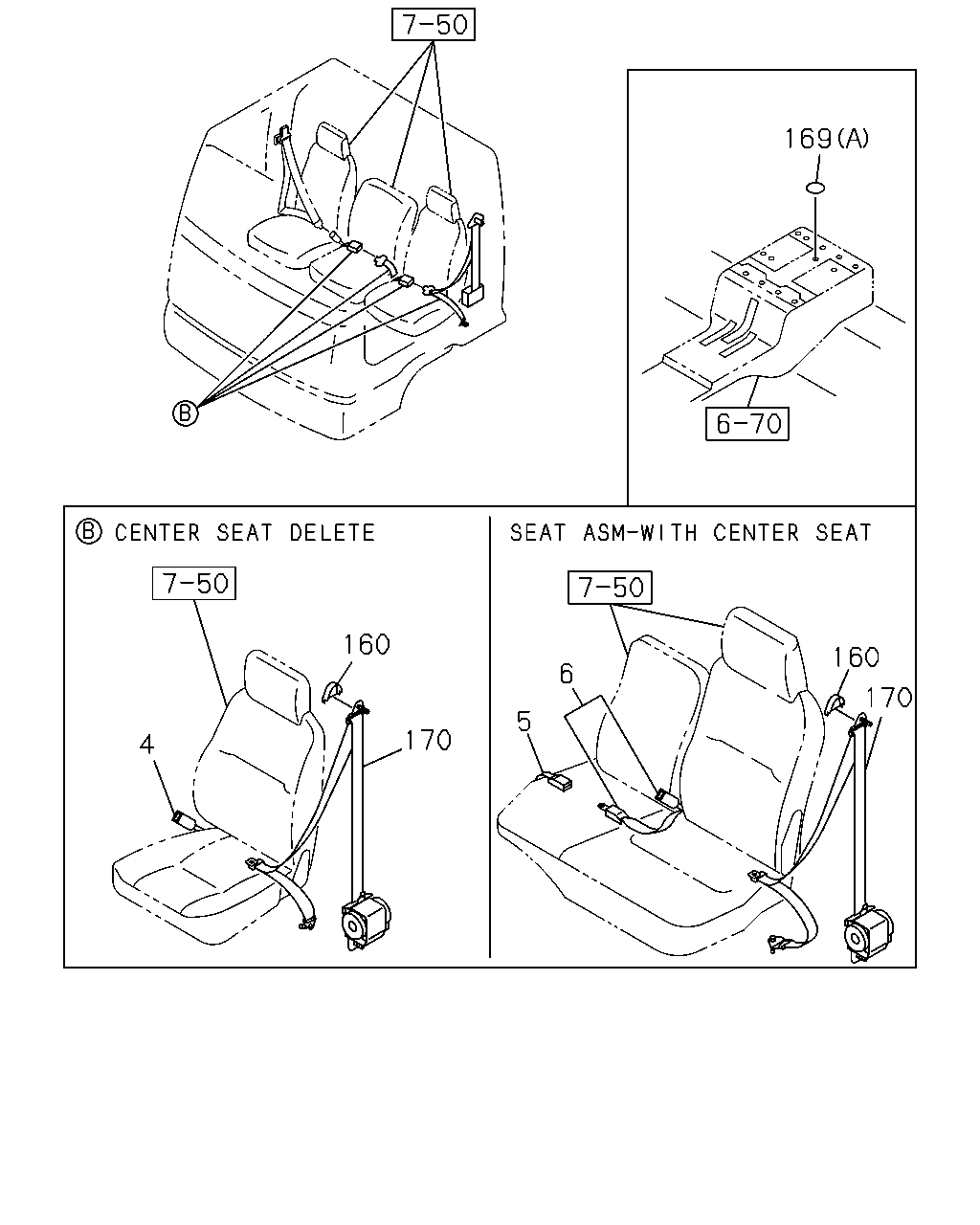

çizim 135826
169 160 160 6 170 5 170 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-376-1 01 1 0710-1310 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-376-1 01 1 1311- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 0710-0711 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 0712- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 0712- ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 0710-0711 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 0712-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97409-768-3 01 1 0712-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1210- ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1210- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0712- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0710-0711 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0712- ● ●
169 SEAL
BODY COLOR FT ORANGE(609),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0712-0905 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944) ,BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906-0906 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906- ●
169 SEAL
BODY COLOR ARC WHITE(729) (B) OD=36 WHITE 		8-94271-620-1 02 1 0712-0905 ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 WHITE 		8-94271-620-1 02 1 0906- ●
169 SEAL
CENTER SEAT DELETE<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 0710- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-771-5 01 1 0710-0711 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-771-5 01 1 0712-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-521-2 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1408- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-770-4 01 1 0710-0711 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-770-4 01 1 0712-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1408- ● ●
çizim 135852
160 18 19 160 20 20 18 19 21 12 21 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 0712- ●
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 0712- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97407-379-0 02 1 0712- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-770-2 01 1 0712-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-709-1 01 1 1210- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-771-2 01 1 0712-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-710-1 01 1 1210- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-380-0 01 1 0712- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-381-1 01 1 0712- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0712- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0710-0711 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0712- ● ●

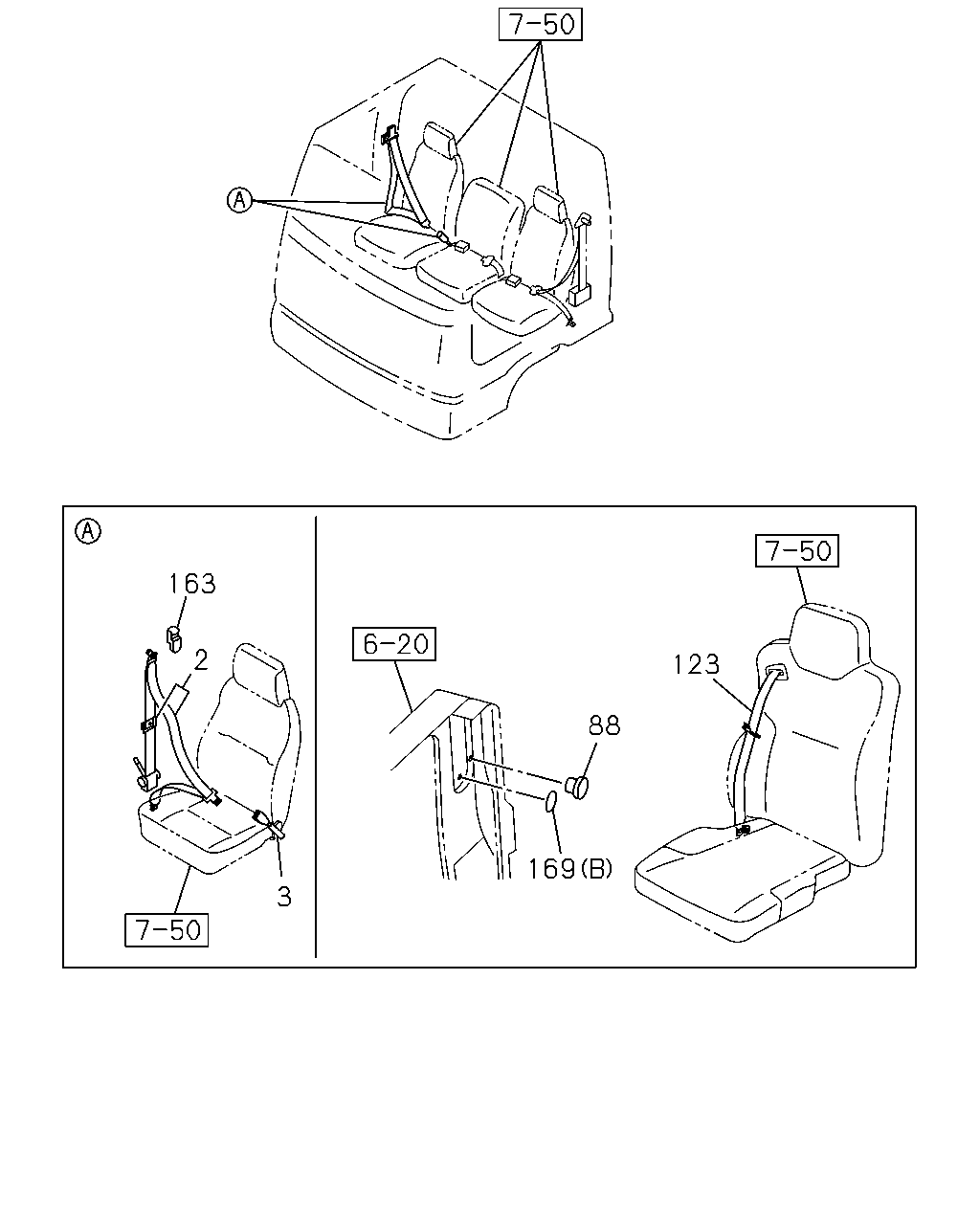

çizim 192155
163 2 123 88 169 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-771-5 01 1 0710-1209 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97423-521-2 01 1 1210-1310 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97423-521-2 01 1 1311-1407 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97428-394-0 01 1 1408- ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-770-4 01 1 0710-1209 ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97423-516-1 01 1 1210-1310 ●
2 BELT; SEAT,TONGUE SIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1311-1407 ●
2 BELT; SEAT,TONGUE SIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1408- ●
3 BELT; SEAT,BUCKLE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-374-2 01 1 0710- ●
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 0710-0711 ●
88 PLUG; HOLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97411-466-0 01 1 0712- ●
123 BELT ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 0710-0711 ●
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 0712- ●
123 BELT ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 0712- ●
123 BELT ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 0710-0711 ●
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 0712-1508 ●
123 BELT ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 0712-1508 ●
163 COVER; ADJUSTER
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97405-991-0 01 1 0712- ●
169 SEAL
BODY COLOR FT ORANGE(609),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0712-0905 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944) ,BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906-0906 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906- ●
169 SEAL
BODY COLOR ARC WHITE(729) (B) OD=36 WHITE 		8-94271-620-1 02 1 0712-0905 ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 WHITE 		8-94271-620-1 02 1 0906- ●
169 SEAL
CENTER SEAT DELETE<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 0710- ●
