◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#66383) — 1358 parça

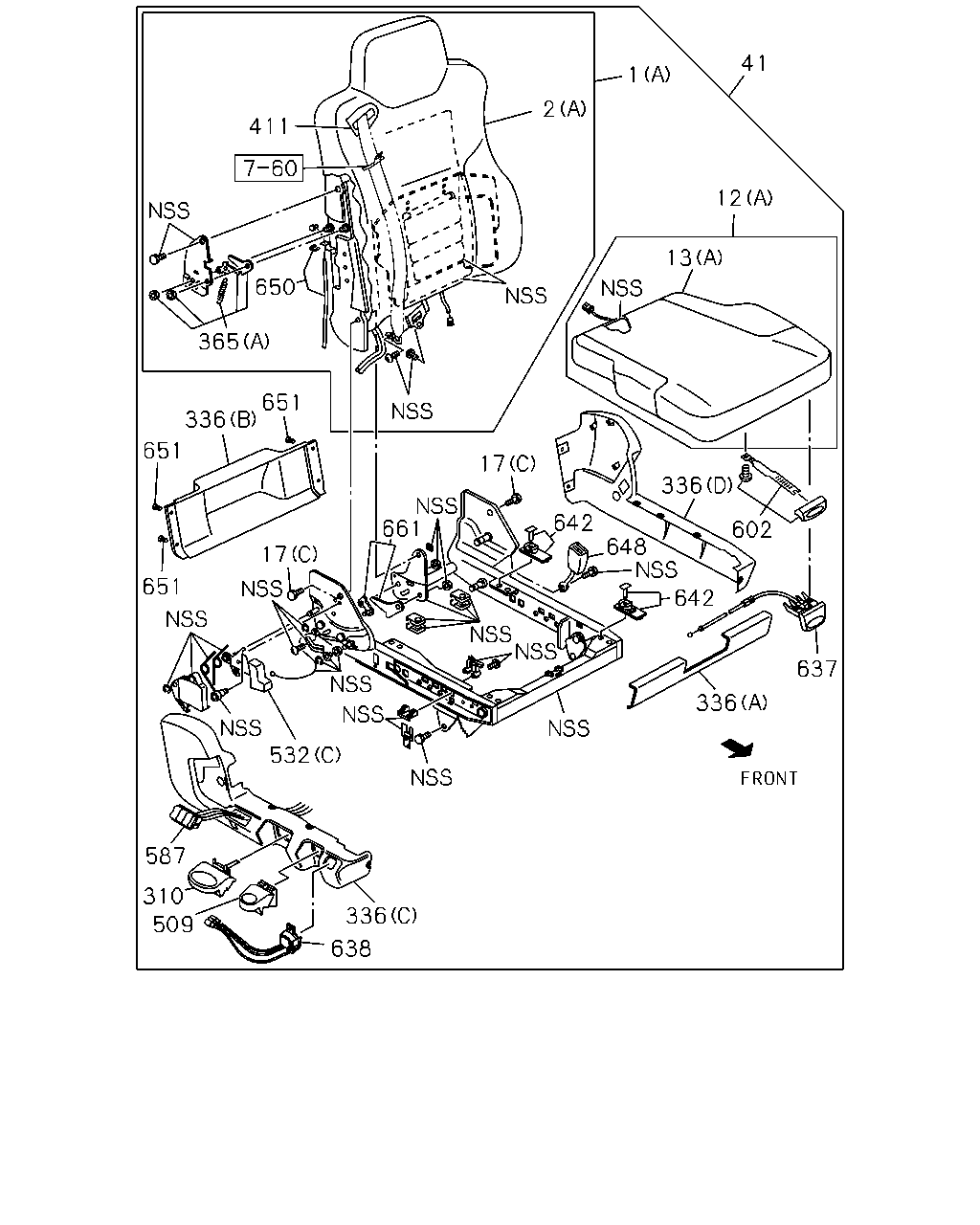

çizim 134208
336 638 509 587 310 532 336 637 602 642 648 642 17 661 17 651 651 336 651 365 650 411 13 12 41 1 2 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0710-0711 ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0710-0711 ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-112-2 01 1 0712-0902 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-202-0 01 1 0903-1009 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1010-1506 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-407-1 01 1 1507-1508 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1510-1512 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-97466-622-0 01 1 1601- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 0712-0906 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY 		8-97409-955-5 01 1 0907-1502 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-955-5 01 1 1503-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 1510-1512 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97466-618-0 01 1 1601- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-201-0 01 1 1001-1009 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1010-1506 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-406-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1510-1512 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) 		8-97466-620-0 01 1 1601- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0710-0711 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-113-1 01 1 0712-0902 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-207-0 01 1 0903-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1010-1506 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-412-0 01 1 1507-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 0712-0906 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY 		8-97411-910-2 01 1 0907-1502 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97411-910-2 01 1 1503-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-206-0 01 1 1001-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1010-1506 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-411-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1510- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0710-0711 ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-120-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-1 01 1 1010-1506 ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) 		8-97466-611-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-958-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-1 01 1 1010-1508 ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1509-1509 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		8-97466-610-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 0712-1502 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) 		8-97466-608-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-954-2 01 1 0712-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97466-606-0 01 1 1601- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0710-0711 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-121-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-1 01 1 1010-1506 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-2 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97414-111-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-1 01 1 1010-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1509-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 0712-0906 ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY 		8-97411-909-1 01 1 0907-1502 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97411-909-1 01 1 1503-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 1510- ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0710-0711 ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0712- ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0711 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0712-1502 ●
17 BOLT; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1509-1509 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1510- ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-0711 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-0711 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0710-0711 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-992-0 01 1 0712-1508 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0712-1508 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-992-0 01 1 1509- ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-992-0 01 1 1509- ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0710-0711 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D) 		8-98097-978-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98331-313-0 01 1 1509- ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98331-313-0 01 1 1509- ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0710-0711 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-984-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-984-0 01 1 1509- ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-984-0 01 1 1509- ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0710-0711 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-995-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-995-0 01 1 1509- ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-995-0 01 1 1509- ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0710-0711 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98097-996-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98097-996-0 01 1 1509- ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98097-996-0 01 1 1509- ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0710-0711 ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-972-0 01 1 0712-1508 ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0712-1508 ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1509- ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1509- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 0710-0711 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 0712-1104 ●
365 LOCK ASM; SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1110- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
(B) 		1-72538-312-0 01 1 1105-1109 ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0710-0711 ●
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-967-0 01 1 0712-1508 ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0712-1508 ●
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-967-0 01 1 1509- ●
411 GUIDE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-967-0 01 1 1509- ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0710-0711 ●
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-988-0 01 1 0712-1508 ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0712-1508 ●
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-988-0 01 1 1509- ●
509 LEVER; DAMPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-988-0 01 1 1509- ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0710-0711 ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-982-0 01 1 0712-1508 ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0712-1508 ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-982-0 01 1 1509- ●
532 LEVER ASM; TILT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-982-0 01 1 1509- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 0712-1506 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-203-0 01 1 1507-1508 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 1510- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 0712-1506 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-204-1 01 1 1507-1508 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 1510- ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0710-0711 ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-986-0 01 1 0712-1508 ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0712-1508 ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-986-0 01 1 1509- ●
587 VALVE; LUMBAR SUPPORT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-986-0 01 1 1509- ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0710-0711 ●
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-008-0 01 1 0712-1508 ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0712-1508 ●
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-008-0 01 1 1509- ●
602 KNOB; ADJ,SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-008-0 01 1 1509- ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0710-0711 ●
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-989-0 01 1 0712-1508 ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0712-1508 ●
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-989-0 01 1 1509- ●
637 LEVER; SLOPE ADJ
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-989-0 01 1 1509- ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0710-0711 ●
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-994-0 01 1 0712-1508 ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0712-1508 ●
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-994-0 01 1 1509- ●
638 VALVE; LOWERING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-994-0 01 1 1509- ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0710-0711 ●
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98192-932-0 04 1 0712-1508 ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0712-1508 ●
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98192-932-0 04 1 1509- ●
642 SLIDER; CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98192-932-0 04 1 1509- ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0710-0711 ●
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-976-0 01 1 0712-1508 ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0712-1508 ●
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-976-0 01 1 1509- ●
648 BUCKLE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-976-0 01 1 1509- ●
650 CABLE 8-98097-973-0 01 1 0710-0711 ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-973-0 01 1 0712-1212 ●
650 CABLE 8-98097-973-0 01 1 0712-1212 ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98232-354-0 01 1 1301-1508 ●
650 CABLE 8-98232-354-0 01 1 1301-1508 ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-354-0 01 1 1509- ●
650 CABLE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-354-0 01 1 1509- ●
651 RIVET 8-98194-075-0 04 1 0710-0711 ●
651 RIVET
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98194-075-0 04 1 0712-1508 ●
651 RIVET 8-98194-075-0 04 1 0712-1508 ●
651 RIVET
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98194-075-0 04 1 1509- ●
651 RIVET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98194-075-0 04 1 1509- ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0710-0711 ●
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-980-0 01 1 0712-1508 ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0712-1508 ●
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-980-0 01 1 1509- ●
661 LOCK ASM; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-980-0 01 1 1509- ●
çizim 135020
228 24 17 19 12 13 633 327 67 290 62 69 306 74 348 100 107 2 1 126 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0710-0711 ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0710-0711 ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-112-2 01 1 0712-0902 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-202-0 01 1 0903-1009 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1010-1506 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-407-1 01 1 1507-1508 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1510-1512 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-97466-622-0 01 1 1601- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 0712-0906 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY 		8-97409-955-5 01 1 0907-1502 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-955-5 01 1 1503-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 1510-1512 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97466-618-0 01 1 1601- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-201-0 01 1 1001-1009 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1010-1506 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-406-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1510-1512 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) 		8-97466-620-0 01 1 1601- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0710-0711 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-113-1 01 1 0712-0902 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-207-0 01 1 0903-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1010-1506 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-412-0 01 1 1507-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 0712-0906 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY 		8-97411-910-2 01 1 0907-1502 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97411-910-2 01 1 1503-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-206-0 01 1 1001-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1010-1506 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-411-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1510- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0710-0711 ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-120-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-1 01 1 1010-1506 ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) 		8-97466-611-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-958-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-1 01 1 1010-1508 ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1509-1509 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		8-97466-610-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 0712-1502 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) 		8-97466-608-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-954-2 01 1 0712-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97466-606-0 01 1 1601- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0710-0711 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-121-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-1 01 1 1010-1506 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-2 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97414-111-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-1 01 1 1010-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1509-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 0712-0906 ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY 		8-97411-909-1 01 1 0907-1502 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97411-909-1 01 1 1503-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 1510- ●

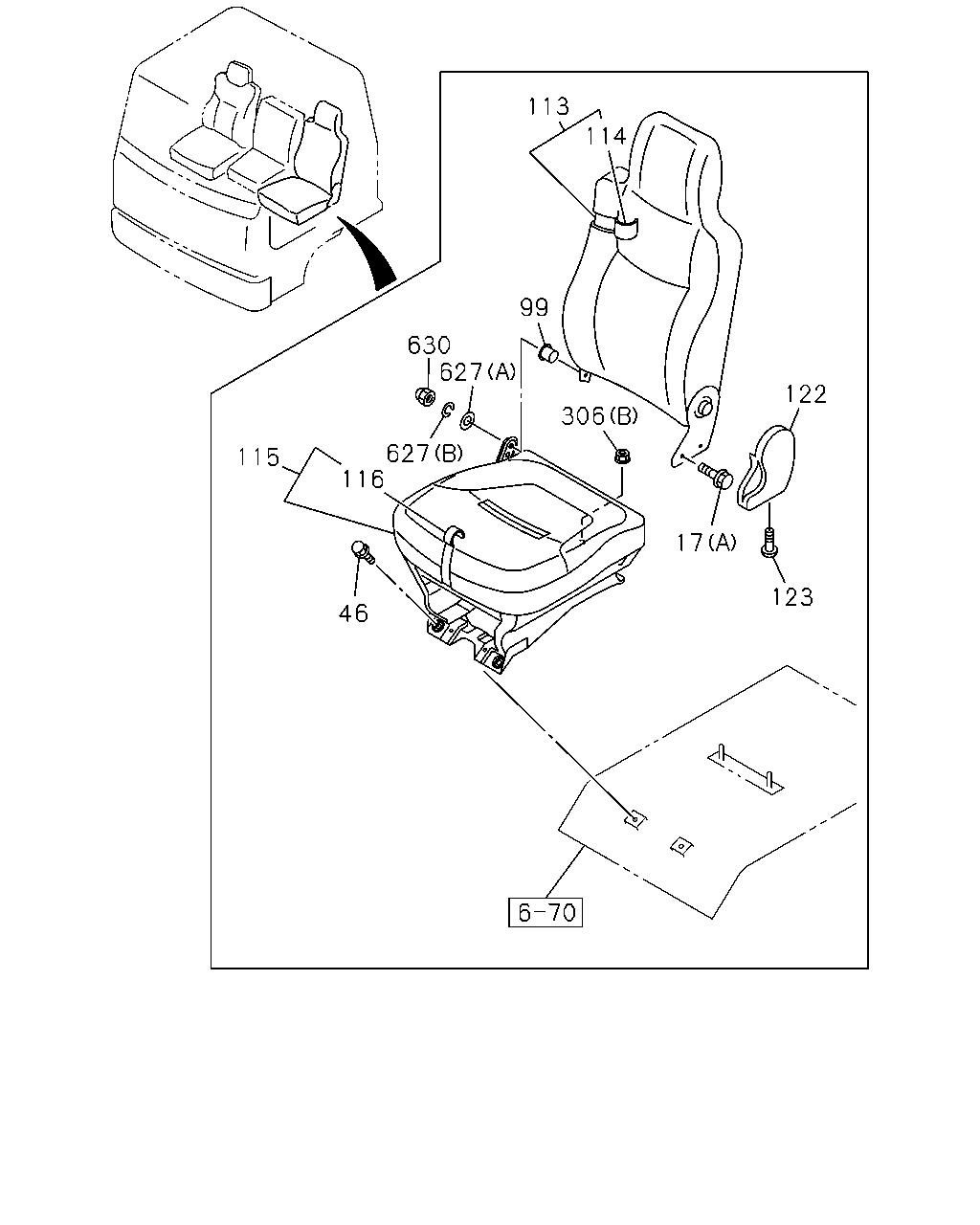

17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0710-0711 ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0712- ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0711 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0712-1502 ●
17 BOLT; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1509-1509 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1510- ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 0712-1502 ●
18 COVER; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1507-1508 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1507-1508 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1509-1509 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 1510- ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 0712-1502 ●
19 SCREW; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1508 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1508 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1509-1509 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1510- ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 0712-1502 ●
24 KNOB; RECLINING,FRT,SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1507-1508 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1507-1508 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1509-1509 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 1510- ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-183-8 01 1 0712-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1404-1506 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-448-0 01 1 1507-1508 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1510- ●

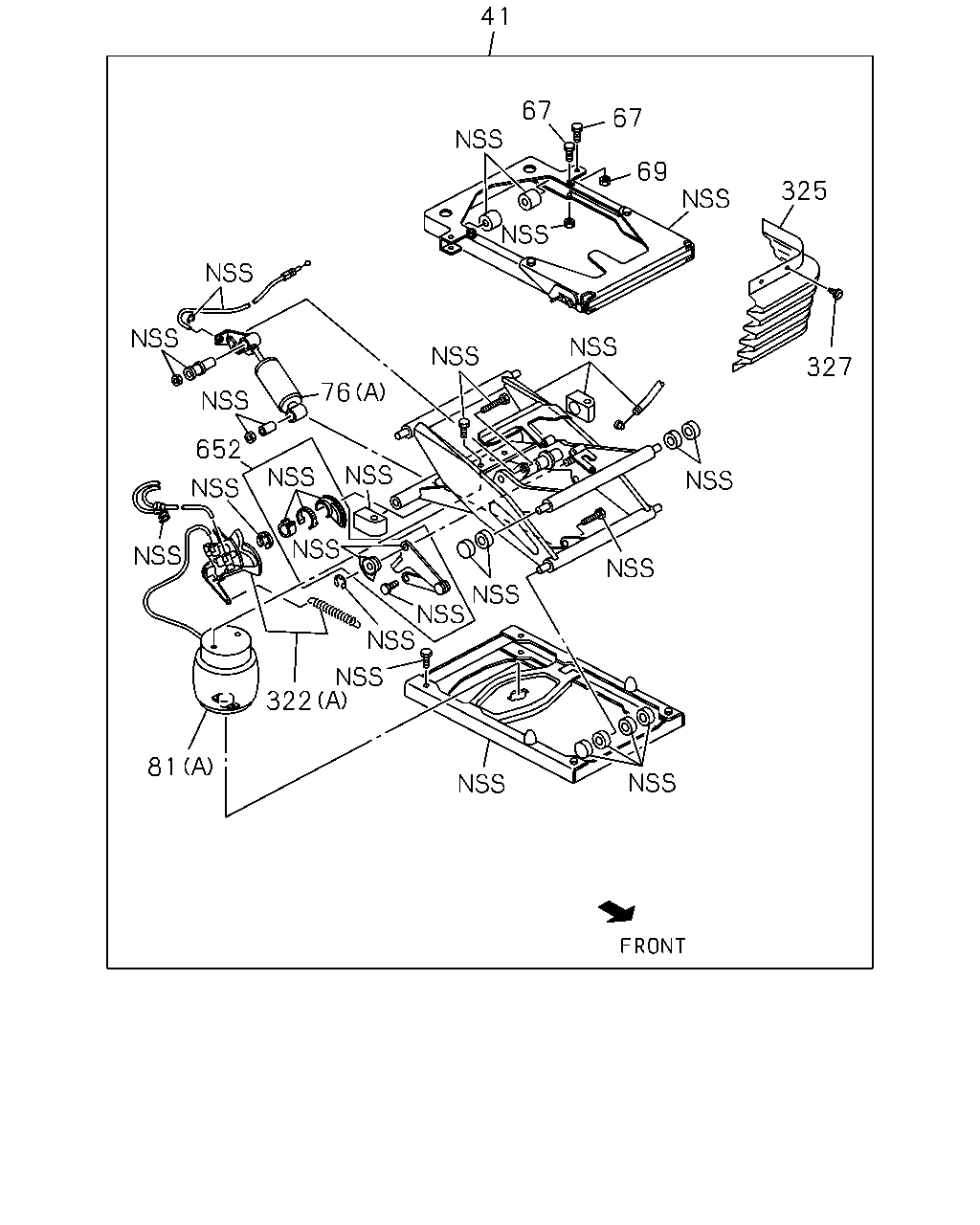

67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0710-0711 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0712- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0710-0711 ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0712- ● ●

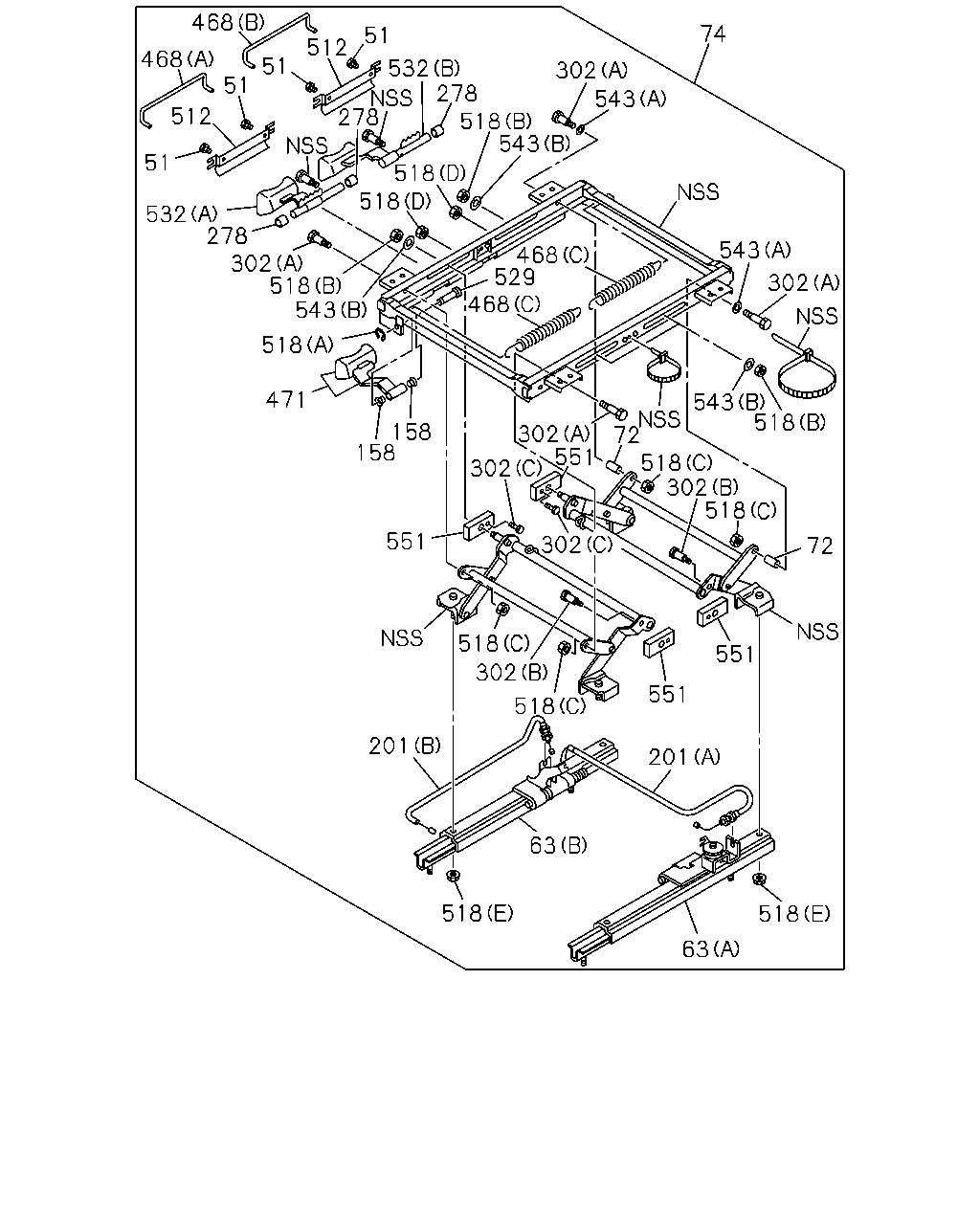

74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98003-678-0 01 1 0712-1502 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1503-1506 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-640-0 01 1 1507-1508 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1510- ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1110-1502 ●
100 COVER; HINGE
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1508 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1508 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1509-1509 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1510-1512 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98286-009-0 01 1 1601- ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> 		8-98063-174-0 01 1 0712-1506 ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98063-174-0 01 1 1507-1508 ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> 		8-98063-174-0 01 1 1510- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 0710-0711 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0712-1104 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
(B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 0712-1502 ●
126 BUSHING; HINGE,RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1509-1509 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1510-1512 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98286-007-0 01 1 1601- ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 0712-1502 ●
228 SCREW; KNOB
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1508 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1508 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1509-1509 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1510- ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 0712-1506 ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1507-1508 ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 1510- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 0712-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0712-1502 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710-0711 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0712- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0710-0711 ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-004-0 01 1 0712-1508 ●
327 CLIP; COVER 8-98098-004-0 01 1 0712-1508 ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1509- ●
327 CLIP; COVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1509- ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DELUXE CAB(W14) 		1-09987-273-0 01 1 0712- ●
348 BOLT; HINGE,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98286-008-0 01 1 1601- ●
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97409-956-0 01 1 0712-1506 ●
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-956-0 01 1 1507-1508 ●
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97409-956-0 01 1 1510- ●
çizim 135064
359 533 365 537 360 534 360 536 360 538 534 536 359 360 536 537 360 360 535
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-977-1 01 1 0710-0711 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0712-1006 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-0711 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0712-1009 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1104 ●
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 0710-0711 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0712-1104 ●
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1110- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0710-0711 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0712-1110 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20 		9-09829-324-1 02 1 0710-0711 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0712-1009 ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0710-0711 ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-972-0 01 1 0712-1508 ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0712-1508 ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1509- ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1509- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 0710-0711 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 0712-1104 ●
365 LOCK ASM; SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1110- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
(B) 		1-72538-312-0 01 1 1105-1109 ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-979-0 01 1 0710-0711 ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-979-1 01 1 0712-1006 ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1007- ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) 		1-72538-181-0 01 1 0710-0711 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 0712-1009 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010-1104 ●
534 STRIKER; PARCEL BOX
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1105-1109 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1110- ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-190-0 01 1 1105-1109 ●
534 STRIKER; PARCEL BOX
(B) 		1-72538-190-0 01 1 1105-1109 ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72447-391-1 01 1 0710-0711 ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 0712-1104 ●
535 HINGE; PARCEL BOX
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1105-1109 ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1110- ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72447-391-1 01 1 1105-1109 ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 1105-1109 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) 		5-09983-002-1 02 1 0710-0711 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 0712-1009 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010-1104 ●
536 RUBBER; CUSHION
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1105-1109 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1110- ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-187-0 02 1 1105-1109 ●
536 RUBBER; CUSHION
(B) 		1-72538-187-0 02 1 1105-1109 ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72548-057-1 02 1 0710-0711 ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 0712-1009 ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-09983-165-0 02 1 0710-0711 ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 0712-1009 ●

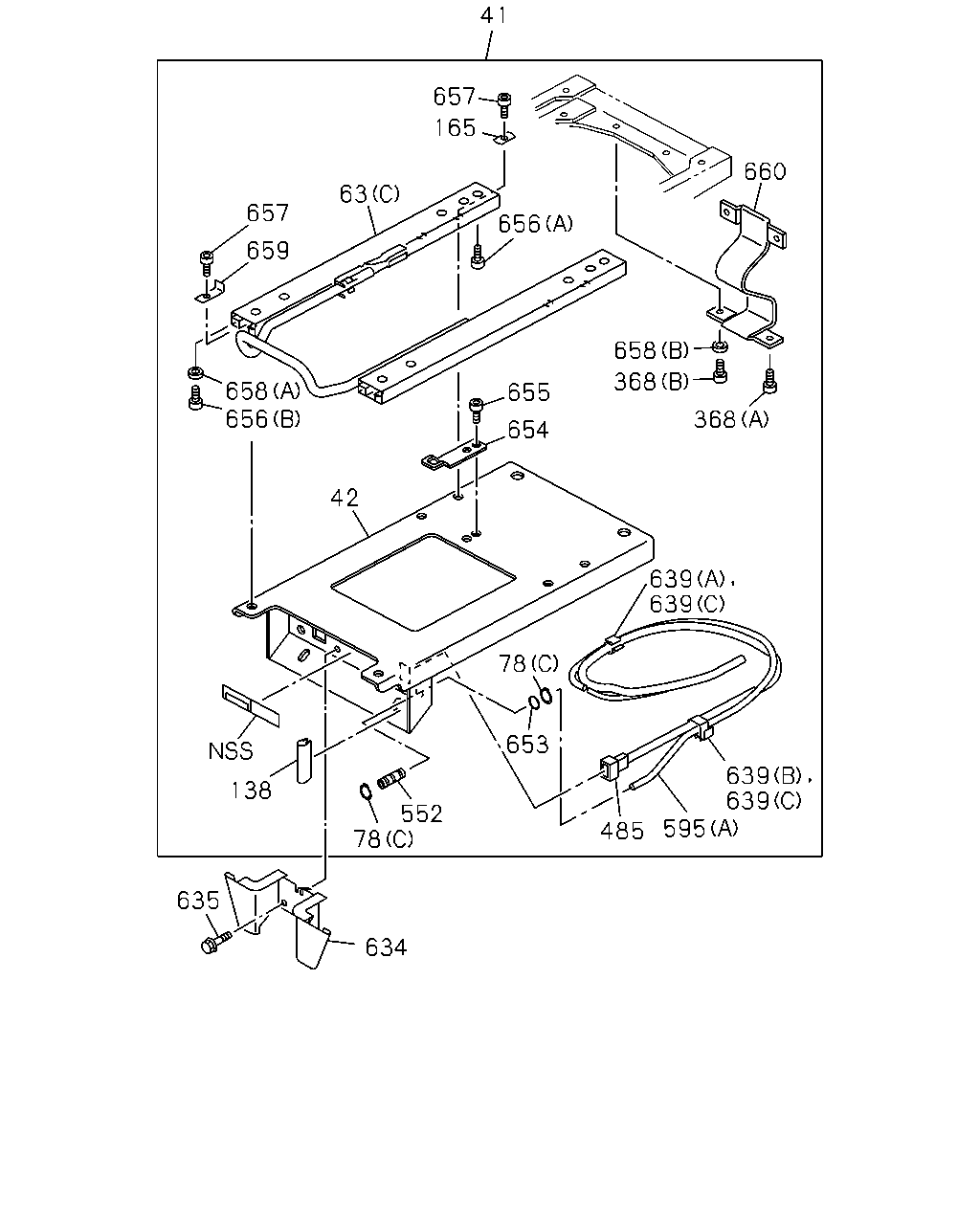

çizim 135072
41 657 656 63 657 659 658 655 656 654 42 138 78 635 634 552 653 78 485 595 639 639 639 368 639 368 658 660 165
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-0711 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-0711 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0710-0711 ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-346-0 01 1 0712-1508 ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0712-1508 ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1509- ●
42 STAND; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1509- ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 0712-1502 ●
42 STAND; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75558-604-2 01 1 1503-1506 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-2 01 1 1503-1506 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-2 01 1 1507-1509 ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1510- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-199-1 01 1 0712-1506 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-199-1 01 1 1507-1508 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-199-1 01 1 1510- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-323-0 01 1 0712-1506 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-323-0 01 1 1507-1508 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-323-0 01 1 1510- ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0710-0711 ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98098-005-0 01 1 0712-1508 ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0712-1508 ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98098-005-0 01 1 1509- ●
63 ADJUSTER; SEAT SLIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98098-005-0 01 1 1509- ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0710-0711 ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98101-900-0 02 1 0712-1508 ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0712-1508 ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98101-900-0 02 1 1509- ●
78 RING; SNAP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98101-900-0 02 1 1509- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 0712-1506 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=8 		9-09185-408-0 01 1 1507-1508 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1510- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 0712-1506 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=15 		9-09185-415-0 01 1 1507-1508 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1510- ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0710-0711 ●
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-351-0 01 1 0712-1508 ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0712-1508 ●
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-351-0 01 1 1509- ●
138 PROTECTOR; SEAT STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-351-0 01 1 1509- ●
165 WASHER; PL 1-75590-086-0 04 1 0710-0711 ●
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		1-75590-086-0 04 1 0712-1508 ●
165 WASHER; PL 1-75590-086-0 04 1 0712-1508 ●
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-086-0 04 1 1509- ●
165 WASHER; PL
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-086-0 04 1 1509- ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0710-0711 ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-353-0 03 1 0712-1508 ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0712-1508 ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-353-0 03 1 1509- ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-353-0 03 1 1509- ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0710-0711 ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-358-0 01 1 0712-1508 ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0712-1508 ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-358-0 01 1 1509- ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-358-0 01 1 1509- ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0710-0711 ●
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0712- ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0712- ●
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0710-0711 ●
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0712-1508 ●
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0712-1508 ●
552 CONNECTOR 8-98101-902-0 01 1 0710-0711 ●
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98101-902-0 01 1 0712-1508 ●
552 CONNECTOR 8-98101-902-0 01 1 0712-1508 ●
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98308-101-0 01 1 1509- ●
552 CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98308-101-0 01 1 1509- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0710-0711 ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-348-0 01 1 0712-1508 ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0712-1508 ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1509- ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1509- ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0710-0711 ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98067-762-0 01 1 0712- ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0712- ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0710-0711 ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98088-279-0 01 1 0712- ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0712- ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0710-0711 ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 		0-52000-616-0 02 1 0712- ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0712- ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0710-0711 ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-349-0 01 1 0712-1508 ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0712-1508 ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98308-100-0 02 1 1509- ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98308-100-0 02 1 1509- ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0710-0711 ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-350-0 01 1 0712-1508 ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0712-1508 ●
653 GASKET 8-98101-901-0 01 1 0710-0711 ●
653 GASKET
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98101-901-0 01 1 0712-1508 ●
653 GASKET 8-98101-901-0 01 1 0712-1508 ●
653 GASKET
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-901-0 01 1 1509- ●
653 GASKET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-901-0 01 1 1509- ●
654 HOOK; STOPPER 8-98106-352-0 01 1 0710-0711 ●
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-352-0 01 1 0712-1508 ●
654 HOOK; STOPPER 8-98106-352-0 01 1 0712-1508 ●
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-352-0 01 1 1509- ●
654 HOOK; STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-352-0 01 1 1509- ●
655 BOLT; HOOK 8-98106-353-0 02 1 0710-0711 ●
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-353-0 02 1 0712-1508 ●
655 BOLT; HOOK 8-98106-353-0 02 1 0712-1508 ●
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-353-0 02 1 1509- ●
655 BOLT; HOOK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-353-0 02 1 1509- ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0710-0711 ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		1-75590-085-0 04 1 0712-1508 ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0712-1508 ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		1-75590-085-0 04 1 1509- ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		1-75590-085-0 04 1 1509- ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0710-0711 ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-354-0 02 1 0712-1508 ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0712-1508 ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-354-0 02 1 1509- ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-354-0 02 1 1509- ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0710-0711 ●
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		1-75590-085-0 06 1 0712-1508 ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0712-1508 ●
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-085-0 06 1 1509- ●
657 BOLT; SLIDER TO STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-085-0 06 1 1509- ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0710-0711 ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-355-0 02 1 0712-1508 ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0712-1508 ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-355-0 02 1 1509- ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-355-0 02 1 1509- ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0710-0711 ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-359-0 01 1 0712-1508 ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0712-1508 ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-359-0 01 1 1509- ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-359-0 01 1 1509- ●
659 STOPPER 8-98106-356-0 02 1 0710-0711 ●
659 STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-356-0 02 1 0712-1508 ●
659 STOPPER 8-98106-356-0 02 1 0712-1508 ●
659 STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-356-0 02 1 1509- ●
659 STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-356-0 02 1 1509- ●
660 BELT; TETHER 8-98106-357-0 01 1 0710-0711 ●
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-357-0 01 1 0712-1508 ●
660 BELT; TETHER 8-98106-357-0 01 1 0712-1508 ●
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-357-0 01 1 1509- ●
660 BELT; TETHER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-357-0 01 1 1509- ●
çizim 135186
41 67 67 69 325 327 76 652 322 81
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-0711 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-0711 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0710-0711 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0712- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0710-0711 ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0712- ● ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0710-0711 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-999-0 01 1 0712-1508 ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0712-1508 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-999-0 01 1 1509- ●
76 DAMPER; AIR SUSP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-999-0 01 1 1509- ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0712-1506 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75538-139-0 01 1 1507-1508 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 1510- ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0710-0711 ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-000-0 01 1 0712-1508 ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0712-1508 ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-000-0 01 1 1509- ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-000-0 01 1 1509- ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-151-2 01 1 0712-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1401-1506 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		8-98242-816-0 01 1 1507-1508 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1510- ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0710-0711 ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-001-0 01 1 0712-1508 ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0712-1508 ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98331-314-0 01 1 1509- ●
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98331-314-0 01 1 1509- ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-3 01 1 0712-1506 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75538-186-3 01 1 1507-1508 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-3 01 1 1510- ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0710-0711 ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-003-0 01 1 0712-1508 ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0712-1508 ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-003-0 01 1 1509- ●
325 COVER; SUSPENSION DEVICE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-003-0 01 1 1509- ●
327 CLIP; COVER 8-98098-004-0 01 1 0710-0711 ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-004-0 01 1 0712-1508 ●
327 CLIP; COVER 8-98098-004-0 01 1 0712-1508 ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1509- ●
327 CLIP; COVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1509- ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DELUXE CAB(W14) 		1-09987-273-0 01 1 0712- ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0710-0711 ●
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-002-0 01 1 0712-1508 ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0712-1508 ●
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-002-0 01 1 1509- ●
652 LOCK ASM; HEIGHT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-002-0 01 1 1509- ●
çizim 135223
113 99 630 627 306 122 17 123 46 115 116 627 114
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0710-0711 ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0712- ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0711 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0712-1502 ●
17 BOLT; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1509-1509 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1510- ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0710-0711 ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0712- ● ●
99 BUSHING; SEAT BACK
SEAT CLOTH<7FL> 		8-98063-219-0 01 1 0710-0711 ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 0712-1009 ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010- ● ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-969-0 01 1 0710-0711 ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-969-0 01 1 0712-0902 ●
113 BACK ASM; SEAT
DARK GRAY 		8-97409-969-0 01 1 0712-0902 ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-221-0 01 1 0903-1009 ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 0903-1009 ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-422-0 01 1 1010- ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010- ●
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-966-1 01 1 0712- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-916-0 01 1 0712- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97411-914-0 01 1 0710-0711 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97411-914-0 01 1 0712-0902 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97411-914-0 01 1 0712-0902 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97416-223-0 01 1 0903-1009 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 0903-1009 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-424-0 01 1 1010- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010- ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-968-0 01 1 0710-0711 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-968-0 01 1 0712-0902 ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97409-968-0 01 1 0712-0902 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-225-0 01 1 0903-1009 ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 0903-1009 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-418-1 01 1 1010- ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1010- ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-965-1 01 1 0712- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-915-0 01 1 0712- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97411-913-0 01 1 0710-0711 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97411-913-0 01 1 0712-0902 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97411-913-0 01 1 0712-0902 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97416-227-0 01 1 0903-1009 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 0903-1009 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-420-0 01 1 1010- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010- ●
122 COVER; ADJ,RECLINING
SEAT CLOTH<7FL> GRAY 		8-97409-967-0 01 1 0710-0711 ●
122 COVER; ADJ,RECLINING
SEAT CLOTH<7FL> GRAY 		8-97409-967-0 01 1 0712-0902 ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 0712-0902 ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> GRAY 		8-97409-967-0 01 1 0712-0902 ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 0903- ● ●
123 SCREW; COVER,RECLINING
SEAT CLOTH<7FL> M5 		8-98070-026-0 01 1 0710-0711 ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 0712- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 0712-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0712-1502 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710-0711 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0712- ● ●
627 WASHER; FRT SEAT
SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 0710-0711 ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0712- ● ●
627 WASHER; FRT SEAT
SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 0710-0711 ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0712- ● ●
630 NUT; CAP
SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 0710-0711 ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 0712- ● ●
çizim 135263
506 360 175 188 176 16 188 179 182 403 126 359 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-75418-062-1 01 1 0710-0711 ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 0712-1104 ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1105-1109 ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1110- ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-75418-062-1 01 1 1105-1109 ●
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 0710-0711 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0712-1104 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
(B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 0712-1502 ●
126 BUSHING; HINGE,RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1509-1509 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1510-1512 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98286-007-0 01 1 1601- ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-984-0 01 1 0710-0711 ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-984-0 01 1 0712-0902 ●
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97409-984-0 01 1 0712-0902 ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-233-0 01 1 0903-1009 ●
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97416-233-0 01 1 0903-1009 ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1010- ●
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97421-434-1 01 1 1010- ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 0712- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-985-0 01 1 0710-0711 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-985-0 01 1 0712-0902 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97409-985-0 01 1 0712-0902 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-234-0 01 1 0903-1009 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97416-234-0 01 1 0903-1009 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1010- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97421-435-1 01 1 1010- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 0712- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-983-0 01 1 0710-0711 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-983-0 01 1 0712-0902 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97409-983-0 01 1 0712-0902 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-237-0 01 1 0903-1009 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97416-237-0 01 1 0903-1009 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-432-1 01 1 1010- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97421-432-1 01 1 1010- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-0 01 1 0712-0909 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-1 01 1 1007- ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-982-0 01 1 0710-0711 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-982-0 01 1 0712-0902 ●
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97409-982-0 01 1 0712-0902 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-235-0 01 1 0903-1009 ●
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97416-235-0 01 1 0903-1009 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-430-3 01 1 1010- ●
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97421-430-3 01 1 1010- ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-973-3 01 1 0712- ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE 		1-75198-053-0 04 1 0710-0711 ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 0712-1104 ●
188 BOLT; BACK TO CUSHION
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1110- ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-977-1 01 1 0710-0711 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0712-1006 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-0711 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0712-1009 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1104 ●
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 0710-0711 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0712-1104 ●
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1110- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0710-0711 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0712-1110 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20 		9-09829-324-1 02 1 0710-0711 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0712-1009 ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 0712- ●
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 0712- ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-980-0 04 1 0710-0711 ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 04 1 0712-1006 ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1007- ●
çizim 135270
542 306 201 306 201 158 471 158 529 518
BalonParca AdiParca NoAdetTipApplied Date A B
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 0712-1502 ●
158 BUSHING; LINK ARM
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1508 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1508 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1509-1509 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1510- ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 0712-1502 ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1509-1509 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1510- ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 0712-1502 ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1509-1509 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1510- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 0712-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0712-1502 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710-0711 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0712- ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 0712-1502 ●
471 LEVER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1509-1509 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 0712-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0712-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 0712-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 0712-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 0712-1502 ●
518 NUT; TILT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1509-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1510- ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 0712-1502 ●
529 PIN; LINK
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1508 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1508 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1509-1509 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1510- ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 0712-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1510- ●
çizim 192140
1 2 18 228 24 17 19 13 12 126 100 348 542 306 69 42 398 67
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0710-0711 ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0710-0711 ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-112-2 01 1 0712-0902 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-202-0 01 1 0903-1009 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1010-1506 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-407-1 01 1 1507-1508 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1510-1512 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-97466-622-0 01 1 1601- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 0712-0906 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY 		8-97409-955-5 01 1 0907-1502 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-955-5 01 1 1503-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 1510-1512 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97466-618-0 01 1 1601- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-201-0 01 1 1001-1009 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1010-1506 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-406-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1510-1512 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) 		8-97466-620-0 01 1 1601- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0710-0711 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-113-1 01 1 0712-0902 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-207-0 01 1 0903-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1010-1506 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-412-0 01 1 1507-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 0712-0906 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY 		8-97411-910-2 01 1 0907-1502 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97411-910-2 01 1 1503-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-206-0 01 1 1001-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1010-1506 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-411-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1510- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0710-0711 ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-120-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-1 01 1 1010-1506 ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) 		8-97466-611-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-958-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-1 01 1 1010-1508 ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1509-1509 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		8-97466-610-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 0712-1502 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) 		8-97466-608-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-954-2 01 1 0712-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97466-606-0 01 1 1601- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0710-0711 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-121-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-1 01 1 1010-1506 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-2 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97414-111-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-1 01 1 1010-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1509-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 0712-0906 ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY 		8-97411-909-1 01 1 0907-1502 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97411-909-1 01 1 1503-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 1510- ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0710-0711 ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0712- ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0711 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0712-1502 ●
17 BOLT; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1509-1509 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1510- ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 0712-1502 ●
18 COVER; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1507-1508 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1507-1508 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1509-1509 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 1510- ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 0712-1502 ●
19 SCREW; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1508 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1508 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1509-1509 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1510- ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 0712-1502 ●
24 KNOB; RECLINING,FRT,SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1507-1508 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1507-1508 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1509-1509 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 1510- ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0710-0711 ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-346-0 01 1 0712-1508 ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0712-1508 ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1509- ●
42 STAND; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1509- ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 0712-1502 ●
42 STAND; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75558-604-2 01 1 1503-1506 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-2 01 1 1503-1506 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-2 01 1 1507-1509 ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1510- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0710-0711 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0712- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0710-0711 ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0712- ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1110-1502 ●
100 COVER; HINGE
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1508 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1508 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1509-1509 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1510-1512 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98286-009-0 01 1 1601- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 0710-0711 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0712-1104 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
(B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 0712-1502 ●
126 BUSHING; HINGE,RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1509-1509 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1510-1512 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98286-007-0 01 1 1601- ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 0712-1502 ●
228 SCREW; KNOB
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1508 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1508 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1509-1509 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1510- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 0712-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0712-1502 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710-0711 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0712- ● ●
348 BOLT; HINGE,SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98286-008-0 01 1 1601- ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0712-1502 ●
398 NUT; STAND
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1503-1506 ●
398 NUT; STAND
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1503-1506 ●
398 NUT; STAND
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1507-1509 ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1510- ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 0712-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1510- ●
çizim 192205
62 80 66 66 86 78 76 77 88 78 79 81 79 85 79 86 79 322 85 85 470 87 513 85 468 467 339
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-183-8 01 1 0712-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1404-1506 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-448-0 01 1 1507-1508 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1510- ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 0712-1506 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-145-0 02 1 1507-1508 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 1510- ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0710-0711 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-999-0 01 1 0712-1508 ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0712-1508 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-999-0 01 1 1509- ●
76 DAMPER; AIR SUSP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-999-0 01 1 1509- ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0712-1506 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75538-139-0 01 1 1507-1508 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 1510- ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 0712-1506 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-138-2 01 1 1507-1508 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 1510- ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0710-0711 ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98101-900-0 02 1 0712-1508 ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0712-1508 ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98101-900-0 02 1 1509- ●
78 RING; SNAP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98101-900-0 02 1 1509- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 0712-1506 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=8 		9-09185-408-0 01 1 1507-1508 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1510- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 0712-1506 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=15 		9-09185-415-0 01 1 1507-1508 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1510- ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-159-0 04 1 0712-1403 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1404-1506 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-489-0 04 1 1507-1508 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1510- ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 0712-1506 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-123-0 01 1 1507-1508 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 1510- ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0710-0711 ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-000-0 01 1 0712-1508 ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0712-1508 ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-000-0 01 1 1509- ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-000-0 01 1 1509- ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-151-2 01 1 0712-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1401-1506 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		8-98242-816-0 01 1 1507-1508 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1510- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1507-1508 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1510- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 0712-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-09980-577-1 01 1 1507-1508 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1510- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 0712-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M6X12 		1-75538-208-1 02 1 1507-1508 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1510- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0712-1312 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1507-1508 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1510- ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0712-1506 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1507-1508 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1510- ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 0712-1506 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> ID=8.2 		0-91510-508-0 01 1 1507-1508 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 1510- ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 0712-1506 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10 		1-75537-273-1 01 1 1507-1508 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1510- ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0710-0711 ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-001-0 01 1 0712-1508 ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0712-1508 ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98331-314-0 01 1 1509- ●
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98331-314-0 01 1 1509- ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-3 01 1 0712-1506 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75538-186-3 01 1 1507-1508 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-3 01 1 1510- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 0712-1506 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75538-131-3 01 1 1507-1508 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1510- ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0710-0711 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98014-971-0 01 1 0712- ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0712- ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 0712-1506 ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-134-0 01 1 1507-1508 ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 0712-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-206-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 0712-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-207-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 0712-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-208-0 02 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0712-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75538-132-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1510- ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 0712-1506 ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-137-0 01 1 1507-1508 ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 1510- ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 0712-1506 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-133-0 01 1 1507-1508 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 1510- ●
çizim 192211
468 468 51 512 51 532 302 278 543 543 543 543 72 302 302 551 158 158 471 518 543 518 518 518 518 278 51 512 51 532 302 278 302 518 302 518 551 551 63 201 518 63 518 201 302 518 518 72 468 529 468 518 302 551 74
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 0712-1506 ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-325-1 04 1 1507-1508 ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 1510- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-199-1 01 1 0712-1506 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-199-1 01 1 1507-1508 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-199-1 01 1 1510- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-323-0 01 1 0712-1506 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-323-0 01 1 1507-1508 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-323-0 01 1 1510- ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0710-0711 ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98098-005-0 01 1 0712-1508 ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0712-1508 ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98098-005-0 01 1 1509- ●
63 ADJUSTER; SEAT SLIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98098-005-0 01 1 1509- ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-334-1 02 1 0712-1502 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98291-668-0 02 1 1503-1506 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-668-0 02 1 1507-1508 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98291-668-0 02 1 1510- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98003-678-0 01 1 0712-1502 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1503-1506 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-640-0 01 1 1507-1508 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1510- ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 0712-1502 ●
158 BUSHING; LINK ARM
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1508 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1508 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1509-1509 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1510- ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 0712-1502 ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1509-1509 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1510- ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 0712-1502 ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1509-1509 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1510- ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 0712-1506 ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-244-0 03 1 1507-1508 ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 1510- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 0712-1506 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-266-2 02 1 1507-1508 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 1510- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-270-1 04 1 0712-1502 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		8-98291-667-0 04 1 1503-1506 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98291-667-0 04 1 1507-1508 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		8-98291-667-0 04 1 1510- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 0712-1506 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-336-1 02 1 1507-1508 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 0712-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-206-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 0712-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-207-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 0712-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-208-0 02 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0712-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75538-132-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1510- ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 0712-1502 ●
471 LEVER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1509-1509 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 1510- ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-243-1 02 1 0712-1506 ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-243-1 02 1 1507-1508 ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-243-1 02 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 0712-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0712-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 0712-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 0712-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 0712-1502 ●
518 NUT; TILT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1509-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1510- ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 0712-1502 ●
529 PIN; LINK
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1508 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1508 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1509-1509 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1510- ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0710-0711 ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-982-0 01 1 0712-1508 ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0712-1508 ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-982-0 01 1 1509- ●
532 LEVER ASM; TILT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-982-0 01 1 1509- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 0712-1506 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-203-0 01 1 1507-1508 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 1510- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 0712-1506 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-204-1 01 1 1507-1508 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 1510- ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 0712-1506 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=8.4 		9-09160-508-0 04 1 1507-1508 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 1510- ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-335-0 02 1 0712-1502 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-1506 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=13 OD=19 		8-98291-669-0 02 1 1507-1508 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19 		8-98291-669-0 02 1 1510- ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 0712-1506 ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-265-0 04 1 1507-1508 ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 1510- ●
çizim 321604
339 632 595 400 400 641 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 0712-1506 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75538-131-3 01 1 1507-1508 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1510- ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0710-0711 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98014-971-0 01 1 0712- ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0712- ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 0710-0711 ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98098-996-0 02 1 0712- ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 0712- ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 0710-0711 ●
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE 		0-91180-110-0 02 1 0712- ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 0712- ●
581 PIPE; SEAT 8-98051-067-2 01 1 0712- ●
581 PIPE; SEAT 8-97589-692-3 01 1 0710-0711 ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97589-692-3 01 1 0712- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0710-0711 ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-348-0 01 1 0712-1508 ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0712-1508 ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1509- ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1509- ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0710-0711 ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98067-762-0 01 1 0712- ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0712- ●
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 0712- ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 0710-0711 ●
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98099-007-0 02 1 0712- ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
