◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#66376) — 24 parça

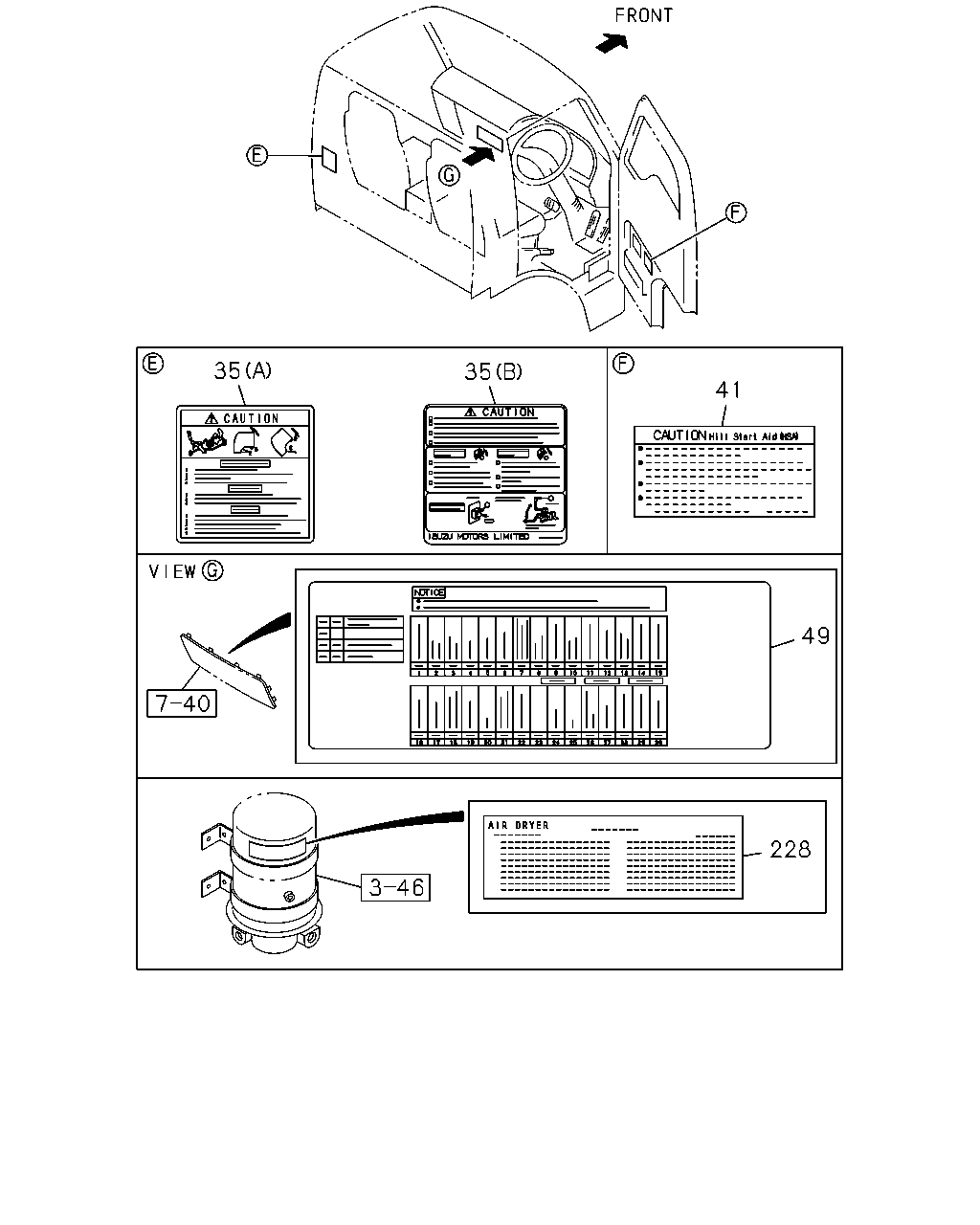

çizim 132909
35 35 41 49 228
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
(B) 		8-98069-325-0 01 1 0712- ●
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 0710- ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> 		8-98141-836-0 01 1 0907- ●
49 PLATE; CAUTION,FUSE BOX 8-98060-853-0 01 1 0710-0711 ●
49 PLATE; CAUTION,FUSE BOX 8-98060-853-0 01 1 0712-0805 ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0806- ● ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0710-0711 ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0712-0808 ● ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-48199-325-0 01 1 0809-1001 ● ●
çizim 192125
140 260 140 119 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0710-0711 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0712- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0710-0711 ●
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 0712- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0712- ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. EURO4 SPECIFICATION<NT4> (B) 		8-98139-964-0 01 1 0812- ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 01 1 0710-0711 ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 01 1 0712-0712 ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 02 1 0801- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
4HK1-TCS ENG(RJS) 		8-98008-779-0 01 1 0712- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 0710-0711 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 0712- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
6HK1-TCN ENG(82L) 		1-85878-501-1 01 1 0712- ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0710-0711 ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0712- ● ●
