Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

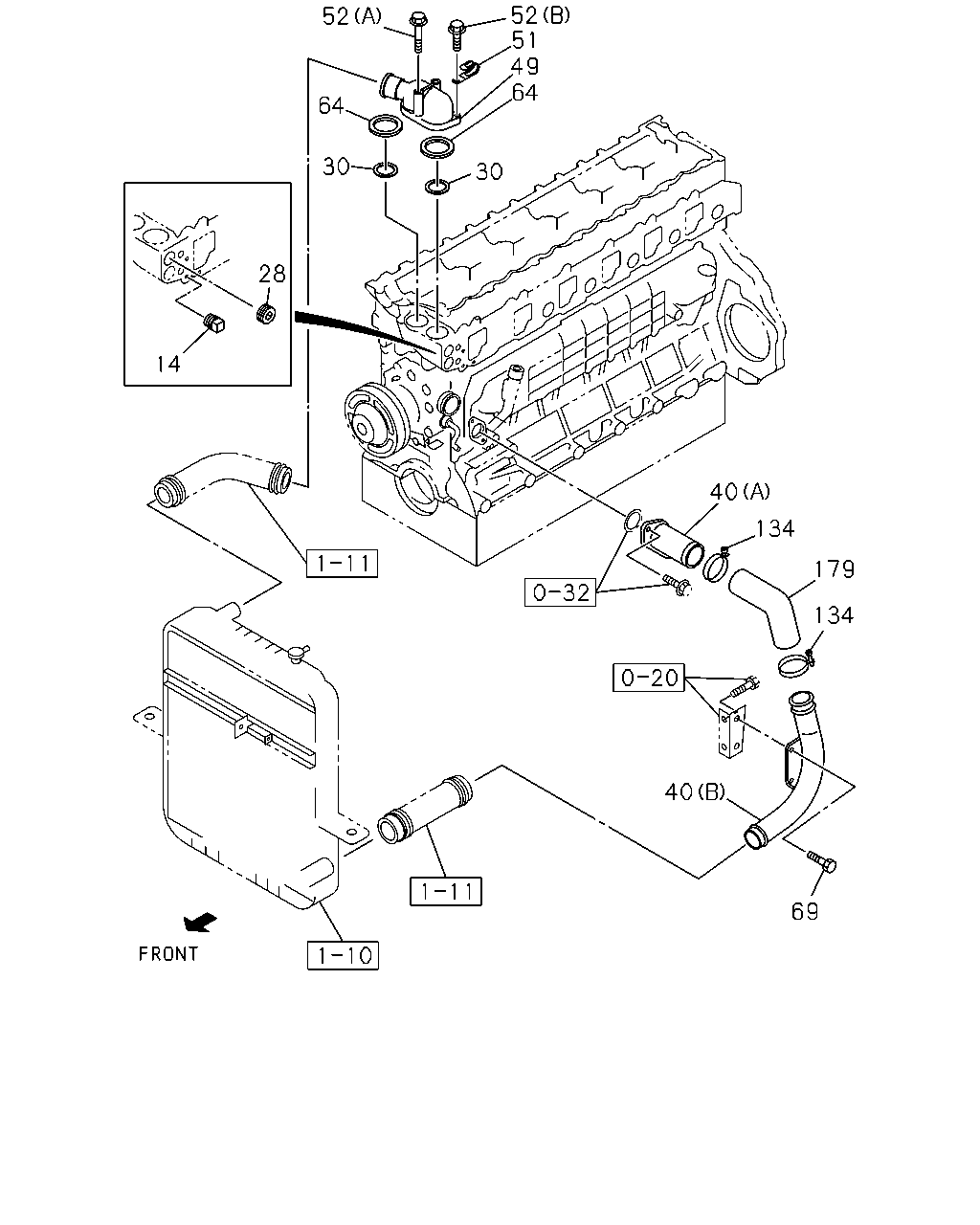

0-31 — THERMOSTAT AND HOUSING
(#6637) — 15 parça
52
51
49
64
52
64
30
30
28
14
40
134
179
134
40
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
PLUG; SW
PT3/8
8-94397-338-0
01
1
0011-
28
PLUG; HTR
PT3/4
1-09605-020-0
01
1
0011-
30
SPACER
8-94393-517-0
02
1
0011-
40
DUCT; WATER,SUCTION
(A)
8-94391-091-1
01
1
0011-
40
DUCT; WATER,SUCTION
(B)
8-94394-404-1
01
1
0011-
49
PIPE; WATER OUTLET
8-94399-499-1
01
1
0011-0105
49
PIPE; WATER OUTLET
8-97602-047-0
01
1
0106-
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44 THA
8-94225-185-0
01
1
0011-
52
BOLT; JOINT,THERMOSTAT
(A) M8X80 FLANGE
0-28080-880-0
02
1
0011-
52
BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE
0-28680-825-0
02
1
0011-
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94370-480-0
02
1
0011-0105
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0106-
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28080-820-0
02
1
0011-
134
CLIP; RUBBER HOSE
ID=63 THA
1-09704-067-0
02
1
0011-
179
HOSE; RUBBER,WATER DUCT
8-94394-535-2
01
1
0011-
