◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

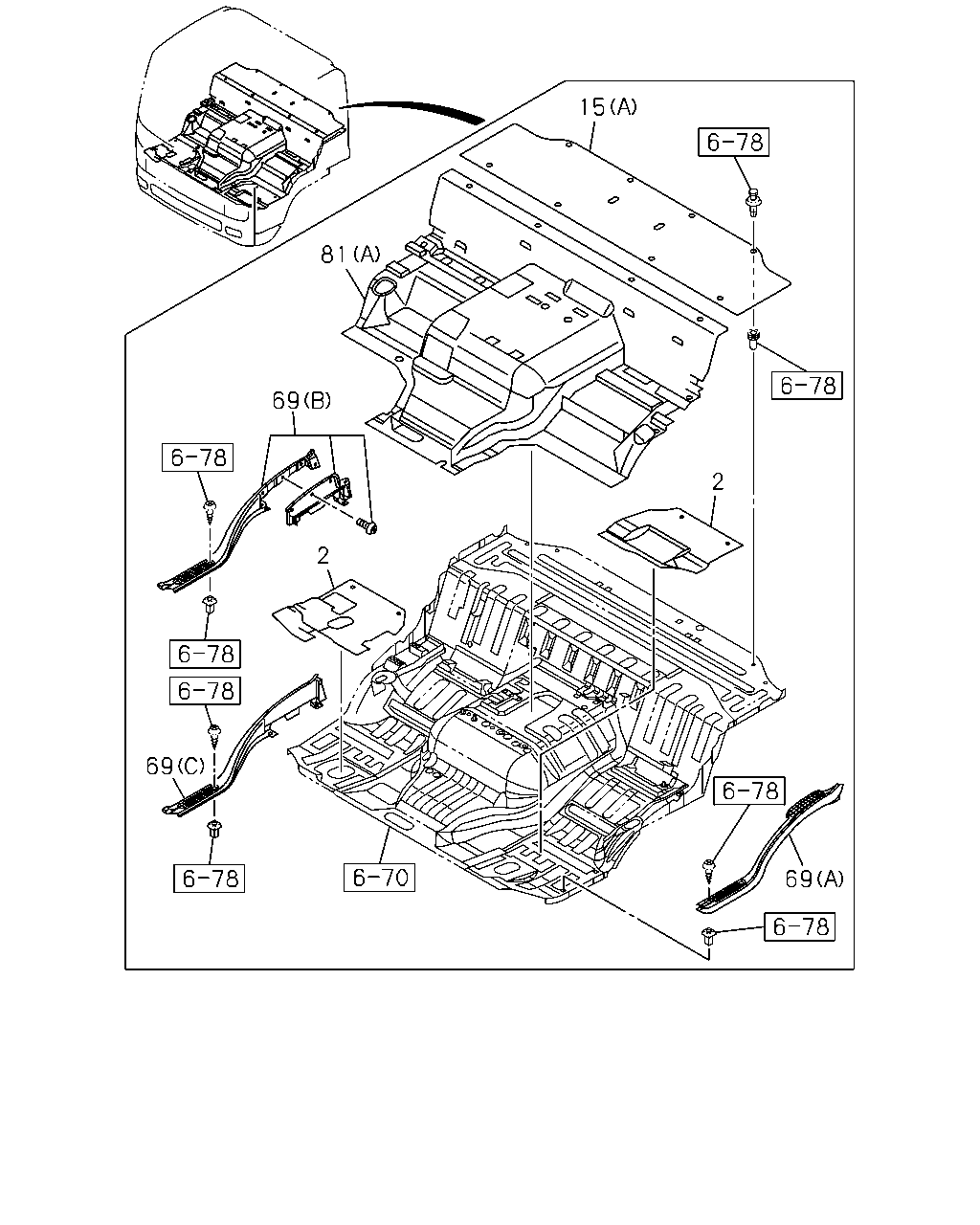

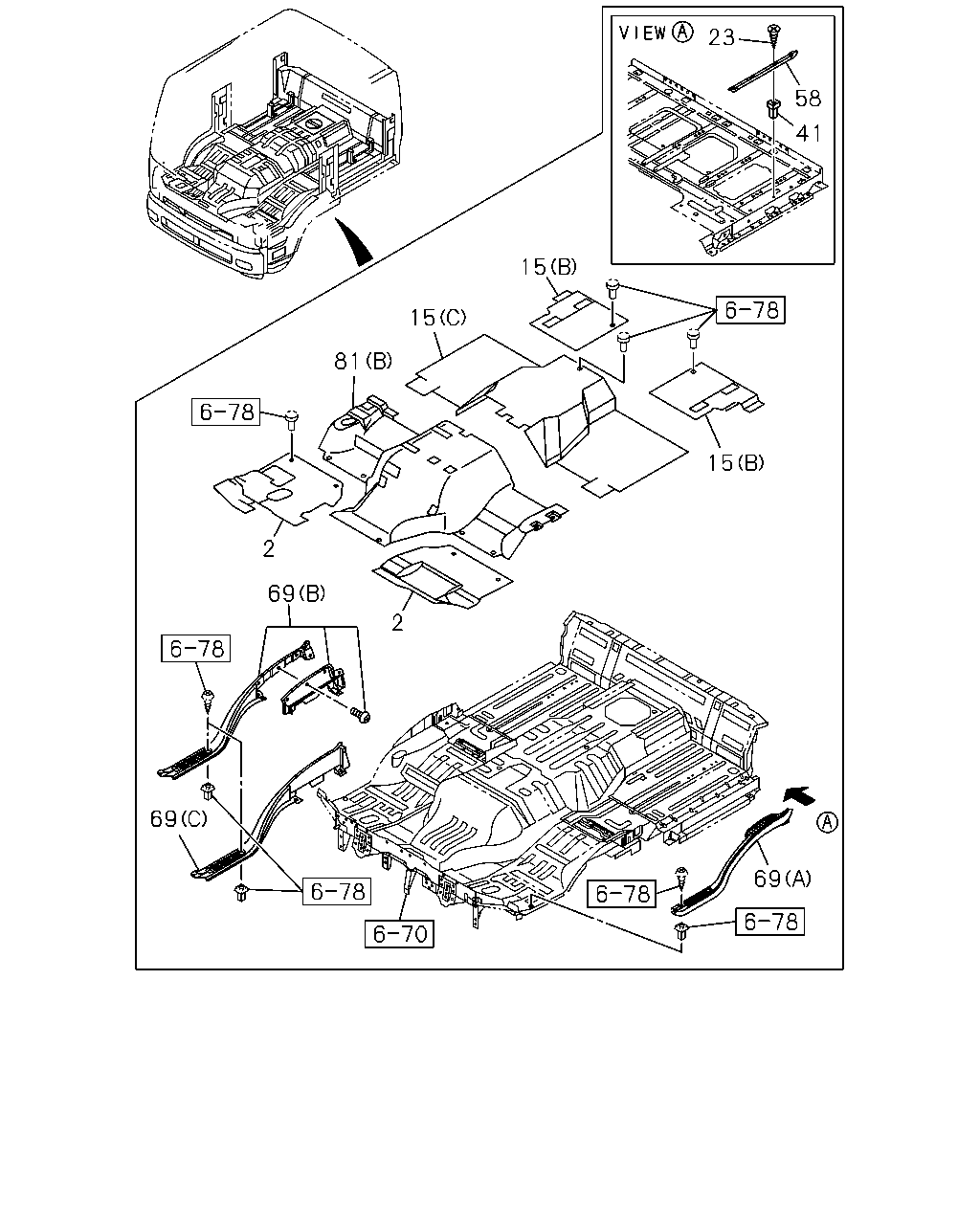

6-75 — MAT AND CARPET (#66368) — 113 parça

15 15 81 2 69 2 15 23 58 41 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	0710-0711	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	0712-1003	●
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	0712-1003		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	1004-	●
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	1004-		●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	0710-0711	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	0712-1003	●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	0712-1003		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	1004-	●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	1004-		●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-748-3	01	1	0710-1003	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-748-3	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-946-0	01	1	1006-	●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-749-1	01	1	0710-1003	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-749-1	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-948-0	01	1	1006-	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-950-0	01	1	1004-1005	●
15	MAT; FLOOR REAR VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-950-0	01	1	1006-	●
15	MAT; FLOOR REAR (B) GRAY	8-97411-890-1	01	1	0712-		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-891-1	01	1	0712-		●
15	MAT; FLOOR REAR (B) GRAY	8-97411-892-2	01	1	0712-		●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-403-1	01	1	0710-	●
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-396-0	01	1	0710-1003	●
15	MAT; FLOOR REAR EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-396-0	01	1	1004-1005	●
23	SCREW; SILL PLATE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	0712-		●
41	GROMMET; SCREW,SILL PLATE D=7.8X7.8 L=18 NATURAL	8-94279-043-0	08	1	0712-		●
58	PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0712-		●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	0712-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	0712-1503	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (C) GRAY	8-97465-138-0	01	1	1504-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (A) GRAY	8-97407-412-1	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (A) GRAY	8-97407-412-1	01	1	0712-	●	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) GRAY	8-97407-407-3	01	1	0712-1003	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) GRAY	8-97407-407-3	01	1	1004-	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>, FLOORCOVER<6WX> (A) GRAY	8-97407-390-6	01	1	0712-0801	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER<6WX> (A) GRAY	8-97407-390-6	01	1	0802-1003	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-390-6	01	1	1004-1005	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY	8-97418-937-0	01	1	1006-	●
81	MAT; FLOOR,CENTER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	0712-1003	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	1004-1005	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	1006-1011	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	1012-	●
81	MAT; FLOOR,CENTER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER<6WX> (A) GRAY	8-97411-782-2	01	1	0712-0801	●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) GRAY	8-97407-405-3	01	1	0712-1003	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) GRAY	8-97407-405-3	01	1	1004-	●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>,FLOOR COVER<6WX> (A) GRAY	8-97407-387-6	01	1	0712-0801	●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER<6WX> (A) GRAY	8-97407-387-6	01	1	0802-1003	●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-387-6	01	1	1004-1005	●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY	8-97418-936-0	01	1	1006-	●
81	MAT; FLOOR,CENTER (B) GRAY	8-97407-409-2	01	1	0712-		●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER<6WX> (A) GRAY	8-97411-783-2	01	1	0710-0711	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. FLOOR COVER<6WX> (A) GRAY	8-97411-783-2	01	1	0712-0801	●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> (A) GRAY	8-97411-791-2	01	1	0710-0711	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> FLOOR COVER<6WX> (A) GRAY	8-97411-791-3	01	1	0712-1003	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) GRAY	8-97411-791-3	01	1	1004-1005	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> MANUAL TRANSMISSION<X9C> (A) GRAY	8-97411-791-3	01	1	1006-	●

69 2 15 81 69 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	0710-0711	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	0712-1003	●
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	0712-1003		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	1004-	●
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	1004-		●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	0710-0711	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	0712-1003	●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	0712-1003		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	1004-	●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	1004-		●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-748-3	01	1	0710-1003	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-748-3	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-946-0	01	1	1006-	●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-749-1	01	1	0710-1003	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-749-1	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-948-0	01	1	1006-	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-950-0	01	1	1004-1005	●
15	MAT; FLOOR REAR VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-950-0	01	1	1006-	●
15	MAT; FLOOR REAR (B) GRAY	8-97411-890-1	01	1	0712-		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-891-1	01	1	0712-		●
15	MAT; FLOOR REAR (B) GRAY	8-97411-892-2	01	1	0712-		●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-403-1	01	1	0710-	●
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-396-0	01	1	0710-1003	●
15	MAT; FLOOR REAR EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-396-0	01	1	1004-1005	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	0712-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	0712-1503	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (C) GRAY	8-97465-138-0	01	1	1504-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (A) GRAY	8-97407-412-1	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (A) GRAY	8-97407-412-1	01	1	0712-	●	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) GRAY	8-97407-407-3	01	1	0712-1003	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) GRAY	8-97407-407-3	01	1	1004-	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>, FLOORCOVER<6WX> (A) GRAY	8-97407-390-6	01	1	0712-0801	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER<6WX> (A) GRAY	8-97407-390-6	01	1	0802-1003	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-390-6	01	1	1004-1005	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY	8-97418-937-0	01	1	1006-	●
81	MAT; FLOOR,CENTER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	0712-1003	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	1004-1005	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	1006-1011	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY	8-97411-790-3	01	1	1012-	●
81	MAT; FLOOR,CENTER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER<6WX> (A) GRAY	8-97411-782-2	01	1	0712-0801	●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) GRAY	8-97407-405-3	01	1	0712-1003	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) GRAY	8-97407-405-3	01	1	1004-	●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>,FLOOR COVER<6WX> (A) GRAY	8-97407-387-6	01	1	0712-0801	●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER<6WX> (A) GRAY	8-97407-387-6	01	1	0802-1003	●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY	8-97407-387-6	01	1	1004-1005	●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY	8-97418-936-0	01	1	1006-	●
81	MAT; FLOOR,CENTER (B) GRAY	8-97407-409-2	01	1	0712-		●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER<6WX> (A) GRAY	8-97411-783-2	01	1	0710-0711	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. FLOOR COVER<6WX> (A) GRAY	8-97411-783-2	01	1	0712-0801	●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> (A) GRAY	8-97411-791-2	01	1	0710-0711	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> FLOOR COVER<6WX> (A) GRAY	8-97411-791-3	01	1	0712-1003	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) GRAY	8-97411-791-3	01	1	1004-1005	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> MANUAL TRANSMISSION<X9C> (A) GRAY	8-97411-791-3	01	1	1006-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
