◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#66367) — 261 parça

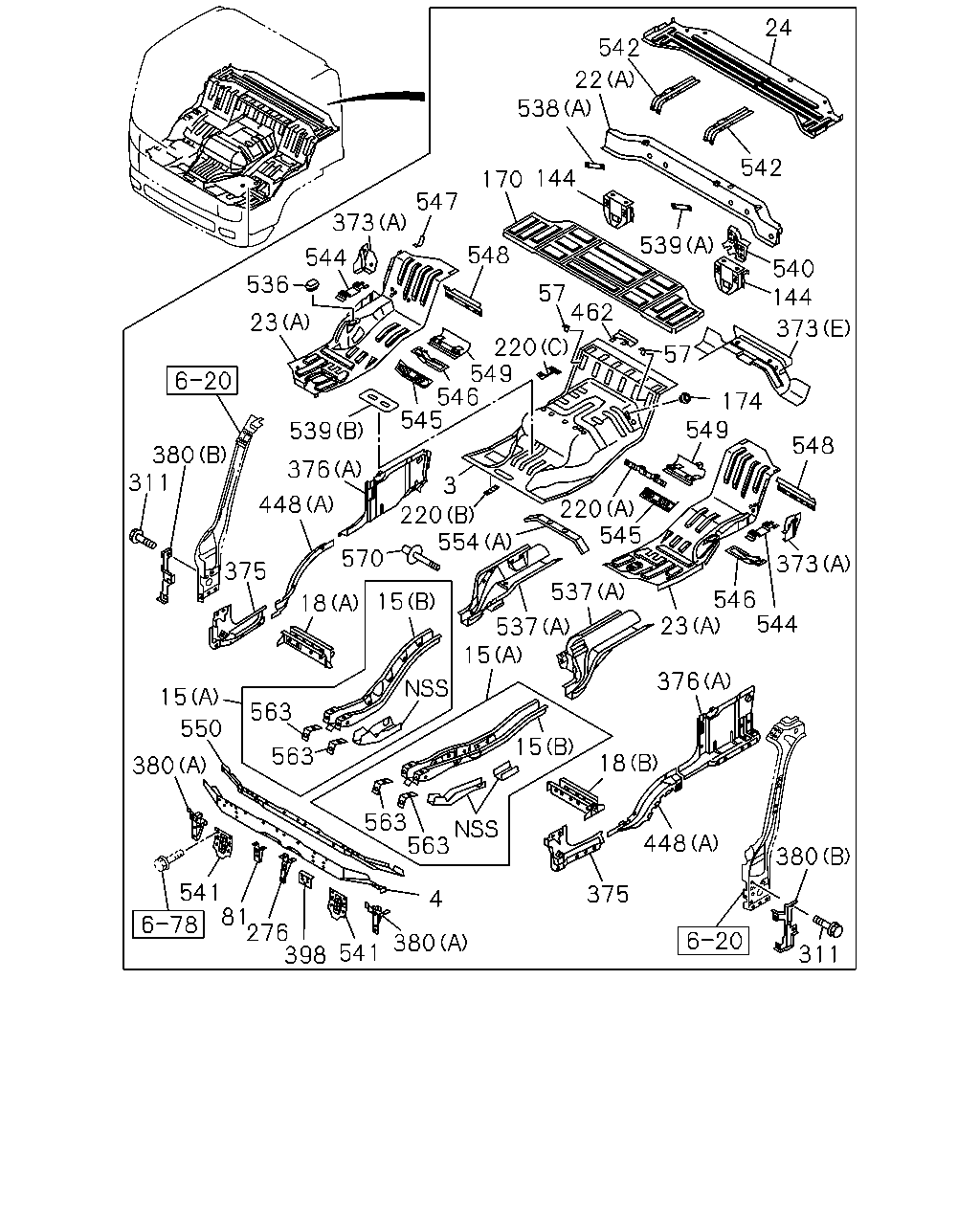

çizim 192137
24 542 22 538 542 144 170 547 373 539 548 544 540 144 536 57 462 23 373 220 549 546 545 57 174 549 539 548 380 311 376 3 448 220 545 220 554 570 373 375 537 546 544 15 18 23 537 15 376 15 563 550 563 15 18 380 563 563 448 380 541 81 276 398 375 4 380 541 311
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-357-4 01 1 0710-0711 ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-357-4 01 1 0712- ●
3 HOOD ASM; ENG
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-904-9 01 1 0712-1004 ●
3 HOOD ASM; ENG
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-036-0 01 1 1005- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-872-6 01 1 0710- ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0710-0711 ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0712- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0710- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0710- ●
15 FRAME; UNDER
(B) 		8-97584-388-8 01 1 0710-0711 ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0712- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-6 01 1 0710-0711 ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0712- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 0712- ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 0710- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 0710-0711 ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 0712- ● ●
22 FRAME; FLOOR REAR
(B) 		8-97410-959-1 01 1 0712- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 0710- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-751-0 01 1 1206- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 0710- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-6 01 1 0710- ●
24 PANEL; BED PAN 8-97584-377-6 01 1 0710- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0710- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0710-0711 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0710-0711 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0710-0711 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0712- ● ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 0710- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0710-0906 ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0907- ●
220 PATCH
(A) 		8-97588-840-4 01 1 0710- ●
220 PATCH
(C) 		8-97589-627-2 01 1 0710-0711 ●
220 PATCH
(C) 		8-97589-627-2 01 1 0712- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 0710-0711 ●
220 PATCH
(B) 		8-97589-603-3 01 1 0712- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0710-0711 ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0712- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0710-0711 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0712- ● ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (E) 		8-97584-345-9 01 1 0710- ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (E) 		8-98081-349-3 01 1 0710-1507 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (E) 		8-98228-266-0 01 1 1508- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0710- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0710- ●
375 CLOSING; PILLAR 8-98044-897-2 01 1 0710-0711 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0712- ● ●
375 CLOSING; PILLAR 8-98044-898-2 01 1 0710-0711 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0712- ● ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-98088-029-3 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 0710-1403 ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 0710- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0712- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0710-0711 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0712- ● ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 0712- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 0710- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 0710- ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0710-1002 ●
462 BRACKET; EXTINGUISHER
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97585-688-1 01 1 1003- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0710-0711 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0712- ● ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-940-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-951-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 0710- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 0710- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(B) 		8-97613-311-0 01 1 0712- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 0710- ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0809- ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0710- ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0710- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0710-0711 ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0712- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0710- ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0710-0711 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0712- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0710-0711 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0712- ● ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97584-361-1 01 1 0712- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0710-0711 ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-186-0 01 1 0712- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0712- ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0710-0711 ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0712- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0710- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0710- ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0710- ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0710- ●
549 BRACKET; SEAT RR
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97589-557-4 01 1 0712- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0710- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0710-0711 ●
549 BRACKET; SEAT RR
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-187-1 01 1 0712- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0710-0711 ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0710-0711 ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0710-0711 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0712- ● ●
570 FASTENER; POP RIVET 8-97319-308-0 02 1 0710-0711 ●

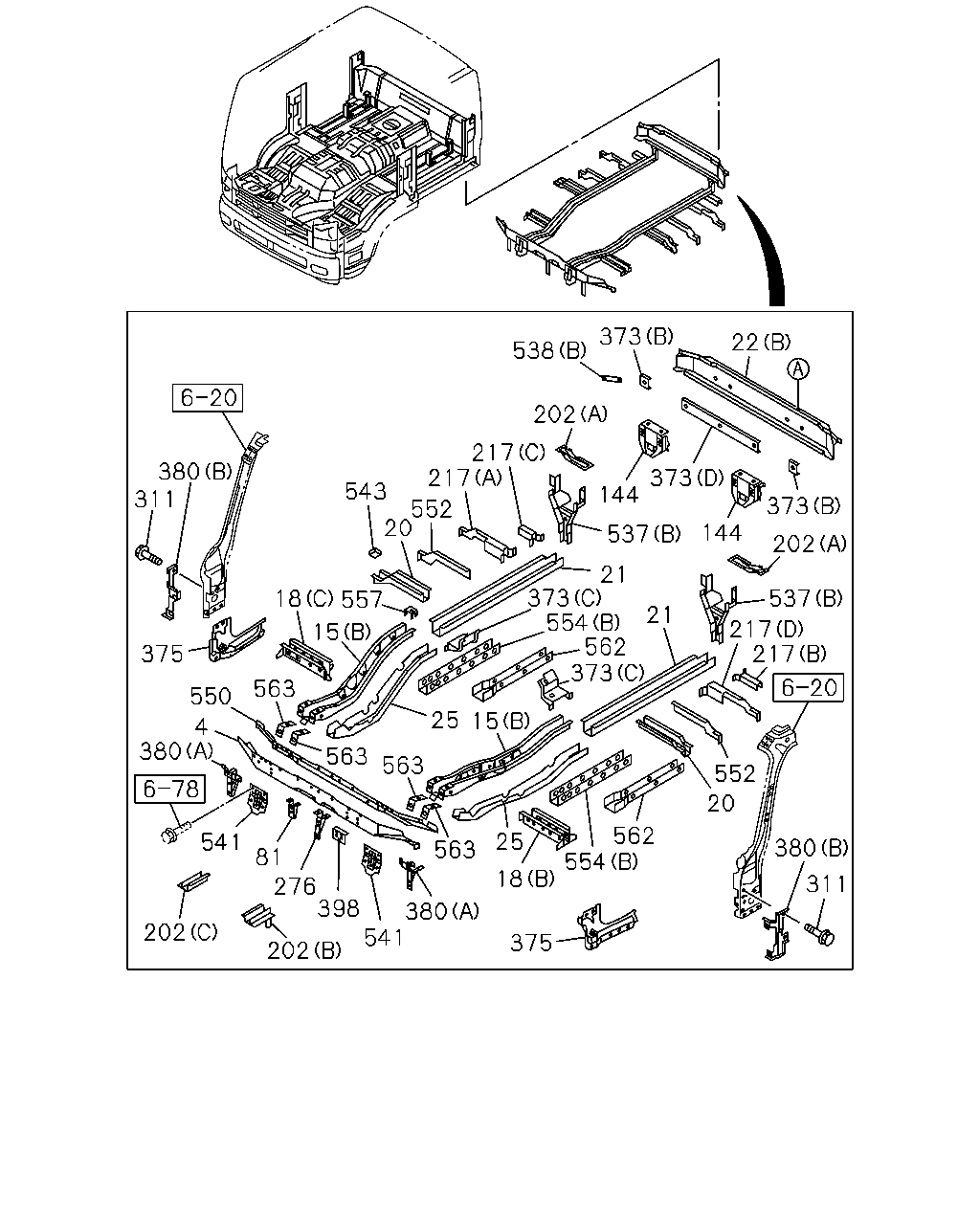

çizim 192202
373 22 538 202 217 217 380 311 373 543 144 373 552 20 144 537 202 21 373 554 562 373 537 21 217 217 15 375 563 550 25 15 4 380 563 563 552 20 25 562 554 541 380 563 81 18 311 276 398 380 541 202 375 202 18 557
BalonParca AdiParca NoAdetTipApplied Date A B
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0710-0711 ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0712- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0710- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0710- ●
15 FRAME; UNDER
(B) 		8-97584-388-8 01 1 0710-0711 ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0712- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-6 01 1 0710-0711 ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0712- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 0712- ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 0710- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 0710-0711 ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 0712- ● ●
20 FRAME; FLOOR SIDE,REAR 8-98057-164-1 01 1 0712- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-167-1 01 1 0712- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 0712- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 0712- ●
22 FRAME; FLOOR REAR
(B) 		8-97410-959-1 01 1 0712- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 0710- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 0712- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 0712- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0710-0711 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0710-0711 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0710-0711 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0712- ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-426-0 02 1 0712- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 0712- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 0712- ●
217 PANEL; SEAT STAND
(C) 		8-97410-945-1 01 1 0712- ●
217 PANEL; SEAT STAND
(B) 		8-97410-956-1 01 1 0712- ●
217 PANEL; SEAT STAND
(A) 		8-98057-178-1 01 1 0712- ●
217 PANEL; SEAT STAND
(D) 		8-98057-196-1 01 1 0712- ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0710-0711 ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0712- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0710-0711 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0712- ● ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (E) 		8-97584-345-9 01 1 0710- ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (E) 		8-98081-349-3 01 1 0710-1507 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (E) 		8-98228-266-0 01 1 1508- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0710- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0710- ●
375 CLOSING; PILLAR 8-98044-897-2 01 1 0710-0711 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0712- ● ●
375 CLOSING; PILLAR 8-98044-898-2 01 1 0710-0711 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0712- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0710-0711 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0712- ● ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-940-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-951-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 0710- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 0710- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(B) 		8-97613-311-0 01 1 0712- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 0710- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0710-0711 ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0712- ● ●
543 GUSSET; RR PILLAR,LWR 8-98024-396-0 01 1 0712- ●
543 GUSSET; RR PILLAR,LWR 8-98035-734-0 01 1 0712- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0710-0711 ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0712- ● ●
552 PANEL; STEP RR 8-98057-170-0 01 1 0712- ●
552 PANEL; STEP RR 8-98057-171-0 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0710-0711 ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
557 PATCH; SEAT 8-98074-333-0 01 1 0712- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 0712- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0710-0711 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0712- ● ●

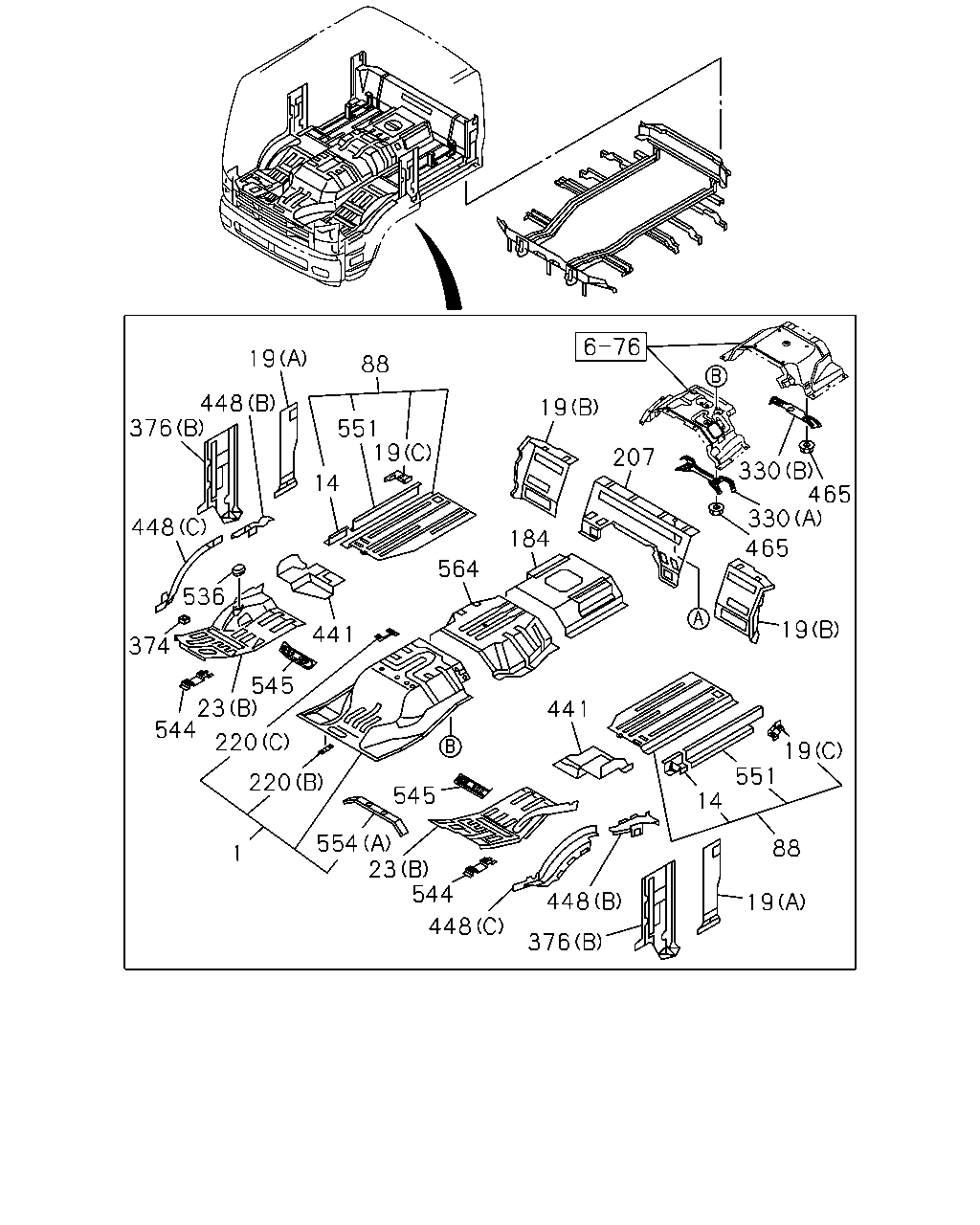

çizim 192207
330 465 330 465 207 19 184 564 441 551 14 19 19 88 19 551 14 441 536 374 545 23 220 544 220 1 545 554 23 544 448 376 448 19 88 448 376 448 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-815-5 01 1 0712- ●
1 PANEL; FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97410-865-7 01 1 0712- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 0712- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-841-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-842-1 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-751-0 01 1 1206- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 0710- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-6 01 1 0710- ●
88 BOARD ASM; FLOOR 8-97615-912-2 01 1 0712- ●
88 BOARD ASM; FLOOR 8-97615-913-3 01 1 0712- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 0712- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 0712- ●
220 PATCH
(A) 		8-97588-840-4 01 1 0710- ●
220 PATCH
(C) 		8-97589-627-2 01 1 0710-0711 ●
220 PATCH
(C) 		8-97589-627-2 01 1 0712- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 0710-0711 ●
220 PATCH
(B) 		8-97589-603-3 01 1 0712- ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1306- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1306- ●
374 NUT; FLOOR
M6 		1-09984-110-0 03 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-98088-029-3 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 0710-1403 ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 0710- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-911-2 01 1 0712- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98050-317-2 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 0712- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 0710- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 0710- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1306- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0710-0711 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0712- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0710-0711 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0712- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0710-0711 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0712- ● ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97584-361-1 01 1 0712- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0710-0711 ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-186-0 01 1 0712- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0712- ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0710-0711 ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0712- ● ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 0712- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0710-0711 ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
