6-47 — MUD GUARD AND INSULATOR (#66360) — 158 parça

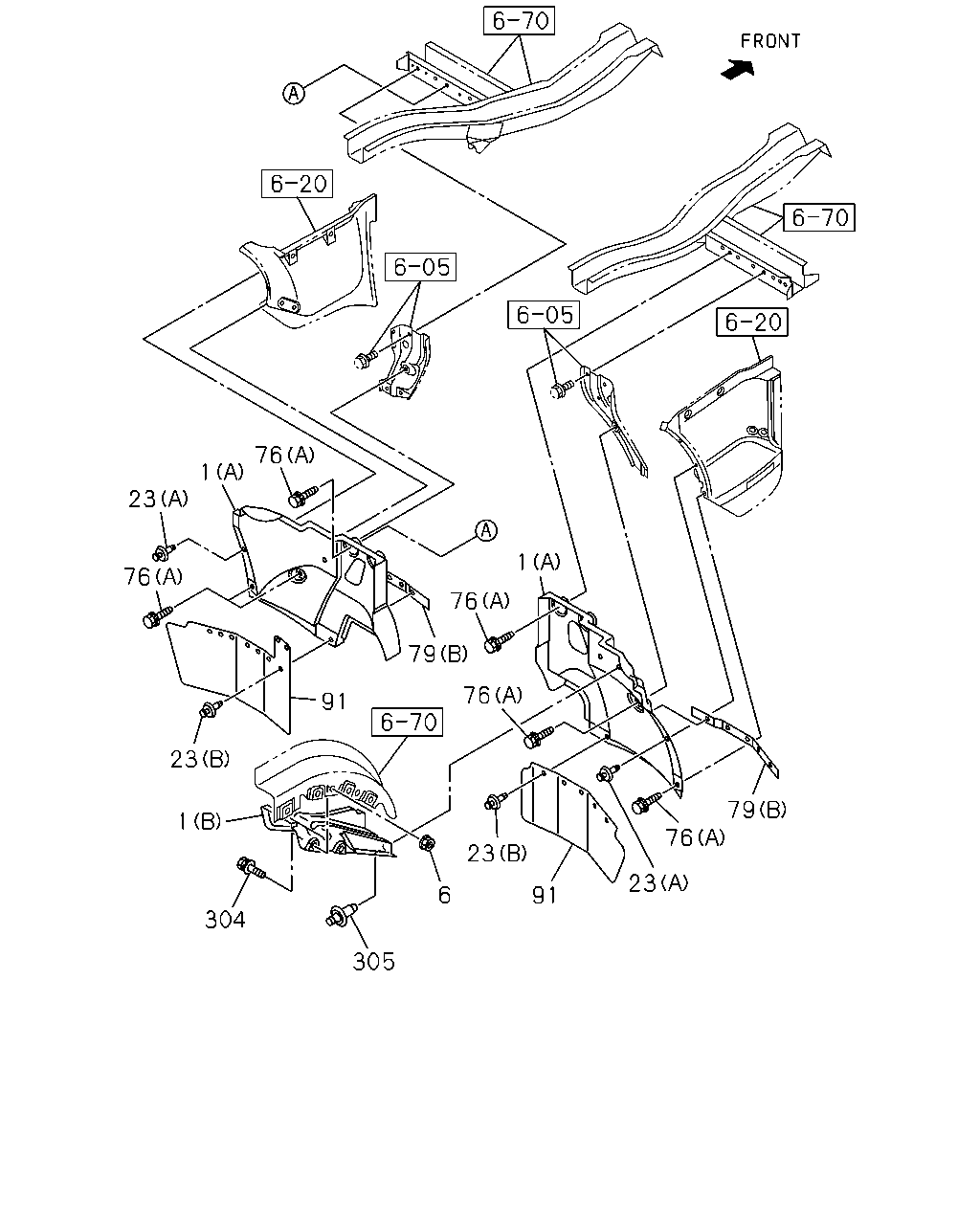

çizim 131279
76 1 23 1 76 76 79 91 23 79 1 76 23 23 6 91 304 305 76
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT
(A) 		8-98039-843-2 01 1 0710-0711 ●
1 GUARD; MUD,FRT
(A) 		8-98039-843-2 01 1 0712-0908 ● ●
1 GUARD; MUD,FRT
(A) 		8-98152-647-0 01 1 0909- ● ●
1 GUARD; MUD,FRT
(A) 		8-98039-842-2 01 1 0710-0711 ●
1 GUARD; MUD,FRT
(A) 		8-98039-842-2 01 1 0712-0908 ● ●
1 GUARD; MUD,FRT
(A) 		8-98152-646-0 01 1 0909- ● ●
1 GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B) 		8-98075-188-0 01 1 0710-0711 ●
1 GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B) 		8-98075-188-0 01 1 0712- ● ●
6 NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 0710-0711 ●
6 NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 0712- ● ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 08 1 0710-0711 ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 08 1 0712- ● ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 04 1 0710-0711 ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 04 1 0712- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0710-0711 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0712-1211 ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 08 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0710-0711 ●
76 BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0712-0908 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 0909- ● ●
79 RETAINER; MUD COVER
(A) 		1-79931-484-0 01 1 0810- ●
79 RETAINER; MUD COVER
(C) 		8-98105-000-0 01 1 0810- ●
79 RETAINER; MUD COVER
(A) 		1-79931-484-0 02 1 0710-0711 ●
79 RETAINER; MUD COVER
(A) 		1-79931-484-0 02 1 0712-0809 ● ●
79 RETAINER; MUD COVER
(A) 		1-79931-484-0 02 1 0810- ●
79 RETAINER; MUD COVER
(B) 		8-98041-217-1 02 1 0710-0711 ●
79 RETAINER; MUD COVER
(B) 		8-98041-217-1 02 1 0712- ● ●
91 COVER; MUD,FRT
4HK1-TCS ENG(RJS) 		8-98093-463-0 01 1 0712- ●
91 COVER; MUD,FRT
4HK1-TCS ENG(RJS) 		8-98093-464-0 01 1 0712- ●
91 COVER; MUD,FRT 8-98092-834-0 01 1 0710-0711 ●
91 COVER; MUD,FRT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-98092-834-0 01 1 0712- ● ●
91 COVER; MUD,FRT 8-98092-836-0 01 1 0710-0711 ●
91 COVER; MUD,FRT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-98092-836-0 01 1 0712- ● ●
304 BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 0710-0711 ●
304 BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 0712- ● ●
305 FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5 		1-09987-248-1 02 1 0710-0711 ●
305 FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5 		1-09987-248-1 02 1 0712- ● ●

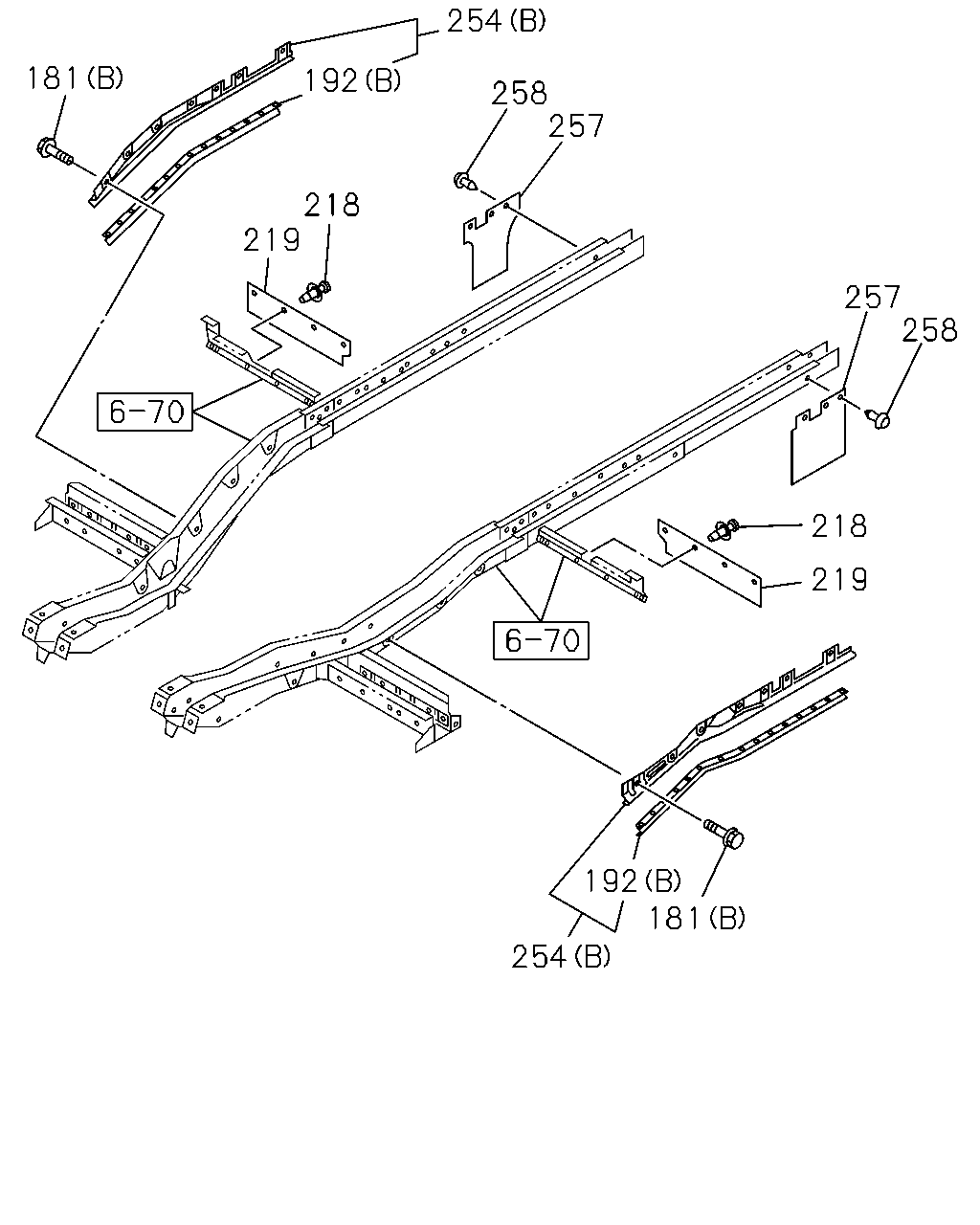

çizim 131291
254 181 192 258 257 218 219 257 258 218 219 192 181 254
BalonParca AdiParca NoAdetTipApplied Date A B
181 BOLT; COVER,SIDE
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0712-0904 ●
181 BOLT; COVER,SIDE
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905- ●
181 BOLT; COVER,SIDE
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 16 1 0710- ●
192 SEAL; MUD COVER
(B) 		8-98061-554-1 01 1 0712- ●
192 SEAL; MUD COVER
(B) 		8-98061-555-1 01 1 0712- ●
192 SEAL; MUD COVER
(A) 		8-98041-159-2 01 1 0710-1005 ●
192 SEAL; MUD COVER
(A) 		8-98041-159-2 01 1 1006- ●
192 SEAL; MUD COVER
(A) 		8-98041-158-1 01 1 0710-1005 ●
192 SEAL; MUD COVER
(A) 		8-98041-158-1 01 1 1006- ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0710-0711 ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0712- ● ●
219 FLAP; MUD GUARD
4HK1-TCS ENG(RJS) 		8-98065-773-0 02 1 0712- ●
219 FLAP; MUD GUARD
6HK1-TCN ENG(82L) 		8-98063-654-0 02 1 0712- ●
219 FLAP; MUD GUARD 8-98041-150-1 02 1 0710-1005 ●
219 FLAP; MUD GUARD 8-98041-150-1 02 1 1006- ●
254 COVER; MUD,VALANCE
4HK1-TCS ENG(RJS) (B) 		8-98058-181-1 01 1 0712- ●
254 COVER; MUD,VALANCE
4HK1-TCS ENG(RJS) (B) 		8-98058-182-1 01 1 0712- ●
254 COVER; MUD,VALANCE
6HK1-TCN ENG(82L) (B) 		8-98058-185-1 01 1 0712- ●
254 COVER; MUD,VALANCE
6HK1-TCN ENG(82L) (B) 		8-98058-186-1 01 1 0712- ●
254 COVER; MUD,VALANCE
(A) 		8-98039-926-1 01 1 0710-1005 ●
254 COVER; MUD,VALANCE
(A) 		8-98039-926-1 01 1 1006- ●
254 COVER; MUD,VALANCE
(A) 		8-98039-925-2 01 1 0710-1005 ●
254 COVER; MUD,VALANCE
(A) 		8-98039-925-2 01 1 1006- ●
257 SHUTTER; RUBBER,SIDE COVER REAR
4HK1-TCS ENG(RJS) 		8-98064-283-2 01 1 0712- ●
257 SHUTTER; RUBBER,SIDE COVER REAR
4HK1-TCS ENG(RJS) 		8-98064-284-1 01 1 0712- ●
257 SHUTTER; RUBBER,SIDE COVER REAR
6HK1-TCN ENG(82L) 		8-98064-285-2 01 1 0712- ●
257 SHUTTER; RUBBER,SIDE COVER REAR
6HK1-TCN ENG(82L) 		8-98064-286-1 01 1 0712- ●
258 RIVET; SCREW,SHUTTER
4HK1-TCS ENG(RJS) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0712- ●
258 RIVET; SCREW,SHUTTER
6HK1-TCN ENG(82L) D6X16 PUSH RIVET 		1-09983-105-0 04 1 0712- ●

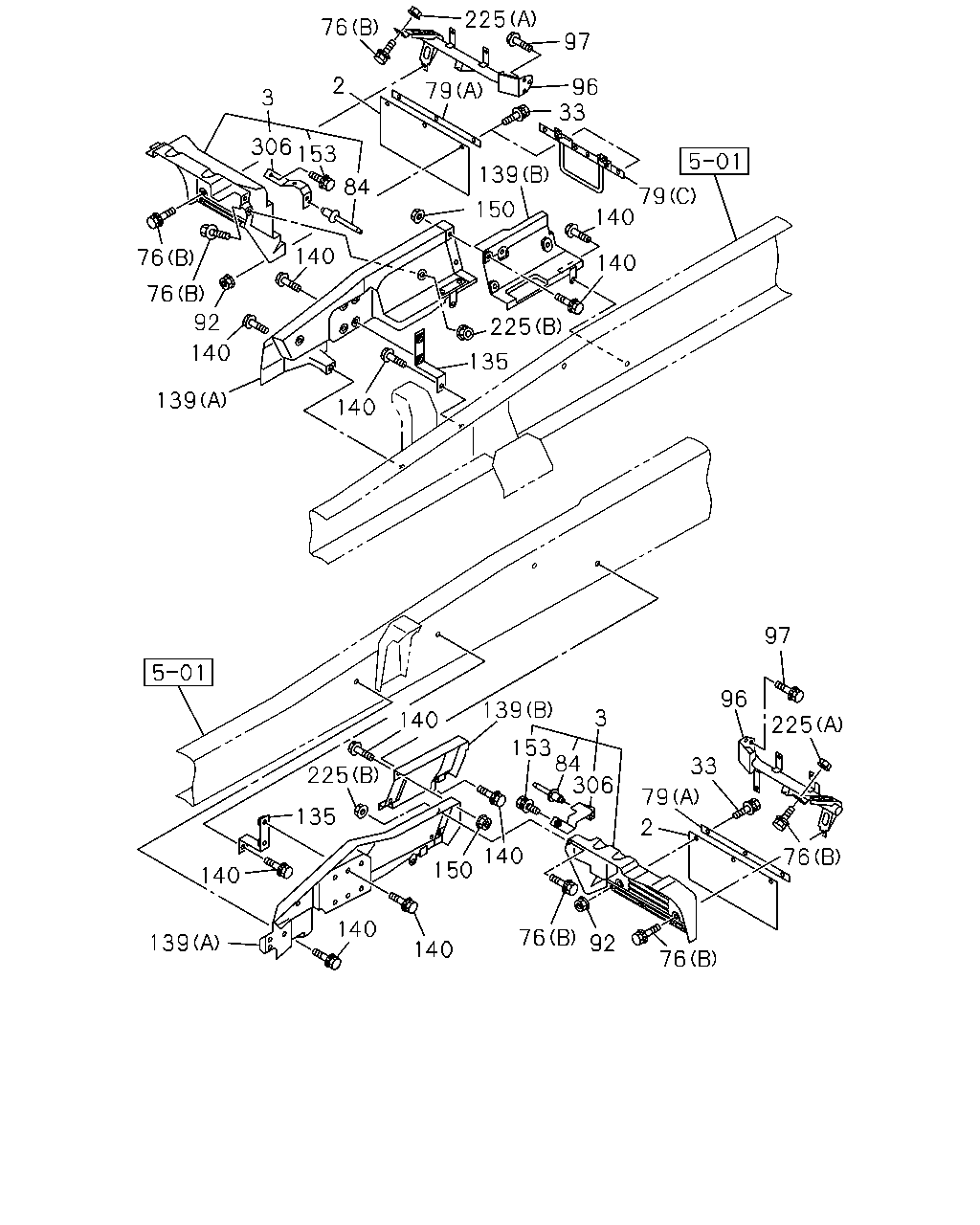

çizim 192118
97 96 225 33 76 79 2 76 92 76 140 150 140 140 139 140 135 225 140 139 3 153 84 306 140 135 225 140 140 79 33 96 97 225 76 79 139 150 140 92 139 140 76 76 306 3 2 153 84
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; MUD,TIRE RR 1-79931-482-0 02 1 0710-0711 ●
2 COVER; MUD,TIRE RR 1-79931-482-0 02 1 0712- ● ●
3 GUARD; MUD,RR
4HK1-TCS ENG(RJS) 		1-79931-547-0 01 1 0712-1212 ●
3 GUARD; MUD,RR
4HK1-TCS ENG(RJS) 		8-98196-113-0 01 1 1301- ●
3 GUARD; MUD,RR 1-79931-545-0 01 1 0712-1212 ●
3 GUARD; MUD,RR
4HK1-TCS ENG(RJS) 		8-98196-105-0 01 1 1301- ●
3 GUARD; MUD,RR 1-79931-471-0 01 1 0710-1212 ●
3 GUARD; MUD,RR 8-98196-103-0 01 1 1301- ●
3 GUARD; MUD,RR
6HK1-TCN ENG(82L) 		8-98196-103-0 01 1 1301- ●
3 GUARD; MUD,RR 1-79931-475-0 01 1 0710-0711 ●
3 GUARD; MUD,RR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-79931-475-0 01 1 0712-1212 ● ●
3 GUARD; MUD,RR 8-98196-111-0 01 1 1301- ●
3 GUARD; MUD,RR
6HK1-TCN ENG(82L) 		8-98196-111-0 01 1 1301- ●
3 GUARD; MUD,RR
4HK1-TCS ENG(RJS) 		1-79931-472-2 01 1 0712- ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 06 1 0710-0711 ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 06 1 0712- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0710-0711 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0712-1211 ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 08 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0710-0711 ●
76 BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0712-0908 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 0909- ● ●
79 RETAINER; MUD COVER
(A) 		1-79931-484-0 01 1 0810- ●
79 RETAINER; MUD COVER
(C) 		8-98105-000-0 01 1 0810- ●
79 RETAINER; MUD COVER
(A) 		1-79931-484-0 02 1 0710-0711 ●
79 RETAINER; MUD COVER
(A) 		1-79931-484-0 02 1 0712-0809 ● ●
79 RETAINER; MUD COVER
(A) 		1-79931-484-0 02 1 0810- ●
79 RETAINER; MUD COVER
(B) 		8-98041-217-1 02 1 0710-0711 ●
79 RETAINER; MUD COVER
(B) 		8-98041-217-1 02 1 0712- ● ●
84 RIVET; MUD GUARD 5-09734-006-1 02 1 1301- ●
84 RIVET; MUD GUARD 5-09734-006-1 02 1 1301- ●
84 RIVET; MUD GUARD
6HK1-TCN ENG(82L) 		5-09734-006-1 02 1 1301- ●
84 RIVET; MUD GUARD
6HK1-TCN ENG(82L) 		5-09734-006-1 02 1 1301- ●
84 RIVET; MUD GUARD
4HK1-TCS ENG(RJS) 		5-09734-006-1 04 1 1301- ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 06 1 0710-0711 ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 06 1 0712- ● ●
96 STAY; MUD GUARD 1-79931-480-3 01 1 0712- ●
96 STAY; MUD GUARD 8-98066-745-2 01 1 0710- ●
96 STAY; MUD GUARD 1-79931-479-3 01 1 0710-0711 ●
96 STAY; MUD GUARD 1-79931-479-3 01 1 0712- ● ●
97 BOLT; STAY TO FRAME
M10X30 FLANGE 		0-28651-030-0 07 1 0710-0711 ●
97 BOLT; STAY TO FRAME
M10X30 FLANGE 		0-28651-030-0 07 1 0712- ● ●
135 BRACKET; SIDE PANEL 1-53457-191-0 02 1 0710-0711 ●
135 BRACKET; SIDE PANEL 1-53457-191-0 02 1 0712- ● ●
139 PANEL; SIDE
(A) 		8-98090-077-0 01 1 0710-0711 ●
139 PANEL; SIDE
(A) 		8-98090-077-0 01 1 0712- ● ●
139 PANEL; SIDE
(A) 		8-98090-078-0 01 1 0710-0711 ●
139 PANEL; SIDE
(A) 		8-98090-078-0 01 1 0712- ● ●
139 PANEL; SIDE
(B) 		1-53194-591-0 01 1 0710-0711 ●
139 PANEL; SIDE
(B) 		1-53194-591-0 01 1 0712- ● ●
139 PANEL; SIDE
(B) 		1-53194-590-1 01 1 0710-0711 ●
139 PANEL; SIDE
(B) 		1-53194-590-1 01 1 0712- ● ●
140 BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER 		1-09030-095-0 06 1 0710-0711 ●
140 BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER 		1-09030-095-0 06 1 0712- ● ●
140 BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER 		1-09030-095-0 10 1 0710-0711 ●
140 BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER 		1-09030-095-0 10 1 0712- ● ●
150 NUT; SIDE PANEL
M8 W/DISHED WASHER 		8-97329-625-0 04 1 0710-0711 ●
150 NUT; SIDE PANEL
M8 W/DISHED WASHER 		8-97329-625-0 04 1 0712- ● ●
153 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1301- ●
153 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1301- ●
153 BOLT; BRKT
6HK1-TCN ENG(82L) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1301- ●
153 BOLT; BRKT
6HK1-TCN ENG(82L) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1301- ●
153 BOLT; BRKT
4HK1-TCS ENG(RJS) M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1301- ●
225 NUT; MUD GUARD
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
225 NUT; MUD GUARD
(A) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
225 NUT; MUD GUARD
(B) M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710-0711 ●
225 NUT; MUD GUARD
(B) M8 W/DISHED WASHER 		8-97329-625-0 02 1 0712- ● ●
306 BRACKET; MUD GUARD 8-98196-125-0 01 1 1301- ● ●
306 BRACKET; MUD GUARD 8-98196-126-0 01 1 1301- ● ●

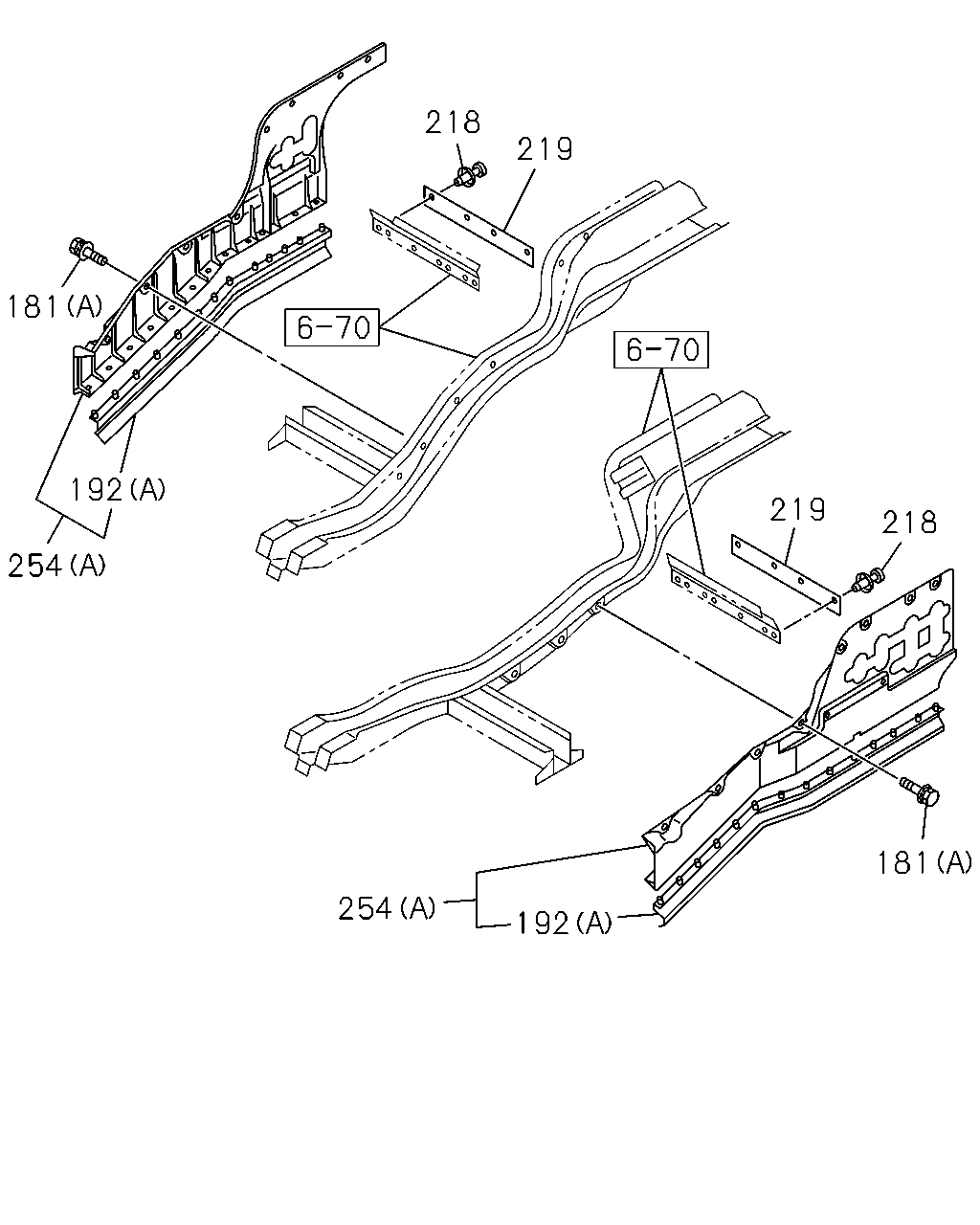

çizim 192129
218 219 181 192 219 218 254 181 254 192
BalonParca AdiParca NoAdetTipApplied Date A B
181 BOLT; COVER,SIDE
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0712-0904 ●
181 BOLT; COVER,SIDE
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905- ●
181 BOLT; COVER,SIDE
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 16 1 0710- ●
192 SEAL; MUD COVER
(B) 		8-98061-554-1 01 1 0712- ●
192 SEAL; MUD COVER
(B) 		8-98061-555-1 01 1 0712- ●
192 SEAL; MUD COVER
(A) 		8-98041-159-2 01 1 0710-1005 ●
192 SEAL; MUD COVER
(A) 		8-98041-159-2 01 1 1006- ●
192 SEAL; MUD COVER
(A) 		8-98041-158-1 01 1 0710-1005 ●
192 SEAL; MUD COVER
(A) 		8-98041-158-1 01 1 1006- ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0710-0711 ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0712- ● ●
219 FLAP; MUD GUARD
4HK1-TCS ENG(RJS) 		8-98065-773-0 02 1 0712- ●
219 FLAP; MUD GUARD
6HK1-TCN ENG(82L) 		8-98063-654-0 02 1 0712- ●
219 FLAP; MUD GUARD 8-98041-150-1 02 1 0710-1005 ●
219 FLAP; MUD GUARD 8-98041-150-1 02 1 1006- ●
254 COVER; MUD,VALANCE
4HK1-TCS ENG(RJS) (B) 		8-98058-181-1 01 1 0712- ●
254 COVER; MUD,VALANCE
4HK1-TCS ENG(RJS) (B) 		8-98058-182-1 01 1 0712- ●
254 COVER; MUD,VALANCE
6HK1-TCN ENG(82L) (B) 		8-98058-185-1 01 1 0712- ●
254 COVER; MUD,VALANCE
6HK1-TCN ENG(82L) (B) 		8-98058-186-1 01 1 0712- ●
254 COVER; MUD,VALANCE
(A) 		8-98039-926-1 01 1 0710-1005 ●
254 COVER; MUD,VALANCE
(A) 		8-98039-926-1 01 1 1006- ●
254 COVER; MUD,VALANCE
(A) 		8-98039-925-2 01 1 0710-1005 ●
254 COVER; MUD,VALANCE
(A) 		8-98039-925-2 01 1 1006- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
