◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#66354) — 318 parça

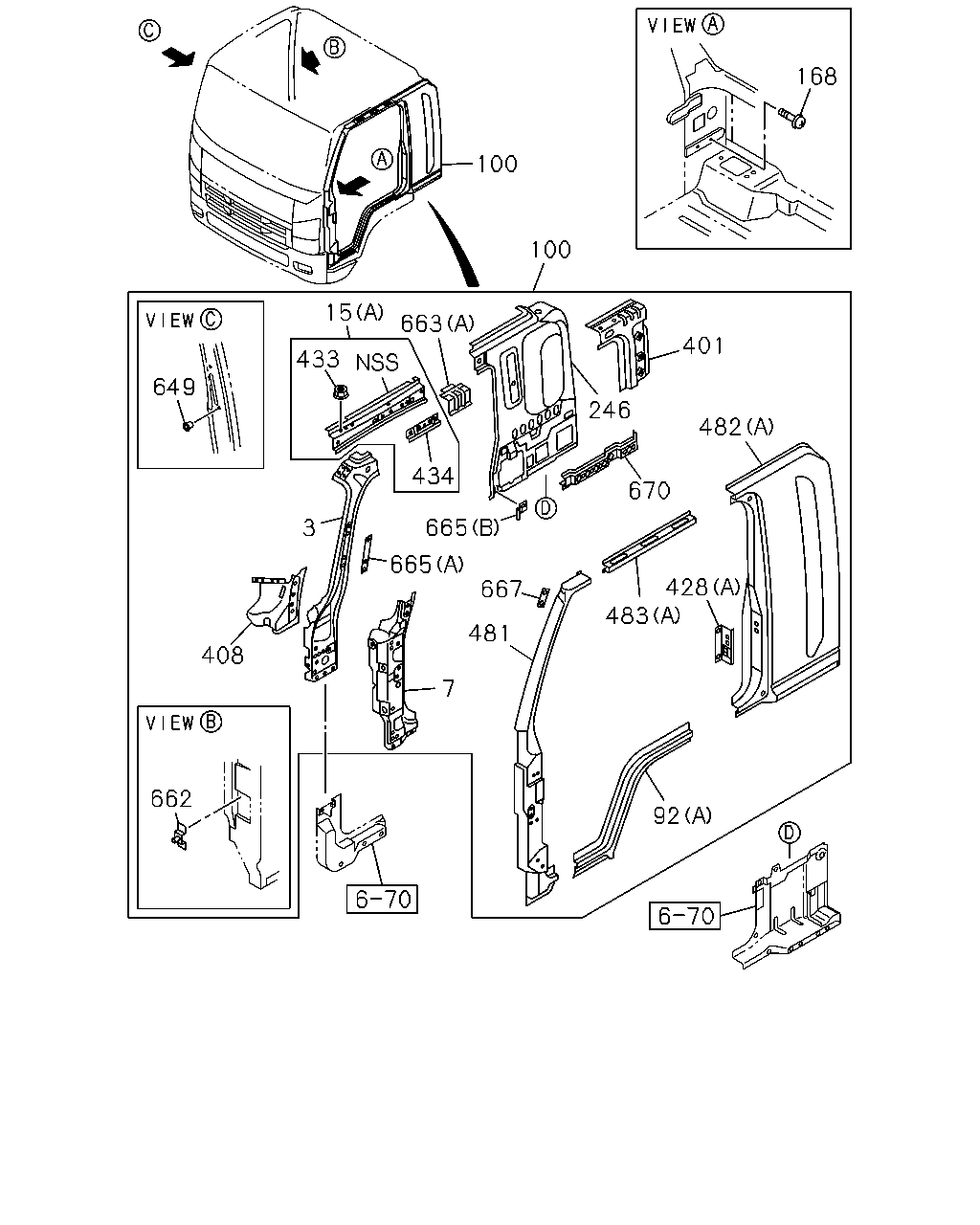

çizim 126389
168 100 100 15 663 401 433 649 246 482 434 670 665 3 665 428 483 667 481 408 7 662 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710-0711 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0712- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710-0711 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0712-1204 ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1205- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-2 01 1 0710-0711 ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0712- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0710-0711 ●
7 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0712-1204 ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1205- ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-739-1 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-740-1 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-293-2 01 1 0710- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-292-2 01 1 0710-1204 ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-292-2 01 1 1205- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 0712- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0710-0711 ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0712- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0710-0711 ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0712- ● ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-97586-061-5 01 1 0712-1005 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-079-6 01 1 0712-0901 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97586-079-6 01 1 0712-0901 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-079-6 01 1 0902-1005 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-97586-079-6 01 1 0902-1005 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-97586-079-7 01 1 1006- ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-065-6 01 1 0712- ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0712- ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0712- ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-063-4 01 1 0712-0901 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-063-4 01 1 0902-1005 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-063-5 01 1 1006-1204 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-063-5 01 1 1205- ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-5 01 1 0712-0901 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-5 01 1 0902-1005 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-6 01 1 1006- ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-070-6 01 1 0712- ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98044-544-5 01 1 0712- ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-590-3 01 1 0710-0711 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-590-3 01 1 0712-0901 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98088-590-3 01 1 0712-0901 ●
100 PANEL ASM; BODY SIDE 8-98088-579-2 01 1 0710-0711 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98088-579-2 01 1 0712-0901 ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-587-3 01 1 0710-0711 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-587-3 01 1 0712-0901 ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0711 ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0712-0802 ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0803- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 0710- ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 0710-1204 ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1205- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 0710- ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 0710-1204 ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1205- ● ●
408 GUSSET; PILLAR 8-97586-194-1 01 1 0710-0711 ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0712- ● ●
408 GUSSET; PILLAR 8-97586-193-2 01 1 0710-0711 ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0712-1204 ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1205- ● ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 0710- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 0710-1204 ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 1205- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0710-0711 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0710-0711 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0712-1204 ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1205- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1205- ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0710-0711 ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0712- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0710-0711 ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0712-1204 ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1205- ● ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98093-580-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-471-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98055-451-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98092-915-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 1006- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 1006- ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98093-579-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-579-0 01 1 1006- ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1006- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 1006- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 1006- ●
482 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) (A) 		8-98092-923-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) (A) 		8-98092-925-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 0712- ●
482 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 0712- ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-468-0 01 1 0710-0807 ●
482 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98055-468-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-468-0 01 1 0902- ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-469-0 01 1 0710-0807 ●
482 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98055-469-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-469-0 01 1 0902- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 0712- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0710- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0710- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0710-0711 ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0712-1204 ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1205- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0710-1204 ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1205- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 0712- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0710-0711 ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0712- ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0710-0711 ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0712-1204 ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1205- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0710- ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0710- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0710-0711 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0710-0711 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0712-1204 ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1205- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1205- ●
667 BRACKET; MIRROR 8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98109-948-0 01 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1006- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1006- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1006- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98109-948-0 01 1 1006- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0710-0711 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98005-264-0 02 1 0712-0806 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 02 1 1006- ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0710- ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0710- ●

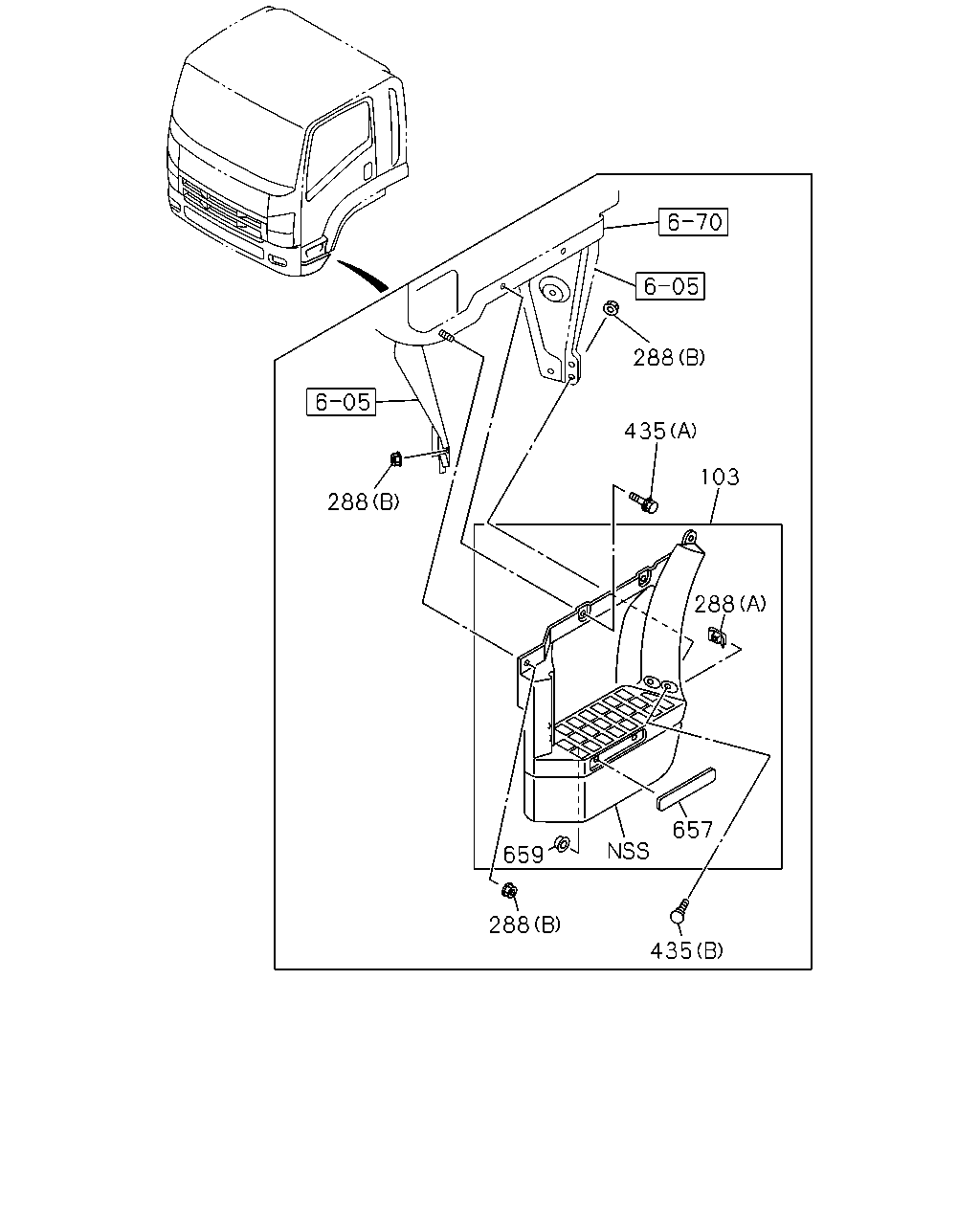

çizim 130604
288 435 103 288 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98037-326-3 01 1 0710-0711 ●
103 PLATE; STEP 8-98037-326-3 01 1 0712- ● ●
103 PLATE; STEP 8-98037-325-3 01 1 0710-0711 ●
103 PLATE; STEP 8-98037-325-3 01 1 0712- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 0710-0711 ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 0712- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0710-0711 ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0712- ● ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0710-0711 ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0712-0907 ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0710-0711 ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0712- ● ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0710-0711 ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0712- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0710-0711 ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0712- ● ●

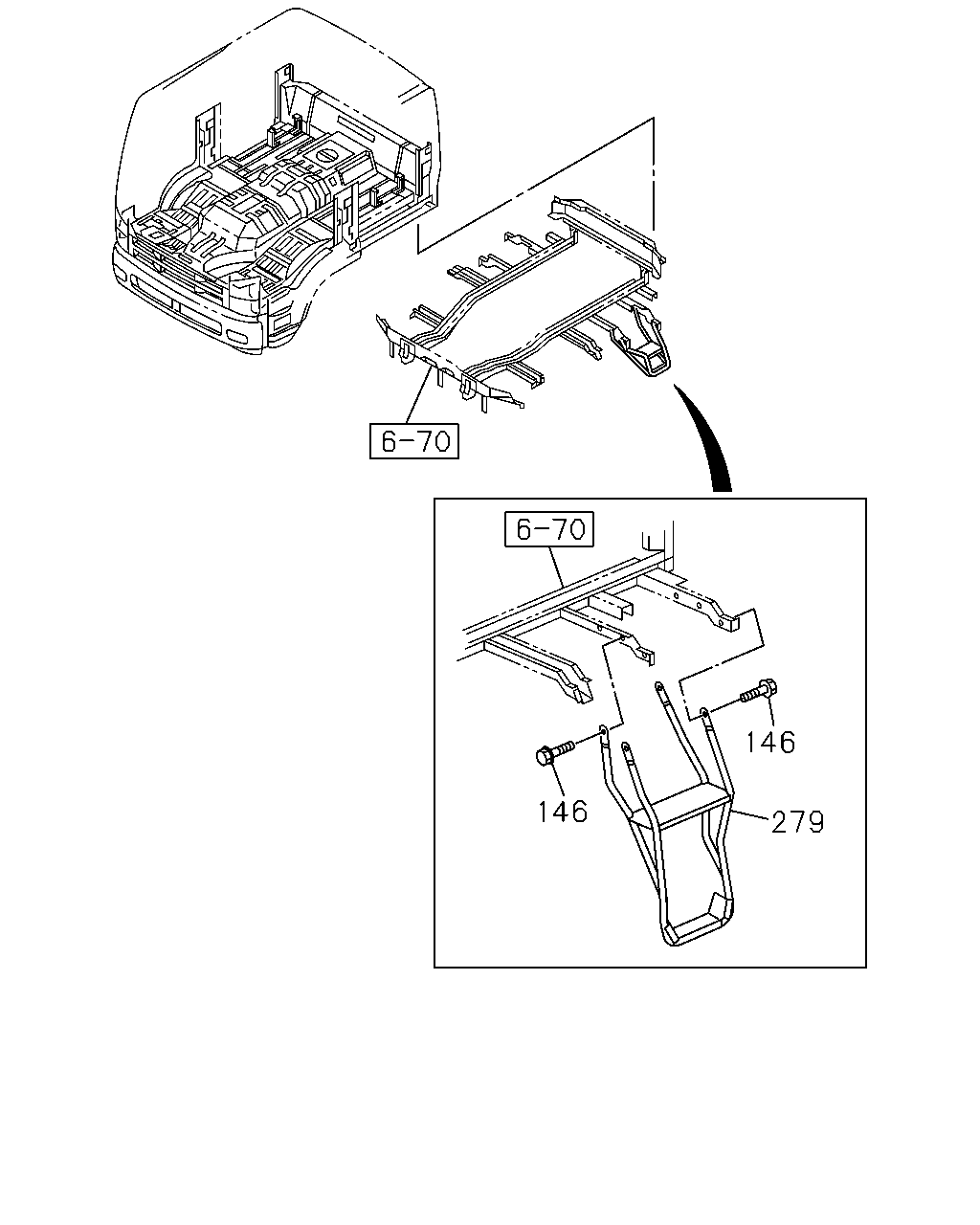

çizim 130870
146 146 279
BalonParca AdiParca NoAdetTipApplied Date A B
146 BOLT; STEP BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0712- ●
279 BOARD; STEP 1ST 8-97607-507-3 01 1 0712- ●
279 BOARD; STEP 1ST 8-97607-508-3 01 1 0712- ●

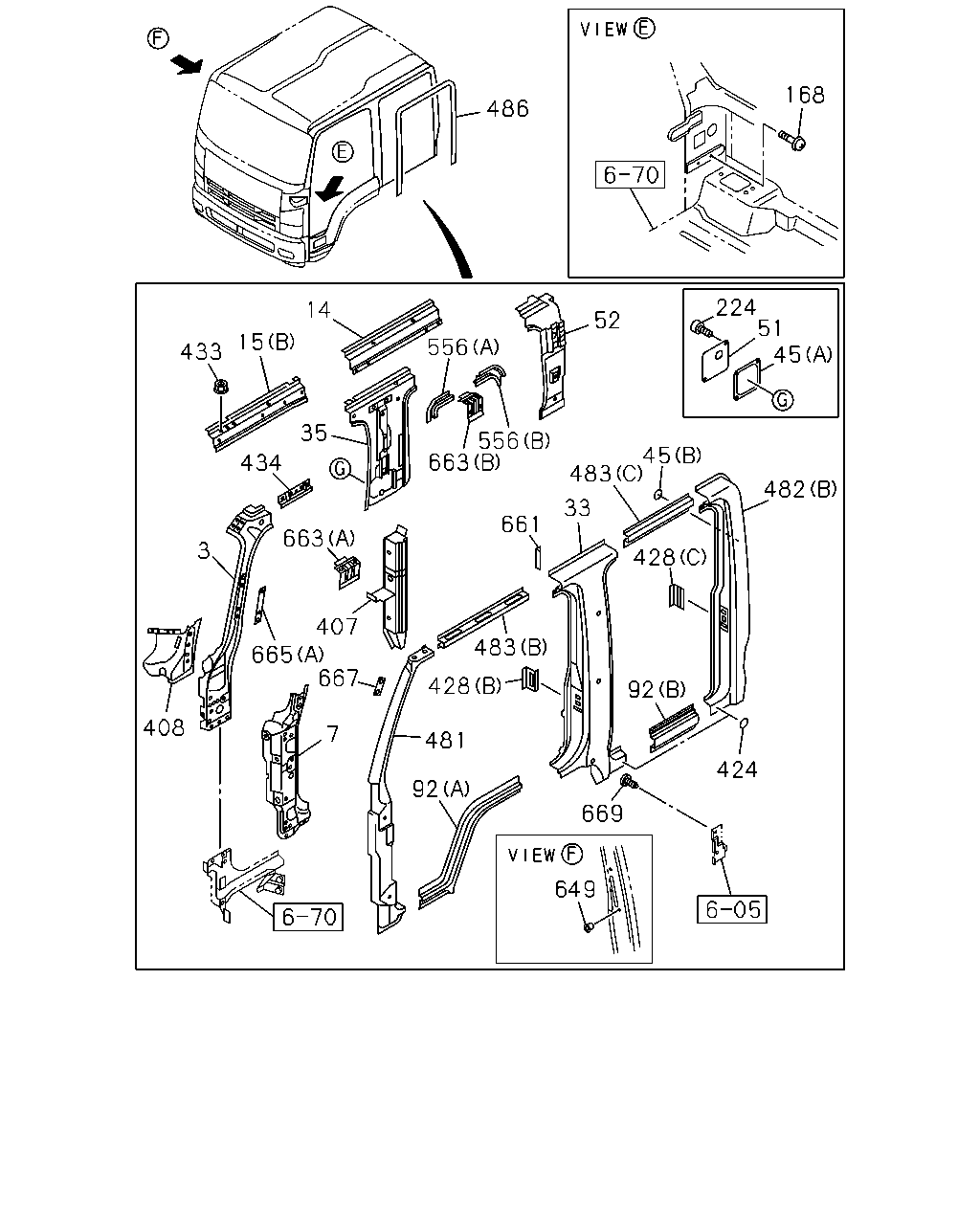

çizim 192123
168 486 224 51 45 14 52 15 556 433 35 556 663 45 483 434 482 33 661 663 3 428 407 667 483 665 428 92 408 7 481 424 92 669 649
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710-0711 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0712- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710-0711 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0712-1204 ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1205- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-2 01 1 0710-0711 ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0712- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0710-0711 ●
7 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0712-1204 ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1205- ● ●
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 02 1 0712- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-739-1 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-740-1 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-293-2 01 1 0710- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-292-2 01 1 0710-1204 ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-292-2 01 1 1205- ● ●
33 PANEL; CENTER PILLAR,OUTER 8-98097-244-0 01 1 0712-0901 ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-090-0 01 1 0902- ●
33 PANEL; CENTER PILLAR,OUTER 8-98097-245-0 01 1 0712-0901 ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-091-0 01 1 0902- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-456-2 01 1 0712- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-457-2 01 1 0712- ●
45 SEAL; B-C POST
BODY COLOR FT ORANGE(609),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0712-0905 ●
45 SEAL; B-C POST
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944) ,BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906-0906 ●
45 SEAL; B-C POST
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906- ●
45 SEAL; B-C POST
BODY COLOR ARC WHITE(729) (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0712-0905 ●
45 SEAL; B-C POST
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0906- ●
45 SEAL; B-C POST
(A) 		8-97853-731-2 02 1 0712- ●
51 COVER; HOLE,B-C POST 8-94273-658-0 02 1 0712- ●
52 PANEL; D-POST UPR 8-98062-005-1 01 1 0712- ●
52 PANEL; D-POST UPR 8-98062-006-1 01 1 0712- ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 0712- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0710-0711 ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0712- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0710-0711 ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0712- ● ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0711 ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0712-0802 ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0803- ● ●
224 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0712- ●
407 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 0712- ●
407 PILLAR; HINGE,RR DOOR 8-98089-274-1 01 1 0712-0901 ●
407 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 0902- ●
408 GUSSET; PILLAR 8-97586-194-1 01 1 0710-0711 ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0712- ● ●
408 GUSSET; PILLAR 8-97586-193-2 01 1 0710-0711 ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0712-1204 ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1205- ● ●
424 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0712-0905 ●
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944) ,BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0906-0906 ●
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0906- ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0712-0905 ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0906- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 0710- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 0710-1204 ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 1205- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0710-0711 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0710-0711 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0712-1204 ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1205- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1205- ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0710-0711 ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0712- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0710-0711 ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0712-1204 ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1205- ● ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98093-580-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-471-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98055-451-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98092-915-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 1006- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 1006- ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98093-579-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-579-0 01 1 1006- ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1006- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 1006- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 1006- ●
482 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) (A) 		8-98092-923-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) (A) 		8-98092-925-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 0712- ●
482 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 0712- ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-468-0 01 1 0710-0807 ●
482 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98055-468-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-468-0 01 1 0902- ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-469-0 01 1 0710-0807 ●
482 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98055-469-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-469-0 01 1 0902- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 0712- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0710- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0710- ●
486 SEAL; BODY SIDE
DARK GRAY 		8-97405-303-2 02 1 0712-0912 ●
486 SEAL; BODY SIDE 8-98154-664-0 02 1 1001-1509 ●
486 SEAL; BODY SIDE 8-98245-050-0 02 1 1510- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 0712- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 0712- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 0712- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 0712- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0710-0711 ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0712-1204 ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1205- ● ●
661 BRACKET; SIDE PANEL 8-98012-621-1 01 1 0712- ●
661 BRACKET; SIDE PANEL 8-98012-623-1 01 1 0712- ●
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 0712- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0710-0711 ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0712- ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0710-0711 ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0712-1204 ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1205- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0710- ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0710- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0710-0711 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0710-0711 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0712-1204 ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1205- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1205- ●
667 BRACKET; MIRROR 8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98109-948-0 01 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1006- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1006- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1006- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98109-948-0 01 1 1006- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0710-0711 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98005-264-0 02 1 0712-0806 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 02 1 1006- ●
669 STUD; FENDER
M6X12 		8-98013-112-0 02 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
