5-01 — FRAME AND OTHER PARTS (#66342) — 241 parça

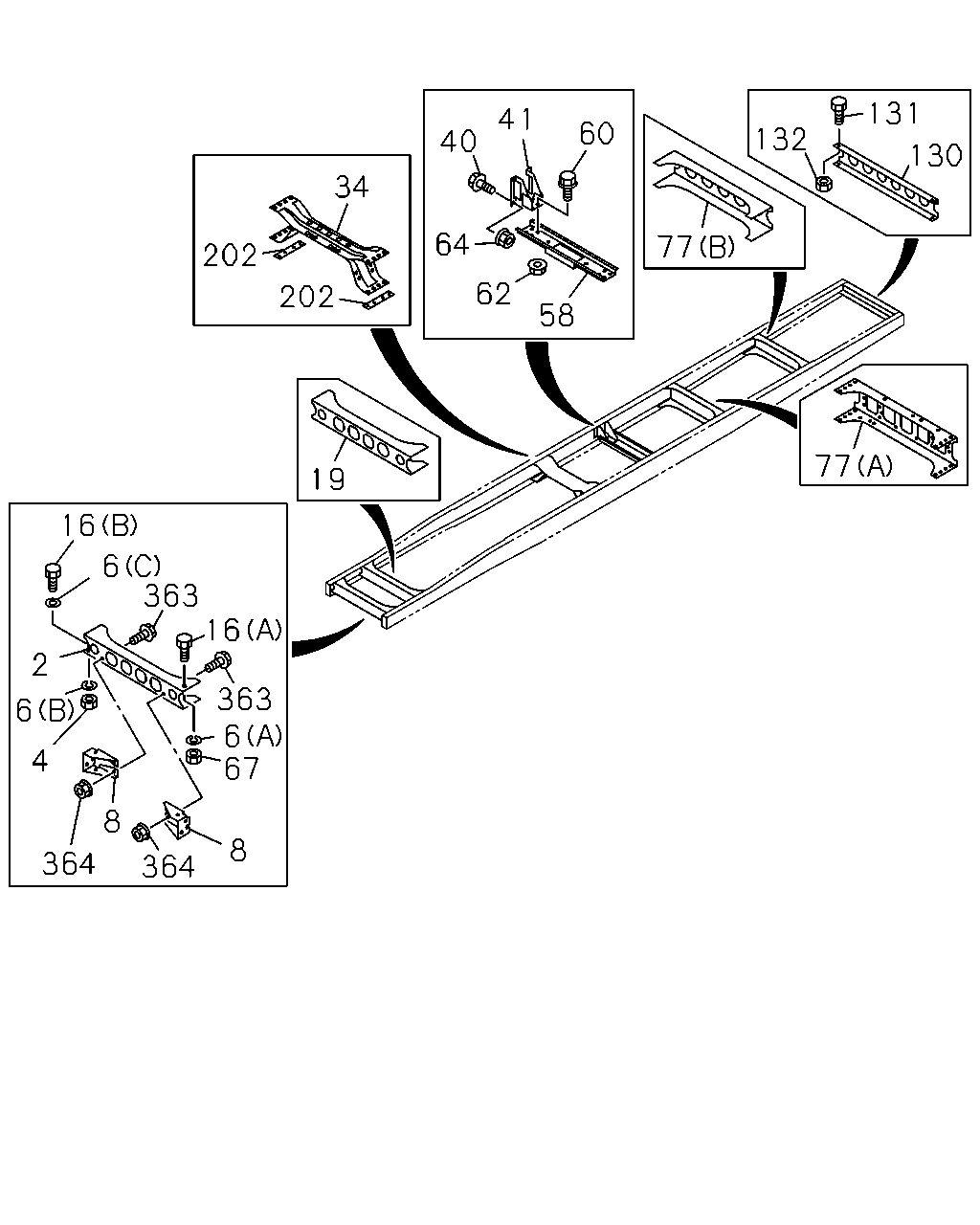

çizim 125318
131 41 60 132 40 130 34 64 77 202 62 58 77 19 16 6 363 16 2 363 6 67 6 4 8 8 364 364 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST 8-97615-669-1 01 1 0710-0711 ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 0712-0808 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 0809- ● ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0710-0711 ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0712- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0710-0711 ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0712- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0710-0711 ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0712- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0710-0711 ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0712-0808 ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0809- ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-0 01 1 0710-0711 ● ●
8 GUSSET; 1ST C/MBR
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-578-0 01 1 0712-0803 ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-578-0 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-578-2 01 1 0804- ●
8 GUSSET; 1ST C/MBR 8-97609-579-0 01 1 0710-0711 ● ●
8 GUSSET; 1ST C/MBR
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-579-1 01 1 0712-0803 ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-579-1 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-579-3 01 1 0804- ●
8 GUSSET; 1ST C/MBR 8-97609-759-0 01 1 0710-0711 ●
8 GUSSET; 1ST C/MBR
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-759-0 01 1 0712-0803 ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-759-0 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-759-0 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 0804-0808 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-759-1 01 1 0804-0808 ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 0809- ● ● ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-759-2 01 1 0809- ●
8 GUSSET; 1ST C/MBR 8-97609-760-0 01 1 0710-0711 ●
8 GUSSET; 1ST C/MBR
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-760-1 01 1 0712-0803 ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-760-1 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-760-1 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 0804-0808 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-760-2 01 1 0804-0808 ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 0809- ● ● ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-760-3 01 1 0809- ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0710-0711 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0712-0808 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0809- ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0710-0711 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0712- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0710-0711 ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0712-0808 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 0809- ● ● ● ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) 		8-97609-501-2 01 1 0712- ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0710-0711 ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0712-0808 ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-755-0 01 1 0712-0808 ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0809- ● ● ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-755-0 01 1 0809- ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 0809- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 0809- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 0809- ●
58 MEMBER; CENTER BRG 8-97619-112-0 01 1 0809- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0809- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0809- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0809- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0710-0711 ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0712-0808 ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0809- ● ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 0809- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 0809- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-0 02 1 0710-0711 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-0 02 1 0712-0808 ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 0809- ● ● ● ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 0809- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0710-0711 ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0712-0808 ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0809- ● ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0710-0711 ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0712-0808 ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0809- ● ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0710-0711 ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0712-0808 ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0809- ● ● ● ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) 		8-97609-756-1 02 1 0712- ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0710-0711 ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0712-0808 ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-757-0 02 1 0712-0808 ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0809- ● ● ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-757-0 02 1 0809- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0710-0711 ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0712-0808 ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0809- ● ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0710-0711 ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0712-0808 ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0809- ● ● ● ● ● ●

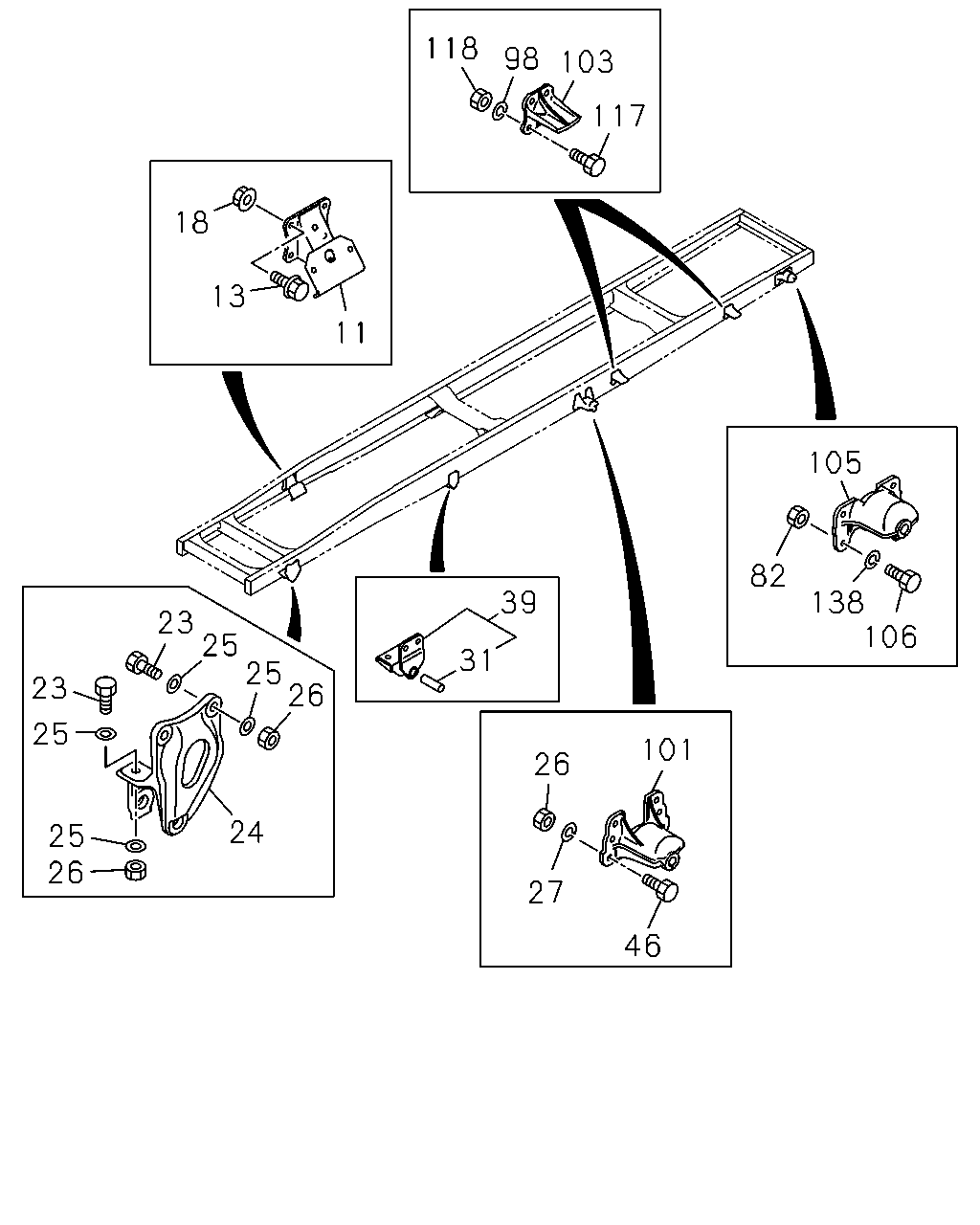

çizim 125543
118 98 103 117 18 13 11 105 82 138 106 39 23 25 25 26 31 23 25 101 26 24 25 26 27 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97604-129-0 02 1 0712- ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 0710-0711 ● ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 0712-0808 ● ● ●
11 BRACKET; ENG MTG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 0712-0808 ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 0809- ● ● ● ● ●
11 BRACKET; ENG MTG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 0809- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0710-0711 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0712-0808 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809- ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0710-0711 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0712-0808 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0710-0711 ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0712-0808 ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0809- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0710-0711 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0712-0808 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0809- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0710-0711 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0712-0808 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0809- ● ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-0 16 1 0710-0711 ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-0 16 1 0712-0808 ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0809- ● ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0710-0711 ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0712-0808 ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0809- ● ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0710-0711 ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0712-0808 ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0809- ● ● ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0710-0711 ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0712-0808 ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0809- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-1 02 1 0710-0711 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0712-0808 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0809- ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0710-0711 ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0712-0808 ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0809- ● ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 0710-0711 ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 0712-0808 ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 0809- ● ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0710-0711 ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0712-0808 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0809- ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0710-0711 ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0712-0808 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0809- ● ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0710-0711 ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0712-0808 ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0809- ● ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0710-0711 ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0712-0808 ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0809- ● ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 0710-0711 ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 0712-0808 ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 0809- ● ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0710-0711 ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0712-0808 ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0809- ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0710-0711 ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0712-0808 ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0809- ● ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0710-0711 ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0712-0808 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0809- ● ● ● ● ● ●

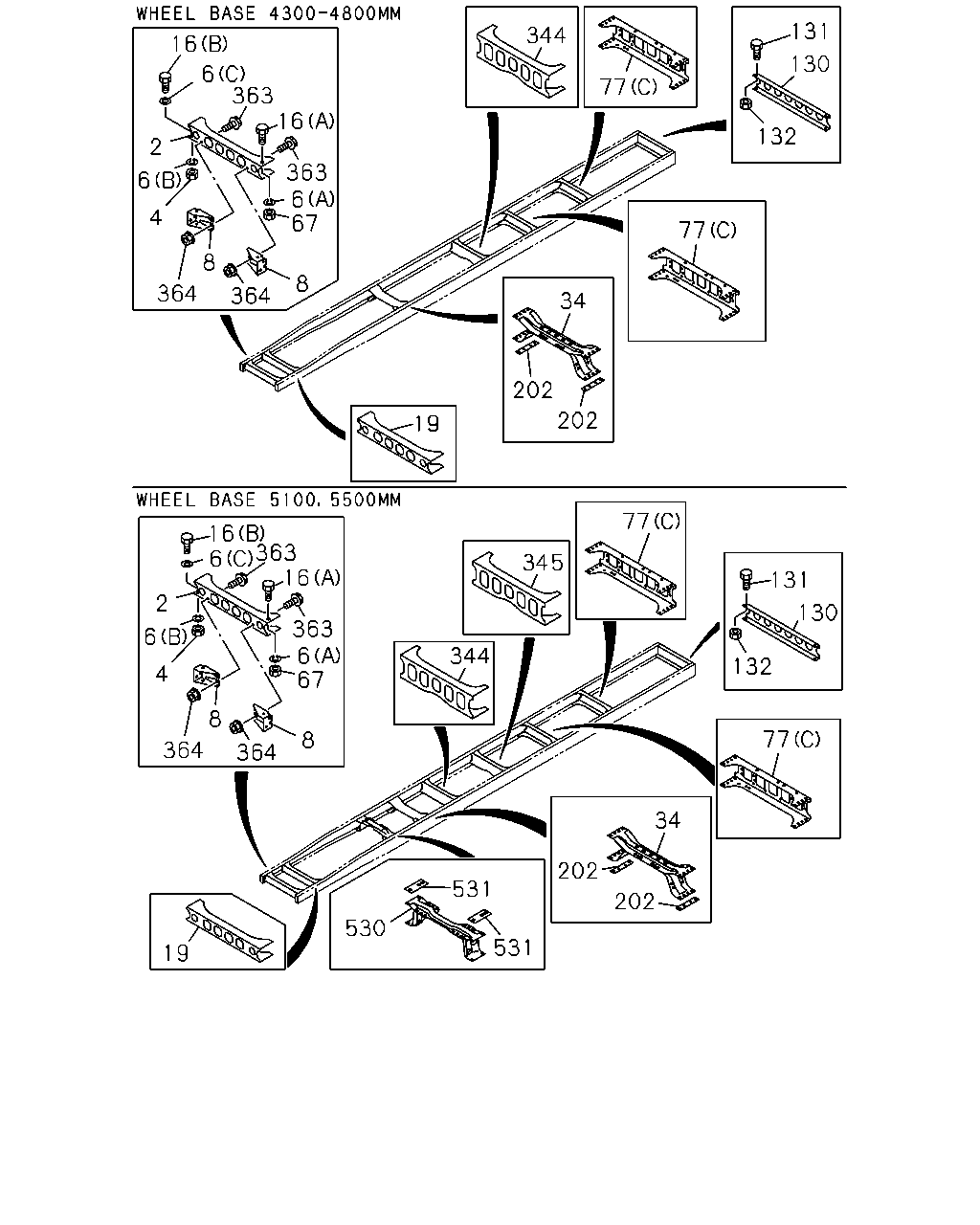

çizim 192112
131 344 16 130 6 363 16 77 132 2 363 6 67 6 4 77 8 8 364 364 34 202 202 19 77 16 363 6 16 345 131 2 130 363 6 67 6 344 132 4 8 77 8 364 364 34 202 531 202 530 531 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST 8-97615-669-1 01 1 0710-0711 ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 0712-0808 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 0809- ● ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0710-0711 ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0712- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0710-0711 ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0712- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0710-0711 ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0712- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0710-0711 ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0712-0808 ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0809- ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-0 01 1 0710-0711 ● ●
8 GUSSET; 1ST C/MBR
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-578-0 01 1 0712-0803 ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-578-0 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-578-2 01 1 0804- ●
8 GUSSET; 1ST C/MBR 8-97609-579-0 01 1 0710-0711 ● ●
8 GUSSET; 1ST C/MBR
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-579-1 01 1 0712-0803 ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-579-1 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-579-3 01 1 0804- ●
8 GUSSET; 1ST C/MBR 8-97609-759-0 01 1 0710-0711 ●
8 GUSSET; 1ST C/MBR
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-759-0 01 1 0712-0803 ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-759-0 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-759-0 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 0804-0808 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-759-1 01 1 0804-0808 ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 0809- ● ● ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-759-2 01 1 0809- ●
8 GUSSET; 1ST C/MBR 8-97609-760-0 01 1 0710-0711 ●
8 GUSSET; 1ST C/MBR
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-760-1 01 1 0712-0803 ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-760-1 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-760-1 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 0804-0808 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-760-2 01 1 0804-0808 ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 0809- ● ● ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-760-3 01 1 0809- ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0710-0711 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0712-0808 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0809- ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0710-0711 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0712- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0710-0711 ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0712-0808 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 0809- ● ● ● ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) 		8-97609-501-2 01 1 0712- ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0710-0711 ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0712-0808 ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-755-0 01 1 0712-0808 ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0809- ● ● ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-755-0 01 1 0809- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0710-0711 ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0712-0808 ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0809- ● ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 0809- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 0809- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-0 02 1 0710-0711 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-0 02 1 0712-0808 ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 0809- ● ● ● ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 0809- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0710-0711 ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0712-0808 ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0809- ● ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0710-0711 ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0712-0808 ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0809- ● ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0710-0711 ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0712-0808 ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0809- ● ● ● ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) 		8-97609-756-1 02 1 0712- ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0710-0711 ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0712-0808 ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-757-0 02 1 0712-0808 ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0809- ● ● ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-757-0 02 1 0809- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0710-0711 ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0712-0808 ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0809- ● ● ● ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 0710- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0710-0711 ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0712-0808 ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0809- ● ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0710-0711 ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0712-0808 ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0809- ● ● ● ● ● ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) 		8-97627-753-0 01 1 0806- ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) 		8-97609-809-3 01 1 0712-0906 ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-97609-809-3 01 1 0907- ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) 		8-97616-461-1 02 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
