Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

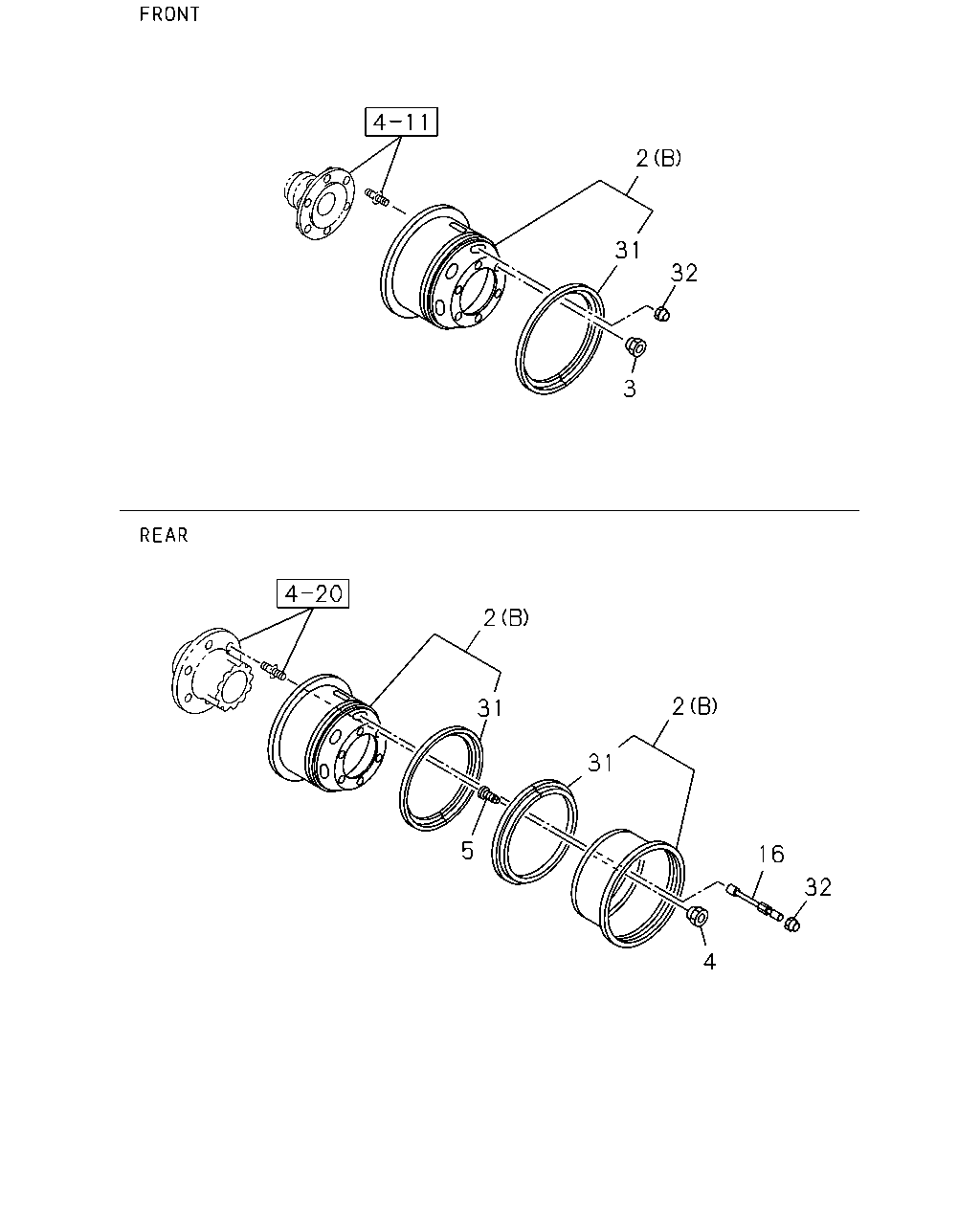

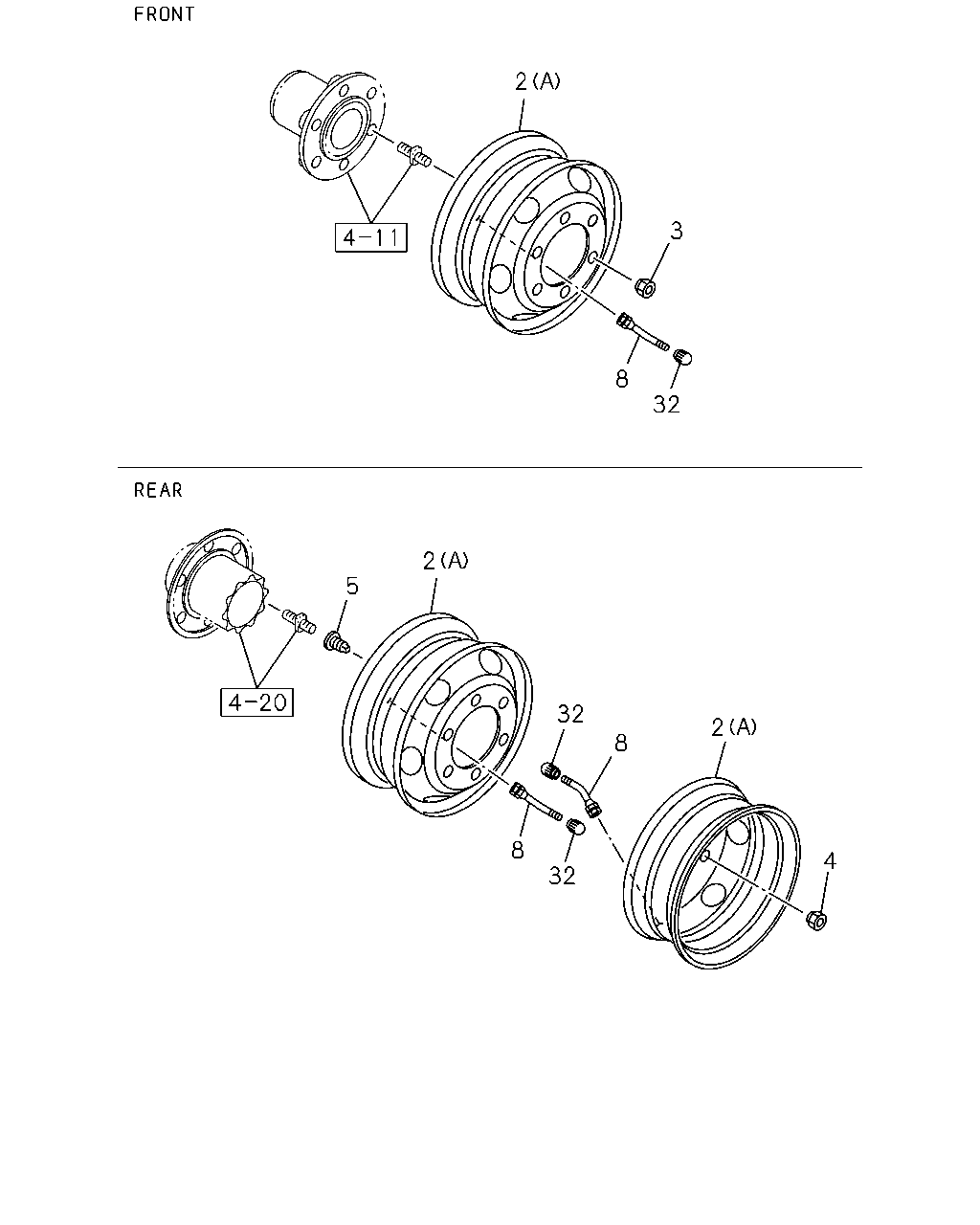

4-80 — ROAD WHEEL (#66341) — 88 parça

2 3 8 32 2 5 32 2 8 8 4 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-771-0	01	1	0712-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) (A) SPARE	1-42350-771-0	01	1	0712-		●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 17.5X6.00 OFFSET=135 SILVER 6-HOLE	1-42350-770-0	01	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-767-0	01	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	01	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR	1-42350-771-0	06	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) (A) FRONT,REAR	1-42350-771-0	06	1	0712-		●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 17.5X6.00 OFFSET=135 SILVER 6-HOLE	1-42350-770-0	06	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR	1-42350-767-0	06	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	06	1	0712-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-768-0	01	1	0710-0711	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-768-0	01	1	0712-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) (A) SPARE	1-42350-768-0	01	1	0712-		●
2	WHEEL; DISC (A) FRONT,REAR	1-42350-768-0	06	1	0710-0711	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR	1-42350-768-0	06	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) (A) FRONT,REAR	1-42350-768-0	06	1	0712-		●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	0710-0711	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	0712-	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	0710-0711	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	0712-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0710-0711	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0712-	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0710-0711	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0712-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0710-0711	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0712-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0710-0711	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0712-	●	●
8	VALVE; TIRE DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) SPARE	1-42370-019-3	01	1	0712-	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) SPARE	1-42370-019-3	01	1	0712-		●
8	VALVE; TIRE DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) FRONT,REAR	1-42370-019-3	06	1	0712-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-007-1	01	1	0710-0711	●
8	VALVE; TIRE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE	1-42370-007-1	01	1	0712-	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE	1-42370-007-1	01	1	0712-		●
8	VALVE; TIRE FRONT,REAR	1-42370-007-1	06	1	0710-0711	●
8	VALVE; TIRE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR	1-42370-007-1	06	1	0712-	●	●
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	05	1	0712-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	0712-	●
32	CAP; VALVE DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	04	1	0712-	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0710-0711	●
32	CAP; VALVE DISC WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0712-	●
32	CAP; VALVE DISC WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0712-		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0710-0711	●
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0712-	●
32	CAP; VALVE DISC WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	0712-	●
32	CAP; VALVE DISC WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0712-		●

2 31 32 3 2 2 31 31 5 16 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-771-0	01	1	0712-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) (A) SPARE	1-42350-771-0	01	1	0712-		●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 17.5X6.00 OFFSET=135 SILVER 6-HOLE	1-42350-770-0	01	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-767-0	01	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	01	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR	1-42350-771-0	06	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) (A) FRONT,REAR	1-42350-771-0	06	1	0712-		●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 17.5X6.00 OFFSET=135 SILVER 6-HOLE	1-42350-770-0	06	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR	1-42350-767-0	06	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	06	1	0712-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-768-0	01	1	0710-0711	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-768-0	01	1	0712-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) (A) SPARE	1-42350-768-0	01	1	0712-		●
2	WHEEL; DISC (A) FRONT,REAR	1-42350-768-0	06	1	0710-0711	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR	1-42350-768-0	06	1	0712-	●
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) (A) FRONT,REAR	1-42350-768-0	06	1	0712-		●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	0710-0711	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	0712-	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	0710-0711	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	0712-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0710-0711	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0712-	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0710-0711	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0712-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0710-0711	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0712-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0710-0711	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0712-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) L=115	1-42370-015-2	02	1	0712-1003	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) L=115	8-98167-051-0	02	1	1004-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 16X6.00GS STAMP, BLACK	1-42355-015-2	01	1	0712-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 16X6.00GS STAMP, BLACK	1-42355-015-2	06	1	0712-	●
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	05	1	0712-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	0712-	●
32	CAP; VALVE DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	04	1	0712-	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0710-0711	●
32	CAP; VALVE DISC WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0712-	●
32	CAP; VALVE DISC WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0712-		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0710-0711	●
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0712-	●
32	CAP; VALVE DISC WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	0712-	●
32	CAP; VALVE DISC WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
