◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#66339) — 54 parça

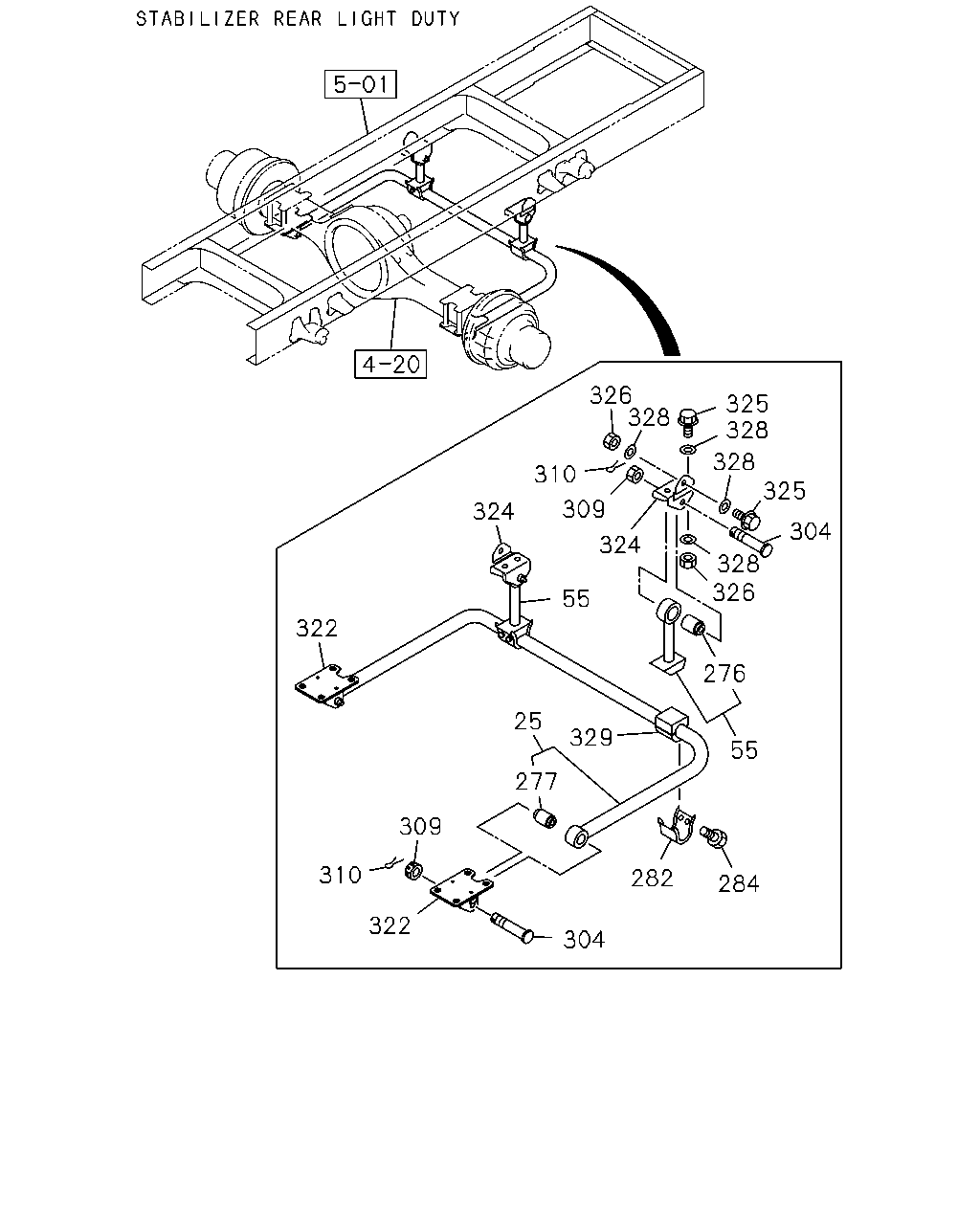

çizim 124673
326 328 325 328 328 325 310 309 324 304 324 328 326 55 322 276 25 329 55 277 309 310 282 284 322 304
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-111-1 01 1 0712- ●
55 ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-023-0 02 1 0712- ●
276 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-019-0 02 1 0712- ●
277 BUSHING; STAB,RR UPR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-067-0 02 1 0712- ●
282 RETAINER; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-015-2 02 1 0712- ●
284 BOLT; RET TO RET
STABILIZER REAR LIGHT DUTY<GN1> M10X25 		8-94463-351-0 08 1 0712- ●
304 PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-020-2 04 1 0712- ●
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> M24 		9-99116-424-0 04 1 0712- ●
310 PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45 		0-81125-045-0 04 1 0712- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-080-0 01 1 0712- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-081-0 01 1 0712- ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-059-0 02 1 0712- ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X50 		0-20951-450-0 06 1 0712- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14 		0-91110-514-0 06 1 0712- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> ID=15 		8-98010-627-1 12 1 0712- ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-017-0 02 1 0712- ●

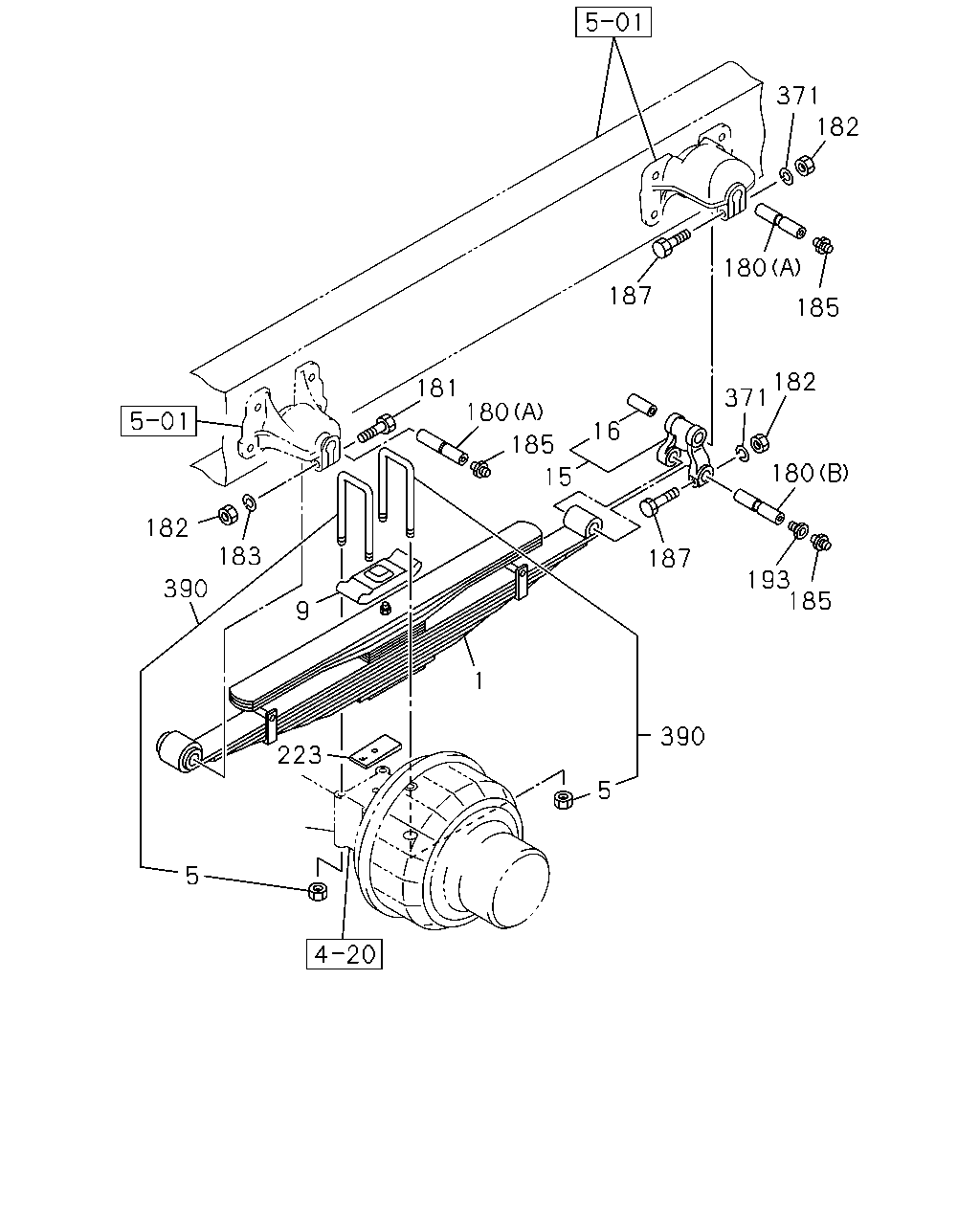

çizim 125078
371 182 180 187 185 182 371 181 180 16 185 180 15 182 183 187 193 185 390 9 1 390 223 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 15-LEAF 		8-98064-449-0 02 1 0710-0711 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 15-LEAF 		8-98064-449-0 02 1 0712- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 11-LEAF 		8-98079-006-0 02 1 0710-0711 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 11-LEAF 		8-98079-006-0 02 1 0712- ● ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0710-0711 ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0712- ● ●
9 PAD; U BOLT,RR SPR 1-51372-059-0 02 1 0710-0711 ●
9 PAD; U BOLT,RR SPR 1-51372-059-0 02 1 0712- ● ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 0710-0711 ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 0712- ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 0710-0711 ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 0712-0902 ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 0903- ● ●
180 PIN; RR SPR
(A) DO=25 L=115 PT1/8 		1-51361-016-0 04 1 0710-0711 ●
180 PIN; RR SPR
(A) DO=25 L=115 PT1/8 		1-51361-016-0 04 1 0712- ● ●
180 PIN; RR SPR
(B) DO=25 L=115 M12 		1-51361-017-0 02 1 0710-0711 ●
180 PIN; RR SPR
(B) DO=25 L=115 M12 		1-51361-017-0 02 1 0712- ● ●
181 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 02 1 0710-0711 ●
181 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 02 1 0712- ● ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 06 1 0710-0711 ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 06 1 0712- ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 0710-0711 ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 0712- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 06 1 0710-0711 ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 06 1 0712- ● ●
187 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 04 1 0710-0711 ●
187 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 04 1 0712- ● ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 02 1 0710-0711 ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 02 1 0712- ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3700MM(37W) 		1-51377-329-1 02 1 0809- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4300MM(43W) 		8-98043-891-0 02 1 0710-0808 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) 		8-98043-891-0 02 1 0809- ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 0710-0711 ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 0712- ● ●
390 U-BOLT SET; RR SPRING
STABILIZER REAR LIGHT DUTY<GN1> L=405 		1-87870-353-0 04 1 0712- ●
390 U-BOLT SET; RR SPRING
L=390 		1-87870-399-0 04 1 0710-0711 ●
390 U-BOLT SET; RR SPRING
EXC. STABILIZER REAR LIGHT DUTY<GN1> L=390 		1-87870-399-0 04 1 0712- ●
390 U-BOLT SET; RR SPRING
L=390 		1-87870-399-0 04 1 0712- ●
