◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#66337) — 93 parça

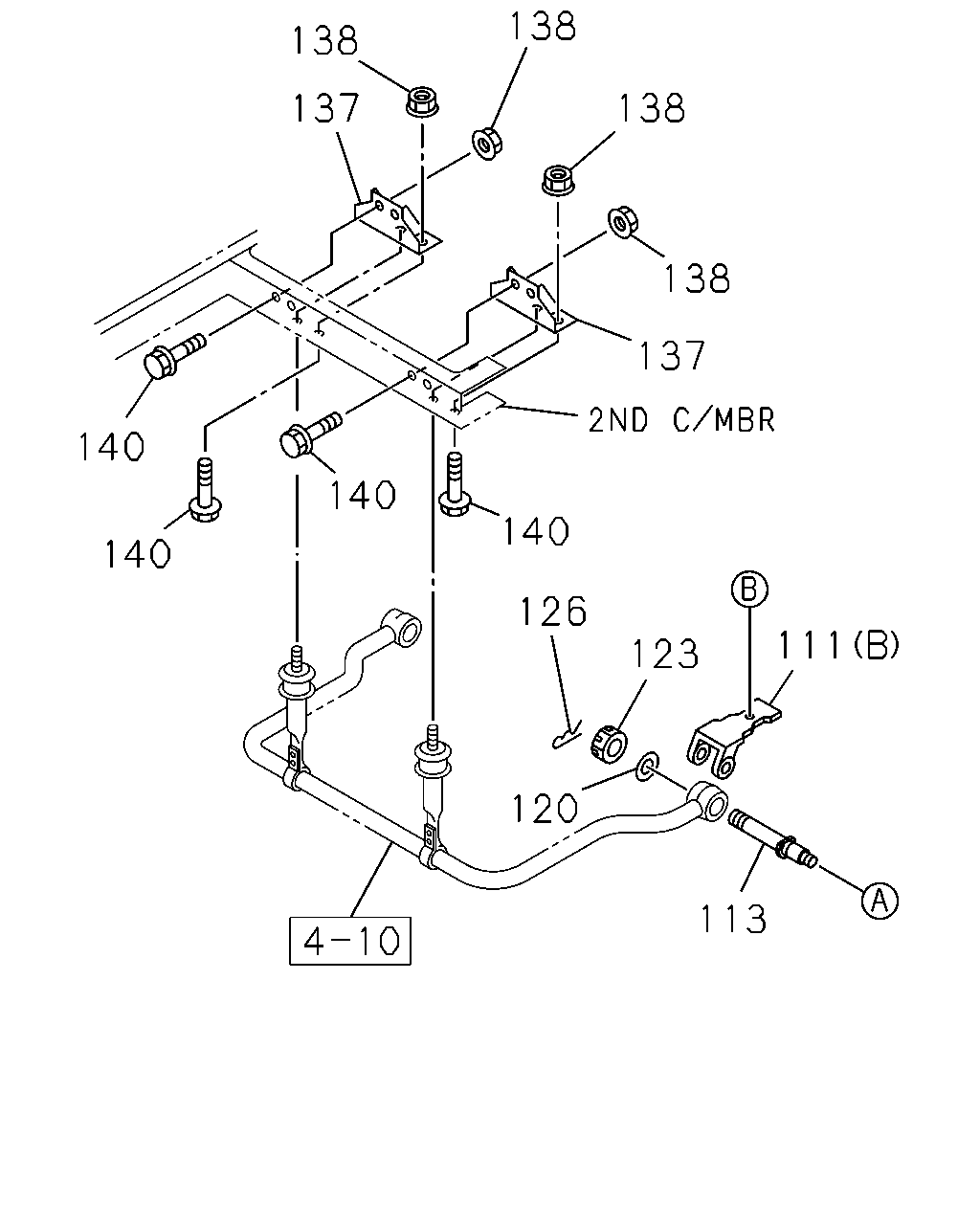

çizim 124004
138 138 138 137 138 137 140 140 140 140 126 111 123 120 113
BalonParca AdiParca NoAdetTipApplied Date A B
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-591-1 01 1 0710-0711 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-591-1 01 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-590-1 01 1 0710-0711 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-590-1 01 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-587-4 01 1 0710-0711 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-587-4 01 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-586-4 01 1 0710-0711 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-586-4 01 1 0712- ● ●
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> 		8-98010-654-0 02 1 0710-0711 ●
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> 		8-98010-654-0 02 1 0712- ● ●
120 WASHER; PL,SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> ID=23 		0-91614-522-0 02 1 0710-0711 ●
120 WASHER; PL,SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> ID=23 		0-91614-522-0 02 1 0712- ● ●
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M22 		0-91116-522-0 02 1 0710-0711 ●
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M22 		0-91116-522-0 02 1 0712- ● ●
126 PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45 		0-81125-045-0 02 1 0710-0711 ●
126 PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45 		0-81125-045-0 02 1 0712- ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-060-2 02 1 0710-0711 ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-060-2 02 1 0712- ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91180-210-0 08 1 0710-0711 ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91180-210-0 08 1 0712- ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE 		0-28651-025-0 08 1 0710-0711 ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE 		0-28651-025-0 08 1 0712- ● ●

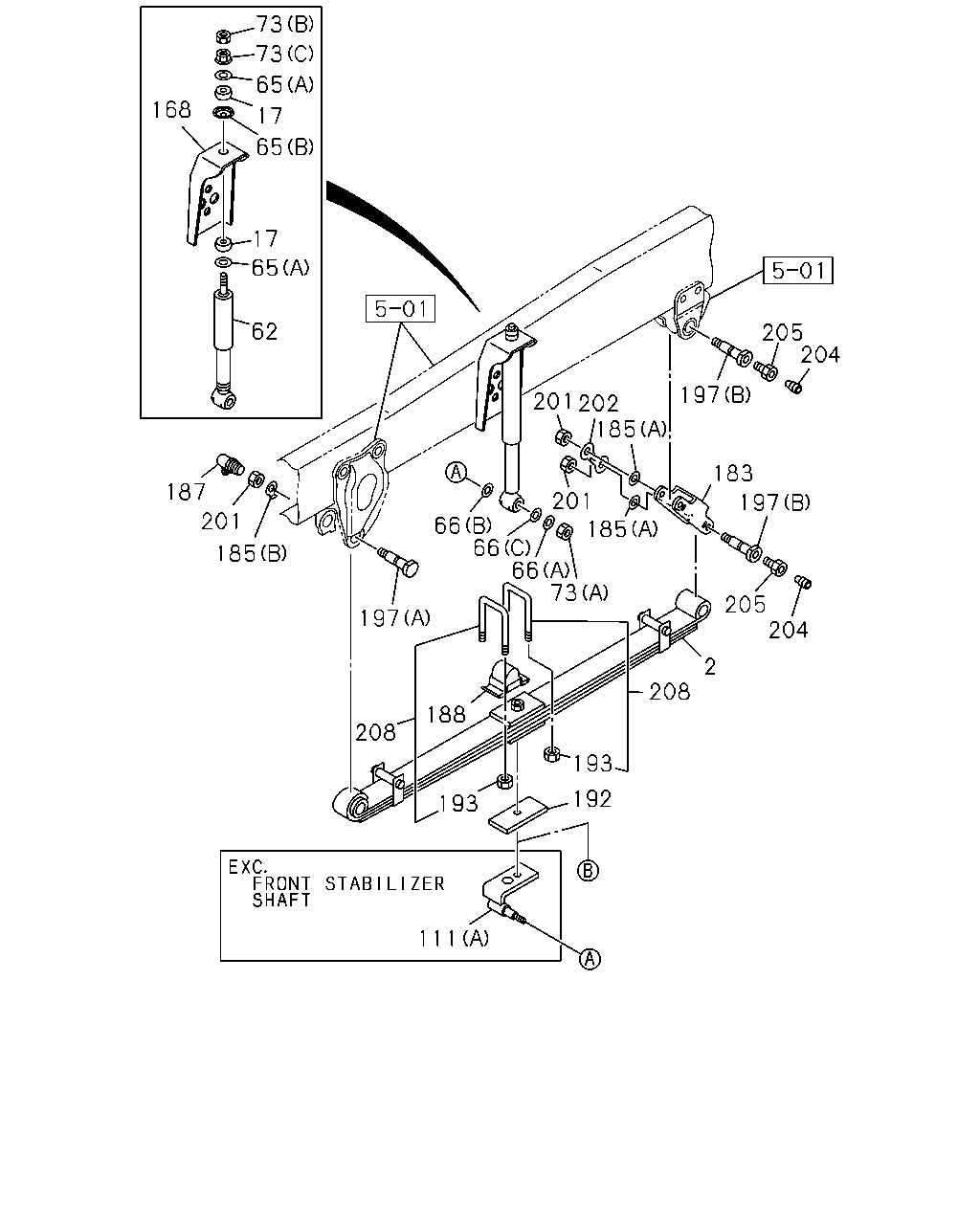

çizim 192130
73 73 65 168 17 65 17 65 62 205 204 197 201 202 185 183 187 201 197 201 66 66 66 73 185 185 205 204 197 2 208 188 208 193 192 193 111
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF 		8-98017-554-0 01 1 0712- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF 		8-98017-555-0 01 1 0712- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98080-779-0 01 1 0710-0711 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98080-779-0 01 1 0712-0806 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98080-779-0 01 1 0712-0806 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98111-360-0 01 1 0807- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98111-360-0 01 1 0807- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98080-780-0 01 1 0710-0711 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98080-780-0 01 1 0712-0806 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98080-780-0 01 1 0712-0806 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98111-361-0 01 1 0807- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98111-361-0 01 1 0807- ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 0710-0711 ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 0712- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98060-332-0 02 1 0710-0711 ●
62 ABSORBER ASM; SHOCK,FRT 8-98060-332-0 02 1 0712- ● ●
65 WASHER; S/ABS
(B) 		1-51631-023-0 02 1 0710-0711 ●
65 WASHER; S/ABS
(B) 		1-51631-023-0 02 1 0712- ● ●
65 WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2 		8-98010-405-0 04 1 0710-0711 ●
65 WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2 		8-98010-405-0 04 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-812-0 02 1 0710-0711 ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-812-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 0710-0711 ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		8-98010-406-0 02 1 0710-0711 ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		8-98010-406-0 02 1 0712-0802 ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 0803- ● ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 0710-0711 ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 0712- ● ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91111-510-0 02 1 0710-0711 ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91111-510-0 02 1 0712- ● ●
73 NUT; BRKT,SHOCK
(C) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
73 NUT; BRKT,SHOCK
(C) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-591-1 01 1 0710-0711 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-591-1 01 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-590-1 01 1 0710-0711 ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-590-1 01 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-587-4 01 1 0710-0711 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-587-4 01 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-586-4 01 1 0710-0711 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-586-4 01 1 0712- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98060-258-0 02 1 0710-0711 ●
168 BRACKET; S/ABS,FRT SUSP 8-98060-258-0 02 1 0712- ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0710-0711 ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0712- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0710-0711 ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0712- ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0710-0711 ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0712- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0711 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 0710-0711 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 0712- ● ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 0710-0711 ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 0712- ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0710-0711 ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0712- ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0710-0711 ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0712- ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0710-0711 ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0712- ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0710-0711 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0712- ● ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 0710-0711 ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 0712- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0710-0711 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0712- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0710-0711 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0712- ● ●
208 U-BOLT SET; FRT SPRING
L=150 		1-87870-466-0 04 1 0710-0711 ●
208 U-BOLT SET; FRT SPRING
L=150 		1-87870-466-0 04 1 0712- ● ●
