◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#66325) — 882 parça

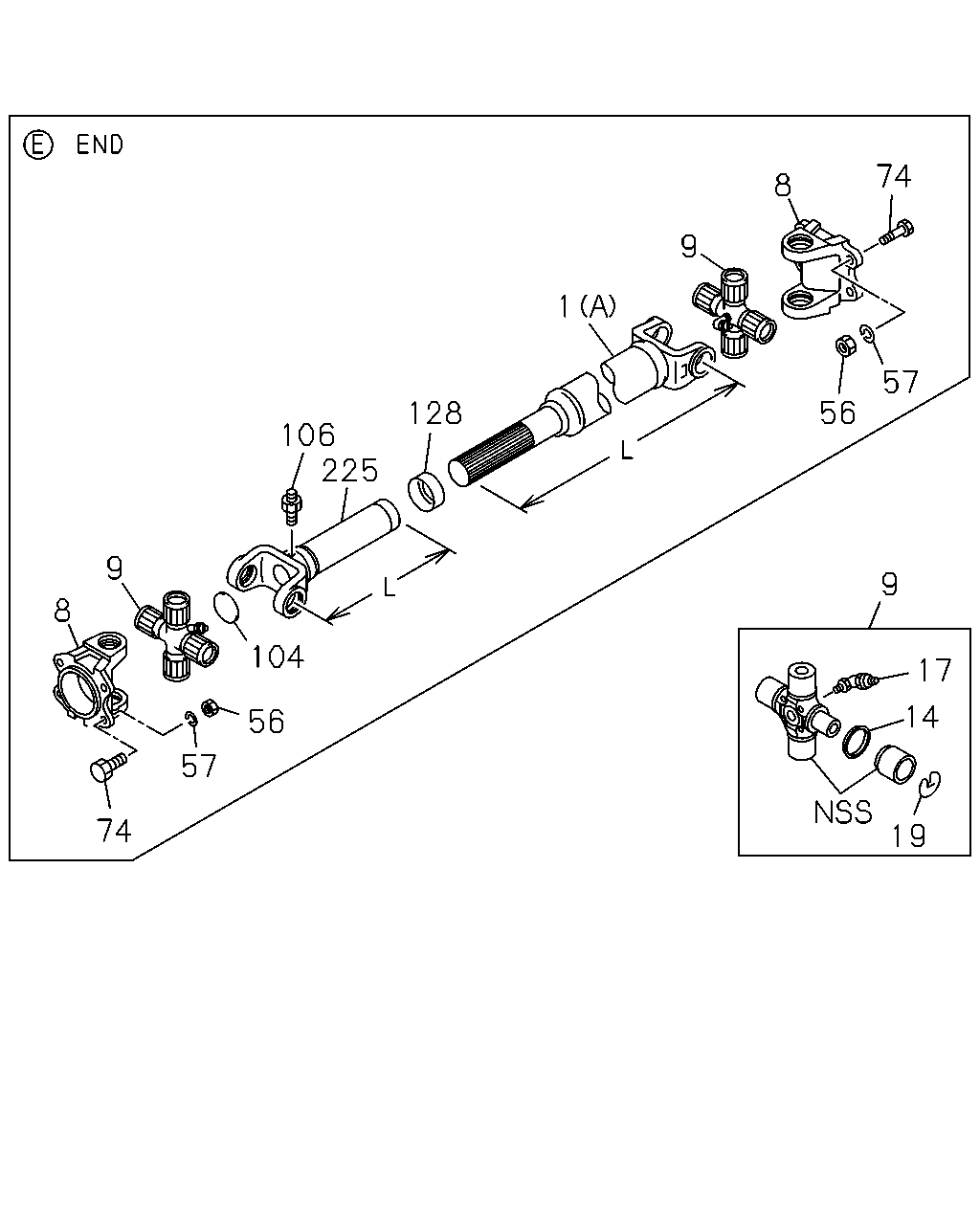

çizim 122667
74 8 9 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=649 		8-98069-608-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=649 		8-98069-608-0 01 1 0907- ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=649 		8-98091-129-0 01 1 0809- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=721 		8-98069-696-0 01 1 0809- ●
1 SHAFT; PROP
(A) L=1114 		8-98090-987-0 01 1 0809- ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=949 		8-98119-424-0 01 1 0806- ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=949 		8-98110-584-0 01 1 0806- ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1169 		8-98119-425-0 01 1 0806- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1169 		8-98110-585-0 01 1 0806-0808 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1169 		8-98110-585-0 01 1 0809- ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (B) L=1169 		8-98110-585-0 01 1 0809- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1296 		1-37153-152-0 01 1 0806- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1116 		8-98069-665-0 01 1 0712- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0712-0808 ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0809-0906 ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0907- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=839 		8-98069-569-0 01 1 0712-0906 ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=839 		8-98069-569-0 01 1 0907- ● ● ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1309 		8-98091-131-0 01 1 0712- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=979 		8-98069-571-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=979 		8-98069-571-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0712-0808 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=1059 		8-98069-580-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1059 		8-98069-580-0 01 1 0907- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1381 		8-98069-693-0 01 1 0712- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 0712-1107 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 1108- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 1108- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1271 		8-98069-657-0 01 1 0712- ● ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (C) L=974 		8-98069-610-0 01 1 0712- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079 		8-98091-099-0 01 1 0712-0906 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079 		8-98091-099-0 01 1 0907- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98091-083-0 01 1 0712-0906 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98091-083-0 01 1 0907- ●
1 SHAFT; PROP
(C) L=574 		8-98091-092-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98091-092-0 01 1 0712-0808 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0809-0906 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0907- ●
1 SHAFT; PROP
(A) L=1199 		8-98091-121-0 01 1 0710-0711 ● ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1199 		8-98091-121-0 01 1 0712- ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0710-0711 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0712-0808 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0809-0906 ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=759 		8-98091-094-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0907- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=759 		8-98091-094-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0710-0711 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0712-0906 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0907- ● ● ●
1 SHAFT; PROP
(C) L=974 		8-98091-098-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) L=974 		8-98091-098-0 01 1 0712- ●
1 SHAFT; PROP
(A) L=1116 		8-98091-130-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1116 		8-98091-130-0 01 1 0712- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0710-0711 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0712-0808 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0809- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0808 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0808 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0809- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-0 01 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-0 01 1 0712-0808 ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 0710-0711 ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0712-0808 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0809-1505 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0809-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-98048-925-1 AR 1 1506- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0710-0711 ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 0809- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0712-0808 ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0809-1505 ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0809-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0710-0711 ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0712-0808 ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0809-1505 ● ● ● ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0809-1505 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0710-0711 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0711 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-0808 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0808 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0808 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0710-0711 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0712- ● ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0710-0711 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0712- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0710-0711 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0712- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0710-0711 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0712-0808 ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0809- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0710-0711 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0712-0808 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0809- ● ● ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0710-0711 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0712-0808 ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0809- ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0710-0711 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0712-0808 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0809- ● ● ● ● ● ●

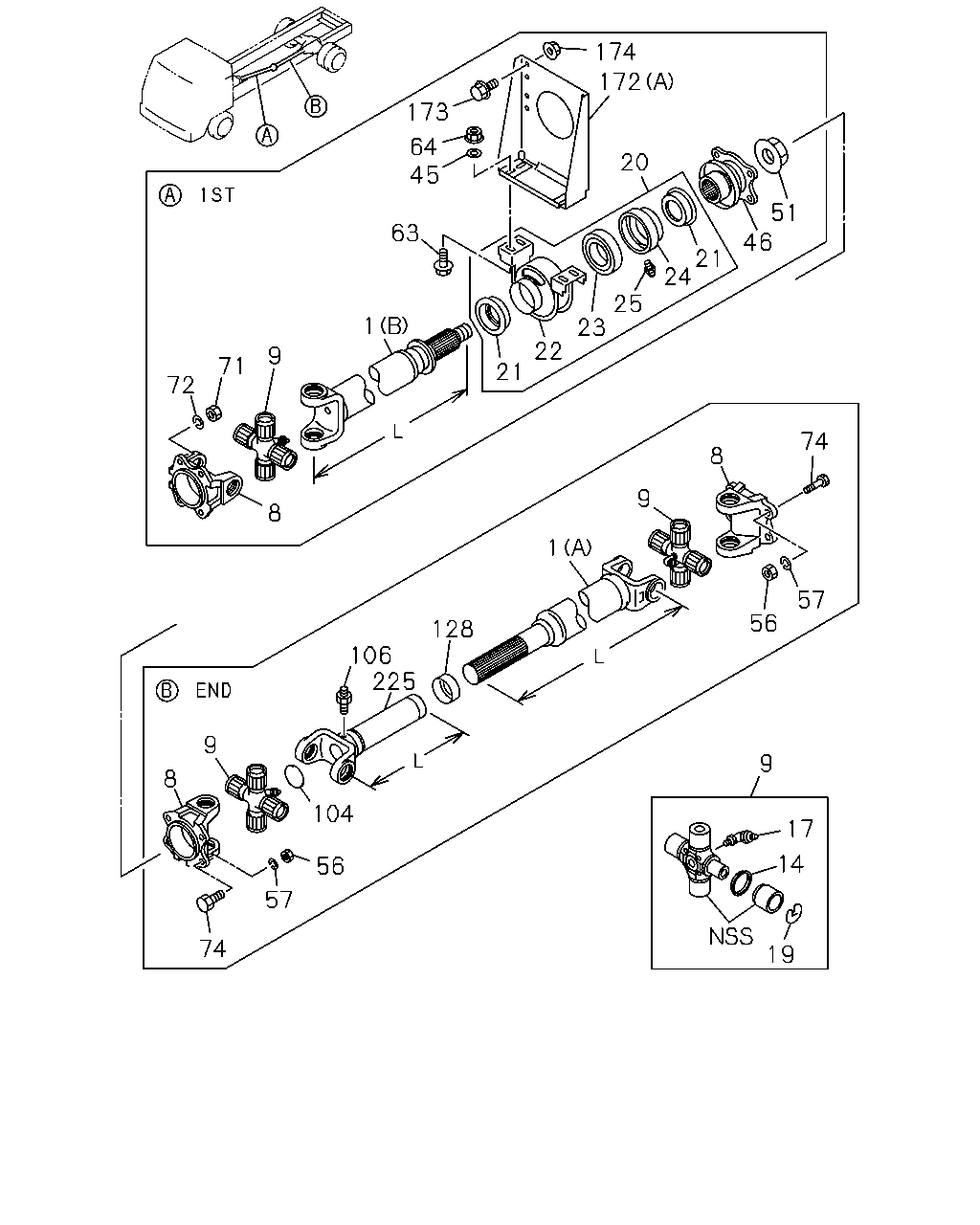

çizim 122794
174 172 173 64 45 20 51 46 63 21 24 25 23 1 22 9 71 21 72 74 8 9 8 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=649 		8-98069-608-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=649 		8-98069-608-0 01 1 0907- ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=649 		8-98091-129-0 01 1 0809- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=721 		8-98069-696-0 01 1 0809- ●
1 SHAFT; PROP
(A) L=1114 		8-98090-987-0 01 1 0809- ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=949 		8-98119-424-0 01 1 0806- ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=949 		8-98110-584-0 01 1 0806- ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1169 		8-98119-425-0 01 1 0806- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1169 		8-98110-585-0 01 1 0806-0808 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1169 		8-98110-585-0 01 1 0809- ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (B) L=1169 		8-98110-585-0 01 1 0809- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1296 		1-37153-152-0 01 1 0806- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1116 		8-98069-665-0 01 1 0712- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0712-0808 ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0809-0906 ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0907- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=839 		8-98069-569-0 01 1 0712-0906 ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=839 		8-98069-569-0 01 1 0907- ● ● ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1309 		8-98091-131-0 01 1 0712- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=979 		8-98069-571-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=979 		8-98069-571-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0712-0808 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=1059 		8-98069-580-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1059 		8-98069-580-0 01 1 0907- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1381 		8-98069-693-0 01 1 0712- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 0712-1107 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 1108- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 1108- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1271 		8-98069-657-0 01 1 0712- ● ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (C) L=974 		8-98069-610-0 01 1 0712- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079 		8-98091-099-0 01 1 0712-0906 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079 		8-98091-099-0 01 1 0907- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98091-083-0 01 1 0712-0906 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98091-083-0 01 1 0907- ●
1 SHAFT; PROP
(C) L=574 		8-98091-092-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98091-092-0 01 1 0712-0808 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0809-0906 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0907- ●
1 SHAFT; PROP
(A) L=1199 		8-98091-121-0 01 1 0710-0711 ● ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1199 		8-98091-121-0 01 1 0712- ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0710-0711 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0712-0808 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0809-0906 ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=759 		8-98091-094-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0907- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=759 		8-98091-094-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0710-0711 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0712-0906 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0907- ● ● ●
1 SHAFT; PROP
(C) L=974 		8-98091-098-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) L=974 		8-98091-098-0 01 1 0712- ●
1 SHAFT; PROP
(A) L=1116 		8-98091-130-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1116 		8-98091-130-0 01 1 0712- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0710-0711 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0712-0808 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0809- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0808 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0808 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0809- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-0 01 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-0 01 1 0712-0808 ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 0710-0711 ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0712-0808 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0809-1505 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0809-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-98048-925-1 AR 1 1506- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0710-0711 ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 0809- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0712-0808 ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0809-1505 ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0809-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0710-0711 ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0712-0808 ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0809-1505 ● ● ● ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0809-1505 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0710-0711 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0711 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-0808 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0808 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0808 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809- ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0712-0808 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0712-0808 ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0809- ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0809- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0710-0711 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0710-0711 ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0712-0808 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0712-0808 ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0809- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0809- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0710-0711 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0710-0711 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0808 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0808 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0809- ● ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0809- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0710-0711 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0710-0711 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0808 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0808 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0809- ● ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0809- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0710-0711 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0710-0711 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0808 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0808 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0809- ● ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0809- ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0712-0808 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0712-0808 ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0809- ● ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0809- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0710-0711 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0710-0711 ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0712-0808 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0712-0808 ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0809- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0712-0808 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0712-0808 ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0809- ● ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0808 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0808 ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712- ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0712-0808 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0712-0808 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0809- ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0809- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0710-0711 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0710-0711 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0712-0808 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0712-0808 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0809- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0809- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0710-0711 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0710-0711 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0808 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0808 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0809- ● ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0809- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0710-0711 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0712- ● ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0710-0711 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0712- ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712- ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712- ● ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0710-0711 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0712- ● ● ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710-0711 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0712- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0710-0711 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0712- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0710-0711 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0712-0808 ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0809- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0710-0711 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0712-0808 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0809- ● ● ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0710-0711 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0712-0808 ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0809- ● ● ● ● ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-119-0 01 1 0809- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-118-0 01 1 0712- ●
172 BRACKET; CENTER BRG
(A) 		8-98044-076-0 01 1 0710- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-120-0 01 1 0710- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (B) 		1-37515-121-0 01 1 0710- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (A) 		1-37515-122-0 01 1 0710- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0710-0711 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0712-0808 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0809- ● ● ● ● ● ●

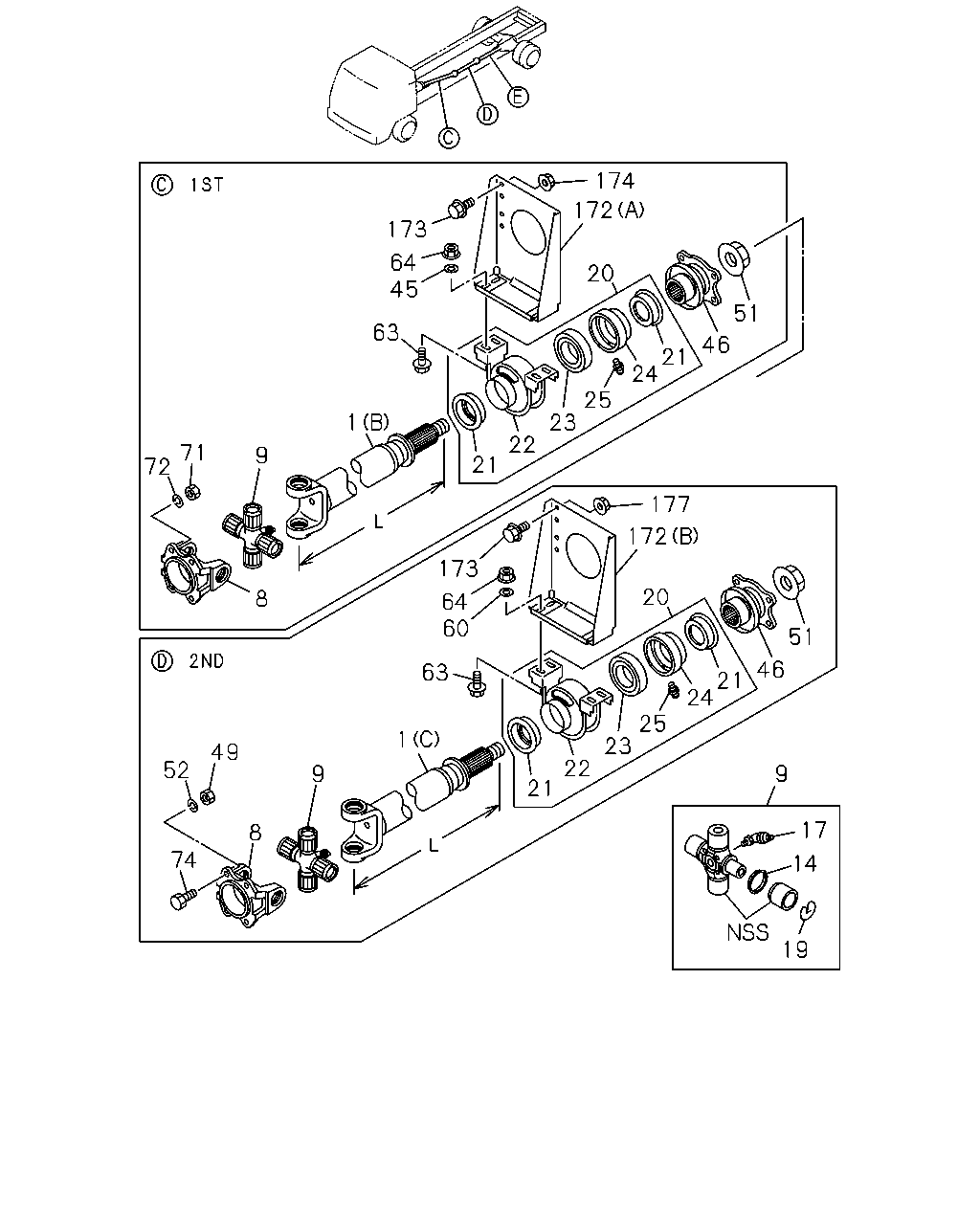

çizim 192110
174 172 173 64 45 20 51 63 46 21 24 25 23 1 22 71 72 9 21 177 172 173 20 8 64 60 51 46 63 21 24 25 23 1 49 22 52 9 9 21 17 8 74 14 19

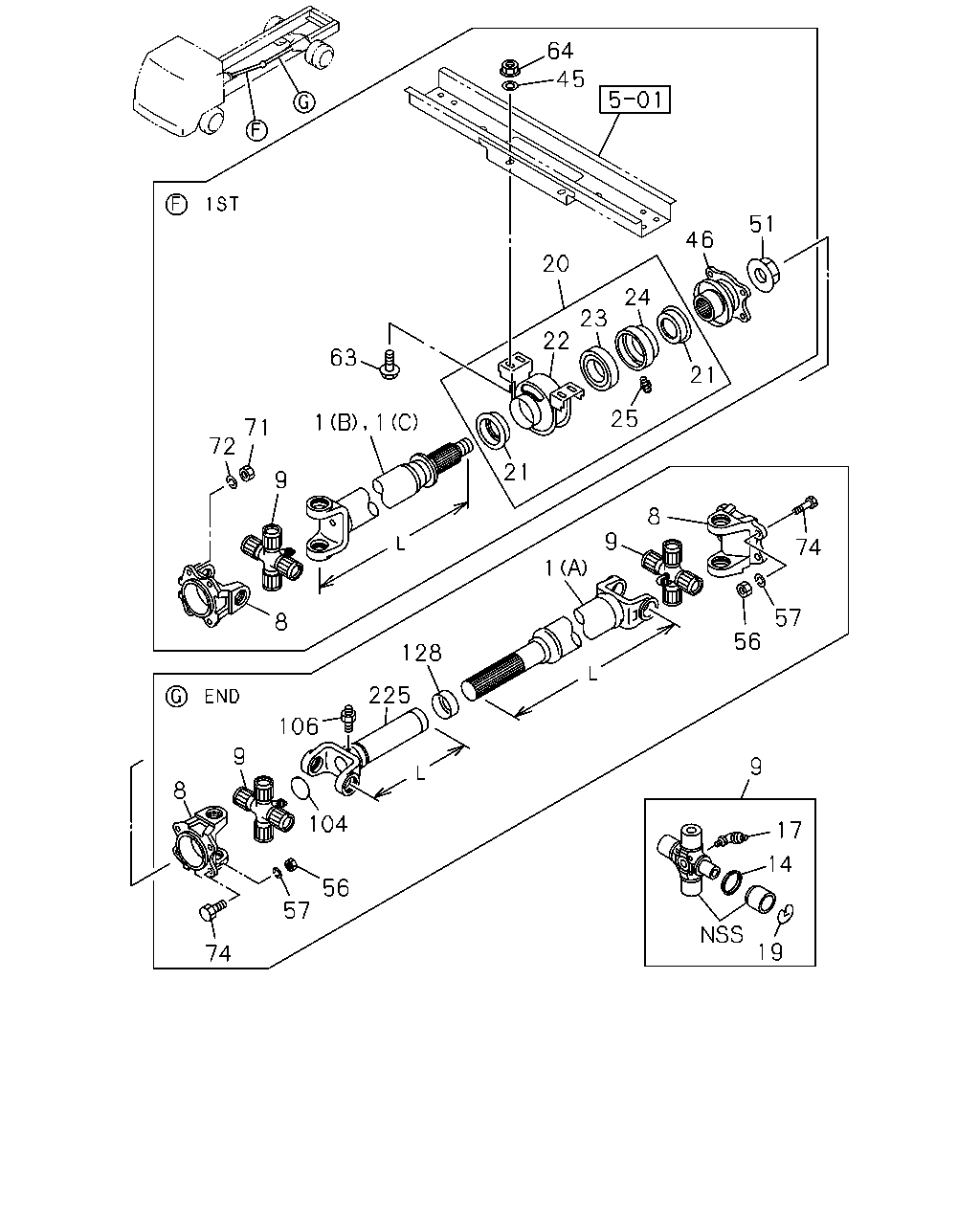

BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=649 		8-98069-608-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=649 		8-98069-608-0 01 1 0907- ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=649 		8-98091-129-0 01 1 0809- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=721 		8-98069-696-0 01 1 0809- ●
1 SHAFT; PROP
(A) L=1114 		8-98090-987-0 01 1 0809- ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=949 		8-98119-424-0 01 1 0806- ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=949 		8-98110-584-0 01 1 0806- ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1169 		8-98119-425-0 01 1 0806- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1169 		8-98110-585-0 01 1 0806-0808 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1169 		8-98110-585-0 01 1 0809- ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (B) L=1169 		8-98110-585-0 01 1 0809- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1296 		1-37153-152-0 01 1 0806- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1116 		8-98069-665-0 01 1 0712- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0712-0808 ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0809-0906 ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0907- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=839 		8-98069-569-0 01 1 0712-0906 ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=839 		8-98069-569-0 01 1 0907- ● ● ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1309 		8-98091-131-0 01 1 0712- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=979 		8-98069-571-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=979 		8-98069-571-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0712-0808 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=1059 		8-98069-580-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1059 		8-98069-580-0 01 1 0907- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1381 		8-98069-693-0 01 1 0712- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 0712-1107 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 1108- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 1108- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1271 		8-98069-657-0 01 1 0712- ● ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (C) L=974 		8-98069-610-0 01 1 0712- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079 		8-98091-099-0 01 1 0712-0906 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079 		8-98091-099-0 01 1 0907- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98091-083-0 01 1 0712-0906 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98091-083-0 01 1 0907- ●
1 SHAFT; PROP
(C) L=574 		8-98091-092-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98091-092-0 01 1 0712-0808 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0809-0906 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0907- ●
1 SHAFT; PROP
(A) L=1199 		8-98091-121-0 01 1 0710-0711 ● ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1199 		8-98091-121-0 01 1 0712- ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0710-0711 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0712-0808 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0809-0906 ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=759 		8-98091-094-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0907- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=759 		8-98091-094-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0710-0711 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0712-0906 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0907- ● ● ●
1 SHAFT; PROP
(C) L=974 		8-98091-098-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) L=974 		8-98091-098-0 01 1 0712- ●
1 SHAFT; PROP
(A) L=1116 		8-98091-130-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1116 		8-98091-130-0 01 1 0712- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0710-0711 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0712-0808 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0809- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0808 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0808 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0809- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-0 01 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-0 01 1 0712-0808 ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 0710-0711 ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0712-0808 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0809-1505 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0809-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-98048-925-1 AR 1 1506- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0710-0711 ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 0809- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0712-0808 ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0809-1505 ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0809-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0710-0711 ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0712-0808 ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0809-1505 ● ● ● ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0809-1505 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0710-0711 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0711 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-0808 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0808 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0808 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809- ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0712-0808 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0712-0808 ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0809- ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0809- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0710-0711 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0710-0711 ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0712-0808 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0712-0808 ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0809- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0809- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0710-0711 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0710-0711 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0808 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0808 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0809- ● ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0809- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0710-0711 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0710-0711 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0808 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0808 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0809- ● ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0809- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0710-0711 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0710-0711 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0808 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0808 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0809- ● ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0809- ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0712-0808 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0712-0808 ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0809- ● ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0809- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0710-0711 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0710-0711 ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0712-0808 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0712-0808 ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0809- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0712-0808 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0712-0808 ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0809- ● ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0808 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0808 ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712- ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0712-0808 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0712-0808 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0809- ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0809- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0710-0711 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0710-0711 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0712-0808 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0712-0808 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0809- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0809- ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0710- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0710-0711 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0710-0711 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0808 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0808 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0809- ● ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0809- ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712- ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712- ● ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0710-0711 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0712- ● ● ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710-0711 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0712- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0710-0711 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0712- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710- ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-119-0 01 1 0809- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-118-0 01 1 0712- ●
172 BRACKET; CENTER BRG
(A) 		8-98044-076-0 01 1 0710- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-120-0 01 1 0710- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (B) 		1-37515-121-0 01 1 0710- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (A) 		1-37515-122-0 01 1 0710- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712- ● ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710- ● ●
çizim 192230
64 45 51 46 20 24 23 22 63 21 25 1 1 71 72 21 9 8 9 74 1 57 8 56 128 225 106 9 9 8 104 17 14 56 57 19 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=649 		8-98069-608-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=649 		8-98069-608-0 01 1 0907- ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=649 		8-98091-129-0 01 1 0809- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=721 		8-98069-696-0 01 1 0809- ●
1 SHAFT; PROP
(A) L=1114 		8-98090-987-0 01 1 0809- ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=949 		8-98119-424-0 01 1 0806- ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=949 		8-98110-584-0 01 1 0806- ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1169 		8-98119-425-0 01 1 0806- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1169 		8-98110-585-0 01 1 0806-0808 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1169 		8-98110-585-0 01 1 0809- ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (B) L=1169 		8-98110-585-0 01 1 0809- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1296 		1-37153-152-0 01 1 0806- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1116 		8-98069-665-0 01 1 0712- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0712-0808 ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0809-0906 ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0907- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=759 		8-98069-568-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=839 		8-98069-569-0 01 1 0712-0906 ● ● ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=839 		8-98069-569-0 01 1 0907- ● ● ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1309 		8-98091-131-0 01 1 0712- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=979 		8-98069-571-0 01 1 0712-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=979 		8-98069-571-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0712-0808 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=1059 		8-98069-580-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1059 		8-98069-580-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1059 		8-98069-580-0 01 1 0907- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1381 		8-98069-693-0 01 1 0712- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 0712-1107 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 1108- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98069-603-0 01 1 1108- ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (A) L=1271 		8-98069-657-0 01 1 0712- ● ●
1 SHAFT; PROP
EXC. AUSTRALIA EQUIPMENT(B13) (C) L=974 		8-98069-610-0 01 1 0712- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079 		8-98091-099-0 01 1 0712-0906 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079 		8-98091-099-0 01 1 0907- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98091-083-0 01 1 0712-0906 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98091-083-0 01 1 0907- ●
1 SHAFT; PROP
(C) L=574 		8-98091-092-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) L=574 		8-98091-092-0 01 1 0712-0808 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0809-0906 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 5100MM,(B) 3700MM L=574 		8-98091-092-0 01 1 0907- ●
1 SHAFT; PROP
(A) L=1199 		8-98091-121-0 01 1 0710-0711 ● ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1199 		8-98091-121-0 01 1 0712- ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0710-0711 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0712-0808 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0809-0906 ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=759 		8-98091-094-0 01 1 0809-0906 ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 0907- ● ● ●
1 SHAFT; PROP
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=759 		8-98091-094-0 01 1 0907- ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0710-0711 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0712-0906 ● ● ●
1 SHAFT; PROP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 0907- ● ● ●
1 SHAFT; PROP
(C) L=974 		8-98091-098-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (C) L=974 		8-98091-098-0 01 1 0712- ●
1 SHAFT; PROP
(A) L=1116 		8-98091-130-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) (A) L=1116 		8-98091-130-0 01 1 0712- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0710-0711 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0712-0808 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0809- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0808 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0808 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0809- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-0 01 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-0 01 1 0712-0808 ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 0710-0711 ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0712-0808 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0809-1505 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37300-102-1 AR 1 0809-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-98048-925-1 AR 1 1506- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0710-0711 ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0712-0808 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 0809- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0712-0808 ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0809-1505 ● ● ● ● ● ●
14 COVER; DUST,SPIDER
EXC. AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		8-98020-800-0 04 1 0809-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0710-0711 ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0712-0808 ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0809-1505 ● ● ● ● ●
14 COVER; DUST,SPIDER
AUSTRALIA EQUIPMENT(B13) 1ST,2ND 		1-37319-012-0 04 1 0809-1505 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0710-0711 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0712-0808 ● ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0711 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712-0808 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0808 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0808 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0809- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0808 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0808 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809- ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0712-0808 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0712-0808 ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0809- ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-881-0 01 1 0809- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0710-0711 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0710-0711 ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0712-0808 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0712-0808 ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0809- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
AUSTRALIA EQUIPMENT(B13) 		1-37510-105-0 01 1 0809- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0710-0711 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0710-0711 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0808 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0808 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0809- ● ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0809- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0710-0711 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0710-0711 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0808 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0808 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0809- ● ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0809- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0710-0711 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0710-0711 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0808 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0808 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0809- ● ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0809- ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0712-0808 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0712-0808 ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0809- ● ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-882-0 01 1 0809- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0710-0711 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0710-0711 ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0712-0808 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0712-0808 ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0809- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37529-068-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0712-0808 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0712-0808 ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0809- ● ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-889-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0808 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0808 ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712- ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0712-0808 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0712-0808 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0809- ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98020-815-0 01 1 0809- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0710-0711 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0710-0711 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0712-0808 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0712-0808 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0809- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
AUSTRALIA EQUIPMENT(B13) 		1-37245-071-0 01 1 0809- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0710-0711 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0710-0711 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0808 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0808 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0809- ● ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0809- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0710-0711 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0712- ● ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0710-0711 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0712- ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712- ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712- ● ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0710-0711 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0712- ● ● ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710-0711 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0712- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0710-0711 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0712- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0710-0711 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0712-0808 ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0809- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0710-0711 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0712-0808 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0809- ● ● ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0710-0711 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0712-0808 ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0809- ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0710-0711 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0712-0808 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0809- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
