3-75 — BRAKE PIPING; AIR,FRONT (#66322) — 99 parça

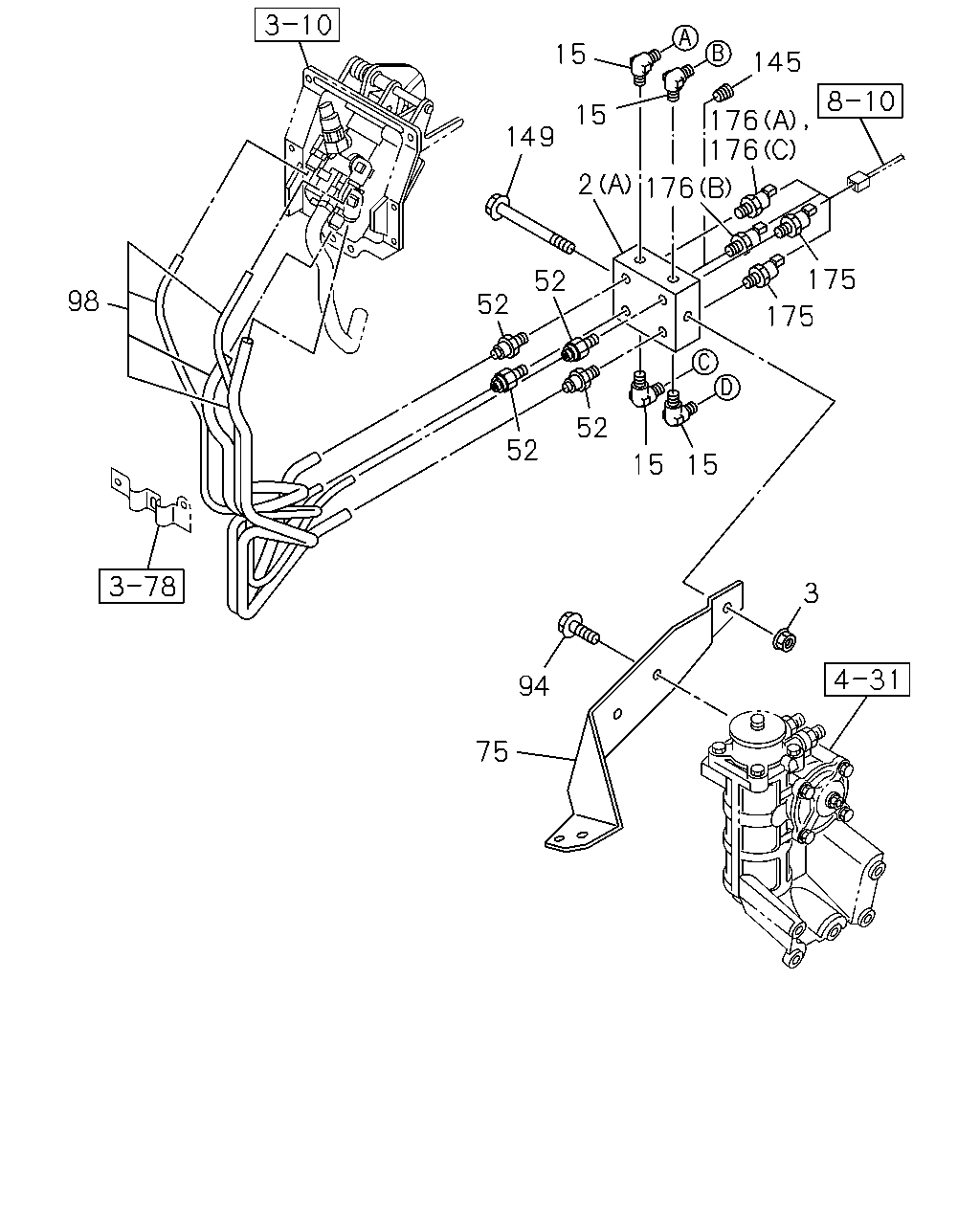

çizim 122194
15 145 176 176 176 175 175 2 15 149 52 52 52 52 15 15 98 94 75 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0710-0711 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0712- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0710-0711 ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0712- ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710-0711 ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0712- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0710-0711 ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0712- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0710-0711 ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0712- ● ●
75 BRACKET; UNION 8-98066-785-0 01 1 0710-0711 ●
75 BRACKET; UNION 8-98066-785-0 01 1 0712- ● ●
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0710-0711 ●
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0712-0901 ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0902-0902 ● ●
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0902-0911 ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0912- ● ●
98 TUBE; NYLON
4HK1-TCS ENG(RJS) 		8-98079-175-0 01 1 0712- ●
98 TUBE; NYLON 8-98079-179-0 01 1 0710-0711 ●
98 TUBE; NYLON 8-98079-179-0 01 1 0712- ●
98 TUBE; NYLON
6HK1-TCN ENG(82L) 		8-98079-179-0 01 1 0712- ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 0710-0711 ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 0712- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0710-0711 ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0712- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0710-0711 ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0712- ● ●
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> (C) STAMP 0.3 		8-98010-857-0 01 1 0710-0711 ●
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> (C) STAMP 0.3 		8-98010-857-0 01 1 0712- ● ●
176 SWITCH; AIR PRESS
(A) STAMP 0.7 		8-97622-710-0 01 1 0710-0710 ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7 		8-97622-710-0 01 1 0710-0711 ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7 		8-97622-710-0 01 1 0712- ● ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 0710-0711 ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 0712- ● ●

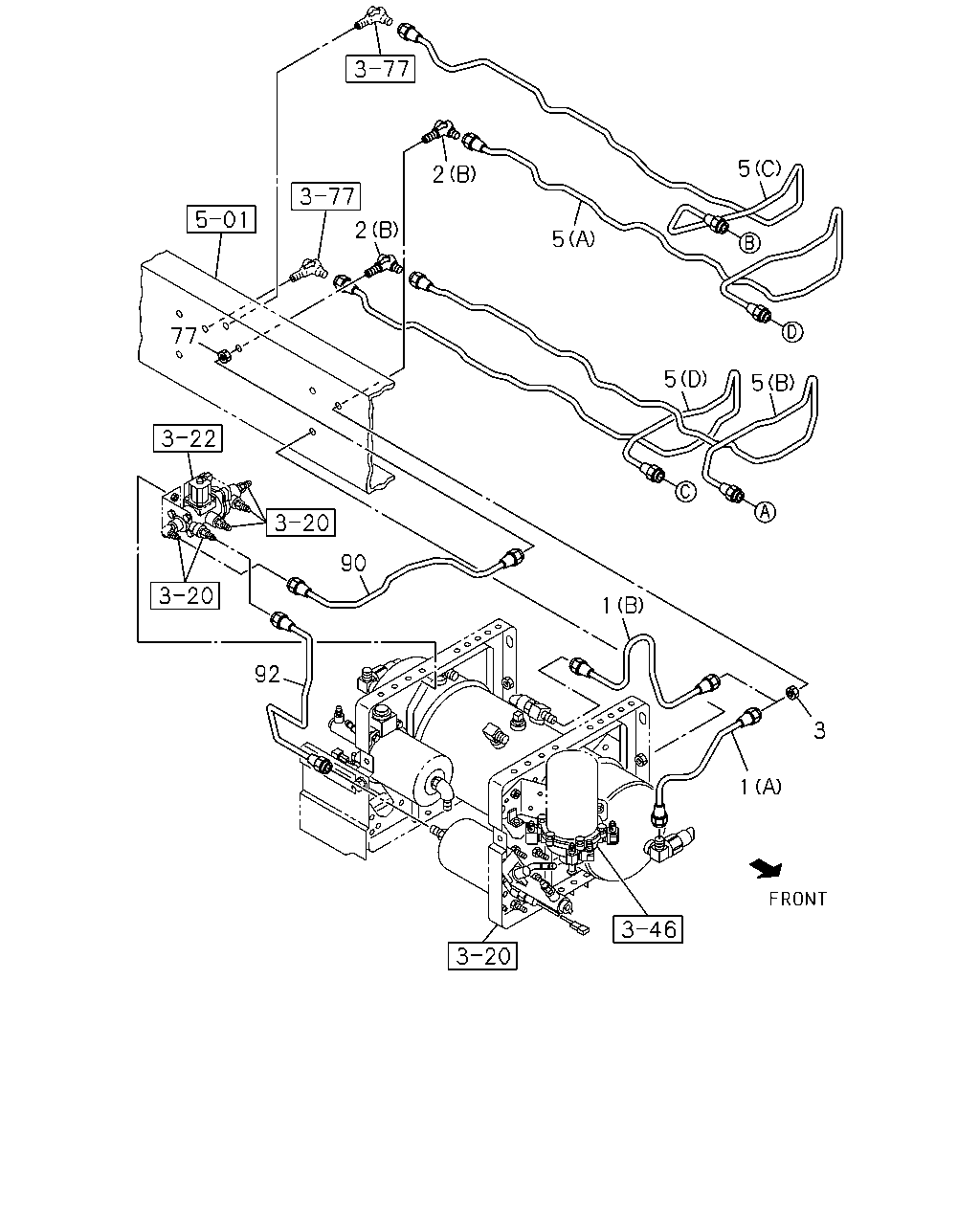

çizim 122280
5 2 2 5 77 5 5 90 1 92 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
(B) L=332 		8-98087-334-0 01 1 0712- ●
1 PIPE; AIR,AIR TANK TO UNION
(A) L=290 		8-98044-172-0 01 1 0710- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0710-0711 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0712- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0710-0711 ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0712- ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710-0711 ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0712- ● ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2509 SERVICED BY L=2600 		1-47428-884-0 01 1 0712-1203 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2509 		8-98210-099-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-1203 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2508 		8-98102-228-1 01 1 0712-1203 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2510 		8-98210-103-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2367 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-1203 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2360 SERVICED BY L=2500 		1-47428-883-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2560 SERVICED BY L=2600 		1-47428-884-0 01 1 0712- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2461 SERVICED BY L=2500 		1-47428-883-0 01 1 0712- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2203 SERVICED BY L=2500 		1-47428-883-0 01 1 0712- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2572 		8-98091-021-1 01 1 0712- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 0710- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 0710- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 0710- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 0710- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710-0711 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0712- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=791 SERVICED BY L=800 		1-47428-872-0 01 1 0712- ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 0710- ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ADR(TDU) L=532 SERVICED BY L=550 		1-47428-867-0 01 1 0712- ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=511 SERVICED BY L=550 		1-47428-867-0 01 1 0712- ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0710-0711 ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0712- ●

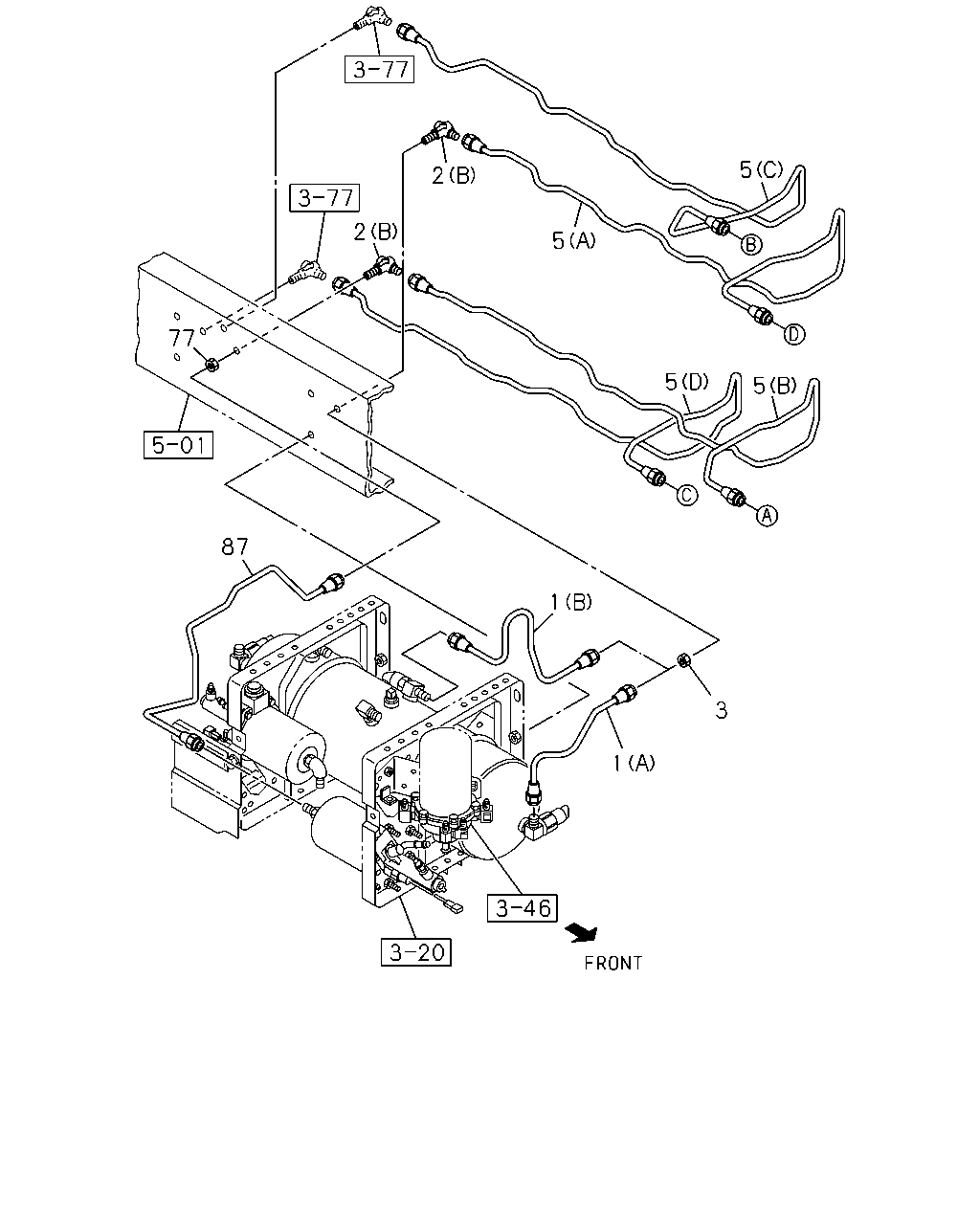

çizim 192107
5 2 2 5 77 5 5 87 1 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
(B) L=332 		8-98087-334-0 01 1 0712- ●
1 PIPE; AIR,AIR TANK TO UNION
(A) L=290 		8-98044-172-0 01 1 0710- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0710-0711 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0712- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0710-0711 ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0712- ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710-0711 ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0712- ● ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2509 SERVICED BY L=2600 		1-47428-884-0 01 1 0712-1203 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2509 		8-98210-099-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-1203 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2508 		8-98102-228-1 01 1 0712-1203 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2510 		8-98210-103-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2367 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-1203 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2360 SERVICED BY L=2500 		1-47428-883-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2560 SERVICED BY L=2600 		1-47428-884-0 01 1 0712- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2461 SERVICED BY L=2500 		1-47428-883-0 01 1 0712- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2203 SERVICED BY L=2500 		1-47428-883-0 01 1 0712- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2572 		8-98091-021-1 01 1 0712- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 0710- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 0710- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 0710- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 0710- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710-0711 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0712- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900 		1-47428-873-0 01 1 0712- ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=1123 SERVICED BY L=1250 		1-47428-876-0 01 1 0712- ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0710-0711 ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0712- ●
