3-58 — FIXING PARTS; OIL PIPING (#66320) — 75 parça

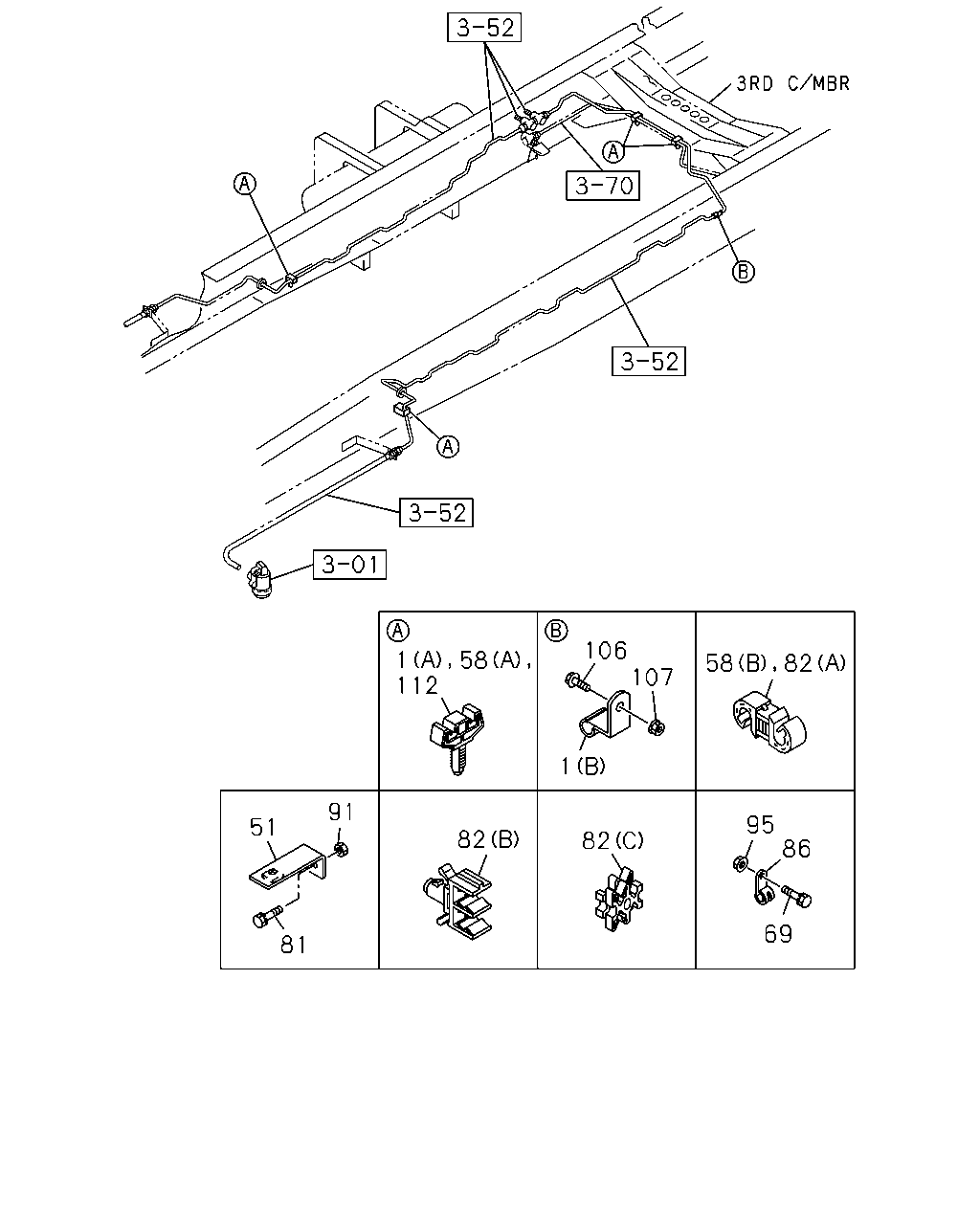

106 107 112 1 91 95 86 51 82 82 69 81 1 58 58 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) (B) ID=6 H=20 L=20	8-98040-714-0	04	1	0910-	●
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) (A)	8-98012-254-1	08	1	0712-0802	●
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	08	1	0803-	●
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	07	1	0710-0711		●
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	07	1	0712-0802		●
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) (A)	8-98012-254-1	07	1	0712-0802	●
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	07	1	0803-		●
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	8-98040-714-0	05	1	0710-0711		●
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	8-98040-714-0	05	1	0712-0909	●	●
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	8-98040-714-0	05	1	0910-		●
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) (B) ID=6 H=20 L=20	8-98040-714-0	05	1	0910-	●
51	BRACKET; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) L=105 B=25	1-47476-161-0	01	1	0712-0802		●
58	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=4.76 & 4.76	1-09709-303-0	01	1	0712-0808	●
58	CLIP; OIL PIPE (A)	8-98012-254-1	05	1	0710-0711		●
58	CLIP; OIL PIPE (A)	8-98012-254-1	05	1	0712-	●	●
69	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-0711		●
69	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
81	BOLT; BRKT,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
82	CLIP; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (C) ID=4.7X4	1-09701-304-0	02	1	0803-0805		●
82	CLIP; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (A) ID=4.76 & 4.76	1-09709-303-0	02	1	0806-		●
82	CLIP; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	0712-0802		●
82	CLIP; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (A) ID=4.76 & 6.35	1-09709-304-0	04	1	0803-		●
82	CLIP; OIL PIPE (A) ID=4.76 & 4.76	1-09709-303-0	01	1	0712-0808	●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	02	1	0809-0901	●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	03	1	0902-	●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0710-0711		●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0712-0910	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0911-	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0911-		●
82	CLIP; OIL PIPE (C) ID=4.7X4	1-09701-304-0	03	1	0710-0711		●
82	CLIP; OIL PIPE (C) ID=4.7X4	1-09701-304-0	03	1	0712-0802	●	●
82	CLIP; OIL PIPE (B) ID=4.8X2	8-94316-410-0	01	1	0803-	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 6.35	1-09709-304-0	03	1	0710-0711		●
82	CLIP; OIL PIPE (A) ID=4.76 & 6.35	1-09709-304-0	03	1	0712-0802	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 6.35	1-09709-304-0	03	1	0803-	●	●
82	CLIP; OIL PIPE (B) ID=4.8X2	8-94316-410-0	01	1	0710-0711		●
82	CLIP; OIL PIPE (B) ID=4.8X2	8-94316-410-0	01	1	0712-0802	●	●
82	CLIP; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (B) ID=4.8X2	8-94316-410-0	01	1	0712-0802		●
82	CLIP; OIL PIPE (C) ID=4.7X4	1-09701-304-0	03	1	0803-	●	●
86	CLIP; OIL PIPE	8-98085-372-0	02	1	0710-0711		●
86	CLIP; OIL PIPE	8-98085-372-0	02	1	0712-	●	●
91	NUT; BRKT,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
95	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-0711		●
95	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0909	●	●
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	04	1	0910-	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0710-0711		●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0712-0909	●	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0910-		●
106	BOLT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	05	1	0910-	●
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	0910-	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	05	1	0710-0711		●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	05	1	0712-0909	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	05	1	0910-		●
107	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	0910-	●
112	CLIP; OIL PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W)	8-98012-254-1	05	1	0809-		●
112	CLIP; OIL PIPE WHEEL BASE 4800MM(48W)	8-98012-254-1	05	1	0712-0808		●
112	CLIP; OIL PIPE WHEEL BASE 3700MM(37W)	8-98012-254-1	02	1	0809-		●
112	CLIP; OIL PIPE WHEEL BASE 4300MM(43W)	8-98012-254-1	04	1	0710-		●
112	CLIP; OIL PIPE WHEEL BASE 5100MM(51W)	8-98012-254-1	06	1	0710-		●
112	CLIP; OIL PIPE WHEEL BASE 5500MM(55W)	8-98012-254-1	07	1	0710-0711		●
112	CLIP; OIL PIPE WHEEL BASE 5500MM(55W)	8-98012-254-1	07	1	0712-		●
112	CLIP; OIL PIPE	8-98012-254-1	07	1	0712-	●

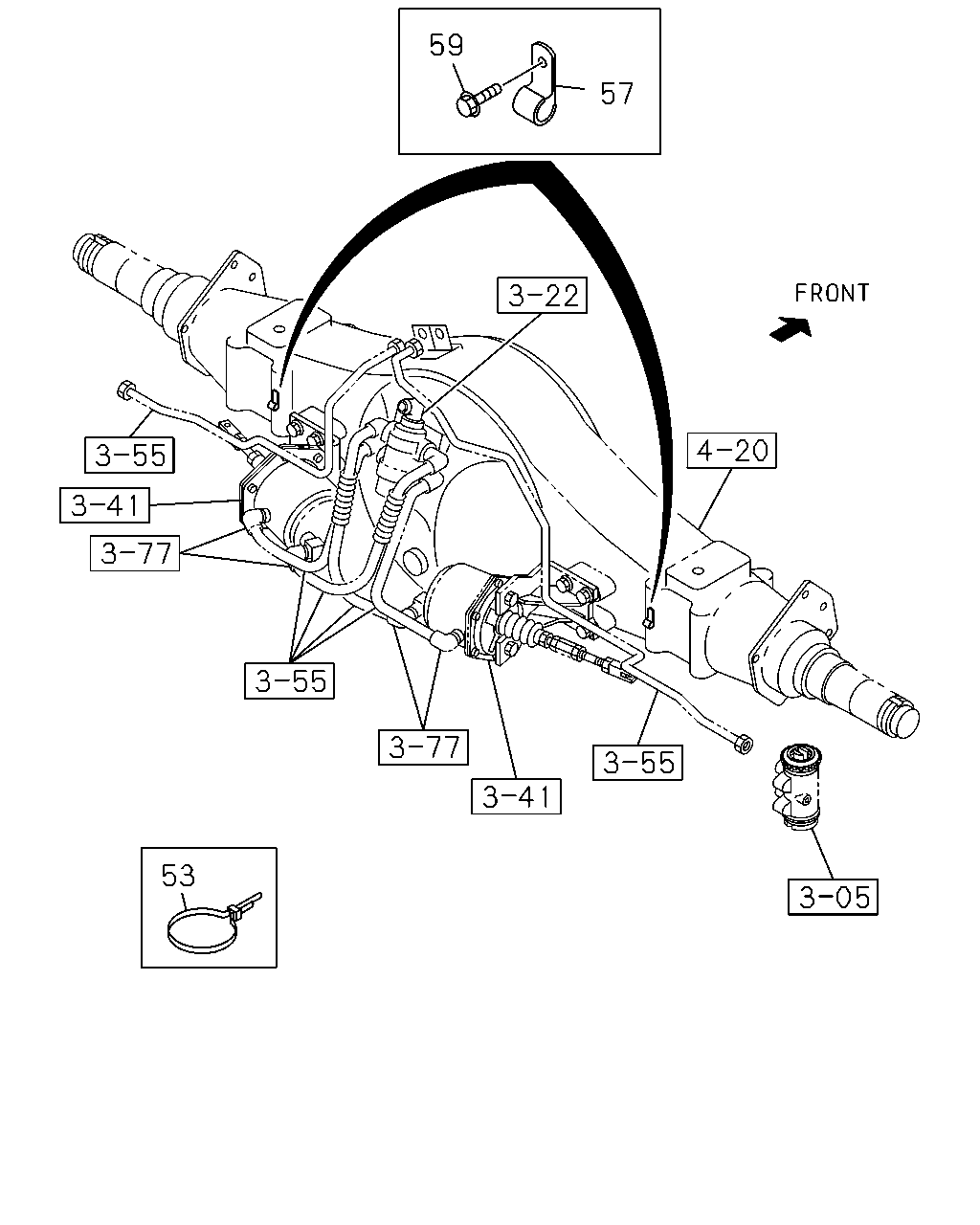

59 57 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	CLIP; UNION L=250	1-09707-126-0	05	1	0710-0711		●
53	CLIP; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	05	1	0712-		●
53	CLIP; UNION L=250	1-09707-126-0	05	1	0712-	●
57	CLIP; BRK PIPE,RR AXLE BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20	0-95234-635-0	04	1	1012-		●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	02	1	0710-0711		●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	02	1	0712-1011	●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20	0-95234-635-0	02	1	1012-		●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	02	1	1012-	●
59	BOLT; BRK PIPE,RR AXLE BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE	0-28050-810-0	04	1	1012-		●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	02	1	0710-0711		●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	02	1	0712-1011	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE	0-28050-810-0	02	1	1012-		●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	02	1	1012-	●
