◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#66319) — 475 parça

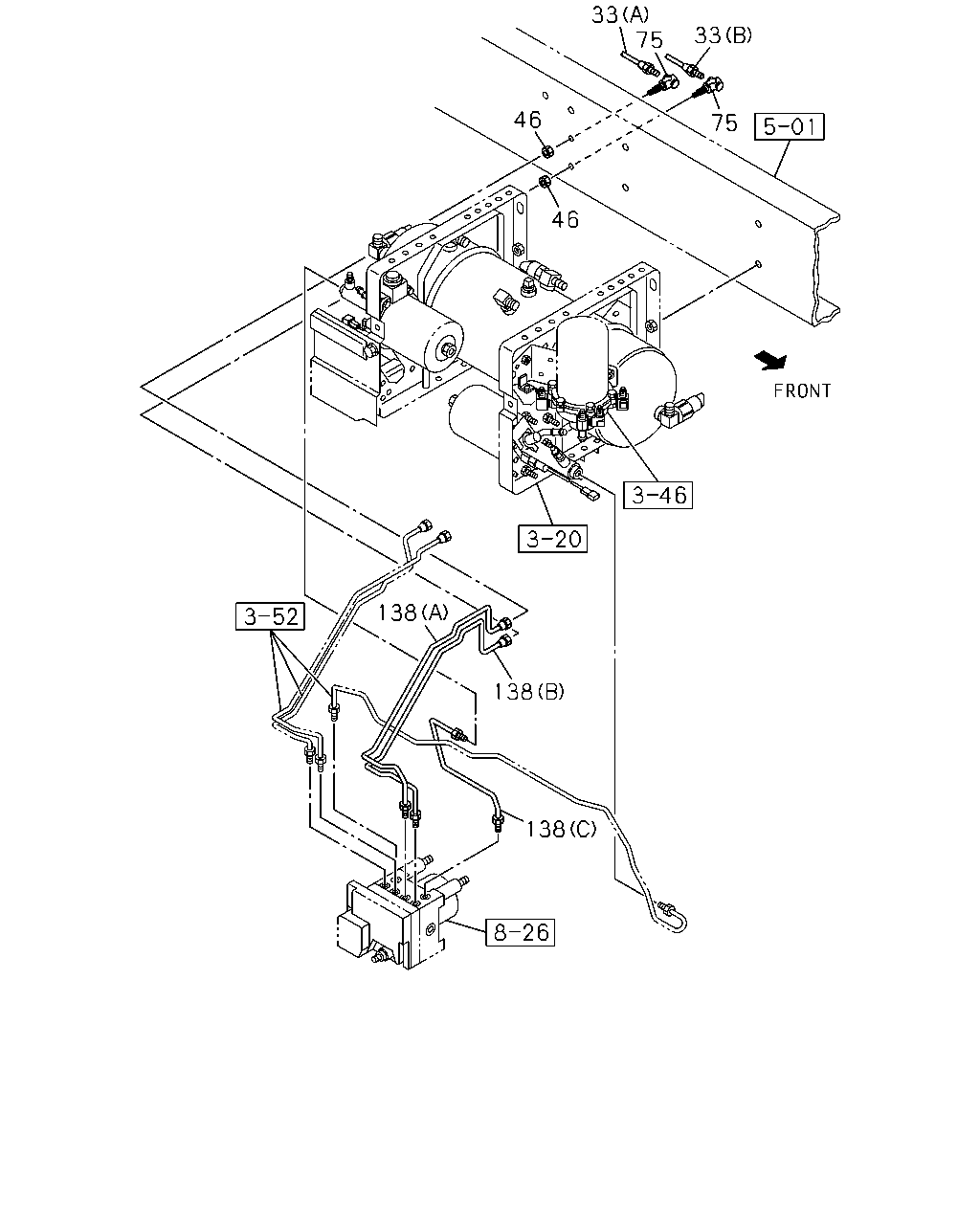

çizim 119673
33 75 33 46 75 46 138 138 138
BalonParca AdiParca NoAdetTipApplied Date A B
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH L=1073 		8-98123-537-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (B) RH L=1055 		8-98116-678-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) RH L=1023 		8-98072-731-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) LH L=1099 		8-98123-538-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (A) LH L=1126 		8-98116-677-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) LH L=1083 		8-98072-730-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH L=1892 		8-98123-539-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> (A) LH L=1878 		8-98076-346-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (B) RH L=1910 		8-98123-540-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> (B) RH L=1922 		8-98076-345-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH L=2392 		8-98123-541-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH L=2392 		8-98123-541-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (A) LH L=2410 		8-98123-542-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH L=2804 		8-98106-936-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH L=2802 		8-98113-348-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH L=2919 		8-98106-938-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH L=2912 		8-98113-349-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (A) LH L=2124 		8-98076-347-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH L=2078 		8-98076-348-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2828 		8-98099-898-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) RH L=2828 		8-98099-898-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2906 		8-98099-899-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) LH L=2906 		8-98099-899-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH L=1694 		8-98090-727-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH L=1622 		8-98069-807-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH L=1624 		8-98090-728-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH L=1578 		8-98069-808-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH L=1578 		8-98069-808-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH L=1578 		8-98069-808-0 01 1 0907- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2494 		8-98090-730-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2422 		8-98069-813-0 01 1 0710-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO4 SPECIFICATION<NT4> (A) LH L=2422 		8-98069-813-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2423 		8-98090-731-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2377 		8-98069-814-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) (B) RH L=2377 		8-98069-814-0 01 1 0712-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> (B) RH L=2377 		8-98069-814-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2824 		8-98091-639-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2822 		8-98069-815-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH L=2894 		8-98091-640-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2778 		8-98069-816-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH L=2778 		8-98069-816-0 01 1 0712- ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0802- ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0711 ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0712-0801 ● ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0802- ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0802- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0802- ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0710-0711 ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0712-0801 ● ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0802- ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0802- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=492 		8-98057-351-0 01 1 0712-0712 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(A) LH L=615 		8-98086-405-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(B) RH L=679 		8-98086-406-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(A) LH L=657 		8-98012-129-0 01 1 0710-0711 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH L=657 		8-98012-129-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(B) RH L=703 		8-98012-146-0 01 1 0710-0711 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH L=703 		8-98012-146-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0710-0711 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0712- ●

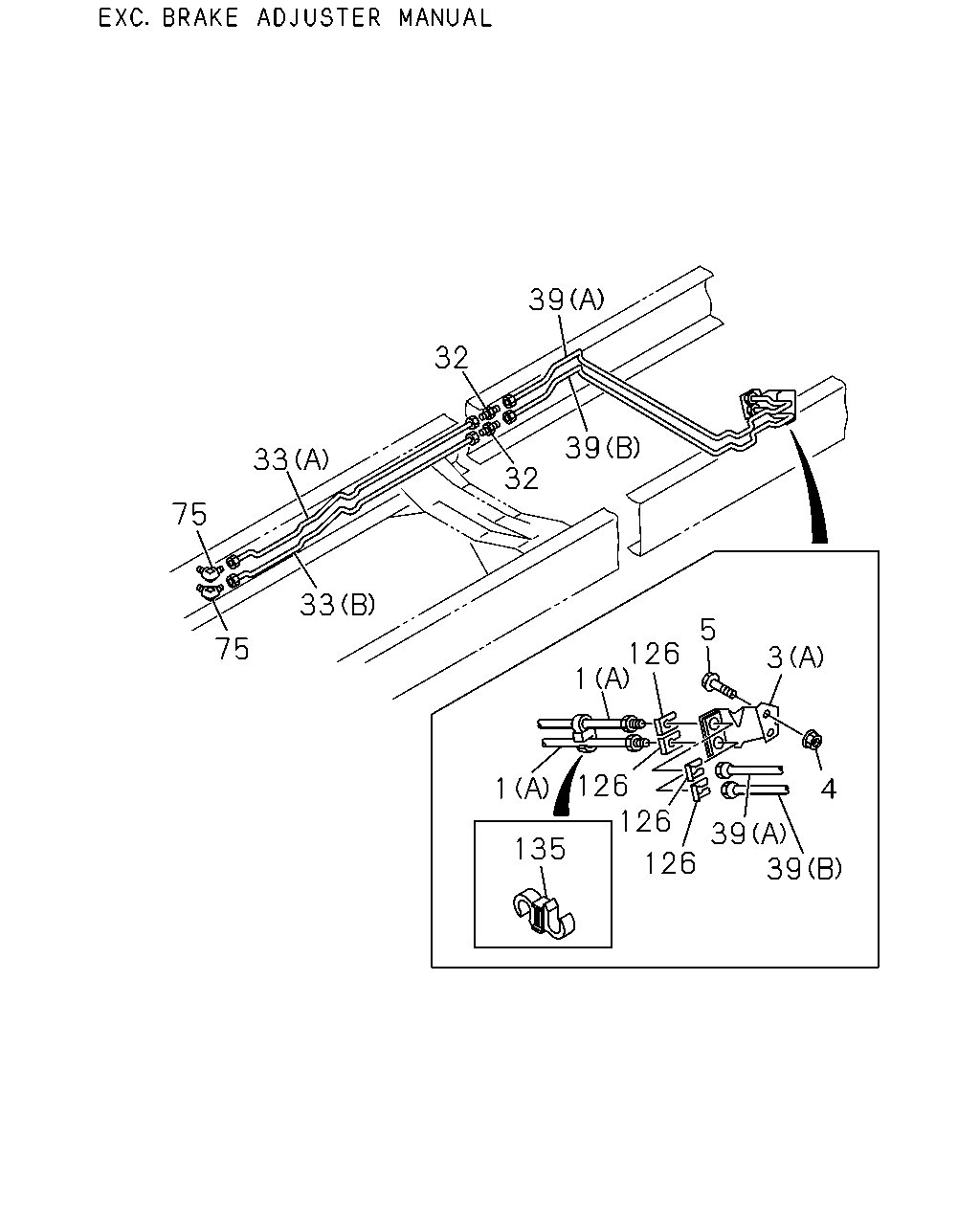

çizim 119931
39 32 39 33 32 75 33 5 75 126 3 1 126 126 1 4 39 39 135 126
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480 		8-98172-789-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520 		8-98175-918-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) (A) L=320 		8-98067-397-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-1011 ●
1 HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1012- ●
1 HOSE; FLEX,RR BRK
(A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
(A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 5100MM(51W) (A) L=350 		8-97138-885-0 02 1 0809- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B) 		8-98182-778-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B) 		8-98175-942-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 0710-0711 ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 0712-1011 ● ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		8-98065-999-2 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 1012- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
32 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0804- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0711 ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0712-0803 ● ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 02 1 0804- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0804- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH L=1073 		8-98123-537-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (B) RH L=1055 		8-98116-678-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) RH L=1023 		8-98072-731-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) LH L=1099 		8-98123-538-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (A) LH L=1126 		8-98116-677-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) LH L=1083 		8-98072-730-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH L=1892 		8-98123-539-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> (A) LH L=1878 		8-98076-346-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (B) RH L=1910 		8-98123-540-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> (B) RH L=1922 		8-98076-345-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH L=2392 		8-98123-541-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH L=2392 		8-98123-541-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (A) LH L=2410 		8-98123-542-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH L=2804 		8-98106-936-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH L=2802 		8-98113-348-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH L=2919 		8-98106-938-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH L=2912 		8-98113-349-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (A) LH L=2124 		8-98076-347-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH L=2078 		8-98076-348-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2828 		8-98099-898-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) RH L=2828 		8-98099-898-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2906 		8-98099-899-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) LH L=2906 		8-98099-899-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH L=1694 		8-98090-727-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH L=1622 		8-98069-807-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH L=1624 		8-98090-728-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH L=1578 		8-98069-808-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH L=1578 		8-98069-808-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH L=1578 		8-98069-808-0 01 1 0907- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2494 		8-98090-730-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2422 		8-98069-813-0 01 1 0710-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO4 SPECIFICATION<NT4> (A) LH L=2422 		8-98069-813-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2423 		8-98090-731-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2377 		8-98069-814-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) (B) RH L=2377 		8-98069-814-0 01 1 0712-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> (B) RH L=2377 		8-98069-814-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2824 		8-98091-639-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2822 		8-98069-815-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH L=2894 		8-98091-640-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2778 		8-98069-816-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH L=2778 		8-98069-816-0 01 1 0712- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2126 		8-98182-774-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2100 		8-98175-941-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH L=1690 		8-98090-826-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH L=1690 		8-98090-826-0 01 1 0712-0712 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH L=1710 		8-98106-485-0 01 1 0801-1011 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710 		8-98106-485-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=1710 		8-98106-485-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH L=1756 		8-98090-827-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH L=1772 		8-98106-486-0 01 1 0801- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH L=1772 		8-98106-486-0 01 1 0801- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0802- ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0710-0711 ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0712-0801 ● ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0802- ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0802- ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0712- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0712- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712- ●
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 0710-0711 ●
135 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) ID=10 & 10 		1-09709-277-1 01 1 0712- ●
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 0712- ●

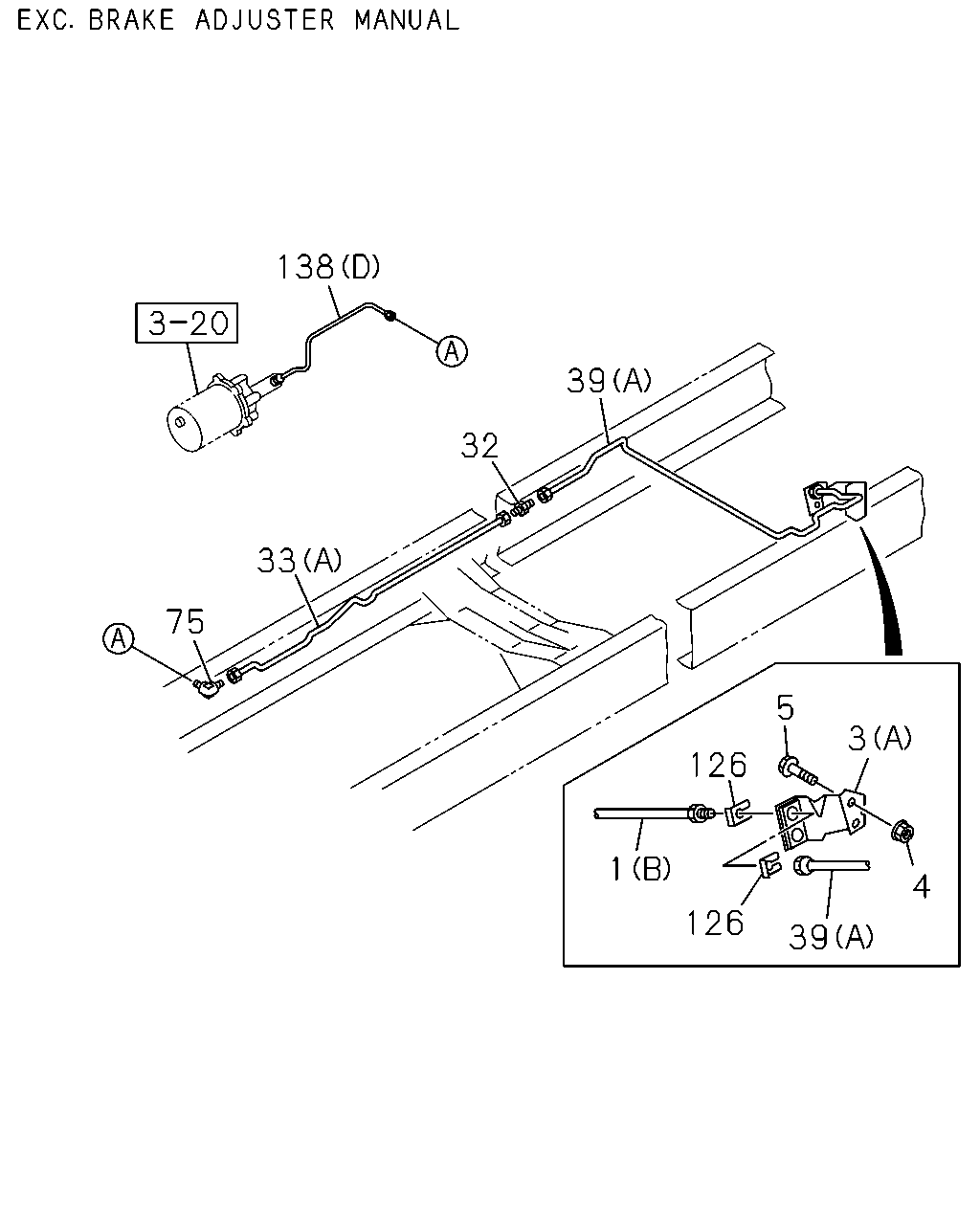

çizim 121126
138 39 32 33 75 5 3 126 1 4 126 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480 		8-98172-789-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520 		8-98175-918-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) (A) L=320 		8-98067-397-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-1011 ●
1 HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1012- ●
1 HOSE; FLEX,RR BRK
(A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
(A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 5100MM(51W) (A) L=350 		8-97138-885-0 02 1 0809- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B) 		8-98182-778-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B) 		8-98175-942-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 0710-0711 ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 0712-1011 ● ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		8-98065-999-2 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 1012- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
32 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0804- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0711 ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0712-0803 ● ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 02 1 0804- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0804- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH L=1073 		8-98123-537-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (B) RH L=1055 		8-98116-678-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) RH L=1023 		8-98072-731-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) LH L=1099 		8-98123-538-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (A) LH L=1126 		8-98116-677-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) LH L=1083 		8-98072-730-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH L=1892 		8-98123-539-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> (A) LH L=1878 		8-98076-346-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (B) RH L=1910 		8-98123-540-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> (B) RH L=1922 		8-98076-345-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH L=2392 		8-98123-541-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH L=2392 		8-98123-541-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (A) LH L=2410 		8-98123-542-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH L=2804 		8-98106-936-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH L=2802 		8-98113-348-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH L=2919 		8-98106-938-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH L=2912 		8-98113-349-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (A) LH L=2124 		8-98076-347-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH L=2078 		8-98076-348-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2828 		8-98099-898-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) RH L=2828 		8-98099-898-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2906 		8-98099-899-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) LH L=2906 		8-98099-899-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH L=1694 		8-98090-727-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH L=1622 		8-98069-807-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH L=1624 		8-98090-728-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH L=1578 		8-98069-808-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH L=1578 		8-98069-808-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH L=1578 		8-98069-808-0 01 1 0907- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2494 		8-98090-730-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2422 		8-98069-813-0 01 1 0710-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO4 SPECIFICATION<NT4> (A) LH L=2422 		8-98069-813-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2423 		8-98090-731-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2377 		8-98069-814-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) (B) RH L=2377 		8-98069-814-0 01 1 0712-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> (B) RH L=2377 		8-98069-814-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2824 		8-98091-639-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2822 		8-98069-815-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH L=2894 		8-98091-640-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2778 		8-98069-816-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH L=2778 		8-98069-816-0 01 1 0712- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2126 		8-98182-774-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2100 		8-98175-941-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH L=1690 		8-98090-826-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH L=1690 		8-98090-826-0 01 1 0712-0712 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH L=1710 		8-98106-485-0 01 1 0801-1011 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710 		8-98106-485-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=1710 		8-98106-485-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH L=1756 		8-98090-827-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH L=1772 		8-98106-486-0 01 1 0801- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH L=1772 		8-98106-486-0 01 1 0801- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0802- ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0710-0711 ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0712-0801 ● ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0802- ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0802- ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0712- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0712- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=492 		8-98057-351-0 01 1 0712-0712 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(A) LH L=615 		8-98086-405-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(B) RH L=679 		8-98086-406-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(A) LH L=657 		8-98012-129-0 01 1 0710-0711 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH L=657 		8-98012-129-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(B) RH L=703 		8-98012-146-0 01 1 0710-0711 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH L=703 		8-98012-146-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0710-0711 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0712- ●

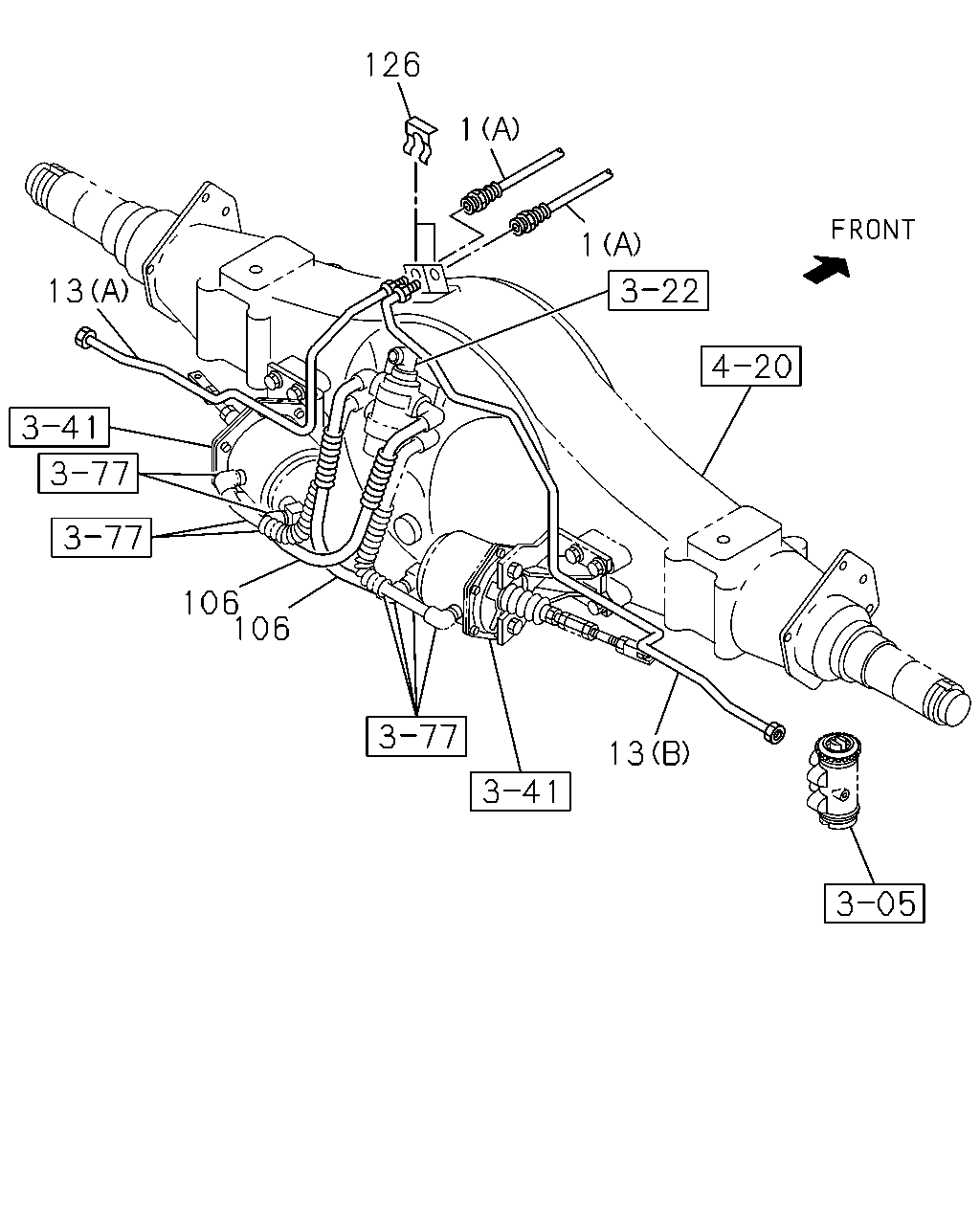

çizim 121160
13 106 106 13 126 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480 		8-98172-789-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520 		8-98175-918-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) (A) L=320 		8-98067-397-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-1011 ●
1 HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1012- ●
1 HOSE; FLEX,RR BRK
(A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
(A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 5100MM(51W) (A) L=350 		8-97138-885-0 02 1 0809- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) RH LINE 		8-98073-530-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) LH LINE 		8-98073-531-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (F) RH LINE L=675 		1-47427-105-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (E) LH LINE L=847 		1-47427-106-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98059-741-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98059-742-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98107-930-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030 		8-98281-559-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98107-931-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645 		8-98281-560-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE 		8-98281-558-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1410- ●
106 TUBE; NYLON 8-98061-971-0 02 1 0710-0711 ●
106 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98061-971-0 02 1 0712- ●
106 TUBE; NYLON 8-98061-971-0 02 1 0712- ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0712- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0712- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712- ●

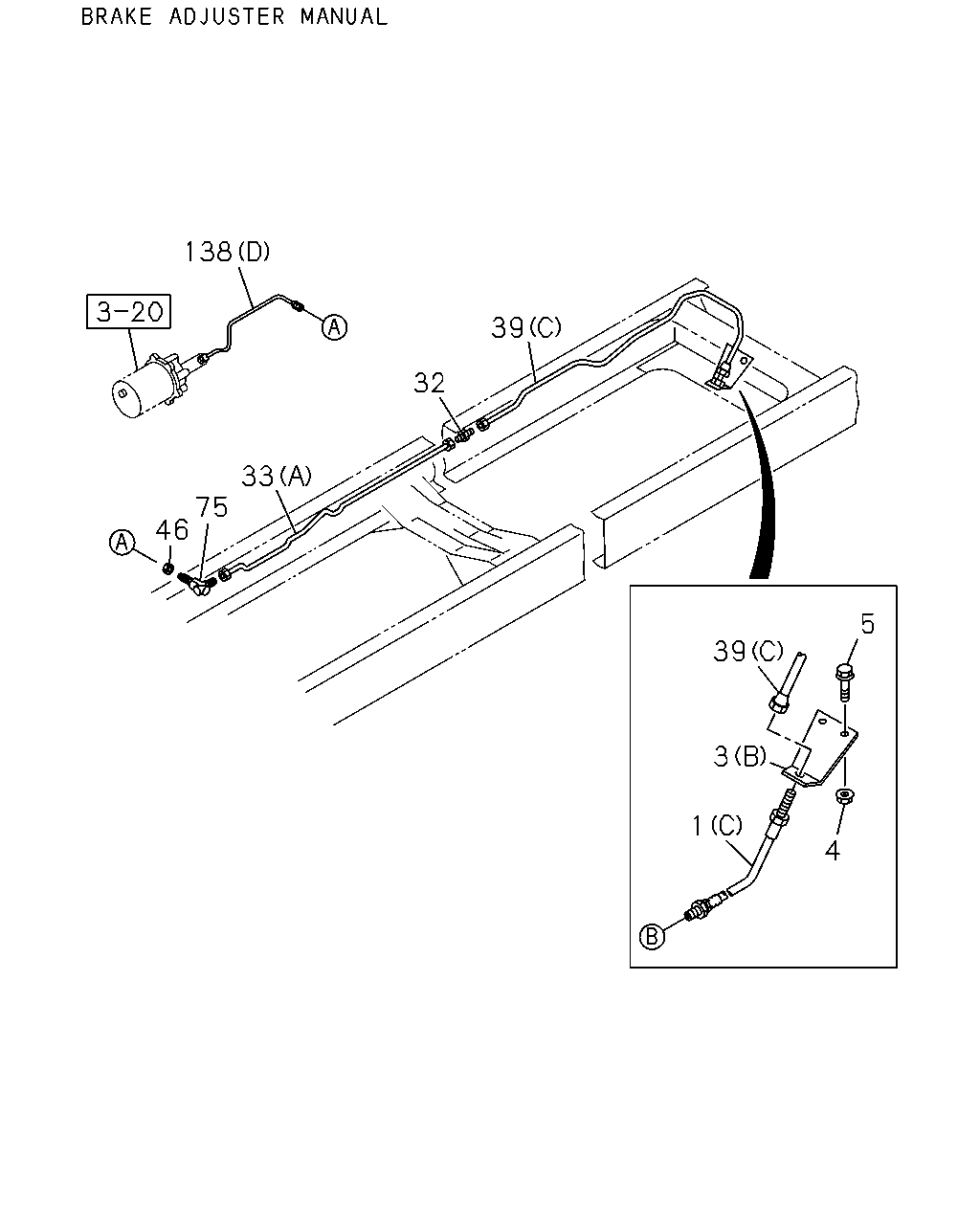

çizim 192186
138 39 32 33 75 46 5 39 3 1 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480 		8-98172-789-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520 		8-98175-918-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) (A) L=320 		8-98067-397-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-1011 ●
1 HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1012- ●
1 HOSE; FLEX,RR BRK
(A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
(A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 5100MM(51W) (A) L=350 		8-97138-885-0 02 1 0809- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B) 		8-98182-778-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B) 		8-98175-942-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 0710-0711 ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 0712-1011 ● ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		8-98065-999-2 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 1012- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
32 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0804- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0711 ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0712-0803 ● ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 02 1 0804- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0804- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH L=1073 		8-98123-537-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (B) RH L=1055 		8-98116-678-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) RH L=1023 		8-98072-731-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) LH L=1099 		8-98123-538-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (A) LH L=1126 		8-98116-677-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) LH L=1083 		8-98072-730-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH L=1892 		8-98123-539-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> (A) LH L=1878 		8-98076-346-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (B) RH L=1910 		8-98123-540-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> (B) RH L=1922 		8-98076-345-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH L=2392 		8-98123-541-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH L=2392 		8-98123-541-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (A) LH L=2410 		8-98123-542-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH L=2804 		8-98106-936-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH L=2802 		8-98113-348-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH L=2919 		8-98106-938-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH L=2912 		8-98113-349-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (A) LH L=2124 		8-98076-347-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH L=2078 		8-98076-348-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2828 		8-98099-898-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) RH L=2828 		8-98099-898-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2906 		8-98099-899-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) LH L=2906 		8-98099-899-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH L=1694 		8-98090-727-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH L=1622 		8-98069-807-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH L=1624 		8-98090-728-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH L=1578 		8-98069-808-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH L=1578 		8-98069-808-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH L=1578 		8-98069-808-0 01 1 0907- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2494 		8-98090-730-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2422 		8-98069-813-0 01 1 0710-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO4 SPECIFICATION<NT4> (A) LH L=2422 		8-98069-813-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2423 		8-98090-731-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2377 		8-98069-814-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) (B) RH L=2377 		8-98069-814-0 01 1 0712-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> (B) RH L=2377 		8-98069-814-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2824 		8-98091-639-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2822 		8-98069-815-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH L=2894 		8-98091-640-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH L=2778 		8-98069-816-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH L=2778 		8-98069-816-0 01 1 0712- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2126 		8-98182-774-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2100 		8-98175-941-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH L=1690 		8-98090-826-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH L=1690 		8-98090-826-0 01 1 0712-0712 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH L=1710 		8-98106-485-0 01 1 0801-1011 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710 		8-98106-485-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=1710 		8-98106-485-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH L=1756 		8-98090-827-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH L=1772 		8-98106-486-0 01 1 0801- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH L=1772 		8-98106-486-0 01 1 0801- ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0802- ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0711 ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0712-0801 ● ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0802- ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0802- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0802- ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0710-0711 ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0712-0801 ● ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0802- ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0802- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=492 		8-98057-351-0 01 1 0712-0712 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(A) LH L=615 		8-98086-405-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(B) RH L=679 		8-98086-406-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(A) LH L=657 		8-98012-129-0 01 1 0710-0711 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH L=657 		8-98012-129-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(B) RH L=703 		8-98012-146-0 01 1 0710-0711 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH L=703 		8-98012-146-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0710-0711 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0712- ●

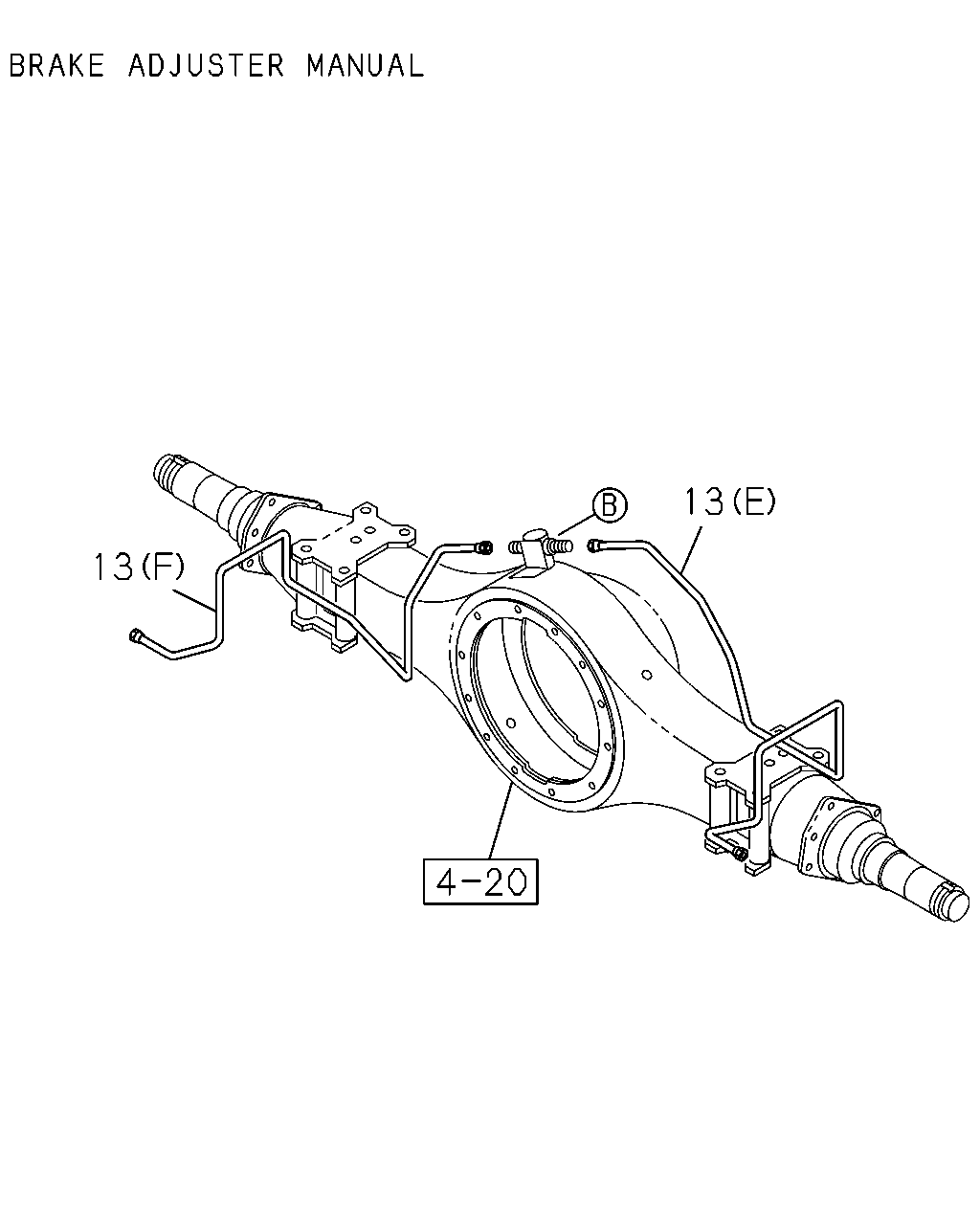

çizim 192232
13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) RH LINE 		8-98073-530-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) LH LINE 		8-98073-531-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (F) RH LINE L=675 		1-47427-105-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (E) LH LINE L=847 		1-47427-106-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98059-741-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98059-742-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98107-930-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030 		8-98281-559-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98107-931-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645 		8-98281-560-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE 		8-98281-558-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1410- ●

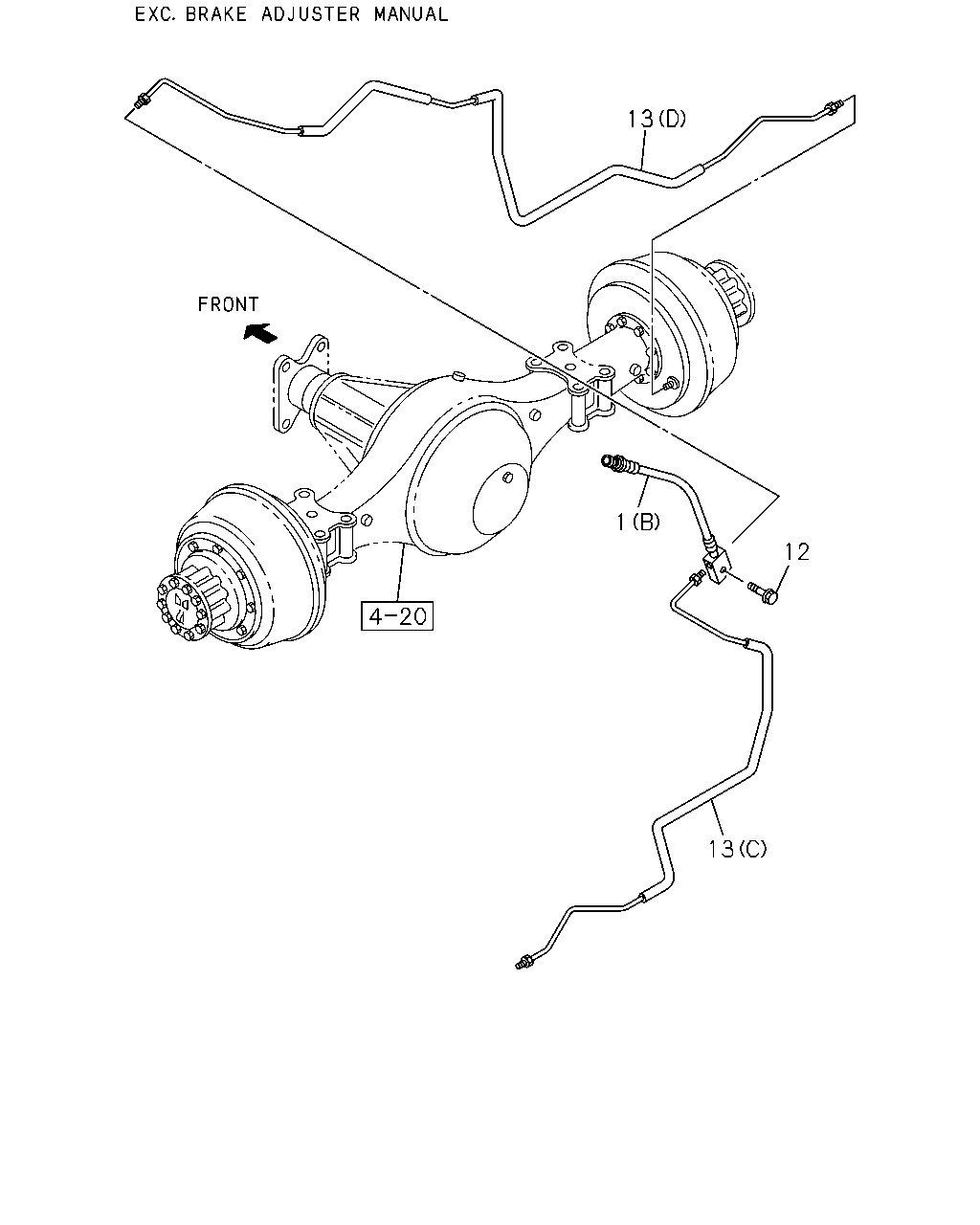

çizim 192236
13 1 12 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480 		8-98172-789-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520 		8-98175-918-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) (A) L=320 		8-98067-397-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-1011 ●
1 HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1012- ●
1 HOSE; FLEX,RR BRK
(A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
(A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 5100MM(51W) (A) L=350 		8-97138-885-0 02 1 0809- ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE 		0-28650-835-0 01 1 0902-1011 ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) M8X35 FLANGE 		0-28650-835-0 01 1 1012- ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) RH LINE 		8-98073-530-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) LH LINE 		8-98073-531-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (F) RH LINE L=675 		1-47427-105-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (E) LH LINE L=847 		1-47427-106-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98059-741-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98059-742-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98107-930-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030 		8-98281-559-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98107-931-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645 		8-98281-560-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (A) LH LINE 		8-98281-558-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
