◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#66318) — 188 parça

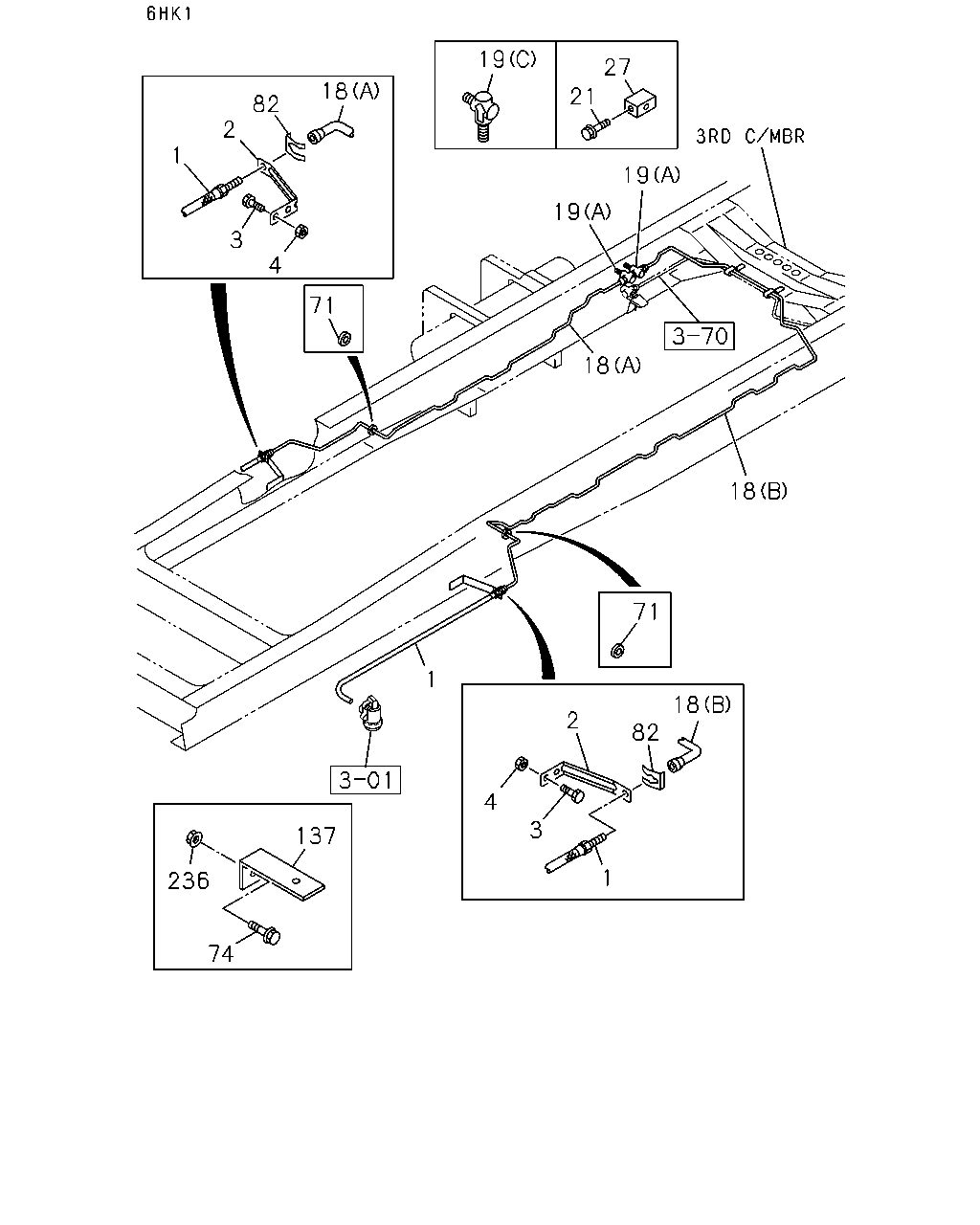

çizim 119771
19 27 18 21 82 2 1 19 19 3 4 71 18 18 71 1 18 2 82 4 3 137 1 236 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> L=480 		8-98172-789-0 02 1 1012- ●
1 HOSE; FLEX,FRT BRK
L=640 		8-98085-202-0 02 1 0710-0711 ●
1 HOSE; FLEX,FRT BRK
L=640 		8-98085-202-0 02 1 0712-1011 ● ●
1 HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=640 		8-98085-202-0 02 1 1012-1109 ●
1 HOSE; FLEX,FRT BRK
L=640 		8-98085-202-0 02 1 1012-1109 ●
1 HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=660 		8-98202-875-0 02 1 1110-1211 ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98202-875-0 02 1 1110-1211 ●
1 HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=660 		8-98232-626-0 02 1 1212- ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1212- ●
2 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) 		8-98011-946-1 02 1 0712-1011 ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-947-1 02 1 0710-0711 ●
2 BRACKET; FLEX HOSE,FRT BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-98011-947-1 02 1 0712- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28650-820-0 02 1 0802-0805 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0711 ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0712-0801 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0802-0805 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0806- ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 0907- ●
4 NUT; FLEX HOSE BRKT,FRT BRK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 04 1 0907- ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 0712-0803 ●
4 NUT; FLEX HOSE BRKT,FRT BRK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 04 1 0712-0803 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH LINE L=3162 		8-98113-896-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (A) RH LINE L=1559 		8-98102-918-0 01 1 0712-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (A) RH LINE L=1454 		8-98112-848-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3690 		8-98103-117-0 01 1 0712-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3566 		8-98113-049-0 01 1 0803-0906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3573 		8-98135-447-0 01 1 0907- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) (D) LH LINE L=1016 		8-98065-376-0 01 1 0712- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) (C) RH LINE L=532 		8-98084-177-0 01 1 0712- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=3122 		8-98078-160-0 01 1 0710-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122 		8-98078-160-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122 		8-98078-160-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1821 		8-98067-419-0 01 1 0710- ●
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (C) 		8-98113-738-0 01 1 0803- ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS) (B) M10 STRAIGHT 		0-92107-005-0 02 1 0712- ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0710-0711 ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0712-0802 ● ●
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
21 BOLT; UNION BRKT
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M8X10 FLANGE 		0-28050-810-0 01 1 0803- ●
27 UNION; BRK PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) 		8-97314-636-0 01 1 0803- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0710-0711 ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0712- ● ●
74 BOLT; BRKT
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 0710-0711 ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 0712- ● ●
137 BRACKET; UNION
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) L=105 B=25 		1-47476-161-0 01 1 0803- ●
236 NUT; BRKT
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M8 FLANGE 		0-91180-108-0 01 1 0803- ●

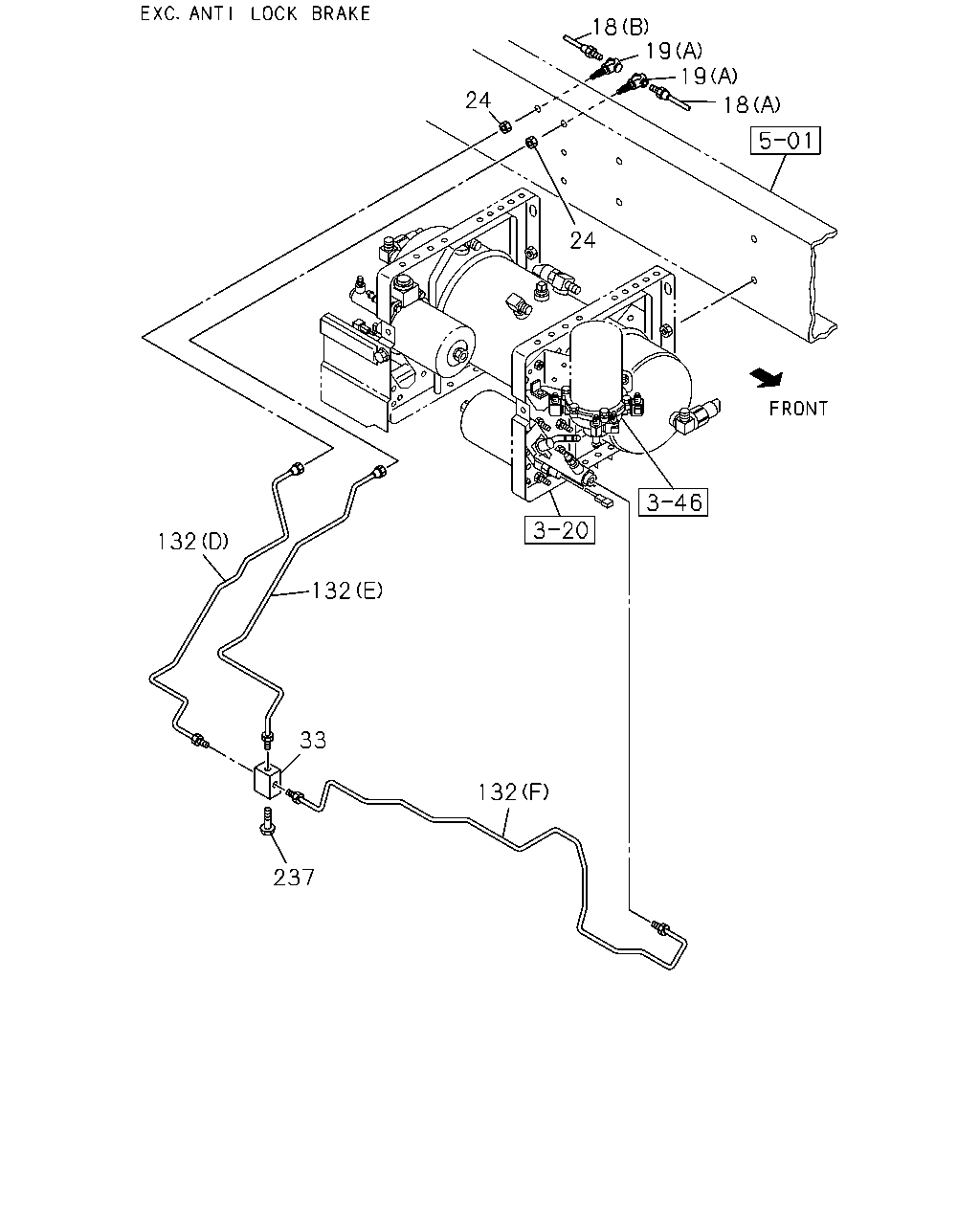

çizim 119963
18 19 19 24 18 24 132 132 33 13 237
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (B) LH LINE L=1963 		8-98089-654-0 01 1 0712- ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (A) RH LINE L=994 		8-98095-531-0 01 1 0712- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH LINE L=3162 		8-98113-896-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (A) RH LINE L=1559 		8-98102-918-0 01 1 0712-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (A) RH LINE L=1454 		8-98112-848-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3690 		8-98103-117-0 01 1 0712-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3566 		8-98113-049-0 01 1 0803-0906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3573 		8-98135-447-0 01 1 0907- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) (D) LH LINE L=1016 		8-98065-376-0 01 1 0712- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) (C) RH LINE L=532 		8-98084-177-0 01 1 0712- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=3122 		8-98078-160-0 01 1 0710-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122 		8-98078-160-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122 		8-98078-160-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1821 		8-98067-419-0 01 1 0710- ●
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (C) 		8-98113-738-0 01 1 0803- ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS) (B) M10 STRAIGHT 		0-92107-005-0 02 1 0712- ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0710-0711 ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0712-0802 ● ●
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8 		1-09400-029-0 01 1 0803- ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0711 ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0712-0802 ● ●
24 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0803- ●
33 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) 		8-97314-636-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (F) L=1464 		8-98113-766-0 01 1 0803-0811 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (F) L=1467 		8-98135-796-0 01 1 0812- ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662 		8-98057-350-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662 		8-98057-350-0 01 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (F) L=886 		8-98084-323-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (F) L=886 		8-98084-323-0 01 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662 		8-98095-078-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662 		8-98095-078-0 01 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=1039 		8-98086-402-0 01 1 0712- ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=619 		8-98086-403-0 01 1 0712- ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=648 		8-98086-404-0 01 1 0712- ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=949 		8-98078-732-0 01 1 0710-0711 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (C) L=949 		8-98078-732-0 01 1 0712-0906 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (C) L=949 		8-98078-732-0 01 1 0907- ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=621 		8-98011-941-0 01 1 0710-0711 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=621 		8-98011-941-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=625 		8-98116-095-0 01 1 0804-0906 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=625 		8-98116-095-0 01 1 0907- ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=645 		8-98011-949-0 01 1 0710-0711 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=645 		8-98011-949-0 01 1 0712-0906 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=645 		8-98011-949-0 01 1 0907- ●
237 BOLT; UNION
EXC. ANTI LOCK BRAKE(JE5) M8X10 FLANGE 		0-28050-810-0 01 1 0712-0802 ●

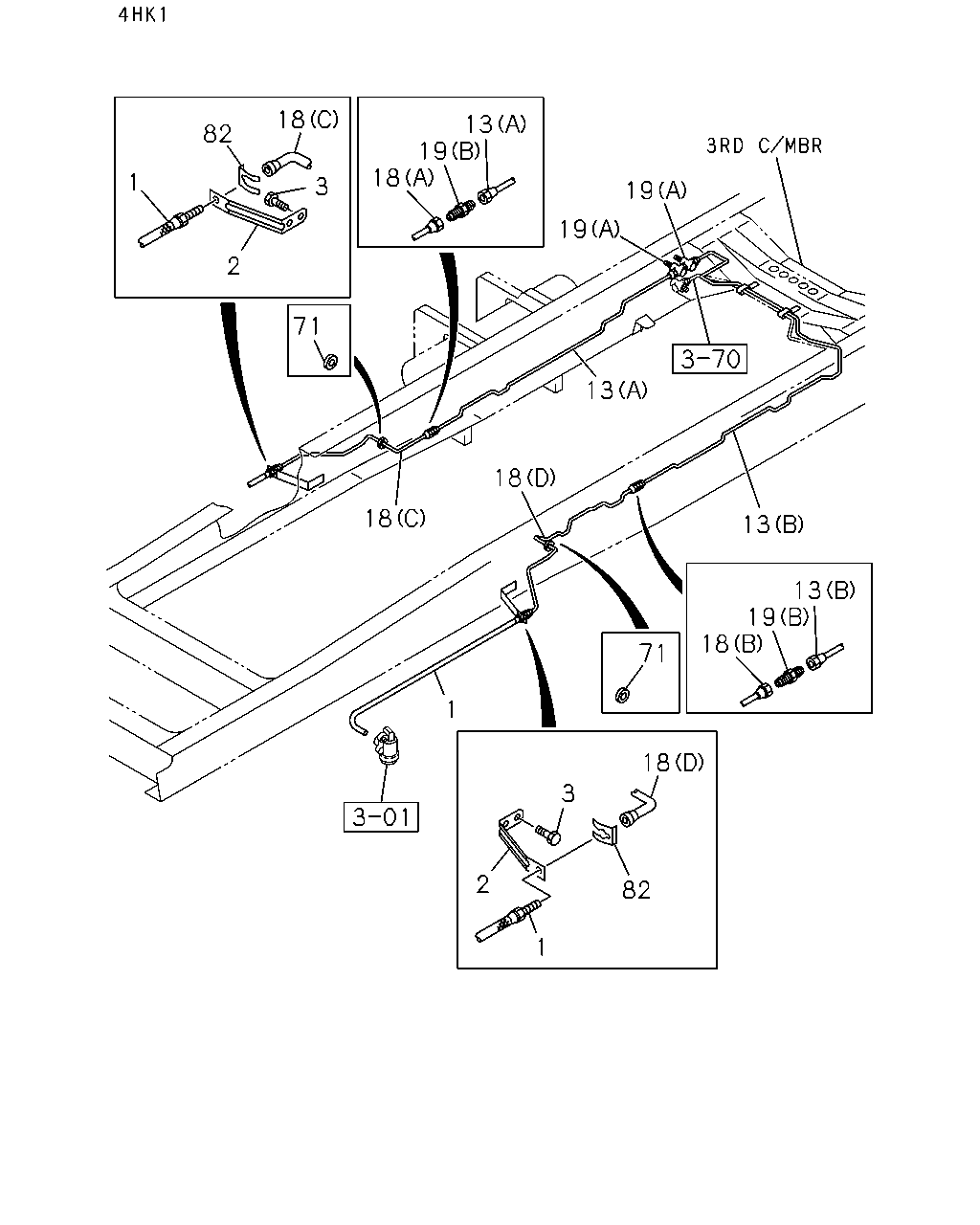

çizim 119970
18 13 19 18 82 1 3 19 19 2 71 13 18 18 13 13 19 18 71 1 18 3 2 82 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> L=480 		8-98172-789-0 02 1 1012- ●
1 HOSE; FLEX,FRT BRK
L=640 		8-98085-202-0 02 1 0710-0711 ●
1 HOSE; FLEX,FRT BRK
L=640 		8-98085-202-0 02 1 0712-1011 ● ●
1 HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=640 		8-98085-202-0 02 1 1012-1109 ●
1 HOSE; FLEX,FRT BRK
L=640 		8-98085-202-0 02 1 1012-1109 ●
1 HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=660 		8-98202-875-0 02 1 1110-1211 ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98202-875-0 02 1 1110-1211 ●
1 HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=660 		8-98232-626-0 02 1 1212- ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1212- ●
2 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) 		8-98011-946-1 02 1 0712-1011 ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-947-1 02 1 0710-0711 ●
2 BRACKET; FLEX HOSE,FRT BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-98011-947-1 02 1 0712- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28650-820-0 02 1 0802-0805 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0711 ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0712-0801 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0802-0805 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0806- ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (B) LH LINE L=1963 		8-98089-654-0 01 1 0712- ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (A) RH LINE L=994 		8-98095-531-0 01 1 0712- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH LINE L=3162 		8-98113-896-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (A) RH LINE L=1559 		8-98102-918-0 01 1 0712-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (A) RH LINE L=1454 		8-98112-848-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3690 		8-98103-117-0 01 1 0712-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3566 		8-98113-049-0 01 1 0803-0906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3573 		8-98135-447-0 01 1 0907- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) (D) LH LINE L=1016 		8-98065-376-0 01 1 0712- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) (C) RH LINE L=532 		8-98084-177-0 01 1 0712- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=3122 		8-98078-160-0 01 1 0710-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122 		8-98078-160-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122 		8-98078-160-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1821 		8-98067-419-0 01 1 0710- ●
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (C) 		8-98113-738-0 01 1 0803- ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS) (B) M10 STRAIGHT 		0-92107-005-0 02 1 0712- ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0710-0711 ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0712-0802 ● ●
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0710-0711 ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0712- ● ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 0710-0711 ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 0712- ● ●

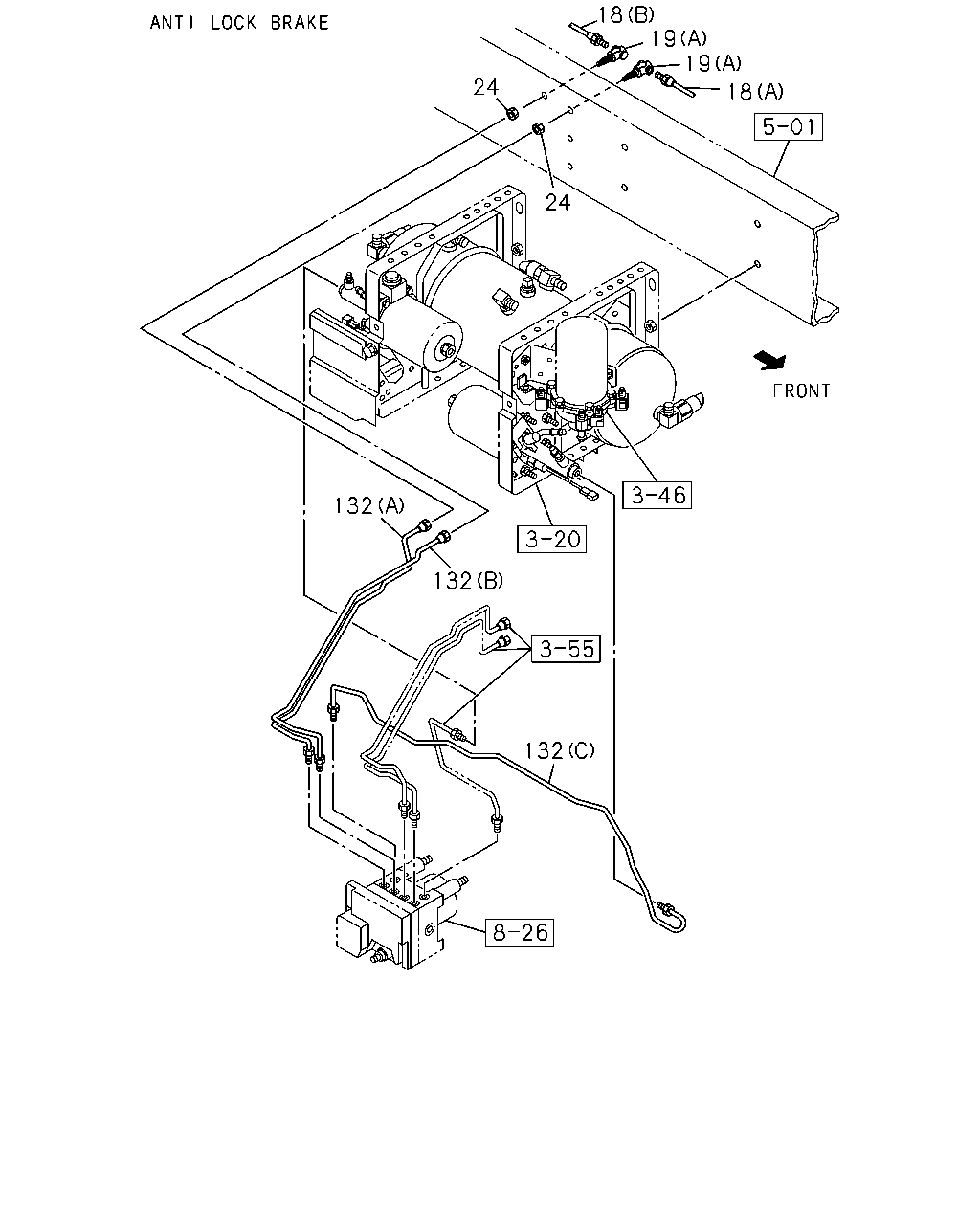

çizim 192099
18 19 19 24 18 24 132 132 132
BalonParca AdiParca NoAdetTipApplied Date A B
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH LINE L=3162 		8-98113-896-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (A) RH LINE L=1559 		8-98102-918-0 01 1 0712-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (A) RH LINE L=1454 		8-98112-848-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3690 		8-98103-117-0 01 1 0712-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3566 		8-98113-049-0 01 1 0803-0906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) LH LINE L=3573 		8-98135-447-0 01 1 0907- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) (D) LH LINE L=1016 		8-98065-376-0 01 1 0712- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) (C) RH LINE L=532 		8-98084-177-0 01 1 0712- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=3122 		8-98078-160-0 01 1 0710-0802 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122 		8-98078-160-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122 		8-98078-160-0 01 1 0803- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1821 		8-98067-419-0 01 1 0710- ●
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (C) 		8-98113-738-0 01 1 0803- ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS) (B) M10 STRAIGHT 		0-92107-005-0 02 1 0712- ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0710-0711 ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0712-0802 ● ●
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8 		1-09400-029-0 01 1 0803- ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0711 ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0712-0802 ● ●
24 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (F) L=1464 		8-98113-766-0 01 1 0803-0811 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (F) L=1467 		8-98135-796-0 01 1 0812- ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662 		8-98057-350-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662 		8-98057-350-0 01 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (F) L=886 		8-98084-323-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (F) L=886 		8-98084-323-0 01 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662 		8-98095-078-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662 		8-98095-078-0 01 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=1039 		8-98086-402-0 01 1 0712- ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=619 		8-98086-403-0 01 1 0712- ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=648 		8-98086-404-0 01 1 0712- ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=949 		8-98078-732-0 01 1 0710-0711 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (C) L=949 		8-98078-732-0 01 1 0712-0906 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (C) L=949 		8-98078-732-0 01 1 0907- ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=621 		8-98011-941-0 01 1 0710-0711 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=621 		8-98011-941-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=625 		8-98116-095-0 01 1 0804-0906 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=625 		8-98116-095-0 01 1 0907- ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=645 		8-98011-949-0 01 1 0710-0711 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=645 		8-98011-949-0 01 1 0712-0906 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=645 		8-98011-949-0 01 1 0907- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
