3-46 — AIR DRYER (#66317) — 920 parça

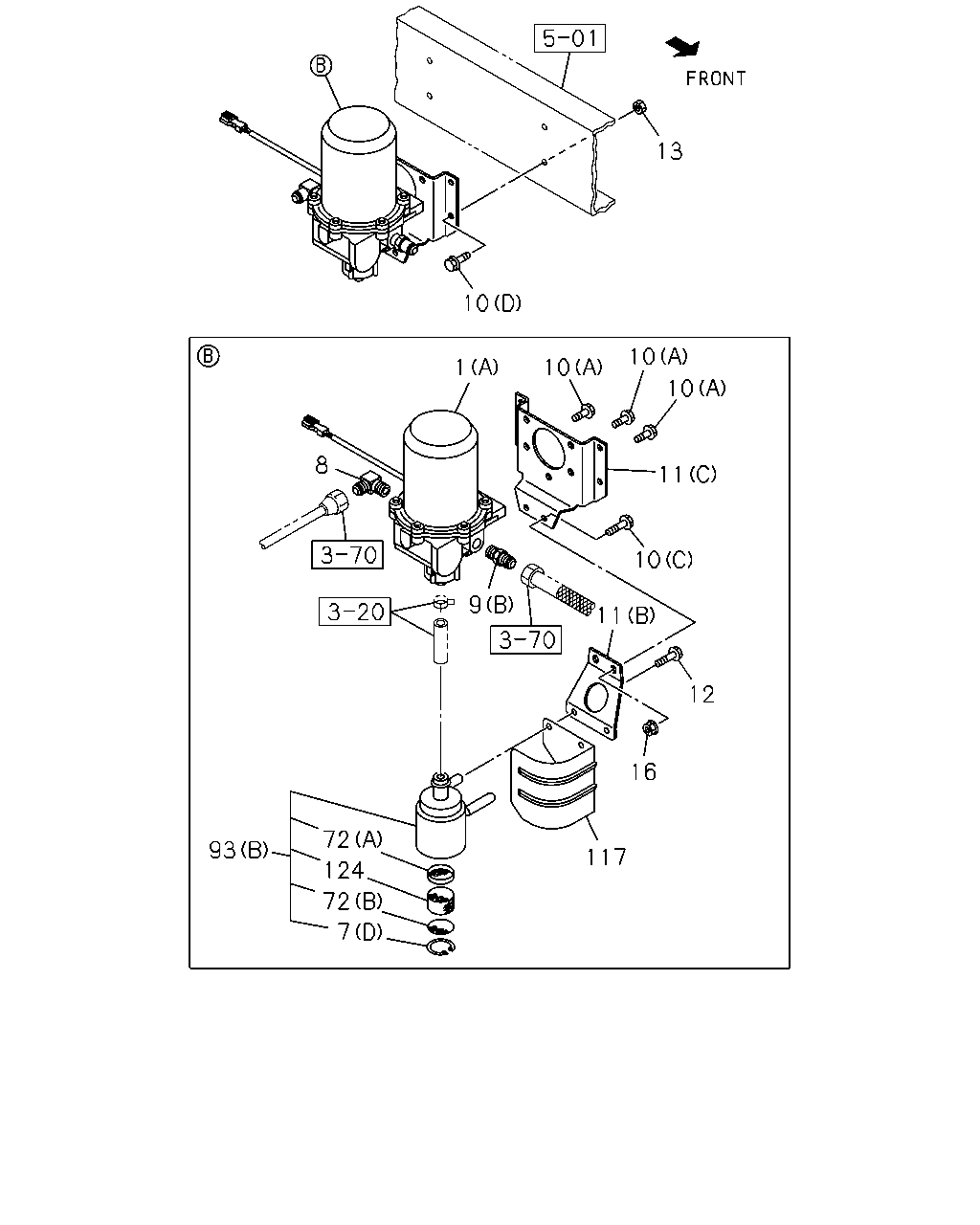

çizim 118215
13 10 10 10 1 10 8 11 10 9 11 12 16 72 93 117 124 72 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-1107 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1108- ●
1 DRYER; AIR
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48190-215-1 01 1 0809-1107 ●
1 DRYER; AIR
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48190-215-1 01 1 1108- ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-369-2 01 1 0712-0808 ●
1 DRYER; AIR
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-369-2 01 1 0809-1107 ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-369-2 01 1 1108-1211 ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		8-98225-289-0 01 1 1212- ●
1 DRYER; AIR
(A) 		1-48190-370-1 01 1 0710-0711 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-370-1 01 1 0712-0808 ●
1 DRYER; AIR
(A) 		1-48190-370-1 01 1 0712-0808 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-48190-370-2 01 1 0809-1107 ●
1 DRYER; AIR
(A) 		1-48190-370-2 01 1 0809-1107 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-370-2 01 1 1108-1211 ●
1 DRYER; AIR
(A) 		1-48190-370-2 01 1 1108-1211 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
(A) 		8-98225-285-0 01 1 1212- ●
7 RING; SNAP,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		1-48199-403-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-403-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (C) 		1-48199-520-0 02 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 1108- ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (B) 		1-48199-529-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-529-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-579-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-579-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) 		1-09656-676-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> 		1-09656-676-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) 		1-09656-676-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> 		1-09656-676-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> 		1-09656-676-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) 		1-09656-676-0 01 1 0812-1107 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> 		1-09656-676-0 01 1 0812-1107 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) 		1-09656-676-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> 		1-09656-676-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0710-0711 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0712-0802 ● ●
8 CONNECTOR; OUT,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0812-1005 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0812-1005 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0812-1005 ●
8 CONNECTOR; OUT,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0812-1005 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0812-1005 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1006-1107 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1006-1107 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1006-1107 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1006-1107 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1006-1107 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4>,B RAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0809-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0809-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 0712-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0710-0808 ●
9 CONNECTOR; PIPE,AIR DRYER
EURO4 SPECIFICATION<NT4> (A) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0809-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1108- ●
10 BOLT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X20 FLANGE 		0-28051-020-0 03 1 0810-1107 ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1108- ●
10 BOLT; AIR DRYER
(D) M8X30 FLANGE 		0-28050-830-0 02 1 0712- ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0710-0711 ●
10 BOLT; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0712-0808 ●
10 BOLT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0712-0808 ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0712-0808 ●
10 BOLT; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0809-1107 ●
10 BOLT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0809-1107 ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0809-1107 ●
10 BOLT; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1108- ●
10 BOLT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1108- ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1108- ●
10 BOLT; AIR DRYER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0808 ●
10 BOLT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0809-0811 ●
10 BOLT; AIR DRYER
EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0809-0811 ●
10 BOLT; AIR DRYER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0812- ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 0710-0711 ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 0712-0808 ● ●
10 BOLT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0809-0809 ●
10 BOLT; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0809-0809 ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 0809-0809 ●
10 BOLT; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0810-1107 ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 0810-1107 ●
10 BOLT; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE 		0-28051-025-0 03 1 1108- ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 1108- ●
11 BRACKET; AIR DRYER
(C) 		8-98081-476-0 01 1 0712-1107 ●
11 BRACKET; AIR DRYER
(C) 		8-98081-476-0 01 1 1108- ●
11 BRACKET; AIR DRYER
(A) 		8-98044-548-3 01 1 0710-0808 ●
11 BRACKET; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		8-98044-548-4 01 1 0809-0906 ●
11 BRACKET; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		8-98044-548-4 01 1 0809-0906 ●
11 BRACKET; AIR DRYER
AIR DRYER<PS7> (A) 		8-98044-548-4 01 1 0907-1107 ●
11 BRACKET; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		8-98044-548-4 01 1 1108- ●
11 BRACKET; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98044-548-4 01 1 1108- ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 0710-0711 ●
11 BRACKET; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98039-092-0 01 1 0712-0808 ●
11 BRACKET; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (B) 		8-98039-092-0 01 1 0712-0808 ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 0712-0808 ●
11 BRACKET; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98039-092-0 01 1 0809-1107 ●
11 BRACKET; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (B) 		8-98039-092-0 01 1 0809-1107 ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 0809-1107 ●
11 BRACKET; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) 		8-98039-092-0 01 1 1108- ●
11 BRACKET; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (B) 		8-98039-092-0 01 1 1108- ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 1108- ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
12 BOLT; BRKT
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
12 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
12 BOLT; BRKT
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 02 1 0809-1107 ●
12 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) M8X20 FLANGE 		0-28650-820-0 02 1 0809-1107 ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0809-1107 ●
12 BOLT; BRKT
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
12 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
13 NUT; AIR DRYER
M8 FLANGE 		0-91180-108-0 04 1 0712- ●
13 NUT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ●
13 NUT; AIR DRYER
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ●
13 NUT; AIR DRYER
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
16 NUT; BRKT
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
16 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
16 NUT; BRKT
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0809-1107 ●
16 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) M8 FLANGE 		0-91180-108-0 02 1 0809-1107 ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-1107 ●
16 NUT; BRKT
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1108- ●
16 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) M8 FLANGE 		0-91180-108-0 02 1 1108- ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1108- ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0710-0711 ●
72 PLATE; FILTER,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-585-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (A) 		1-48199-585-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-585-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (A) 		1-48199-585-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-585-0 01 1 1108- ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (A) 		1-48199-585-0 01 1 1108- ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 1108- ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0710-0711 ●
72 PLATE; FILTER,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-602-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-602-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-602-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-602-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-602-0 01 1 1108- ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-602-0 01 1 1108- ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0710-0711 ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0712-0808 ● ●
93 SILENCER; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-619-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-619-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0710-0711 ●
93 SILENCER; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-581-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-581-0 01 1 1108- ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-581-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 1108- ●
117 COVER; SILENCER 8-98065-972-1 01 1 0710-0711 ●
117 COVER; SILENCER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98065-972-1 01 1 0712-0808 ●
117 COVER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) 		8-98065-972-1 01 1 0712-0808 ●
117 COVER; SILENCER 8-98065-972-1 01 1 0712-0808 ●
117 COVER; SILENCER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98065-972-1 01 1 0809-1107 ●
117 COVER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) 		8-98065-972-1 01 1 0809-1107 ●
117 COVER; SILENCER 8-98065-972-1 01 1 0809-1107 ●
117 COVER; SILENCER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> 		8-98065-972-1 01 1 1108- ●
117 COVER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) 		8-98065-972-1 01 1 1108- ●
117 COVER; SILENCER 8-98065-972-1 01 1 1108- ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0710-0711 ●
124 FILTER; SILENCER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-465-0 01 1 0712-0808 ●
124 FILTER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) 		1-48199-465-0 01 1 0712-0808 ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0712-0808 ●
124 FILTER; SILENCER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-465-0 01 1 0809-1107 ●
124 FILTER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) 		1-48199-465-0 01 1 0809-1107 ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0809-1107 ●
124 FILTER; SILENCER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> 		1-48199-465-0 01 1 1108- ●
124 FILTER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) 		1-48199-465-0 01 1 1108- ●
124 FILTER; SILENCER 1-48199-465-0 01 1 1108- ●

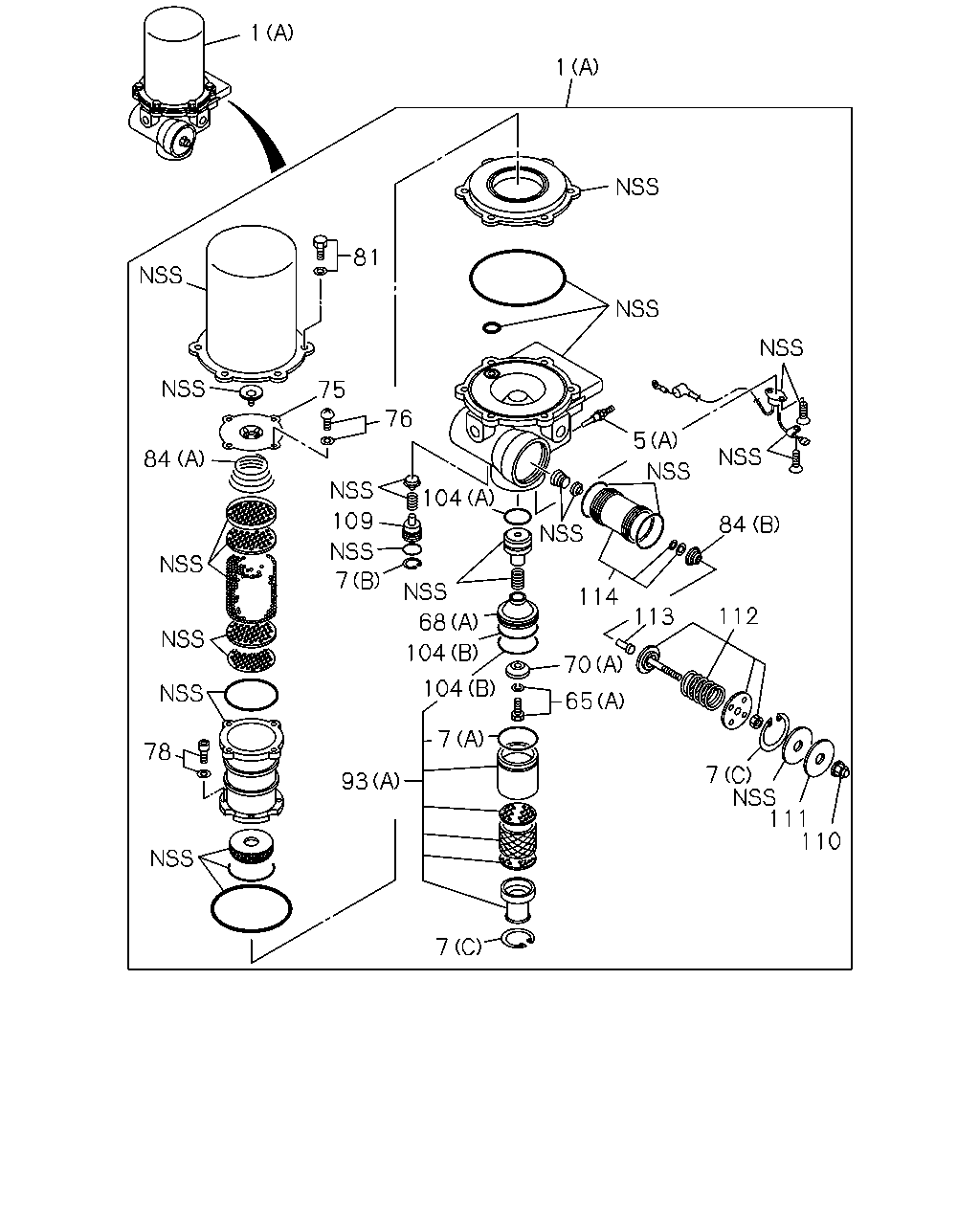

çizim 118299
1 1 81 75 76 84 78 93 7 7 104 104 68 7 109 104 114 113 112 70 65 7 111 110 84 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-1107 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1108- ●
1 DRYER; AIR
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48190-215-1 01 1 0809-1107 ●
1 DRYER; AIR
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48190-215-1 01 1 1108- ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-369-2 01 1 0712-0808 ●
1 DRYER; AIR
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-369-2 01 1 0809-1107 ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-369-2 01 1 1108-1211 ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		8-98225-289-0 01 1 1212- ●
1 DRYER; AIR
(A) 		1-48190-370-1 01 1 0710-0711 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-370-1 01 1 0712-0808 ●
1 DRYER; AIR
(A) 		1-48190-370-1 01 1 0712-0808 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-48190-370-2 01 1 0809-1107 ●
1 DRYER; AIR
(A) 		1-48190-370-2 01 1 0809-1107 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-370-2 01 1 1108-1211 ●
1 DRYER; AIR
(A) 		1-48190-370-2 01 1 1108-1211 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
(A) 		8-98225-285-0 01 1 1212- ●
5 HEATER ASM; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-085-0 01 1 0809-1107 ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-085-0 01 1 1108- ●
5 HEATER ASM; AIR DRYER
(A) 		1-48199-530-0 01 1 0710-0711 ●
5 HEATER ASM; AIR DRYER
(A) 		1-48199-530-0 01 1 0712-0808 ● ●
5 HEATER ASM; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-530-0 01 1 0809-1107 ●
5 HEATER ASM; AIR DRYER
(A) 		1-48199-530-0 01 1 0809-1107 ●
5 HEATER ASM; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-530-0 01 1 1108- ●
5 HEATER ASM; AIR DRYER
(A) 		1-48199-530-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		1-48199-403-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-403-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (C) 		1-48199-520-0 02 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 1108- ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (B) 		1-48199-529-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-529-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-579-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-579-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 1108- ●
65 BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-393-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-393-0 01 1 1108- ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0710-0711 ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0712-0808 ● ●
65 BOLT; PURGE VLV
EURO4 SPECIFICATION<NT4> (A) 		1-48199-517-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-517-0 01 1 1108- ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 1108- ●
68 BODY; VALVE
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0809-1107 ●
68 BODY; VALVE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-408-0 01 1 1108- ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0710-0711 ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0712-0808 ● ●
68 BODY; VALVE
EURO4 SPECIFICATION<NT4> (A) 		1-48199-515-0 01 1 0809-1107 ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0809-1107 ●
68 BODY; VALVE
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-515-0 01 1 1108- ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 1108- ●
70 VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-105-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-105-0 01 1 1108- ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0710-0711 ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0712-0808 ● ●
70 VALVE; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-504-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-504-0 01 1 1108- ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 1108- ●
75 COVER; CASE,AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 0712-0808 ●
75 COVER; CASE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 0809-0906 ●
75 COVER; CASE,AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 0809-0906 ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 0907-1107 ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 1108- ●
75 COVER; CASE,AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> 		1-48199-395-0 01 1 1108- ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0710-0711 ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-427-0 01 1 0712-0808 ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0712-0808 ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-427-0 01 1 0809-0906 ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> 		1-48199-427-0 01 1 0809-0906 ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0809-0906 ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> 		1-48199-427-0 01 1 0907-1107 ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0907-1107 ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		1-48199-427-0 01 1 1108- ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-427-0 01 1 1108- ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 1108- ●
76 BOLT; COVER,AIR DRYER 1-48199-412-0 04 1 0710-0711 ●
76 BOLT; COVER,AIR DRYER 1-48199-412-0 04 1 0712-0808 ● ●
76 BOLT; COVER,AIR DRYER
EURO4 SPECIFICATION<NT4> 		1-48199-412-0 04 1 0809-1107 ●
76 BOLT; COVER,AIR DRYER 1-48199-412-0 04 1 0809-1107 ●
76 BOLT; COVER,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-412-0 04 1 1108- ●
76 BOLT; COVER,AIR DRYER 1-48199-412-0 04 1 1108- ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-417-0 04 1 0710-0711 ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-417-0 04 1 0712-0808 ● ●
78 BOLT; OIL FILTER,AIR DRYER
EURO4 SPECIFICATION<NT4> 		1-48199-417-0 04 1 0809-1107 ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-417-0 04 1 0809-1107 ●
78 BOLT; OIL FILTER,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-417-0 04 1 1108- ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-417-0 04 1 1108- ●
81 BOLT; CASE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-365-0 06 1 0809-1107 ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-365-0 06 1 1108- ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0710-0711 ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0712-0808 ● ●
81 BOLT; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-436-0 06 1 0809-0906 ●
81 BOLT; CASE,AIR DRYER
EURO4 SPECIFICATION<NT4> 		1-48199-436-0 06 1 0809-0906 ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0809-0906 ●
81 BOLT; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-436-0 06 1 0907-1107 ●
81 BOLT; CASE,AIR DRYER
EURO4 SPECIFICATION<NT4> 		1-48199-436-0 06 1 0907-1107 ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0907-1107 ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-436-0 06 1 1108- ●
84 SPRING; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 0712-0808 ●
84 SPRING; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 0809-0906 ●
84 SPRING; AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 0809-0906 ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 0907-1107 ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 1108- ●
84 SPRING; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-396-0 01 1 1108- ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0710-0711 ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0712-0808 ● ●
84 SPRING; AIR DRYER
EURO4 SPECIFICATION<NT4> (B) 		1-48199-523-0 01 1 0809-1107 ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0809-1107 ●
84 SPRING; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-523-0 01 1 1108- ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 1108- ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0710-0711 ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-425-0 01 1 0712-0808 ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0712-0808 ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-425-0 01 1 0809-0906 ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-48199-425-0 01 1 0809-0906 ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0809-0906 ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> (A) 		1-48199-425-0 01 1 0907-1107 ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0907-1107 ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-425-0 01 1 1108- ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-425-0 01 1 1108- ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0710-0711 ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0712-0808 ● ●
93 SILENCER; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-619-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-619-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0710-0711 ●
93 SILENCER; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-581-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-581-0 01 1 1108- ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-581-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 1108- ●
104 GASKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 01 1 1212- ●
104 GASKET
(A) 		1-48199-495-0 01 1 0710-0711 ●
104 GASKET
(A) 		1-48199-495-0 01 1 0712-0808 ● ●
104 GASKET
EURO4 SPECIFICATION<NT4> (A) 		1-48199-495-0 01 1 0809-1107 ●
104 GASKET
(A) 		1-48199-495-0 01 1 0809-1107 ●
104 GASKET
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-495-0 01 1 1108-1211 ●
104 GASKET
(A) 		1-48199-495-0 01 1 1108-1211 ●
104 GASKET
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98226-321-0 01 1 1212- ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ●
104 GASKET
(B) 		1-48199-496-0 02 1 0710-0711 ●
104 GASKET
(B) 		1-48199-496-0 02 1 0712-0808 ● ●
104 GASKET
EURO4 SPECIFICATION<NT4> (B) 		1-48199-496-0 02 1 0809-1107 ●
104 GASKET
(B) 		1-48199-496-0 02 1 0809-1107 ●
104 GASKET
EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1108-1211 ●
104 GASKET
(B) 		1-48199-496-0 02 1 1108-1211 ●
104 GASKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1212- ●
104 GASKET
(B) 		1-48199-496-0 02 1 1212- ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 0710-0711 ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 0712-0808 ● ●
109 STOPPER; CHECK VALVE
EURO4 SPECIFICATION<NT4> 		1-48199-539-0 01 1 0809-1107 ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 0809-1107 ●
109 STOPPER; CHECK VALVE
EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-539-0 01 1 1108- ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 1108- ●
110 NUT; CAP 1-48199-527-0 01 1 0710-0711 ●
110 NUT; CAP 1-48199-527-0 01 1 0712-0808 ● ●
110 NUT; CAP
EURO4 SPECIFICATION<NT4> 		1-48199-527-0 01 1 0809-1107 ●
110 NUT; CAP 1-48199-527-0 01 1 0809-1107 ●
110 NUT; CAP
EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-527-0 01 1 1108- ●
110 NUT; CAP 1-48199-527-0 01 1 1108- ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 0710-0711 ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 0712-0808 ● ●
111 PLATE; GOVERNOR
EURO4 SPECIFICATION<NT4> 		1-48199-526-0 01 1 0809-1107 ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 0809-1107 ●
111 PLATE; GOVERNOR
EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-526-0 01 1 1108- ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 1108- ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 0710-0711 ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 0712-0808 ● ●
112 SCREW & SPRING ASM; AIR DRYER
EURO4 SPECIFICATION<NT4> 		1-48199-524-0 01 1 0809-1107 ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 0809-1107 ●
112 SCREW & SPRING ASM; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-524-0 01 1 1108- ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 1108- ●
113 STEM; EXHAUST 1-48199-522-0 01 1 0710-0711 ●
113 STEM; EXHAUST 1-48199-522-0 01 1 0712-0808 ● ●
113 STEM; EXHAUST
EURO4 SPECIFICATION<NT4> 		1-48199-522-0 01 1 0809-1107 ●
113 STEM; EXHAUST 1-48199-522-0 01 1 0809-1107 ●
113 STEM; EXHAUST
EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-522-0 01 1 1108- ●
113 STEM; EXHAUST 1-48199-522-0 01 1 1108- ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 0710-0711 ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 0712-0808 ● ●
114 PISTON ASM; GOVERNOR
EURO4 SPECIFICATION<NT4> 		1-48199-521-0 01 1 0809-1107 ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 0809-1107 ●
114 PISTON ASM; GOVERNOR
EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-521-0 01 1 1108- ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 1108- ●

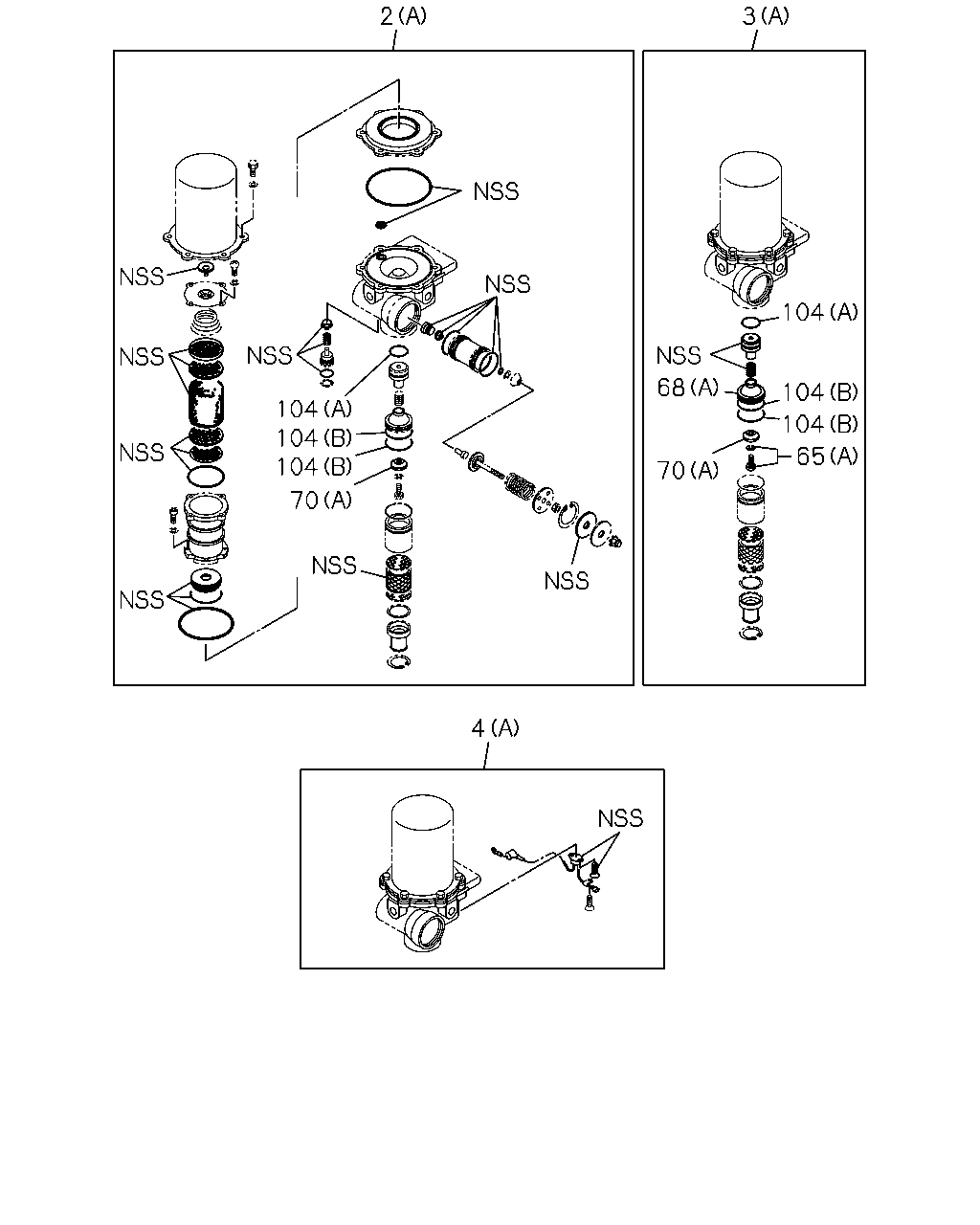

çizim 118305
2 3 104 68 104 104 104 104 104 65 70 70 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-217-0 01 1 0809-1107 ●

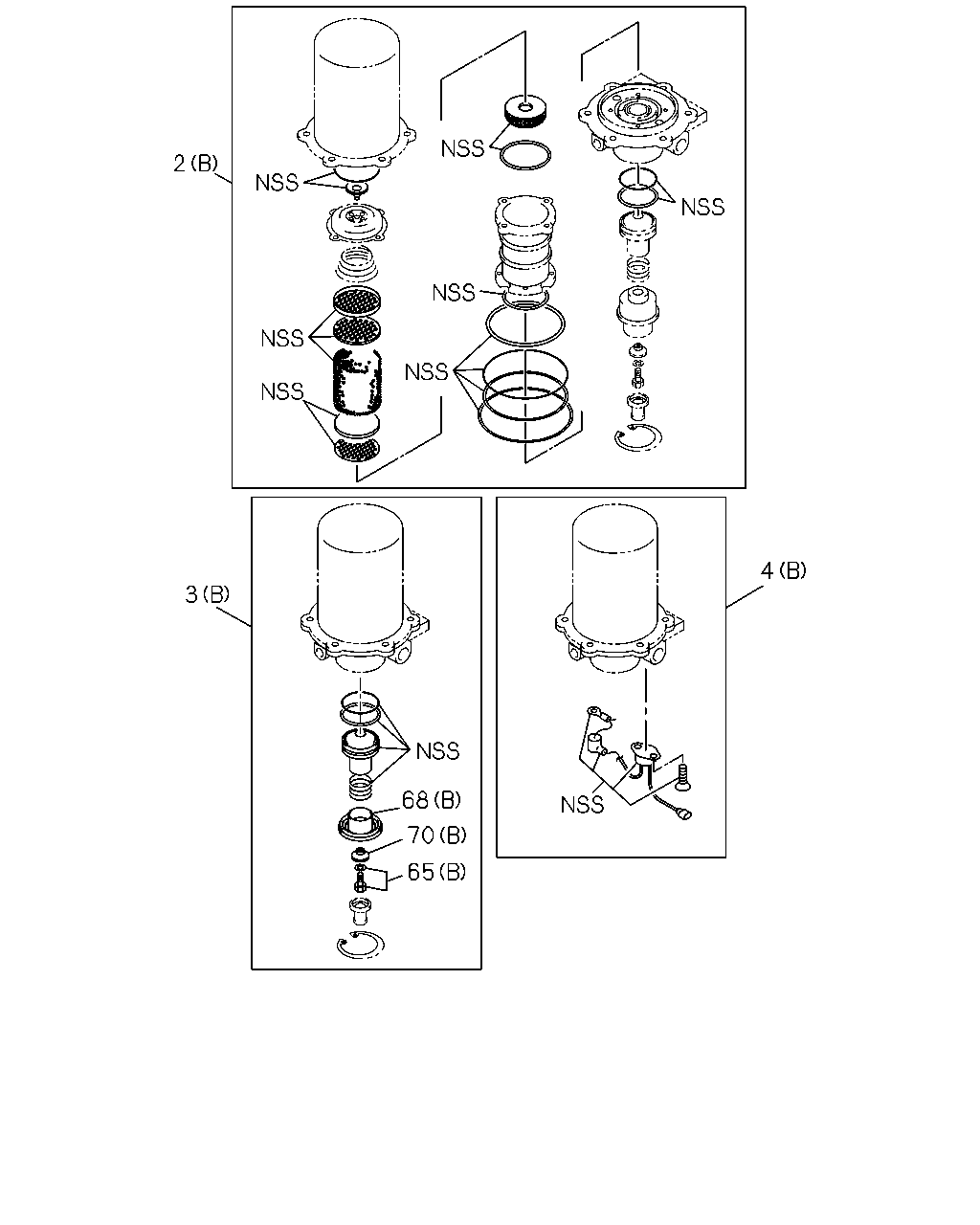

2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-217-0 01 1 1108- ●
2 REPAIR KIT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-85576-194-0 01 1 0809-1107 ●
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-85576-194-0 01 1 1108- ●
2 REPAIR KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-456-0 01 1 0712-0808 ●
2 REPAIR KIT; AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-456-0 01 1 0809-1107 ●
2 REPAIR KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-456-0 01 1 1108-1211 ●
2 REPAIR KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		8-98226-326-0 01 1 1212- ●
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-457-0 01 1 0710-0711 ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-457-0 01 1 0712-0808 ●
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-457-0 01 1 0712-0808 ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-85576-457-0 01 1 0809-1107 ●
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-457-0 01 1 0809-1107 ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-457-0 01 1 1108-1211 ●
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-457-0 01 1 1108-1211 ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98226-323-0 01 1 1212- ●
2 REPAIR KIT; AIR DRYER
(A) 		8-98226-323-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-193-0 01 1 0809-1107 ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-193-0 01 1 1108- ●
3 PISTON KIT; AIR DRYER
(A) 		1-85576-383-0 01 1 0710-0711 ●
3 PISTON KIT; AIR DRYER
(A) 		1-85576-383-0 01 1 0712-0808 ● ●
3 PISTON KIT; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-85576-383-0 01 1 0809-1107 ●
3 PISTON KIT; AIR DRYER
(A) 		1-85576-383-0 01 1 0809-1107 ●
3 PISTON KIT; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-383-0 01 1 1108-1211 ●
3 PISTON KIT; AIR DRYER
(A) 		1-85576-383-0 01 1 1108-1211 ●
3 PISTON KIT; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98226-322-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER
(A) 		8-98226-322-0 01 1 1212- ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-218-0 01 1 0809-1107 ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-218-0 01 1 1108- ●
4 THERMOSTAT KIT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-85576-213-0 01 1 0809-1107 ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-85576-213-0 01 1 1108- ●
4 THERMOSTAT KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-386-0 01 1 0712-0808 ●
4 THERMOSTAT KIT; AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-386-0 01 1 0809-1107 ●
4 THERMOSTAT KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-386-0 01 1 1108- ●
4 THERMOSTAT KIT; AIR DRYER
(A) 		1-85576-443-0 01 1 0710-0711 ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-443-0 01 1 0712-0808 ●
4 THERMOSTAT KIT; AIR DRYER
(A) 		1-85576-443-0 01 1 0712-0808 ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-85576-443-0 01 1 0809-1107 ●
4 THERMOSTAT KIT; AIR DRYER
(A) 		1-85576-443-0 01 1 0809-1107 ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-443-0 01 1 1108- ●
4 THERMOSTAT KIT; AIR DRYER
(A) 		1-85576-443-0 01 1 1108- ●
65 BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-393-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-393-0 01 1 1108- ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0710-0711 ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0712-0808 ● ●
65 BOLT; PURGE VLV
EURO4 SPECIFICATION<NT4> (A) 		1-48199-517-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-517-0 01 1 1108- ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 1108- ●
68 BODY; VALVE
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0809-1107 ●
68 BODY; VALVE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-408-0 01 1 1108- ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0710-0711 ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0712-0808 ● ●
68 BODY; VALVE
EURO4 SPECIFICATION<NT4> (A) 		1-48199-515-0 01 1 0809-1107 ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0809-1107 ●
68 BODY; VALVE
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-515-0 01 1 1108- ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 1108- ●
70 VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-105-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-105-0 01 1 1108- ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0710-0711 ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0712-0808 ● ●
70 VALVE; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-504-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-504-0 01 1 1108- ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 1108- ●
104 GASKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 01 1 1212- ●
104 GASKET
(A) 		1-48199-495-0 01 1 0710-0711 ●
104 GASKET
(A) 		1-48199-495-0 01 1 0712-0808 ● ●
104 GASKET
EURO4 SPECIFICATION<NT4> (A) 		1-48199-495-0 01 1 0809-1107 ●
104 GASKET
(A) 		1-48199-495-0 01 1 0809-1107 ●
104 GASKET
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-495-0 01 1 1108-1211 ●
104 GASKET
(A) 		1-48199-495-0 01 1 1108-1211 ●
104 GASKET
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98226-321-0 01 1 1212- ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ●
104 GASKET
(B) 		1-48199-496-0 02 1 0710-0711 ●
104 GASKET
(B) 		1-48199-496-0 02 1 0712-0808 ● ●
104 GASKET
EURO4 SPECIFICATION<NT4> (B) 		1-48199-496-0 02 1 0809-1107 ●
104 GASKET
(B) 		1-48199-496-0 02 1 0809-1107 ●
104 GASKET
EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1108-1211 ●
104 GASKET
(B) 		1-48199-496-0 02 1 1108-1211 ●
104 GASKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1212- ●
104 GASKET
(B) 		1-48199-496-0 02 1 1212- ●

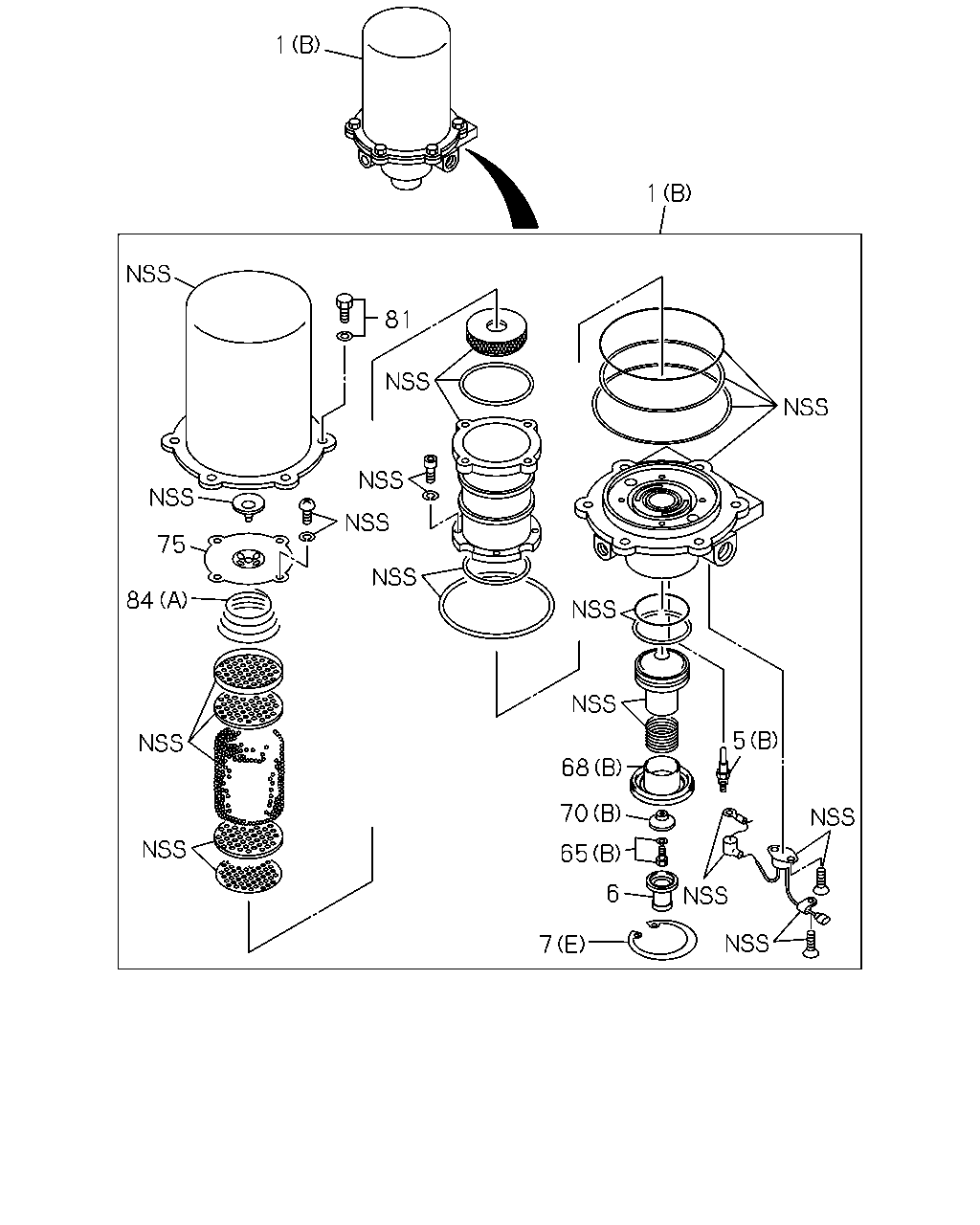

çizim 118385
1 1 81 75 84 5 68 70 65 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-1107 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1108- ●
1 DRYER; AIR
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48190-215-1 01 1 0809-1107 ●
1 DRYER; AIR
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48190-215-1 01 1 1108- ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-369-2 01 1 0712-0808 ●
1 DRYER; AIR
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-369-2 01 1 0809-1107 ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-369-2 01 1 1108-1211 ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		8-98225-289-0 01 1 1212- ●
1 DRYER; AIR
(A) 		1-48190-370-1 01 1 0710-0711 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-370-1 01 1 0712-0808 ●
1 DRYER; AIR
(A) 		1-48190-370-1 01 1 0712-0808 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-48190-370-2 01 1 0809-1107 ●
1 DRYER; AIR
(A) 		1-48190-370-2 01 1 0809-1107 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-370-2 01 1 1108-1211 ●
1 DRYER; AIR
(A) 		1-48190-370-2 01 1 1108-1211 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
(A) 		8-98225-285-0 01 1 1212- ●
5 HEATER ASM; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-085-0 01 1 0809-1107 ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-085-0 01 1 1108- ●
5 HEATER ASM; AIR DRYER
(A) 		1-48199-530-0 01 1 0710-0711 ●
5 HEATER ASM; AIR DRYER
(A) 		1-48199-530-0 01 1 0712-0808 ● ●
5 HEATER ASM; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-530-0 01 1 0809-1107 ●
5 HEATER ASM; AIR DRYER
(A) 		1-48199-530-0 01 1 0809-1107 ●
5 HEATER ASM; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-530-0 01 1 1108- ●
5 HEATER ASM; AIR DRYER
(A) 		1-48199-530-0 01 1 1108- ●
6 COVER; EXH,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-404-0 01 1 0809-1107 ●
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		1-48199-404-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		1-48199-403-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-403-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (C) 		1-48199-520-0 02 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 1108- ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (B) 		1-48199-529-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-529-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-579-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-579-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 1108- ●
65 BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-393-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-393-0 01 1 1108- ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0710-0711 ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0712-0808 ● ●
65 BOLT; PURGE VLV
EURO4 SPECIFICATION<NT4> (A) 		1-48199-517-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-517-0 01 1 1108- ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 1108- ●
68 BODY; VALVE
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0809-1107 ●
68 BODY; VALVE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-408-0 01 1 1108- ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0710-0711 ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0712-0808 ● ●
68 BODY; VALVE
EURO4 SPECIFICATION<NT4> (A) 		1-48199-515-0 01 1 0809-1107 ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0809-1107 ●
68 BODY; VALVE
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-515-0 01 1 1108- ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 1108- ●
70 VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-105-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-105-0 01 1 1108- ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0710-0711 ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0712-0808 ● ●
70 VALVE; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-504-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-504-0 01 1 1108- ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 1108- ●
75 COVER; CASE,AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 0712-0808 ●
75 COVER; CASE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 0809-0906 ●
75 COVER; CASE,AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 0809-0906 ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 0907-1107 ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 1108- ●
75 COVER; CASE,AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> 		1-48199-395-0 01 1 1108- ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0710-0711 ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-427-0 01 1 0712-0808 ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0712-0808 ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-427-0 01 1 0809-0906 ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> 		1-48199-427-0 01 1 0809-0906 ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0809-0906 ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> 		1-48199-427-0 01 1 0907-1107 ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0907-1107 ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		1-48199-427-0 01 1 1108- ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-427-0 01 1 1108- ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 1108- ●
81 BOLT; CASE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-365-0 06 1 0809-1107 ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-365-0 06 1 1108- ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0710-0711 ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0712-0808 ● ●
81 BOLT; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-436-0 06 1 0809-0906 ●
81 BOLT; CASE,AIR DRYER
EURO4 SPECIFICATION<NT4> 		1-48199-436-0 06 1 0809-0906 ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0809-0906 ●
81 BOLT; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-436-0 06 1 0907-1107 ●
81 BOLT; CASE,AIR DRYER
EURO4 SPECIFICATION<NT4> 		1-48199-436-0 06 1 0907-1107 ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0907-1107 ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-436-0 06 1 1108- ●
84 SPRING; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 0712-0808 ●
84 SPRING; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 0809-0906 ●
84 SPRING; AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 0809-0906 ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 0907-1107 ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 1108- ●
84 SPRING; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-396-0 01 1 1108- ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0710-0711 ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0712-0808 ● ●
84 SPRING; AIR DRYER
EURO4 SPECIFICATION<NT4> (B) 		1-48199-523-0 01 1 0809-1107 ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0809-1107 ●
84 SPRING; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-523-0 01 1 1108- ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 1108- ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0710-0711 ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-425-0 01 1 0712-0808 ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0712-0808 ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-425-0 01 1 0809-0906 ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-48199-425-0 01 1 0809-0906 ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0809-0906 ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> (A) 		1-48199-425-0 01 1 0907-1107 ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0907-1107 ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-425-0 01 1 1108- ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-425-0 01 1 1108- ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 1108- ●
çizim 118404
10 10 11 13 10 1 1 12 16 11 8 9 117 9 72 93 124 72 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-1107 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1108- ●
1 DRYER; AIR
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48190-215-1 01 1 0809-1107 ●
1 DRYER; AIR
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48190-215-1 01 1 1108- ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-369-2 01 1 0712-0808 ●
1 DRYER; AIR
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-369-2 01 1 0809-1107 ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-369-2 01 1 1108-1211 ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		8-98225-289-0 01 1 1212- ●
1 DRYER; AIR
(A) 		1-48190-370-1 01 1 0710-0711 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48190-370-1 01 1 0712-0808 ●
1 DRYER; AIR
(A) 		1-48190-370-1 01 1 0712-0808 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-48190-370-2 01 1 0809-1107 ●
1 DRYER; AIR
(A) 		1-48190-370-2 01 1 0809-1107 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-370-2 01 1 1108-1211 ●
1 DRYER; AIR
(A) 		1-48190-370-2 01 1 1108-1211 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
(A) 		8-98225-285-0 01 1 1212- ●
7 RING; SNAP,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E) 		1-48199-403-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-403-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (C) 		1-48199-520-0 02 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 1108- ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (B) 		1-48199-529-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-529-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0712-0808 ● ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-579-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0809-1107 ●
7 RING; SNAP,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-579-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) 		1-09656-676-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> 		1-09656-676-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) 		1-09656-676-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> 		1-09656-676-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> 		1-09656-676-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) 		1-09656-676-0 01 1 0812-1107 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> 		1-09656-676-0 01 1 0812-1107 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) 		1-09656-676-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> 		1-09656-676-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0710-0711 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0712-0802 ● ●
8 CONNECTOR; OUT,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0803-0808 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0811 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0812-1005 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0812-1005 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0812-1005 ●
8 CONNECTOR; OUT,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0812-1005 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0812-1005 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1006-1107 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1006-1107 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1006-1107 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1006-1107 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1006-1107 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4>,B RAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1108- ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0809-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0809-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 0712-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0710-0808 ●
9 CONNECTOR; PIPE,AIR DRYER
EURO4 SPECIFICATION<NT4> (A) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0809-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1108- ●
10 BOLT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X20 FLANGE 		0-28051-020-0 03 1 0810-1107 ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1108- ●
10 BOLT; AIR DRYER
(D) M8X30 FLANGE 		0-28050-830-0 02 1 0712- ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0710-0711 ●
10 BOLT; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0712-0808 ●
10 BOLT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0712-0808 ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0712-0808 ●
10 BOLT; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0809-1107 ●
10 BOLT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0809-1107 ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0809-1107 ●
10 BOLT; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1108- ●
10 BOLT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1108- ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1108- ●
10 BOLT; AIR DRYER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0808 ●
10 BOLT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0809-0811 ●
10 BOLT; AIR DRYER
EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0809-0811 ●
10 BOLT; AIR DRYER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0812- ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 0710-0711 ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 0712-0808 ● ●
10 BOLT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0809-0809 ●
10 BOLT; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0809-0809 ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 0809-0809 ●
10 BOLT; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0810-1107 ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 0810-1107 ●
10 BOLT; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE 		0-28051-025-0 03 1 1108- ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 1108- ●
11 BRACKET; AIR DRYER
(C) 		8-98081-476-0 01 1 0712-1107 ●
11 BRACKET; AIR DRYER
(C) 		8-98081-476-0 01 1 1108- ●
11 BRACKET; AIR DRYER
(A) 		8-98044-548-3 01 1 0710-0808 ●
11 BRACKET; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		8-98044-548-4 01 1 0809-0906 ●
11 BRACKET; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		8-98044-548-4 01 1 0809-0906 ●
11 BRACKET; AIR DRYER
AIR DRYER<PS7> (A) 		8-98044-548-4 01 1 0907-1107 ●
11 BRACKET; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		8-98044-548-4 01 1 1108- ●
11 BRACKET; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98044-548-4 01 1 1108- ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 0710-0711 ●
11 BRACKET; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98039-092-0 01 1 0712-0808 ●
11 BRACKET; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (B) 		8-98039-092-0 01 1 0712-0808 ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 0712-0808 ●
11 BRACKET; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98039-092-0 01 1 0809-1107 ●
11 BRACKET; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (B) 		8-98039-092-0 01 1 0809-1107 ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 0809-1107 ●
11 BRACKET; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) 		8-98039-092-0 01 1 1108- ●
11 BRACKET; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (B) 		8-98039-092-0 01 1 1108- ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 1108- ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
12 BOLT; BRKT
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
12 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
12 BOLT; BRKT
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 02 1 0809-1107 ●
12 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) M8X20 FLANGE 		0-28650-820-0 02 1 0809-1107 ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0809-1107 ●
12 BOLT; BRKT
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
12 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
13 NUT; AIR DRYER
M8 FLANGE 		0-91180-108-0 04 1 0712- ●
13 NUT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ●
13 NUT; AIR DRYER
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ●
13 NUT; AIR DRYER
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
16 NUT; BRKT
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
16 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
16 NUT; BRKT
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0809-1107 ●
16 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) M8 FLANGE 		0-91180-108-0 02 1 0809-1107 ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-1107 ●
16 NUT; BRKT
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1108- ●
16 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) M8 FLANGE 		0-91180-108-0 02 1 1108- ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1108- ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0710-0711 ●
72 PLATE; FILTER,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-585-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (A) 		1-48199-585-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-585-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (A) 		1-48199-585-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-585-0 01 1 1108- ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (A) 		1-48199-585-0 01 1 1108- ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 1108- ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0710-0711 ●
72 PLATE; FILTER,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-602-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-602-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-602-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-602-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0809-1107 ●
72 PLATE; FILTER,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-602-0 01 1 1108- ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-602-0 01 1 1108- ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0710-0711 ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0712-0808 ● ●
93 SILENCER; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-619-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-619-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0710-0711 ●
93 SILENCER; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-581-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0809-1107 ●
93 SILENCER; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-581-0 01 1 1108- ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (B) 		1-48199-581-0 01 1 1108- ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 1108- ●
117 COVER; SILENCER 8-98065-972-1 01 1 0710-0711 ●
117 COVER; SILENCER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98065-972-1 01 1 0712-0808 ●
117 COVER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) 		8-98065-972-1 01 1 0712-0808 ●
117 COVER; SILENCER 8-98065-972-1 01 1 0712-0808 ●
117 COVER; SILENCER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98065-972-1 01 1 0809-1107 ●
117 COVER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) 		8-98065-972-1 01 1 0809-1107 ●
117 COVER; SILENCER 8-98065-972-1 01 1 0809-1107 ●
117 COVER; SILENCER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> 		8-98065-972-1 01 1 1108- ●
117 COVER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) 		8-98065-972-1 01 1 1108- ●
117 COVER; SILENCER 8-98065-972-1 01 1 1108- ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0710-0711 ●
124 FILTER; SILENCER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-465-0 01 1 0712-0808 ●
124 FILTER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) 		1-48199-465-0 01 1 0712-0808 ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0712-0808 ●
124 FILTER; SILENCER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-465-0 01 1 0809-1107 ●
124 FILTER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) 		1-48199-465-0 01 1 0809-1107 ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0809-1107 ●
124 FILTER; SILENCER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> 		1-48199-465-0 01 1 1108- ●
124 FILTER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) 		1-48199-465-0 01 1 1108- ●
124 FILTER; SILENCER 1-48199-465-0 01 1 1108- ●
çizim 192227
2 4 3 68 70 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-217-0 01 1 0809-1107 ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-217-0 01 1 1108- ●
2 REPAIR KIT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-85576-194-0 01 1 0809-1107 ●
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-85576-194-0 01 1 1108- ●
2 REPAIR KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-456-0 01 1 0712-0808 ●
2 REPAIR KIT; AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-456-0 01 1 0809-1107 ●
2 REPAIR KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-456-0 01 1 1108-1211 ●
2 REPAIR KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		8-98226-326-0 01 1 1212- ●
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-457-0 01 1 0710-0711 ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-457-0 01 1 0712-0808 ●
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-457-0 01 1 0712-0808 ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-85576-457-0 01 1 0809-1107 ●
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-457-0 01 1 0809-1107 ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-457-0 01 1 1108-1211 ●
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-457-0 01 1 1108-1211 ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98226-323-0 01 1 1212- ●
2 REPAIR KIT; AIR DRYER
(A) 		8-98226-323-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-193-0 01 1 0809-1107 ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-193-0 01 1 1108- ●
3 PISTON KIT; AIR DRYER
(A) 		1-85576-383-0 01 1 0710-0711 ●
3 PISTON KIT; AIR DRYER
(A) 		1-85576-383-0 01 1 0712-0808 ● ●
3 PISTON KIT; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-85576-383-0 01 1 0809-1107 ●
3 PISTON KIT; AIR DRYER
(A) 		1-85576-383-0 01 1 0809-1107 ●
3 PISTON KIT; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-383-0 01 1 1108-1211 ●
3 PISTON KIT; AIR DRYER
(A) 		1-85576-383-0 01 1 1108-1211 ●
3 PISTON KIT; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98226-322-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER
(A) 		8-98226-322-0 01 1 1212- ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-218-0 01 1 0809-1107 ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-218-0 01 1 1108- ●
4 THERMOSTAT KIT; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-85576-213-0 01 1 0809-1107 ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-85576-213-0 01 1 1108- ●
4 THERMOSTAT KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-386-0 01 1 0712-0808 ●
4 THERMOSTAT KIT; AIR DRYER
EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-386-0 01 1 0809-1107 ●
4 THERMOSTAT KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-386-0 01 1 1108- ●
4 THERMOSTAT KIT; AIR DRYER
(A) 		1-85576-443-0 01 1 0710-0711 ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-85576-443-0 01 1 0712-0808 ●
4 THERMOSTAT KIT; AIR DRYER
(A) 		1-85576-443-0 01 1 0712-0808 ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-85576-443-0 01 1 0809-1107 ●
4 THERMOSTAT KIT; AIR DRYER
(A) 		1-85576-443-0 01 1 0809-1107 ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-443-0 01 1 1108- ●
4 THERMOSTAT KIT; AIR DRYER
(A) 		1-85576-443-0 01 1 1108- ●
65 BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-393-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-393-0 01 1 1108- ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0710-0711 ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0712-0808 ● ●
65 BOLT; PURGE VLV
EURO4 SPECIFICATION<NT4> (A) 		1-48199-517-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 0809-1107 ●
65 BOLT; PURGE VLV
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-517-0 01 1 1108- ●
65 BOLT; PURGE VLV
(A) 		1-48199-517-0 01 1 1108- ●
68 BODY; VALVE
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0809-1107 ●
68 BODY; VALVE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-408-0 01 1 1108- ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0710-0711 ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0712-0808 ● ●
68 BODY; VALVE
EURO4 SPECIFICATION<NT4> (A) 		1-48199-515-0 01 1 0809-1107 ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 0809-1107 ●
68 BODY; VALVE
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-515-0 01 1 1108- ●
68 BODY; VALVE
(A) 		1-48199-515-0 01 1 1108- ●
70 VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-105-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-105-0 01 1 1108- ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0710-0711 ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0712-0808 ● ●
70 VALVE; AIR DRYER
EURO4 SPECIFICATION<NT4> (A) 		1-48199-504-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 0809-1107 ●
70 VALVE; AIR DRYER
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-504-0 01 1 1108- ●
70 VALVE; AIR DRYER
(A) 		1-48199-504-0 01 1 1108- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
