◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#66312) — 359 parça

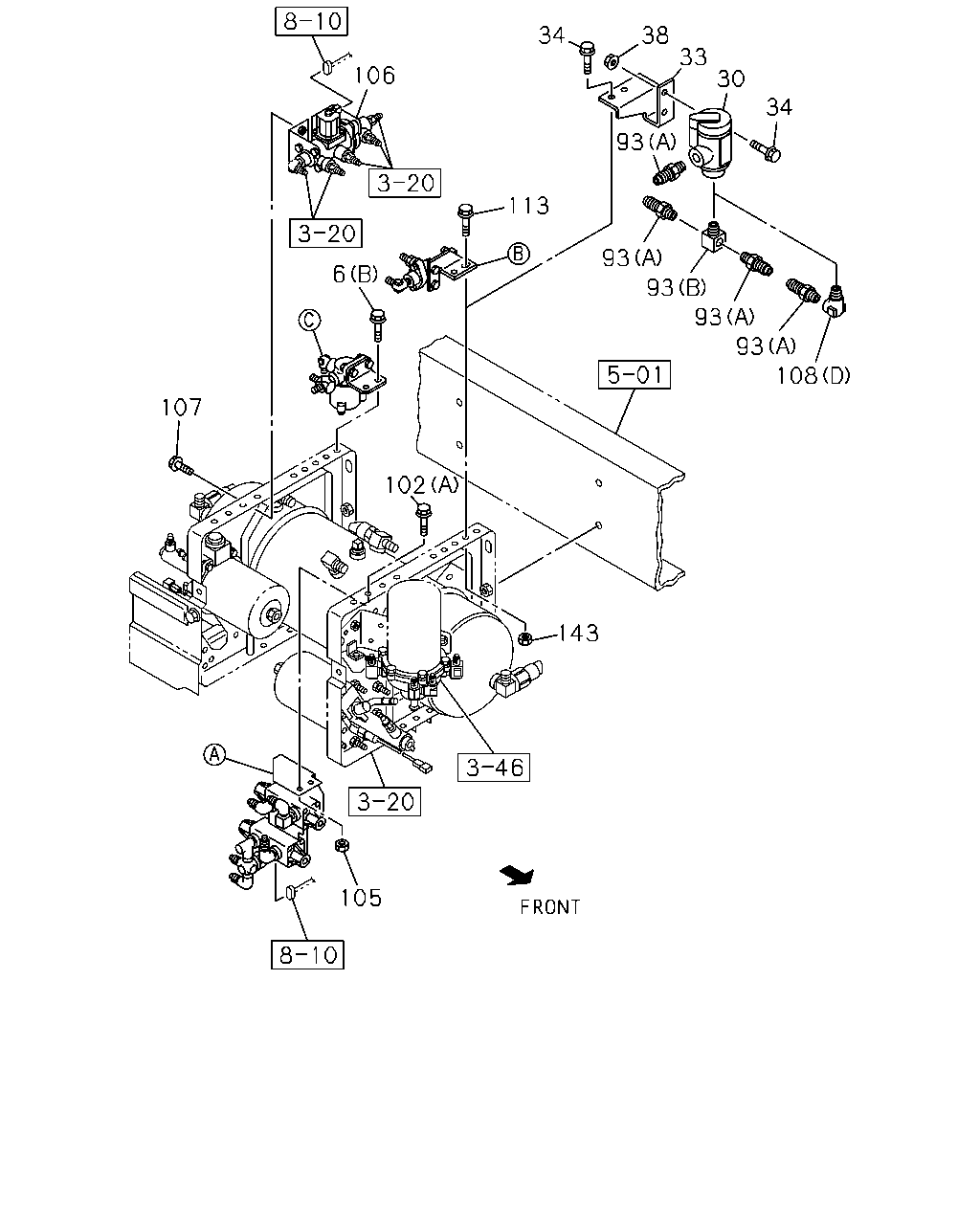

çizim 115601
34 38 33 30 106 34 93 113 93 6 93 93 93 108 107 102 143 105
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ●
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
30 GOVERNOR; AIR CONT
EURO2 SPECIFICATION<NT2> 		1-48350-093-2 01 1 0812-1107 ●
30 GOVERNOR; AIR CONT
TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1108- ●
33 BRACKET; GOV,AIR CONT
EURO2 SPECIFICATION<NT2> 		8-98133-401-0 01 1 0812-1107 ●
33 BRACKET; GOV,AIR CONT
TURBO - CONVENTIONAL<Q5T> 		8-98133-401-0 01 1 1108- ●
34 BOLT; BRKT,GOV
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 02 1 0812-1107 ●
34 BOLT; BRKT,GOV
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 02 1 0812-1107 ●
34 BOLT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
34 BOLT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
38 NUT; BRKT,GOV
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 02 1 0812-1107 ●
38 NUT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1108- ●
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0812-1107 ●
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 1108- ●
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (B) 		1-09660-363-0 01 1 0812-1008 ●
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1009-1107 ●
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1108- ●
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0812-1107 ●
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1108- ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46362-123-1 01 1 0712- ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0710-0711 ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46362-147-1 01 1 0712- ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0712- ●
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 0710-0711 ●
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 0712- ● ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 0812-1107 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 1108- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0806 ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0806 ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0807- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0807- ●
108 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ●
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710-0711 ●
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0710-0711 ●
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0712- ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0710 ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0710 ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0711 ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0712- ● ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0712- ●
113 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
143 NUT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
çizim 116937
259
BalonParca AdiParca NoAdetTipApplied Date A B
259 REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH) 		1-85576-381-0 01 1 0710- ●

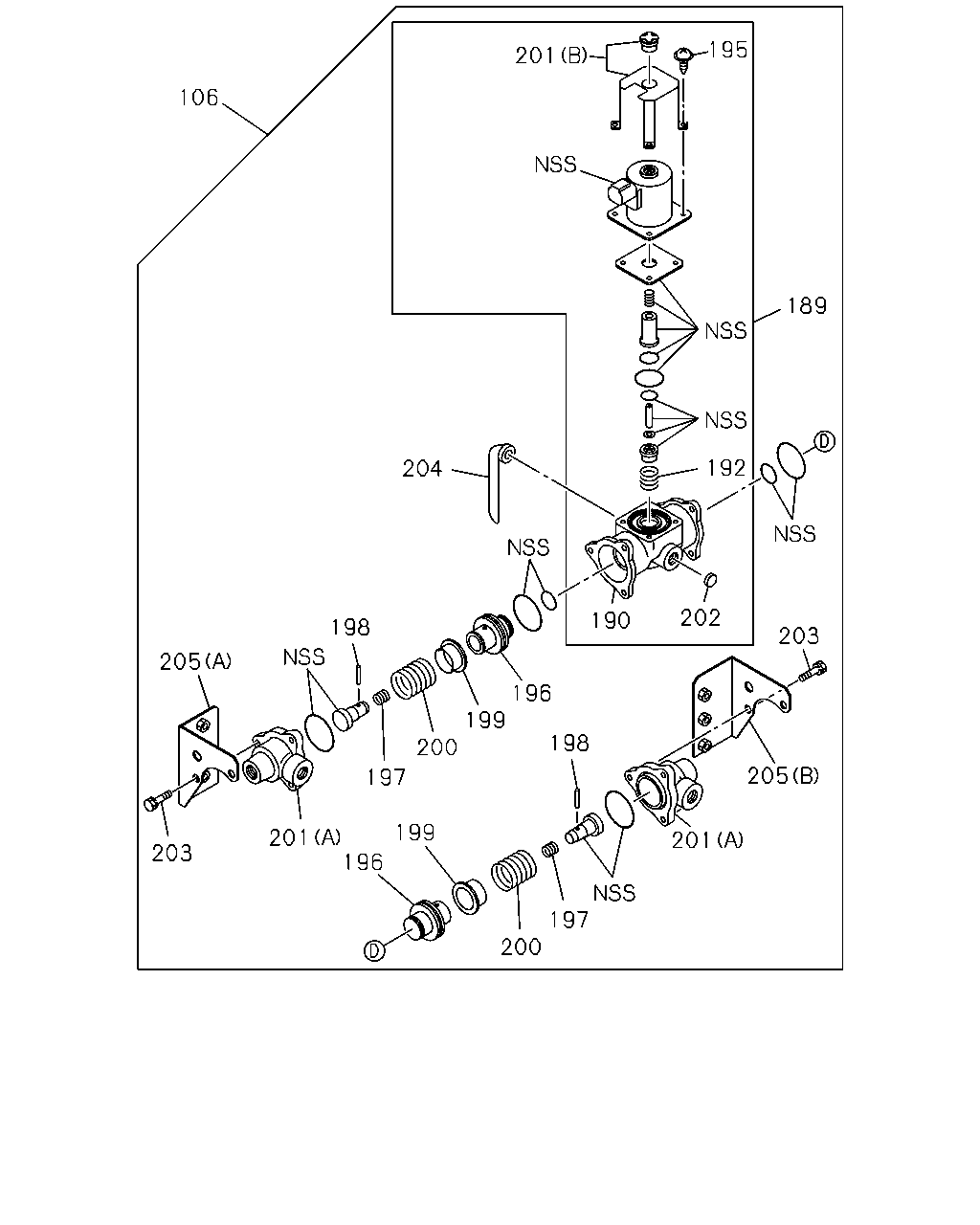

çizim 117079
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46362-123-1 01 1 0712- ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0710-0711 ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46362-147-1 01 1 0712- ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0712- ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-247-0 01 1 0712- ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-253-0 01 1 0710-0711 ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-253-0 01 1 0712- ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-253-0 01 1 0712- ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-234-0 01 1 0712- ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-192-0 01 1 0710-0711 ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-192-0 01 1 0712- ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-192-0 01 1 0712- ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0710-0711 ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0712- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0710-0711 ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0712- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-232-0 02 1 0712- ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-251-0 02 1 0710-0711 ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-251-0 02 1 0712- ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-251-0 02 1 0712- ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0710-0711 ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0712- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0710-0711 ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0712- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0710-0711 ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0712- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0710-0711 ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0712- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0710-0711 ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0712- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0710-0711 ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0712- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0710-0711 ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0712- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0710-0711 ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0712- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710-0711 ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0712- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0710-0711 ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0712- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0710-0711 ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0712- ● ●

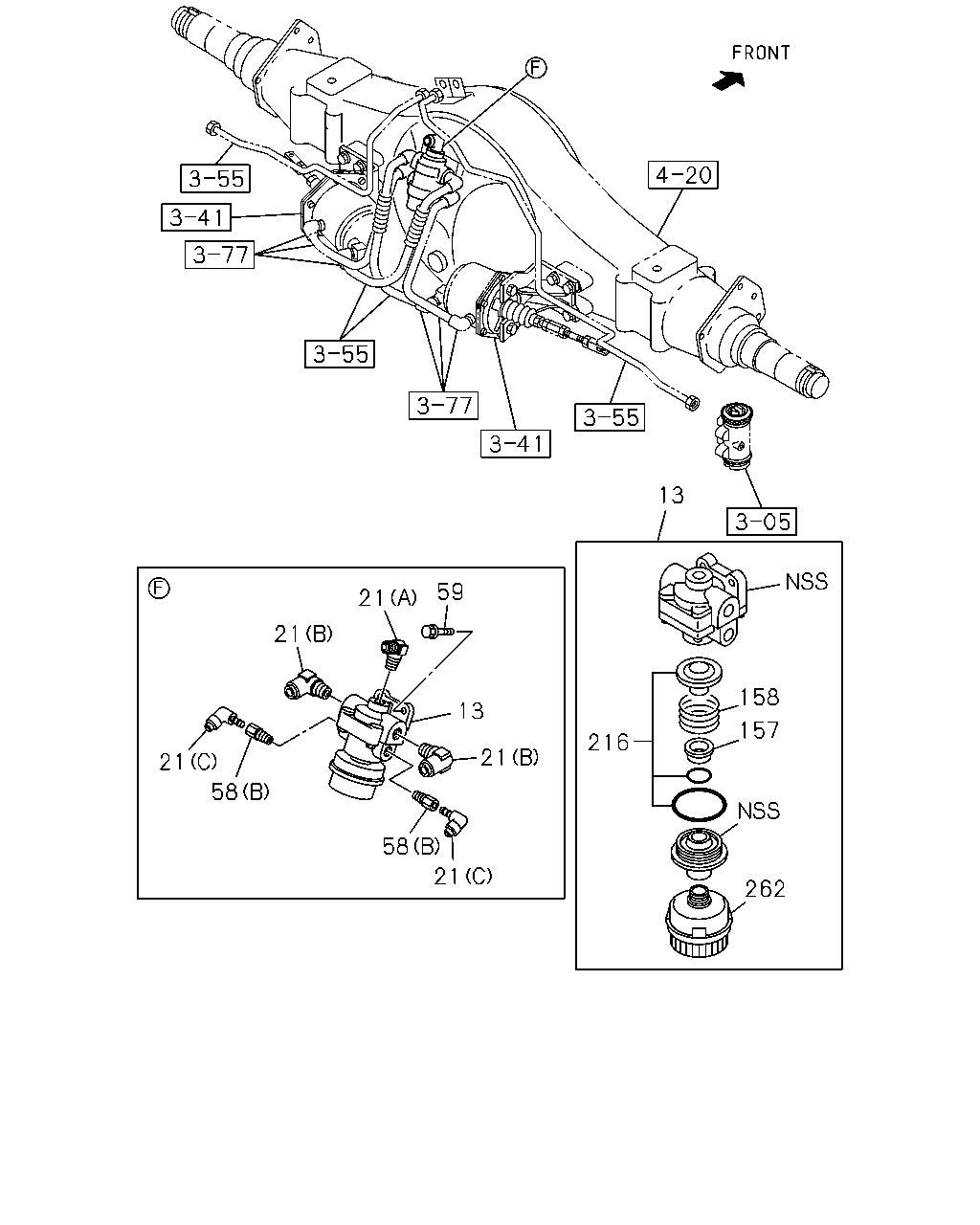

çizim 117195
13 158 157 262 216 13 21 21 58 21 59 21 58 21
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. HONG KONG EQUIPMENT(B14),BRAKE REGULATION ADR(TDU) 		1-48410-783-0 01 1 0712- ●
13 VALVE ASM; QUICK RELEASE 1-48410-781-2 01 1 0710-0711 ●
13 VALVE ASM; QUICK RELEASE
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) 		1-48410-781-2 01 1 0712- ●
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-48410-781-2 01 1 0712- ●
13 VALVE ASM; QUICK RELEASE 1-48410-781-2 01 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0710-0711 ●
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ●
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
(C) DIN4 & DIN6 SWIVEL CONNECTOR 		1-09661-816-0 02 1 0710-0711 ●
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR 		1-09661-816-0 02 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
(C) DIN4 & DIN6 SWIVEL CONNECTOR 		1-09661-816-0 02 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (C) 		8-98035-011-0 01 1 1204- ●
58 ADAPTER
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (D) 		1-09656-704-0 01 1 1204- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204- ●
58 ADAPTER
(B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 0710-0711 ●
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 0712- ●
58 ADAPTER
(B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 0712- ●
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ●
58 ADAPTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ●
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ●
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28050-820-0 02 1 0907- ●
59 BOLT; RELEASE VALVE FIX
M8X20 FLANGE 		0-28050-820-0 02 1 0907- ●
157 RETAINER; VALVE
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) 		1-48419-036-0 01 1 0810- ●
157 RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-48419-036-0 01 1 0810- ●
157 RETAINER; VALVE 1-48419-036-0 01 1 0810- ●
158 SPRING; VALVE
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) 		9-48419-003-0 01 1 0810- ●
158 SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		9-48419-003-0 01 1 0810- ●
158 SPRING; VALVE 9-48419-003-0 01 1 0810- ●
216 REPAIR KIT; QUICK RELEASE VLV
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) 		1-85579-062-0 01 1 0810- ●
216 REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-85579-062-0 01 1 0810- ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0810- ●
262 SILENCER; RELAY VALVE
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) 		1-48219-149-0 01 1 0810- ●
262 SILENCER; RELAY VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-48219-149-0 01 1 0810- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0810- ●
çizim 192092
103 58 237 102 220 167 99 58 108 25 108 108 275 58 220 58 232 108 58 108 275 58 99 167 220 58 220 58 25 108 102 103 237 242 63 220 120 62 108 120 6 10 10 232 10
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ●
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0710- ●
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ●
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 0710-0711 ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0712-1011 ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 0712-1011 ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 01 1 0712-1011 ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0712-1011 ●
25 SWITCH; PRESSURE
EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 01 1 0712-1011 ●
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 0712-1011 ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 1012-1311 ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 1012-1311 ●
25 SWITCH; PRESSURE
THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 01 1 1012-1311 ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 01 1 1012-1311 ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 1012-1311 ●
25 SWITCH; PRESSURE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 1012-1311 ●
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 1012-1311 ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 1312- ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 1312- ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 01 1 1312- ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 1312- ●
25 SWITCH; PRESSURE
EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 01 1 1312- ●
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 1312- ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (C) 		8-98035-011-0 01 1 1204- ●
58 ADAPTER
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (D) 		1-09656-704-0 01 1 1204- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204- ●
58 ADAPTER
(B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 0710-0711 ●
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 0712- ●
58 ADAPTER
(B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 0712- ●
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ●
58 ADAPTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1011 ●
58 ADAPTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1012-1311 ●
58 ADAPTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1312- ●
62 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
63 NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
99 VALVE; PROTECTION
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48110-293-3 01 1 0712- ●
99 VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) 		1-48110-288-3 01 1 0712- ●
99 VALVE; PROTECTION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B) 		1-48110-287-3 01 1 0712- ●
99 VALVE; PROTECTION
(A) 		1-48110-294-0 01 1 0710-0711 ●
99 VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48110-294-3 01 1 0712- ●
99 VALVE; PROTECTION
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) 		1-48110-294-3 01 1 0712- ●
99 VALVE; PROTECTION
(A) 		1-48110-294-3 01 1 0712- ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1011 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1311 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ●
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
103 BRACKET; PROTECTION VALVE 8-98034-985-1 01 1 0710-0711 ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0712-1011 ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98034-985-1 01 1 0712-1011 ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		8-98034-985-1 01 1 0712-1011 ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0712-1011 ●
103 BRACKET; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU) 		8-98034-985-1 01 1 0712-1011 ●
103 BRACKET; PROTECTION VALVE 8-98034-985-1 01 1 0712-1011 ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 1012-1311 ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98034-985-1 01 1 1012-1311 ●
103 BRACKET; PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) 		8-98034-985-1 01 1 1012-1311 ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		8-98034-985-1 01 1 1012-1311 ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 1012-1311 ●
103 BRACKET; PROTECTION VALVE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 1012-1311 ●
103 BRACKET; PROTECTION VALVE 8-98034-985-1 01 1 1012-1311 ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE 8-98221-293-0 01 1 1312- ●
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 0812-1107 ●
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 1108- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0806 ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0806 ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0807- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0807- ●
108 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ●
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710-0711 ●
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0710-0711 ●
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0712- ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0710 ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0710 ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0711 ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0712- ● ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0712- ●
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48316-012-0 01 1 0710- ●
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98050-131-0 01 1 0710- ●
167 COVER; VALVE 1-48119-625-0 04 1 0710-0711 ●
167 COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 04 1 0712- ●
167 COVER; VALVE 1-48119-625-0 04 1 0712- ●
167 COVER; VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 03 1 0712- ●
220 CONNECTOR; 3WAY
(A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 0710-0711 ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 0712-1011 ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 0712-1011 ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 0712-1011 ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 0712-1011 ●
220 CONNECTOR; 3WAY
EXC. BRAKE REGULATION ADR(TDU) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 0712-1011 ●
220 CONNECTOR; 3WAY
(A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 0712-1011 ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1012-1203 ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1012-1203 ●
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1012-1203 ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1012-1203 ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1012-1203 ●
220 CONNECTOR; 3WAY
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1012-1203 ●
220 CONNECTOR; 3WAY
(A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1012-1203 ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
(A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 0710-0711 ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 0712-1203 ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 0712-1203 ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204- ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204- ●
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (B) PT1/4 & M12 & M16 3WAY 		1-09656-331-1 01 1 0710- ●
232 VALVE; CHECK
(A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0710-0711 ●
232 VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0712- ●
232 VALVE; CHECK
(A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0712- ●
232 VALVE; CHECK
THROTTLE CONTROL SYSTEM(6XH) (B) 		1-48410-531-1 01 1 0710- ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0710-0711 ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0712- ● ●
242 VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH) 		1-48410-723-0 01 1 0710- ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-704-0 01 1 0712-0906 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-704-0 01 1 0907-1203 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-704-0 01 1 1204- ●
275 CONNECTOR; 4WAY
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98050-414-0 01 1 0712- ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98035-011-0 01 1 0710-0710 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> (A) 		8-98035-011-0 01 1 0710-0711 ●
275 CONNECTOR; 4WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (A) 		8-98035-011-0 01 1 0712-1011 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98035-011-0 01 1 0712-1011 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98035-011-0 01 1 0712-1011 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> (A) 		8-98035-011-0 01 1 0712-1011 ●
275 CONNECTOR; 4WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (A) 		8-98035-011-0 01 1 1012-1203 ●
275 CONNECTOR; 4WAY
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98035-011-0 01 1 1012-1203 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) 		8-98035-011-0 01 1 1012-1203 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> (A) 		8-98035-011-0 01 1 1012-1203 ●
275 CONNECTOR; 4WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (A) 		8-98035-011-0 01 1 1204- ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) 		8-98035-011-0 01 1 1204- ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> (A) 		8-98035-011-0 01 1 1204- ●

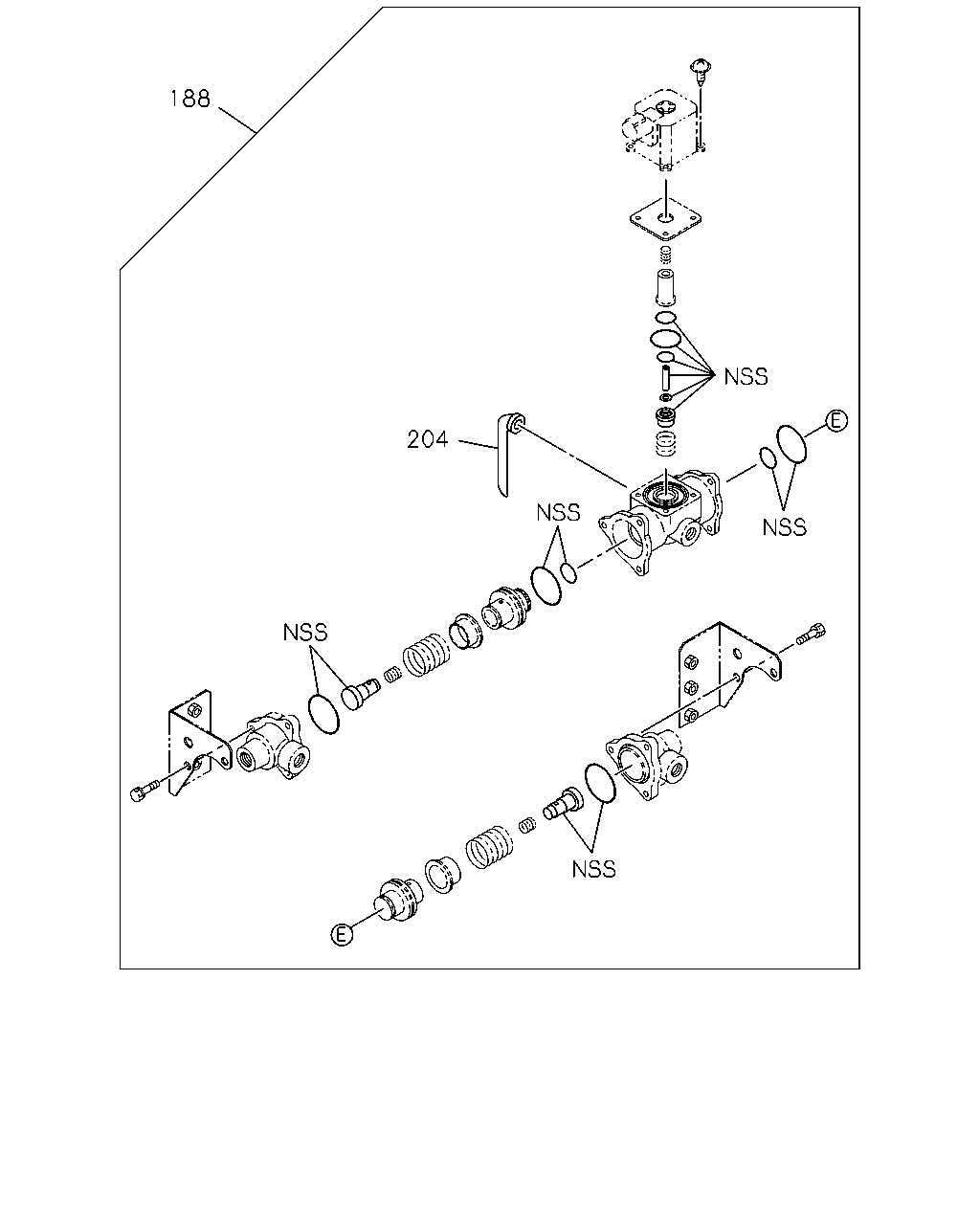

çizim 192096
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-85576-304-1 01 1 0712- ●
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-469-1 01 1 0710-0711 ●
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-85576-469-1 01 1 0712- ●
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-469-1 01 1 0712- ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710-0711 ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0712- ● ●
çizim 192221
240
BalonParca AdiParca NoAdetTipApplied Date A B
240 REPAIR KIT; AIR CONT GOV
EURO2 SPECIFICATION<NT2> 		1-85576-467-0 01 1 0812-1107 ●
240 REPAIR KIT; AIR CONT GOV
TURBO - CONVENTIONAL<Q5T> 		1-85576-467-0 01 1 1108- ●
çizim 426540
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-1 01 1 0710-0711 ●
241 REPAIR KIT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-451-2 01 1 0712- ●
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 0712- ●
241 REPAIR KIT; PROTECTION VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-452-2 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
