Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#66311) — 420 parça

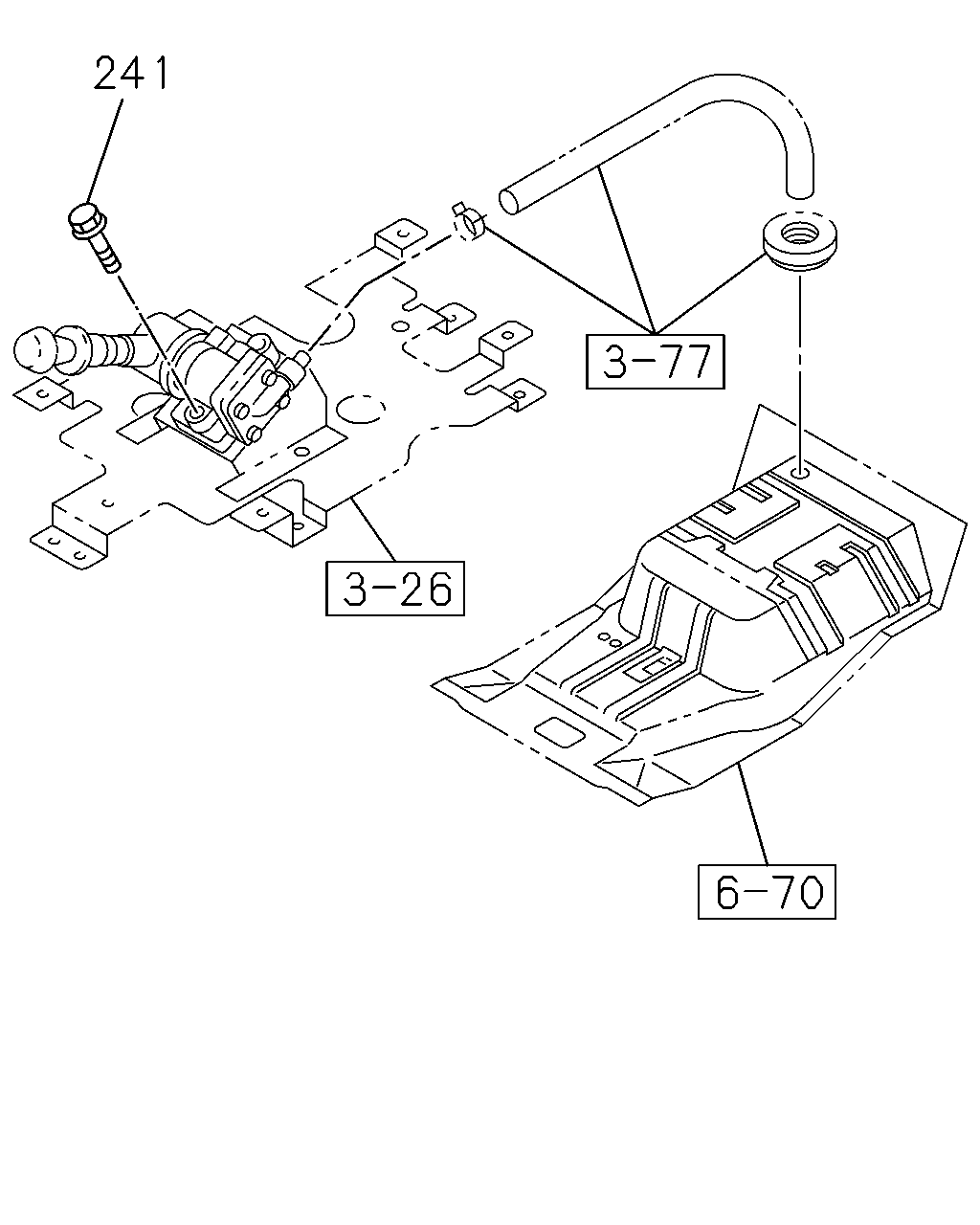

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0710-0711	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0712-	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0712-		●

126 126 352 9 344 282 9 126 8 126 9 344 10 126 8 8 9 10 8 126 8 1 9 344 8 39 9 344 282 126 9 39 7 126 43 6 8 64 8 28 28 126 8 368 417 43 8 344 106 172 64 46 46 64 43 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

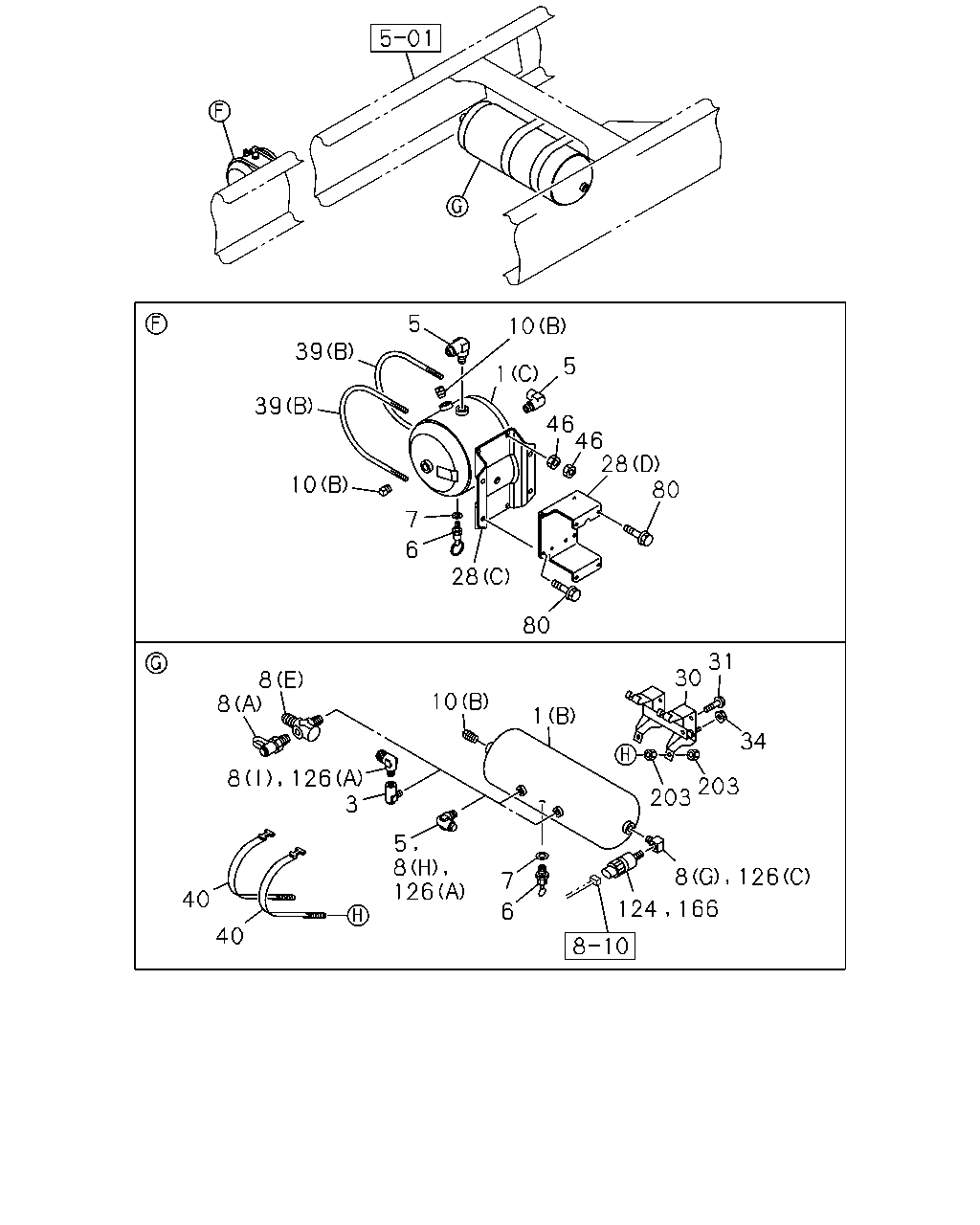

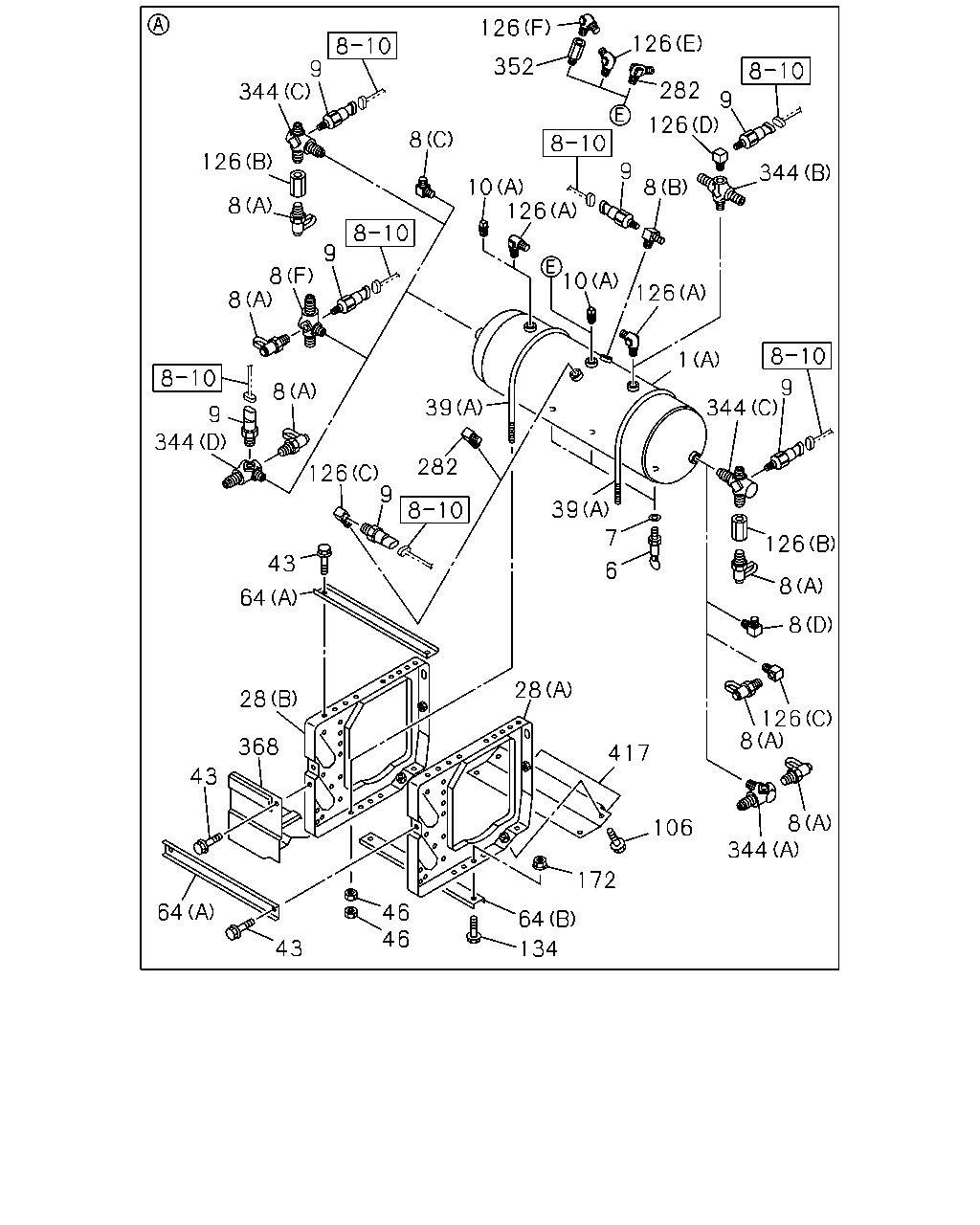

1	TANK ASM; AIR NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (C)	8-98081-870-0	01	1	0712-0906	●
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) (C)	8-98081-870-1	01	1	0907-	●	●
1	TANK ASM; AIR EXC. BRAKE REGULATION ADR(TDU) (A)	8-98018-785-3	01	1	0712-	●
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98018-785-3	01	1	0712-	●
1	TANK ASM; AIR (C)	8-98090-803-0	01	1	0710-0710	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0711-0711	●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) (C)	8-98090-803-1	01	1	0712-0906	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0712-0906		●
1	TANK ASM; AIR (A)	8-98018-795-2	01	1	0710-0711	●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) (A)	8-98018-795-2	01	1	0712-	●
1	TANK ASM; AIR (A)	8-98018-795-2	01	1	0712-		●
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	0710-0711	●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0712-1101	●
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	0712-1101		●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-	●
1	TANK ASM; AIR (B)	8-98166-972-0	01	1	1102-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0710	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0710	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0711-0711	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0711-0711	●
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	0712-	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0712-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0712-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0710-0711	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0710	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0710	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0711-0711	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0711-0711	●
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0712-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0712-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0710-0711	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0712-	●	●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-	●
8	CONNECTOR; AIR TANK (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-	●
8	CONNECTOR; AIR TANK (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-	●
8	CONNECTOR; AIR TANK (F) M16X2 & PT3/8 3WAY	8-98098-590-0	01	1	0712-		●
8	CONNECTOR; AIR TANK (E) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0710-0711	●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (E) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0712-	●
8	CONNECTOR; AIR TANK (E) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0712-		●
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0712-	●
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0712-	●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0710-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0710-0711	●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR(TDU) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-		●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0710-0711	●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	03	1	0712-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	03	1	0710-0711	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE REGULATION ADR(TDU)	8-97615-622-0	03	1	0712-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	03	1	0712-		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0710-0711	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0712-0808	●	●
10	PLUG; AIR TANK EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	0809-1101	●
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	0809-1101	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0809-1101		●
10	PLUG; AIR TANK EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	1102-1107	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1102-1107	●
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	1102-1107	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-1107		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-1107		●
10	PLUG; AIR TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	1108-	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1108-	●
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	1108-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1108-		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1108-		●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0710-0711	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0712-1101	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0712-1101		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0710-0710	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0711-0711	●
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	02	1	0712-	●	●
28	BRACKET; AIR TANK (C)	8-98100-165-0	01	1	0710-0710	●
28	BRACKET; AIR TANK (C)	8-98100-165-1	01	1	0711-0711	●
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (C)	8-98100-165-3	01	1	0712-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4300MM(43W) (D)	8-98090-738-0	01	1	0710-0710	●
28	BRACKET; AIR TANK (A)	8-98021-918-3	01	1	0710-0711	●
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0712-	●	●
28	BRACKET; AIR TANK (B)	8-98044-509-3	01	1	0710-0711	●
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0712-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0710-0711	●
39	U-BOLT; AIR TANK BRAKE REGULATION ADR(TDU) (B) L=210	1-48317-458-1	02	1	0712-	●	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0710-0711	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0712-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE	0-28050-816-0	06	1	0710-0711	●
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE	0-28050-816-0	06	1	0712-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0710	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0710	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0711-0711	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0711-0711	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0712-1107	●	●
46	NUT; U-BOLT AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	0712-1107	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0712-1107		●
46	NUT; U-BOLT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1108-	●
46	NUT; U-BOLT NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1108-	●
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1108-	●
46	NUT; U-BOLT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1108-	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1108-		●
46	NUT; U-BOLT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M8	0-91110-508-0	08	1	1108-		●
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	0710-0711	●
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	0712-	●	●
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	0710-0711	●
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	0712-	●	●
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	0710-0711	●
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	0712-	●	●
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR(TDU) (E) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0809-0811	●
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1107	●
126	CONNECTOR; ELBOW 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0712-		●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-0711	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-1101	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-1101		●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-1101	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-1101	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-	●
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0712-		●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-	●
126	CONNECTOR; ELBOW (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	02	1	0710-0710	●
134	BOLT; COVER FIX M8X16 FLANGE	0-28050-816-0	04	1	0710-0711	●
134	BOLT; COVER FIX M8X16 FLANGE	0-28050-816-0	04	1	0712-	●	●
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
282	UNION; 2 WAY EXC. BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-0808	●
282	UNION; 2 WAY BRAKE REGULATION ADR(TDU) EXC. AUSTRALIA EQUIPMENT(B13) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-0808	●
282	UNION; 2 WAY EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0809-1107	●
282	UNION; 2 WAY BRAKE REGULATION ADR(TDU) EXC. AUSTRALIA EQUIPMENT(B13) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0809-1107	●
282	UNION; 2 WAY BRAKE REGULATION ADR(TDU) EXC. AUSTRALIA EQUIPMENT(B13) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1108-	●
282	UNION; 2 WAY 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1108-	●
282	UNION; 2 WAY M20 & PT3/8 ELBOW	0-92134-312-0	02	1	0712-		●
282	UNION; 2 WAY M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0710-0710	●
282	UNION; 2 WAY M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0710-0711	●
282	UNION; 2 WAY AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0712-	●
344	CONNECTOR; 4WAY (D)	1-09656-767-0	01	1	0710-0711	●
344	CONNECTOR; 4WAY BRAKE REGULATION ADR(TDU) (D)	1-09656-767-0	01	1	0712-	●
344	CONNECTOR; 4WAY (B) M16X2 & R3/8 & RC1/4 4WAY ELBOW	8-98061-136-0	01	1	0712-		●
344	CONNECTOR; 4WAY (C) M16X2 & PT3/8 3WAY	1-09656-718-0	02	1	0710-0710	●
344	CONNECTOR; 4WAY (A)	1-09656-726-0	01	1	0710-0711	●
344	CONNECTOR; 4WAY BRAKE REGULATION ADR(TDU) (A)	1-09656-726-0	01	1	0712-	●
352	CONNECTOR; STRAIGHT EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR(TDU)	8-98133-234-0	01	1	0812-1107	●
352	CONNECTOR; STRAIGHT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	8-98133-234-0	01	1	1108-	●
368	COVER; AIR TANK	8-98061-625-3	01	1	0710-0711	●
368	COVER; AIR TANK	8-98061-625-3	01	1	0712-	●	●
417	COVER; HARNESS	8-98044-519-2	01	1	0710-0711	●
417	COVER; HARNESS	8-98044-519-2	01	1	0712-0801	●	●
417	COVER; HARNESS	8-98111-401-0	01	1	0802-	●	●

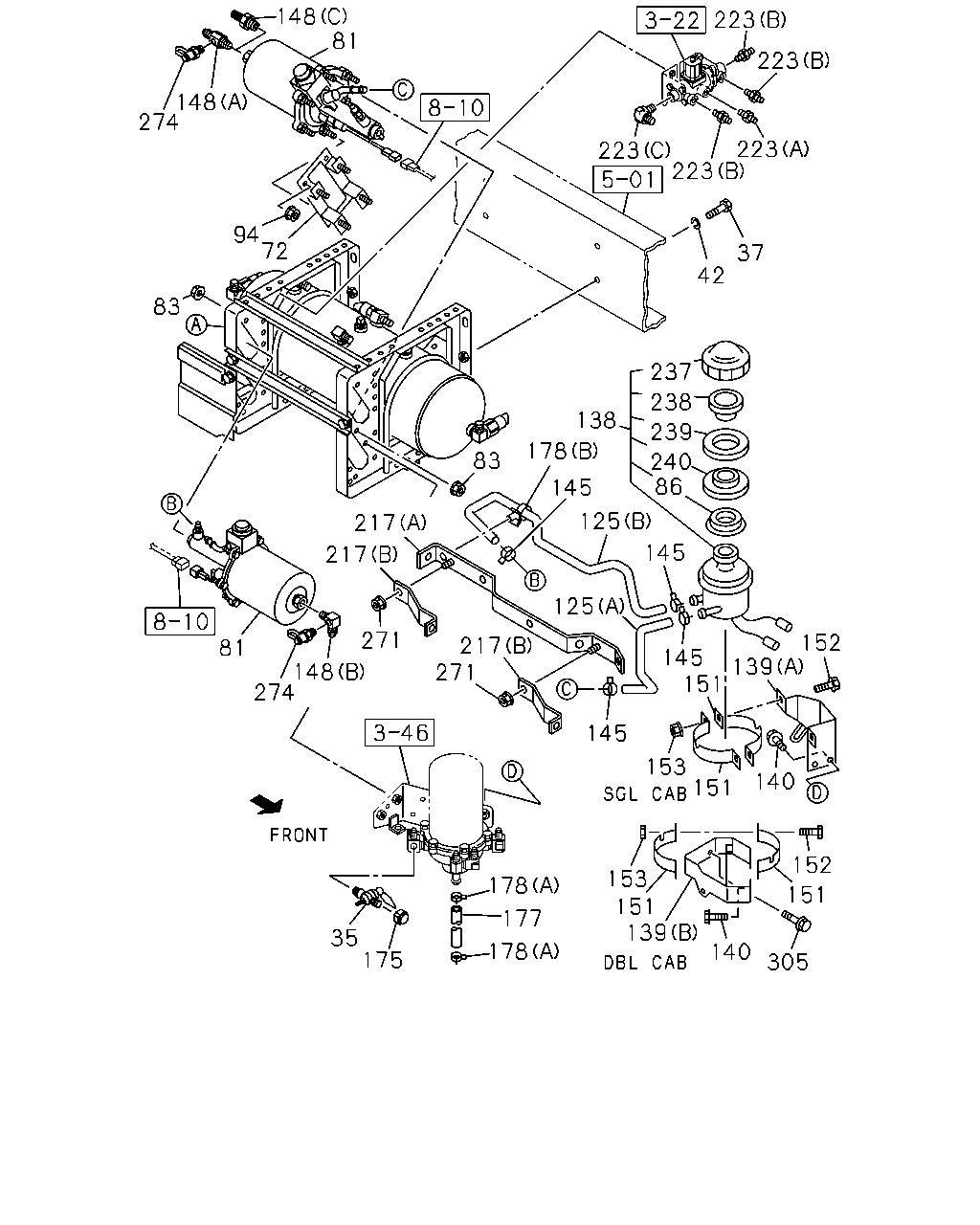

5 5 10 39 5 1 39 46 46 28 80 10 7 6 28 80 31 30 8 10 8 1 34 8 126 3 203 203 5 8 126 8 126 7 40 166 124 6 40 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (C)	8-98081-870-0	01	1	0712-0906	●
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) (C)	8-98081-870-1	01	1	0907-	●	●
1	TANK ASM; AIR EXC. BRAKE REGULATION ADR(TDU) (A)	8-98018-785-3	01	1	0712-	●
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98018-785-3	01	1	0712-	●
1	TANK ASM; AIR (C)	8-98090-803-0	01	1	0710-0710	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0711-0711	●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) (C)	8-98090-803-1	01	1	0712-0906	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0712-0906		●
1	TANK ASM; AIR (A)	8-98018-795-2	01	1	0710-0711	●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) (A)	8-98018-795-2	01	1	0712-	●
1	TANK ASM; AIR (A)	8-98018-795-2	01	1	0712-		●
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	0710-0711	●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0712-1101	●
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	0712-1101		●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-	●
1	TANK ASM; AIR (B)	8-98166-972-0	01	1	1102-		●
3	VALVE; CHECK,AIR TANK EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1107	●
3	VALVE; CHECK,AIR TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48320-031-1	01	1	0712-	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-0710	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0711-0711	●
5	UNION; AIR TANK BRAKE REGULATION ADR(TDU) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0712-	●	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-0711	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0712-1101	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0712-1101		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0710	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0710	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0711-0711	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0711-0711	●
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	0712-	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0712-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0712-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0710-0711	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0710	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0710	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0711-0711	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0711-0711	●
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0712-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0712-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0710-0711	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0712-	●	●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-	●
8	CONNECTOR; AIR TANK (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-	●
8	CONNECTOR; AIR TANK (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (I) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-	●
8	CONNECTOR; AIR TANK (F) M16X2 & PT3/8 3WAY	8-98098-590-0	01	1	0712-		●
8	CONNECTOR; AIR TANK (E) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0710-0711	●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (E) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0712-	●
8	CONNECTOR; AIR TANK (E) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0712-		●
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0712-	●
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0712-	●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0710-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0710-0711	●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR(TDU) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-		●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0710-0711	●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0710-0711	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0712-0808	●	●
10	PLUG; AIR TANK EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	0809-1101	●
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	0809-1101	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0809-1101		●
10	PLUG; AIR TANK EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	1102-1107	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1102-1107	●
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	1102-1107	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-1107		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-1107		●
10	PLUG; AIR TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	1108-	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1108-	●
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	01	1	1108-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1108-		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1108-		●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0710-0711	●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0712-1101	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0712-1101		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0710-0710	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0711-0711	●
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	02	1	0712-	●	●
28	BRACKET; AIR TANK (C)	8-98100-165-0	01	1	0710-0710	●
28	BRACKET; AIR TANK (C)	8-98100-165-1	01	1	0711-0711	●
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (C)	8-98100-165-3	01	1	0712-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4300MM(43W) (D)	8-98090-738-0	01	1	0710-0710	●
28	BRACKET; AIR TANK (A)	8-98021-918-3	01	1	0710-0711	●
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0712-	●	●
28	BRACKET; AIR TANK (B)	8-98044-509-3	01	1	0710-0711	●
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0712-	●	●
30	BRACKET; AIR TANK,SUB	1-48317-894-0	01	1	0710-0711	●
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-894-1	01	1	0712-	●
30	BRACKET; AIR TANK,SUB	1-48317-894-1	01	1	0712-		●
31	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	02	1	0710-0711	●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●
31	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	02	1	0712-		●
34	NUT; BRKT,AIR TANK M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0712-	●
34	NUT; BRKT,AIR TANK M10 FLANGE	0-91180-210-0	02	1	0712-		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0710-0711	●
39	U-BOLT; AIR TANK BRAKE REGULATION ADR(TDU) (B) L=210	1-48317-458-1	02	1	0712-	●	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0710-0711	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0712-	●	●
40	BAND ASM; AIR TANK	1-48317-893-0	02	1	0710-0711	●
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	0712-	●
40	BAND ASM; AIR TANK	1-48317-893-1	02	1	0712-		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0710	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0710	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0711-0711	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0711-0711	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0712-1107	●	●
46	NUT; U-BOLT AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	0712-1107	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0712-1107		●
46	NUT; U-BOLT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1108-	●
46	NUT; U-BOLT NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1108-	●
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1108-	●
46	NUT; U-BOLT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1108-	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1108-		●
46	NUT; U-BOLT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M8	0-91110-508-0	08	1	1108-		●
80	BOLT; BRKT WHEEL BASE 4300MM(43W) M10X30 FLANGE	0-28651-030-0	04	1	0710-0710	●
80	BOLT; BRKT WHEEL BASE 4300MM(43W) M10X30 FLANGE	0-28651-030-0	04	1	0710-0710	●
80	BOLT; BRKT WHEEL BASE 4300MM(43W) M10X30 FLANGE	0-28651-030-0	03	1	0710-0710	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0710-0711	●
80	BOLT; BRKT BRAKE REGULATION ADR(TDU) M10X30 FLANGE	0-28651-030-0	03	1	0712-	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0712-		●
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	8-97615-622-0	01	1	1102-	●
124	SWITCH; AIR PRESSURE	8-97615-622-0	01	1	1102-		●
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	01	1	1102-	●
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR(TDU) (E) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0809-0811	●
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1107	●
126	CONNECTOR; ELBOW 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0712-		●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-0711	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-1101	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-1101		●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-1101	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-1101	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-	●
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0712-		●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-	●
126	CONNECTOR; ELBOW (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	02	1	0710-0710	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	0710-0711	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	8-97615-622-0	01	1	0712-1101	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	0712-1101		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	01	1	0712-1101	●
203	NUT M8	0-91110-508-0	04	1	0710-0711	●
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	0712-	●
203	NUT M8	0-91110-508-0	04	1	0712-		●

148 81 223 223 148 274 223 223 223 94 72 37 42 83 237 238 138 239 178 83 240 86 145 125 217 145 217 125 217 271 271 152 81 145 151 139 148 274 145 153 151 140 152 153 151 139 178 151 177 35 175 178 140 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-09680-099-0	01	1	0803-0808	●
35	COCK; AIR,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0803-0808	●
35	COCK; AIR,AIR TANK EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-09680-099-0	01	1	0809-0811	●
35	COCK; AIR,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0809-0811	●
35	COCK; AIR,AIR TANK EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0809-0811	●
35	COCK; AIR,AIR TANK EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-09680-099-0	01	1	0812-1107	●
35	COCK; AIR,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0812-1107	●
35	COCK; AIR,AIR TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	1-09680-099-0	01	1	1108-	●
35	COCK; AIR,AIR TANK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1108-	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	0710-0711	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	0712-	●	●
42	WASHER; PL ID=12.5 OD=32	0-91614-712-0	04	1	0710-0711	●
42	WASHER; PL ID=12.5 OD=32	0-91614-712-0	04	1	0712-	●	●
72	BRACKET; AIR MASTER	8-98092-021-0	01	1	0712-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-777-0	02	1	0710-0711	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-777-0	02	1	0712-0905	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	0906-	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	0710-0808	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	0809-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0710-0711	●
86	SEAL; DUST	1-47529-019-0	01	1	0712-0906	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0907-	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0710-0711	●
94	NUT; BRKT FIX BRAKE REGULATION ADR(TDU) M10 FLANGE	0-91180-210-0	04	1	0712-	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0712-		●
94	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	0712-		●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98060-232-0	01	1	0712-		●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	0710-0906	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	0907-	●
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-0	01	1	0710-0711	●
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	0712-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0710-0711	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0712-	●	●
139	BRACKET; OIL TANK (B)	8-98087-847-0	01	1	0712-		●
139	BRACKET; OIL TANK (A)	8-98051-105-0	01	1	0710-	●
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0808	●	●
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0710-0711	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0712-	●	●
148	CONNECTOR; AIR MASTER (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0712-		●
148	CONNECTOR; AIR MASTER EXC. BRAKE REGULATION ADR(TDU) (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0712-	●
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0710-0711	●
148	CONNECTOR; AIR MASTER BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0712-	●
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0712-		●
148	CONNECTOR; AIR MASTER (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0710-0711	●
148	CONNECTOR; AIR MASTER BRAKE REGULATION ADR(TDU) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0712-	●
151	BAND; OIL TANK,AIR MASTER	8-97620-570-0	02	1	0712-		●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0710-	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	0803-0808	●
175	CAP; AIR COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0803-0808	●
175	CAP; AIR COCK EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	0809-0811	●
175	CAP; AIR COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0809-0811	●
175	CAP; AIR COCK EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0809-0811	●
175	CAP; AIR COCK EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	0812-1107	●
175	CAP; AIR COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0812-1107	●
175	CAP; AIR COCK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1108-	●
175	CAP; AIR COCK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1108-	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0710-0711	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0712-0808	●	●
177	HOSE; RUBBER,DRAIN EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-0906	●
177	HOSE; RUBBER,DRAIN EURO4 SPECIFICATION<NT4> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-0906	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-0906		●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0907-1107	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0907-1107		●
177	HOSE; RUBBER,DRAIN 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-	●
177	HOSE; RUBBER,DRAIN 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-	●
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-		●
178	CLIP; HOSE BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	02	1	0712-0808	●
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. SINGAPORE EQUIPMENT(2G0) (A) ID=21	8-94242-034-0	02	1	0712-0808	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0712-0808		●
178	CLIP; HOSE EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	02	1	0809-1107	●
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (A) ID=21	8-94242-034-0	02	1	0809-1107	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0809-1107		●
178	CLIP; HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) ID=21	8-94242-034-0	01	1	1108-	●
178	CLIP; HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-	●
178	CLIP; HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0710-0711	●
178	CLIP; HOSE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A) ID=21	8-94242-034-0	01	1	0712-0808	●
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SINGAPORE EQUIPMENT(2G0) (A) ID=21	8-94242-034-0	01	1	0712-0808	●
178	CLIP; HOSE EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A) ID=21	8-94242-034-0	01	1	0809-1005	●
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) (A) ID=21	8-94242-034-0	01	1	0809-1005	●
178	CLIP; HOSE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0809-1005	●
178	CLIP; HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1006-1107	●
178	CLIP; HOSE EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A) ID=21	8-94242-034-0	01	1	1006-1107	●
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) (A) ID=21	8-94242-034-0	01	1	1006-1107	●
178	CLIP; HOSE BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-	●
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE EQUIPMENT(2G0) (A) ID=21	8-94242-034-0	02	1	1108-	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1108-		●
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0710-0711	●
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0712-	●	●
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	0710-0711	●
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	0712-	●	●
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	0710-0711	●
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	0712-	●	●
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-0711	●
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-	●	●
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	0710-0711	●
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	0712-	●	●
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0710-0711	●
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0710-0711	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0712-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0710-0711	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0712-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0710-0711	●
239	FILTER; DUST	1-47529-017-0	01	1	0712-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0710-0711	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0712-	●	●
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	05	1	0712-		●
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	0710-	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0710-0711	●
274	CONNECTOR; VLV BRAKE REGULATION ADR(TDU) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-		●
305	BOLT; BRKT,HOSE M8X16 FLANGE	0-28050-816-0	01	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
