◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#66310) — 93 parça

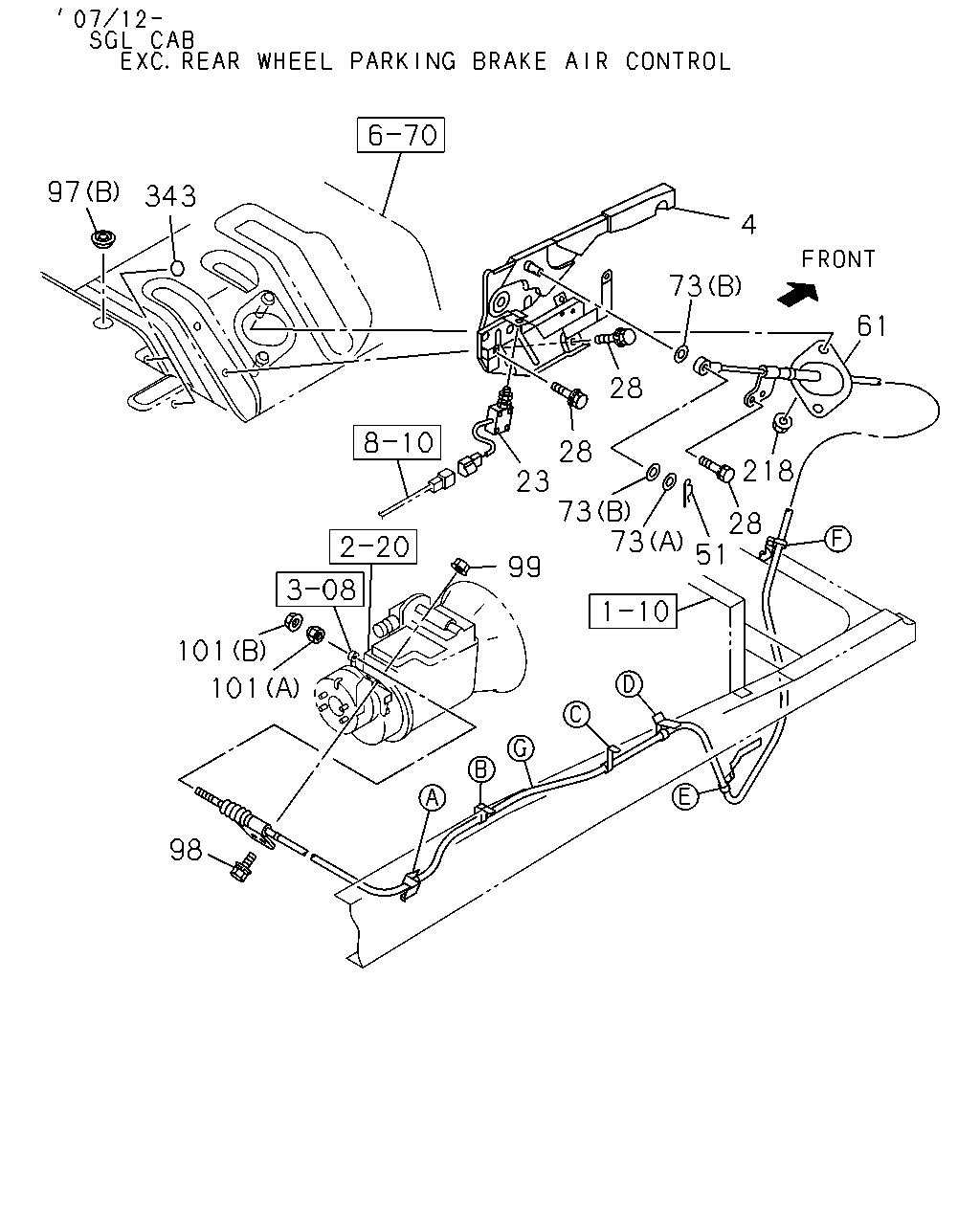

çizim 115499
97 343 4 73 61 28 28 23 73 73 218 28 51 99 101 101 98
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 0712- ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 0712- ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0712-0904 ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 0712- ●
61 CABLE; PARKING BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4658 		8-98119-717-3 01 1 0806- ●
61 CABLE; PARKING BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4884 		8-98064-884-4 01 1 0712-0712 ●
61 CABLE; PARKING BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4816 		8-98102-332-1 01 1 0801-0905 ●
61 CABLE; PARKING BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4816 		8-98102-332-2 01 1 0906-0906 ●
61 CABLE; PARKING BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4816 		8-98102-332-2 01 1 0907-0909 ●
61 CABLE; PARKING BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4816 		8-98102-332-3 01 1 0910- ●
61 CABLE; PARKING BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4809 		8-98060-166-4 01 1 0712-0712 ●
61 CABLE; PARKING BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4736 		8-98102-331-3 01 1 0801-0906 ●
61 CABLE; PARKING BRK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4736 		8-98102-331-3 01 1 0907- ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30 		0-91610-516-0 01 1 0712- ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19 		8-94206-429-1 02 1 0712- ●
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 0712- ●
97 GROMMET; PARKING BRK CABLE
(A) 		8-98029-219-1 01 1 0710-0711 ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 0712- ●
97 GROMMET; PARKING BRK CABLE
(A) 		8-98029-219-1 01 1 0712- ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0712- ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-46259-007-0 01 1 0712- ●
218 NUT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 05 1 0712- ●
çizim 192090
97 336 336
BalonParca AdiParca NoAdetTipApplied Date A B
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 0712- ●
97 GROMMET; PARKING BRK CABLE
(A) 		8-98029-219-1 01 1 0710-0711 ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 0712- ●
97 GROMMET; PARKING BRK CABLE
(A) 		8-98029-219-1 01 1 0712- ●
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98080-965-0 01 1 0712-1309 ●
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98251-969-0 01 1 1310- ●
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98081-003-1 01 1 0712-0901 ●
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-517-0 01 1 0902- ●
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98065-276-0 01 1 0712- ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98044-680-0 01 1 0712- ●
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98081-003-0 01 1 0710-0710 ●
336 BRACKET; RADIATOR
EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98065-276-0 01 1 0710-0710 ●

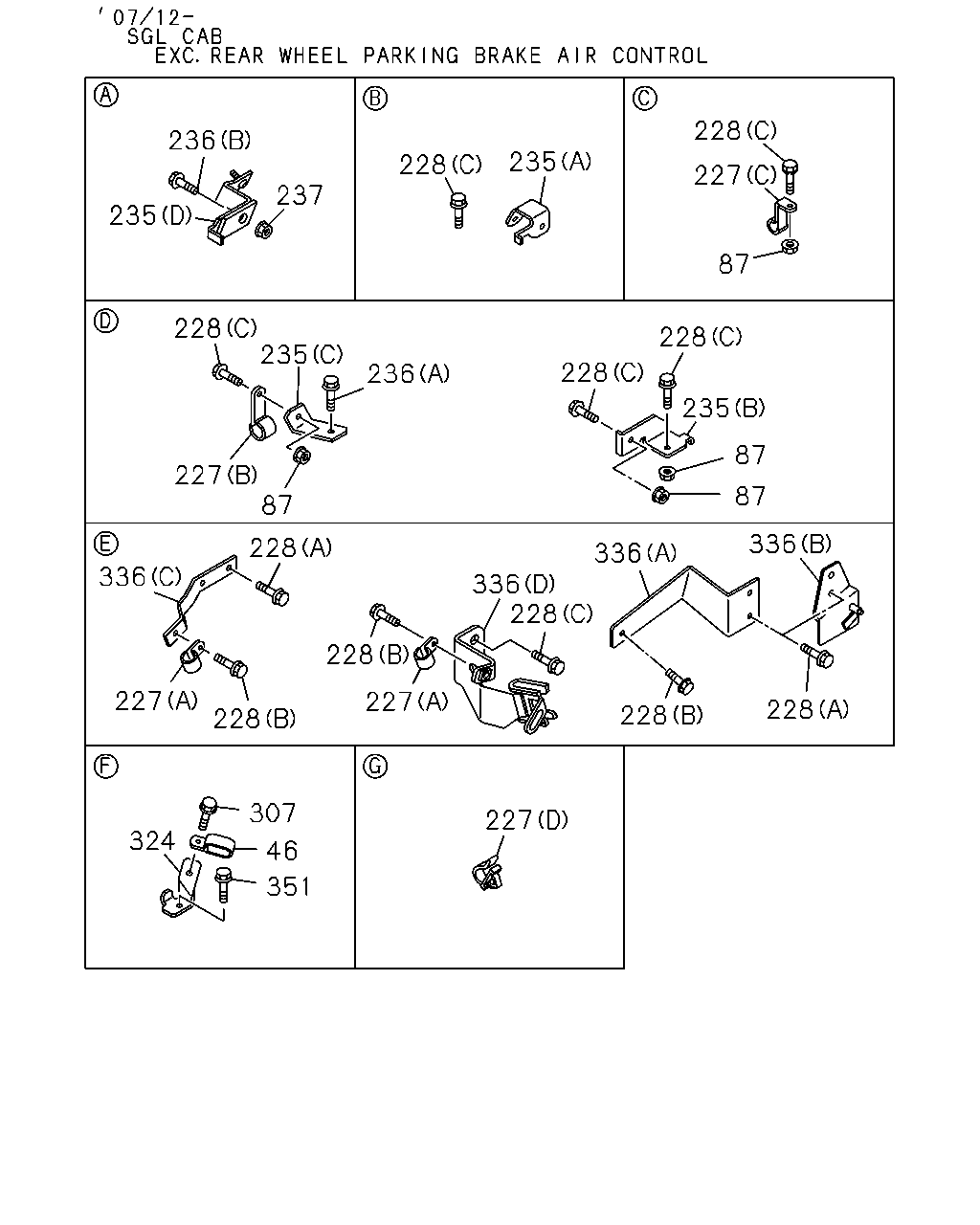

çizim 192188
228 236 235 228 227 237 235 87 228 235 228 228 236 235 87 227 87 87 336 228 336 336 336 228 228 227 227 228 228 228 307 227 324 46 351
BalonParca AdiParca NoAdetTipApplied Date A B
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 01 1 0712- ●
87 NUT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0712-0909 ●
87 NUT
MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0910-1005 ●
87 NUT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 02 1 0910-1005 ●
87 NUT
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0910-1005 ●
87 NUT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1006- ●
87 NUT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 02 1 1006- ●
87 NUT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1006- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=9.5 		5-09709-020-0 01 1 0801- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 L=32 		0-95235-265-0 01 1 0712- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 01 1 0712-0807 ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 02 1 0808-0909 ●
227 CLIP; RAD
MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 02 1 0910-1005 ●
227 CLIP; RAD
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=20 		0-95235-235-0 02 1 0910-1005 ●
227 CLIP; RAD
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 02 1 0910-1005 ●
227 CLIP; RAD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 02 1 1006- ●
227 CLIP; RAD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=20 		0-95235-235-0 02 1 1006- ●
227 CLIP; RAD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 02 1 1006- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 0712- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
228 BOLT; CLIP RAD MTG
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0712-0906 ●
228 BOLT; CLIP RAD MTG
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0712-0906 ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0907- ●
228 BOLT; CLIP RAD MTG
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0907- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
235 BRACKET; CONT CABLE TO FRAME
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98111-492-0 01 1 0806- ●
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98044-674-0 01 1 0712-0810 ●
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98126-426-0 01 1 0811- ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-82699-199-0 01 1 0712- ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98077-902-0 01 1 0712-0712 ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98100-151-0 01 1 0712- ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98077-903-1 01 1 0712-0803 ●
235 BRACKET; CONT CABLE TO FRAME
MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98077-903-2 01 1 0804-0906 ●
235 BRACKET; CONT CABLE TO FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98077-903-2 01 1 0907-1005 ●
235 BRACKET; CONT CABLE TO FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98077-903-2 01 1 0907-1005 ●
235 BRACKET; CONT CABLE TO FRAME
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98077-903-2 01 1 1006- ●
235 BRACKET; CONT CABLE TO FRAME
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98077-903-2 01 1 1006- ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28651-030-0 02 1 0901-1504 ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28051-030-0 02 1 1505- ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
236 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0807 ●
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 01 1 0712- ●
307 BOLT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 01 1 0712- ●
324 BRACKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-482-1 01 1 0712- ●
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98080-965-0 01 1 0712-1309 ●
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98251-969-0 01 1 1310- ●
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98081-003-1 01 1 0712-0901 ●
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-517-0 01 1 0902- ●
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98065-276-0 01 1 0712- ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98044-680-0 01 1 0712- ●
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98081-003-0 01 1 0710-0710 ●
336 BRACKET; RADIATOR
EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98065-276-0 01 1 0710-0710 ●
351 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 03 1 0712- ●
