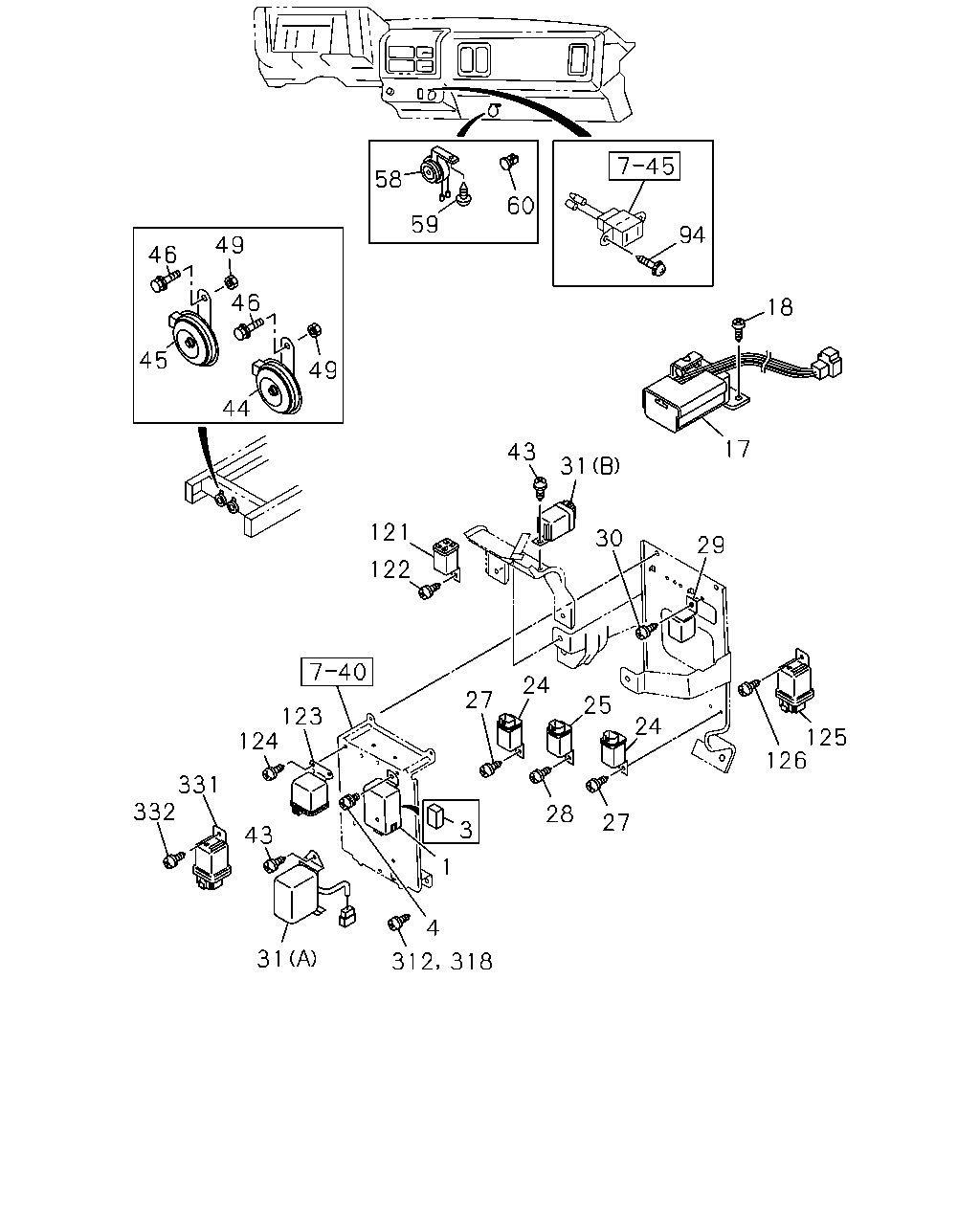

8-28 — CHASSIS ELECTRICAL (#663) — 86 parça

58 60 59 94 49 46 46 18 45 49 44 17 43 31 121 30 29 122 24 27 25 123 124 24 125 126 331 332 28 27 3 43 1 4 31 312 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-034-1	01	1	9202-9401	●	●
1	UNIT; FLASHER	1-83470-034-1	01	1	9402-	●
1	UNIT; FLASHER WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83470-034-1	01	1	9402-		●
1	UNIT; FLASHER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83470-034-1	01	1	9402-		●
1	UNIT; FLASHER WHEEL BASE 5500MM(55W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83470-056-1	01	1	9402-		●
3	SEAL; SILENT,RELAY	1-73368-001-0	01	1	9202-	●	●
4	SCREW; FLASHER UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	9202-	●	●
18	SCREW; TIMER SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9202-	●	●
24	RELAY; LIGHTING 24V	1-82550-176-0	02	1	9202-	●	●
25	RELAY; TAIL LAMP 24V	1-82550-176-0	01	1	9202-	●	●
27	SCREW; SET,LIGHTING RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9202-	●	●
28	SCREW; SET,TAIL LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
29	RELAY; HORN	1-83420-001-0	01	1	9202-	●	●
30	SCREW; HORN RELAY TO DASH SIDE M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	9202-	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A JIDECO	1-82550-197-0	01	1	9202-	●	●
43	SCREW; PTO RELAY PTO CONTROL<SV6> M5X14 TAPPING W/PL WASHER	0-74100-514-0	03	1	9202-9406	●	●
43	SCREW; PTO RELAY PTO CONTROL<SV6> M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9407-	●	●
43	SCREW; PTO RELAY PTO CONTROL<SV6> M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9407-	●	●
44	HORN; HIGH NOTE	1-83410-053-1	01	1	9202-	●	●
45	HORN; LOW NOTE	1-83410-054-1	01	1	9202-	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28080-825-0	02	1	9202-	●	●
49	NUT; HORN TO BODY FRONT STABILIZER SHAFT<F59> M8	9-09110-408-0	01	1	9202-9210	●
49	NUT; HORN TO BODY 6SA1 STD ENG(06L),6HE1 STD ENG(46L) FRONT STABILIZER SHAFT<F59> M8	9-09110-408-0	01	1	9202-9210		●
49	NUT; HORN TO BODY FRONT STABILIZER SHAFT<F59> M8 FLANGE	5-09440-005-0	01	1	9211-9404	●
49	NUT; HORN TO BODY 6SA1 STD ENG(06L),6HE1 STD ENG(46L) FRONT STABILIZER SHAFT<F59> M8 FLANGE	5-09440-005-0	01	1	9211-9404		●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8	9-09110-408-0	02	1	9202-9210	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	5-09440-005-0	02	1	9211-9211	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	5-09440-005-0	02	1	9212-9404	●	●
49	NUT; HORN TO BODY 6SA1TC ENG(28L) FRONT STABILIZER SHAFT<F59> M8 FLANGE	5-09440-005-0	02	1	9212-9404		●
49	NUT; HORN TO BODY M8 FLANGE	5-09440-005-0	02	1	9405-	●	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-022-0	01	1	9202-	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9502-	●	●
60	GROMMET; SCREW,BUZZER D=7X7 L=7.5	5-09983-007-0	01	1	9502-	●	●
94	SCREW; CONSENT TO BLIND PNL M5X14 W/PL WASHER	5-09981-050-0	02	1	9202-	●	●
121	RELAY; PARKING BRK	1-82550-070-0	01	1	9202-9403	●
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82550-070-0	01	1	9202-9403		●
121	RELAY; PARKING BRK	1-82550-285-0	01	1	9404-	●
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82550-285-0	01	1	9404-		●
122	SCREW; PARKING BRK RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●
122	SCREW; PARKING BRK RELAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-		●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V	1-82550-176-0	01	1	9202-	●	●
124	SCREW; SET,HTR RELAY HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
125	RELAY; STROKE,BRAKE LINING WARNING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	5-82550-046-0	01	1	9202-		●
126	SCREW; STROKE RELAY,BRAKE LINING WARNI BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X16 W/LK&PL WASHER	1-09981-141-0	01	1	9202-		●
312	BOLT; BUZZER M6X14 W/LK&PL WASHER	8-94279-142-0	01	1	9309-9501	●	●
318	SCREW; BUZZER SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
331	RELAY; A/C AIR CON MANUAL CONTROL(C60) 24V	1-82550-176-0	01	1	9202-	●	●
332	SCREW; A/C RELAY AIR CON MANUAL CONTROL(C60) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●

34 36 38 34 36 34 33 35 38 33 34 39 35 34 37 41 37 36 34 38 41 33 34 33 39 34 37 34 34 34 39 35 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

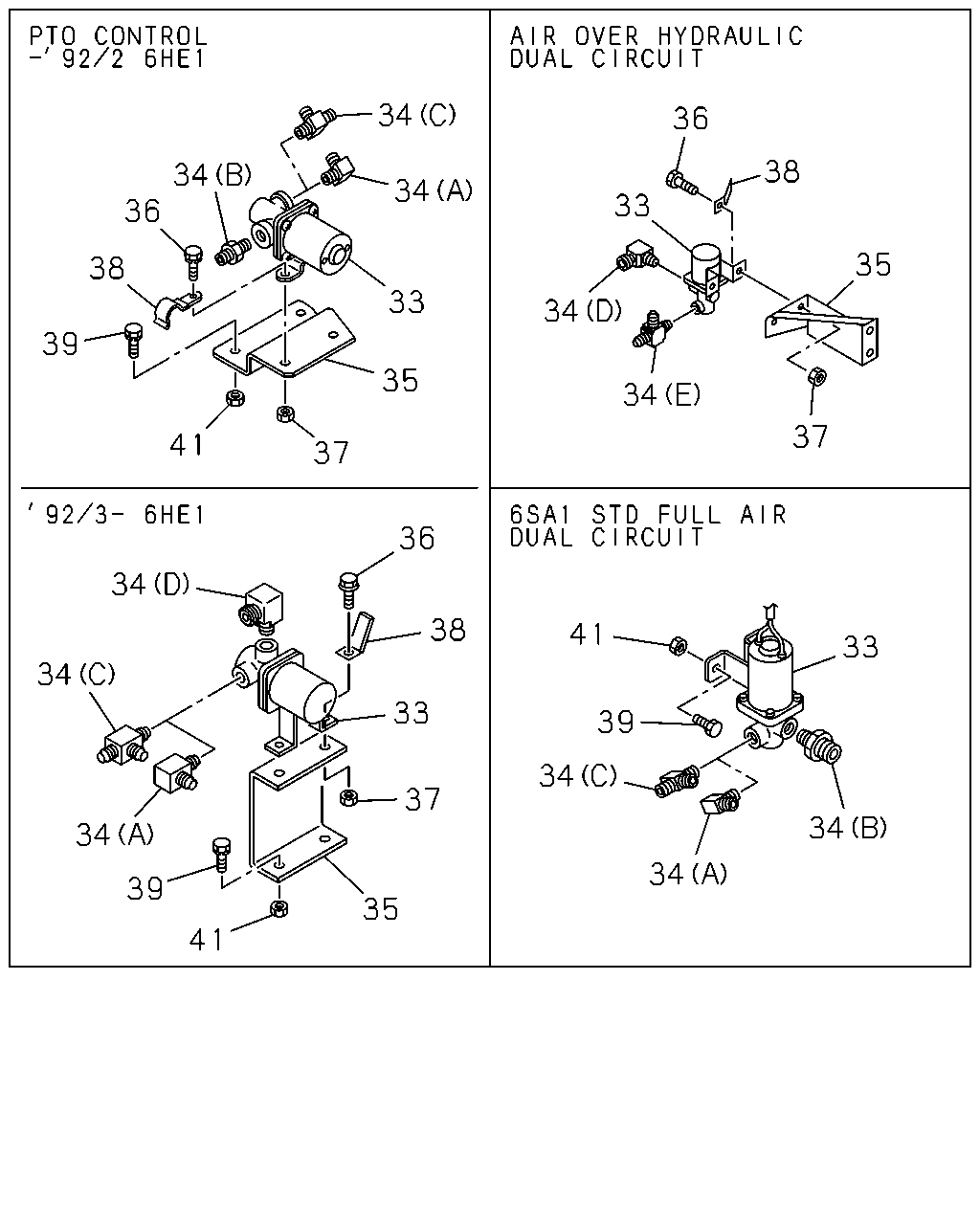

33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-068-0	01	1	9202-	●
33	VALVE; MAG,PTO CONT 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6>	1-82563-068-0	01	1	9202-		●
33	VALVE; MAG,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6>	1-82563-154-0	01	1	9202-9202		●
33	VALVE; MAG,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6>	1-82563-154-0	01	1	9203-		●
33	VALVE; MAG,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6>	1-82563-154-0	01	1	9203-		●
33	VALVE; MAG,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6> EXH BRAKE	1-82563-196-0	01	1	9202-9202		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4	9-09902-386-0	01	1	9202-	●
34	CONNECTOR; MAG VLV,INL PORT 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> (B) M20 & PT1/4	9-09902-386-0	01	1	9202-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> ASSISTER SHIFT CONTROL<WX8> (C)	1-09660-552-0	01	1	9202-	●
34	CONNECTOR; MAG VLV,INL PORT 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> ASSISTER SHIFT CONTROL<WX8> (C)	1-09660-552-0	01	1	9202-		●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> PTO CONTROL<SV6> (C)	1-09660-552-0	01	1	9202-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. ASSISTER SHIFT CONTROL<WX8> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. ASSISTER SHIFT CONTROL<WX8> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (E) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (D) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9202-9202		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (D) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9203-9302		●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 STD ENG(46L) PTO CONTROL<SV6> (D) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9203-9302		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (D) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-		●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 STD ENG(46L) PTO CONTROL<SV6> (D) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-		●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 STD ENG(46L) PTO CONTROL<SV6> (B) PT1/4 & M12 ELBOW	1-09650-117-0	01	1	9202-9202		●
35	BRACKET; MAG VLV,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6>	1-82569-133-0	01	1	9202-		●
35	BRACKET; MAG VLV,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6>	1-82569-104-0	01	1	9202-9202		●
35	BRACKET; MAG VLV,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6>	1-82569-110-3	01	1	9203-		●
36	BOLT; MAG VLV,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
36	BOLT; MAG VLV,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
36	BOLT; MAG VLV,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6> M8X18	0-28010-818-0	02	1	9202-9202		●
36	BOLT; MAG VLV,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9203-		●
37	NUT; MAG VLV,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9202-		●
37	NUT; MAG VLV,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9202-		●
38	CLIP; MAG VLV HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> L=63	1-09700-418-1	01	1	9202-9202		●
38	CLIP; MAG VLV HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> L=63	1-09700-418-1	01	1	9203-		●
38	CLIP; MAG VLV HARNESS 6HE1 STD ENG(46L) PTO CONTROL<SV6> L=63	1-09700-418-1	01	1	9203-		●
38	CLIP; MAG VLV HARNESS 6HE1 STD ENG(46L) PTO CONTROL<SV6> L=45	8-94332-786-0	01	1	9202-9202		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28080-830-0	04	1	9205-	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9202-	●	●
