2-25 — SPEEDOMETER DRIVEN GEAR (#66295) — 86 parça

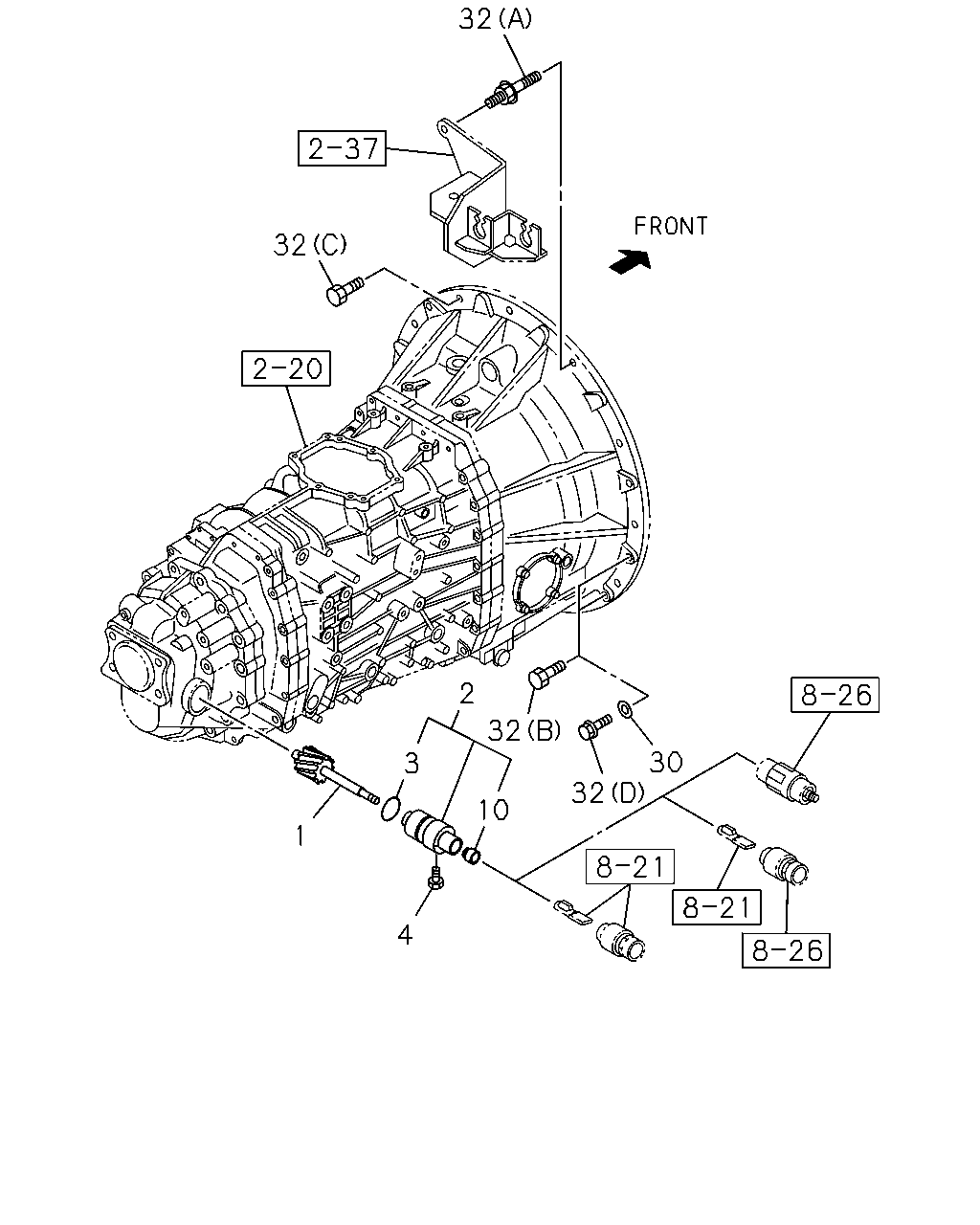

32 1 3 2 32 10 4 32 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0710-0805	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0806-0906	●	●	●	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0907-	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0806-		●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	0710-0906	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	0907-	●				●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0710-0805	●
3	GASKET; BUSHING	1-09623-246-0	01	1	0806-0906	●	●	●	●
3	GASKET; BUSHING	1-09623-246-0	01	1	0907-	●	●	●	●	●
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0710-0906	●
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0907-	●				●
10	SEAL; OIL,DRIVE GEAR NOK ALSO INCLUDED IN GASKET SET(M/T).	1-09625-510-0	01	1	0710-0805	●
10	SEAL; OIL,DRIVE GEAR NOK	1-09625-510-0	01	1	0806-0906	●	●	●	●
10	SEAL; OIL,DRIVE GEAR NOK	1-09625-510-0	01	1	0907-	●	●	●	●	●
30	WASHER; PL,TRANS 4HK1-TCS ENG(RJS) ID=11 OD=24	8-94152-902-0	02	1	1302-	●	●			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	8-98116-723-0	02	1	0806-0808		●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	8-98116-723-0	02	1	0809-0906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	8-98116-723-0	02	1	0809-0906		●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	8-98116-723-0	02	1	0907-1209	●				●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	8-98116-723-0	02	1	0907-1209		●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	8-98116-723-0	02	1	1210-1211	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	8-98234-150-0	02	1	1212-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (C) M10X45 FLANGE	0-28151-045-0	06	1	0712-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (C) M10X45 FLANGE	0-28151-045-0	06	1	0806-0906	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (C) M10X45 FLANGE	0-28151-045-0	06	1	0907-	●	●			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (B) M10X50 FLANGE	0-28151-050-0	02	1	0712-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (B) M10X50 FLANGE	0-28151-050-0	02	1	0806-0906	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (B) M10X50 FLANGE	0-28151-050-0	02	1	0907-1301	●	●			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (D) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●	●			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0712-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0806-0906	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0907-	●	●			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10X30 FLANGE	0-28151-030-0	08	1	0710-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10X30 FLANGE	0-28151-030-0	08	1	0806-0906	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10X30 FLANGE	0-28151-030-0	08	1	0907-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	0-28151-045-0	02	1	0710-0808	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0809-0906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0907-1209	●				●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0710-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-0906	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0907-	●	●	●	●	●

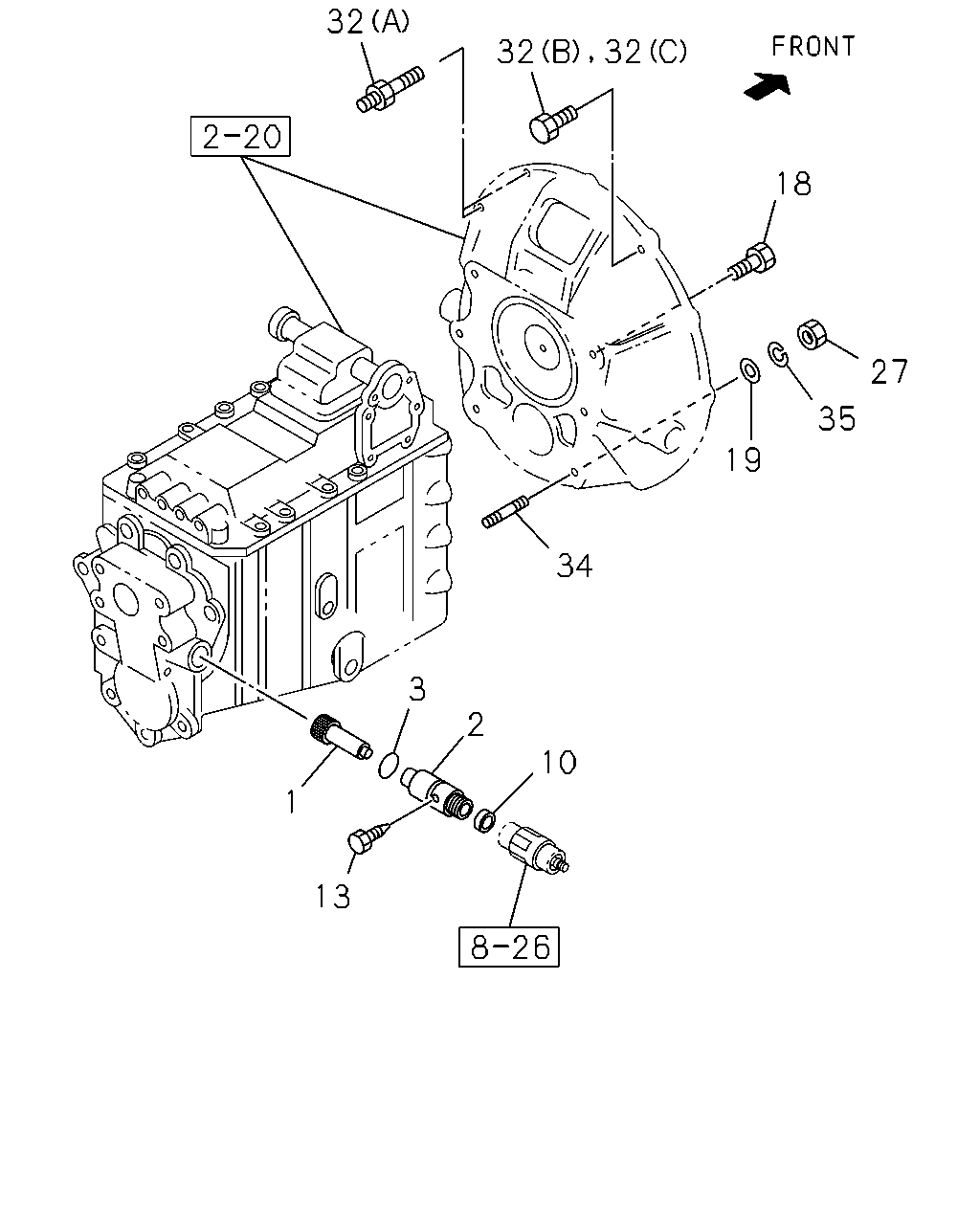

32 18 27 35 19 34 3 2 10 1 13 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0710-0805	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0806-0906	●	●	●	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0907-	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0806-		●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	0710-0906	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	0907-	●				●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0710-0805	●
3	GASKET; BUSHING	1-09623-246-0	01	1	0806-0906	●	●	●	●
3	GASKET; BUSHING	1-09623-246-0	01	1	0907-	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR NOK ALSO INCLUDED IN GASKET SET(M/T).	1-09625-510-0	01	1	0710-0805	●
10	SEAL; OIL,DRIVE GEAR NOK	1-09625-510-0	01	1	0806-0906	●	●	●	●
10	SEAL; OIL,DRIVE GEAR NOK	1-09625-510-0	01	1	0907-	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0806-		●	●	●
18	BOLT; CLU HSG TO TRANS 15" CLUTCH(RE9) M16X40 W/LK&PL WASHER	0-50651-640-0	06	1	0806-		●	●	●
18	BOLT; CLU HSG TO TRANS 14" CLUTCH(WF6)	1-09033-015-0	06	1	0806-		●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0806-		●	●	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0806-		●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	8-98116-723-0	02	1	0806-0808		●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	8-98116-723-0	02	1	0809-0906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	8-98116-723-0	02	1	0809-0906		●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	8-98116-723-0	02	1	0907-1209	●				●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	8-98116-723-0	02	1	0907-1209		●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	8-98116-723-0	02	1	1210-1211	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	8-98234-150-0	02	1	1212-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (C) M10X45 FLANGE	0-28151-045-0	06	1	0712-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (C) M10X45 FLANGE	0-28151-045-0	06	1	0806-0906	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (C) M10X45 FLANGE	0-28151-045-0	06	1	0907-	●	●			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (B) M10X50 FLANGE	0-28151-050-0	02	1	0712-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (B) M10X50 FLANGE	0-28151-050-0	02	1	0806-0906	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (B) M10X50 FLANGE	0-28151-050-0	02	1	0907-1301	●	●			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (D) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●	●			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0712-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0806-0906	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0907-	●	●			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10X30 FLANGE	0-28151-030-0	08	1	0710-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10X30 FLANGE	0-28151-030-0	08	1	0806-0906	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10X30 FLANGE	0-28151-030-0	08	1	0907-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X45 FLANGE	0-28151-045-0	02	1	0710-0808	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0809-0906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0907-1209	●				●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0710-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-0906	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0907-	●	●	●	●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0806-		●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0806-		●	●	●
