Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#66288) — 435 parça

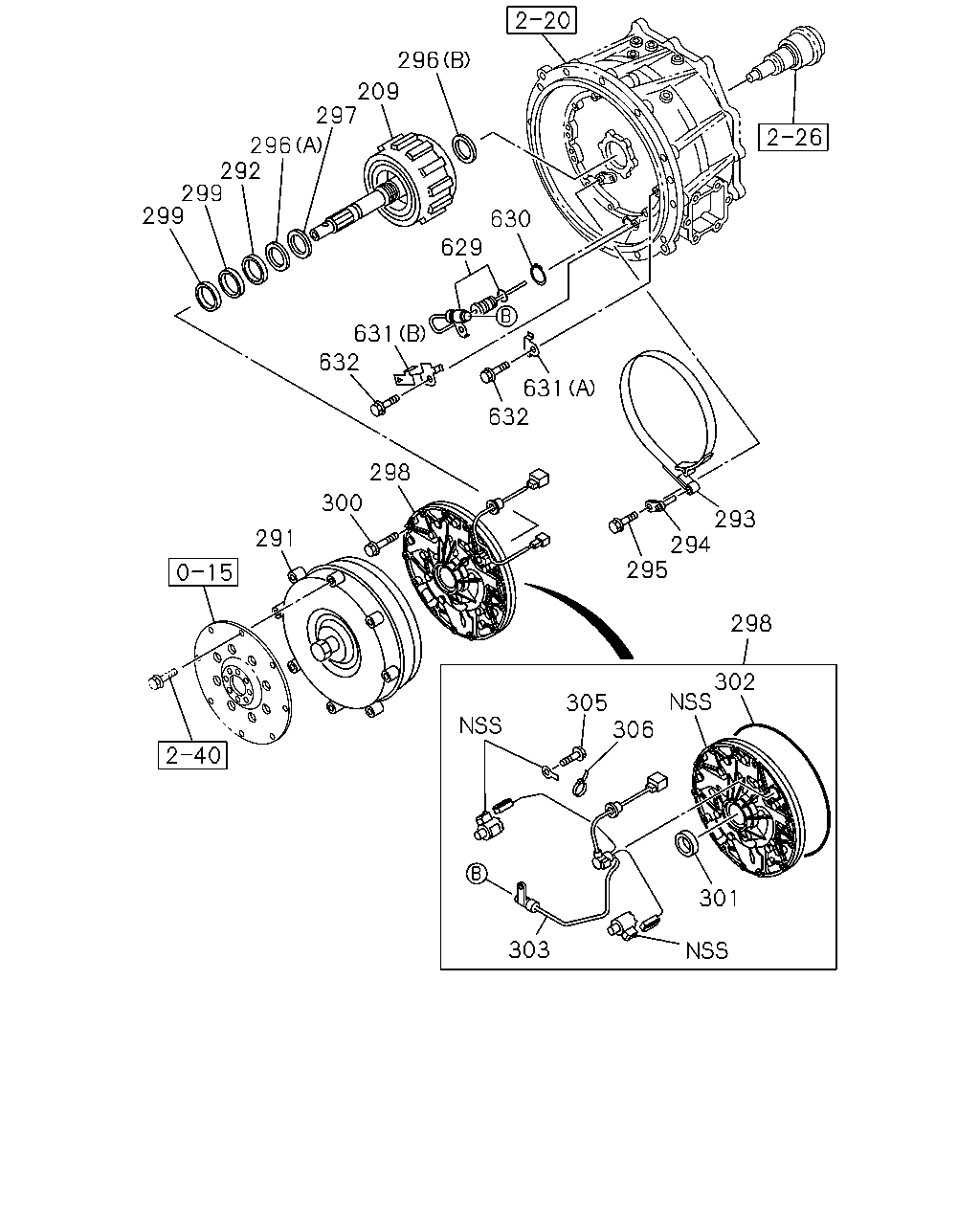

296 209 297 296 292 299 299 630 629 631 632 631 632 298 300 293 294 295 291 298 302 305 306 301 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
209	CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-527-1	01	1	0710-0906	●
209	CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-527-3	01	1	0907-1412	●	●
209	CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98275-315-0	01	1	1501-	●	●
291	COUPLING; FLUID 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-304-1	01	1	0712-0906	●
291	COUPLING; FLUID 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-304-2	01	1	0907-1308	●	●
291	COUPLING; FLUID 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98248-559-1	01	1	1309-	●	●
291	COUPLING; FLUID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-295-0	01	1	0710-0711	●
291	COUPLING; FLUID 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-295-1	01	1	0712-0906	●
291	COUPLING; FLUID 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-295-3	01	1	0907-1308	●	●
291	COUPLING; FLUID 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98248-560-1	01	1	1309-	●	●
292	RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-329-0	01	1	0710-0906	●
292	RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-329-0	01	1	0907-	●	●
293	BAND; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-651-0	01	1	0710-0906	●
293	BAND; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-651-0	01	1	0907-	●	●
294	PIN; ANCHOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-703-0	01	1	0710-0906	●
294	PIN; ANCHOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-703-0	01	1	0907-	●	●
295	BOLT; ANCHOR PIN TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-0906	●
295	BOLT; ANCHOR PIN TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0907-	●	●
296	BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97255-688-0	01	1	0710-0906	●
296	BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97255-688-0	01	1	0907-	●	●
296	BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97255-689-0	01	1	0710-0906	●
296	BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97255-689-0	01	1	0907-	●	●
297	WASHER; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-070-0	01	1	0710-0906	●
297	WASHER; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-070-0	01	1	0907-	●	●
298	PUMP ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-299-0	01	1	0710-0803	●
298	PUMP ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98107-925-1	01	1	0804-0906	●
298	PUMP ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98107-925-2	01	1	0907-	●	●
299	RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-330-0	02	1	0710-0906	●
299	RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-330-0	02	1	0907-	●	●
300	BOLT; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X45 FLANGE	0-28050-845-0	11	1	0710-0906	●
300	BOLT; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X45 FLANGE	0-28050-845-0	11	1	0907-	●	●
301	SEAL; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-811-0	01	1	0710-0906	●
301	SEAL; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-811-0	01	1	0907-	●	●
302	RING; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-188-0	01	1	0710-0906	●
302	RING; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-188-0	01	1	0907-	●	●
303	HARNESS ASM; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-613-1	01	1	0710-0906	●
303	HARNESS ASM; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-613-1	01	1	0907-	●	●
305	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	0-28050-612-0	01	1	0710-0906	●
305	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	0-28050-612-0	01	1	0907-	●	●
305	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	0710-0906	●
305	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
306	CLIP; BAND TRANSMISSION CONTROL-SMOOTHER(8GF) L=100	8-94279-939-0	02	1	0710-0906	●
306	CLIP; BAND TRANSMISSION CONTROL-SMOOTHER(8GF) L=100	8-94279-939-0	02	1	0907-	●	●
629	SENSOR; OIL TEMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-895-0	01	1	0710-0906	●
629	SENSOR; OIL TEMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-895-0	01	1	0907-	●	●
630	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17.5	9-09180-019-0	01	1	0710-0906	●
630	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17.5	9-09180-019-0	01	1	0907-	●	●
631	PLATE; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98021-285-0	02	1	0710-0906	●
631	PLATE; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98021-285-0	02	1	0907-	●	●
631	PLATE; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-254-0	01	1	0710-0906	●
631	PLATE; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-254-0	01	1	0907-	●	●
632	BOLT; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	03	1	0710-0906	●
632	BOLT; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	03	1	0907-	●	●

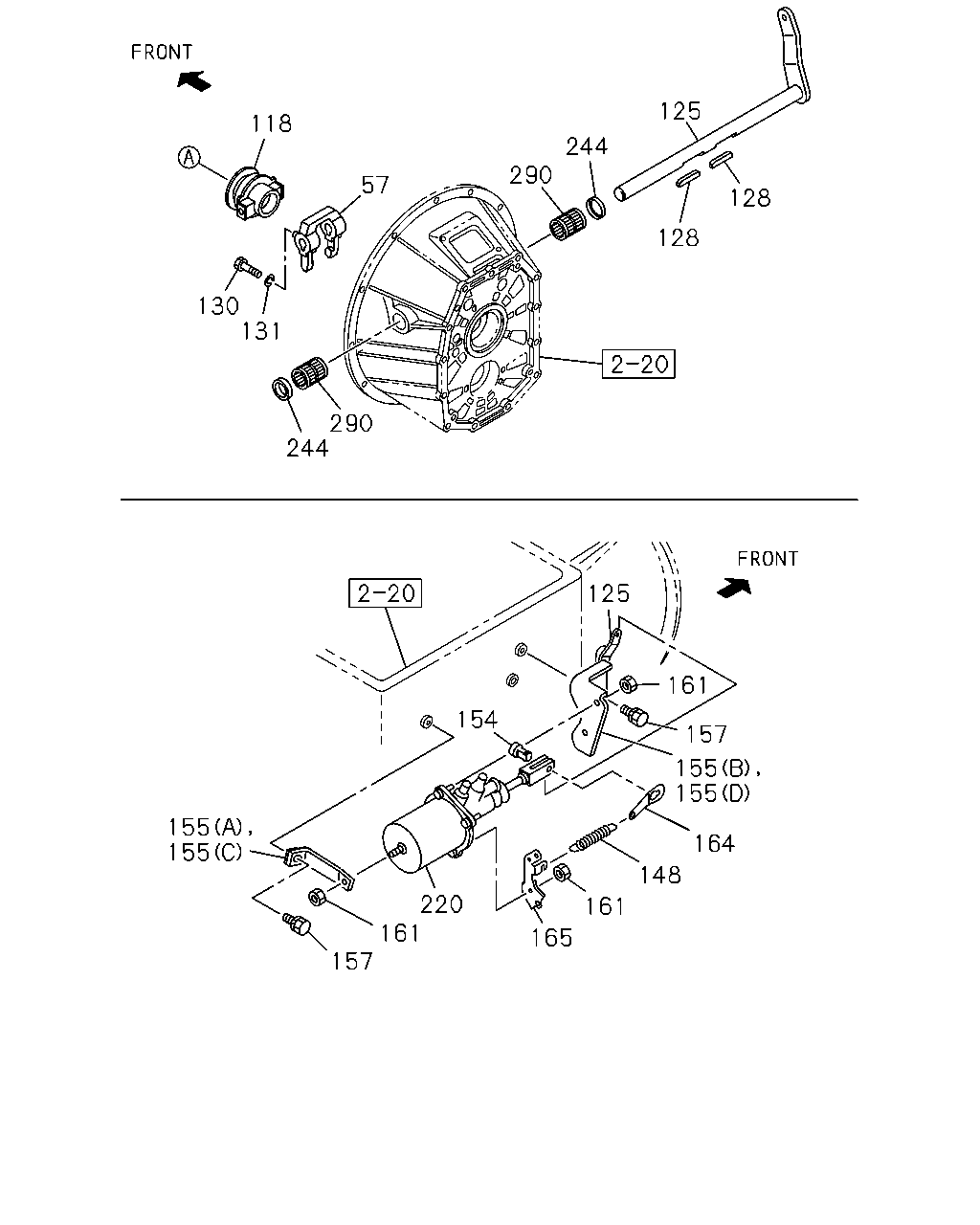

125 118 244 290 57 128 128 130 131 290 244 125 161 154 157 155 155 155 155 164 148 220 161 157 161 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0806-1306			●	●	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-			●	●	●
57	FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31341-048-2	01	1	0710-0906	●
57	FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31341-048-2	01	1	0907-	●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0806-			●	●	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31310-017-1	01	1	0710-0806	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31310-026-0	01	1	0807-0906	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31310-026-0	01	1	0907-	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0806-			●	●	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-109-0	01	1	0807-0906	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-109-0	01	1	0907-	●	●
125	SHAFT; CLU 15" CLUTCH(RE9)	1-31342-343-0	01	1	0806-			●	●	●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-344-0	01	1	0806-			●
125	SHAFT; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31342-335-0	01	1	0710-0906	●
125	SHAFT; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31342-335-0	01	1	0907-	●	●
128	KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	0710-0805	●
128	KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	0806-0906	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0806-0906			●	●	●
128	KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	0907-	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-			●	●	●
130	SCREW; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14	0-61200-814-0	01	1	0710-0805	●
130	SCREW; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14	0-61200-814-0	01	1	0806-0906	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0806-0906			●	●	●
130	SCREW; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14	0-61200-814-0	01	1	0907-	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0907-			●	●	●
131	WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2	0-91510-508-0	01	1	0710-0805	●
131	WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2	0-91510-508-0	01	1	0806-0906	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0806-0906			●	●	●
131	WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2	0-91510-508-0	01	1	0907-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-			●	●	●
148	SPRING; CLU RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135	1-09583-305-0	01	1	0710-0805	●
148	SPRING; CLU RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135	1-09583-305-0	01	1	0806-0906	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0806-0906			●	●	●
148	SPRING; CLU RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135	1-09583-305-0	01	1	0907-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-			●	●	●
154	PIN; JAW JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31424-009-0	01	1	0710-0906	●
154	PIN; JAW JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31424-009-0	01	1	0907-	●	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (A)	1-31429-507-0	01	1	0806-			●	●	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (B)	1-31429-508-0	01	1	0806-			●	●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-512-0	01	1	0806-			●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (C)	1-31429-474-1	01	1	0712-0805	●
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) (C)	1-31429-474-1	01	1	0806-0906	●
155	BRACKET; MINIPACK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-31429-474-1	01	1	0806-0906	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (C)	1-31429-474-1	01	1	0806-0906			●	●	●
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) (C)	1-31429-474-1	01	1	0907-	●	●
155	BRACKET; MINIPACK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-31429-474-1	01	1	0907-	●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (C)	1-31429-474-1	01	1	0907-			●	●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (D)	1-31429-477-0	01	1	0712-0906	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (D)	1-31429-477-0	01	1	0907-	●	●
155	BRACKET; MINIPACK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31429-475-1	01	1	0710-0711	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (A)	1-31429-475-1	01	1	0712-0906	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (A)	1-31429-475-1	01	1	0907-	●	●
155	BRACKET; MINIPACK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-31429-478-0	01	1	0710-0711	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (B)	1-31429-478-0	01	1	0712-0906	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (B)	1-31429-478-0	01	1	0907-	●	●
157	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE	0-28751-025-0	03	1	0710-0805	●
157	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE	0-28751-025-0	03	1	0806-0906	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0806-0906			●	●	●
157	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE	0-28751-025-0	03	1	0907-	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-			●	●	●
161	NUT; BRKT 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	03	1	0806-			●	●	●
161	NUT; BRKT 14" CLUTCH(WF6) M8 FLANGE	0-91180-208-0	03	1	0806-			●
161	NUT; BRKT 14" CLUTCH(WF6) M8 FLANGE	0-91180-208-0	05	1	0712-0906	●
161	NUT; BRKT 4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) M8 FLANGE	0-91180-208-0	05	1	0907-	●	●
161	NUT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-208-0	05	1	0907-	●	●
161	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	05	1	0710-0711	●
161	NUT; BRKT 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	05	1	0712-0906	●
161	NUT; BRKT 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	05	1	0907-	●	●
164	EYE; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31426-041-0	01	1	0710-0805	●
164	EYE; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31426-041-0	01	1	0806-0906	●
164	EYE; SPRING	1-31426-041-0	01	1	0806-0906			●	●	●
164	EYE; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31426-041-0	01	1	0907-	●	●
164	EYE; SPRING	1-31426-041-0	01	1	0907-			●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-47477-789-0	01	1	0710-0805	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-47477-789-0	01	1	0806-0906	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0806-0906			●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-47477-789-0	01	1	0907-	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-			●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9)	1-31800-516-1	01	1	0806-			●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-525-1	01	1	0806-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-1	01	1	0712-0906	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-2	01	1	0907-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31800-511-1	01	1	0710-0711	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9)	1-31800-511-1	01	1	0712-0906	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9)	1-31800-511-2	01	1	0907-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-089-0	01	1	0710-0711	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-089-0	01	1	0712-0805	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-089-0	01	1	0806-0906	●		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0806-0906				●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-089-0	01	1	0907-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0907-				●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-159-0	01	1	0806-			●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09625-002-0	02	1	0710-0906	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09625-002-0	02	1	0907-	●	●
290	BEARING; NEEDLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NTN	1-09811-002-1	02	1	0710-0906	●
290	BEARING; NEEDLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NTN	1-09811-002-1	02	1	0907-	●	●

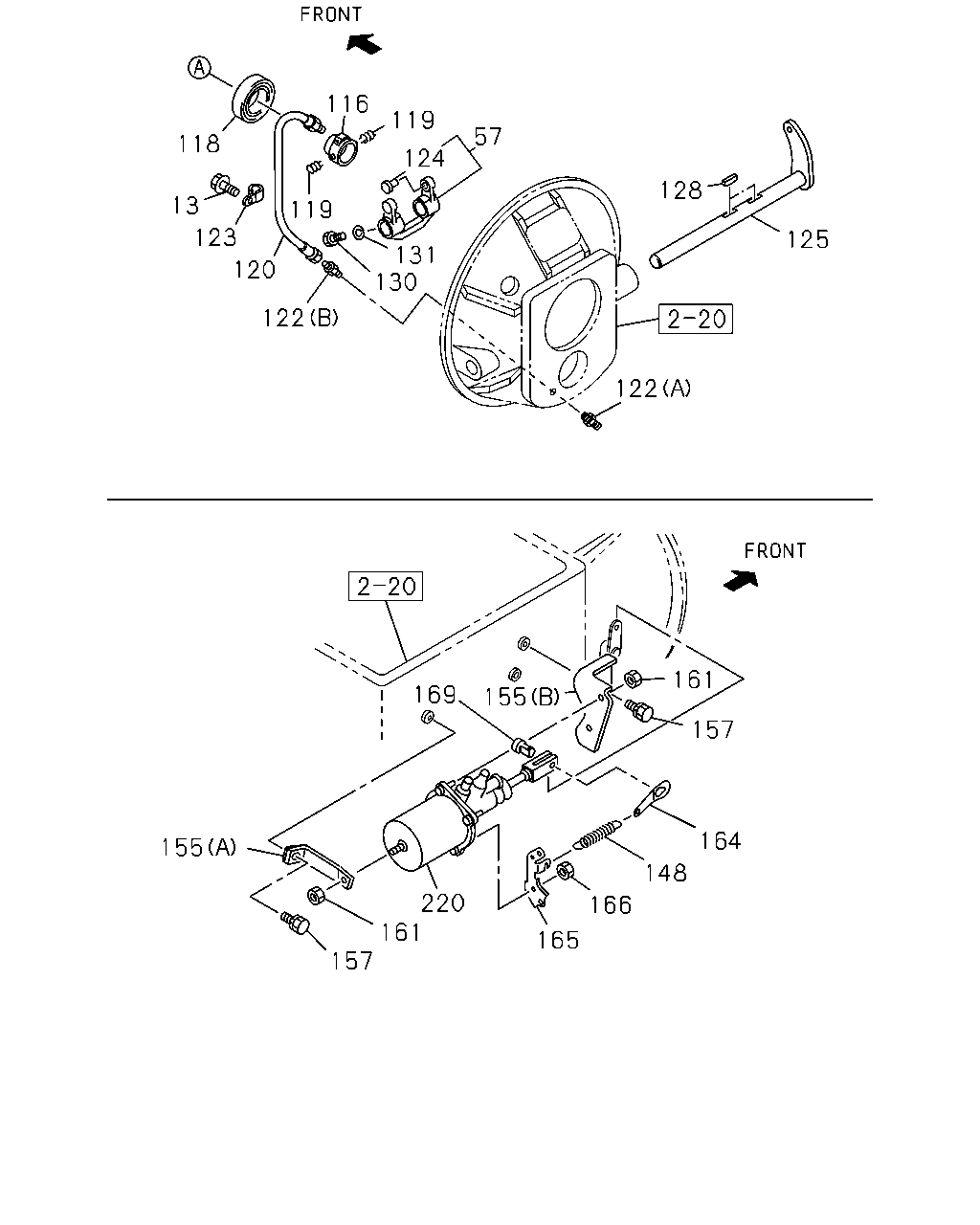

116 119 57 118 124 128 13 119 131 130 123 125 120 122 122 161 155 169 157 164 155 148 220 161 157 166 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0806-			●	●	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0806-1306			●	●	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-			●	●	●
57	FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31341-048-2	01	1	0710-0906	●
57	FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31341-048-2	01	1	0907-	●	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0806-1204			●	●	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306			●	●	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-			●	●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0806-			●	●	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31310-017-1	01	1	0710-0806	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31310-026-0	01	1	0807-0906	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31310-026-0	01	1	0907-	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0806-			●	●	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-109-0	01	1	0807-0906	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-109-0	01	1	0907-	●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0806-			●	●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0806-			●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0806-			●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0806-			●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0806-			●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0806-			●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0806-			●	●	●
125	SHAFT; CLU 15" CLUTCH(RE9)	1-31342-343-0	01	1	0806-			●	●	●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-344-0	01	1	0806-			●
125	SHAFT; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31342-335-0	01	1	0710-0906	●
125	SHAFT; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31342-335-0	01	1	0907-	●	●
128	KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	0710-0805	●
128	KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	0806-0906	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0806-0906			●	●	●
128	KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	0907-	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-			●	●	●
130	SCREW; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14	0-61200-814-0	01	1	0710-0805	●
130	SCREW; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14	0-61200-814-0	01	1	0806-0906	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0806-0906			●	●	●
130	SCREW; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14	0-61200-814-0	01	1	0907-	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0907-			●	●	●
131	WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2	0-91510-508-0	01	1	0710-0805	●
131	WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2	0-91510-508-0	01	1	0806-0906	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0806-0906			●	●	●
131	WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2	0-91510-508-0	01	1	0907-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-			●	●	●
148	SPRING; CLU RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135	1-09583-305-0	01	1	0710-0805	●
148	SPRING; CLU RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135	1-09583-305-0	01	1	0806-0906	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0806-0906			●	●	●
148	SPRING; CLU RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135	1-09583-305-0	01	1	0907-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-			●	●	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (A)	1-31429-507-0	01	1	0806-			●	●	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (B)	1-31429-508-0	01	1	0806-			●	●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-512-0	01	1	0806-			●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (C)	1-31429-474-1	01	1	0712-0805	●
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) (C)	1-31429-474-1	01	1	0806-0906	●
155	BRACKET; MINIPACK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-31429-474-1	01	1	0806-0906	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (C)	1-31429-474-1	01	1	0806-0906			●	●	●
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) (C)	1-31429-474-1	01	1	0907-	●	●
155	BRACKET; MINIPACK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-31429-474-1	01	1	0907-	●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (C)	1-31429-474-1	01	1	0907-			●	●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (D)	1-31429-477-0	01	1	0712-0906	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (D)	1-31429-477-0	01	1	0907-	●	●
155	BRACKET; MINIPACK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31429-475-1	01	1	0710-0711	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (A)	1-31429-475-1	01	1	0712-0906	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (A)	1-31429-475-1	01	1	0907-	●	●
155	BRACKET; MINIPACK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-31429-478-0	01	1	0710-0711	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (B)	1-31429-478-0	01	1	0712-0906	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) (B)	1-31429-478-0	01	1	0907-	●	●
157	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE	0-28751-025-0	03	1	0710-0805	●
157	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE	0-28751-025-0	03	1	0806-0906	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0806-0906			●	●	●
157	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE	0-28751-025-0	03	1	0907-	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-			●	●	●
161	NUT; BRKT 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	03	1	0806-			●	●	●
161	NUT; BRKT 14" CLUTCH(WF6) M8 FLANGE	0-91180-208-0	03	1	0806-			●
161	NUT; BRKT 14" CLUTCH(WF6) M8 FLANGE	0-91180-208-0	05	1	0712-0906	●
161	NUT; BRKT 4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) M8 FLANGE	0-91180-208-0	05	1	0907-	●	●
161	NUT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-208-0	05	1	0907-	●	●
161	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	05	1	0710-0711	●
161	NUT; BRKT 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	05	1	0712-0906	●
161	NUT; BRKT 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	05	1	0907-	●	●
164	EYE; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31426-041-0	01	1	0710-0805	●
164	EYE; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31426-041-0	01	1	0806-0906	●
164	EYE; SPRING	1-31426-041-0	01	1	0806-0906			●	●	●
164	EYE; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31426-041-0	01	1	0907-	●	●
164	EYE; SPRING	1-31426-041-0	01	1	0907-			●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-47477-789-0	01	1	0710-0805	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-47477-789-0	01	1	0806-0906	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0806-0906			●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-47477-789-0	01	1	0907-	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-			●	●	●
166	NUT; SPRING EYE 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	02	1	0806-			●	●	●
166	NUT; SPRING EYE 14" CLUTCH(WF6) M8 FLANGE	0-91180-208-0	02	1	0806-			●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0806-			●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9)	1-31800-516-1	01	1	0806-			●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-525-1	01	1	0806-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-1	01	1	0712-0906	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-2	01	1	0907-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31800-511-1	01	1	0710-0711	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9)	1-31800-511-1	01	1	0712-0906	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9)	1-31800-511-2	01	1	0907-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-089-0	01	1	0710-0711	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-089-0	01	1	0712-0805	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-089-0	01	1	0806-0906	●		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0806-0906				●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-089-0	01	1	0907-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0907-				●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-159-0	01	1	0806-			●

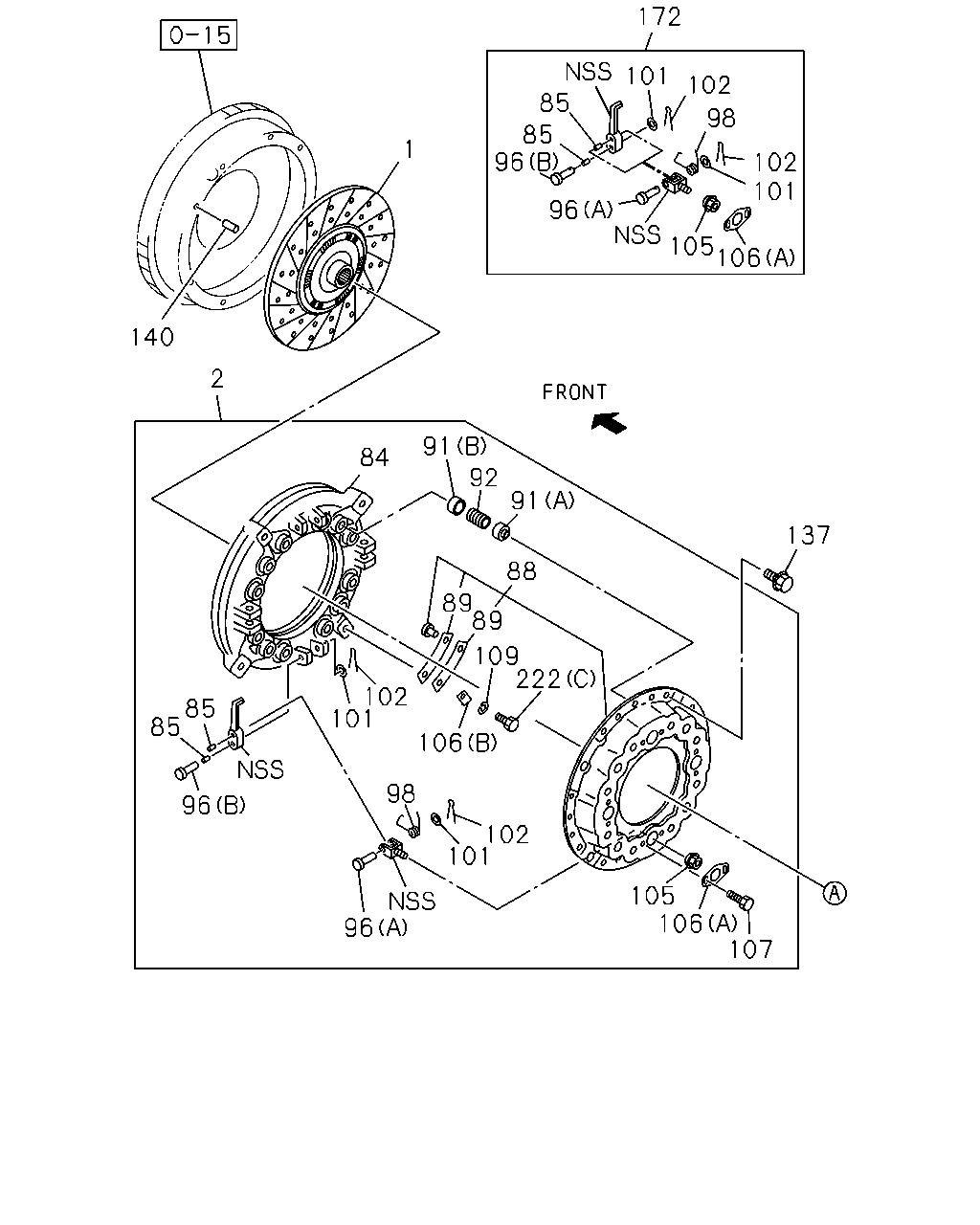

172 101 102 85 98 85 96 1 102 101 96 105 106 140 2 91 92 84 91 137 88 89 89 109 222 102 101 85 85 106 98 96 102 101 105 106 96 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-119-0	01	1	1411-	●		●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	0712-0906	●		●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	0907-1401	●	●	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-	●		●	●	●
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	0710-0711	●		●	●	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	0712-0906	●		●	●	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	0907-	●	●	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	1-31220-374-2	01	1	1010-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	0712-0906	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	0907-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0710-0711	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-377-2	01	1	0712-0906	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-377-2	01	1	0907-1009	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) 15" CLUTCH(RE9)	1-31220-377-2	01	1	1010-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	0710-0711	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-146-0	01	1	0712-1009	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-146-0	01	1	1010-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-147-0	01	1	0712-	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-120-0	01	1	1010-	●	●	●	●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	0712-0906	●		●	●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	0907-	●	●	●	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0710-0711	●		●	●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	0712-0906	●		●	●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	0907-	●	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0710-0906	●		●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0907-	●	●	●	●	●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	0712-0906	●		●	●	●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	0907-	●	●	●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0712-0906	●		●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0907-	●	●	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0710-0711	●		●	●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	0712-0906	●		●	●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	0907-	●	●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	0712-0906	●		●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	0907-	●	●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	0712-0906	●		●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	0907-	●	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0710-0711	●		●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	0712-0906	●		●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	0907-	●	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0710-0711	●		●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	0712-0906	●		●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	0907-	●	●	●	●	●
92	SPRING; CLU 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	1-31214-086-0	12	1	1010-	●	●	●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	0712-0906	●		●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	0907-	●	●	●	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0710-0711	●		●	●	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-066-0	12	1	0712-0906	●		●	●	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-066-0	12	1	0907-1009	●	●	●	●	●
92	SPRING; CLU 6HK1-TCC ENG(81L) 15" CLUTCH(RE9)	1-31214-066-0	12	1	1010-	●	●	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0710-0906	●		●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0907-	●	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0710-0906	●		●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0907-	●	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0710-0906	●		●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0907-	●	●	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0710-0906	●		●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0907-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0712-0906	●		●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0907-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0710-0711	●		●	●	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	0712-0906	●		●	●	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	0907-	●	●	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0710-0906	●		●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0907-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0712-0906	●		●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0907-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0710-0906	●		●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0907-	●	●	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0710-0906	●		●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0907-	●	●	●	●	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	0712-0906	●		●	●	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	0907-	●	●	●	●	●
137	BOLT; CLU COVER 15" CLUTCH(RE9) M10X20 FLANGE	0-28151-020-0	12	1	0710-0711	●
137	BOLT; CLU COVER 15" CLUTCH(RE9),14" CLUTCH(WF6) M10X20 FLANGE	0-28151-020-0	12	1	0712-	●
140	PIN; STRAIGHT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	0712-0906	●		●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	0907-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0710-0906	●		●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0907-	●	●	●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	0712-0906	●		●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	0907-	●	●	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0710-0711	●		●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	0712-0906	●		●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	0907-	●	●	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0710-0711	●		●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0712-0906	●		●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0907-	●	●	●	●	●

172 101 102 85 98 85 96 102 101 96 105 106 2 91 84 92 91 110 222 89 89 1 222 110 102 101 137 96 85 110 98 108 85 96 102 101 105 106 223 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-119-0	01	1	1411-	●		●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	0712-0906	●		●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	0907-1401	●	●	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-	●		●	●	●
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	0710-0711	●		●	●	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	0712-0906	●		●	●	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	0907-	●	●	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	1-31220-374-2	01	1	1010-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	0712-0906	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	0907-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0710-0711	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-377-2	01	1	0712-0906	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-377-2	01	1	0907-1009	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) 15" CLUTCH(RE9)	1-31220-377-2	01	1	1010-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	0710-0711	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-146-0	01	1	0712-1009	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-146-0	01	1	1010-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-147-0	01	1	0712-	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-120-0	01	1	1010-	●	●	●	●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	0712-0906	●		●	●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	0907-	●	●	●	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0710-0711	●		●	●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	0712-0906	●		●	●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	0907-	●	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0710-0906	●		●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0907-	●	●	●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0712-0906	●		●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0907-	●	●	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0710-0711	●		●	●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	0712-0906	●		●	●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	0907-	●	●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	0712-0906	●		●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	0907-	●	●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	0712-0906	●		●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	0907-	●	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0710-0711	●		●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	0712-0906	●		●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	0907-	●	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0710-0711	●		●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	0712-0906	●		●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	0907-	●	●	●	●	●
92	SPRING; CLU 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	1-31214-086-0	12	1	1010-	●	●	●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	0712-0906	●		●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	0907-	●	●	●	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0710-0711	●		●	●	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-066-0	12	1	0712-0906	●		●	●	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-066-0	12	1	0907-1009	●	●	●	●	●
92	SPRING; CLU 6HK1-TCC ENG(81L) 15" CLUTCH(RE9)	1-31214-066-0	12	1	1010-	●	●	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0710-0906	●		●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0907-	●	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0710-0906	●		●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0907-	●	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0710-0906	●		●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0907-	●	●	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0710-0906	●		●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0907-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0712-0906	●		●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0907-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0710-0711	●		●	●	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	0712-0906	●		●	●	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	0907-	●	●	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0710-0906	●		●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0907-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0712-0906	●		●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0907-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0710-0906	●		●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0907-	●	●	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0710-0906	●		●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0907-	●	●	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0710-0711	●		●	●	●
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	0712-0906	●		●	●	●
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	0907-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0710-0711	●		●	●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	0712-0906	●		●	●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	0907-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0710-0711	●		●	●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	0712-0906	●		●	●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	0907-	●	●	●	●	●
137	BOLT; CLU COVER 15" CLUTCH(RE9) M10X20 FLANGE	0-28151-020-0	12	1	0710-0711	●
137	BOLT; CLU COVER 15" CLUTCH(RE9),14" CLUTCH(WF6) M10X20 FLANGE	0-28151-020-0	12	1	0712-	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0710-0906	●		●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0907-	●	●	●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	0712-0906	●		●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	0907-	●	●	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0710-0711	●		●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	0712-0906	●		●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	0907-	●	●	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0710-0711	●		●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0712-0906	●		●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0907-	●	●	●	●	●
223	COVER; CLU	1-31211-019-1	01	1	0710-0711	●		●	●	●
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	0712-0906	●		●	●	●
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	0907-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
