◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#66285) — 1520 parça

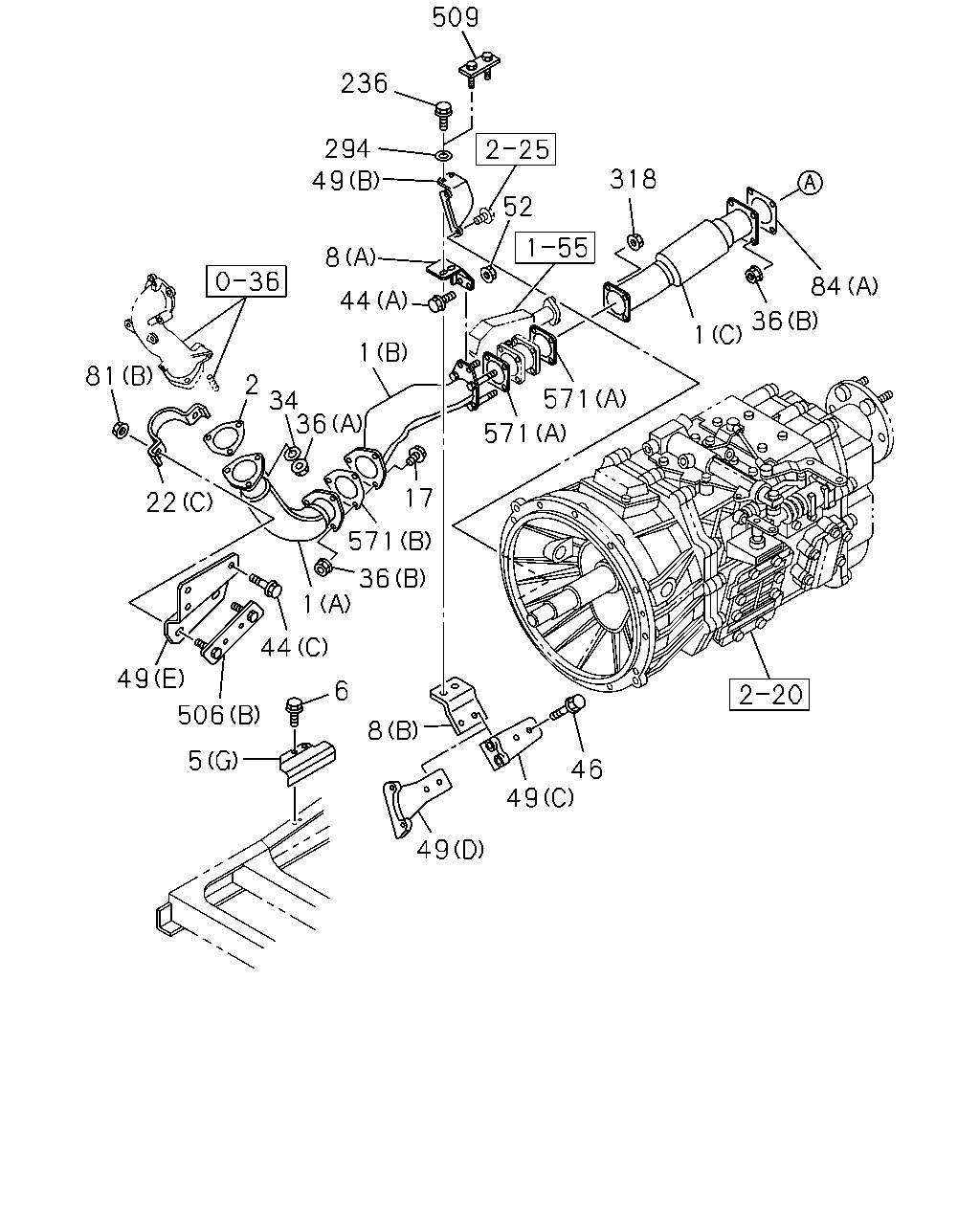

çizim 96367
1 36 84 318 52 509 236 294 49 8 44 1 571 571 17 571 36 46 49 49 8 6 5 506 49 44 1 22 81 2 34 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98090-385-0 01 1 1008- ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> (A) 		8-98073-006-0 01 1 0809-1007 ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (A) 		8-98073-006-3 01 1 1008- ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> (B) 		8-98073-007-0 01 1 0809-1309 ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> (B) 		8-98245-501-0 01 1 1310- ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> (C) 		8-98097-032-0 01 1 0809- ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (E) 		8-98035-936-4 01 1 0712-1107 ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (E) 		8-98198-849-0 01 1 1108- ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (D) 		8-98043-016-3 01 1 0712-0912 ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (D) 		8-98161-196-0 01 1 1001-1202 ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (D) 		8-98208-160-0 01 1 1203-1303 ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (D) 		8-98243-546-0 01 1 1304- ●
1 PIPE; EXH
(C) 		1-22123-885-1 01 1 0710-0711 ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) 		1-22123-885-1 01 1 0712-0808 ● ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C) 		1-22123-885-1 01 1 0809- ● ●
1 PIPE; EXH
(B) 		8-98056-496-1 01 1 0710-0711 ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) 		8-98056-496-1 01 1 0712-0808 ● ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-98056-496-1 01 1 0809-1209 ● ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		8-98215-406-0 01 1 1210- ● ●
1 PIPE; EXH
(A) 		8-98061-088-1 01 1 0710-0711 ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98061-088-1 01 1 0712-0808 ● ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		8-98061-088-1 01 1 0809-0902 ● ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> (A) 		8-98120-560-0 01 1 0903-0906 ●
1 PIPE; EXH
6HK1-TCN ENG(82L) (A) 		8-98120-560-0 01 1 0903-0906 ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		8-98120-560-0 01 1 0907-1209 ● ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-98215-407-1 01 1 1210- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) 		8-97381-455-0 01 1 0712- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0710-0711 ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98043-481-0 01 1 0712- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) ID=81 		8-98043-481-0 01 1 0712- ●
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98044-124-0 01 1 0712- ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) (H) 		8-98044-122-0 01 1 0712-0712 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-98044-122-0 01 1 0712- ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97605-172-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-086-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97611-087-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-97611-088-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (E) 		8-97611-089-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97613-390-0 01 1 0809- ● ●
6 BOLT; HEAT PROTECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0712 ●
6 BOLT; HEAT PROTECTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> (B) 		8-98233-626-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98233-626-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98233-626-0 01 1 1305-1310 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98233-626-0 01 1 1305-1310 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98259-870-0 01 1 1311- ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98259-870-0 01 1 1311- ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> (A) 		8-98233-627-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98233-627-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98233-627-0 01 1 1305-1404 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98233-627-0 01 1 1305-1404 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98275-817-0 01 1 1405- ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98275-817-0 01 1 1405- ●
8 BRACKET; EXH PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> (B) 		8-98233-345-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (B) 		8-98233-345-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (B) 		8-98233-345-0 01 1 1305-1310 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (B) 		8-98233-345-0 01 1 1305-1310 ●
8 BRACKET; EXH PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (B) 		8-98259-873-0 01 1 1311- ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (B) 		8-98259-873-0 01 1 1311- ●
8 BRACKET; EXH PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> (A) 		8-98233-348-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (A) 		8-98233-348-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (A) 		8-98233-348-0 01 1 1305- ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (A) 		8-98233-348-0 01 1 1305- ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2> (B) 		8-98122-677-0 01 1 0812-0906 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> (B) 		8-98122-677-0 01 1 0907-1209 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98122-677-0 01 1 1210-1301 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98122-677-0 01 1 1210-1301 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> (B) 		8-98122-677-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2> (A) 		8-98122-679-0 01 1 0812-0906 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> (A) 		8-98122-679-1 01 1 0907-1006 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98122-679-1 01 1 1007-1301 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98122-679-1 01 1 1007-1301 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> (A) 		8-98122-679-1 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (A) 		8-98113-013-0 01 1 0806-1301 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (A) 		8-98113-013-0 01 1 0806-1301 ●
8 BRACKET; EXH PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> (A) 		8-98113-013-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (B) 		8-98114-390-0 01 1 0806-1301 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (B) 		8-98114-390-0 01 1 0806-1301 ●
8 BRACKET; EXH PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> (B) 		8-98114-390-0 01 1 1302-1304 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (A) 		8-98089-802-0 01 1 0710-0711 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (A) 		8-98089-802-0 01 1 0712-0811 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW) (A) 		8-98089-802-0 01 1 0712-0811 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) EURO4 SPECIFICATION<NT4> (A) 		8-98089-802-0 01 1 0812-0906 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW) (A) 		8-98089-802-0 01 1 0812-0906 ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> (A) 		8-98089-802-0 01 1 0907-1006 ●
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98089-802-0 01 1 0907-1006 ●
17 BOLT; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) KD PREPARATORY PACK<6HF> M12X35 FLANGE 		0-28051-235-0 04 1 1204- ●
17 BOLT; EXH PIPE
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 04 1 0809-0810 ●
17 BOLT; EXH PIPE
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0811- ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 0710-0711 ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 0712- ●
17 BOLT; EXH PIPE
6HK1-TCN ENG(82L) M12X35 FLANGE 		0-28051-235-0 03 1 0712- ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (C) 		8-97615-334-0 01 1 1305- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 0710-0711 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=80-84 		1-22133-233-0 04 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=80-84 		1-22133-233-0 04 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 04 1 0809-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=80-84 		1-22133-233-0 04 1 0809-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		1-22133-295-0 01 1 0712-1309 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-97646-674-0 01 1 1310- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0710-0711 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0712-0808 ● ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ● ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1302- ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 1302- ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 1302- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1302- ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0710-0711 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0712- ●
34 WASHER; EXH PIPE
6HK1-TCN ENG(82L) ID=13 OD=24 DISH 		1-09500-030-0 03 1 0712- ●
36 NUT; EXH PIPE
EURO2 SPECIFICATION<NT2> (E) M10 FLANGE 		0-91180-210-0 04 1 0809-0810 ●
36 NUT; EXH PIPE
EURO2 SPECIFICATION<NT2> (E) M10 FLANGE 		0-91180-210-0 02 1 0811- ●
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (D) M10 		0-91110-510-0 04 1 0712- ●
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		8-97096-192-1 03 1 0712- ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710-0711 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0712- ●
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (B) M12 FLANGE 		0-91180-212-0 07 1 0712- ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710-0711 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0712- ●
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (A) M12 		1-09400-010-0 03 1 0712- ●
44 BOLT; BRKT
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (C) M10X20 FLANGE 		0-28751-020-0 03 1 1305- ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0710-0711 ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0712-0808 ● ●
44 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X35 FLANGE 		0-28651-035-0 08 1 0809- ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0809- ●
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0907 ●
44 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0907 ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0908- ●
44 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0908- ●
46 BOLT; BRKT,EXH PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) M10X30 FLANGE 		0-28051-030-0 02 1 0806-0811 ●
46 BOLT; BRKT,EXH PIPE
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) M10X30 FLANGE 		0-28051-030-0 02 1 0806-0811 ●
46 BOLT; BRKT,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2> M10X30 FLANGE 		0-28051-030-0 02 1 0812-0906 ●
46 BOLT; BRKT,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) M10X30 FLANGE 		0-28051-030-0 02 1 0812-0906 ●
46 BOLT; BRKT,EXH PIPE
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) M10X30 FLANGE 		0-28051-030-0 02 1 0812-0906 ●
46 BOLT; BRKT,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> M10X30 FLANGE 		0-28051-030-0 02 1 0907-1209 ●
46 BOLT; BRKT,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) M10X30 FLANGE 		0-28051-030-0 02 1 0907-1209 ●
46 BOLT; BRKT,EXH PIPE
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) M10X30 FLANGE 		0-28051-030-0 02 1 0907-1209 ●
46 BOLT; BRKT,EXH PIPE
M10X30 FLANGE 		0-28051-030-0 02 1 1210- ●
46 BOLT; BRKT,EXH PIPE
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28051-030-0 02 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (E) 		8-97629-970-0 01 1 1305- ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98122-673-0 01 1 1107-1209 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98122-673-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98122-673-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2> (D) 		8-98122-671-0 01 1 0812-0906 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> (D) 		8-98122-671-0 01 1 0907-1106 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98122-671-0 01 1 1107-1209 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98122-671-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98122-671-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (C) 		8-98113-008-0 01 1 0806- ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (C) 		8-98113-008-0 01 1 0806- ●
49 BRACKET; EXH PIPE TO TRANS
4HK1-TCS ENG(RJS) (A) 		8-98042-786-0 01 1 0712-1301 ●
49 BRACKET; EXH PIPE TO TRANS
4HK1-TCS ENG(RJS) (A) 		8-98234-530-0 01 1 1302- ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (B) 		8-98085-317-2 01 1 0710-0711 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (B) 		8-98085-317-2 01 1 0712-0811 ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW) (B) 		8-98085-317-2 01 1 0712-0811 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) EURO4 SPECIFICATION<NT4> (B) 		8-98085-317-2 01 1 0812-0906 ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW) (B) 		8-98085-317-2 01 1 0812-0906 ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> (B) 		8-98085-317-2 01 1 0907-1209 ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98085-317-2 01 1 0907-1209 ●
52 NUT; BRKT
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 04 1 0712- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710-0710 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0710-0711 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0712-0808 ● ●
52 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 07 1 0809- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0809- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ●
52 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 0712- ●

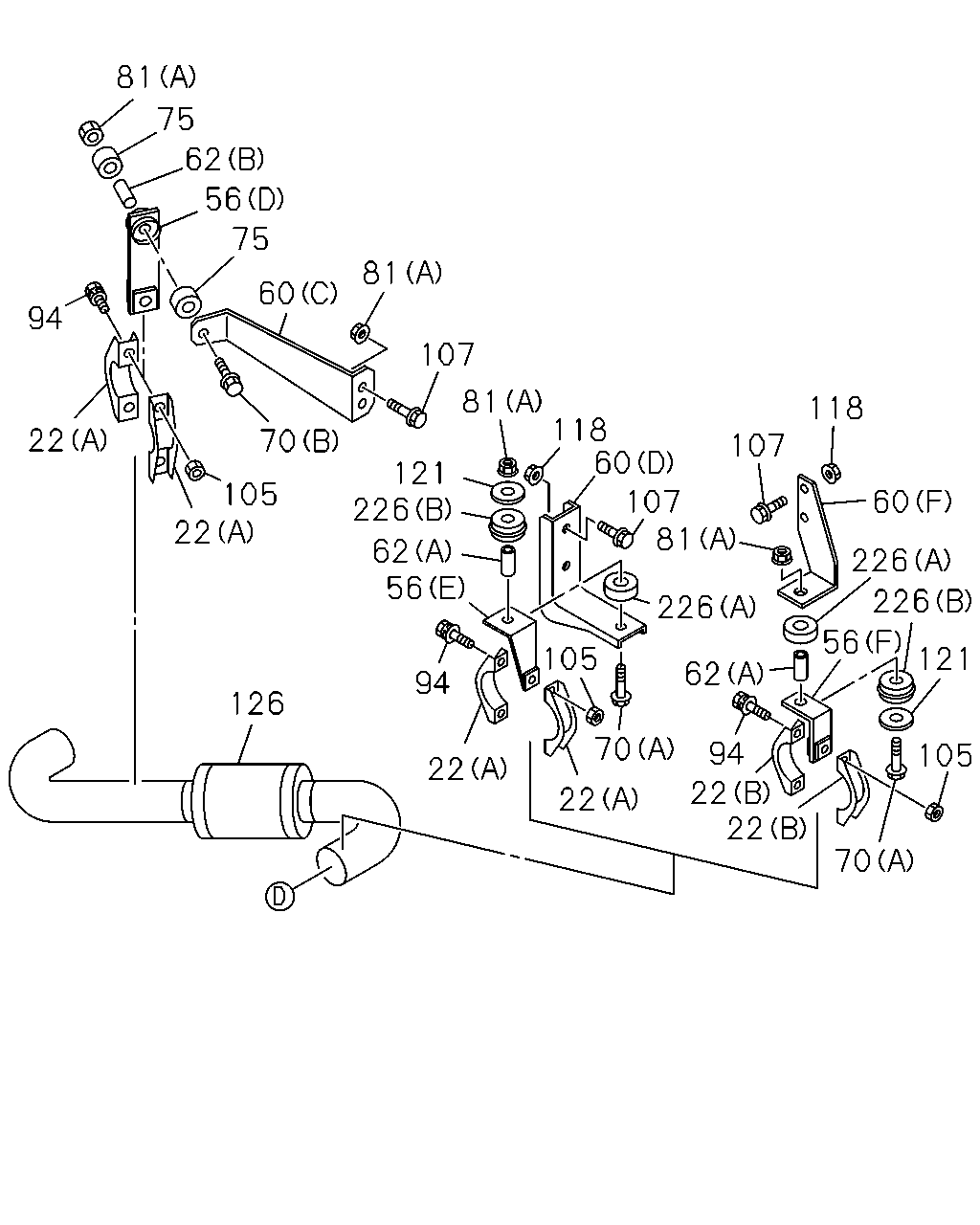

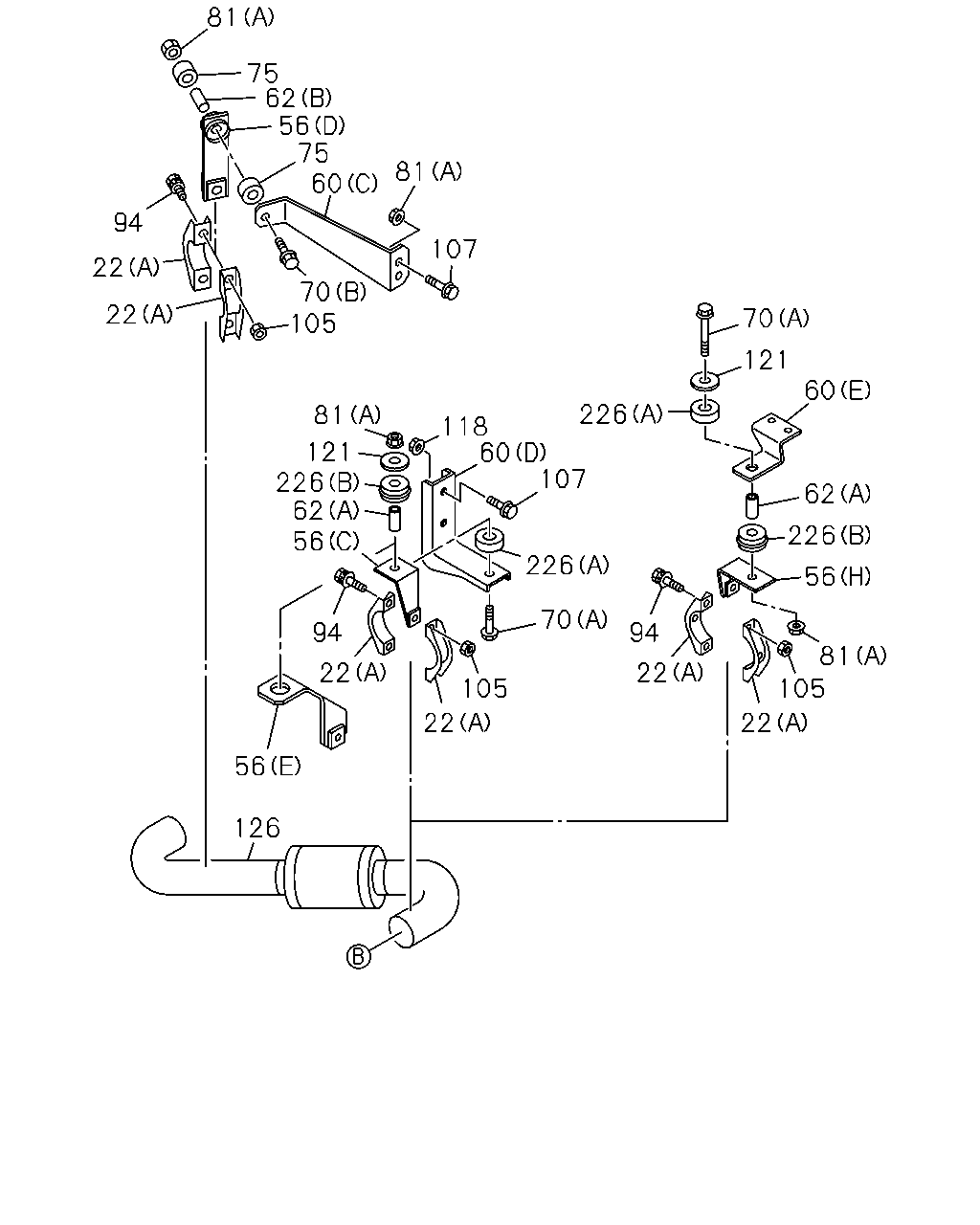

81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 04 1 1302-1304 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE 		0-91180-110-0 02 1 1305- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 03 1 0911-1007 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0712-0808 ● ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0712-0808 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1302- ●

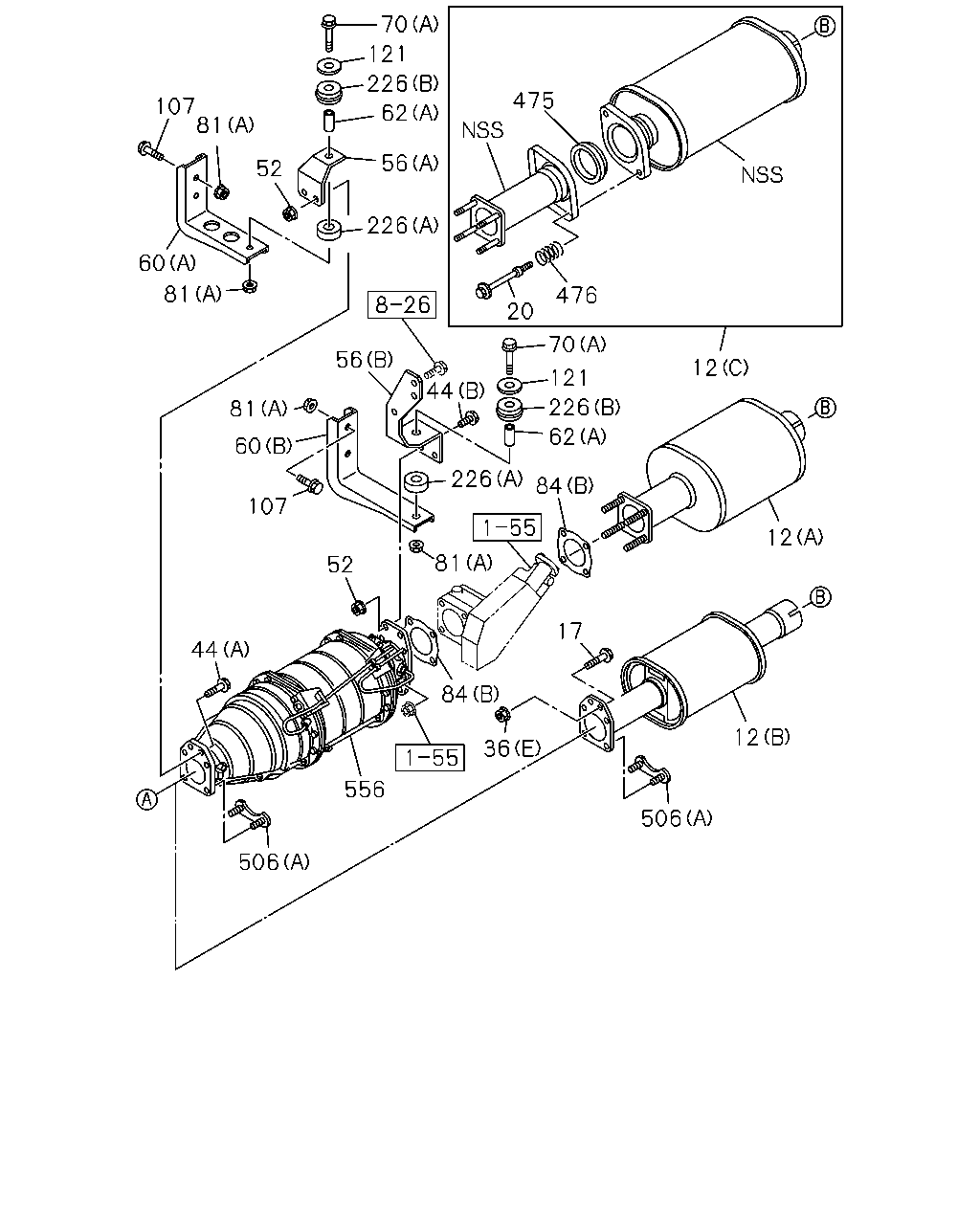

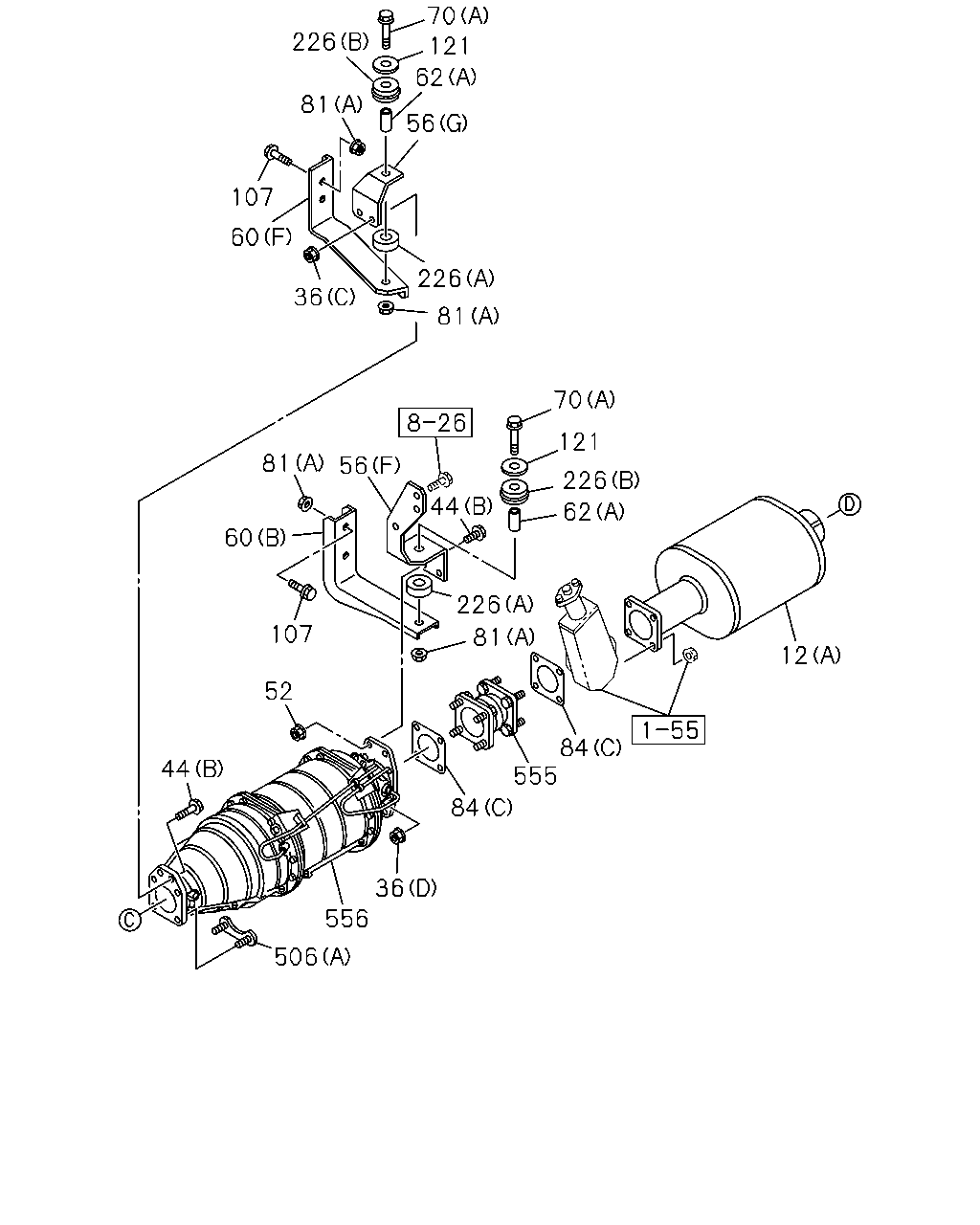

84 GASKET; EXH PIPE
EXC. EURO4 SPECIFICATION<NT4> (A) 		8-98096-305-0 01 1 0809-0910 ●
84 GASKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98096-305-0 01 1 0911- ●
84 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) (C) ID=64 		8-97373-108-0 02 1 0712- ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710-0711 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710-0711 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0712-0808 ● ●
84 GASKET; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=85.8 		1-22116-043-0 01 1 0712-0808 ● ●
84 GASKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
6HK1-TCN ENG(82L) (B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710-0711 ●
84 GASKET; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-22116-040-0 01 1 0712-0808 ● ●
84 GASKET; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		1-22116-040-0 01 1 0809- ● ●

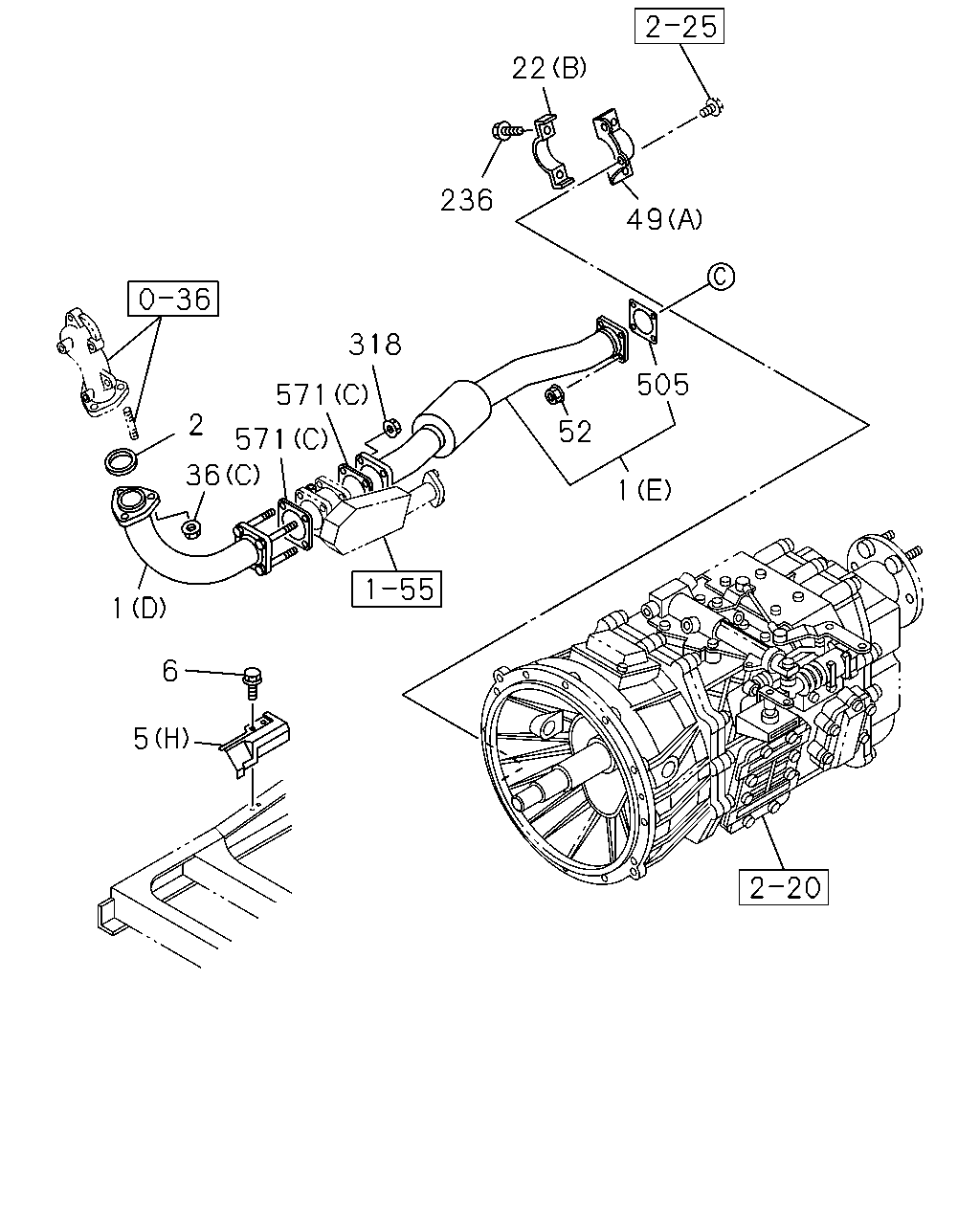

236 BOLT; PIPE CLAMP TO BRKT
4HK1-TCS ENG(RJS) M10X30 FLANGE 		0-28051-030-0 02 1 0712- ●
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0710-0711 ●
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0712-1301 ●
236 BOLT; PIPE CLAMP TO BRKT
6HK1-TCN ENG(82L) M10X35 FLANGE 		0-28051-035-0 02 1 0712-1301 ●
236 BOLT; PIPE CLAMP TO BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28051-035-0 02 1 1302-1304 ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0710-0711 ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0712- ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
6HK1-TCN ENG(82L) ID=10.5 		8-98073-091-0 02 1 0712- ●
318 NUT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) M8 W/LK WASHER 		8-97581-234-0 04 1 0712- ●
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0710-0711 ●
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0712-0712 ●
318 NUT; EXH PIPE,FRT
6HK1-TCN ENG(82L) M10 		0-91110-510-0 04 1 0712-0712 ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801- ●
318 NUT; EXH PIPE,FRT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 04 1 0801- ●
506 BRACKET; STUD
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-333-1 01 1 1305- ●
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0710-0711 ●
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0712-1203 ● ●
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> (A) M12X35 		1-22131-963-0 02 1 1204- ●
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 1204- ●
509 STUD; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> 		8-98233-625-0 01 1 1302-1304 ● ●
509 STUD; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-98233-625-0 01 1 1305-1311 ● ●
509 STUD; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-98259-983-0 01 1 1312- ● ●
571 GASKET
4HK1-TCS ENG(RJS) (C) ID=64 		8-97373-108-0 02 1 0712- ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0710-0711 ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0712- ●
571 GASKET
6HK1-TCN ENG(82L) (A) ID=85.8 		1-22116-043-0 02 1 0712- ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0710-0711 ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0712- ●
571 GASKET
6HK1-TCN ENG(82L) (B) ID=81 		8-98043-481-0 01 1 0712- ●
çizim 96572
17 12 12 506 36 84 556 506 44 52 81 84 62 226 121 70 12 107 60 81 56 44 226 20 476 475 70 226 56 62 226 121 52 81 60 81 107
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> (B) 		8-98101-274-1 01 1 0809- ●
12 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (A) 		8-98041-921-0 01 1 0712- ●
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0710-0711 ●
12 SILENCER ASM; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98041-925-1 01 1 0712-0808 ● ●
12 SILENCER ASM; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		8-98041-925-1 01 1 0809-1301 ● ●
12 SILENCER ASM; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C) 		8-98234-507-0 01 1 1302- ● ●
17 BOLT; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) KD PREPARATORY PACK<6HF> M12X35 FLANGE 		0-28051-235-0 04 1 1204- ●
17 BOLT; EXH PIPE
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 04 1 0809-0810 ●
17 BOLT; EXH PIPE
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0811- ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 0710-0711 ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 0712- ●
17 BOLT; EXH PIPE
6HK1-TCN ENG(82L) M12X35 FLANGE 		0-28051-235-0 03 1 0712- ●
20 BOLT; FLANGE,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> 		8-98233-481-0 02 1 1302- ● ●
20 BOLT; FLANGE,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> 		8-98233-481-0 02 1 1302- ● ●
36 NUT; EXH PIPE
EURO2 SPECIFICATION<NT2> (E) M10 FLANGE 		0-91180-210-0 04 1 0809-0810 ●
36 NUT; EXH PIPE
EURO2 SPECIFICATION<NT2> (E) M10 FLANGE 		0-91180-210-0 02 1 0811- ●
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (D) M10 		0-91110-510-0 04 1 0712- ●
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		8-97096-192-1 03 1 0712- ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710-0711 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0712- ●
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (B) M12 FLANGE 		0-91180-212-0 07 1 0712- ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710-0711 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0712- ●
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (A) M12 		1-09400-010-0 03 1 0712- ●
44 BOLT; BRKT
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (C) M10X20 FLANGE 		0-28751-020-0 03 1 1305- ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0710-0711 ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0712-0808 ● ●
44 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X35 FLANGE 		0-28651-035-0 08 1 0809- ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0809- ●
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0907 ●
44 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0907 ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0908- ●
44 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0908- ●
52 NUT; BRKT
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 04 1 0712- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710-0710 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0710-0711 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0712-0808 ● ●
52 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 07 1 0809- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0809- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ●
52 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-756-0 02 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (C) 		8-98059-756-0 02 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) 		8-98059-756-0 02 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (C) 		8-98059-756-0 02 1 0809-1301 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) 		8-98059-756-0 02 1 0809-1301 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (E) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (E) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<NT2> (C) 		8-98073-291-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (H) 		8-98059-762-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (E) 		8-98059-755-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (F) 		8-98074-825-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (G) 		8-98074-826-1 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 0712-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98074-829-1 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) 		8-98074-830-0 01 1 0712-0808 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-98074-830-0 01 1 0809- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-753-1 02 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D) 		8-98059-753-1 02 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98059-753-1 02 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (D) 		8-98059-753-1 02 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98059-753-1 02 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (D) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98059-753-1 01 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (D) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (D) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (E) 		8-98059-759-0 01 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (E) 		8-98234-195-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (F) 		8-98061-138-1 01 1 0712- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0712-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-22152-274-1 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0712-0808 ● ●
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION<NT4> (B) 		8-98059-712-1 01 1 0809- ● ●
62 TUBE; DIST,BRKT
4HK1-TCS ENG(RJS) (A) L=39 		8-98060-852-0 01 1 0712-0808 ●
62 TUBE; DIST,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 0809-1301 ●
62 TUBE; DIST,BRKT
4HK1-TCS ENG(RJS) (A) L=39 		8-98060-852-0 01 1 0809-1301 ●
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0710-0711 ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 0710-0711 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0712-0808 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 0712-0808 ●
62 TUBE; DIST,BRKT
6HK1-TCN ENG(82L) (A) L=39 		8-98060-852-0 02 1 0712-0808 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0809-1301 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 02 1 0809-1301 ●
62 TUBE; DIST,BRKT
6HK1-TCN ENG(82L) (A) L=39 		8-98060-852-0 02 1 0809-1301 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0711 ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0712-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907- ● ●
70 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0712-0808 ●
70 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-1301 ●
70 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-1301 ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-0711 ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-0711 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ● ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ●
70 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ● ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ●
70 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0711 ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0712- ● ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 04 1 1302-1304 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE 		0-91180-110-0 02 1 1305- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 03 1 0911-1007 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0712-0808 ● ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0712-0808 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
84 GASKET; EXH PIPE
EXC. EURO4 SPECIFICATION<NT4> (A) 		8-98096-305-0 01 1 0809-0910 ●
84 GASKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98096-305-0 01 1 0911- ●
84 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) (C) ID=64 		8-97373-108-0 02 1 0712- ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710-0711 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710-0711 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0712-0808 ● ●
84 GASKET; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=85.8 		1-22116-043-0 01 1 0712-0808 ● ●
84 GASKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
6HK1-TCN ENG(82L) (B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710-0711 ●
84 GASKET; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-22116-040-0 01 1 0712-0808 ● ●
84 GASKET; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		1-22116-040-0 01 1 0809- ● ●
107 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0906 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0907- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-1 01 1 0710-0711 ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-1 02 1 0710-0711 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0712-0808 ● ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 02 1 0809- ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) ID=11 OD=54 		1-09503-154-2 02 1 0809- ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 01 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0712-0808 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (A) 		8-94457-277-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0809-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (A) 		8-94457-277-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0712-0808 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (B) 		8-94457-278-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0809-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (B) 		8-94457-278-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> 		8-98233-479-0 01 1 1302- ● ●
476 SPRING; VIBNON,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> 		8-98233-482-0 02 1 1302- ● ●
506 BRACKET; STUD
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-333-1 01 1 1305- ●
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0710-0711 ●
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0712-1203 ● ●
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> (A) M12X35 		1-22131-963-0 02 1 1204- ●
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 1204- ●

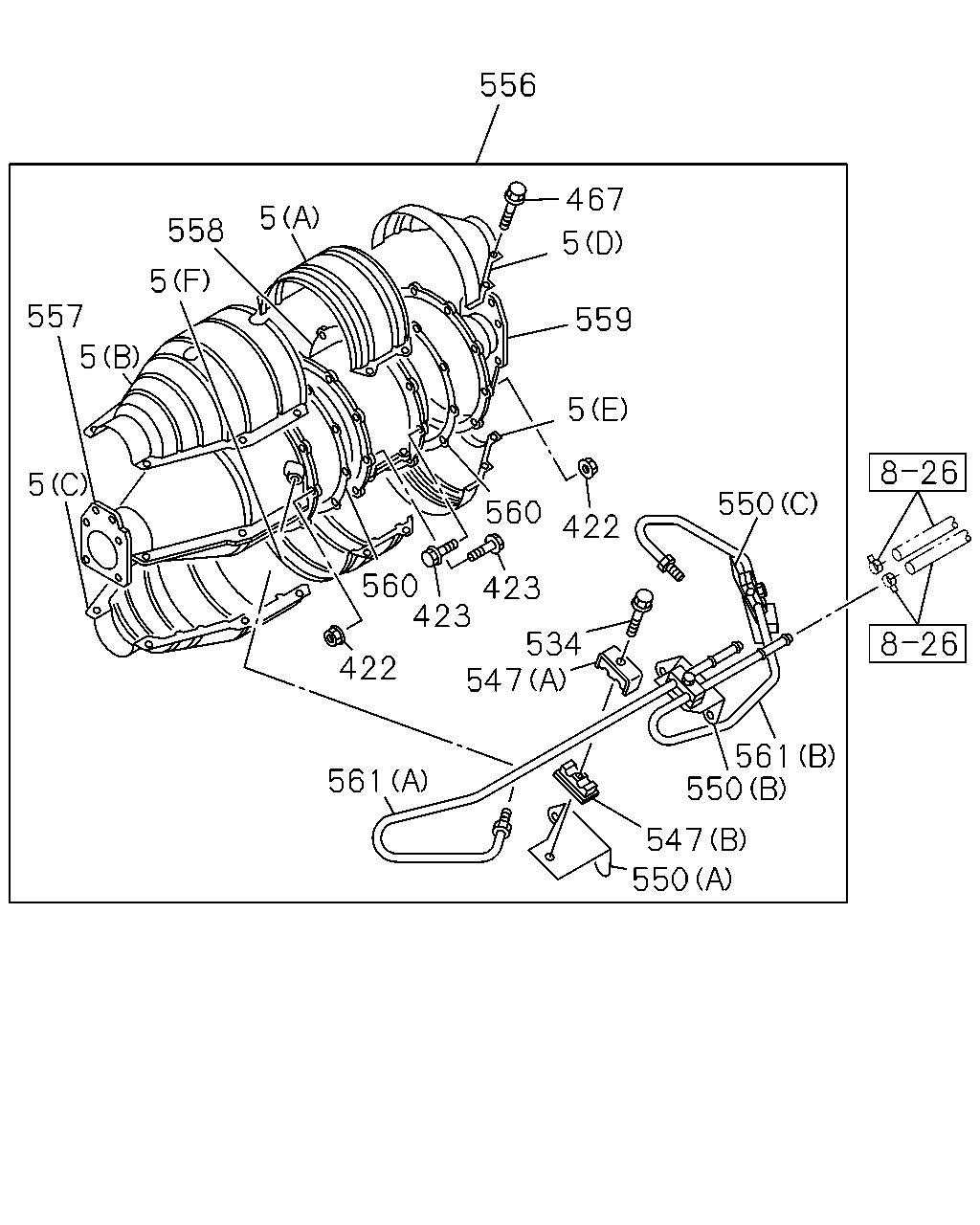

556 DPD ASM 8-97613-331-1 01 1 0710-0711 ●
556 DPD ASM 8-97613-331-6 01 1 0712-0808 ● ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97613-331-6 01 1 0809-1010 ● ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97622-883-4 01 1 1011- ● ●
çizim 97265
22 236 49 318 505 571 2 52 571 36 1 1 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98090-385-0 01 1 1008- ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> (A) 		8-98073-006-0 01 1 0809-1007 ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (A) 		8-98073-006-3 01 1 1008- ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> (B) 		8-98073-007-0 01 1 0809-1309 ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> (B) 		8-98245-501-0 01 1 1310- ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> (C) 		8-98097-032-0 01 1 0809- ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (E) 		8-98035-936-4 01 1 0712-1107 ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (E) 		8-98198-849-0 01 1 1108- ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (D) 		8-98043-016-3 01 1 0712-0912 ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (D) 		8-98161-196-0 01 1 1001-1202 ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (D) 		8-98208-160-0 01 1 1203-1303 ●
1 PIPE; EXH
4HK1-TCS ENG(RJS) (D) 		8-98243-546-0 01 1 1304- ●
1 PIPE; EXH
(C) 		1-22123-885-1 01 1 0710-0711 ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) 		1-22123-885-1 01 1 0712-0808 ● ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C) 		1-22123-885-1 01 1 0809- ● ●
1 PIPE; EXH
(B) 		8-98056-496-1 01 1 0710-0711 ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) 		8-98056-496-1 01 1 0712-0808 ● ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-98056-496-1 01 1 0809-1209 ● ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		8-98215-406-0 01 1 1210- ● ●
1 PIPE; EXH
(A) 		8-98061-088-1 01 1 0710-0711 ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98061-088-1 01 1 0712-0808 ● ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		8-98061-088-1 01 1 0809-0902 ● ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> (A) 		8-98120-560-0 01 1 0903-0906 ●
1 PIPE; EXH
6HK1-TCN ENG(82L) (A) 		8-98120-560-0 01 1 0903-0906 ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		8-98120-560-0 01 1 0907-1209 ● ●
1 PIPE; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-98215-407-1 01 1 1210- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) 		8-97381-455-0 01 1 0712- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0710-0711 ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98043-481-0 01 1 0712- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) ID=81 		8-98043-481-0 01 1 0712- ●
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98044-124-0 01 1 0712- ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) (H) 		8-98044-122-0 01 1 0712-0712 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-98044-122-0 01 1 0712- ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97605-172-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-086-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97611-087-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-97611-088-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (E) 		8-97611-089-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97613-390-0 01 1 0809- ● ●
6 BOLT; HEAT PROTECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0712 ●
6 BOLT; HEAT PROTECTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (C) 		8-97615-334-0 01 1 1305- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 0710-0711 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=80-84 		1-22133-233-0 04 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=80-84 		1-22133-233-0 04 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 04 1 0809-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=80-84 		1-22133-233-0 04 1 0809-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		1-22133-295-0 01 1 0712-1309 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-97646-674-0 01 1 1310- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0710-0711 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0712-0808 ● ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ● ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1302- ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 1302- ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 1302- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1302- ●
36 NUT; EXH PIPE
EURO2 SPECIFICATION<NT2> (E) M10 FLANGE 		0-91180-210-0 04 1 0809-0810 ●
36 NUT; EXH PIPE
EURO2 SPECIFICATION<NT2> (E) M10 FLANGE 		0-91180-210-0 02 1 0811- ●
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (D) M10 		0-91110-510-0 04 1 0712- ●
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		8-97096-192-1 03 1 0712- ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710-0711 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0712- ●
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (B) M12 FLANGE 		0-91180-212-0 07 1 0712- ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710-0711 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0712- ●
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (A) M12 		1-09400-010-0 03 1 0712- ●
49 BRACKET; EXH PIPE TO TRANS
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (E) 		8-97629-970-0 01 1 1305- ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98122-673-0 01 1 1107-1209 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98122-673-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98122-673-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2> (D) 		8-98122-671-0 01 1 0812-0906 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> (D) 		8-98122-671-0 01 1 0907-1106 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98122-671-0 01 1 1107-1209 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98122-671-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98122-671-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
MLD6Q M/T(X5J),MLD6S M/T(X7W),MLD6W M/T(Y2C) (C) 		8-98113-008-0 01 1 0806- ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (C) 		8-98113-008-0 01 1 0806- ●
49 BRACKET; EXH PIPE TO TRANS
4HK1-TCS ENG(RJS) (A) 		8-98042-786-0 01 1 0712-1301 ●
49 BRACKET; EXH PIPE TO TRANS
4HK1-TCS ENG(RJS) (A) 		8-98234-530-0 01 1 1302- ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (B) 		8-98085-317-2 01 1 0710-0711 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (B) 		8-98085-317-2 01 1 0712-0811 ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW) (B) 		8-98085-317-2 01 1 0712-0811 ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) EURO4 SPECIFICATION<NT4> (B) 		8-98085-317-2 01 1 0812-0906 ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW) (B) 		8-98085-317-2 01 1 0812-0906 ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> (B) 		8-98085-317-2 01 1 0907-1209 ●
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98085-317-2 01 1 0907-1209 ●
52 NUT; BRKT
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 04 1 0712- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710-0710 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0710-0711 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0712-0808 ● ●
52 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 07 1 0809- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0809- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ●
52 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 0712- ●
236 BOLT; PIPE CLAMP TO BRKT
4HK1-TCS ENG(RJS) M10X30 FLANGE 		0-28051-030-0 02 1 0712- ●
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0710-0711 ●
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0712-1301 ●
236 BOLT; PIPE CLAMP TO BRKT
6HK1-TCN ENG(82L) M10X35 FLANGE 		0-28051-035-0 02 1 0712-1301 ●
236 BOLT; PIPE CLAMP TO BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28051-035-0 02 1 1302-1304 ●
318 NUT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) M8 W/LK WASHER 		8-97581-234-0 04 1 0712- ●
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0710-0711 ●
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0712-0712 ●
318 NUT; EXH PIPE,FRT
6HK1-TCN ENG(82L) M10 		0-91110-510-0 04 1 0712-0712 ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801- ●
318 NUT; EXH PIPE,FRT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 04 1 0801- ●
505 GASKET; CONV TO EXH PIPE
4HK1-TCS ENG(RJS) ID=87 		8-94394-391-0 01 1 0712-1107 ●
571 GASKET
4HK1-TCS ENG(RJS) (C) ID=64 		8-97373-108-0 02 1 0712- ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0710-0711 ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0712- ●
571 GASKET
6HK1-TCN ENG(82L) (A) ID=85.8 		1-22116-043-0 02 1 0712- ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0710-0711 ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0712- ●
571 GASKET
6HK1-TCN ENG(82L) (B) ID=81 		8-98043-481-0 01 1 0712- ●
çizim 97455
226 81 107 60 36 70 121 62 56 226 81 56 81 60 107 52 44 506 556 36 84 84 555 12 81 226 44 62 226 121 70
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> (B) 		8-98101-274-1 01 1 0809- ●
12 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (A) 		8-98041-921-0 01 1 0712- ●
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0710-0711 ●
12 SILENCER ASM; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98041-925-1 01 1 0712-0808 ● ●
12 SILENCER ASM; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		8-98041-925-1 01 1 0809-1301 ● ●
12 SILENCER ASM; EXH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C) 		8-98234-507-0 01 1 1302- ● ●
36 NUT; EXH PIPE
EURO2 SPECIFICATION<NT2> (E) M10 FLANGE 		0-91180-210-0 04 1 0809-0810 ●
36 NUT; EXH PIPE
EURO2 SPECIFICATION<NT2> (E) M10 FLANGE 		0-91180-210-0 02 1 0811- ●
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (D) M10 		0-91110-510-0 04 1 0712- ●
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		8-97096-192-1 03 1 0712- ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710-0711 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0712- ●
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (B) M12 FLANGE 		0-91180-212-0 07 1 0712- ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710-0711 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0712- ●
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (A) M12 		1-09400-010-0 03 1 0712- ●
44 BOLT; BRKT
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (C) M10X20 FLANGE 		0-28751-020-0 03 1 1305- ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0710-0711 ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0712-0808 ● ●
44 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X35 FLANGE 		0-28651-035-0 08 1 0809- ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0809- ●
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0907 ●
44 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0907 ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0908- ●
44 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0908- ●
52 NUT; BRKT
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 04 1 0712- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710-0710 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0710-0711 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0712-0808 ● ●
52 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 07 1 0809- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0809- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ●
52 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-756-0 02 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (C) 		8-98059-756-0 02 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) 		8-98059-756-0 02 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (C) 		8-98059-756-0 02 1 0809-1301 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) 		8-98059-756-0 02 1 0809-1301 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (E) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (E) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<NT2> (C) 		8-98073-291-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (H) 		8-98059-762-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (E) 		8-98059-755-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (F) 		8-98074-825-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (G) 		8-98074-826-1 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 0712-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98074-829-1 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) 		8-98074-830-0 01 1 0712-0808 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-98074-830-0 01 1 0809- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-753-1 02 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D) 		8-98059-753-1 02 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98059-753-1 02 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (D) 		8-98059-753-1 02 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98059-753-1 02 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (D) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98059-753-1 01 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (D) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (D) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (E) 		8-98059-759-0 01 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (E) 		8-98234-195-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (F) 		8-98061-138-1 01 1 0712- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0712-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-22152-274-1 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0712-0808 ● ●
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION<NT4> (B) 		8-98059-712-1 01 1 0809- ● ●
62 TUBE; DIST,BRKT
4HK1-TCS ENG(RJS) (A) L=39 		8-98060-852-0 01 1 0712-0808 ●
62 TUBE; DIST,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 0809-1301 ●
62 TUBE; DIST,BRKT
4HK1-TCS ENG(RJS) (A) L=39 		8-98060-852-0 01 1 0809-1301 ●
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0710-0711 ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 0710-0711 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0712-0808 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 0712-0808 ●
62 TUBE; DIST,BRKT
6HK1-TCN ENG(82L) (A) L=39 		8-98060-852-0 02 1 0712-0808 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0809-1301 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 02 1 0809-1301 ●
62 TUBE; DIST,BRKT
6HK1-TCN ENG(82L) (A) L=39 		8-98060-852-0 02 1 0809-1301 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0711 ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0712-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907- ● ●
70 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0712-0808 ●
70 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-1301 ●
70 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-1301 ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-0711 ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-0711 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ● ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ●
70 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ● ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ●
70 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0711 ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0712- ● ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 04 1 1302-1304 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE 		0-91180-110-0 02 1 1305- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 03 1 0911-1007 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0712-0808 ● ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0712-0808 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
84 GASKET; EXH PIPE
EXC. EURO4 SPECIFICATION<NT4> (A) 		8-98096-305-0 01 1 0809-0910 ●
84 GASKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98096-305-0 01 1 0911- ●
84 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) (C) ID=64 		8-97373-108-0 02 1 0712- ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710-0711 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710-0711 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0712-0808 ● ●
84 GASKET; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=85.8 		1-22116-043-0 01 1 0712-0808 ● ●
84 GASKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
6HK1-TCN ENG(82L) (B) ID=85.8 		1-22116-043-0 01 1 0809- ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710-0711 ●
84 GASKET; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-22116-040-0 01 1 0712-0808 ● ●
84 GASKET; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		1-22116-040-0 01 1 0809- ● ●
107 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0906 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0907- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-1 01 1 0710-0711 ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-1 02 1 0710-0711 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0712-0808 ● ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 02 1 0809- ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) ID=11 OD=54 		1-09503-154-2 02 1 0809- ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 01 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0712-0808 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (A) 		8-94457-277-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0809-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (A) 		8-94457-277-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0712-0808 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (B) 		8-94457-278-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0809-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (B) 		8-94457-278-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302- ● ●
506 BRACKET; STUD
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-333-1 01 1 1305- ●
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0710-0711 ●
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0712-1203 ● ●
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> (A) M12X35 		1-22131-963-0 02 1 1204- ●
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 1204- ●
555 PIPE; EXH,DPD
4HK1-TCS ENG(RJS) 		8-98060-847-0 01 1 0712- ●
556 DPD ASM 8-97613-331-1 01 1 0710-0711 ●
556 DPD ASM 8-97613-331-6 01 1 0712-0808 ● ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97613-331-6 01 1 0809-1010 ● ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97622-883-4 01 1 1011- ● ●
çizim 97492
556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98044-124-0 01 1 0712- ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) (H) 		8-98044-122-0 01 1 0712-0712 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-98044-122-0 01 1 0712- ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97605-172-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-086-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97611-087-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-97611-088-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (E) 		8-97611-089-0 01 1 0809- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0710-0711 ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0712-0808 ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97613-390-0 01 1 0809- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0710-0711 ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0712-0808 ● ●
422 NUT; PIPE
CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 20 1 0809- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0710-0711 ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0712-0808 ● ●
423 BOLT; PIPE
CATALYSIS CONTROL WITH DPD<8JM> M8X35 FLANGE 		0-28650-835-0 20 1 0809- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0710-0711 ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0712-0808 ● ●
467 BOLT; PROTECTOR
CATALYSIS CONTROL WITH DPD<8JM> M6X16 		8-98019-179-0 14 1 0809- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0710-0711 ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0712-0808 ● ●
534 BOLT; CLIP
CATALYSIS CONTROL WITH DPD<8JM> M6X35 FLANGE 		0-28650-635-0 03 1 0809- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0710-0711 ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0712-0808 ● ●
547 CLIP; PIPE
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97381-635-0 03 1 0809- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0710-0711 ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0712-0808 ● ●
547 CLIP; PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97381-636-0 03 1 0809- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0710-0711 ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0712-0808 ● ●
550 BRACKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97611-083-0 01 1 0809- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0710-0711 ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0712-0808 ● ●
550 BRACKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-084-0 01 1 0809- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0710-0711 ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0712-0808 ● ●
550 BRACKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97611-085-0 01 1 0809- ● ●
556 DPD ASM 8-97613-331-1 01 1 0710-0711 ●
556 DPD ASM 8-97613-331-6 01 1 0712-0808 ● ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97613-331-6 01 1 0809-1010 ● ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97622-883-4 01 1 1011- ● ●
557 CATALYST ASM 8-97608-055-1 01 1 0710-0711 ●
557 CATALYST ASM 8-97608-055-7 01 1 0712-0808 ● ●
557 CATALYST ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97608-055-8 01 1 0809- ● ●
558 FILTER ASM 8-97608-057-0 01 1 0710-0711 ●
558 FILTER ASM 8-97608-057-3 01 1 0712-0808 ● ●
558 FILTER ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97608-057-3 01 1 0809- ● ●
559 COVER; RR 8-97611-078-0 01 1 0710-0711 ●
559 COVER; RR 8-97611-078-0 01 1 0712-0808 ● ●
559 COVER; RR
CATALYSIS CONTROL WITH DPD<8JM> 		8-97611-078-0 01 1 0809-1010 ● ●
559 COVER; RR
CATALYSIS CONTROL WITH DPD<8JM> 		8-97622-887-0 01 1 1011- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 0710-0711 ●
560 GASKET; DPD 8-97611-080-0 02 1 0712-0808 ● ●
560 GASKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> 		8-97611-080-0 02 1 0809- ● ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0710-0711 ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0712-0808 ● ●
561 PIPE; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97611-081-0 01 1 0809-1010 ● ●
561 PIPE; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97622-888-0 01 1 1011- ● ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0710-0711 ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0712-0808 ● ●
561 PIPE; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-082-0 01 1 0809-1010 ● ●
561 PIPE; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97622-889-0 01 1 1011- ● ●
çizim 192074
22 105 81 56 226 62 60 121 70 22 94 226 126 22 105 70 226 107 60 118 56 22 94 56 62 226 121 81 107 105 22 22 70 94 81 60 75 56 62 75 81
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (C) 		8-97615-334-0 01 1 1305- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 0710-0711 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=80-84 		1-22133-233-0 04 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=80-84 		1-22133-233-0 04 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 04 1 0809-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=80-84 		1-22133-233-0 04 1 0809-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		1-22133-295-0 01 1 0712-1309 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-97646-674-0 01 1 1310- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0710-0711 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0712-0808 ● ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ● ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1302- ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 1302- ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 1302- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-756-0 02 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (C) 		8-98059-756-0 02 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) 		8-98059-756-0 02 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (C) 		8-98059-756-0 02 1 0809-1301 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) 		8-98059-756-0 02 1 0809-1301 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (E) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (E) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<NT2> (C) 		8-98073-291-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (H) 		8-98059-762-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (E) 		8-98059-755-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (F) 		8-98074-825-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (G) 		8-98074-826-1 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 0712-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98074-829-1 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) 		8-98074-830-0 01 1 0712-0808 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-98074-830-0 01 1 0809- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-753-1 02 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D) 		8-98059-753-1 02 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98059-753-1 02 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (D) 		8-98059-753-1 02 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98059-753-1 02 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (D) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98059-753-1 01 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (D) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (D) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (E) 		8-98059-759-0 01 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (E) 		8-98234-195-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (F) 		8-98061-138-1 01 1 0712- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0712-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-22152-274-1 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0712-0808 ● ●
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION<NT4> (B) 		8-98059-712-1 01 1 0809- ● ●
62 TUBE; DIST,BRKT
4HK1-TCS ENG(RJS) (A) L=39 		8-98060-852-0 01 1 0712-0808 ●
62 TUBE; DIST,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 0809-1301 ●
62 TUBE; DIST,BRKT
4HK1-TCS ENG(RJS) (A) L=39 		8-98060-852-0 01 1 0809-1301 ●
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0710-0711 ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 0710-0711 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0712-0808 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 0712-0808 ●
62 TUBE; DIST,BRKT
6HK1-TCN ENG(82L) (A) L=39 		8-98060-852-0 02 1 0712-0808 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0809-1301 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 02 1 0809-1301 ●
62 TUBE; DIST,BRKT
6HK1-TCN ENG(82L) (A) L=39 		8-98060-852-0 02 1 0809-1301 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0711 ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0712-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907- ● ●
70 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0712-0808 ●
70 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-1301 ●
70 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-1301 ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-0711 ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-0711 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ● ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ●
70 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ● ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ●
70 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0711 ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0712- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0710-0711 ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0712- ● ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 04 1 1302-1304 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE 		0-91180-110-0 02 1 1305- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 03 1 0911-1007 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0712-0808 ● ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0712-0808 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 04 1 0710-0711 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10X40 FLANGE 		0-28651-040-0 04 1 0712-0808 ●
94 BOLT; CLAMP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M10X40 FLANGE 		0-28651-040-0 04 1 0712-0808 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 04 1 0809-1301 ●
94 BOLT; CLAMP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M10X40 FLANGE 		0-28651-040-0 04 1 0809-1301 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710-0711 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0712-0808 ● ●
94 BOLT; CLAMP
4HK1-TCS ENG(RJS) M10X40 FLANGE 		0-28651-040-0 02 1 0712-0808 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 02 1 0809-0910 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10X40 FLANGE 		0-28651-040-0 02 1 0809-0910 ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 02 1 0809-0910 ●
94 BOLT; CLAMP
4HK1-TCS ENG(RJS) M10X40 FLANGE 		0-28651-040-0 02 1 0809-0910 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0809-0910 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0911-1007 ● ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 02 1 0911-1007 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10X40 FLANGE 		0-28651-040-0 02 1 0911-1007 ●
94 BOLT; CLAMP
4HK1-TCS ENG(RJS) M10X40 FLANGE 		0-28651-040-0 02 1 0911-1007 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 02 1 1008-1301 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10X40 FLANGE 		0-28651-040-0 02 1 1008-1301 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M10X40 FLANGE 		0-28651-040-0 02 1 1008-1301 ●
94 BOLT; CLAMP
4HK1-TCS ENG(RJS) M10X40 FLANGE 		0-28651-040-0 02 1 1008-1301 ●
94 BOLT; CLAMP
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M10X40 FLANGE 		0-28651-040-0 02 1 1008-1301 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302- ● ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 02 1 1302- ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<NT2> M10X40 FLANGE 		0-28651-040-0 02 1 1302- ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302- ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 04 1 0712-0808 ●
105 NUT; CLAMP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M10 FLANGE 		0-91180-210-0 04 1 0712-0808 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 04 1 0809-1301 ●
105 NUT; CLAMP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M10 FLANGE 		0-91180-210-0 04 1 0809-1301 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
105 NUT; CLAMP
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
105 NUT; CLAMP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
105 NUT; CLAMP
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
105 NUT; CLAMP
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
105 NUT; CLAMP
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
105 NUT; CLAMP
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 1302- ●
105 NUT; CLAMP
EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1302- ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302- ●
107 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0906 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0907- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712-0906 ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0907- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-1 01 1 0710-0711 ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-1 02 1 0710-0711 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0712-0808 ● ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 02 1 0809- ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) ID=11 OD=54 		1-09503-154-2 02 1 0809- ●
126 PIPE; EXH,RR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> 		8-98233-516-0 01 1 1302- ●
126 PIPE; EXH,RR
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) 		8-98233-516-0 01 1 1302- ●
126 PIPE; EXH,RR
EURO2 SPECIFICATION<NT2> 		8-98073-427-0 01 1 0809- ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> 		1-22126-629-2 01 1 0809-1301 ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> 		8-98234-295-0 01 1 1302- ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 0710-0711 ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 0712-0808 ● ●
126 PIPE; EXH,RR
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> 		8-98043-365-2 01 1 0809-1301 ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 0809-1301 ●
126 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) 		8-98043-365-2 01 1 1302-1309 ●
126 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) 		8-98245-503-0 01 1 1310- ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 01 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0712-0808 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (A) 		8-94457-277-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0809-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (A) 		8-94457-277-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0712-0808 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (B) 		8-94457-278-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0809-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (B) 		8-94457-278-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302- ● ●
çizim 192180
70 22 22 94 70 22 62 105 121 226 56 226 60 118 107 60 107 81 226 118 81 107 81 121 226 62 56 94 22 126 22 105 70 60 105 75 56 62 75 81 94 22
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (C) 		8-97615-334-0 01 1 1305- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 0710-0711 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=80-84 		1-22133-233-0 04 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=80-84 		1-22133-233-0 04 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 04 1 0809-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=80-84 		1-22133-233-0 04 1 0809-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		1-22133-295-0 01 1 0712-1309 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-97646-674-0 01 1 1310- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0710-0711 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0712-0808 ● ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0712-0808 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-0910 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ● ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 0911-1007 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) ID=80-84 		1-22133-233-0 02 1 1008-1301 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1302- ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) ID=80-84 		1-22133-233-0 02 1 1302- ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) ID=80-84 		1-22133-233-0 02 1 1302- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-756-0 02 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (C) 		8-98059-756-0 02 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) 		8-98059-756-0 02 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (C) 		8-98059-756-0 02 1 0809-1301 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) 		8-98059-756-0 02 1 0809-1301 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (E) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (E) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<NT2> (C) 		8-98073-291-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (H) 		8-98059-762-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (E) 		8-98059-755-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (F) 		8-98074-825-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (G) 		8-98074-826-1 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 0712-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98074-829-1 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 0710-0711 ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) 		8-98074-830-0 01 1 0712-0808 ● ●
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-98074-830-0 01 1 0809- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-753-1 02 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D) 		8-98059-753-1 02 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98059-753-1 02 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (D) 		8-98059-753-1 02 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98059-753-1 02 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (D) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (D) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98059-753-1 01 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (D) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (D) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (D) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (E) 		8-98059-759-0 01 1 0809-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (E) 		8-98234-195-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (F) 		8-98061-138-1 01 1 0712- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0712-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		1-22152-274-1 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0710-0711 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0712-0808 ● ●
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION<NT4> (B) 		8-98059-712-1 01 1 0809- ● ●
62 TUBE; DIST,BRKT
4HK1-TCS ENG(RJS) (A) L=39 		8-98060-852-0 01 1 0712-0808 ●
62 TUBE; DIST,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 0809-1301 ●
62 TUBE; DIST,BRKT
4HK1-TCS ENG(RJS) (A) L=39 		8-98060-852-0 01 1 0809-1301 ●
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0710-0711 ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 0710-0711 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0712-0808 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 0712-0808 ●
62 TUBE; DIST,BRKT
6HK1-TCN ENG(82L) (A) L=39 		8-98060-852-0 02 1 0712-0808 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0809-1301 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 02 1 0809-1301 ●
62 TUBE; DIST,BRKT
6HK1-TCN ENG(82L) (A) L=39 		8-98060-852-0 02 1 0809-1301 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0711 ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0712-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907- ● ●
70 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0712-0808 ●
70 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-1301 ●
70 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-1301 ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-0711 ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-0711 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ● ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ●
70 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0712-0808 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ● ●
70 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ●
70 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1301 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0711 ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0712- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0710-0711 ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0712- ● ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 04 1 1302-1304 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE 		0-91180-110-0 02 1 1305- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 03 1 0911-1007 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0712-0808 ● ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0712-0808 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 04 1 0710-0711 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10X40 FLANGE 		0-28651-040-0 04 1 0712-0808 ●
94 BOLT; CLAMP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M10X40 FLANGE 		0-28651-040-0 04 1 0712-0808 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 04 1 0809-1301 ●
94 BOLT; CLAMP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M10X40 FLANGE 		0-28651-040-0 04 1 0809-1301 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710-0711 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0712-0808 ● ●
94 BOLT; CLAMP
4HK1-TCS ENG(RJS) M10X40 FLANGE 		0-28651-040-0 02 1 0712-0808 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 02 1 0809-0910 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10X40 FLANGE 		0-28651-040-0 02 1 0809-0910 ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 02 1 0809-0910 ●
94 BOLT; CLAMP
4HK1-TCS ENG(RJS) M10X40 FLANGE 		0-28651-040-0 02 1 0809-0910 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0809-0910 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0911-1007 ● ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 02 1 0911-1007 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10X40 FLANGE 		0-28651-040-0 02 1 0911-1007 ●
94 BOLT; CLAMP
4HK1-TCS ENG(RJS) M10X40 FLANGE 		0-28651-040-0 02 1 0911-1007 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 02 1 1008-1301 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10X40 FLANGE 		0-28651-040-0 02 1 1008-1301 ●
94 BOLT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M10X40 FLANGE 		0-28651-040-0 02 1 1008-1301 ●
94 BOLT; CLAMP
4HK1-TCS ENG(RJS) M10X40 FLANGE 		0-28651-040-0 02 1 1008-1301 ●
94 BOLT; CLAMP
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M10X40 FLANGE 		0-28651-040-0 02 1 1008-1301 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302- ● ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> M10X40 FLANGE 		0-28651-040-0 02 1 1302- ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<NT2> M10X40 FLANGE 		0-28651-040-0 02 1 1302- ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302- ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 04 1 0712-0808 ●
105 NUT; CLAMP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M10 FLANGE 		0-91180-210-0 04 1 0712-0808 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 04 1 0809-1301 ●
105 NUT; CLAMP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M10 FLANGE 		0-91180-210-0 04 1 0809-1301 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ● ●
105 NUT; CLAMP
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
105 NUT; CLAMP
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
105 NUT; CLAMP
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0809-0910 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
105 NUT; CLAMP
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
105 NUT; CLAMP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
105 NUT; CLAMP
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
105 NUT; CLAMP
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 02 1 1302- ●
105 NUT; CLAMP
EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1302- ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302- ●
107 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0906 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0907- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712-0906 ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0907- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-1 01 1 0710-0711 ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) ID=11 OD=54 		1-09503-154-2 01 1 0712-0808 ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) ID=11 OD=54 		1-09503-154-2 01 1 0809- ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-1 02 1 0710-0711 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0712-0808 ● ●
121 WASHER; PL,BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 02 1 0809- ●
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) ID=11 OD=54 		1-09503-154-2 02 1 0809- ●
126 PIPE; EXH,RR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> 		8-98233-516-0 01 1 1302- ●
126 PIPE; EXH,RR
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) 		8-98233-516-0 01 1 1302- ●
126 PIPE; EXH,RR
EURO2 SPECIFICATION<NT2> 		8-98073-427-0 01 1 0809- ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> 		1-22126-629-2 01 1 0809-1301 ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> 		8-98234-295-0 01 1 1302- ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 0710-0711 ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 0712-0808 ● ●
126 PIPE; EXH,RR
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> 		8-98043-365-2 01 1 0809-1301 ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 0809-1301 ●
126 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) 		8-98043-365-2 01 1 1302-1309 ●
126 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) 		8-98245-503-0 01 1 1310- ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 01 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0809-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0712-0808 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (A) 		8-94457-277-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0809-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (A) 		8-94457-277-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 0710-0711 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0712-0808 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (B) 		8-94457-278-1 02 1 0712-0808 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0809-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (B) 		8-94457-278-1 02 1 0809-1301 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
