◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶

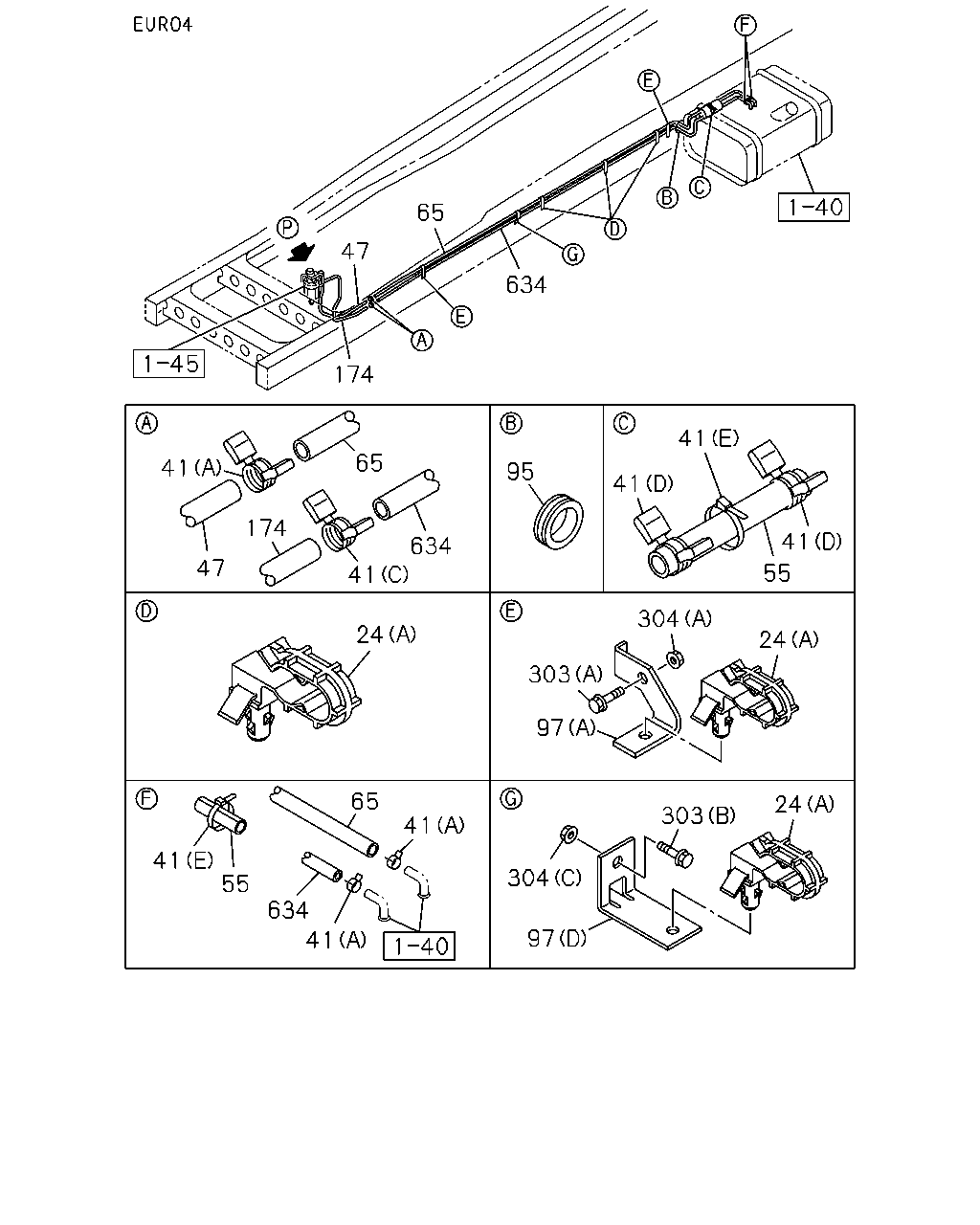

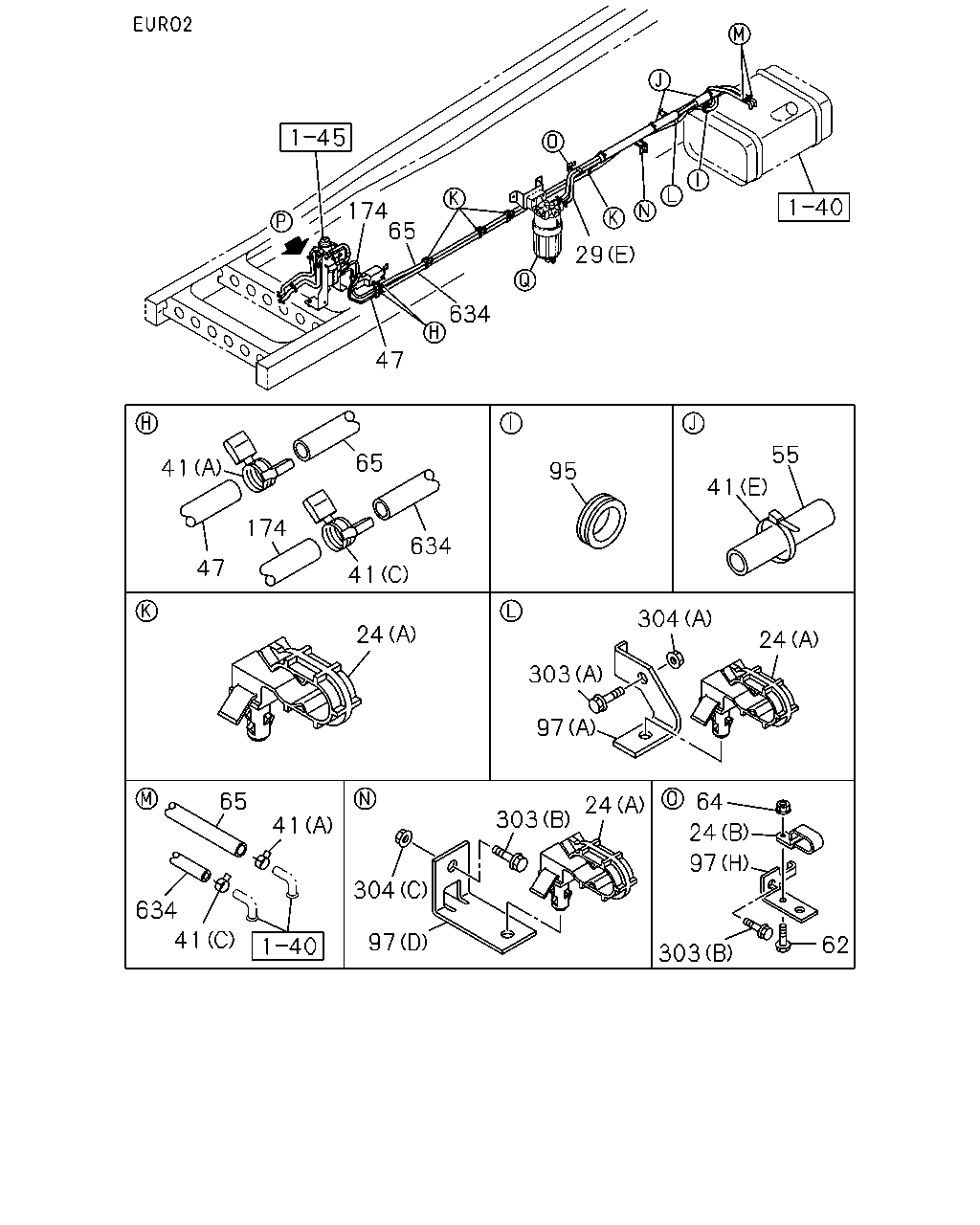

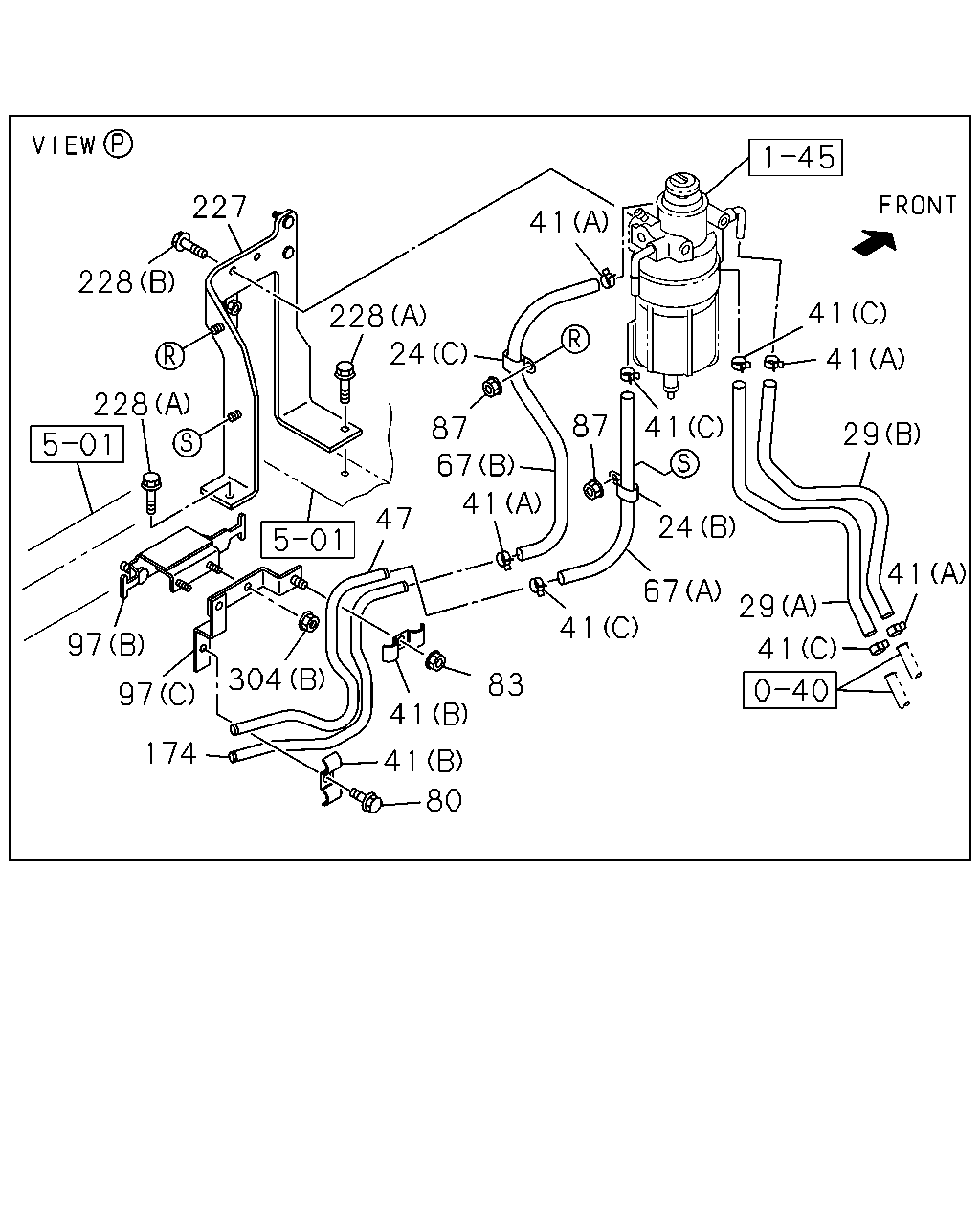

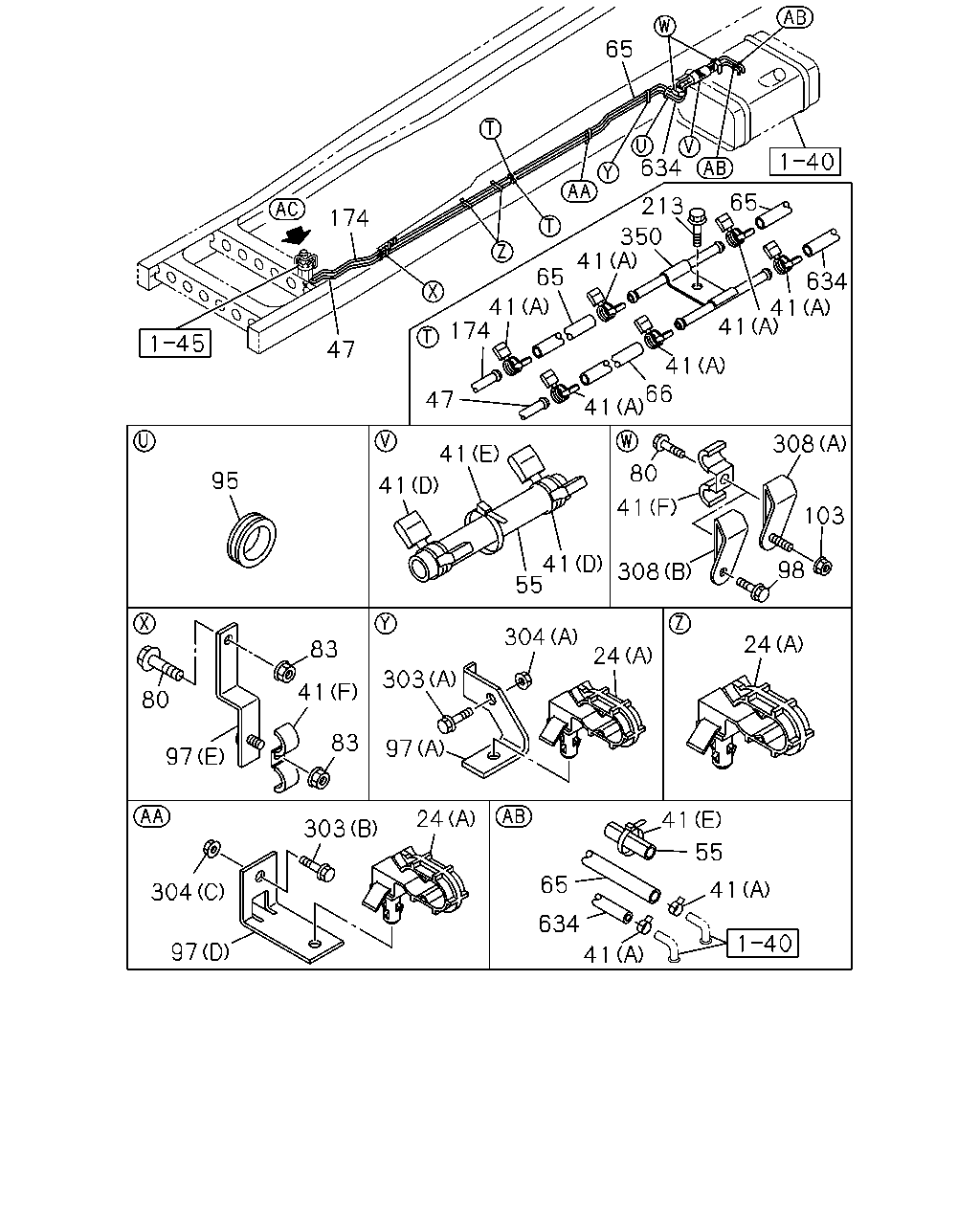

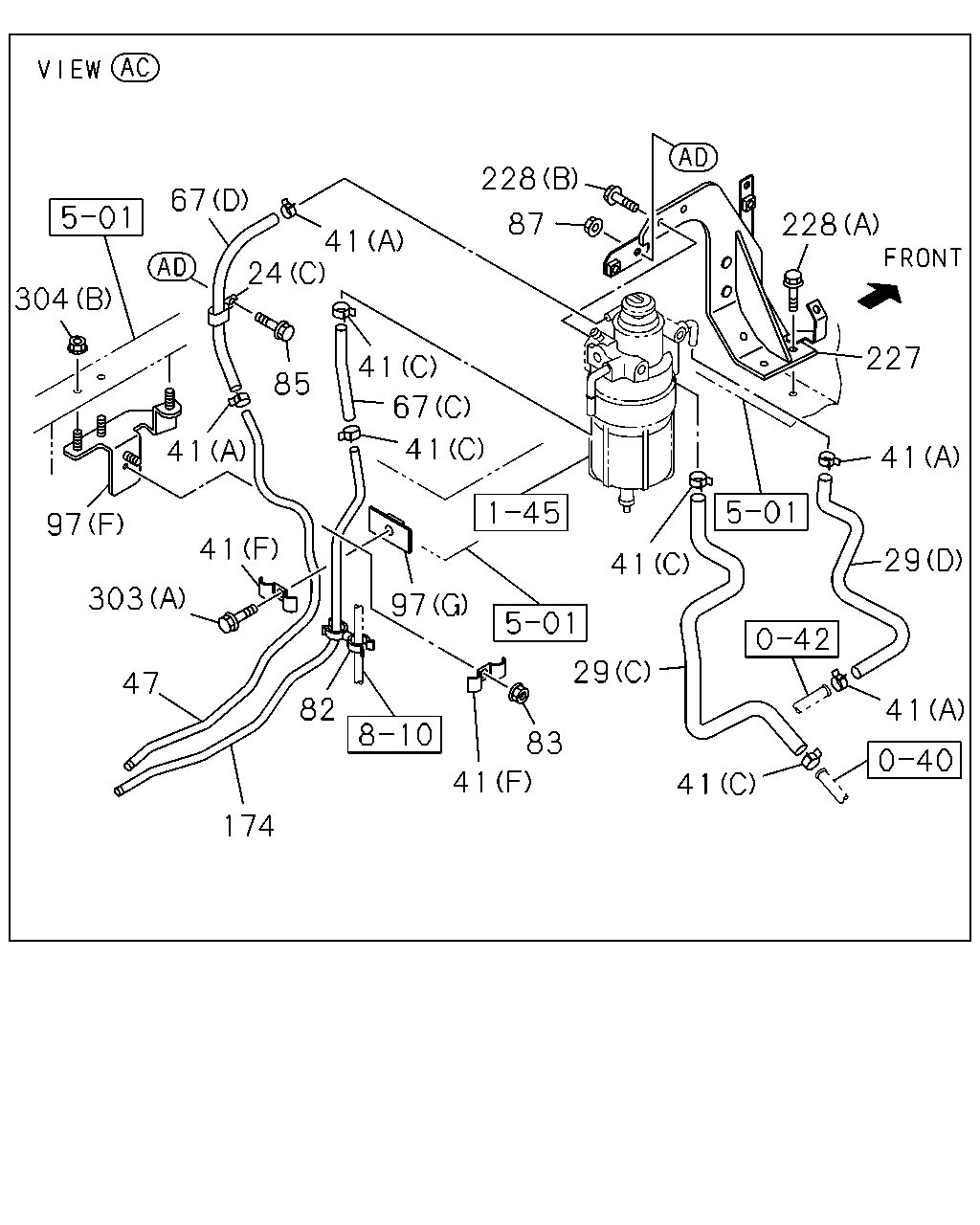

1-41 — FUEL PIPING; CHASSIS (#66283) — 1130 parça
çizim 93041
65 47 634 174 41 65 41 95 41 174 41 634 41 47 55 304 24 24 303 97 65 24 303 41 41 55 304 634 97 41
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 0809- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0712-0801 ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0802-0808 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0809-0810 ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0809-0810 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0811- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0811- ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0710-0711 ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0712-0808 ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0712-0808 ●
24 CLIP; FUEL HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0710-0710 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0710- ●
24 CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0710-0710 ●
24 CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0710-0711 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0712-0801 ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0712-0801 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0802-0810 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0811- ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0811- ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0710-0711 ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0712- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 06 1 0809-0910 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (C) ID=14 		1-09704-102-0 02 1 0902- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 04 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (E) L=250 		5-09707-030-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (E) L=250 		5-09707-030-1 02 1 0802-0810 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4300MM(43W) (E) L=140 		5-09707-031-1 01 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0805-0808 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 0712-0808 ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0809- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (C) ID=14 		1-09704-102-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (A) ID=13 		8-94238-571-0 08 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0712- ● ●
47 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS) L=1518 		8-98090-796-0 01 1 0712- ●
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0710-0712 ●
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0801- ●
47 PIPE; FUEL,RETURN
6HK1-TCN ENG(82L) L=413 		8-98078-210-0 01 1 0801- ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0809-1003 ●
55 COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> ID=27 L=500 		8-98119-327-0 01 1 0809-1003 ●
55 COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> L=800 		1-09361-018-0 01 1 1004- ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0801-0801 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0801-0801 ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0802-0804 ●
55 COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0802-0804 ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 5100MM(51W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0802-0804 ●
55 COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0805-0810 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0710-0711 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0712-0712 ● ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4300MM(43W) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0801-0804 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0805-0901 ● ●
55 COVER; PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0902- ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=2050 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> L=2050 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0710 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0711 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0712-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0712-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (H) 		8-98100-216-1 01 1 0809- ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (B) 		8-98105-216-0 01 1 0712-0810 ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98109-768-0 02 1 0811- ●
97 BRACKET; CLIP
(D) 		8-98098-427-1 01 1 0710-0711 ●
97 BRACKET; CLIP
(D) 		8-98098-427-1 01 1 0712-0712 ● ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (D) 		8-98098-427-1 01 1 0801-0804 ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (D) 		8-98109-768-0 01 1 0805-0806 ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0807-0810 ● ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0811-1005 ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 0811-1005 ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 1006-1006 ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1007- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 1007- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (E) 		8-98078-201-0 01 1 0712- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (F) 		8-98083-537-0 01 1 0712- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (G) L=50 		1-47475-299-2 01 1 0712- ●
97 BRACKET; CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0710-0711 ●
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0712-0808 ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0712-0808 ●
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0809-1005 ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0809-1005 ●
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 1006- ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 1006- ●
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0710-0810 ●
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0811- ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0710-0711 ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0712- ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (C) 		8-98077-896-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS) 		8-98086-754-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0710-0711 ●
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L) 		8-98078-209-0 01 1 0712- ●
303 BOLT; BRKT
6HK1-TCN ENG(82L) (B) M10X30 FLANGE 		0-28651-030-0 02 1 0811- ●
303 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0712-0712 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ● ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0804-0804 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0805-0808 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0809-0810 ● ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 0809-0810 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006 ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-1011 ●
303 BOLT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0808 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0808 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-1005 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-1005 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1011 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1011 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 04 1 0809-1009 ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0712-0712 ● ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0804-0804 ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0805-0808 ● ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 0811-1009 ●
304 NUT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0811-0906 ● ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
634 HOSE; RUBBER RETURN
WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000 		0-01558-300-0 01 1 0809- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W) L=2600 SERVICED BY L=3000 		0-01558-300-0 01 1 0809- ●
634 HOSE; RUBBER RETURN
4HK1-TCS ENG(RJS) L=2400 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000 		0-01558-300-0 01 1 0710- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-0711 ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
634 HOSE; RUBBER RETURN
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
çizim 93415
174 65 634 47 29 41 47 174 65 634 41 95 55 41 24 303 304 24 97 65 41 634 41 304 303 97 24 64 24 97 303 62
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 0809- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0712-0801 ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0802-0808 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0809-0810 ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0809-0810 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0811- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0811- ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0710-0711 ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0712-0808 ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0712-0808 ●
24 CLIP; FUEL HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0710-0710 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0710- ●
24 CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0710-0710 ●
24 CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0710-0711 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0712-0801 ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0712-0801 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0802-0810 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0811- ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0811- ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0710-0711 ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0712- ● ●
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-1005 ●
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 1006- ●
29 HOSE; FUEL
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-1005 ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1006- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (C) 		8-98078-194-3 01 1 0712- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (D) 		8-98078-195-1 01 1 0712- ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0710-0711 ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0712- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-196-2 01 1 0712- ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0710-0711 ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0712- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98078-197-1 01 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 06 1 0809-0910 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (C) ID=14 		1-09704-102-0 02 1 0902- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 04 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (E) L=250 		5-09707-030-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (E) L=250 		5-09707-030-1 02 1 0802-0810 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4300MM(43W) (E) L=140 		5-09707-031-1 01 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0805-0808 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 0712-0808 ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0809- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (C) ID=14 		1-09704-102-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (A) ID=13 		8-94238-571-0 08 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0712- ● ●
47 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS) L=1518 		8-98090-796-0 01 1 0712- ●
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0710-0712 ●
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0801- ●
47 PIPE; FUEL,RETURN
6HK1-TCN ENG(82L) L=413 		8-98078-210-0 01 1 0801- ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0809-1003 ●
55 COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> ID=27 L=500 		8-98119-327-0 01 1 0809-1003 ●
55 COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> L=800 		1-09361-018-0 01 1 1004- ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0801-0801 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0801-0801 ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0802-0804 ●
55 COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0802-0804 ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 5100MM(51W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0802-0804 ●
55 COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0805-0810 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0710-0711 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0712-0712 ● ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4300MM(43W) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0801-0804 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0805-0901 ● ●
55 COVER; PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0902- ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0902- ●
62 BOLT; CLIP FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M8X20 FLANGE 		0-28650-820-0 01 1 0809- ●
64 NUT; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=2050 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> L=2050 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0710 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0711 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0712-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0712-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (H) 		8-98100-216-1 01 1 0809- ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (B) 		8-98105-216-0 01 1 0712-0810 ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98109-768-0 02 1 0811- ●
97 BRACKET; CLIP
(D) 		8-98098-427-1 01 1 0710-0711 ●
97 BRACKET; CLIP
(D) 		8-98098-427-1 01 1 0712-0712 ● ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (D) 		8-98098-427-1 01 1 0801-0804 ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (D) 		8-98109-768-0 01 1 0805-0806 ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0807-0810 ● ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0811-1005 ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 0811-1005 ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 1006-1006 ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1007- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 1007- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (E) 		8-98078-201-0 01 1 0712- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (F) 		8-98083-537-0 01 1 0712- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (G) L=50 		1-47475-299-2 01 1 0712- ●
97 BRACKET; CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0710-0711 ●
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0712-0808 ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0712-0808 ●
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0809-1005 ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0809-1005 ●
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 1006- ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 1006- ●
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0710-0810 ●
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0811- ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0710-0711 ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0712- ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (C) 		8-98077-896-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS) 		8-98086-754-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0710-0711 ●
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L) 		8-98078-209-0 01 1 0712- ●
303 BOLT; BRKT
6HK1-TCN ENG(82L) (B) M10X30 FLANGE 		0-28651-030-0 02 1 0811- ●
303 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0712-0712 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ● ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0804-0804 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0805-0808 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0809-0810 ● ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 0809-0810 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006 ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-1011 ●
303 BOLT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0808 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0808 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-1005 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-1005 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1011 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1011 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 04 1 0809-1009 ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0712-0712 ● ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0804-0804 ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0805-0808 ● ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 0811-1009 ●
304 NUT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0811-0906 ● ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
634 HOSE; RUBBER RETURN
WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000 		0-01558-300-0 01 1 0809- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W) L=2600 SERVICED BY L=3000 		0-01558-300-0 01 1 0809- ●
634 HOSE; RUBBER RETURN
4HK1-TCS ENG(RJS) L=2400 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000 		0-01558-300-0 01 1 0710- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-0711 ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
634 HOSE; RUBBER RETURN
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
çizim 93434
227 228 228 97 97 174 304 41 41 80 83 47 41 67 87 24 228 41 41 87 41 24 41 67 29 41 29 41 41
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 0809- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0712-0801 ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0802-0808 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0809-0810 ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0809-0810 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0811- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0811- ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0710-0711 ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0712-0808 ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0712-0808 ●
24 CLIP; FUEL HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0710-0710 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0710- ●
24 CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0710-0710 ●
24 CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0710-0711 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0712-0801 ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0712-0801 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0802-0810 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0811- ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0811- ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0710-0711 ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0712- ● ●
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-1005 ●
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 1006- ●
29 HOSE; FUEL
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-1005 ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1006- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (C) 		8-98078-194-3 01 1 0712- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (D) 		8-98078-195-1 01 1 0712- ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0710-0711 ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0712- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-196-2 01 1 0712- ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0710-0711 ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0712- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98078-197-1 01 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 06 1 0809-0910 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (C) ID=14 		1-09704-102-0 02 1 0902- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 04 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (E) L=250 		5-09707-030-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (E) L=250 		5-09707-030-1 02 1 0802-0810 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4300MM(43W) (E) L=140 		5-09707-031-1 01 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0805-0808 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 0712-0808 ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0809- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (C) ID=14 		1-09704-102-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (A) ID=13 		8-94238-571-0 08 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0712- ● ●
47 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS) L=1518 		8-98090-796-0 01 1 0712- ●
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0710-0712 ●
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0801- ●
47 PIPE; FUEL,RETURN
6HK1-TCN ENG(82L) L=413 		8-98078-210-0 01 1 0801- ●
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0710 ●
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0711 ●
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-0710 ●
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-0711 ●
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
67 HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS) (C) L=140 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
67 HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS) (D) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
80 BOLT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8X50 FLANGE 		0-28050-850-0 02 1 0712-1011 ●
80 BOLT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
80 BOLT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
83 NUT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 05 1 0712- ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
87 NUT; CLIP,FUEL HOSE
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 0712-1005 ●
87 NUT; CLIP,FUEL HOSE
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 03 1 1006- ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 0712-1005 ● ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 1006- ●
87 NUT; CLIP,FUEL HOSE
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1006- ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (H) 		8-98100-216-1 01 1 0809- ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (B) 		8-98105-216-0 01 1 0712-0810 ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98109-768-0 02 1 0811- ●
97 BRACKET; CLIP
(D) 		8-98098-427-1 01 1 0710-0711 ●
97 BRACKET; CLIP
(D) 		8-98098-427-1 01 1 0712-0712 ● ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (D) 		8-98098-427-1 01 1 0801-0804 ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (D) 		8-98109-768-0 01 1 0805-0806 ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0807-0810 ● ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0811-1005 ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 0811-1005 ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 1006-1006 ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1007- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 1007- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (E) 		8-98078-201-0 01 1 0712- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (F) 		8-98083-537-0 01 1 0712- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (G) L=50 		1-47475-299-2 01 1 0712- ●
97 BRACKET; CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0710-0711 ●
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0712-0808 ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0712-0808 ●
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0809-1005 ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0809-1005 ●
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 1006- ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 1006- ●
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0710-0810 ●
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0811- ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0710-0711 ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0712- ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (C) 		8-98077-896-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS) 		8-98086-754-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0710-0711 ●
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L) 		8-98078-209-0 01 1 0712- ●
227 BRACKET; FUEL SEDIMENTER
4HK1-TCS ENG(RJS) 		8-98044-367-3 01 1 0712-0808 ●
227 BRACKET; FUEL SEDIMENTER
4HK1-TCS ENG(RJS) 		8-98130-667-0 01 1 0809- ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0710-0711 ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0712- ●
227 BRACKET; FUEL SEDIMENTER
6HK1-TCN ENG(82L) 		8-98044-366-3 01 1 0712- ●
228 BOLT; BRKT,SEDIMENTER
EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE 		0-28051-050-0 02 1 0809- ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0710-0711 ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0712- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 04 1 0809-1009 ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0712-0712 ● ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0804-0804 ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0805-0808 ● ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 0811-1009 ●
304 NUT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0811-0906 ● ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
çizim 93960
304 304 303 345 418 345 228 279 41 39 29 41 39 65
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-1005 ●
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 1006- ●
29 HOSE; FUEL
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-1005 ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1006- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (C) 		8-98078-194-3 01 1 0712- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (D) 		8-98078-195-1 01 1 0712- ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0710-0711 ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0712- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-196-2 01 1 0712- ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0710-0711 ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0712- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98078-197-1 01 1 0712- ●
39 PIPE; FUEL
EURO2 SPECIFICATION<NT2> 		8-97358-699-0 02 1 0809-0903 ●
39 PIPE; FUEL
EURO2 SPECIFICATION<NT2> NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0904- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 06 1 0809-0910 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (C) ID=14 		1-09704-102-0 02 1 0902- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 04 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (E) L=250 		5-09707-030-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (E) L=250 		5-09707-030-1 02 1 0802-0810 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4300MM(43W) (E) L=140 		5-09707-031-1 01 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0805-0808 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 0712-0808 ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0809- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (C) ID=14 		1-09704-102-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (A) ID=13 		8-94238-571-0 08 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0712- ● ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=2050 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> L=2050 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0710 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0711 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0712-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0712-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
228 BOLT; BRKT,SEDIMENTER
EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE 		0-28051-050-0 02 1 0809- ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0710-0711 ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0712- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
279 WASHER
EURO2 SPECIFICATION<NT2> ID=10.5 OD=26 		0-91614-710-0 02 1 0809- ●
303 BOLT; BRKT
6HK1-TCN ENG(82L) (B) M10X30 FLANGE 		0-28651-030-0 02 1 0811- ●
303 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0712-0712 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ● ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0804-0804 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0805-0808 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0809-0810 ● ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 0809-0810 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006 ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-1011 ●
303 BOLT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0808 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0808 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-1005 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-1005 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1011 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1011 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 04 1 0809-1009 ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0712-0712 ● ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0804-0804 ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0805-0808 ● ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 0811-1009 ●
304 NUT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0811-0906 ● ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
345 PLUG
EURO2 SPECIFICATION<NT2> NPTF3/8-18 		8-97329-623-0 02 1 0809- ●
418 BRACKET; PRE FUEL FILTER
EURO2 SPECIFICATION<NT2> 		8-98114-787-0 01 1 0809- ●
çizim 96249
67 41 24 85 304 41 67 41 41 41 97 303 47 82 174 41 97 83 29 41 87 228 228 227 41 29 41 41
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 0809- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0712-0801 ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0802-0808 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0809-0810 ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0809-0810 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0811- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0811- ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0710-0711 ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0712-0808 ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0712-0808 ●
24 CLIP; FUEL HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0710-0710 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0710- ●
24 CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0710-0710 ●
24 CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0710-0711 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0712-0801 ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0712-0801 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0802-0810 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0811- ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0811- ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0710-0711 ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0712- ● ●
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-1005 ●
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 1006- ●
29 HOSE; FUEL
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-1005 ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1006- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (C) 		8-98078-194-3 01 1 0712- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (D) 		8-98078-195-1 01 1 0712- ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0710-0711 ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0712- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-196-2 01 1 0712- ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0710-0711 ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0712- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98078-197-1 01 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 06 1 0809-0910 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (C) ID=14 		1-09704-102-0 02 1 0902- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 04 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (E) L=250 		5-09707-030-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (E) L=250 		5-09707-030-1 02 1 0802-0810 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4300MM(43W) (E) L=140 		5-09707-031-1 01 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0805-0808 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 0712-0808 ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0809- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (C) ID=14 		1-09704-102-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (A) ID=13 		8-94238-571-0 08 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0712- ● ●
47 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS) L=1518 		8-98090-796-0 01 1 0712- ●
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0710-0712 ●
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0801- ●
47 PIPE; FUEL,RETURN
6HK1-TCN ENG(82L) L=413 		8-98078-210-0 01 1 0801- ●
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0710 ●
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0711 ●
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-0710 ●
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-0711 ●
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
67 HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS) (C) L=140 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
67 HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS) (D) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
82 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) ID=13 & 16.5 		8-94169-028-0 01 1 0712-0808 ●
82 CLIP; FUEL HOSE
EURO2 SPECIFICATION<NT2> ID=13 & 16.5 		8-94169-028-0 01 1 0809- ●
82 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) ID=13 & 16.5 		8-94169-028-0 01 1 0809- ●
83 NUT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 05 1 0712- ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
85 BOLT; CLIP,FUEL HOSE
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
87 NUT; CLIP,FUEL HOSE
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 0712-1005 ●
87 NUT; CLIP,FUEL HOSE
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 03 1 1006- ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 0712-1005 ● ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 1006- ●
87 NUT; CLIP,FUEL HOSE
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1006- ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (H) 		8-98100-216-1 01 1 0809- ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (B) 		8-98105-216-0 01 1 0712-0810 ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98109-768-0 02 1 0811- ●
97 BRACKET; CLIP
(D) 		8-98098-427-1 01 1 0710-0711 ●
97 BRACKET; CLIP
(D) 		8-98098-427-1 01 1 0712-0712 ● ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (D) 		8-98098-427-1 01 1 0801-0804 ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (D) 		8-98109-768-0 01 1 0805-0806 ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0807-0810 ● ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0811-1005 ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 0811-1005 ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 1006-1006 ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1007- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 1007- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (E) 		8-98078-201-0 01 1 0712- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (F) 		8-98083-537-0 01 1 0712- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (G) L=50 		1-47475-299-2 01 1 0712- ●
97 BRACKET; CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0710-0711 ●
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0712-0808 ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0712-0808 ●
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0809-1005 ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0809-1005 ●
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 1006- ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 1006- ●
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0710-0810 ●
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0811- ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0710-0711 ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0712- ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (C) 		8-98077-896-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS) 		8-98086-754-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0710-0711 ●
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L) 		8-98078-209-0 01 1 0712- ●
227 BRACKET; FUEL SEDIMENTER
4HK1-TCS ENG(RJS) 		8-98044-367-3 01 1 0712-0808 ●
227 BRACKET; FUEL SEDIMENTER
4HK1-TCS ENG(RJS) 		8-98130-667-0 01 1 0809- ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0710-0711 ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0712- ●
227 BRACKET; FUEL SEDIMENTER
6HK1-TCN ENG(82L) 		8-98044-366-3 01 1 0712- ●
228 BOLT; BRKT,SEDIMENTER
EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE 		0-28051-050-0 02 1 0809- ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0710-0711 ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0712- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
303 BOLT; BRKT
6HK1-TCN ENG(82L) (B) M10X30 FLANGE 		0-28651-030-0 02 1 0811- ●
303 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0712-0712 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ● ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0804-0804 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0805-0808 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0809-0810 ● ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 0809-0810 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006 ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-1011 ●
303 BOLT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0808 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0808 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-1005 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-1005 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1011 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1011 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 04 1 0809-1009 ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0712-0712 ● ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0804-0804 ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0805-0808 ● ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 0811-1009 ●
304 NUT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0811-0906 ● ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
çizim 192233
65 634 65 213 174 350 41 65 634 41 41 174 41 47 41 66 47 41 308 41 80 95 41 41 103 41 55 98 308 304 24 83 24 41 303 80 83 97 97 24 41 303 55 65 41 304 634 97 41
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 0809- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0712-0801 ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0802-0808 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0809-0810 ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0809-0810 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0811- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (A) ID=14.5 & 14.5 		1-09701-246-1 07 1 0811- ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0710-0711 ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0712-0808 ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0712-0808 ●
24 CLIP; FUEL HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809- ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0710-0710 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0710- ●
24 CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0710-0710 ●
24 CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0710-0711 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0712-0801 ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0712-0801 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0802-0810 ●
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0811- ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0811- ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0710-0711 ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0712- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 06 1 0809-0910 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 0911-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (C) ID=14 		1-09704-102-0 02 1 0902- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 04 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (E) L=250 		5-09707-030-1 03 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (E) L=250 		5-09707-030-1 02 1 0802-0810 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4300MM(43W) (E) L=140 		5-09707-031-1 01 1 0801-0804 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0805-0808 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0809-1003 ●
41 CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> (E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1004- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 0712-0808 ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (F) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0809- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (C) ID=14 		1-09704-102-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (A) ID=13 		8-94238-571-0 08 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (C) ID=14 		1-09704-102-0 04 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (A) ID=13 		8-94238-571-0 06 1 0712- ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0712- ● ●
47 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS) L=1518 		8-98090-796-0 01 1 0712- ●
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0710-0712 ●
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0801- ●
47 PIPE; FUEL,RETURN
6HK1-TCN ENG(82L) L=413 		8-98078-210-0 01 1 0801- ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0809-1003 ●
55 COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> ID=27 L=500 		8-98119-327-0 01 1 0809-1003 ●
55 COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> L=800 		1-09361-018-0 01 1 1004- ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0801-0801 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0801-0801 ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0802-0804 ●
55 COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0802-0804 ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 5100MM(51W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0802-0804 ●
55 COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0805-0810 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0710-0711 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0712-0712 ● ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4300MM(43W) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0801-0804 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0805-0901 ● ●
55 COVER; PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0902- ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=2050 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> L=2050 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0710 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0711 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0712-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0712-0808 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0809- ●
66 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS) L=130 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
80 BOLT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8X50 FLANGE 		0-28050-850-0 02 1 0712-1011 ●
80 BOLT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
80 BOLT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
83 NUT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 05 1 0712- ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (H) 		8-98100-216-1 01 1 0809- ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (B) 		8-98105-216-0 01 1 0712-0810 ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98109-768-0 02 1 0811- ●
97 BRACKET; CLIP
(D) 		8-98098-427-1 01 1 0710-0711 ●
97 BRACKET; CLIP
(D) 		8-98098-427-1 01 1 0712-0712 ● ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (D) 		8-98098-427-1 01 1 0801-0804 ●
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (D) 		8-98109-768-0 01 1 0805-0806 ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0807-0810 ● ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0811-1005 ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 0811-1005 ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 1006-1006 ●
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1007- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98109-768-0 01 1 1007- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (E) 		8-98078-201-0 01 1 0712- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (F) 		8-98083-537-0 01 1 0712- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (G) L=50 		1-47475-299-2 01 1 0712- ●
97 BRACKET; CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0710-0711 ●
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0712-0808 ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0712-0808 ●
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 0809-1005 ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0809-1005 ●
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) 		8-98083-349-0 01 1 1006- ●
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 1006- ●
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0710-0810 ●
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0811- ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0710-0711 ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0712- ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (C) 		8-98077-896-0 01 1 0712- ●
98 BOLT; BRKT,FUEL PIPE
4HK1-TCS ENG(RJS) M10X30 FLANGE 		0-28651-030-0 01 1 0806- ●
103 NUT; BRKT
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 01 1 0712-0805 ●
174 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS) 		8-98086-754-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0710-0711 ●
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0712- ●
174 PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L) 		8-98078-209-0 01 1 0712- ●
213 BOLT; FUEL PIPE FIX
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
303 BOLT; BRKT
6HK1-TCN ENG(82L) (B) M10X30 FLANGE 		0-28651-030-0 02 1 0811- ●
303 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0712-0712 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ● ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0804-0804 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0805-0808 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0809-0810 ● ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 0809-0810 ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0811-1005 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006 ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006 ●
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1007- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-1011 ●
303 BOLT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0808 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0808 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-1005 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-1005 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1011 ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1011 ●
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 04 1 0809-1009 ●
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0712-0712 ● ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0801-0803 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W) (A) M10 FLANGE 		0-91180-210-0 01 1 0804-0804 ●
304 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0805-0808 ● ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ● ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0809-0810 ●
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 0811-1005 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1006-1006 ●
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (C) M10 FLANGE 		0-91180-210-0 01 1 1007- ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (C) M10 FLANGE 		0-91180-210-0 02 1 0811-1009 ●
304 NUT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (B) M8 FLANGE 		0-91180-108-0 04 1 0712-0810 ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0811-0906 ● ●
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
308 BRACKET; FUEL PIPE
4HK1-TCS ENG(RJS) (A) 		8-98080-065-0 01 1 0712-0805 ●
308 BRACKET; FUEL PIPE
4HK1-TCS ENG(RJS) (B) 		8-98117-691-0 01 1 0806- ●
350 PIPE; FUEL,DEL & RET
4HK1-TCS ENG(RJS) 		8-98084-131-0 01 1 0712- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000 		0-01558-300-0 01 1 0809- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4600MM(46W) L=2600 SERVICED BY L=3000 		0-01558-300-0 01 1 0809- ●
634 HOSE; RUBBER RETURN
4HK1-TCS ENG(RJS) L=2400 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000 		0-01558-300-0 01 1 0710- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-0711 ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
634 HOSE; RUBBER RETURN
6HK1-TCN ENG(82L) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
