Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#66280) — 539 parça

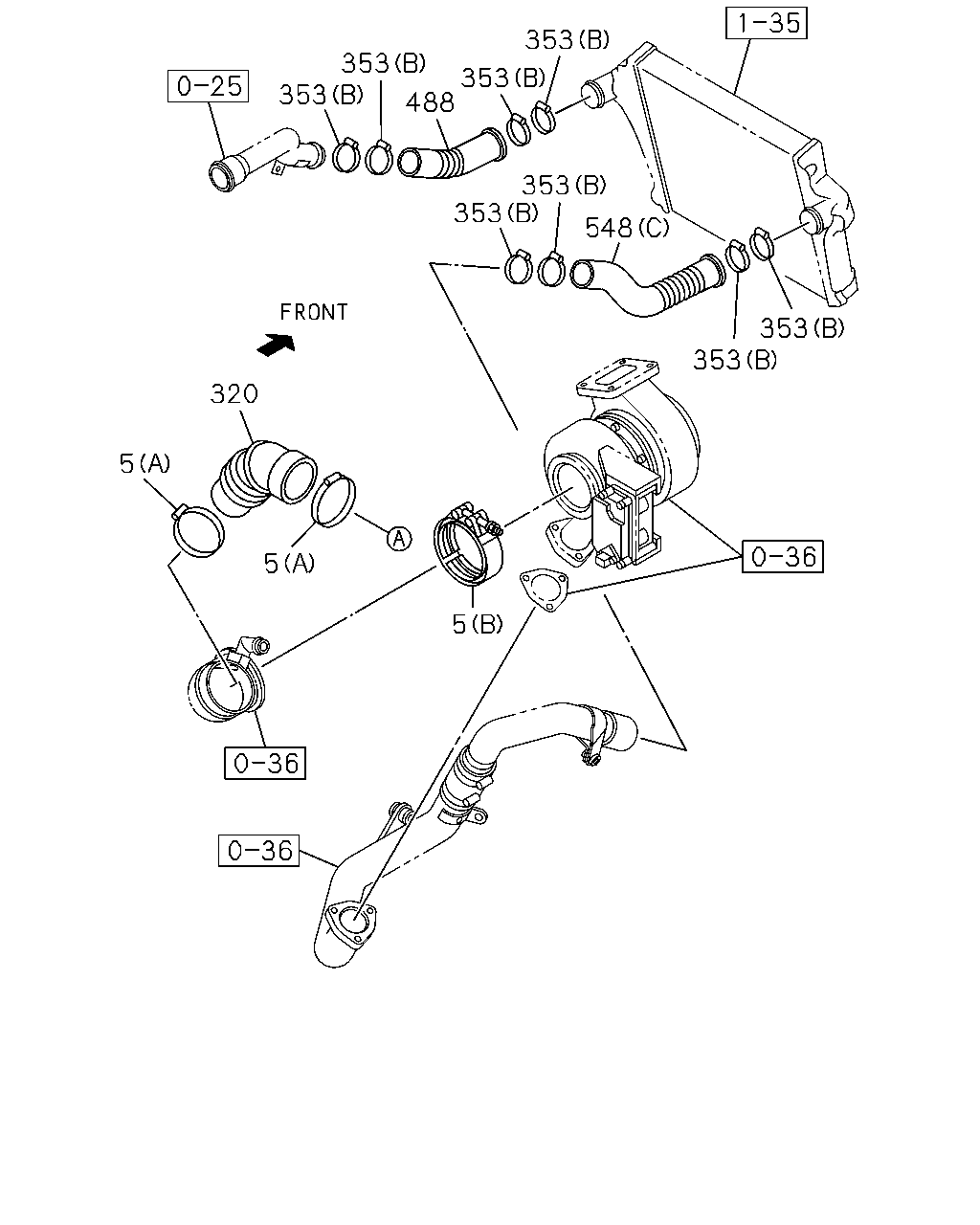

353 353 353 353 488 353 353 548 353 353 320 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-1005	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-1005	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1006-	●	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1006-	●	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0901-0906	●	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0907-1001	●
5	CLIP; AIR DUCT SGL CAB(FC*M) (A) ID=110-130	8-98133-359-0	01	1	0907-1001		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=87-113	1-09707-199-0	01	1	0809-0811		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=90-110	8-98133-365-0	01	1	0812-1001		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	01	1	0712-0810			●
5	CLIP; AIR DUCT (B) ID=75-95	8-98133-357-0	01	1	0811-1001			●
5	CLIP; AIR DUCT (B) ID=77-99	1-09707-141-0	01	1	1002-			●
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=104-139	1-09707-200-0	03	1	0712-0812		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	03	1	0712-0812			●
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=110-130	8-98133-359-0	03	1	0901-1001		●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	03	1	0901-1001			●
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=104-142	1-09707-139-0	03	1	1002-		●
5	CLIP; AIR DUCT (A) ID=104-142	1-09707-139-0	03	1	1002-			●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0710-0808	●	●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0809-0906	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=114	8-15178-030-0	01	1	0809-0906		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=114	8-15178-030-0	01	1	0907-	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0711	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0711	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0712-0808	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0712-0808	●
5	CLIP; AIR DUCT SGL CAB(FC*M) (A) ID=104-139	1-09707-200-0	01	1	0712-0808		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=100-120	8-98133-366-0	01	1	0901-1001	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=100-120	8-98133-366-0	01	1	1002-	●	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98072-934-0	01	1	0809-		●
320	HOSE; CONN,ACL	8-98084-232-0	01	1	0712-			●
320	HOSE; CONN,ACL DBL CAB(FC*W)	8-98092-944-1	01	1	0712-		●
320	HOSE; CONN,ACL	8-98077-619-1	01	1	0710-0808	●
320	HOSE; CONN,ACL SGL CAB(FC*M)	8-98077-619-1	01	1	0710-0808		●
320	HOSE; CONN,ACL SGL CAB(FC*M) EURO4 SPECIFICATION<NT4>	8-98077-619-1	01	1	0809-	●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	08	1	1002-	●	●
353	CLIP; RUBBER HOSE (A) ID=50-69	1-09707-135-0	02	1	0712-0712			●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	0712-			●
353	CLIP; RUBBER HOSE (B) ID=58-76	1-09707-203-0	02	1	0712-0811			●
353	CLIP; RUBBER HOSE (B) ID=55-75	8-98133-349-0	02	1	0812-1001			●
353	CLIP; RUBBER HOSE (B) ID=58-79	1-09707-136-0	02	1	1002-			●
353	CLIP; RUBBER HOSE (B) ID=58-76	1-09707-203-0	08	1	0710-0811	●	●
353	CLIP; RUBBER HOSE (B) ID=55-75	8-98133-349-0	08	1	0812-1001	●	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	08	1	1002-	●	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	0712-			●
488	HOSE; RUBBER,PIPE	8-98017-224-1	01	1	0710-	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (C)	8-98181-973-1	01	1	1102-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	0712-			●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	0712-			●
548	HOSE; RUBBER,TURBO TO INL PIPE (C)	8-98017-223-2	01	1	0710-1101	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE (C)	8-98017-223-2	01	1	1102-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2> (C)	8-98017-223-2	01	1	1102-		●

543 2 174 5 320 2 5 64 48 5 381 64 242 159 424 225 252 5 71 357 379 210 357 64 558 296 209 64 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL (A)	8-98058-691-1	01	1	0712-			●
2	HOSE; ACL (B)	8-98081-763-0	01	1	0712-			●
2	HOSE; ACL DBL CAB(FC*W) (A)	8-98050-682-0	01	1	0712-		●
2	HOSE; ACL DBL CAB(FC*W) (B)	8-98065-313-0	01	1	0712-		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-1005	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-1005	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1006-	●	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1006-	●	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0901-0906	●	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0907-1001	●
5	CLIP; AIR DUCT SGL CAB(FC*M) (A) ID=110-130	8-98133-359-0	01	1	0907-1001		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=87-113	1-09707-199-0	01	1	0809-0811		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=90-110	8-98133-365-0	01	1	0812-1001		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	01	1	0712-0810			●
5	CLIP; AIR DUCT (B) ID=75-95	8-98133-357-0	01	1	0811-1001			●
5	CLIP; AIR DUCT (B) ID=77-99	1-09707-141-0	01	1	1002-			●
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=104-139	1-09707-200-0	03	1	0712-0812		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	03	1	0712-0812			●
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=110-130	8-98133-359-0	03	1	0901-1001		●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	03	1	0901-1001			●
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=104-142	1-09707-139-0	03	1	1002-		●
5	CLIP; AIR DUCT (A) ID=104-142	1-09707-139-0	03	1	1002-			●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0710-0808	●	●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0809-0906	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=114	8-15178-030-0	01	1	0809-0906		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=114	8-15178-030-0	01	1	0907-	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0711	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0711	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0712-0808	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0712-0808	●
5	CLIP; AIR DUCT SGL CAB(FC*M) (A) ID=104-139	1-09707-200-0	01	1	0712-0808		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=100-120	8-98133-366-0	01	1	0901-1001	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=100-120	8-98133-366-0	01	1	1002-	●	●
48	BOLT; AIR DUCT DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-			●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0710-0711	●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0712-	●	●	●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-		●
64	BOLT; BRKT,AIR DUCT (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-			●
64	BOLT; BRKT,AIR DUCT (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-			●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	03	1	0712-		●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (C) M10X35 FLANGE	0-28651-035-0	02	1	0712-		●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	01	1	0712-0805		●
64	BOLT; BRKT,AIR DUCT (B) M8X25 W/LK&PL WASHER	1-09030-074-0	01	1	0712-0805			●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0806-		●
64	BOLT; BRKT,AIR DUCT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0806-			●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0710-0711	●	●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0712-0812	●	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-	●	●	●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	0710-0906	●	●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	0907-	●
159	BOLT; AIR PIPE SGL CAB(FC*M) M6X16 FLANGE	0-28050-616-0	02	1	0907-		●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-0711	●	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-0808	●	●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	0809-	●	●	●
209	BRACKET; ACL	8-98058-687-0	01	1	0712-			●
209	BRACKET; ACL DBL CAB(FC*W)	8-98089-455-1	01	1	0712-		●
209	BRACKET; ACL	8-98010-344-6	01	1	0710-0711	●	●
209	BRACKET; ACL	8-98099-677-0	01	1	0712-	●
209	BRACKET; ACL SGL CAB(FC*M)	8-98099-677-0	01	1	0712-		●
210	BOLT; ACL BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-			●
210	BOLT; ACL BRKT (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-			●
210	BOLT; ACL BRKT DBL CAB(FC*W) (C) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
210	BOLT; ACL BRKT (A) M10X25 FLANGE	0-28651-025-0	03	1	0710-	●
210	BOLT; ACL BRKT SGL CAB(FC*M) (A) M10X25 FLANGE	0-28651-025-0	03	1	0710-		●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0710-0711	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0712-	●	●	●
242	BRACKET; AIR DUCT (E)	8-98084-231-1	01	1	0712-			●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (G)	8-98089-456-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (D)	8-98050-679-1	01	1	0712-		●
242	BRACKET; AIR DUCT (D)	8-98050-679-1	01	1	0712-			●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (F)	8-98092-771-0	01	1	0712-		●
242	BRACKET; AIR DUCT (F)	8-98092-771-0	01	1	0712-			●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0710-0711	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0710-	●
242	BRACKET; AIR DUCT SGL CAB(FC*M) (C)	8-98019-302-1	01	1	0710-		●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0710-	●
242	BRACKET; AIR DUCT SGL CAB(FC*M) (A)	8-98019-303-1	01	1	0710-		●
252	DUCT; AIR INT DBL CAB(FC*W)	8-98050-681-0	01	1	0712-		●
252	DUCT; AIR INT	8-98050-681-0	01	1	0712-			●
252	DUCT; AIR INT	8-98019-843-0	01	1	0710-1005	●
252	DUCT; AIR INT SGL CAB(FC*M)	8-98019-843-0	01	1	0710-1005		●
252	DUCT; AIR INT	8-98019-843-0	01	1	1006-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0710-0711	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0712-	●	●	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98072-934-0	01	1	0809-		●
320	HOSE; CONN,ACL	8-98084-232-0	01	1	0712-			●
320	HOSE; CONN,ACL DBL CAB(FC*W)	8-98092-944-1	01	1	0712-		●
320	HOSE; CONN,ACL	8-98077-619-1	01	1	0710-0808	●
320	HOSE; CONN,ACL SGL CAB(FC*M)	8-98077-619-1	01	1	0710-0808		●
320	HOSE; CONN,ACL SGL CAB(FC*M) EURO4 SPECIFICATION<NT4>	8-98077-619-1	01	1	0809-	●	●
357	CLIP; RUBBER HOSE (D) ID=77-95	1-09707-198-0	01	1	0712-0810			●
357	CLIP; RUBBER HOSE (D) ID=75-95	8-98133-357-0	01	1	0811-1001			●
357	CLIP; RUBBER HOSE (D) ID=77-99	1-09707-141-0	01	1	1002-			●
357	CLIP; RUBBER HOSE (C) ID=58-76	1-09707-203-0	02	1	0712-0811			●
357	CLIP; RUBBER HOSE (C) ID=55-75	8-98133-349-0	02	1	0812-1001			●
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	02	1	1002-			●
357	CLIP; RUBBER HOSE (E) ID=24	8-98025-921-0	02	1	0712-			●
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	0710-	●	●
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0710-	●	●
379	HOSE; RUBBER	8-98082-252-0	01	1	0712-			●
379	HOSE; RUBBER DBL CAB(FC*W)	8-98073-021-0	01	1	0712-		●
379	HOSE; RUBBER	8-98063-172-0	01	1	0710-	●
379	HOSE; RUBBER SGL CAB(FC*M)	8-98063-172-0	01	1	0710-		●
381	NUT; BRKT,AIR DUCT DBL CAB(FC*W) M8 FLANGE	0-91180-108-0	01	1	0712-		●
381	NUT; BRKT,AIR DUCT M8 FLANGE	0-91180-108-0	01	1	0712-			●
424	PIPE; AIR,INL	8-98081-834-0	01	1	0710-0906	●	●
424	PIPE; AIR,INL	8-98081-834-0	01	1	0907-	●
424	PIPE; AIR,INL SGL CAB(FC*M)	8-98081-834-0	01	1	0907-		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0712-0808			●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-			●
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0711	●	●
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-0808	●	●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0809-	●	●	●
558	CLIP; AIR FLOW SENSOR DBL CAB(FC*W) L=600	1-09707-107-1	01	1	0712-		●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	01	1	0712-			●

49 56 56 58 56 56 49 242 49 242 58 58 245 61 560 450 48 26

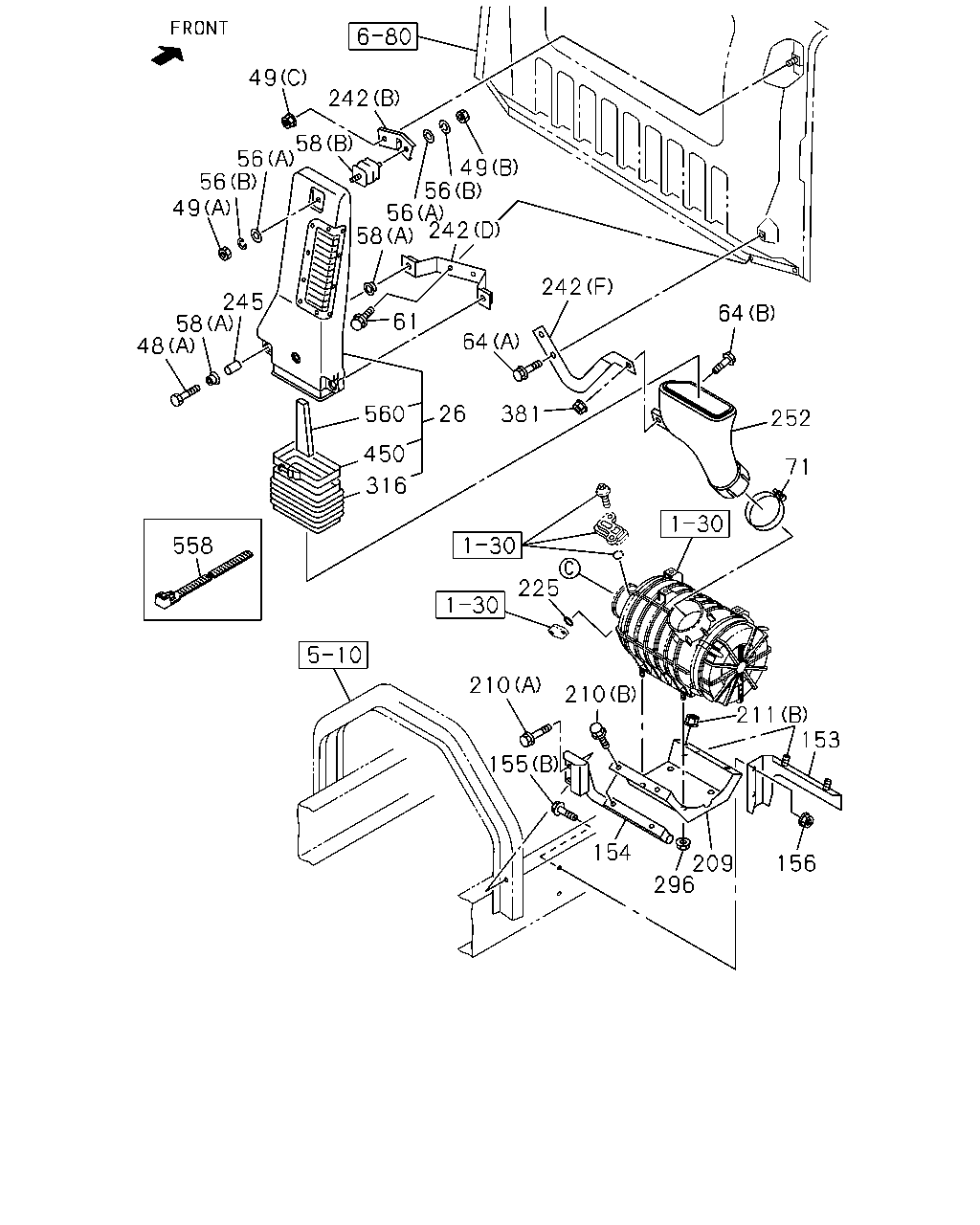

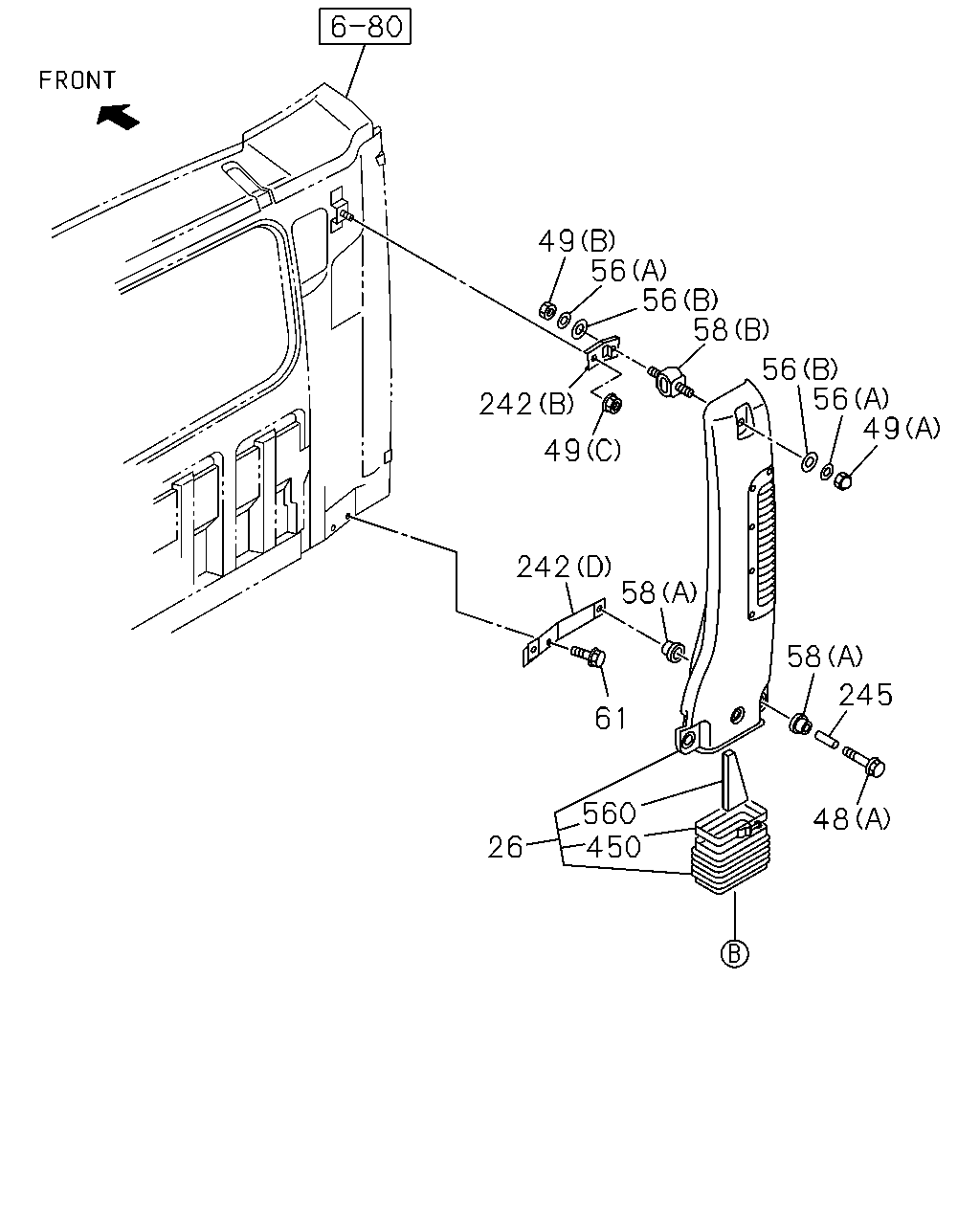

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	DUCT; AIR INT	8-98010-361-2	01	1	0710-0711	●	●
26	DUCT; AIR INT	8-98010-361-2	01	1	0712-	●	●	●
48	BOLT; AIR DUCT DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-			●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0710-0711	●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0712-	●	●	●
49	NUT; AIR DUCT DBL CAB(FC*W) (C) M8 FLANGE	8-94279-517-0	01	1	0712-		●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	01	1	0712-			●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0710-0711	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0712-	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0710-0711	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0712-	●	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0710-	●
49	NUT; AIR DUCT SGL CAB(FC*M) (C) M8 FLANGE	8-94279-517-0	02	1	0710-		●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0710-0711	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0712-	●	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0710-0711	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0712-	●	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0710-0711	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0712-	●	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0710-0711	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0712-0810	●	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0710-0711	●	●
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0712-0807	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-	●	●	●
242	BRACKET; AIR DUCT (E)	8-98084-231-1	01	1	0712-			●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (G)	8-98089-456-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (D)	8-98050-679-1	01	1	0712-		●
242	BRACKET; AIR DUCT (D)	8-98050-679-1	01	1	0712-			●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (F)	8-98092-771-0	01	1	0712-		●
242	BRACKET; AIR DUCT (F)	8-98092-771-0	01	1	0712-			●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0710-0711	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0710-	●
242	BRACKET; AIR DUCT SGL CAB(FC*M) (C)	8-98019-302-1	01	1	0710-		●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0710-	●
242	BRACKET; AIR DUCT SGL CAB(FC*M) (A)	8-98019-303-1	01	1	0710-		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0710-0711	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0712-	●	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0710-0711	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0712-	●	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0710-0711	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0712-	●	●	●

49 242 58 56 56 49 49 56 56 58 242 245 61 58 242 49 48 58 26 560 252 450 71 316 543 543 543 174 368 564 543 480 225 424 159 357 379 210 357 209 296

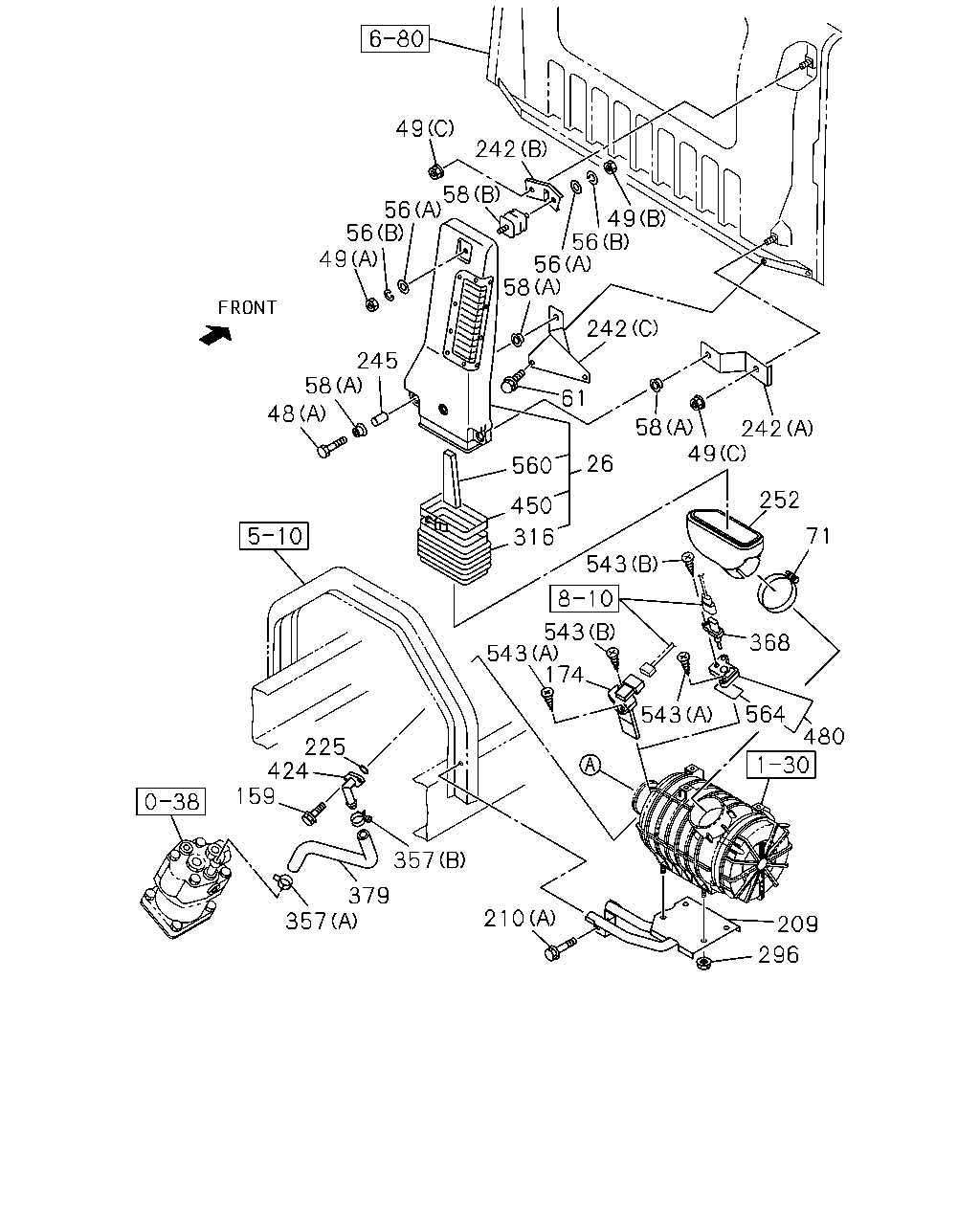

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	DUCT; AIR INT	8-98010-361-2	01	1	0710-0711	●	●
26	DUCT; AIR INT	8-98010-361-2	01	1	0712-	●	●	●
48	BOLT; AIR DUCT DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-			●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0710-0711	●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0712-	●	●	●
49	NUT; AIR DUCT DBL CAB(FC*W) (C) M8 FLANGE	8-94279-517-0	01	1	0712-		●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	01	1	0712-			●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0710-0711	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0712-	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0710-0711	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0712-	●	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0710-	●
49	NUT; AIR DUCT SGL CAB(FC*M) (C) M8 FLANGE	8-94279-517-0	02	1	0710-		●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0710-0711	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0712-	●	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0710-0711	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0712-	●	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0710-0711	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0712-	●	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0710-0711	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0712-0810	●	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0710-0711	●	●
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0712-0807	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-	●	●	●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0710-0711	●	●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0712-0812	●	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-	●	●	●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	0710-0906	●	●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	0907-	●
159	BOLT; AIR PIPE SGL CAB(FC*M) M6X16 FLANGE	0-28050-616-0	02	1	0907-		●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-0711	●	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-0808	●	●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	0809-	●	●	●
209	BRACKET; ACL	8-98058-687-0	01	1	0712-			●
209	BRACKET; ACL DBL CAB(FC*W)	8-98089-455-1	01	1	0712-		●
209	BRACKET; ACL	8-98010-344-6	01	1	0710-0711	●	●
209	BRACKET; ACL	8-98099-677-0	01	1	0712-	●
209	BRACKET; ACL SGL CAB(FC*M)	8-98099-677-0	01	1	0712-		●
210	BOLT; ACL BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-			●
210	BOLT; ACL BRKT (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-			●
210	BOLT; ACL BRKT DBL CAB(FC*W) (C) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
210	BOLT; ACL BRKT (A) M10X25 FLANGE	0-28651-025-0	03	1	0710-	●
210	BOLT; ACL BRKT SGL CAB(FC*M) (A) M10X25 FLANGE	0-28651-025-0	03	1	0710-		●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0710-0711	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0712-	●	●	●
242	BRACKET; AIR DUCT (E)	8-98084-231-1	01	1	0712-			●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (G)	8-98089-456-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (D)	8-98050-679-1	01	1	0712-		●
242	BRACKET; AIR DUCT (D)	8-98050-679-1	01	1	0712-			●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (F)	8-98092-771-0	01	1	0712-		●
242	BRACKET; AIR DUCT (F)	8-98092-771-0	01	1	0712-			●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0710-0711	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0710-	●
242	BRACKET; AIR DUCT SGL CAB(FC*M) (C)	8-98019-302-1	01	1	0710-		●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0710-	●
242	BRACKET; AIR DUCT SGL CAB(FC*M) (A)	8-98019-303-1	01	1	0710-		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0710-0711	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0712-	●	●	●
252	DUCT; AIR INT DBL CAB(FC*W)	8-98050-681-0	01	1	0712-		●
252	DUCT; AIR INT	8-98050-681-0	01	1	0712-			●
252	DUCT; AIR INT	8-98019-843-0	01	1	0710-1005	●
252	DUCT; AIR INT SGL CAB(FC*M)	8-98019-843-0	01	1	0710-1005		●
252	DUCT; AIR INT	8-98019-843-0	01	1	1006-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0710-0711	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0712-	●	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-	●	●	●
357	CLIP; RUBBER HOSE (D) ID=77-95	1-09707-198-0	01	1	0712-0810			●
357	CLIP; RUBBER HOSE (D) ID=75-95	8-98133-357-0	01	1	0811-1001			●
357	CLIP; RUBBER HOSE (D) ID=77-99	1-09707-141-0	01	1	1002-			●
357	CLIP; RUBBER HOSE (C) ID=58-76	1-09707-203-0	02	1	0712-0811			●
357	CLIP; RUBBER HOSE (C) ID=55-75	8-98133-349-0	02	1	0812-1001			●
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	02	1	1002-			●
357	CLIP; RUBBER HOSE (E) ID=24	8-98025-921-0	02	1	0712-			●
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	0710-	●	●
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0710-	●	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	0809-		●
379	HOSE; RUBBER	8-98082-252-0	01	1	0712-			●
379	HOSE; RUBBER DBL CAB(FC*W)	8-98073-021-0	01	1	0712-		●
379	HOSE; RUBBER	8-98063-172-0	01	1	0710-	●
379	HOSE; RUBBER SGL CAB(FC*M)	8-98063-172-0	01	1	0710-		●
424	PIPE; AIR,INL	8-98081-834-0	01	1	0710-0906	●	●
424	PIPE; AIR,INL	8-98081-834-0	01	1	0907-	●
424	PIPE; AIR,INL SGL CAB(FC*M)	8-98081-834-0	01	1	0907-		●
450	CLAMP; HOSE	9-09915-504-1	01	1	0710-0711	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0712-	●	●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	0809-		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0712-0808			●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-			●
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0711	●	●
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-0808	●	●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0809-	●	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0710-0711	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0712-	●	●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	0809-		●

215 353 543 488 353 411 411 211 474 199 155 474 530 232 411 357 548 411 157 357 357 353 487 353 357 548 187 543 192 5 174 2 379 320 5 5 357 48 2 64 5 48 242

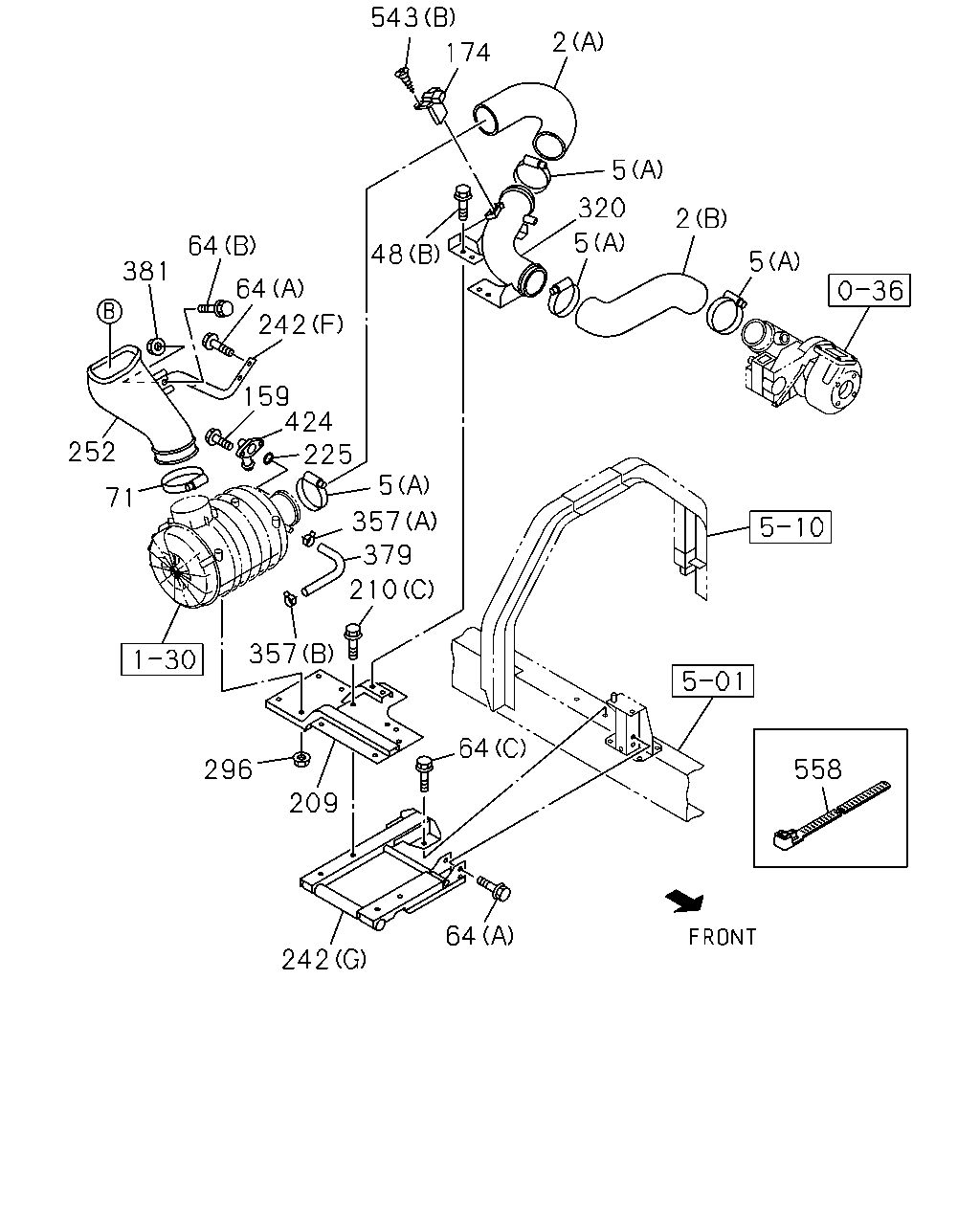

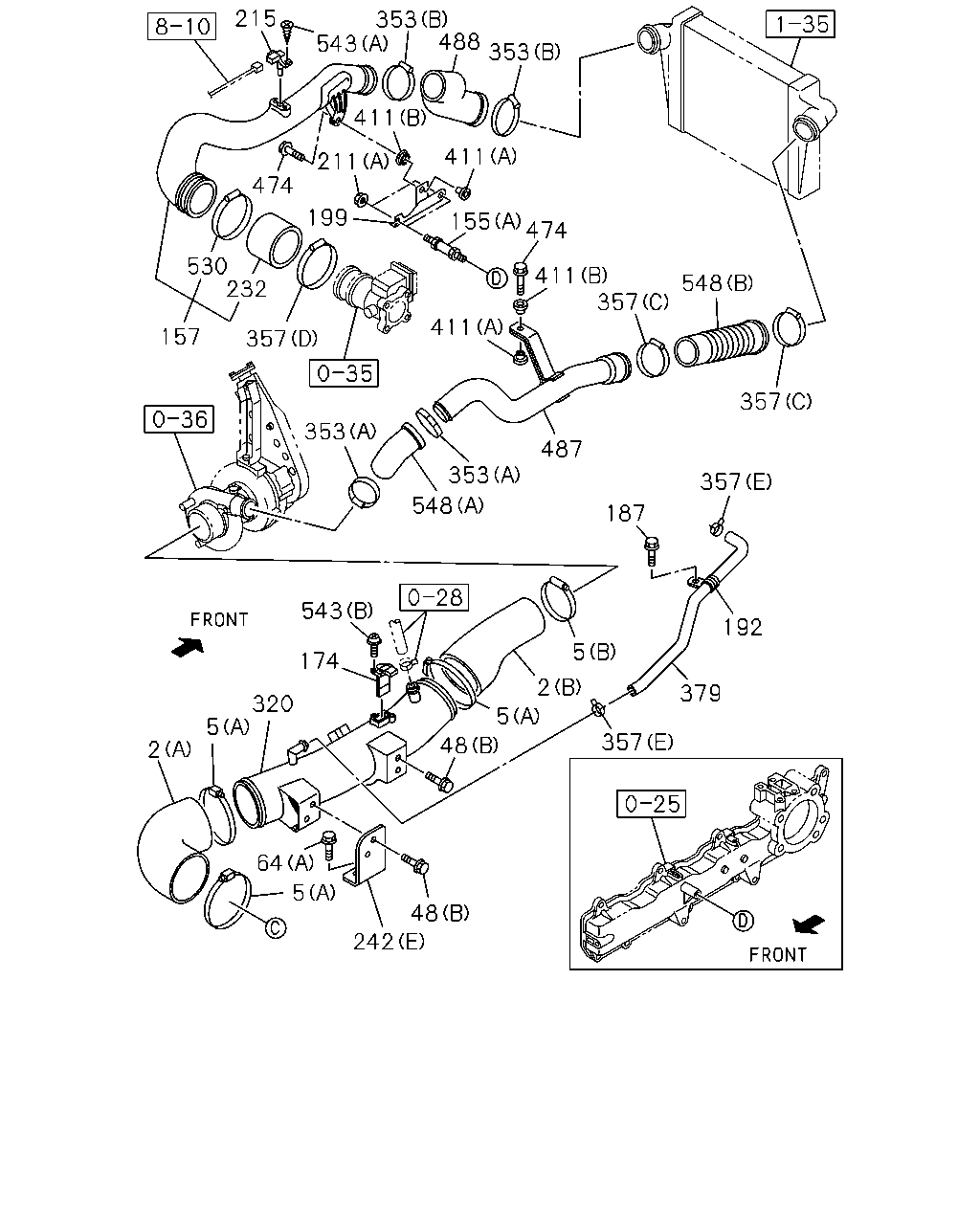

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL (A)	8-98058-691-1	01	1	0712-			●
2	HOSE; ACL (B)	8-98081-763-0	01	1	0712-			●
2	HOSE; ACL DBL CAB(FC*W) (A)	8-98050-682-0	01	1	0712-		●
2	HOSE; ACL DBL CAB(FC*W) (B)	8-98065-313-0	01	1	0712-		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-1005	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-1005	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1006-	●	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1006-	●	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0901-0906	●	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0907-1001	●
5	CLIP; AIR DUCT SGL CAB(FC*M) (A) ID=110-130	8-98133-359-0	01	1	0907-1001		●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=87-113	1-09707-199-0	01	1	0809-0811		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=90-110	8-98133-365-0	01	1	0812-1001		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	01	1	0712-0810			●
5	CLIP; AIR DUCT (B) ID=75-95	8-98133-357-0	01	1	0811-1001			●
5	CLIP; AIR DUCT (B) ID=77-99	1-09707-141-0	01	1	1002-			●
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=104-139	1-09707-200-0	03	1	0712-0812		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	03	1	0712-0812			●
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=110-130	8-98133-359-0	03	1	0901-1001		●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	03	1	0901-1001			●
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=104-142	1-09707-139-0	03	1	1002-		●
5	CLIP; AIR DUCT (A) ID=104-142	1-09707-139-0	03	1	1002-			●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0710-0808	●	●
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0809-0906	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=114	8-15178-030-0	01	1	0809-0906		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=114	8-15178-030-0	01	1	0907-	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0711	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0711	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0712-0808	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0712-0808	●
5	CLIP; AIR DUCT SGL CAB(FC*M) (A) ID=104-139	1-09707-200-0	01	1	0712-0808		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=100-120	8-98133-366-0	01	1	0901-1001	●	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=100-120	8-98133-366-0	01	1	1002-	●	●
48	BOLT; AIR DUCT DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-			●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0710-0711	●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0712-	●	●	●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-		●
64	BOLT; BRKT,AIR DUCT (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-			●
64	BOLT; BRKT,AIR DUCT (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-			●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	03	1	0712-		●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (C) M10X35 FLANGE	0-28651-035-0	02	1	0712-		●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	01	1	0712-0805		●
64	BOLT; BRKT,AIR DUCT (B) M8X25 W/LK&PL WASHER	1-09030-074-0	01	1	0712-0805			●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0806-		●
64	BOLT; BRKT,AIR DUCT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0806-			●
155	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-			●
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	0712-			●
157	PIPE; AIR	8-98010-719-3	01	1	0712-			●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-0711	●	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-0808	●	●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	0809-	●	●	●
187	BOLT; INL HOSE M8X16 FLANGE	0-28050-816-0	01	1	0712-			●
192	CLIP; HOSE ID=26 L=26	1-09701-236-0	01	1	0712-			●
199	BRACKET; PIPE	8-97385-293-1	01	1	0712-			●
211	NUT; BRKT (B) M8 FLANGE	0-91180-208-0	02	1	0712-0803			●
211	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0804-			●
211	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-			●
215	SENSOR; MAP	8-98009-418-0	01	1	0712-			●
232	HOSE; CONN	8-98067-929-0	01	1	0712-			●
242	BRACKET; AIR DUCT (E)	8-98084-231-1	01	1	0712-			●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (G)	8-98089-456-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (D)	8-98050-679-1	01	1	0712-		●
242	BRACKET; AIR DUCT (D)	8-98050-679-1	01	1	0712-			●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (F)	8-98092-771-0	01	1	0712-		●
242	BRACKET; AIR DUCT (F)	8-98092-771-0	01	1	0712-			●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0710-0711	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0710-	●
242	BRACKET; AIR DUCT SGL CAB(FC*M) (C)	8-98019-302-1	01	1	0710-		●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0710-	●
242	BRACKET; AIR DUCT SGL CAB(FC*M) (A)	8-98019-303-1	01	1	0710-		●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98072-934-0	01	1	0809-		●
320	HOSE; CONN,ACL	8-98084-232-0	01	1	0712-			●
320	HOSE; CONN,ACL DBL CAB(FC*W)	8-98092-944-1	01	1	0712-		●
320	HOSE; CONN,ACL	8-98077-619-1	01	1	0710-0808	●
320	HOSE; CONN,ACL SGL CAB(FC*M)	8-98077-619-1	01	1	0710-0808		●
320	HOSE; CONN,ACL SGL CAB(FC*M) EURO4 SPECIFICATION<NT4>	8-98077-619-1	01	1	0809-	●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	08	1	1002-	●	●
353	CLIP; RUBBER HOSE (A) ID=50-69	1-09707-135-0	02	1	0712-0712			●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	0712-			●
353	CLIP; RUBBER HOSE (B) ID=58-76	1-09707-203-0	02	1	0712-0811			●
353	CLIP; RUBBER HOSE (B) ID=55-75	8-98133-349-0	02	1	0812-1001			●
353	CLIP; RUBBER HOSE (B) ID=58-79	1-09707-136-0	02	1	1002-			●
353	CLIP; RUBBER HOSE (B) ID=58-76	1-09707-203-0	08	1	0710-0811	●	●
353	CLIP; RUBBER HOSE (B) ID=55-75	8-98133-349-0	08	1	0812-1001	●	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	08	1	1002-	●	●
357	CLIP; RUBBER HOSE (D) ID=77-95	1-09707-198-0	01	1	0712-0810			●
357	CLIP; RUBBER HOSE (D) ID=75-95	8-98133-357-0	01	1	0811-1001			●
357	CLIP; RUBBER HOSE (D) ID=77-99	1-09707-141-0	01	1	1002-			●
357	CLIP; RUBBER HOSE (C) ID=58-76	1-09707-203-0	02	1	0712-0811			●
357	CLIP; RUBBER HOSE (C) ID=55-75	8-98133-349-0	02	1	0812-1001			●
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	02	1	1002-			●
357	CLIP; RUBBER HOSE (E) ID=24	8-98025-921-0	02	1	0712-			●
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	0710-	●	●
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0710-	●	●
379	HOSE; RUBBER	8-98082-252-0	01	1	0712-			●
379	HOSE; RUBBER DBL CAB(FC*W)	8-98073-021-0	01	1	0712-		●
379	HOSE; RUBBER	8-98063-172-0	01	1	0710-	●
379	HOSE; RUBBER SGL CAB(FC*M)	8-98063-172-0	01	1	0710-		●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	0712-			●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	0712-			●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	0712-			●
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98038-759-3	01	1	0712-			●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	0712-			●
488	HOSE; RUBBER,PIPE	8-98017-224-1	01	1	0710-	●	●
530	CLAMP; AIR DUCT	8-98068-074-0	01	1	0712-0805			●
530	CLAMP; AIR DUCT ID=77-95	1-09707-198-0	01	1	0806-0810			●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	0811-			●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0712-0808			●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-		●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-			●
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0711	●	●
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-0808	●	●	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0809-	●	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (C)	8-98181-973-1	01	1	1102-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	0712-			●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	0712-			●
548	HOSE; RUBBER,TURBO TO INL PIPE (C)	8-98017-223-2	01	1	0710-1101	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE (C)	8-98017-223-2	01	1	1102-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2> (C)	8-98017-223-2	01	1	1102-		●

49 242 58 56 56 49 49 56 56 242 58 242 245 58 48 64 61 64 26 381 560 252 450 71 316 558 225 210 210 211 153 155 154 209 296 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	DUCT; AIR INT	8-98010-361-2	01	1	0710-0711	●	●
26	DUCT; AIR INT	8-98010-361-2	01	1	0712-	●	●	●
48	BOLT; AIR DUCT DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-			●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0710-0711	●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0712-	●	●	●
49	NUT; AIR DUCT DBL CAB(FC*W) (C) M8 FLANGE	8-94279-517-0	01	1	0712-		●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	01	1	0712-			●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0710-0711	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0712-	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0710-0711	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0712-	●	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0710-	●
49	NUT; AIR DUCT SGL CAB(FC*M) (C) M8 FLANGE	8-94279-517-0	02	1	0710-		●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0710-0711	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0712-	●	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0710-0711	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0712-	●	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0710-0711	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0712-	●	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0710-0711	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0712-0810	●	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0710-0711	●	●
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0712-0807	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-	●	●	●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-		●
64	BOLT; BRKT,AIR DUCT (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-			●
64	BOLT; BRKT,AIR DUCT (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-			●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	03	1	0712-		●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (C) M10X35 FLANGE	0-28651-035-0	02	1	0712-		●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	01	1	0712-0805		●
64	BOLT; BRKT,AIR DUCT (B) M8X25 W/LK&PL WASHER	1-09030-074-0	01	1	0712-0805			●
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0806-		●
64	BOLT; BRKT,AIR DUCT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0806-			●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0710-0711	●	●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0712-0812	●	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-	●	●	●
153	BRACKET; ACL,FRT	8-98058-686-0	01	1	0712-			●
154	BRACKET; ACL,RR	8-98058-688-1	01	1	0712-			●
155	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-			●
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	0712-			●
156	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-			●
209	BRACKET; ACL	8-98058-687-0	01	1	0712-			●
209	BRACKET; ACL DBL CAB(FC*W)	8-98089-455-1	01	1	0712-		●
209	BRACKET; ACL	8-98010-344-6	01	1	0710-0711	●	●
209	BRACKET; ACL	8-98099-677-0	01	1	0712-	●
209	BRACKET; ACL SGL CAB(FC*M)	8-98099-677-0	01	1	0712-		●
210	BOLT; ACL BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-			●
210	BOLT; ACL BRKT (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-			●
210	BOLT; ACL BRKT DBL CAB(FC*W) (C) M10X25 FLANGE	0-28651-025-0	04	1	0712-		●
210	BOLT; ACL BRKT (A) M10X25 FLANGE	0-28651-025-0	03	1	0710-	●
210	BOLT; ACL BRKT SGL CAB(FC*M) (A) M10X25 FLANGE	0-28651-025-0	03	1	0710-		●
211	NUT; BRKT (B) M8 FLANGE	0-91180-208-0	02	1	0712-0803			●
211	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0804-			●
211	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-			●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0710-0711	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0712-	●	●	●
242	BRACKET; AIR DUCT (E)	8-98084-231-1	01	1	0712-			●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (G)	8-98089-456-1	01	1	0712-		●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (D)	8-98050-679-1	01	1	0712-		●
242	BRACKET; AIR DUCT (D)	8-98050-679-1	01	1	0712-			●
242	BRACKET; AIR DUCT DBL CAB(FC*W) (F)	8-98092-771-0	01	1	0712-		●
242	BRACKET; AIR DUCT (F)	8-98092-771-0	01	1	0712-			●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0710-0711	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-	●	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0710-	●
242	BRACKET; AIR DUCT SGL CAB(FC*M) (C)	8-98019-302-1	01	1	0710-		●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0710-	●
242	BRACKET; AIR DUCT SGL CAB(FC*M) (A)	8-98019-303-1	01	1	0710-		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0710-0711	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0712-	●	●	●
252	DUCT; AIR INT DBL CAB(FC*W)	8-98050-681-0	01	1	0712-		●
252	DUCT; AIR INT	8-98050-681-0	01	1	0712-			●
252	DUCT; AIR INT	8-98019-843-0	01	1	0710-1005	●
252	DUCT; AIR INT SGL CAB(FC*M)	8-98019-843-0	01	1	0710-1005		●
252	DUCT; AIR INT	8-98019-843-0	01	1	1006-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0710-0711	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0712-	●	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-	●	●	●
381	NUT; BRKT,AIR DUCT DBL CAB(FC*W) M8 FLANGE	0-91180-108-0	01	1	0712-		●
381	NUT; BRKT,AIR DUCT M8 FLANGE	0-91180-108-0	01	1	0712-			●
450	CLAMP; HOSE	9-09915-504-1	01	1	0710-0711	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0712-	●	●	●
558	CLIP; AIR FLOW SENSOR DBL CAB(FC*W) L=600	1-09707-107-1	01	1	0712-		●
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	01	1	0712-			●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0710-0711	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0712-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
