Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#6628) — 19 parça
◀

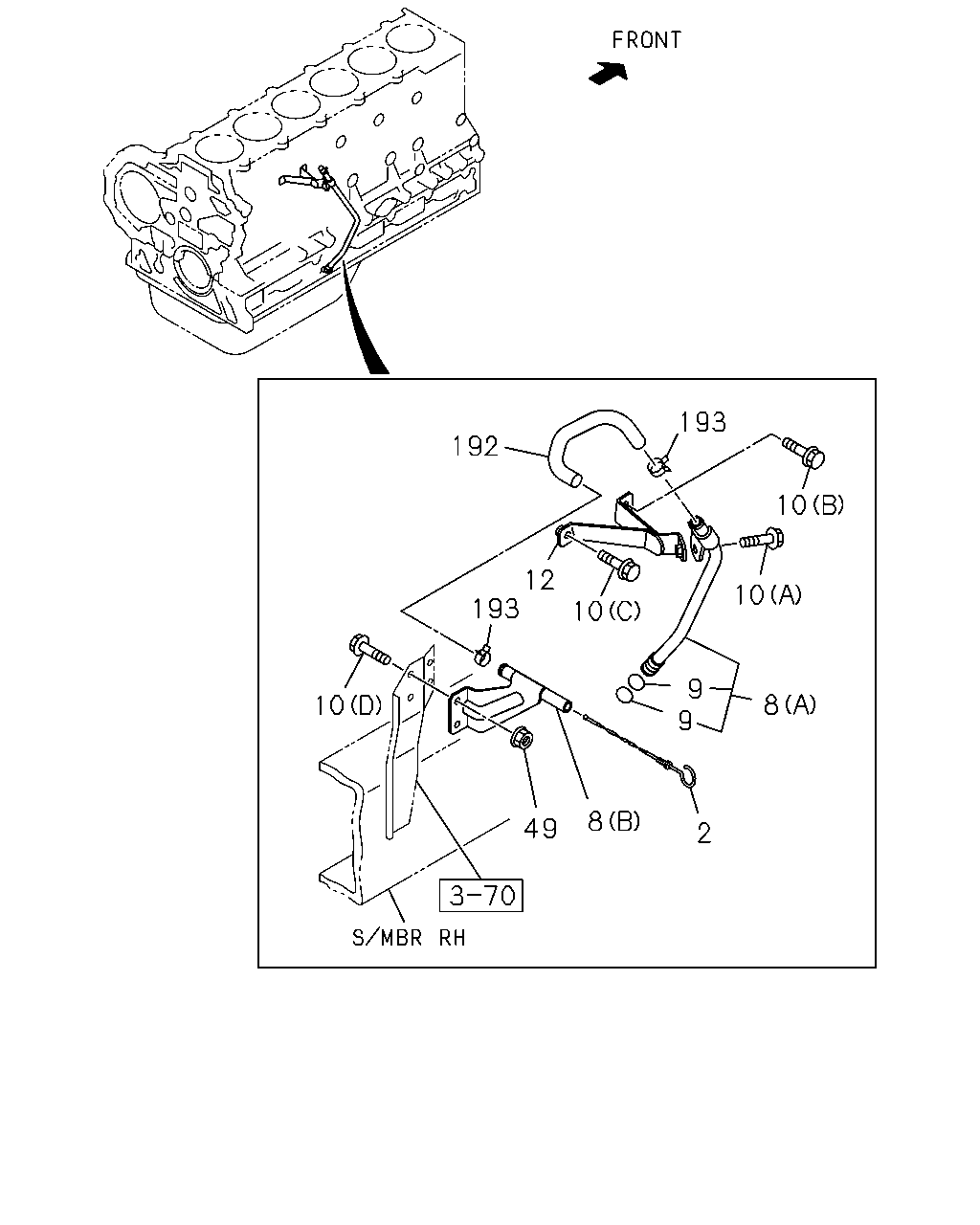

[013A] LEVEL GAUGE (13 parça)
[013A] OIL PAN (6 parça)
▶
193
192
10
12
193
10
10
9
9
8
10
8
49
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
1-11760-396-1
01
1
0011-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-453-0
01
1
0011-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-94392-176-1
01
1
0011-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 THA
5-09623-002-0
02
1
0011-0112
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-469-0
02
1
0201-
10
BOLT; GUIDE TUBE
(A) M8X12 FLANGE
0-28080-812-0
01
1
0011-
10
BOLT; GUIDE TUBE
(B) M8X16 FLANGE
0-28080-816-0
01
1
0011-
10
BOLT; GUIDE TUBE
(D) M8X20 FLANGE
0-28680-820-0
02
1
0011-
10
BOLT; GUIDE TUBE
(C) M8X35 FLANGE
0-28680-835-0
01
1
0011-
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-94392-600-0
01
1
0011-
49
NUT; GUIDE TUBE
M8 FLANGE
0-91150-108-0
02
1
0011-
192
HOSE; GUIDE TUBE
L=300
1-09360-978-0
01
1
0011-
193
CLIP; HOSE,GUIDE TUBE
ID=17 THA
1-09707-158-0
02
1
0011-
47
23
23
24
6
1
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-94395-861-1
01
1
0011-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0011-
6
PLUG; OIL DRAIN
9-09662-012-0
01
1
0011-
23
BOLT; OIL PAN
M8X18 FLANGE
0-28080-818-0
30
1
0011-
24
NUT; OIL PAN
M8 FLANGE
0-91150-108-0
04
1
0011-
47
CLIP; HOSE,AIR BREATHER
1-11369-115-0
01
1
0011-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
