Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#66277) — 239 parça

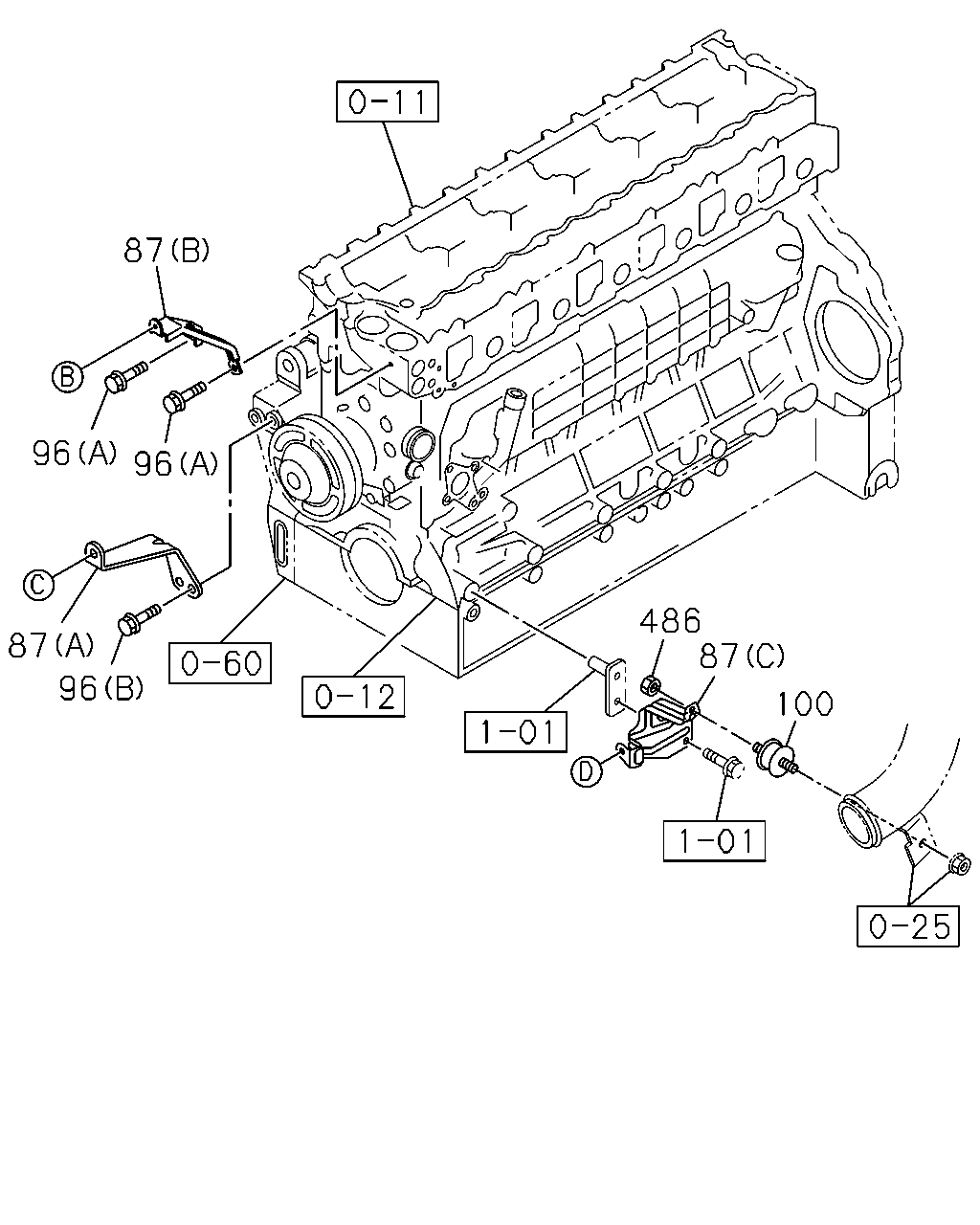

87 96 96 486 87 87 96 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
87	STAY; FAN GUIDE (B)	8-94393-776-1	01	1	0710-	●	●
87	STAY; FAN GUIDE (C)	8-94393-778-2	01	1	0710-	●	●
87	STAY; FAN GUIDE (A)	8-97602-988-0	01	1	0710-	●	●
96	BOLT; STAY FIX GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M10X75 FLANGE	8-94399-669-1	02	1	1110-			●
96	BOLT; STAY FIX (C) M10X20 FLANGE	0-28151-020-0	02	1	0712-0803			●
96	BOLT; STAY FIX GENERATOR 24V90A(K44) (C) M10X20 FLANGE	0-28151-020-0	02	1	0712-0803			●
96	BOLT; STAY FIX GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M10X20 FLANGE	0-28151-020-0	02	1	0804-0811			●
96	BOLT; STAY FIX (C) M10X20 FLANGE	0-28151-020-0	02	1	0812-			●
96	BOLT; STAY FIX GENERATOR 24V90A(K44) (C) M10X25 FLANGE	0-28751-025-0	02	1	0712-			●
96	BOLT; STAY FIX (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
96	BOLT; STAY FIX (A) M10X16 FLANGE	0-28151-016-0	02	1	0710-	●	●
100	RUBBER; MTG	8-94394-268-1	01	1	0710-0910	●	●
100	RUBBER; MTG	8-98148-109-0	01	1	0911-	●	●
486	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0710-	●	●

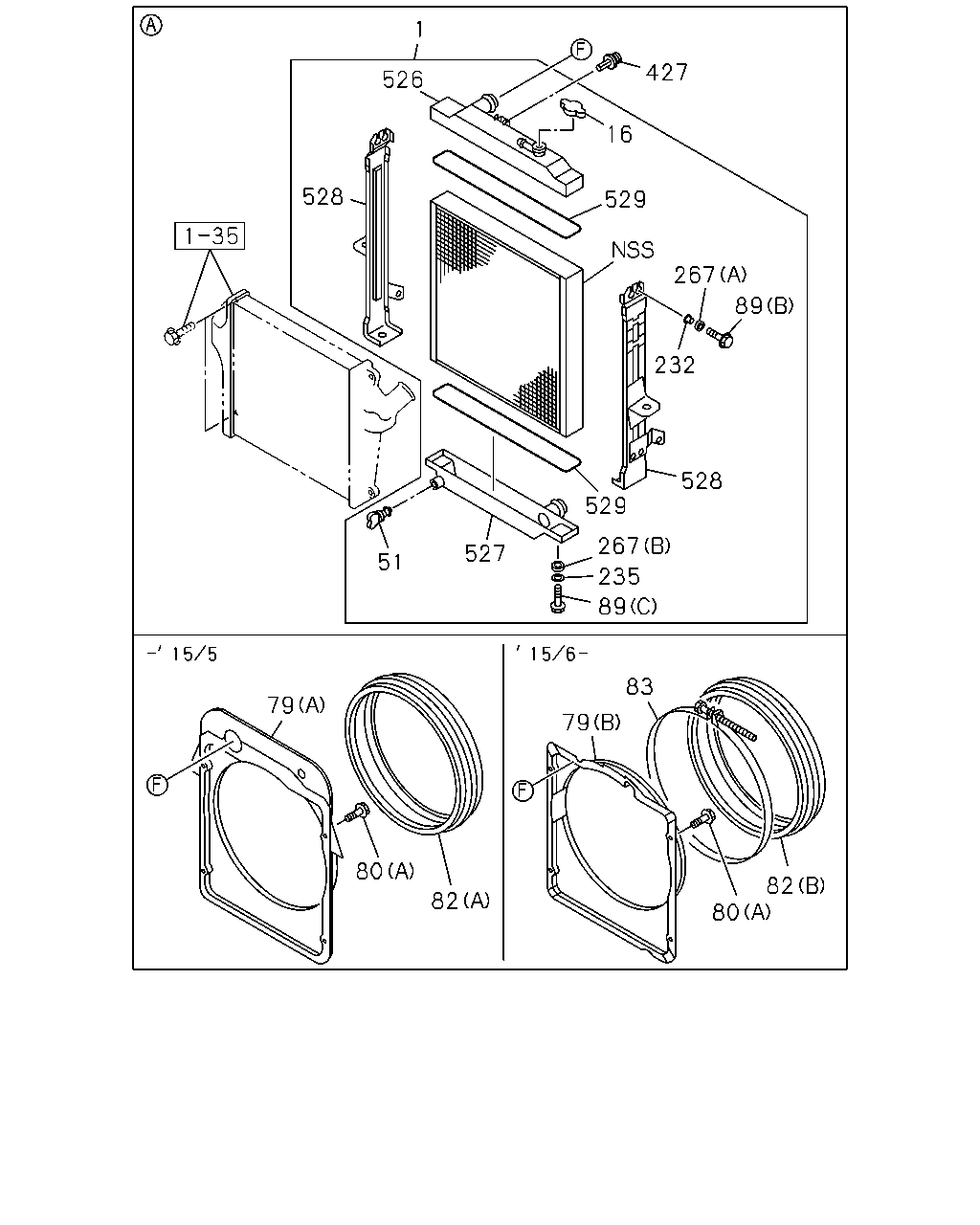

1 427 16 526 528 529 267 89 232 528 529 527 267 235 89 83 82 80 79 79 80 82 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-322-0	01	1	0712-			●
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98139-320-0	01	1	0712-			●
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98043-040-1	01	1	0710-1505	●	●
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98299-726-0	01	1	1506-	●	●
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98043-027-1	01	1	0710-1505	●	●
1	RADIATOR ASM EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98299-725-0	01	1	1506-	●	●
16	CAP; RAD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98096-226-0	01	1	0801-	●	●
16	CAP; RAD	8-97239-187-0	01	1	0710-0711	●	●
16	CAP; RAD	8-97239-187-0	01	1	0712-0712	●	●	●
16	CAP; RAD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97239-187-0	01	1	0801-	●	●
16	CAP; RAD	8-97239-187-0	01	1	0801-			●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0710-0711	●	●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0712-	●	●	●
79	GUIDE; FAN,RAD (C)	8-98010-297-0	01	1	0712-			●
79	GUIDE; FAN,RAD (A)	8-98004-207-0	01	1	0710-1505	●	●
79	GUIDE; FAN,RAD (B)	8-98286-937-0	01	1	1506-	●	●
80	BOLT; FAN GUIDE (C) M6X16	1-21559-481-0	04	1	0712-			●
80	BOLT; FAN GUIDE (A) M8X14	8-98046-222-0	04	1	0710-1505	●	●
80	BOLT; FAN GUIDE (A) M8X12 FLANGE	0-28050-812-0	04	1	1506-	●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-0711	●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0712-	●	●	●
82	COVER; FAN,RAD (C)	8-98006-478-0	01	1	0712-			●
82	COVER; FAN,RAD (A)	8-98004-211-0	01	1	0710-1505	●	●
82	COVER; FAN,RAD (B)	8-98293-253-0	01	1	1506-	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	1506-	●	●
89	BOLT (C) M6X12 FLANGE	0-28050-612-0	02	1	0710-	●	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	04	1	0710-	●	●
89	BOLT (A) M8X12 FLANGE	0-28050-812-0	02	1	0712-			●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	0712-			●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	04	1	0710-	●	●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	0712-			●
235	WASHER; CUSHION RUBBER	1-21469-133-0	02	1	0710-	●	●
267	RUBBER; CUSHION (A)	1-21469-130-0	04	1	0710-	●	●
267	RUBBER; CUSHION (B)	1-21469-131-0	02	1	0710-	●	●
267	RUBBER; CUSHION (C)	1-21467-023-0	02	1	0712-			●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	0710-0711	●	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	0712-1505	●	●	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	1506-			●
526	TANK; UPR,RADIATOR CORE	8-98010-271-2	01	1	0712-			●
526	TANK; UPR,RADIATOR CORE	8-98004-202-2	01	1	0710-	●	●
527	TANK; LWR,RADIATOR CORE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-279-0	01	1	0712-			●
527	TANK; LWR,RADIATOR CORE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-433-1	01	1	0712-			●
527	TANK; LWR,RADIATOR CORE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-365-0	01	1	0710-	●	●
527	TANK; LWR,RADIATOR CORE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98004-203-0	01	1	0710-	●	●
528	PLATE; SIDE,RADIATOR CORE	8-98010-290-1	01	1	0712-			●
528	PLATE; SIDE,RADIATOR CORE	8-98010-291-1	01	1	0712-			●
528	PLATE; SIDE,RADIATOR CORE	8-98043-028-0	01	1	0710-0805	●	●
528	PLATE; SIDE,RADIATOR CORE	8-98035-117-3	01	1	0806-	●	●
528	PLATE; SIDE,RADIATOR CORE	8-98043-029-1	01	1	0710-	●	●
529	GASKET; CORE,RADIATOR	8-98004-206-0	02	1	0710-	●	●

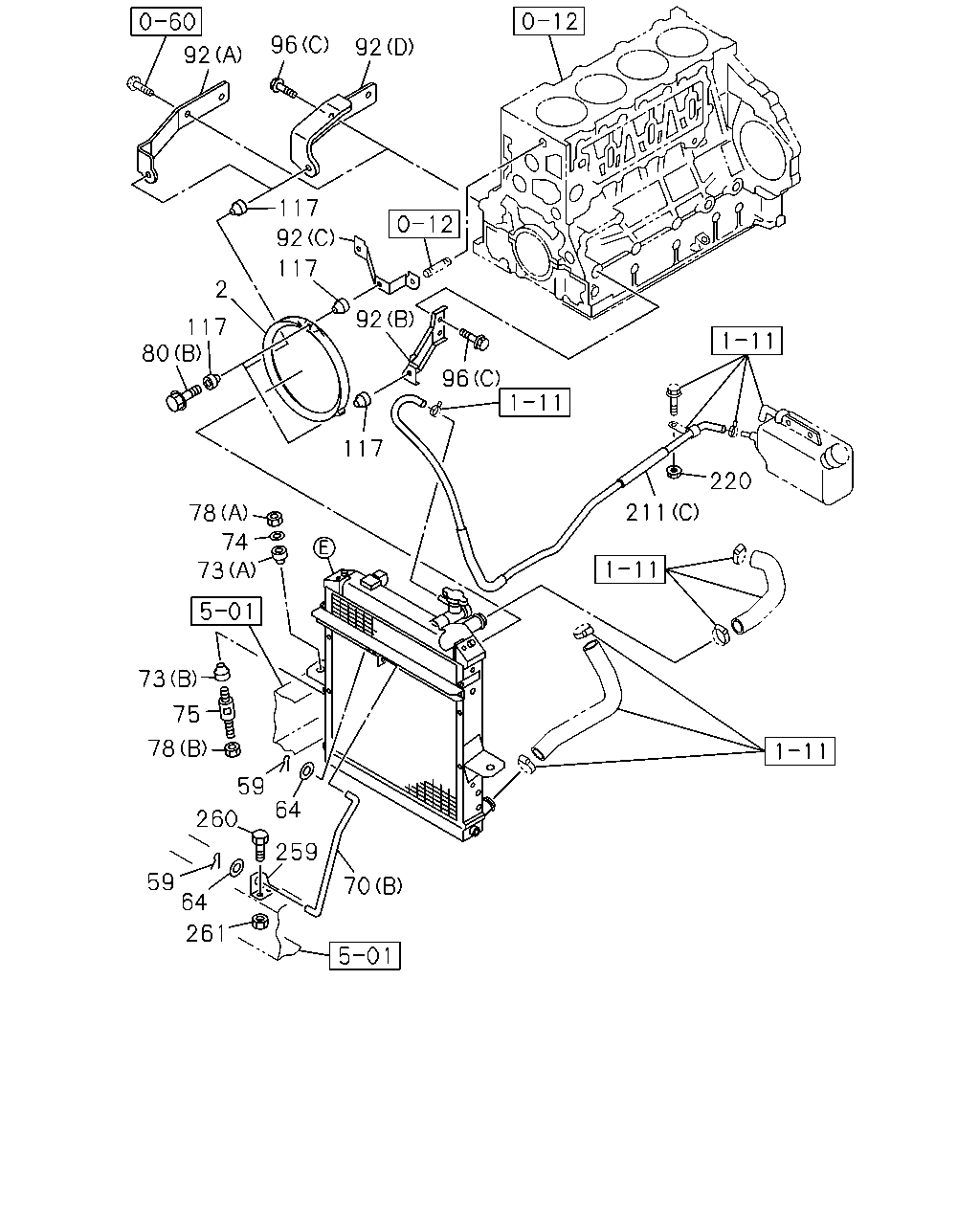

96 92 92 117 92 117 2 92 117 80 96 117 220 211 78 74 73 73 75 78 59 64 260 259 59 64 70 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GUIDE; FAN	8-97350-995-0	01	1	0712-			●
2	GUIDE; FAN	8-94393-779-1	01	1	0710-	●	●
59	PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	0712-			●
64	WASHER; STAY TO RAD ID=10.5	0-91610-510-0	02	1	0712-			●
64	WASHER; STAY TO RAD ID=12.5 OD=26	0-91610-612-0	04	1	0710-	●	●
70	STAY; RAD (B)	8-98010-657-0	01	1	0712-			●
70	STAY; RAD (A)	8-98018-941-0	01	1	0712-			●
70	STAY; RAD DBL CAB(FC*W) (C)	8-98078-903-0	01	1	0712-		●
70	STAY; RAD DBL CAB(FC*W) (C)	8-98078-905-0	01	1	0712-		●
70	STAY; RAD SGL CAB(FC*M) (C)	8-98078-897-0	01	1	0710-	●	●
70	STAY; RAD SGL CAB(FC*M) (C)	8-98078-896-0	01	1	0710-	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0710-0711	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0712-	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0710-0711	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0712-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-2	02	1	0710-0711	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-2	02	1	0712-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0710-0711	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0712-	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	0710-0711	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	0712-	●	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0710-0711	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0712-	●	●	●
80	BOLT; FAN GUIDE (C) M6X16	1-21559-481-0	04	1	0712-			●
80	BOLT; FAN GUIDE (A) M8X14	8-98046-222-0	04	1	0710-1505	●	●
80	BOLT; FAN GUIDE (A) M8X12 FLANGE	0-28050-812-0	04	1	1506-	●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-0711	●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0712-	●	●	●
92	BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	0712-			●
92	BRACKET; FAN GUIDE (C)	8-97382-827-2	01	1	0712-			●
92	BRACKET; FAN GUIDE GENERATOR 24V90A(K44) (D)	8-98032-526-0	01	1	0712-			●
92	BRACKET; FAN GUIDE GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97350-997-0	01	1	0712-			●
96	BOLT; STAY FIX GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M10X75 FLANGE	8-94399-669-1	02	1	1110-			●
96	BOLT; STAY FIX (C) M10X20 FLANGE	0-28151-020-0	02	1	0712-0803			●
96	BOLT; STAY FIX GENERATOR 24V90A(K44) (C) M10X20 FLANGE	0-28151-020-0	02	1	0712-0803			●
96	BOLT; STAY FIX GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M10X20 FLANGE	0-28151-020-0	02	1	0804-0811			●
96	BOLT; STAY FIX (C) M10X20 FLANGE	0-28151-020-0	02	1	0812-			●
96	BOLT; STAY FIX GENERATOR 24V90A(K44) (C) M10X25 FLANGE	0-28751-025-0	02	1	0712-			●
96	BOLT; STAY FIX (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
96	BOLT; STAY FIX (A) M10X16 FLANGE	0-28151-016-0	02	1	0710-	●	●
117	RUBBER; MTG,FAN GUIDE	1-09337-027-0	06	1	0712-			●
117	RUBBER; MTG,FAN GUIDE OD=32	8-94395-766-0	06	1	0710-	●	●
211	HOSE; RAD TO PIPE DBL CAB(FC*W) (A) L=1100 SERVICED BY L=3000	0-03557-300-0	01	1	0712-0712		●
211	HOSE; RAD TO PIPE DBL CAB(FC*W) (A) L=1050 SERVICED BY L=3000	0-03557-300-0	01	1	0801-0801		●
211	HOSE; RAD TO PIPE DBL CAB(FC*W) (A)	8-98113-423-0	01	1	0802-0805		●
211	HOSE; RAD TO PIPE DBL CAB(FC*W) (A) L=1140	8-98119-760-0	01	1	0806-		●
211	HOSE; RAD TO PIPE (C)	8-98099-137-0	01	1	0712-			●
211	HOSE; RAD TO PIPE (B) L=940	8-98073-544-0	01	1	0710-	●	●
211	HOSE; RAD TO PIPE (A) L=560	8-98067-261-2	01	1	0710-0805	●
211	HOSE; RAD TO PIPE SGL CAB(FC*M) (A) L=560	8-98067-261-2	01	1	0710-0805		●
211	HOSE; RAD TO PIPE (A) L=560	8-98119-375-0	01	1	0806-	●
211	HOSE; RAD TO PIPE SGL CAB(FC*M) (A) L=560	8-98119-375-0	01	1	0806-		●
220	NUT; CLIP DBL CAB(FC*W) M8 FLANGE	0-91180-108-0	02	1	0712-		●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0712-			●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-	●
220	NUT; CLIP SGL CAB(FC*M) M8 FLANGE	0-91180-108-0	01	1	0710-		●
259	BRACKET; RAD STAY	8-98063-603-0	01	1	0712-			●
260	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-			●
261	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-			●

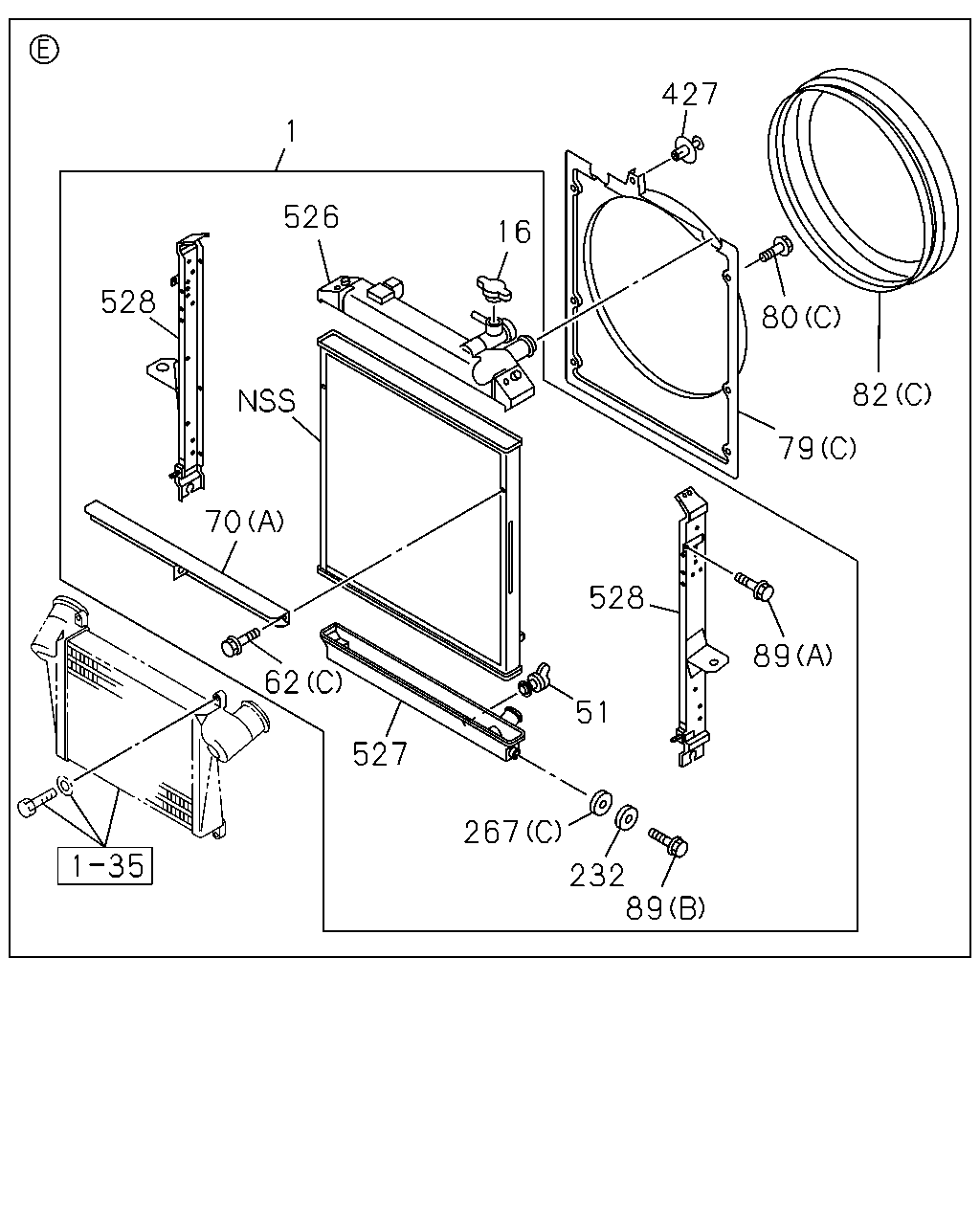

427 1 16 80 82 79 89 528 51 89 232 267 527 62 70 528 526

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-322-0	01	1	0712-			●
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98139-320-0	01	1	0712-			●
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98043-040-1	01	1	0710-1505	●	●
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98299-726-0	01	1	1506-	●	●
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98043-027-1	01	1	0710-1505	●	●
1	RADIATOR ASM EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98299-725-0	01	1	1506-	●	●
16	CAP; RAD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98096-226-0	01	1	0801-	●	●
16	CAP; RAD	8-97239-187-0	01	1	0710-0711	●	●
16	CAP; RAD	8-97239-187-0	01	1	0712-0712	●	●	●
16	CAP; RAD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97239-187-0	01	1	0801-	●	●
16	CAP; RAD	8-97239-187-0	01	1	0801-			●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0710-0711	●	●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0712-	●	●	●
62	BOLT; STAY (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-			●
62	BOLT; STAY (A) M8X30	1-09009-020-1	02	1	0710-	●	●
62	BOLT; STAY (B) M8X26	1-09009-175-0	02	1	0710-	●	●
70	STAY; RAD (B)	8-98010-657-0	01	1	0712-			●
70	STAY; RAD (A)	8-98018-941-0	01	1	0712-			●
70	STAY; RAD DBL CAB(FC*W) (C)	8-98078-903-0	01	1	0712-		●
70	STAY; RAD DBL CAB(FC*W) (C)	8-98078-905-0	01	1	0712-		●
70	STAY; RAD SGL CAB(FC*M) (C)	8-98078-897-0	01	1	0710-	●	●
70	STAY; RAD SGL CAB(FC*M) (C)	8-98078-896-0	01	1	0710-	●	●
79	GUIDE; FAN,RAD (C)	8-98010-297-0	01	1	0712-			●
79	GUIDE; FAN,RAD (A)	8-98004-207-0	01	1	0710-1505	●	●
79	GUIDE; FAN,RAD (B)	8-98286-937-0	01	1	1506-	●	●
80	BOLT; FAN GUIDE (C) M6X16	1-21559-481-0	04	1	0712-			●
80	BOLT; FAN GUIDE (A) M8X14	8-98046-222-0	04	1	0710-1505	●	●
80	BOLT; FAN GUIDE (A) M8X12 FLANGE	0-28050-812-0	04	1	1506-	●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-0711	●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0712-	●	●	●
82	COVER; FAN,RAD (C)	8-98006-478-0	01	1	0712-			●
82	COVER; FAN,RAD (A)	8-98004-211-0	01	1	0710-1505	●	●
82	COVER; FAN,RAD (B)	8-98293-253-0	01	1	1506-	●	●
89	BOLT (C) M6X12 FLANGE	0-28050-612-0	02	1	0710-	●	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	04	1	0710-	●	●
89	BOLT (A) M8X12 FLANGE	0-28050-812-0	02	1	0712-			●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	0712-			●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	04	1	0710-	●	●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	0712-			●
267	RUBBER; CUSHION (A)	1-21469-130-0	04	1	0710-	●	●
267	RUBBER; CUSHION (B)	1-21469-131-0	02	1	0710-	●	●
267	RUBBER; CUSHION (C)	1-21467-023-0	02	1	0712-			●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	0710-0711	●	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	0712-1505	●	●	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	1506-			●
526	TANK; UPR,RADIATOR CORE	8-98010-271-2	01	1	0712-			●
526	TANK; UPR,RADIATOR CORE	8-98004-202-2	01	1	0710-	●	●
527	TANK; LWR,RADIATOR CORE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-279-0	01	1	0712-			●
527	TANK; LWR,RADIATOR CORE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-433-1	01	1	0712-			●
527	TANK; LWR,RADIATOR CORE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-365-0	01	1	0710-	●	●
527	TANK; LWR,RADIATOR CORE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98004-203-0	01	1	0710-	●	●
528	PLATE; SIDE,RADIATOR CORE	8-98010-290-1	01	1	0712-			●
528	PLATE; SIDE,RADIATOR CORE	8-98010-291-1	01	1	0712-			●
528	PLATE; SIDE,RADIATOR CORE	8-98043-028-0	01	1	0710-0805	●	●
528	PLATE; SIDE,RADIATOR CORE	8-98035-117-3	01	1	0806-	●	●
528	PLATE; SIDE,RADIATOR CORE	8-98043-029-1	01	1	0710-	●	●

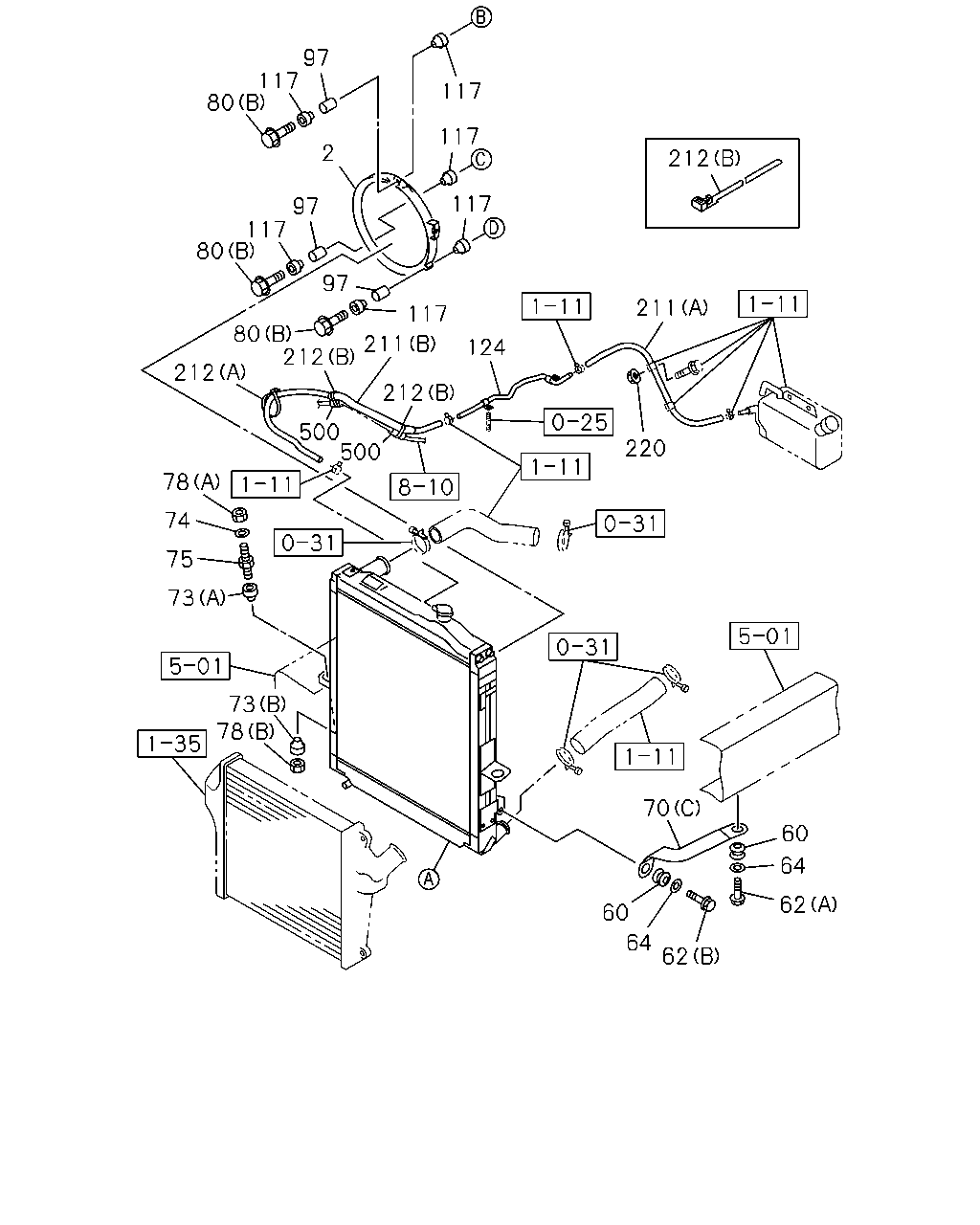

97 117 80 117 117 2 212 117 97 117 80 97 211 117 80 211 212 124 212 212 500 500 220 78 74 75 73 73 78 70 60 64 62 60 64 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GUIDE; FAN	8-97350-995-0	01	1	0712-			●
2	GUIDE; FAN	8-94393-779-1	01	1	0710-	●	●
60	GROMMET	1-09332-117-0	04	1	0710-	●	●
62	BOLT; STAY (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-			●
62	BOLT; STAY (A) M8X30	1-09009-020-1	02	1	0710-	●	●
62	BOLT; STAY (B) M8X26	1-09009-175-0	02	1	0710-	●	●
64	WASHER; STAY TO RAD ID=10.5	0-91610-510-0	02	1	0712-			●
64	WASHER; STAY TO RAD ID=12.5 OD=26	0-91610-612-0	04	1	0710-	●	●
70	STAY; RAD (B)	8-98010-657-0	01	1	0712-			●
70	STAY; RAD (A)	8-98018-941-0	01	1	0712-			●
70	STAY; RAD DBL CAB(FC*W) (C)	8-98078-903-0	01	1	0712-		●
70	STAY; RAD DBL CAB(FC*W) (C)	8-98078-905-0	01	1	0712-		●
70	STAY; RAD SGL CAB(FC*M) (C)	8-98078-897-0	01	1	0710-	●	●
70	STAY; RAD SGL CAB(FC*M) (C)	8-98078-896-0	01	1	0710-	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0710-0711	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0712-	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0710-0711	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0712-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-2	02	1	0710-0711	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-2	02	1	0712-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0710-0711	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0712-	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	0710-0711	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	0712-	●	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0710-0711	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0712-	●	●	●
80	BOLT; FAN GUIDE (C) M6X16	1-21559-481-0	04	1	0712-			●
80	BOLT; FAN GUIDE (A) M8X14	8-98046-222-0	04	1	0710-1505	●	●
80	BOLT; FAN GUIDE (A) M8X12 FLANGE	0-28050-812-0	04	1	1506-	●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-0711	●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0712-	●	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0710-	●	●
117	RUBBER; MTG,FAN GUIDE	1-09337-027-0	06	1	0712-			●
117	RUBBER; MTG,FAN GUIDE OD=32	8-94395-766-0	06	1	0710-	●	●
124	PIPE; WATER,TANK TO RAD	8-97611-022-1	01	1	0710-	●	●
211	HOSE; RAD TO PIPE DBL CAB(FC*W) (A) L=1100 SERVICED BY L=3000	0-03557-300-0	01	1	0712-0712		●
211	HOSE; RAD TO PIPE DBL CAB(FC*W) (A) L=1050 SERVICED BY L=3000	0-03557-300-0	01	1	0801-0801		●
211	HOSE; RAD TO PIPE DBL CAB(FC*W) (A)	8-98113-423-0	01	1	0802-0805		●
211	HOSE; RAD TO PIPE DBL CAB(FC*W) (A) L=1140	8-98119-760-0	01	1	0806-		●
211	HOSE; RAD TO PIPE (C)	8-98099-137-0	01	1	0712-			●
211	HOSE; RAD TO PIPE (B) L=940	8-98073-544-0	01	1	0710-	●	●
211	HOSE; RAD TO PIPE (A) L=560	8-98067-261-2	01	1	0710-0805	●
211	HOSE; RAD TO PIPE SGL CAB(FC*M) (A) L=560	8-98067-261-2	01	1	0710-0805		●
211	HOSE; RAD TO PIPE (A) L=560	8-98119-375-0	01	1	0806-	●
211	HOSE; RAD TO PIPE SGL CAB(FC*M) (A) L=560	8-98119-375-0	01	1	0806-		●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	02	1	0809-		●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	0809-		●
212	CLIP; HOSE (A) L=250	5-09707-030-1	01	1	0710-0711	●	●
212	CLIP; HOSE (A) L=250	5-09707-030-1	01	1	0712-0808	●	●
212	CLIP; HOSE DBL CAB(FC*W) (A) L=250	5-09707-030-1	01	1	0712-0808		●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> (A) L=250	5-09707-030-1	01	1	0809-	●	●
212	CLIP; HOSE DBL CAB(FC*W) (A) L=250	5-09707-030-1	01	1	0809-		●
212	CLIP; HOSE (B) L=140	5-09707-031-1	02	1	0710-0808	●	●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> (B) L=140	5-09707-031-1	02	1	0809-	●	●
220	NUT; CLIP DBL CAB(FC*W) M8 FLANGE	0-91180-108-0	02	1	0712-		●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0712-			●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-	●
220	NUT; CLIP SGL CAB(FC*M) M8 FLANGE	0-91180-108-0	01	1	0710-		●
500	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	02	1	0710-0808	●	●
500	SLEEVE; RUBBER EURO4 SPECIFICATION<NT4> ID=17 OD=21 L=40	1-09337-012-0	02	1	0809-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
