Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#66271) — 139 parça

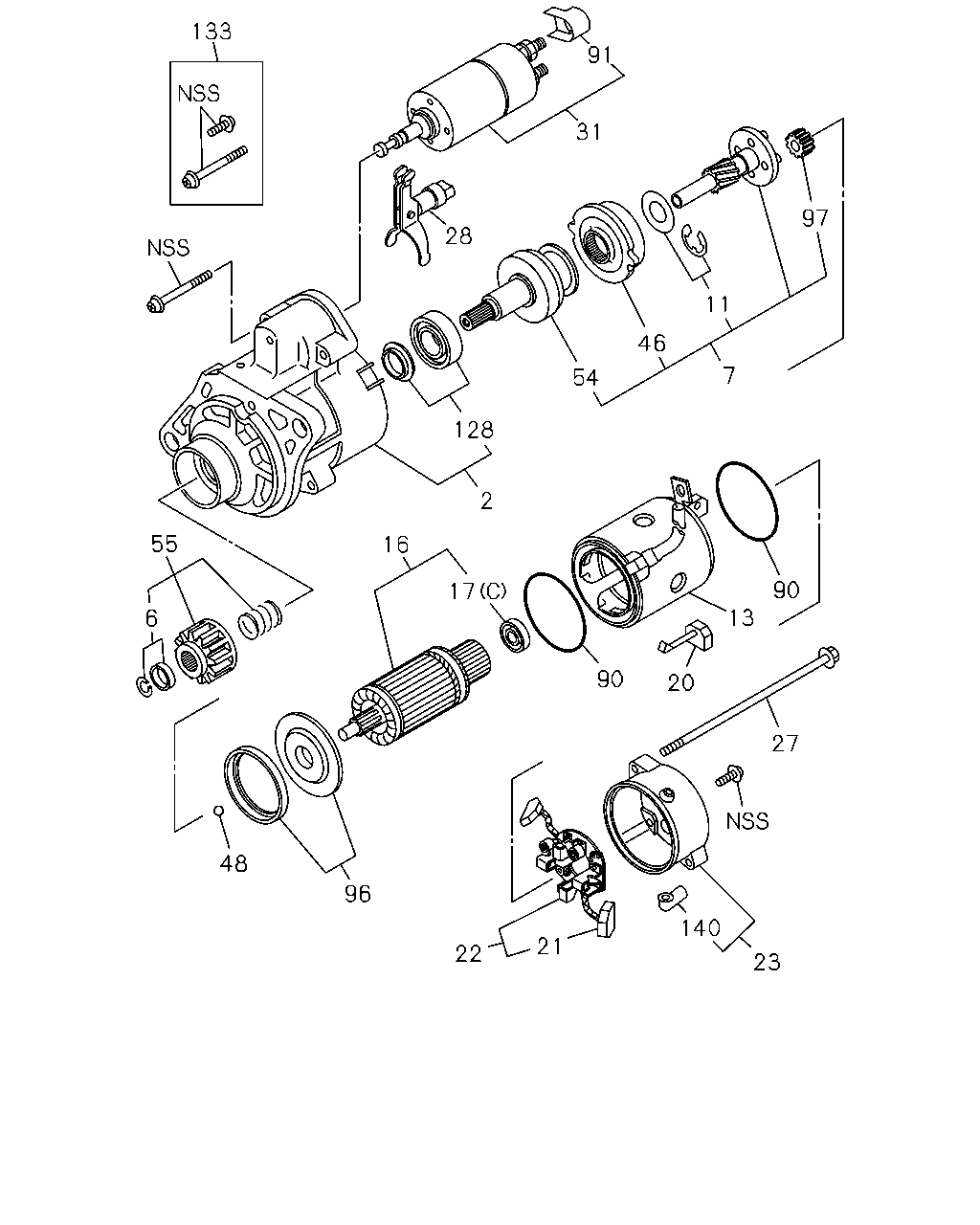

90 27 140 23 21 22 96 48 6 55 128 16 2 17 46 11 4 97 31 91 28 133 20 13 90 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: D = 8-98141-206-3	1-81123-053-0	01	1	-0910
2	CASE; PINION,STARTER ASM PART: C = 8-98060-854-0	1-81123-053-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, G = 8-98222-023-0	8-97329-348-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-98179-204-1, F = 8-98222-021-0	8-98022-776-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-98141-206-3	8-98152-868-0	01	1	0911-
2	CASE; PINION,STARTER ASM PART: H = 8-98245-258-0	8-98246-368-0	01	1	-
2	CASE; PINION,STARTER ASM PART: I = 8-98245-260-1	8-98251-559-0	01	1	-
2	CASE; PINION,STARTER ASM PART: J = 8-98261-669-0	8-98261-349-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	8-94475-688-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-98141-206-3	1-81129-759-0	01	1	-1407
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-98060-854-0	1-81129-759-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-98179-204-1	8-97230-564-0	01	1	-1101
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-98179-204-1	8-98159-731-0	01	1	1102-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97323-935-4	8-98159-731-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98009-043-2	8-98159-732-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-98222-021-0, H = 8-98245-258-0	8-98222-104-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: G = 8-98222-023-0, I = 8-98245-260-1	8-98222-105-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-98141-206-3	8-98245-549-0	01	1	1408-
7	CLUTCH ASM; PINION,STARTER ASM PART: J = 8-98261-669-0	8-98245-549-0	01	1	-
11	WASHER; GEAR SHAFT STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	8-97116-484-0	01	1	-
13	YOKE; STARTER ASM PART: C = 8-98060-854-0	8-98060-836-0	01	1	-
13	YOKE; STARTER ASM PART: D = 8-98141-206-3	8-98152-277-0	01	1	-
13	YOKE; STARTER ASM PART: J = 8-98261-669-0	8-98285-040-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81121-075-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-837-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, G = 8-98222-023-0, I = 8-98245-260-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-98179-204-1, F = 8-98222-021-0, H = 8-98245-258-0	8-97025-676-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97030-387-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81116-066-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97230-560-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-768-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-94152-972-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-98141-206-3	1-81121-066-0	01	1	-1407
22	HOLDER; BRUSH STARTER ASM PART: C = 8-98060-854-0	1-81121-066-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: J = 8-98261-669-0	8-98245-553-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-98141-206-3	8-98245-553-0	01	1	1408-
23	COVER; RR COVER STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3	1-81115-229-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, G = 8-98222-023-0	8-97377-689-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-98179-204-1, F = 8-98222-021-0	8-98022-772-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: H = 8-98245-258-0, I = 8-98245-260-1	8-98246-366-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: J = 8-98261-669-0	8-98248-764-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-769-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-762-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, G = 8-98222-023-0, I = 8-98245-260-1	8-98159-690-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: E = 8-98179-204-1, F = 8-98222-021-0, H = 8-98245-258-0	8-98179-218-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0	8-97217-569-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-98060-854-0	8-98060-832-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98141-206-3	8-98152-274-0	01	1	-1308
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98141-206-3	8-98237-257-0	01	1	1309-
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-98245-258-0, I = 8-98245-260-1	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: J = 8-98261-669-0	8-98285-039-0	01	1	-
46	GEAR; CLU STARTER ASM PART: D = 8-98141-206-3	8-97116-485-0	01	1	1408-
46	GEAR; CLU STARTER ASM PART: J = 8-98261-669-0	8-97116-485-0	01	1	-
46	GEAR; CLU STARTER ASM PART: C = 8-98060-854-0	8-97178-153-0	01	1	-
46	GEAR; CLU STARTER ASM PART: D = 8-98141-206-3	8-97178-153-0	01	1	-1407
48	BALL; PINION,STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	8-97116-515-0	01	1	-
55	PINION; CLU,STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	8-98060-835-0	01	1	-
90	GASKET; ARMATURE ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-767-0	02	1	-
91	COVER; STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-764-0	01	1	-
96	GASKET; FRT CASE ASM PART: C = 8-98060-854-0, D = 8-98141-206-3	8-97116-489-0	01	1	-
96	GASKET; FRT CASE ASM PART: J = 8-98261-669-0	8-98248-761-0	01	1	-
97	GEAR; STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	8-97116-490-0	04	1	-
128	BEARING; STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-758-0	01	1	-
133	SCREW SET; STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-765-0	01	1	-
140	GROMMET; RR COVER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3	8-97376-390-0	01	1	-

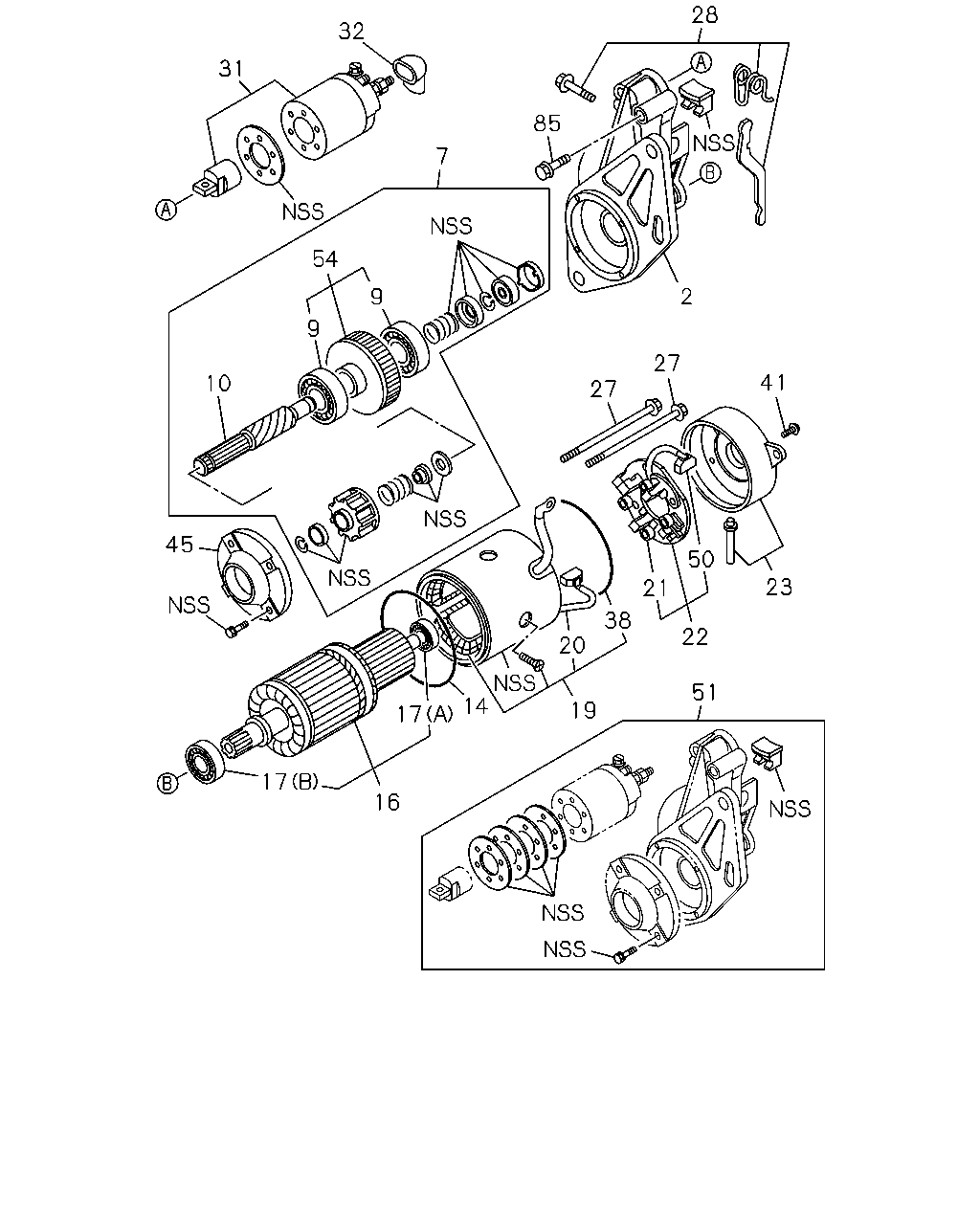

28 32 31 85 7 54 2 9 9 27 41 10 27 45 50 23 21 38 22 14 20 51 19 17 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: D = 8-98141-206-3	1-81123-053-0	01	1	-0910
2	CASE; PINION,STARTER ASM PART: C = 8-98060-854-0	1-81123-053-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, G = 8-98222-023-0	8-97329-348-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-98179-204-1, F = 8-98222-021-0	8-98022-776-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-98141-206-3	8-98152-868-0	01	1	0911-
2	CASE; PINION,STARTER ASM PART: H = 8-98245-258-0	8-98246-368-0	01	1	-
2	CASE; PINION,STARTER ASM PART: I = 8-98245-260-1	8-98251-559-0	01	1	-
2	CASE; PINION,STARTER ASM PART: J = 8-98261-669-0	8-98261-349-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-98141-206-3	1-81129-759-0	01	1	-1407
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-98060-854-0	1-81129-759-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-98179-204-1	8-97230-564-0	01	1	-1101
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-98179-204-1	8-98159-731-0	01	1	1102-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97323-935-4	8-98159-731-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98009-043-2	8-98159-732-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-98222-021-0, H = 8-98245-258-0	8-98222-104-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: G = 8-98222-023-0, I = 8-98245-260-1	8-98222-105-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-98141-206-3	8-98245-549-0	01	1	1408-
7	CLUTCH ASM; PINION,STARTER ASM PART: J = 8-98261-669-0	8-98245-549-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97025-673-0	02	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-98179-204-1	8-97030-395-0	01	1	-1101
10	SHAFT; GEAR STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0	8-98159-734-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-98179-204-1	8-98159-734-0	01	1	1102-
10	SHAFT; GEAR STARTER ASM PART: I = 8-98245-260-1	8-98259-739-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97377-691-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81121-075-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-837-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, G = 8-98222-023-0, I = 8-98245-260-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-98179-204-1, F = 8-98222-021-0, H = 8-98245-258-0	8-97025-676-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97030-387-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0	8-97377-688-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: H = 8-98245-258-0, I = 8-98245-260-1	8-98253-306-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81116-066-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97230-560-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-768-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-94152-972-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-98141-206-3	1-81121-066-0	01	1	-1407
22	HOLDER; BRUSH STARTER ASM PART: C = 8-98060-854-0	1-81121-066-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: J = 8-98261-669-0	8-98245-553-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-98141-206-3	8-98245-553-0	01	1	1408-
23	COVER; RR COVER STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3	1-81115-229-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, G = 8-98222-023-0	8-97377-689-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-98179-204-1, F = 8-98222-021-0	8-98022-772-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: H = 8-98245-258-0, I = 8-98245-260-1	8-98246-366-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: J = 8-98261-669-0	8-98248-764-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-769-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-762-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, G = 8-98222-023-0, I = 8-98245-260-1	8-98159-690-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: E = 8-98179-204-1, F = 8-98222-021-0, H = 8-98245-258-0	8-98179-218-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0	8-97217-569-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-98060-854-0	8-98060-832-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98141-206-3	8-98152-274-0	01	1	-1308
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98141-206-3	8-98237-257-0	01	1	1309-
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-98245-258-0, I = 8-98245-260-1	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: J = 8-98261-669-0	8-98285-039-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0	8-97217-570-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: H = 8-98245-258-0, I = 8-98245-260-1	8-98253-307-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER ASM PART: H = 8-98245-258-0, I = 8-98245-260-1	8-98246-369-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: E = 8-98179-204-1, F = 8-98222-021-0, H = 8-98245-258-0	8-97230-560-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, G = 8-98222-023-0, I = 8-98245-260-1	8-97230-563-0	02	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, G = 8-98222-023-0, I = 8-98245-260-1	8-97377-690-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-98179-204-1, F = 8-98222-021-0, H = 8-98245-258-0	8-98022-789-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-98060-854-0, D = 8-98141-206-3, J = 8-98261-669-0	1-81129-761-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-98222-106-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97323-935-4, B = 8-98009-043-2, E = 8-98179-204-1, F = 8-98222-021-0, G = 8-98222-023-0, H = 8-98245-258-0, I = 8-98245-260-1	8-94408-500-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
