Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#66268) — 280 parça

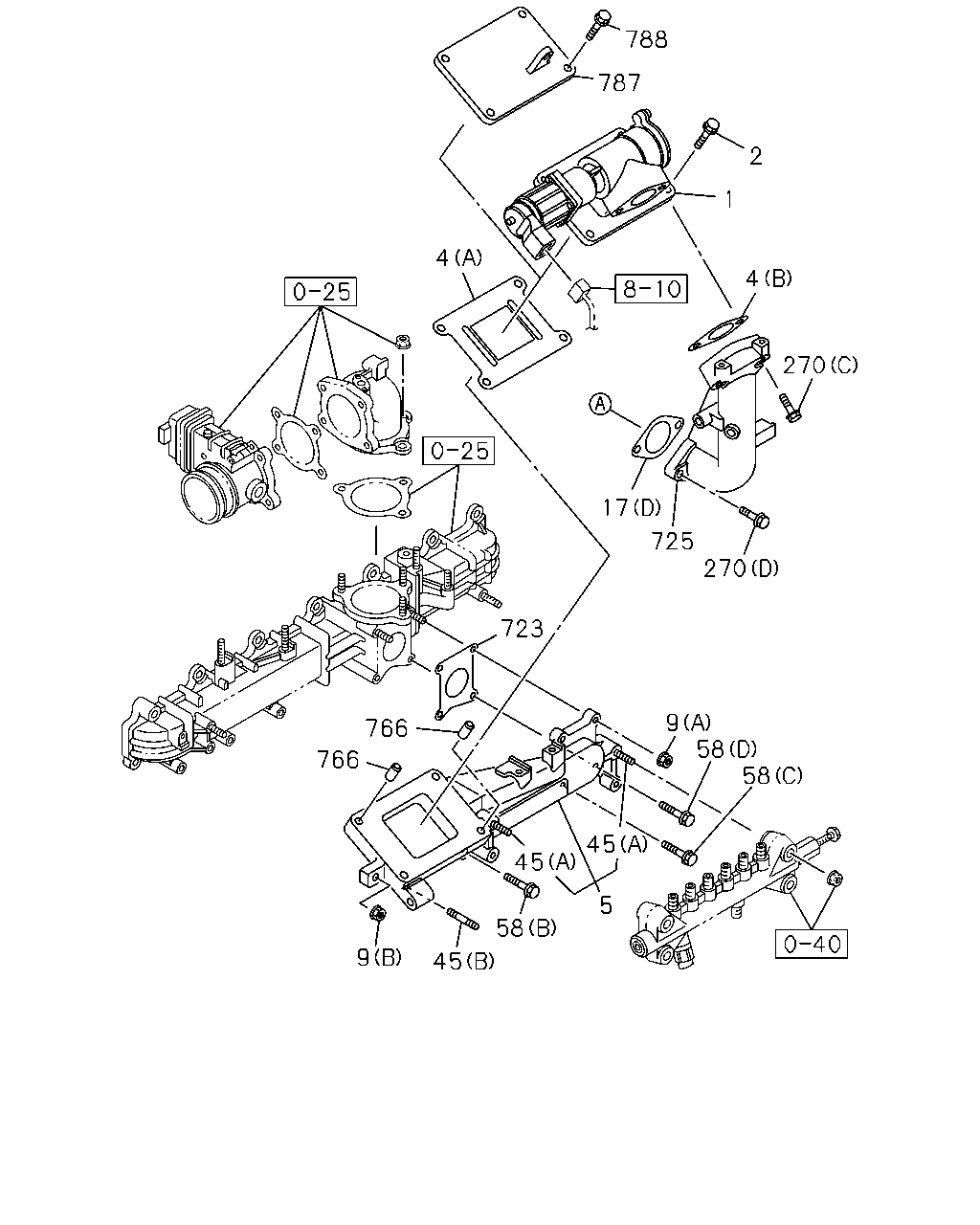

788 787 2 1 4 4 270 17 725 270 723 9 58 58 766 766 45 45 5 58 9 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; EGR	8-98018-264-6	01	1	0712-	●
1	VALVE; EGR	8-97383-005-4	01	1	0710-0808		●	●
1	VALVE; EGR	8-97383-005-9	01	1	0809-0906		●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	0809-0906			●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	0907-		●	●
2	BOLT; EGR VLV M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	0710-0808		●	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	0809-0906		●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28751-035-0	04	1	0809-0906			●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28751-035-0	04	1	0907-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97306-040-0	01	1	0712-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	01	1	0710-0808		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97603-282-0	01	1	0809-0906		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=47	8-97603-282-0	01	1	0809-0906			●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=47	8-97603-282-0	01	1	0907-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	0710-		●	●
5	ADAPTER ASM	8-97377-804-0	01	1	0905-	●
5	ADAPTER ASM	8-97606-201-3	01	1	0710-1305		●	●
5	ADAPTER ASM	8-98240-157-0	01	1	1306-		●	●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	0710-		●	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	0710-		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97388-919-0	04	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97601-836-0	01	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98036-507-0	01	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=44.5	8-97601-144-0	02	1	0710-0808		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97601-144-0	02	1	0809-0906		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=44.5	8-97601-144-0	02	1	0809-0906			●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=44.5	8-97601-144-0	02	1	0907-		●	●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	0710-		●	●
45	STUD; ADAPTER,EGR (A) M10X50 L=65	0-44011-050-0	02	1	0710-		●	●
58	BOLT; PIPE EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-0809			●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-		●	●
58	BOLT; PIPE (F) M8X45 FLANGE	0-28050-845-0	02	1	0712-	●
58	BOLT; PIPE (G) M8X30 FLANGE	0-28650-830-0	02	1	0712-	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0710-0808		●	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0809-0906		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	02	1	0809-0906			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	02	1	0907-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0710-0808		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0809-0809		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28151-030-0	04	1	0809-0809			●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0710-		●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0710-0808		●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0809-0906		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	03	1	0809-0906			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	03	1	0907-		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0710-		●	●
270	BOLT (E) M10X60 FLANGE	0-28151-060-0	03	1	0712-	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0710-0808		●	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-		●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0710-0808		●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	0907-		●	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0710-0808		●	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	0907-		●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0710-0808		●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	0907-		●	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	0710-		●	●
725	DUCT; EGR VLV	8-97604-972-2	01	1	0710-0808		●	●
725	DUCT; EGR VLV	8-97604-972-2	01	1	0809-0906		●
725	DUCT; EGR VLV EURO4 SPECIFICATION<NT4>	8-97604-972-2	01	1	0809-0906			●
725	DUCT; EGR VLV EURO4 SPECIFICATION<NT4>	8-97604-972-2	01	1	0907-1305		●	●
725	DUCT; EGR VLV	8-98240-120-0	01	1	1306-		●
725	DUCT; EGR VLV EURO4 SPECIFICATION<NT4>	8-98240-120-0	01	1	1306-			●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	02	1	0710-0808		●	●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	02	1	0809-0906		●
766	DOWEL; EGR VLV EURO4 SPECIFICATION<NT4> OD=14 L=10	9-11319-065-3	02	1	0809-0906			●
766	DOWEL; EGR VLV EURO4 SPECIFICATION<NT4> OD=14 L=10	9-11319-065-3	02	1	0907-		●	●
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION<NT2>	8-98058-709-0	01	1	0809-1402			●
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION<NT2>	8-98238-416-0	01	1	1403-			●
788	BOLT; COVER EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28751-035-0	04	1	0809-1402			●
788	BOLT; COVER EURO2 SPECIFICATION<NT2> M10X25 FLANGE	0-28751-025-0	04	1	1403-			●

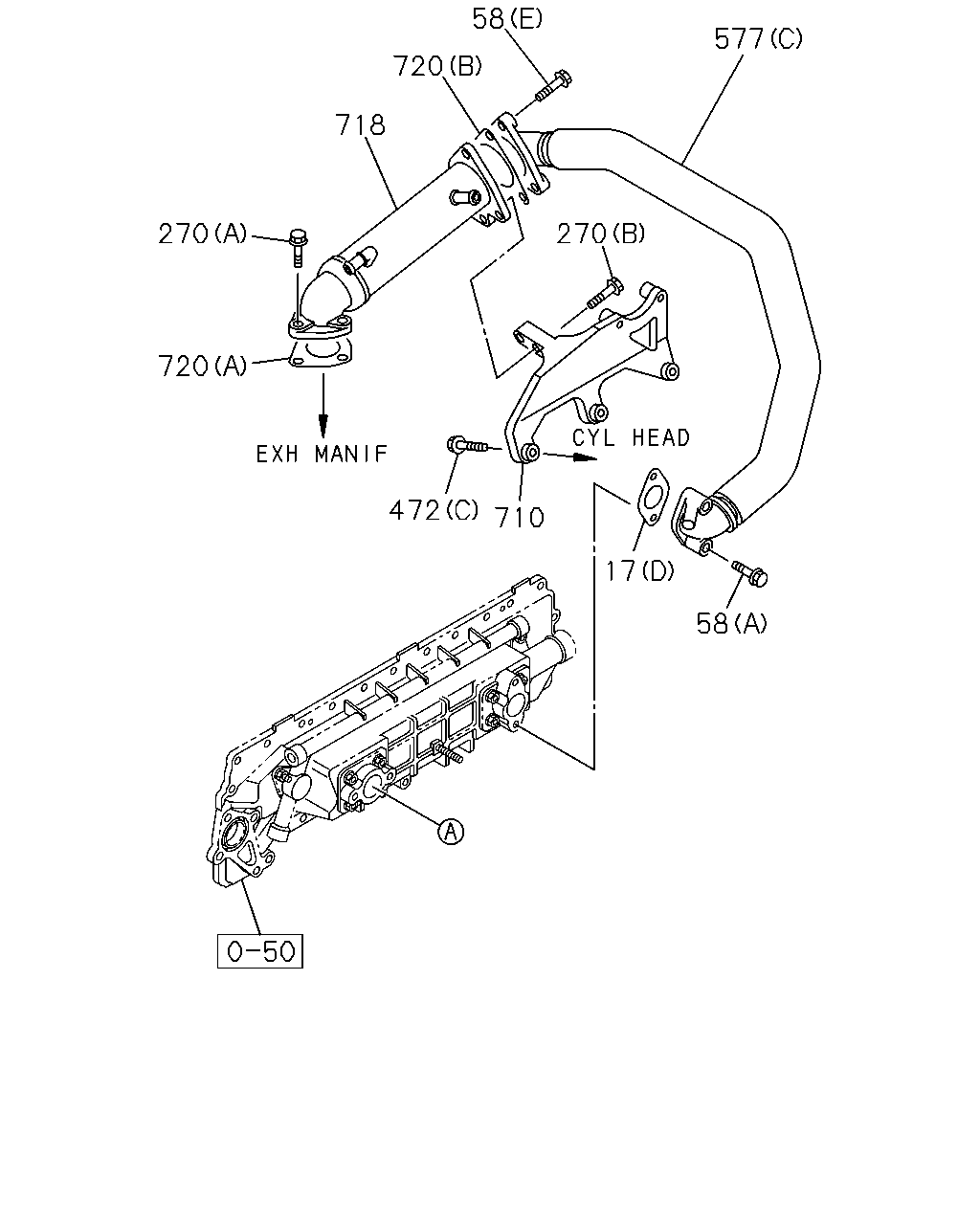

58 577 720 718 270 270 720 472 710 17 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97388-919-0	04	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97601-836-0	01	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98036-507-0	01	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=44.5	8-97601-144-0	02	1	0710-0808		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97601-144-0	02	1	0809-0906		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=44.5	8-97601-144-0	02	1	0809-0906			●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=44.5	8-97601-144-0	02	1	0907-		●	●
58	BOLT; PIPE EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-0809			●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-		●	●
58	BOLT; PIPE (F) M8X45 FLANGE	0-28050-845-0	02	1	0712-	●
58	BOLT; PIPE (G) M8X30 FLANGE	0-28650-830-0	02	1	0712-	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0710-0808		●	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0809-0906		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	02	1	0809-0906			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	02	1	0907-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0710-0808		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0809-0809		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28151-030-0	04	1	0809-0809			●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0710-		●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0710-0808		●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0809-0906		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	03	1	0809-0906			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	03	1	0907-		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0710-		●	●
270	BOLT (E) M10X60 FLANGE	0-28151-060-0	03	1	0712-	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0710-0808		●	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-		●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0710-0808		●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	0907-		●	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0710-0808		●	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	0907-		●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0710-0808		●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	0907-		●	●
472	BOLT; BRKT (A) M8X25 FLANGE	0-28660-825-0	03	1	0712-	●
472	BOLT; BRKT (B) M10X40 FLANGE	0-28751-040-0	01	1	0712-	●
472	BOLT; BRKT (C) M8X35 FLANGE	0-28060-835-0	03	1	0710-0808		●	●
472	BOLT; BRKT (C) M8X35 FLANGE	0-28060-835-0	03	1	0809-0906		●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X35 FLANGE	0-28060-835-0	03	1	0809-0906			●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X35 FLANGE	0-28060-835-0	03	1	0907-		●	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98147-786-0	01	1	0910-		●	●
577	PIPE; AIR,EGR (A)	8-98028-113-2	01	1	0712-	●
577	PIPE; AIR,EGR (B)	8-98055-858-2	01	1	0712-	●
577	PIPE; AIR,EGR (C)	8-98031-049-0	01	1	0710-0808		●	●
577	PIPE; AIR,EGR (C)	8-98031-049-0	01	1	0809-0909		●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (C)	8-98031-049-0	01	1	0809-0909			●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98147-787-0	01	1	0910-		●	●
710	BRACKET; EGR COOLER	8-98025-254-1	01	1	0712-	●
710	BRACKET; EGR COOLER	8-98030-581-0	01	1	0710-0808		●	●
710	BRACKET; EGR COOLER	8-98030-581-0	01	1	0809-0810		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>	8-98030-581-0	01	1	0809-0810			●
710	BRACKET; EGR COOLER	8-98125-359-0	01	1	0811-1202		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>	8-98125-359-0	01	1	0811-1202			●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>	8-98186-437-0	01	1	1203-		●	●
718	COOLER; EGR	8-98030-582-3	01	1	0710-0808		●	●
718	COOLER; EGR	8-98030-582-3	01	1	0809-0906		●
718	COOLER; EGR EURO4 SPECIFICATION<NT4>	8-98030-582-3	01	1	0809-0906			●
718	COOLER; EGR EURO4 SPECIFICATION<NT4>	8-98030-582-3	01	1	0907-1401		●	●
718	COOLER; EGR EURO4 SPECIFICATION<NT4>	8-98250-860-0	01	1	1402-		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80	8-97603-889-0	01	1	0710-0808		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97603-889-0	01	1	0809-0906		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=80	8-97603-889-0	01	1	0809-0906			●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=80	8-97603-889-0	01	1	0907-		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5	8-98046-192-1	01	1	0710-0808		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98046-192-1	01	1	0809-0906		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=51.5	8-98046-192-1	01	1	0809-0906			●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=51.5	8-98046-192-1	01	1	0907-		●	●

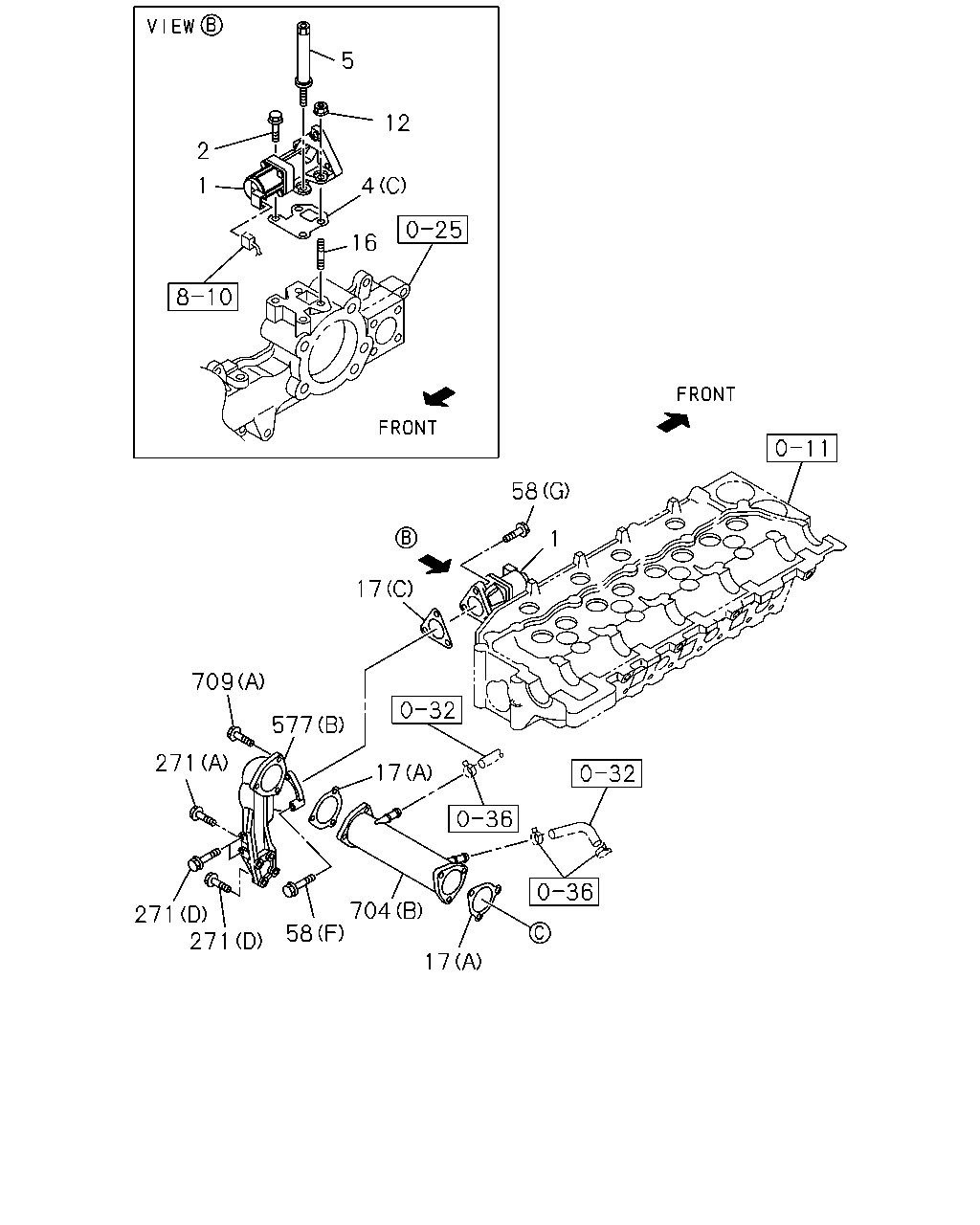

5 12 2 1 4 16 58 1 17 709 577 271 17 704 58 271 271 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; EGR	8-98018-264-6	01	1	0712-	●
1	VALVE; EGR	8-97383-005-4	01	1	0710-0808		●	●
1	VALVE; EGR	8-97383-005-9	01	1	0809-0906		●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	0809-0906			●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-97383-005-9	01	1	0907-		●	●
2	BOLT; EGR VLV M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	0710-0808		●	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	0809-0906		●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28751-035-0	04	1	0809-0906			●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28751-035-0	04	1	0907-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97306-040-0	01	1	0712-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	01	1	0710-0808		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97603-282-0	01	1	0809-0906		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=47	8-97603-282-0	01	1	0809-0906			●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=47	8-97603-282-0	01	1	0907-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	0710-		●	●
5	ADAPTER ASM	8-97377-804-0	01	1	0905-	●
5	ADAPTER ASM	8-97606-201-3	01	1	0710-1305		●	●
5	ADAPTER ASM	8-98240-157-0	01	1	1306-		●	●
12	NUT; EGR VLV M8 FLANGE	0-91180-108-0	02	1	0712-	●
16	STUD; EGR VLV M8X20 L=32	0-41010-820-0	02	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97388-919-0	04	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97601-836-0	01	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98036-507-0	01	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=44.5	8-97601-144-0	02	1	0710-0808		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97601-144-0	02	1	0809-0906		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=44.5	8-97601-144-0	02	1	0809-0906			●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=44.5	8-97601-144-0	02	1	0907-		●	●
58	BOLT; PIPE EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-0809			●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-		●	●
58	BOLT; PIPE (F) M8X45 FLANGE	0-28050-845-0	02	1	0712-	●
58	BOLT; PIPE (G) M8X30 FLANGE	0-28650-830-0	02	1	0712-	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0710-0808		●	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0809-0906		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	02	1	0809-0906			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE	0-28050-860-0	02	1	0907-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0710-0808		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0809-0809		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	0-28151-030-0	04	1	0809-0809			●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0710-		●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0710-0808		●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0809-0906		●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	03	1	0809-0906			●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE	0-28751-035-0	03	1	0907-		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0710-		●	●
271	BOLT; BRKT (A) M12X50 FLANGE	0-28151-250-0	03	1	0712-	●
271	BOLT; BRKT (B) M12X60 FLANGE	0-28151-260-0	01	1	0712-	●
271	BOLT; BRKT (C) M8X25 FLANGE	0-28660-825-0	02	1	0712-	●
271	BOLT; BRKT (D) M12X30 FLANGE	0-28751-230-0	03	1	0712-0804	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98147-786-0	01	1	0910-		●	●
577	PIPE; AIR,EGR (A)	8-98028-113-2	01	1	0712-	●
577	PIPE; AIR,EGR (B)	8-98055-858-2	01	1	0712-	●
577	PIPE; AIR,EGR (C)	8-98031-049-0	01	1	0710-0808		●	●
577	PIPE; AIR,EGR (C)	8-98031-049-0	01	1	0809-0909		●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (C)	8-98031-049-0	01	1	0809-0909			●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98147-787-0	01	1	0910-		●	●
704	COOLER ASM; EGR (A)	8-98028-110-1	01	1	0712-1306	●
704	COOLER ASM; EGR (A)	8-98244-305-0	01	1	1307-	●
704	COOLER ASM; EGR (B)	8-98028-112-1	01	1	0712-1204	●
704	COOLER ASM; EGR (B)	8-98212-715-0	01	1	1205-	●
709	BOLT; EGR COOLER (A) M10X30 FLANGE	0-28751-030-0	06	1	0712-0808	●
709	BOLT; EGR COOLER (A) M10X35 FLANGE	0-28751-035-0	06	1	0809-	●
709	BOLT; EGR COOLER (B) M10X30 FLANGE	8-98032-158-0	03	1	0712-	●

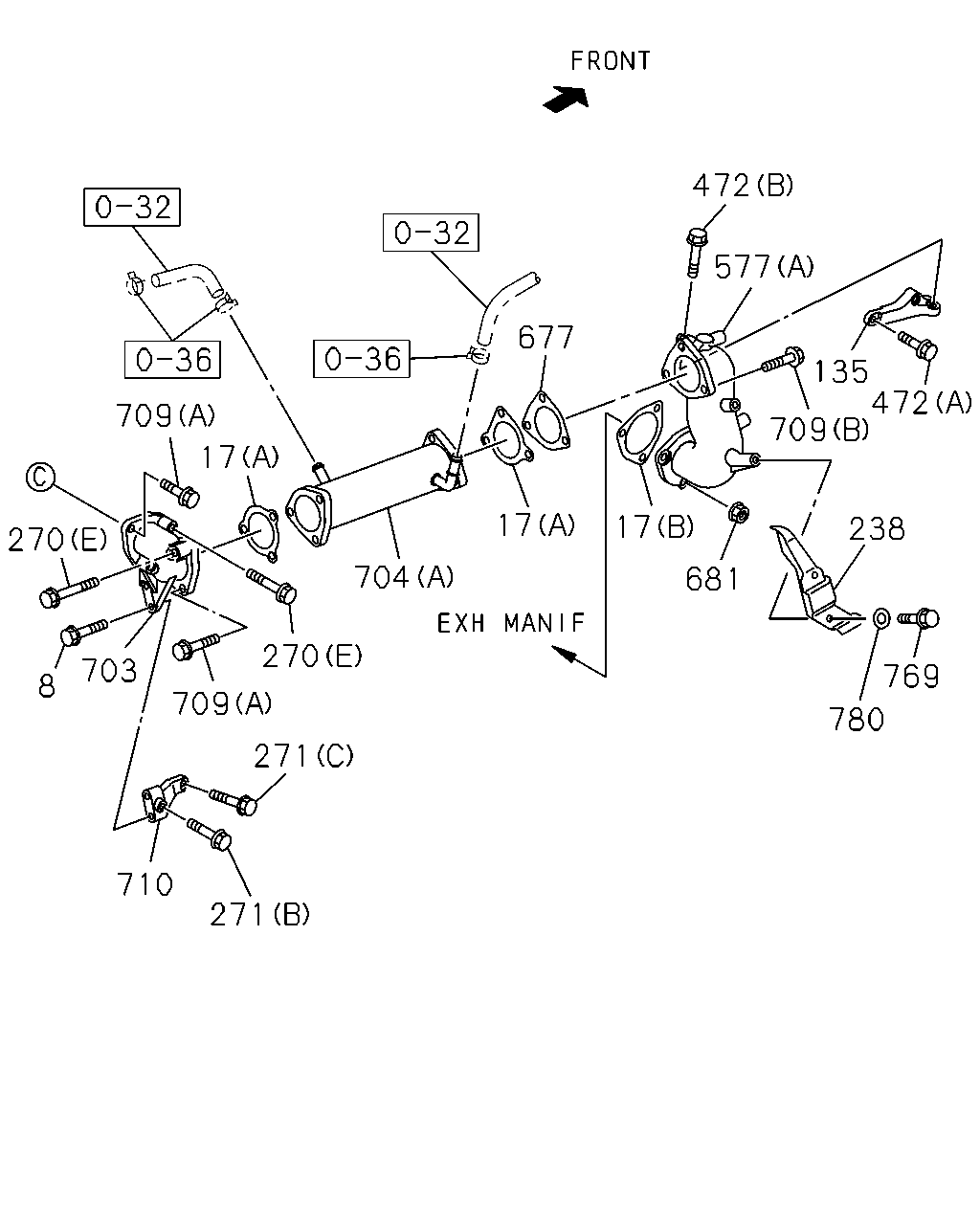

472 577 677 135 472 709 709 17 17 17 238 270 704 681 270 703 769 8 709 780 271 710 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	BOLT; EGR ADAPTER M10X40 FLANGE	0-28751-040-0	02	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97388-919-0	04	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97601-836-0	01	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98036-507-0	01	1	0712-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=44.5	8-97601-144-0	02	1	0710-0808		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97601-144-0	02	1	0809-0906		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=44.5	8-97601-144-0	02	1	0809-0906			●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (D) ID=44.5	8-97601-144-0	02	1	0907-		●	●
135	BRACKET; EGR	8-98025-253-2	01	1	0712-	●
238	PROTECTOR; HEAT,EGR	8-97386-177-0	01	1	0712-	●
270	BOLT (E) M10X60 FLANGE	0-28151-060-0	03	1	0712-	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0710-0808		●	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-		●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0710-0808		●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE	0-28050-835-0	02	1	0907-		●	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0710-0808		●	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE	0-28151-045-0	02	1	0907-		●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0710-0808		●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0809-0906		●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	0809-0906			●
270	BOLT EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE	8-98043-528-0	03	1	0907-		●	●
271	BOLT; BRKT (A) M12X50 FLANGE	0-28151-250-0	03	1	0712-	●
271	BOLT; BRKT (B) M12X60 FLANGE	0-28151-260-0	01	1	0712-	●
271	BOLT; BRKT (C) M8X25 FLANGE	0-28660-825-0	02	1	0712-	●
271	BOLT; BRKT (D) M12X30 FLANGE	0-28751-230-0	03	1	0712-0804	●
472	BOLT; BRKT (A) M8X25 FLANGE	0-28660-825-0	03	1	0712-	●
472	BOLT; BRKT (B) M10X40 FLANGE	0-28751-040-0	01	1	0712-	●
472	BOLT; BRKT (C) M8X35 FLANGE	0-28060-835-0	03	1	0710-0808		●	●
472	BOLT; BRKT (C) M8X35 FLANGE	0-28060-835-0	03	1	0809-0906		●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X35 FLANGE	0-28060-835-0	03	1	0809-0906			●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X35 FLANGE	0-28060-835-0	03	1	0907-		●	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98147-786-0	01	1	0910-		●	●
577	PIPE; AIR,EGR (A)	8-98028-113-2	01	1	0712-	●
577	PIPE; AIR,EGR (B)	8-98055-858-2	01	1	0712-	●
577	PIPE; AIR,EGR (C)	8-98031-049-0	01	1	0710-0808		●	●
577	PIPE; AIR,EGR (C)	8-98031-049-0	01	1	0809-0909		●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (C)	8-98031-049-0	01	1	0809-0909			●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98147-787-0	01	1	0910-		●	●
677	PLATE; DUCT	8-98015-035-0	01	1	0712-	●
681	NUT; EGR PIPE M8 FLANGE	8-97061-401-1	03	1	0712-	●
703	DUCT; EGR	8-98028-114-0	01	1	0712-	●
704	COOLER ASM; EGR (A)	8-98028-110-1	01	1	0712-1306	●
704	COOLER ASM; EGR (A)	8-98244-305-0	01	1	1307-	●
704	COOLER ASM; EGR (B)	8-98028-112-1	01	1	0712-1204	●
704	COOLER ASM; EGR (B)	8-98212-715-0	01	1	1205-	●
709	BOLT; EGR COOLER (A) M10X30 FLANGE	0-28751-030-0	06	1	0712-0808	●
709	BOLT; EGR COOLER (A) M10X35 FLANGE	0-28751-035-0	06	1	0809-	●
709	BOLT; EGR COOLER (B) M10X30 FLANGE	8-98032-158-0	03	1	0712-	●
710	BRACKET; EGR COOLER	8-98025-254-1	01	1	0712-	●
710	BRACKET; EGR COOLER	8-98030-581-0	01	1	0710-0808		●	●
710	BRACKET; EGR COOLER	8-98030-581-0	01	1	0809-0810		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>	8-98030-581-0	01	1	0809-0810			●
710	BRACKET; EGR COOLER	8-98125-359-0	01	1	0811-1202		●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>	8-98125-359-0	01	1	0811-1202			●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>	8-98186-437-0	01	1	1203-		●	●
769	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	04	1	0712-1107	●
769	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	04	1	1108-	●
780	WASHER; PROTECTOR ID=6.4 OD=18	0-91610-706-0	04	1	0712-1107	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
