Sayfa 0-52 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶

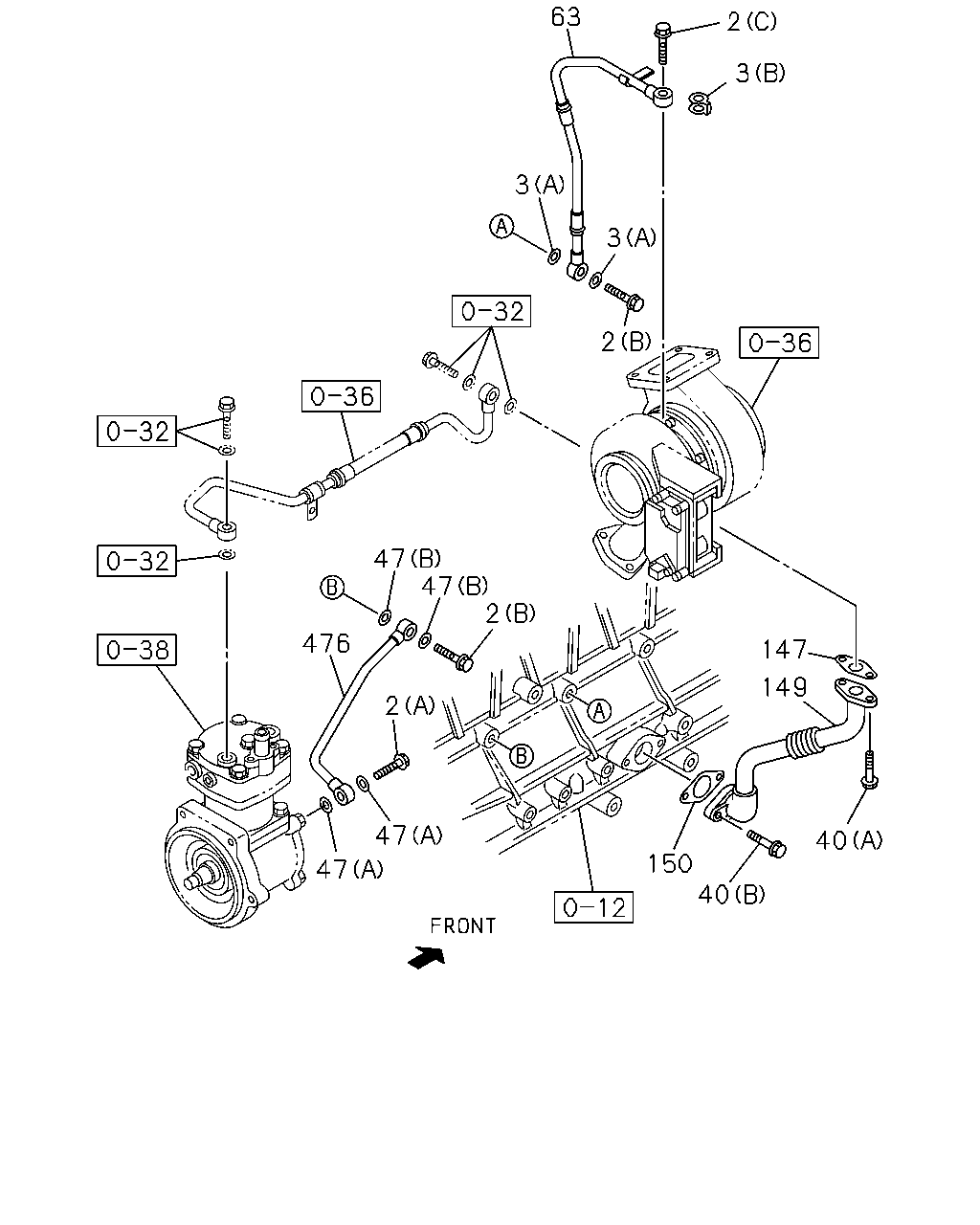

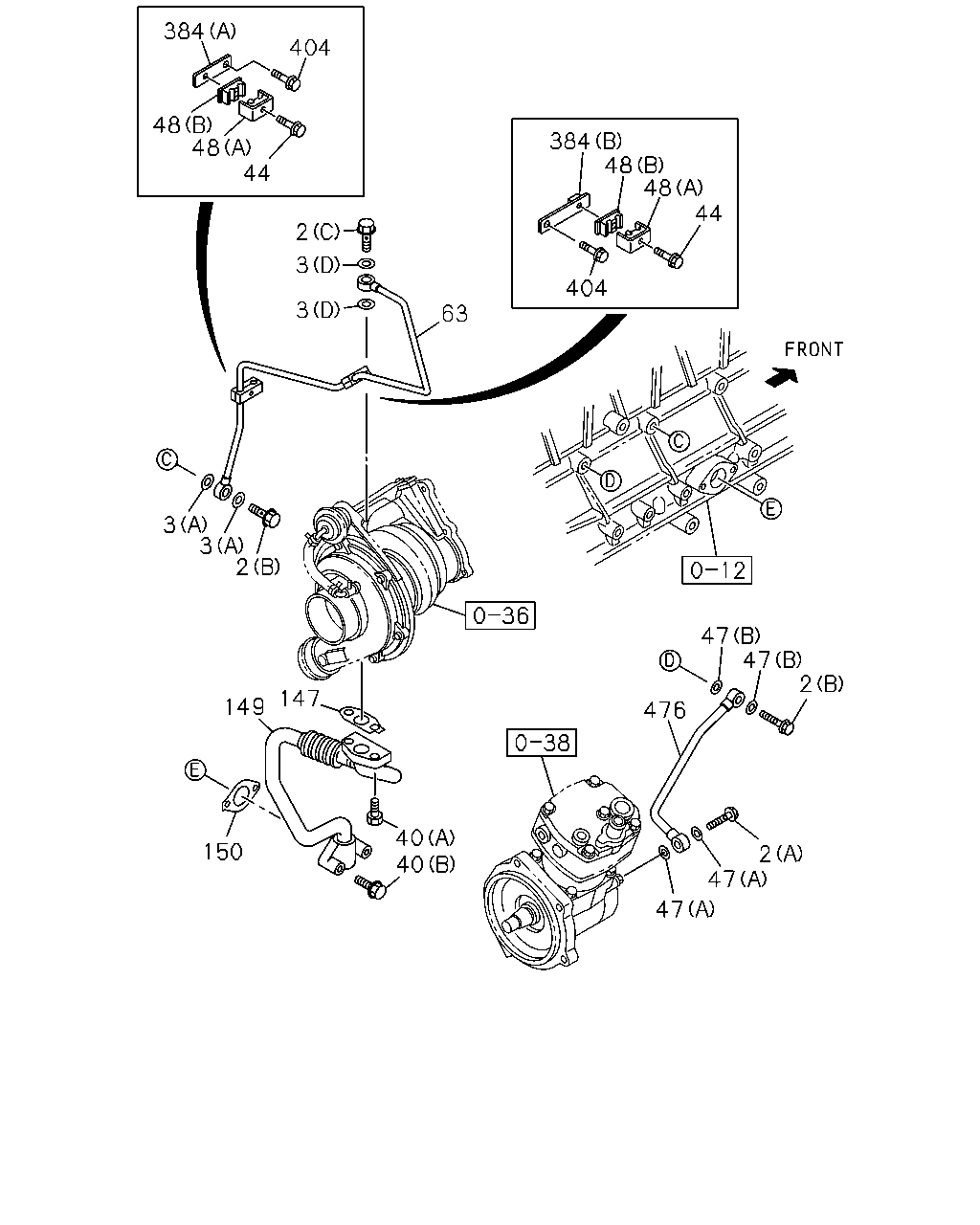

0-52 — OIL AND VACUUM PIPING; ENGINE (#66267) — 151 parça

63 2 3 3 3 2 47 47 2 476 147 149 2 47 40 150 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	0809-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0710-0805	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0710-	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0710-0803	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0804-0805	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-0808	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0809-0906		●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0809-0906	●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0907-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0712-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-0808	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (D) ID=12.2	1-09630-084-0	02	1	0809-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (D) ID=12.2	8-98251-344-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0710-0808	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	0809-0906		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=12.6	8-97331-137-1	01	1	0809-0906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=12.6	8-97331-137-1	01	1	0907-	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (B) M8X40 FLANGE	0-28050-840-0	02	1	0809-0906	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-	●
40	BOLT; OIL PIPE (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0803			●
40	BOLT; OIL PIPE (D) M8X20 FLANGE	0-28050-820-0	03	1	0712-			●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0808	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-0906		●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-0906	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-0808	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-0906		●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-0906	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0907-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	0809-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98076-311-0	01	1	0712-1509			●
63	PIPE; OIL,TURBOCHARGER FEED	8-98204-176-1	01	1	1510-			●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0710-0808	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0809-0906		●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>	8-97606-204-0	01	1	0809-0906	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>	8-97606-204-0	01	1	0907-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	0809-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0710-0808	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0809-0906		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	0809-0906	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	0907-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-94394-196-1	01	1	0809-0906	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	0907-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0710-0808	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0809-0906		●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	0809-0906	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	0907-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0710-	●	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0710-	●	●

68 3 40 3 40 304 63 181 40 181 181 181 233 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0712-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-0808	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (D) ID=12.2	1-09630-084-0	02	1	0809-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (D) ID=12.2	8-98251-344-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0710-0808	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	0809-0906		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=12.6	8-97331-137-1	01	1	0809-0906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=12.6	8-97331-137-1	01	1	0907-	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (B) M8X40 FLANGE	0-28050-840-0	02	1	0809-0906	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-	●
40	BOLT; OIL PIPE (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0803			●
40	BOLT; OIL PIPE (D) M8X20 FLANGE	0-28050-820-0	03	1	0712-			●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0808	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-0906		●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-0906	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-0808	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-0906		●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-0906	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0907-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	0809-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98076-311-0	01	1	0712-1509			●
63	PIPE; OIL,TURBOCHARGER FEED	8-98204-176-1	01	1	1510-			●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0710-0808	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0809-0906		●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>	8-97606-204-0	01	1	0809-0906	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>	8-97606-204-0	01	1	0907-	●	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26	8-97081-817-0	01	1	0712-0805			●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26	8-98037-825-0	01	1	0806-			●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	0712-			●
233	BOLT; EYE (B) M10X28	8-98037-823-0	01	1	0712-			●
233	BOLT; EYE (A) M10X22	1-09675-028-0	01	1	0712-			●
304	BOLT; BRKT,OIL PIPE M10X16 FLANGE	0-28051-016-0	02	1	0712-0803			●

384 404 48 48 384 48 48 44 44 2 3 404 3 63 3 3 2 47 47 2 147 149 476 40 40 150 2 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	0809-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0710-0805	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0710-	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0710-0803	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0804-0805	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-0808	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0809-0906		●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0809-0906	●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0907-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0712-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-0808	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (D) ID=12.2	1-09630-084-0	02	1	0809-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (D) ID=12.2	8-98251-344-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0710-0808	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	0809-0906		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=12.6	8-97331-137-1	01	1	0809-0906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=12.6	8-97331-137-1	01	1	0907-	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (B) M8X40 FLANGE	0-28050-840-0	02	1	0809-0906	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-	●
40	BOLT; OIL PIPE (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0803			●
40	BOLT; OIL PIPE (D) M8X20 FLANGE	0-28050-820-0	03	1	0712-			●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0808	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-0906		●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-0906	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-0808	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-0906		●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-0906	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0907-	●	●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<NT2> M6X30 FLANGE	0-28050-630-0	02	1	0809-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25	1-09701-228-3	02	1	0809-	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	1-09701-229-2	02	1	0809-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	0809-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98076-311-0	01	1	0712-1509			●
63	PIPE; OIL,TURBOCHARGER FEED	8-98204-176-1	01	1	1510-			●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0710-0808	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0809-0906		●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>	8-97606-204-0	01	1	0809-0906	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>	8-97606-204-0	01	1	0907-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	0809-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0710-0808	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0809-0906		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	0809-0906	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	0907-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-94394-196-1	01	1	0809-0906	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	0907-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0710-0808	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0809-0906		●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	0809-0906	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	0907-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0710-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	1-13319-020-0	01	1	0809-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (B)	1-13319-041-0	01	1	0809-	●
404	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X15	1-09000-114-0	02	1	0809-	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
