◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#66262) — 103 parça

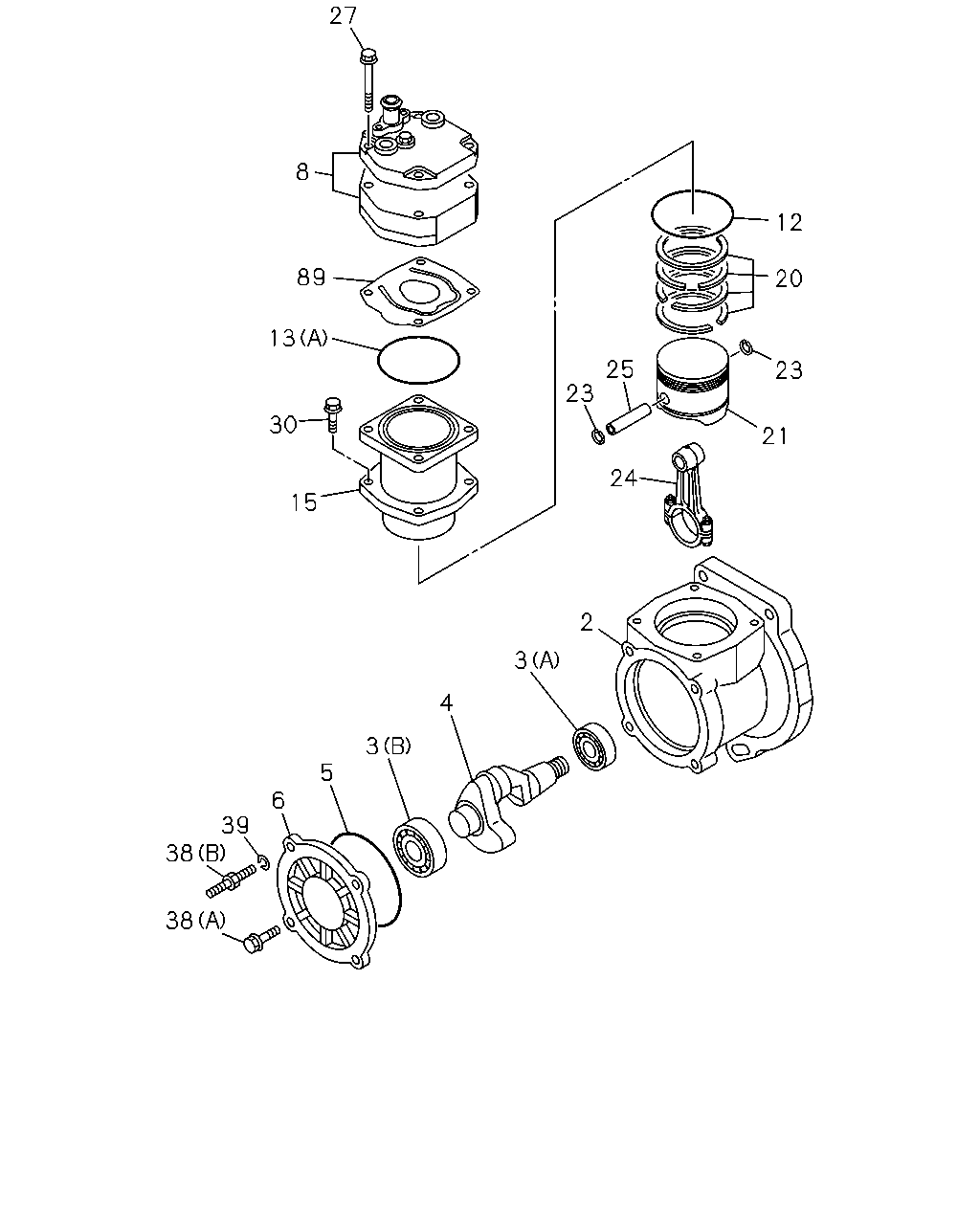

çizim 62609
27 8 12 89 20 13 25 23 23 30 21 24 15 2 3 4 3 5 6 39 38 38
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CRANKCASE; AIR CMPR 1-19151-303-0 01 1 0712- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0710- ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0710- ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0710- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-090-1 01 1 0712- ●
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 0710- ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0710-1107 ● ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-086-1 01 1 0712- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0710- ● ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> 		8-97619-779-1 01 1 0809-1012 ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> 		8-98167-014-0 01 1 1101- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-075-0 01 1 0712- ●
8 HEAD ASM; CYL,AIR CMPR 8-98038-657-1 01 1 0710-0808 ● ●
8 HEAD ASM; CYL,AIR CMPR 8-98038-657-2 01 1 0809-1012 ●
8 HEAD ASM; CYL,AIR CMPR
EURO4 SPECIFICATION<NT4> 		8-98038-657-2 01 1 0809-1012 ●
8 HEAD ASM; CYL,AIR CMPR
EURO4 SPECIFICATION<NT4> 		8-98167-015-0 01 1 1101- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108-1109 ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1110- ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0710-0711 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0712-1107 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108-1109 ●
13 GASKET; AIR CMPR
(B) 		1-19115-015-0 01 1 0712- ●
13 GASKET; AIR CMPR
(C) 		1-19115-016-0 01 1 0712- ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 01 1 0710-1107 ● ●
13 GASKET; AIR CMPR
(A) 		8-98048-640-0 01 1 1108- ● ●
15 CYLINDER; AIR CMPR 1-19163-068-1 01 1 0712- ●
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 0710- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-069-0 01 1 0712-1103 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0710-1103 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1104- ● ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0710-0711 ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0712- ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0712-0909 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0710-0909 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0910- ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-023-0 01 1 0712- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0710- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0710-0909 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0910- ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0712-0909 ●
27 BOLT; HD 1-19119-039-0 04 1 0712-1103 ●
27 BOLT; HD 8-98188-172-0 04 1 1104- ●
27 BOLT; HD
M10X80 		8-98038-666-0 04 1 0710-1012 ● ●
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1101- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0712- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 0710- ● ●
38 BOLT; COVER FIX
(C) 		1-19159-023-0 03 1 0712- ●
38 BOLT; COVER FIX
(B) 		8-97617-894-0 02 1 0710- ● ●
38 BOLT; COVER FIX
(A) M8X20 		8-97617-895-0 02 1 0710- ● ●
39 WASHER; LK,COVER FIX 8-97617-893-0 02 1 0710- ● ●
89 VALVE; SUCTION 1-19119-045-0 01 1 0710- ● ●

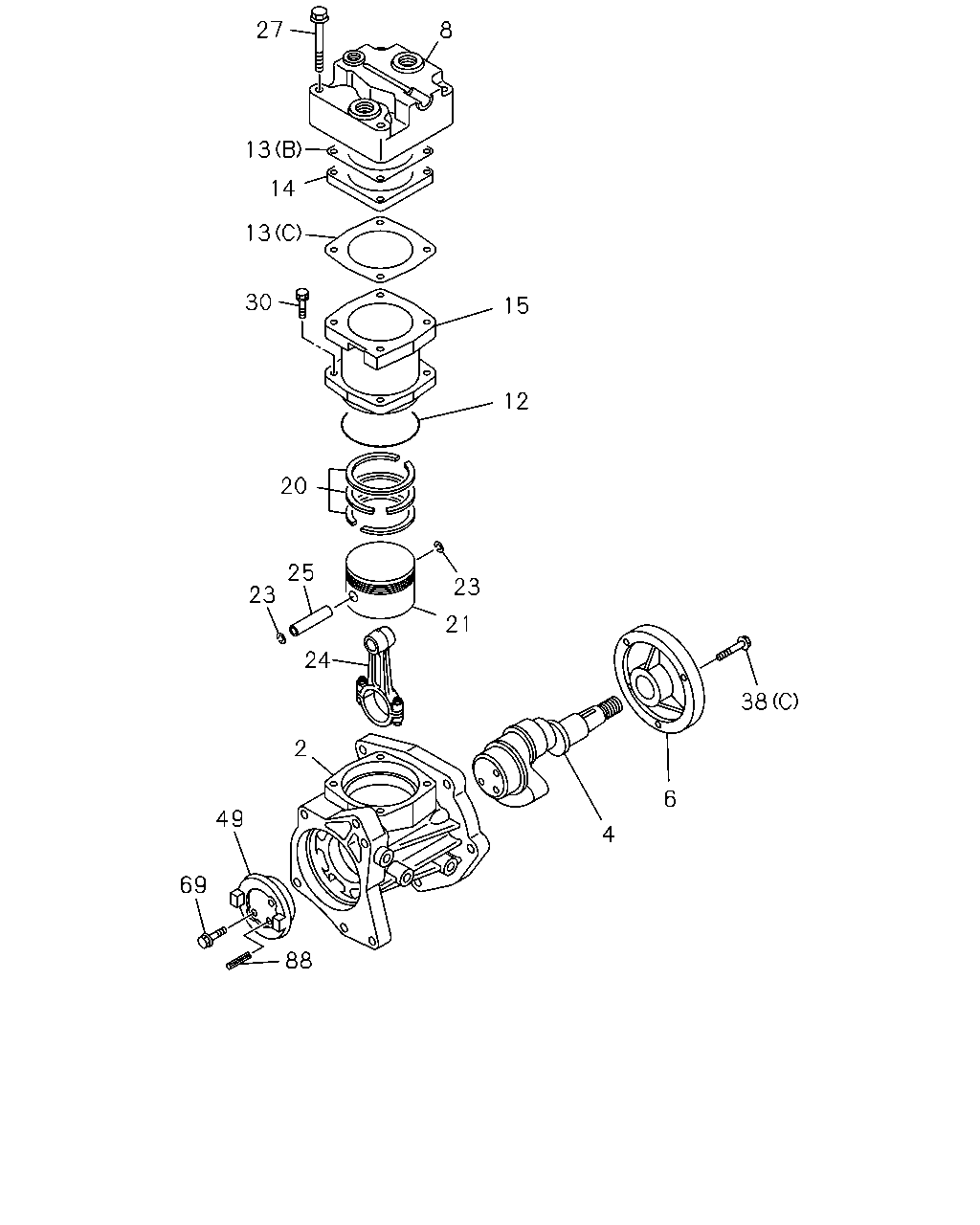

çizim 62759
8 27 13 13 30 20 25 23 24 2 49 69 88 4 6 38 21 23 12 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CRANKCASE; AIR CMPR 1-19151-303-0 01 1 0712- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0710- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-090-1 01 1 0712- ●
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 0710- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-086-1 01 1 0712- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0710- ● ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> 		8-97619-779-1 01 1 0809-1012 ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> 		8-98167-014-0 01 1 1101- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-075-0 01 1 0712- ●
8 HEAD ASM; CYL,AIR CMPR 8-98038-657-1 01 1 0710-0808 ● ●
8 HEAD ASM; CYL,AIR CMPR 8-98038-657-2 01 1 0809-1012 ●
8 HEAD ASM; CYL,AIR CMPR
EURO4 SPECIFICATION<NT4> 		8-98038-657-2 01 1 0809-1012 ●
8 HEAD ASM; CYL,AIR CMPR
EURO4 SPECIFICATION<NT4> 		8-98167-015-0 01 1 1101- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108-1109 ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1110- ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0710-0711 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0712-1107 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108-1109 ●
13 GASKET; AIR CMPR
(B) 		1-19115-015-0 01 1 0712- ●
13 GASKET; AIR CMPR
(C) 		1-19115-016-0 01 1 0712- ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 01 1 0710-1107 ● ●
13 GASKET; AIR CMPR
(A) 		8-98048-640-0 01 1 1108- ● ●
14 PLATE; AIR CMPR 1-19130-010-1 01 1 0712-1405 ●
14 PLATE; AIR CMPR 8-98271-713-0 01 1 1406- ●
15 CYLINDER; AIR CMPR 1-19163-068-1 01 1 0712- ●
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 0710- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-069-0 01 1 0712-1103 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0710-1103 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1104- ● ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0710-0711 ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0712- ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0712-0909 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0710-0909 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0910- ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-023-0 01 1 0712- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0710- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0710-0909 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0910- ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0712-0909 ●
27 BOLT; HD 1-19119-039-0 04 1 0712-1103 ●
27 BOLT; HD 8-98188-172-0 04 1 1104- ●
27 BOLT; HD
M10X80 		8-98038-666-0 04 1 0710-1012 ● ●
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1101- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0712- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 0710- ● ●
38 BOLT; COVER FIX
(C) 		1-19159-023-0 03 1 0712- ●
38 BOLT; COVER FIX
(B) 		8-97617-894-0 02 1 0710- ● ●
38 BOLT; COVER FIX
(A) M8X20 		8-97617-895-0 02 1 0710- ● ●
49 COUPLING ASM 1-19179-032-0 01 1 0712- ●
69 BOLT ASM; AIR COMP 1-19179-033-0 02 1 0712- ●
88 PIN; SPRING 1-19179-034-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
