0-36 — TURBOCHARGER SYSTEM (#66259) — 392 parça

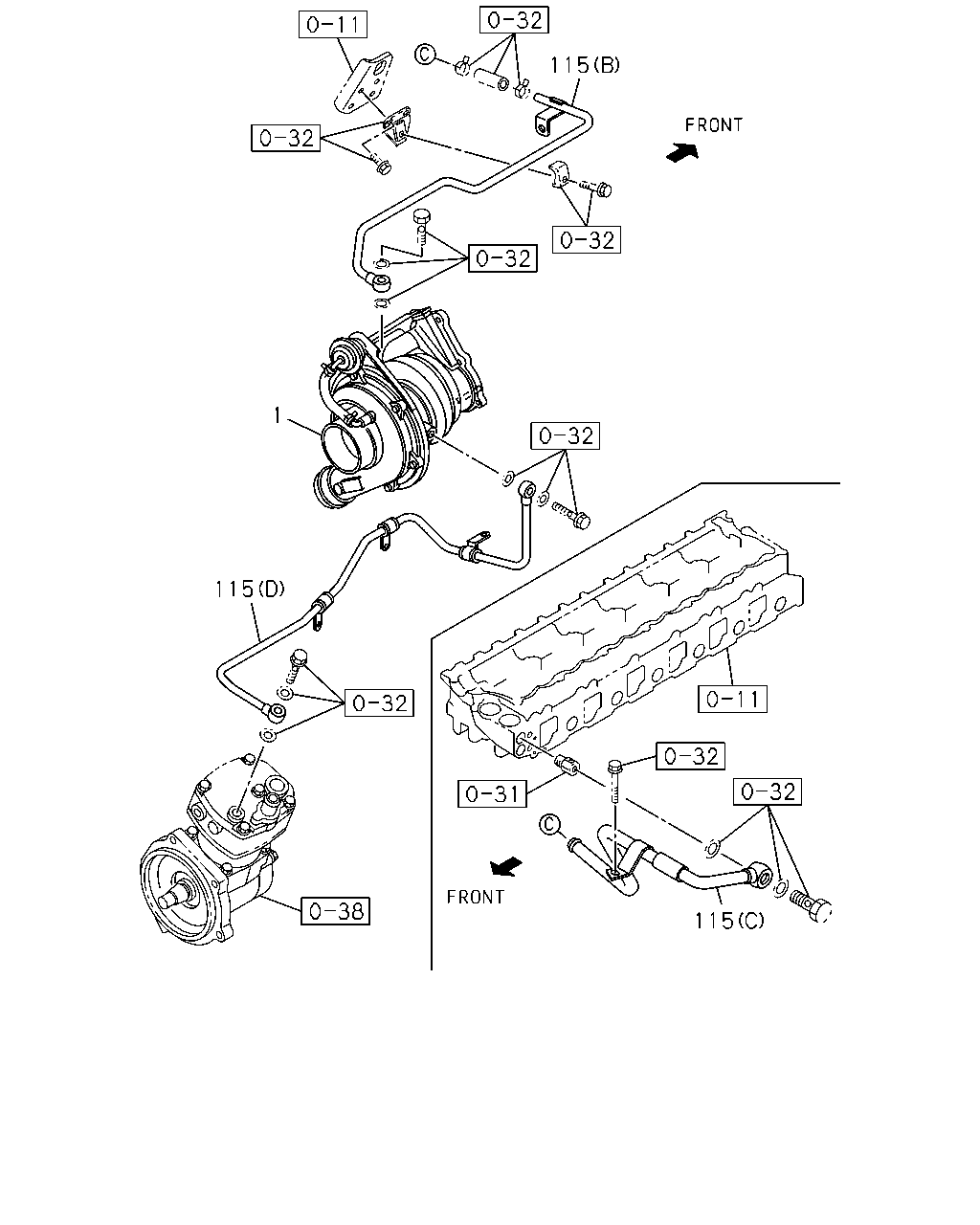

çizim 60693
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-98027-772-5 01 1 0712-1509 ●
1 TURBOCHARGER ASM 8-98322-481-0 01 1 1510- ●
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0710-0808 ● ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 0809-0906 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-0906 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0907- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(E) 		8-97387-270-2 01 1 0712- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97615-877-0 01 1 0710-0808 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97615-877-0 01 1 0809-0906 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97615-877-0 01 1 0809-0906 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97615-877-0 01 1 0907- ● ●

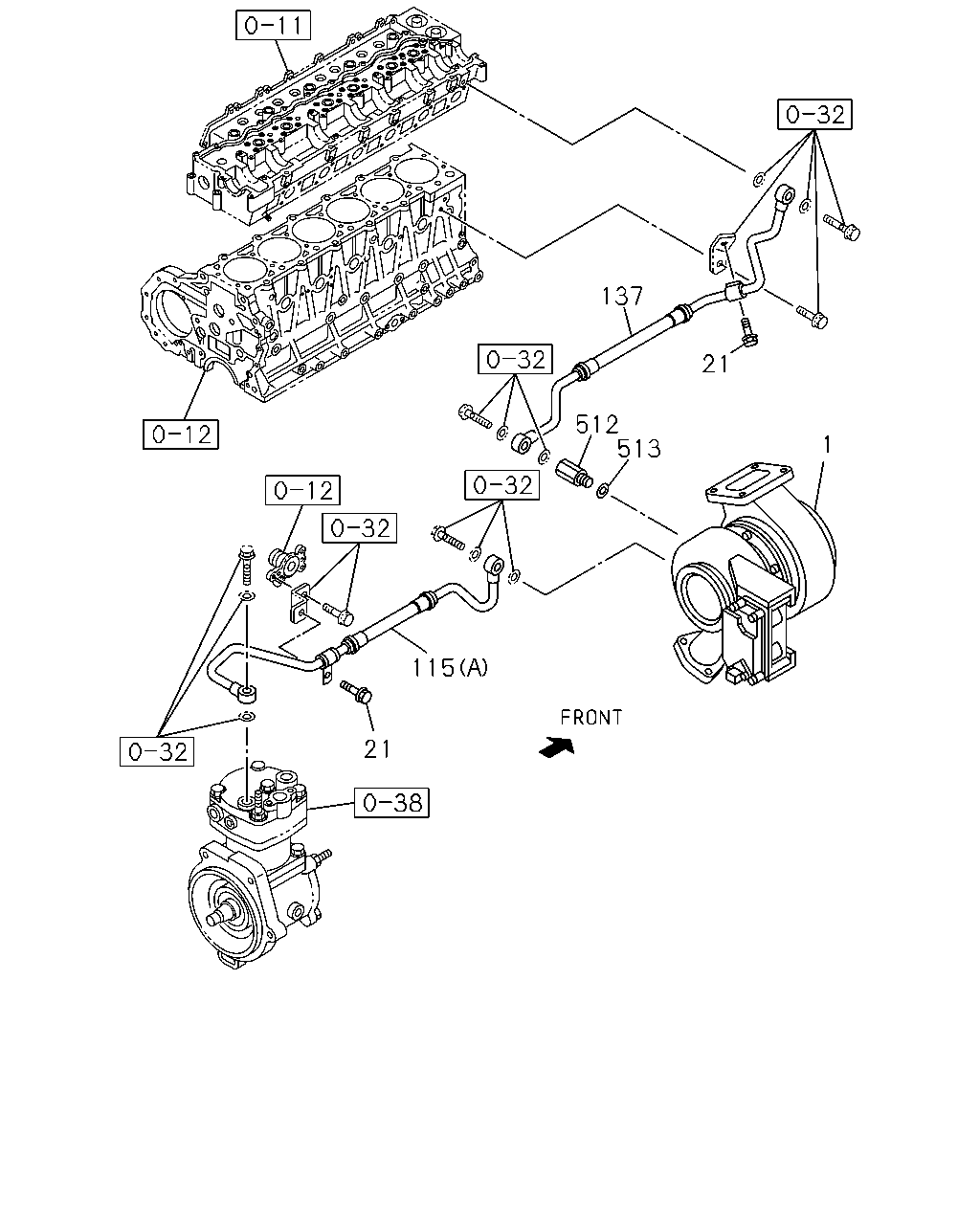

çizim 60765
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-98027-772-5 01 1 0712-1509 ●
1 TURBOCHARGER ASM 8-98322-481-0 01 1 1510- ●
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0710-0808 ● ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 0809-0906 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-0906 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0907- ● ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0710-0808 ● ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0809-0906 ●
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 02 1 0809-0906 ●
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 02 1 0907- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(E) 		8-97387-270-2 01 1 0712- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97615-877-0 01 1 0710-0808 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97615-877-0 01 1 0809-0906 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97615-877-0 01 1 0809-0906 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97615-877-0 01 1 0907- ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-97387-271-0 01 1 0712- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0710-0808 ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0809-0906 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-98046-783-0 01 1 0809-0906 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-98046-783-0 01 1 0907- ● ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0710-0808 ● ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0809-0906 ●
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4> 		8-98031-856-0 01 1 0809-0906 ●
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4> 		8-98031-856-0 01 1 0907- ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0710-0808 ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0809-0906 ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		1-09630-085-0 01 1 0809-0906 ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		1-09630-085-0 01 1 0907-1312 ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●

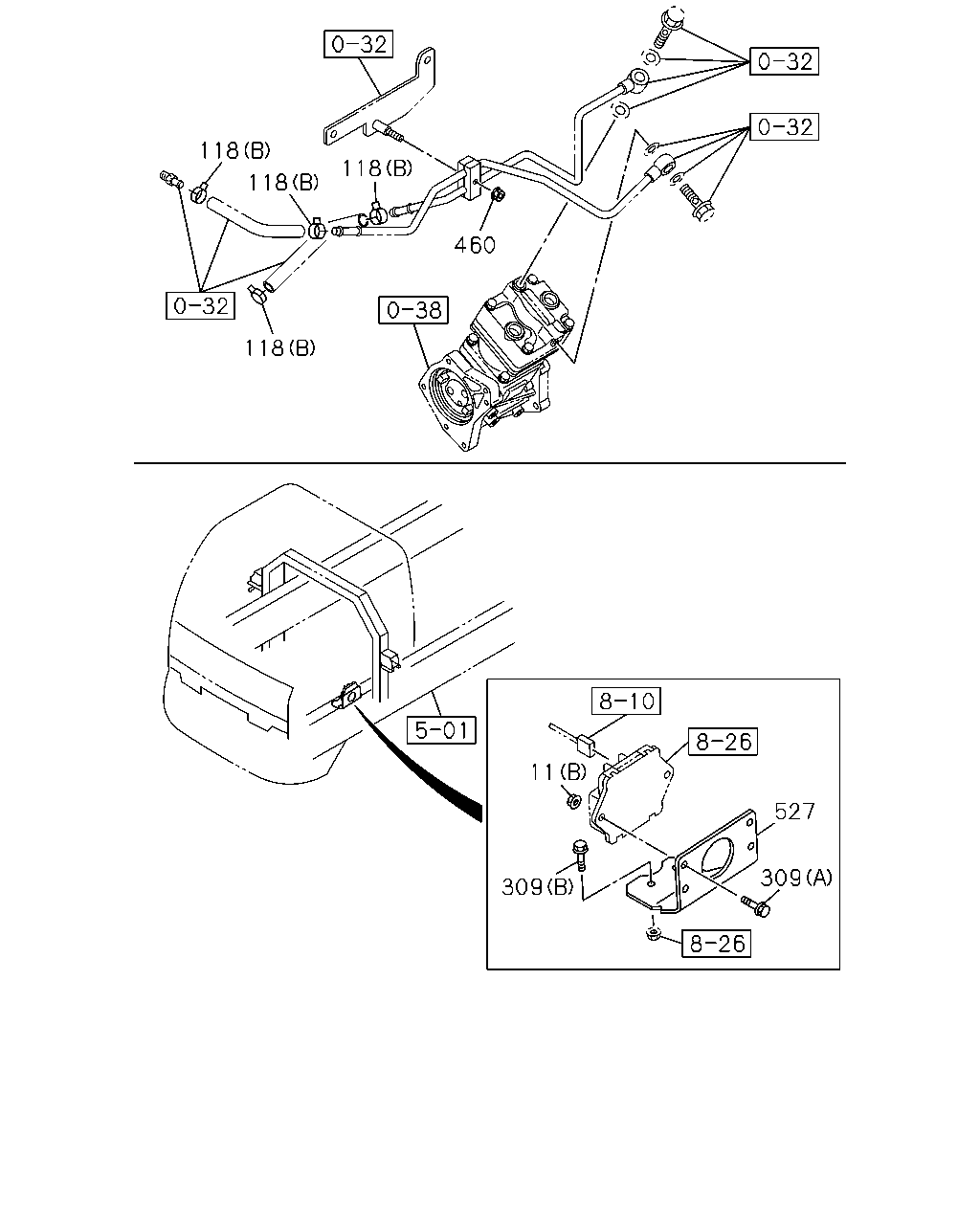

çizim 61533
118 118 118 460 118 11 309 309 527
BalonParca AdiParca NoAdetTipApplied Date A B C
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M10 		1-09420-005-0 04 1 0809- ●
11 NUT; TURBOCHARGER
(B) M6 FLANGE 		0-91180-106-0 02 1 0712- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 04 1 0712-0805 ●
11 NUT; TURBOCHARGER
(A) M10 FLANGE 		8-97381-617-0 04 1 0806- ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0712- ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0712- ●
309 BOLT; TURBOCHARGER
(A) M6X20 FLANGE 		0-28650-620-0 02 1 0712- ●
309 BOLT; TURBOCHARGER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0901 ●
460 NUT; PIPE
M6 FLANGE 		0-91180-106-0 01 1 0712- ●
527 BRACKET; TURBOCHARGER 8-98036-206-1 01 1 0712- ●

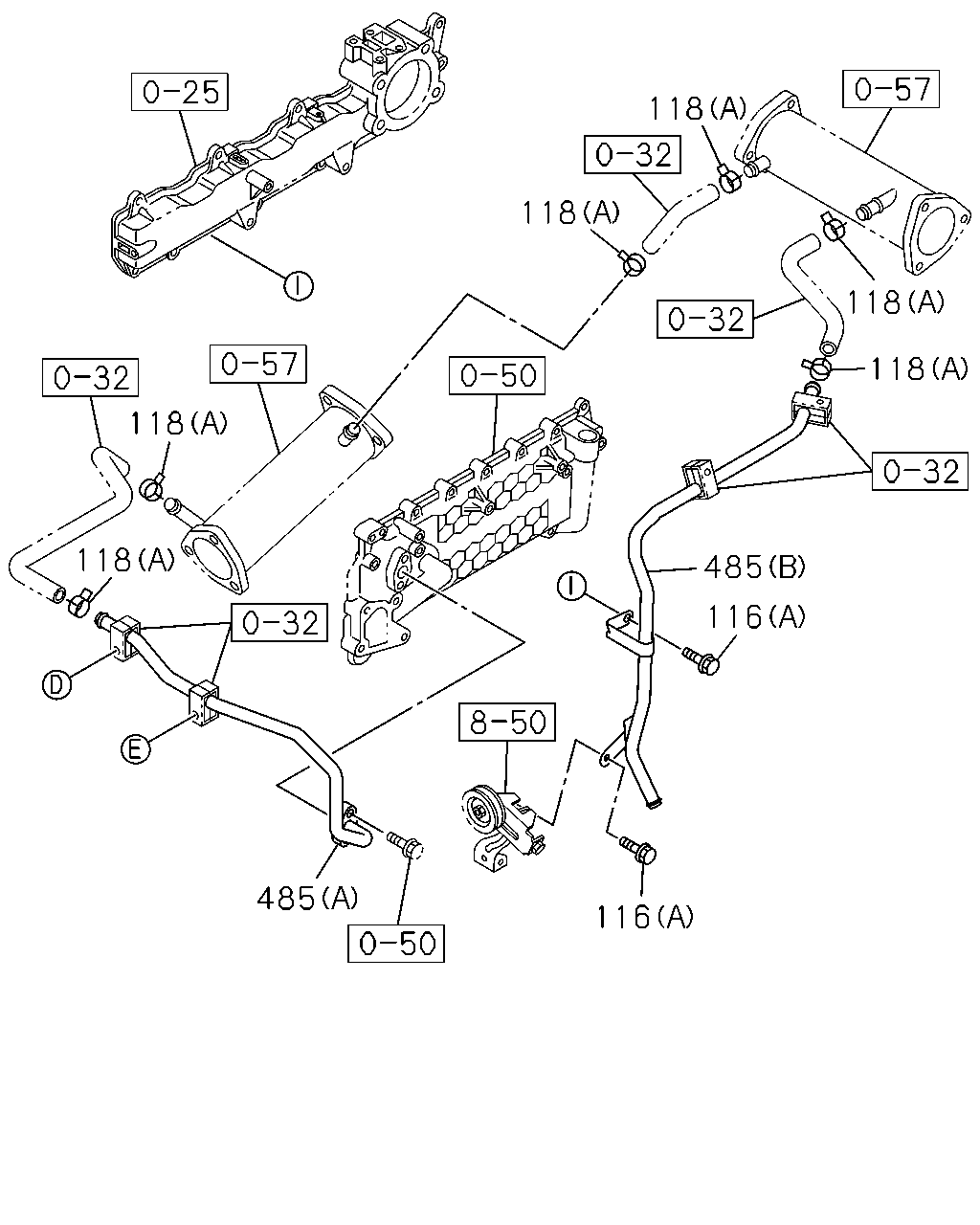

çizim 61682
118 118 118 118 118 118 485 116 485 116
BalonParca AdiParca NoAdetTipApplied Date A B C
116 BOLT; WATER PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0712- ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0712- ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0712- ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0712- ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 0712- ●
485 PIPE; WATER EGR
(B) 		8-97376-775-2 01 1 0712- ●

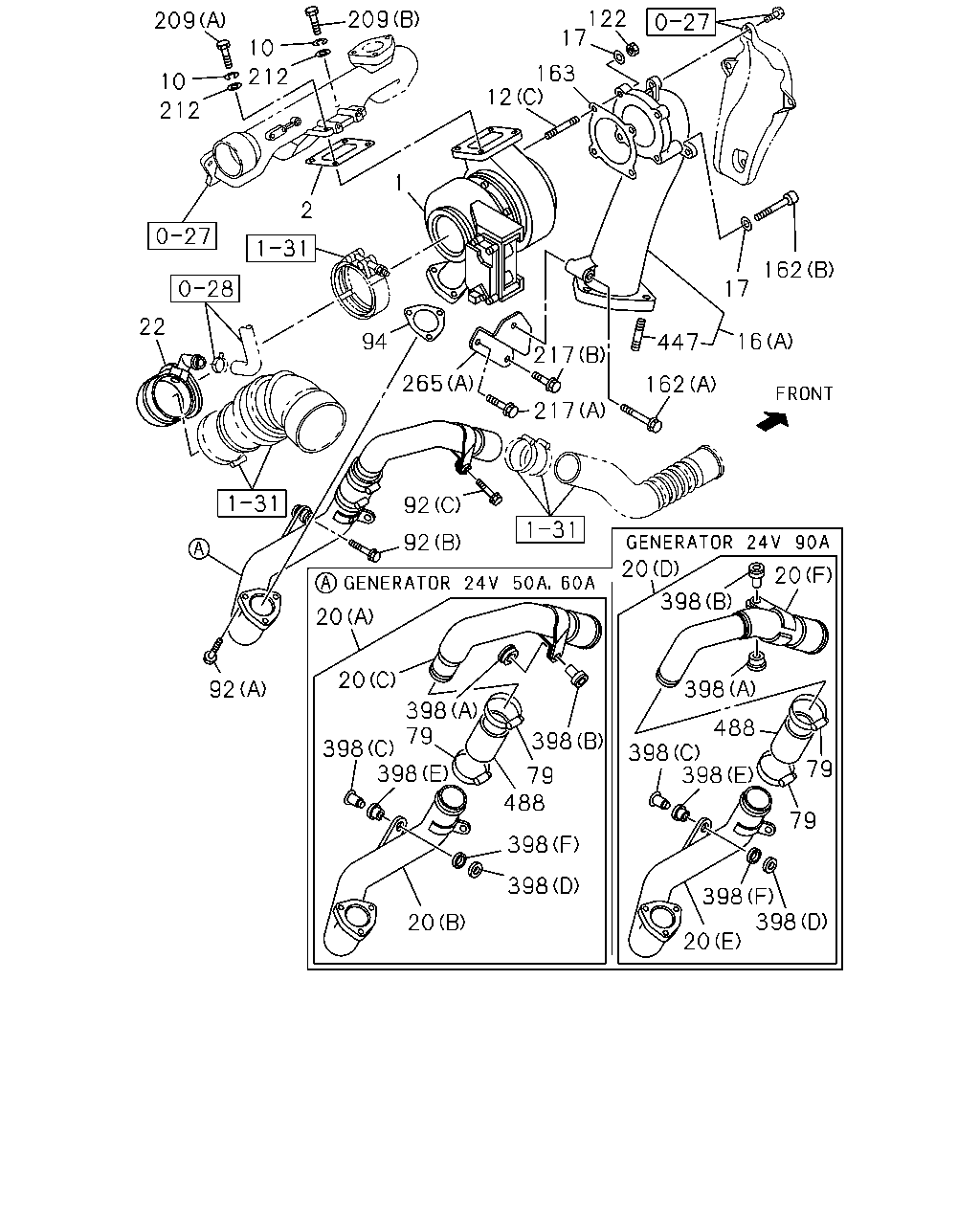

çizim 192056
209 10 212 212 10 209 12 163 17 122 1 2 22 94 265 217 217 162 447 17 162 16 92 92 20 92 398 398 488 398 398 20 398 398 79 20 398 398 488 79 79 398 398 20 398 398 20 20 79
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-98027-772-5 01 1 0712-1509 ●
1 TURBOCHARGER ASM 8-98322-481-0 01 1 1510- ●
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0710-0808 ● ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 0809-0906 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-0906 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0907- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 0809- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0710-0808 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0809-0906 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0809-0906 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0907- ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0809- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0710-0808 ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0809-0906 ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0809-0906 ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0907- ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809- ●
12 STUD; TURBOCHARGER
(D) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0712-0805 ●
12 STUD; TURBOCHARGER
(D) M10X30 L=45 		1-09302-106-0 02 1 0806- ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0710-0808 ● ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0809-0906 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809-0906 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0907- ● ●
16 ADAPTER; EXH PIPE
(C) 		8-98030-080-3 01 1 0712- ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0710-0808 ● ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0809-0906 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809-0906 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0907- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809- ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0809- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0710-0808 ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0809-0906 ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0809-0906 ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0907- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0809-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 0710-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0710- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 0710- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0710-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0710- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0710- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-0 01 1 0710-0808 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 0809-0906 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-164-1 01 1 0809-0906 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-164-1 01 1 0907- ● ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0710-0811 ● ●
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902 ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0808 ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0809-0906 ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0809-0906 ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0907- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0710- ● ●
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 0710-0808 ● ●
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 0809-0906 ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> ID=55 		8-98053-830-0 01 1 0809-0906 ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> ID=55 		8-98053-830-0 01 1 0907- ● ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0809- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0710-0808 ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0809-0906 ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0809-0906 ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0907- ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (D) M8X57 		5-09000-275-0 05 1 0809- ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 01 1 0712- ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710-0808 ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0809-0906 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809-0906 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0907- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0808 ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0809-0910 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911- ● ●
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-0 01 1 0710-0808 ● ●
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-2 01 1 0809-0906 ●
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4> ID=83 		8-94392-553-2 01 1 0809-0906 ●
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4> ID=83 		8-94392-553-2 01 1 0907- ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0710-0808 ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0809-0906 ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X80 		8-98049-825-0 02 1 0809-0906 ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X80 		8-98049-825-0 02 1 0907- ● ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0710-0808 ● ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-1 02 1 0809-0906 ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10X40 		9-09604-007-1 02 1 0809-0906 ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10X40 		9-09604-007-1 02 1 0907- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0710- ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0809- ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0710-0808 ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0809-0906 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0809-0906 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0907- ● ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0710-0808 ● ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0809-0906 ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0809-0906 ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0907- ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0809- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0710- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0710- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0710- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0710- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0710- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0710- ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0710-0808 ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0809-0906 ●
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4> M12X30 L=48 		0-44011-230-0 03 1 0809-0906 ●
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4> M12X30 L=48 		0-44011-230-0 03 1 0907- ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0710-0808 ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 0809-1408 ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409- ● ●

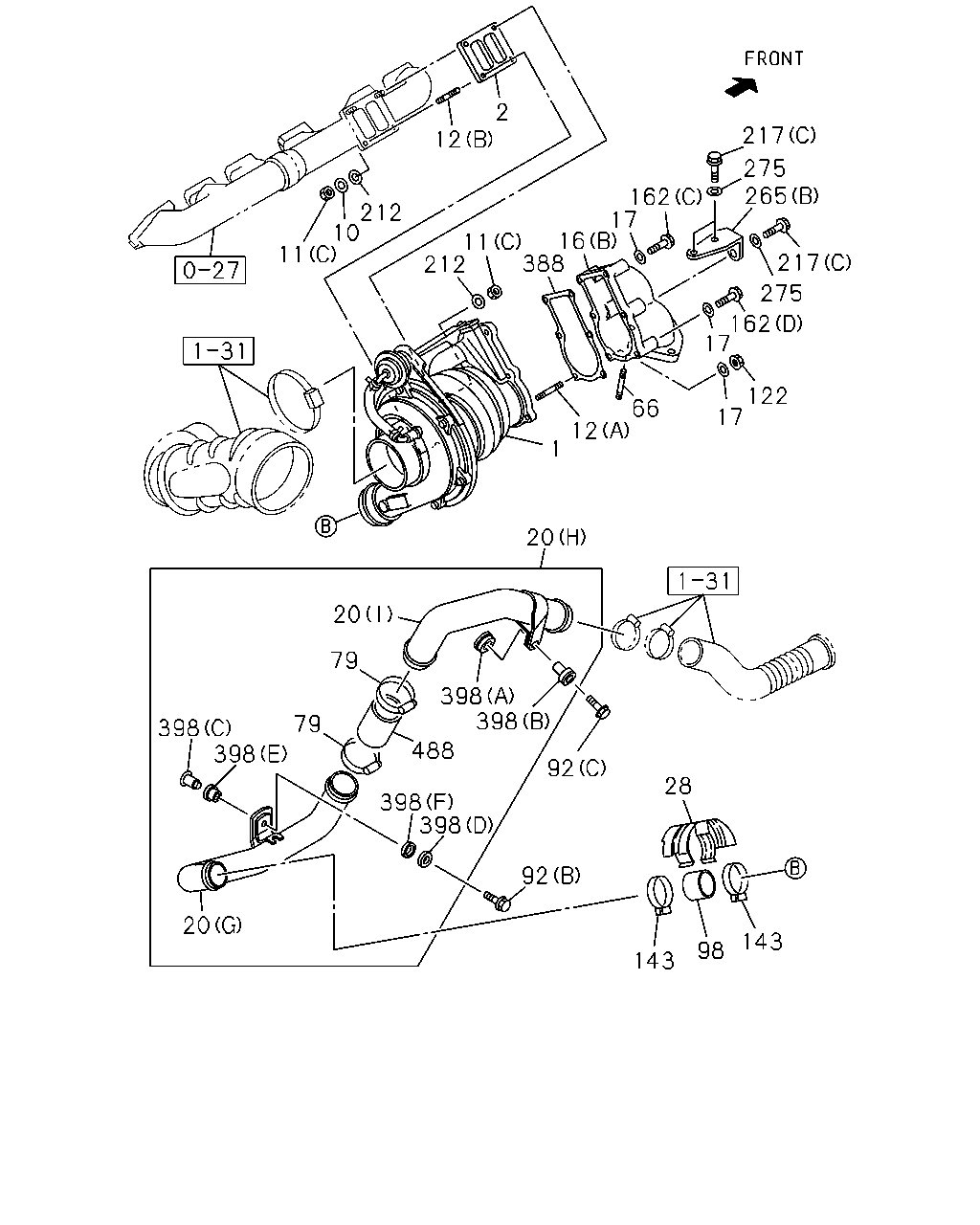

çizim 192174
2 12 217 275 265 162 17 11 16 212 388 212 10 11 217 275 162 17 122 17 66 12 1 20 20 79 398 398 79 398 398 488 92 28 398 398 92 20 143 98 143
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-98027-772-5 01 1 0712-1509 ●
1 TURBOCHARGER ASM 8-98322-481-0 01 1 1510- ●
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0710-0808 ● ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 0809-0906 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-0906 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0907- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 0809- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0710-0808 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0809-0906 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0809-0906 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0907- ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0809- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0710-0808 ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0809-0906 ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0809-0906 ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0907- ● ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M10 		1-09420-005-0 04 1 0809- ●
11 NUT; TURBOCHARGER
(B) M6 FLANGE 		0-91180-106-0 02 1 0712- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 04 1 0712-0805 ●
11 NUT; TURBOCHARGER
(A) M10 FLANGE 		8-97381-617-0 04 1 0806- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809- ●
12 STUD; TURBOCHARGER
(D) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0712-0805 ●
12 STUD; TURBOCHARGER
(D) M10X30 L=45 		1-09302-106-0 02 1 0806- ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0710-0808 ● ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0809-0906 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809-0906 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0907- ● ●
16 ADAPTER; EXH PIPE
(C) 		8-98030-080-3 01 1 0712- ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0710-0808 ● ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0809-0906 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809-0906 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0907- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809- ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0809- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0710-0808 ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0809-0906 ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0809-0906 ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0907- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0809-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 0710-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0710- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 0710- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0710-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0710- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0710- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 0809- ●
66 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X30 L=48 		8-98059-951-0 03 1 0809- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0712- ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0710-0811 ● ●
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902 ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0808 ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0809-0906 ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0809-0906 ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0907- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0710- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0809- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0710-0808 ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0809-0906 ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0809-0906 ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0907- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-76 		1-09707-203-0 02 1 0809-0902 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 0903- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (D) M8X57 		5-09000-275-0 05 1 0809- ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 01 1 0712- ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710-0808 ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0809-0906 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809-0906 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0907- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0808 ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0809-0910 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0710- ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0809- ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0710-0808 ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0809-0906 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0809-0906 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0907- ● ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0710-0808 ● ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0809-0906 ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0809-0906 ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0907- ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0809- ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 0809- ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-2 01 1 0809- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0710- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0710- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0710- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0710- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0710- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0710- ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0710-0808 ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 0809-1408 ● ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409- ● ●

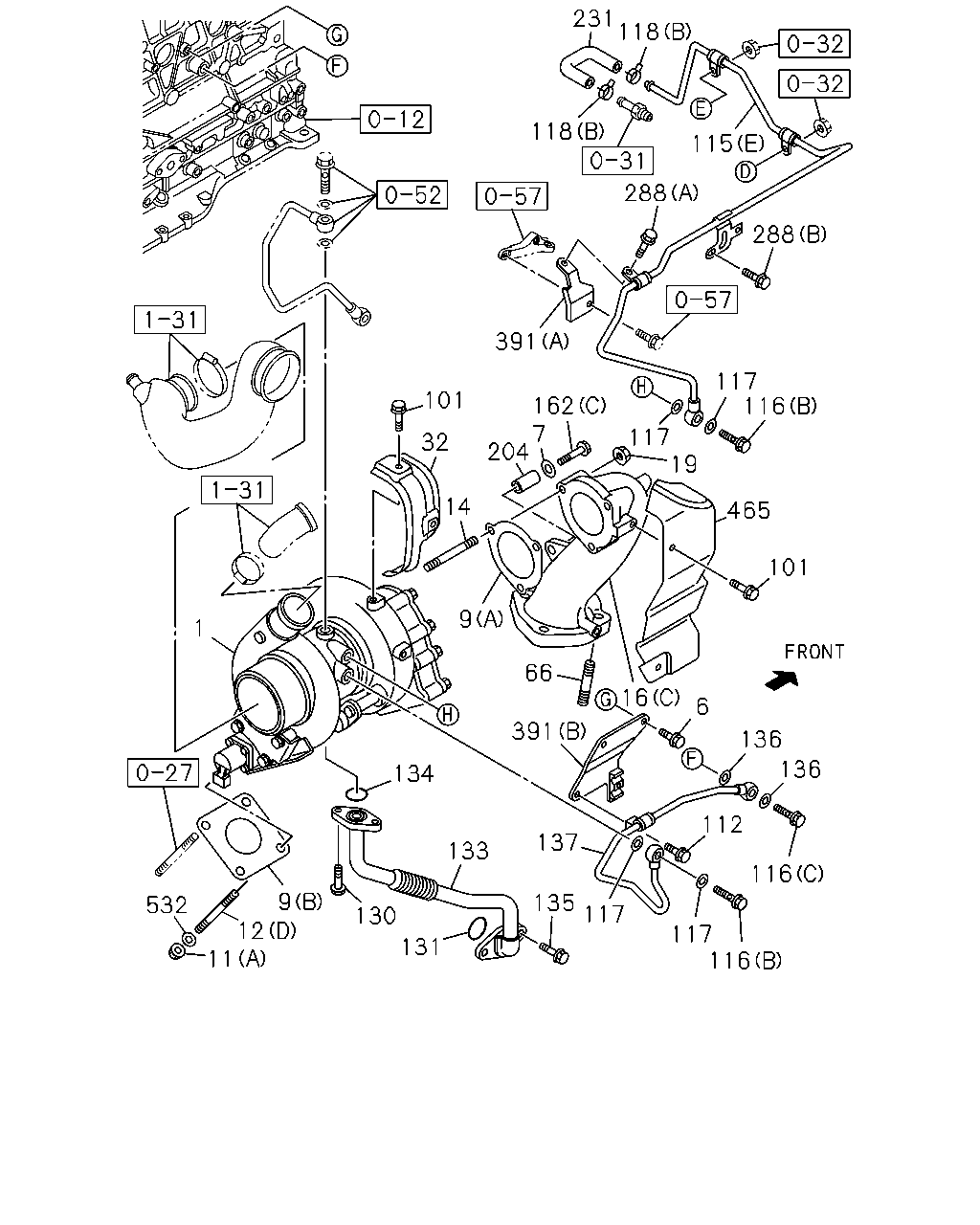

çizim 192183
231 118 118 115 288 288 391 117 116 101 162 7 204 117 19 32 14 465 101 9 1 66 16 6 391 136 136 134 112 137 133 116 9 12 11 135 532 117 130 117 116 131
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-98027-772-5 01 1 0712-1509 ●
1 TURBOCHARGER ASM 8-98322-481-0 01 1 1510- ●
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0710-0808 ● ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 0809-0906 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-0906 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0907- ● ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0712- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=54 		8-97376-758-0 01 1 0712- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=49 		8-98046-241-0 01 1 0712- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M10 		1-09420-005-0 04 1 0809- ●
11 NUT; TURBOCHARGER
(B) M6 FLANGE 		0-91180-106-0 02 1 0712- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 04 1 0712-0805 ●
11 NUT; TURBOCHARGER
(A) M10 FLANGE 		8-97381-617-0 04 1 0806- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809- ●
12 STUD; TURBOCHARGER
(D) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0712-0805 ●
12 STUD; TURBOCHARGER
(D) M10X30 L=45 		1-09302-106-0 02 1 0806- ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0710-0808 ● ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0809-0906 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809-0906 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0907- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
M8X49 L=63 		8-97019-478-0 03 1 0712- ●
16 ADAPTER; EXH PIPE
(C) 		8-98030-080-3 01 1 0712- ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0710-0808 ● ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0809-0906 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809-0906 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0907- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 03 1 0712- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-98031-888-3 01 1 0712- ●
66 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X30 L=48 		8-98059-951-0 03 1 0809- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0712- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0712- ●
112 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 0712- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(E) 		8-97387-270-2 01 1 0712- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97615-877-0 01 1 0710-0808 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97615-877-0 01 1 0809-0906 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97615-877-0 01 1 0809-0906 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97615-877-0 01 1 0907- ● ●
116 BOLT; WATER PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0712- ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0712- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 0712- ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0712- ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0712- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0712- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09566-228-0 01 1 0712-1006 ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1007- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-97386-642-1 01 1 0712-1006 ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-661-0 01 1 1007- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0712- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 0712- ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 0712-1312 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
137 PIPE; WATER,TURBOCHARGER IN 8-97387-271-0 01 1 0712- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0710-0808 ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0809-0906 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-98046-783-0 01 1 0809-0906 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-98046-783-0 01 1 0907- ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (D) M8X57 		5-09000-275-0 05 1 0809- ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 01 1 0712- ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710-0808 ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0809-0906 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809-0906 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0907- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0808 ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0809-0910 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911- ● ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0712- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0712- ●
288 BOLT; WATER PIPE CLIP
(A) M8X10 FLANGE 		0-28050-810-0 01 1 0712- ●
288 BOLT; WATER PIPE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0803 ●
288 BOLT; WATER PIPE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0804- ●
391 BRACKET; WATER PIPE
(A) 		8-98013-958-0 01 1 0712- ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 0712- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98052-394-0 01 1 0712- ●
532 WASHER; TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0712-0805 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
