0-35 — ENGINE CONTROL VALVE AND LEVER (#66258) — 9 parça

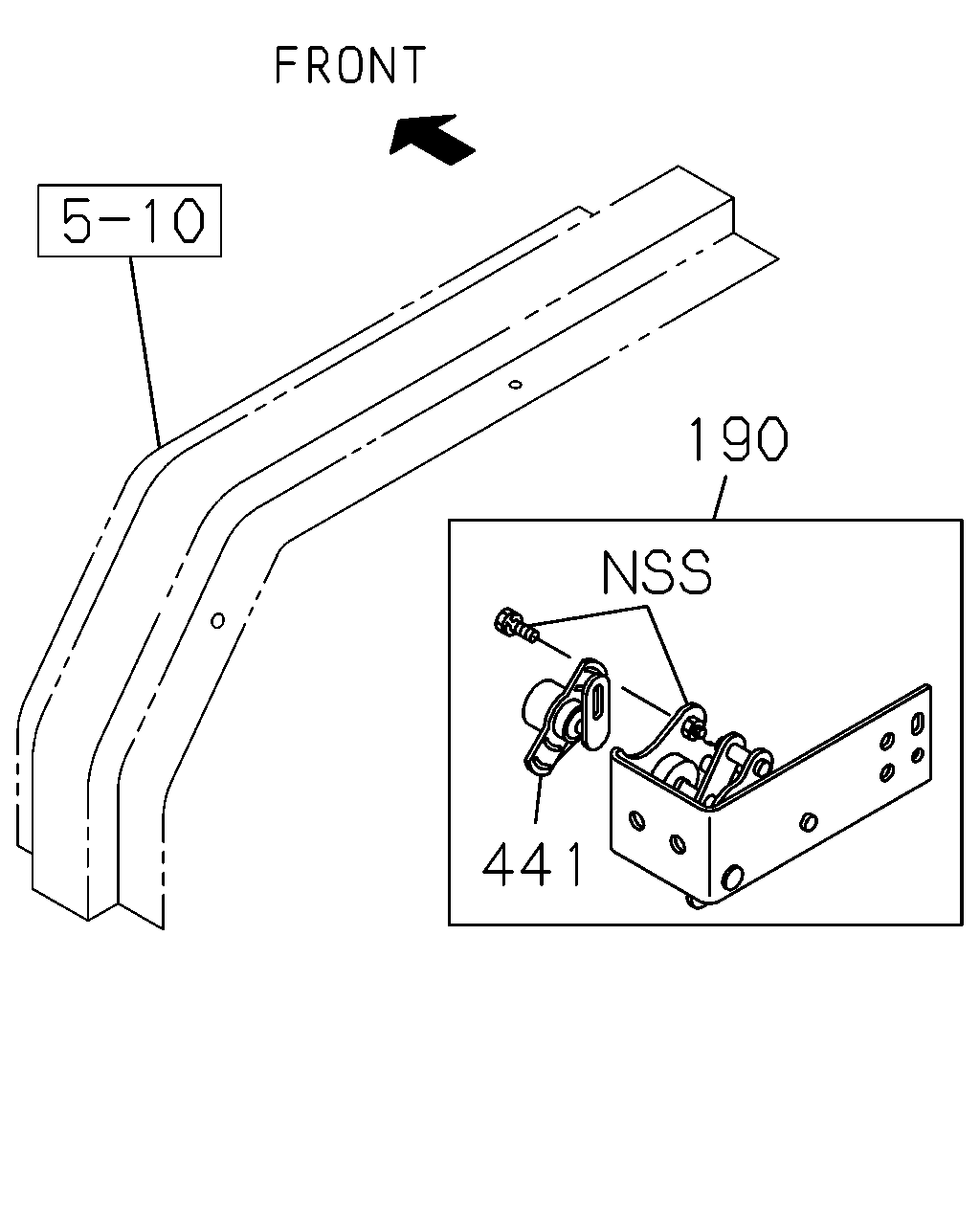

çizim 192062

190 441

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	190	LEVER; ENG CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97219-466-4	01	1	0710-0711	●	●
	190	LEVER; ENG CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97219-466-4	01	1	0712-	●	●	●
	441	SENSOR; THROTTLE POSITION TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97200-308-0	01	1	0710-0711	●	●
	441	SENSOR; THROTTLE POSITION TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97200-308-0	01	1	0712-	●	●	●

çizim 192164

21 190 441

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	21	VALVE ASM; THROTTLE	8-98061-061-3	01	1	0712-			●
	190	LEVER; ENG CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97219-466-4	01	1	0710-0711	●	●
	190	LEVER; ENG CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97219-466-4	01	1	0712-	●	●	●
	441	SENSOR; THROTTLE POSITION TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97200-308-0	01	1	0710-0711	●	●
	441	SENSOR; THROTTLE POSITION TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97200-308-0	01	1	0712-	●	●	●
