Sayfa 0-28 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶

0-28 — VENTILATION SYSTEM (#66253) — 187 parça

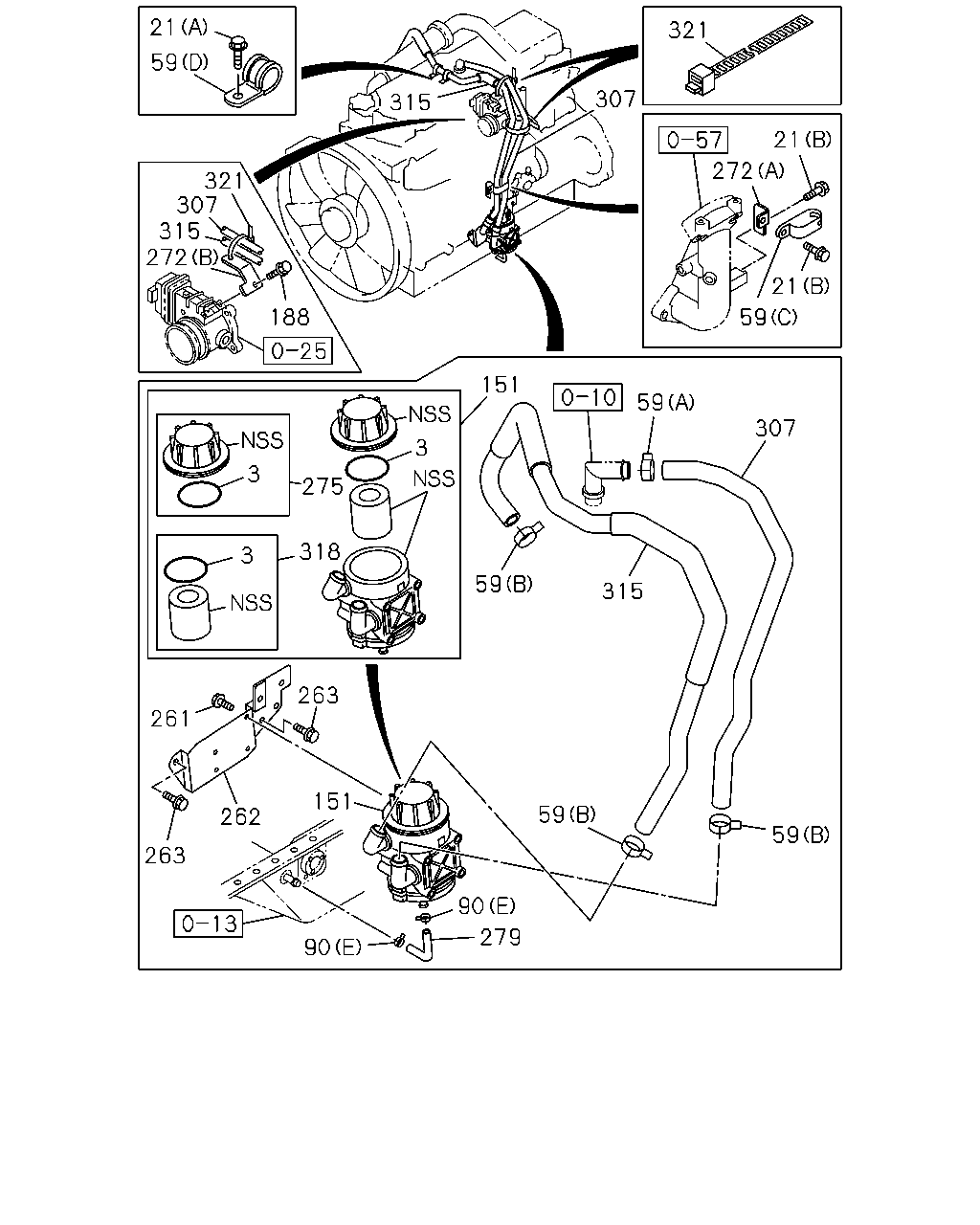

21 59 321 307 315 321 307 315 272 188 3 3 275 318 3 151 59 307 59 315 261 263 262 151 263 90 90 279 59 59 59 21 272 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0710-0711	●	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0712-0808	●	●	●
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>	8-97385-921-0	01	1	0809-	●	●	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	0710-0808	●	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	0809-0906	●
21	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	02	1	0809-0906		●
21	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	02	1	0907-	●	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0808	●	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-0906	●
21	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-0906		●
21	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0710-0808	●	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0809-0906	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (D) ID=35 L=33	1-09700-945-0	02	1	0809-0906		●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (D) ID=35 L=33	1-09700-945-0	02	1	0907-	●	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	0710-0808	●	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	0809-0906	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (C) ID=30X2 L=28	1-09701-266-0	01	1	0809-0906		●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (C) ID=30X2 L=28	1-09701-266-0	01	1	0907-	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0710-0808	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0809-0906	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (B) ID=28.5	1-09707-150-0	03	1	0809-0906		●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (B) ID=28.5	1-09707-150-0	03	1	0907-	●	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0710-0808	●	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0809-0906	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (A) ID=31.2	8-97237-146-0	01	1	0809-0906		●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (A) ID=31.2	8-97237-146-0	01	1	0907-	●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (F) ID=33.6	8-94362-518-0	01	1	0809-		●
90	CLIP; RUBBER HOSE (B) ID=31 L=35	1-09700-329-1	01	1	0712-1006			●
90	CLIP; RUBBER HOSE (G) L=212	8-94107-652-0	01	1	1007-			●
90	CLIP; RUBBER HOSE (A) ID=28	1-09707-124-0	03	1	0712-			●
90	CLIP; RUBBER HOSE (C) ID=13	8-94238-571-0	01	1	0712-			●
90	CLIP; RUBBER HOSE (D) ID=11	8-94238-925-0	01	1	0712-1007			●
90	CLIP; RUBBER HOSE (D) ID=11.5	8-97138-011-0	01	1	1008-			●
90	CLIP; RUBBER HOSE (E) ID=14	1-09704-102-0	02	1	0710-0808	●	●
90	CLIP; RUBBER HOSE (E) ID=14	1-09704-102-0	02	1	0809-0906	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=14	1-09704-102-0	02	1	0809-0906		●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=14	1-09704-102-0	02	1	0907-	●	●
151	SEPARATOR; OIL,PCV	8-97324-682-1	01	1	0712-			●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0710-0808	●	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0809-0906	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97602-262-2	01	1	0809-0906		●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97602-262-2	01	1	0907-	●	●
188	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	1007-			●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0710-0808	●	●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0809-0906	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	0809-0906		●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●
261	BOLT; SEPARETOR M8X30 FLANGE	0-28650-830-0	04	1	0712-			●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0710-0808	●	●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0809-0906	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	04	1	0809-0906		●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	04	1	0907-	●	●
262	BRACKET; OIL SEPARETOR	8-98036-498-0	01	1	0712-1501			●
262	BRACKET; OIL SEPARETOR	8-98296-130-0	01	1	1502-			●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0710-0808	●	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0809-0906	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>	8-97610-919-1	01	1	0809-0906		●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>	8-97610-919-1	01	1	0907-	●	●
263	BOLT; BRKT,OIL SEPARETOR M12X30 FLANGE	0-28151-230-0	03	1	0712-			●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0710-0808	●	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0809-0906	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28751-025-0	02	1	0809-0906		●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28751-025-0	02	1	0907-	●	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0710-0808	●	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0809-0906	●
272	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (A)	8-97607-396-1	01	1	0809-0906		●
272	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (A)	8-97607-396-1	01	1	0907-	●	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0710-0808	●	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0809-0906	●
272	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-97607-397-0	01	1	0809-0906		●
272	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-97607-397-0	01	1	0907-	●	●
275	CAP; PCV	8-97389-360-0	01	1	0712-			●
275	CAP; PCV	8-97606-319-0	01	1	0710-0808	●	●
275	CAP; PCV	8-97606-319-0	01	1	0809-0906	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97606-319-0	01	1	0809-0906		●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97606-319-0	01	1	0907-	●	●
279	HOSE; RUBBER,OIL DRAIN	8-97386-653-1	01	1	0712-			●
279	HOSE; RUBBER,OIL DRAIN L=210 SERVICED BY L=1000	0-02759-100-0	01	1	0710-0808	●	●
279	HOSE; RUBBER,OIL DRAIN L=210 SERVICED BY L=1000	0-02759-100-0	01	1	0809-0906	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> L=210 SERVICED BY L=1000	0-02759-100-0	01	1	0809-0906		●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> L=210 SERVICED BY L=1000	0-02759-100-0	01	1	0907-	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0710-0808	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-2	01	1	0809-0906	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO4 SPECIFICATION<NT4>	8-98054-285-2	01	1	0809-0906		●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO4 SPECIFICATION<NT4>	8-98054-285-2	01	1	0907-	●	●
315	HOSE; RUBBER DBL CAB(FC*W)	8-98054-287-1	01	1	0712-		●
315	HOSE; RUBBER	8-98054-286-1	01	1	0710-0711	●	●
315	HOSE; RUBBER SGL CAB(FC*M)	8-98054-286-2	01	1	0712-	●	●
318	ELEMENT KIT; PCV	8-98002-346-0	01	1	0712-			●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0710-0808	●	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0809-0906	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-97606-318-0	01	1	0809-0906		●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-97606-318-0	01	1	0907-	●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0710-0808	●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0809-0906	●
321	CLIP; HOSE,SEPARATOR EURO4 SPECIFICATION<NT4> L=300	1-09707-001-1	02	1	0809-0906		●
321	CLIP; HOSE,SEPARATOR EURO4 SPECIFICATION<NT4> L=300	1-09707-001-1	02	1	0907-	●	●

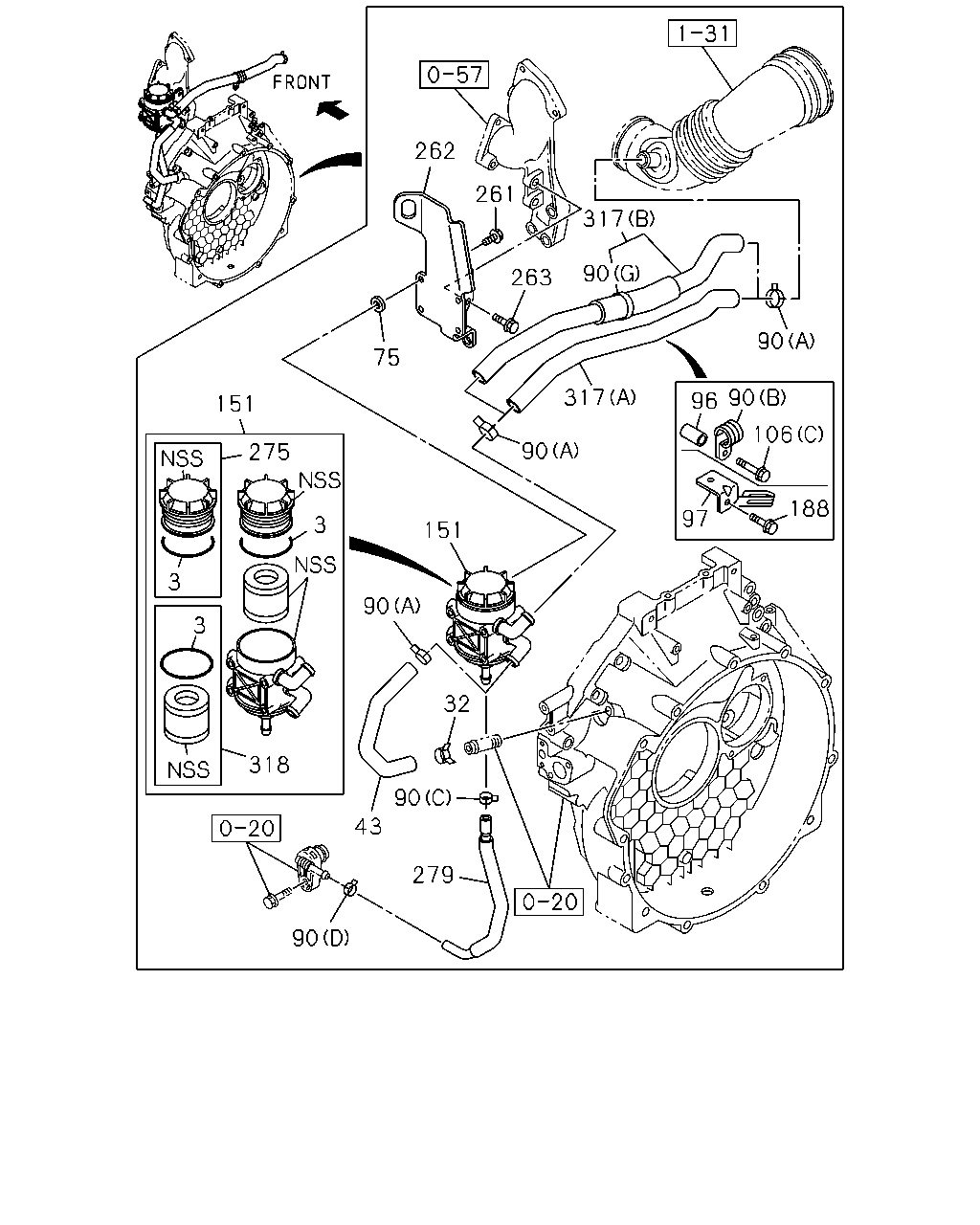

317 261 262 263 90 90 90 96 188 106 97 317 90 75 151 275 3 3 3 318 151 32 90 279 90 43 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0710-0711	●	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0712-0808	●	●	●
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>	8-97385-921-0	01	1	0809-	●	●	●
32	CLIP; VENT HOSE ID=21	8-94242-034-0	01	1	0712-			●
43	HOSE; PCV	8-98057-033-0	01	1	0712-			●
75	WASHER ID=9 OD=18 T=5	9-14149-173-0	04	1	0712-			●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (F) ID=33.6	8-94362-518-0	01	1	0809-		●
90	CLIP; RUBBER HOSE (B) ID=31 L=35	1-09700-329-1	01	1	0712-1006			●
90	CLIP; RUBBER HOSE (G) L=212	8-94107-652-0	01	1	1007-			●
90	CLIP; RUBBER HOSE (A) ID=28	1-09707-124-0	03	1	0712-			●
90	CLIP; RUBBER HOSE (C) ID=13	8-94238-571-0	01	1	0712-			●
90	CLIP; RUBBER HOSE (D) ID=11	8-94238-925-0	01	1	0712-1007			●
90	CLIP; RUBBER HOSE (D) ID=11.5	8-97138-011-0	01	1	1008-			●
90	CLIP; RUBBER HOSE (E) ID=14	1-09704-102-0	02	1	0710-0808	●	●
90	CLIP; RUBBER HOSE (E) ID=14	1-09704-102-0	02	1	0809-0906	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=14	1-09704-102-0	02	1	0809-0906		●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=14	1-09704-102-0	02	1	0907-	●	●
96	COLLAR; DIST,CLIP	8-98056-147-0	01	1	0712-1006			●
97	BRACKET; HOSE	8-98093-946-3	01	1	1007-			●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (A) M6X12 FLANGE	0-28050-612-0	01	1	0809-		●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	02	1	0809-		●
106	BOLT; DRAIN PIPE (C) M8X50 FLANGE	0-28050-850-0	01	1	0712-1006			●
151	SEPARATOR; OIL,PCV	8-97324-682-1	01	1	0712-			●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0710-0808	●	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0809-0906	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97602-262-2	01	1	0809-0906		●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97602-262-2	01	1	0907-	●	●
188	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	1007-			●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0710-0808	●	●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0809-0906	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	0809-0906		●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●
261	BOLT; SEPARETOR M8X30 FLANGE	0-28650-830-0	04	1	0712-			●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0710-0808	●	●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0809-0906	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	04	1	0809-0906		●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	04	1	0907-	●	●
262	BRACKET; OIL SEPARETOR	8-98036-498-0	01	1	0712-1501			●
262	BRACKET; OIL SEPARETOR	8-98296-130-0	01	1	1502-			●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0710-0808	●	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0809-0906	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>	8-97610-919-1	01	1	0809-0906		●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>	8-97610-919-1	01	1	0907-	●	●
263	BOLT; BRKT,OIL SEPARETOR M12X30 FLANGE	0-28151-230-0	03	1	0712-			●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0710-0808	●	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0809-0906	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28751-025-0	02	1	0809-0906		●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28751-025-0	02	1	0907-	●	●
275	CAP; PCV	8-97389-360-0	01	1	0712-			●
275	CAP; PCV	8-97606-319-0	01	1	0710-0808	●	●
275	CAP; PCV	8-97606-319-0	01	1	0809-0906	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97606-319-0	01	1	0809-0906		●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97606-319-0	01	1	0907-	●	●
279	HOSE; RUBBER,OIL DRAIN	8-97386-653-1	01	1	0712-			●
279	HOSE; RUBBER,OIL DRAIN L=210 SERVICED BY L=1000	0-02759-100-0	01	1	0710-0808	●	●
279	HOSE; RUBBER,OIL DRAIN L=210 SERVICED BY L=1000	0-02759-100-0	01	1	0809-0906	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> L=210 SERVICED BY L=1000	0-02759-100-0	01	1	0809-0906		●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> L=210 SERVICED BY L=1000	0-02759-100-0	01	1	0907-	●	●
317	HOSE; RUBBER,OIL SEPARATOR (A)	8-98074-980-0	01	1	0712-1006			●
317	HOSE; RUBBER,OIL SEPARATOR (B)	8-98095-932-0	01	1	1007-			●
318	ELEMENT KIT; PCV	8-98002-346-0	01	1	0712-			●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0710-0808	●	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0809-0906	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-97606-318-0	01	1	0809-0906		●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-97606-318-0	01	1	0907-	●	●

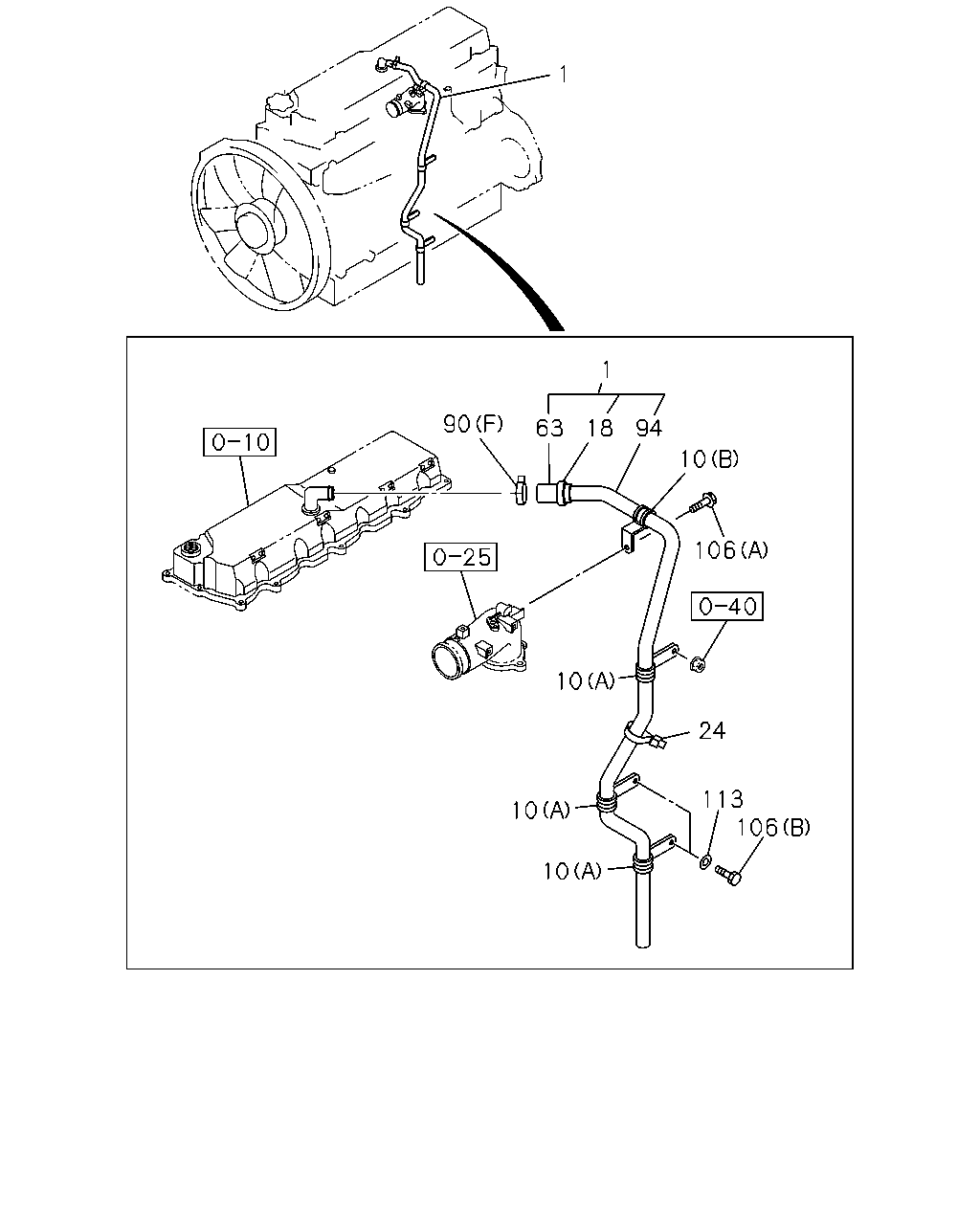

1 1 90 63 18 94 10 106 10 24 113 106 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BREATHER; AIR EURO2 SPECIFICATION<NT2>	8-94392-083-3	01	1	0809-		●
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (A) ID=32 L=75	1-09700-704-1	03	1	0809-		●
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0809-		●
18	CLIP; RUBBER HOSE,AIR BREATHER EURO2 SPECIFICATION<NT2> ID=33.6	8-94362-518-0	01	1	0809-		●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	0903-1205		●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	8-98216-430-0	01	1	1206-		●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02828-070-0	01	1	0809-1005		●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02728-070-0	01	1	1006-		●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (F) ID=33.6	8-94362-518-0	01	1	0809-		●
90	CLIP; RUBBER HOSE (B) ID=31 L=35	1-09700-329-1	01	1	0712-1006			●
90	CLIP; RUBBER HOSE (G) L=212	8-94107-652-0	01	1	1007-			●
90	CLIP; RUBBER HOSE (A) ID=28	1-09707-124-0	03	1	0712-			●
90	CLIP; RUBBER HOSE (C) ID=13	8-94238-571-0	01	1	0712-			●
90	CLIP; RUBBER HOSE (D) ID=11	8-94238-925-0	01	1	0712-1007			●
90	CLIP; RUBBER HOSE (D) ID=11.5	8-97138-011-0	01	1	1008-			●
90	CLIP; RUBBER HOSE (E) ID=14	1-09704-102-0	02	1	0710-0808	●	●
90	CLIP; RUBBER HOSE (E) ID=14	1-09704-102-0	02	1	0809-0906	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=14	1-09704-102-0	02	1	0809-0906		●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=14	1-09704-102-0	02	1	0907-	●	●
94	HOSE; BREATHER TO PIPE EURO2 SPECIFICATION<NT2> L=1260	8-94392-082-0	01	1	0809-		●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (A) M6X12 FLANGE	0-28050-612-0	01	1	0809-		●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	02	1	0809-		●
106	BOLT; DRAIN PIPE (C) M8X50 FLANGE	0-28050-850-0	01	1	0712-1006			●
113	WASHER; PL,CLIP EURO2 SPECIFICATION<NT2> ID=10.5	0-91610-510-0	02	1	0809-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
