Sayfa 0-14 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11101 - FRR RHD EURO2/4 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶

0-14 — CAMSHAFT AND VALVE (#66247) — 177 parça

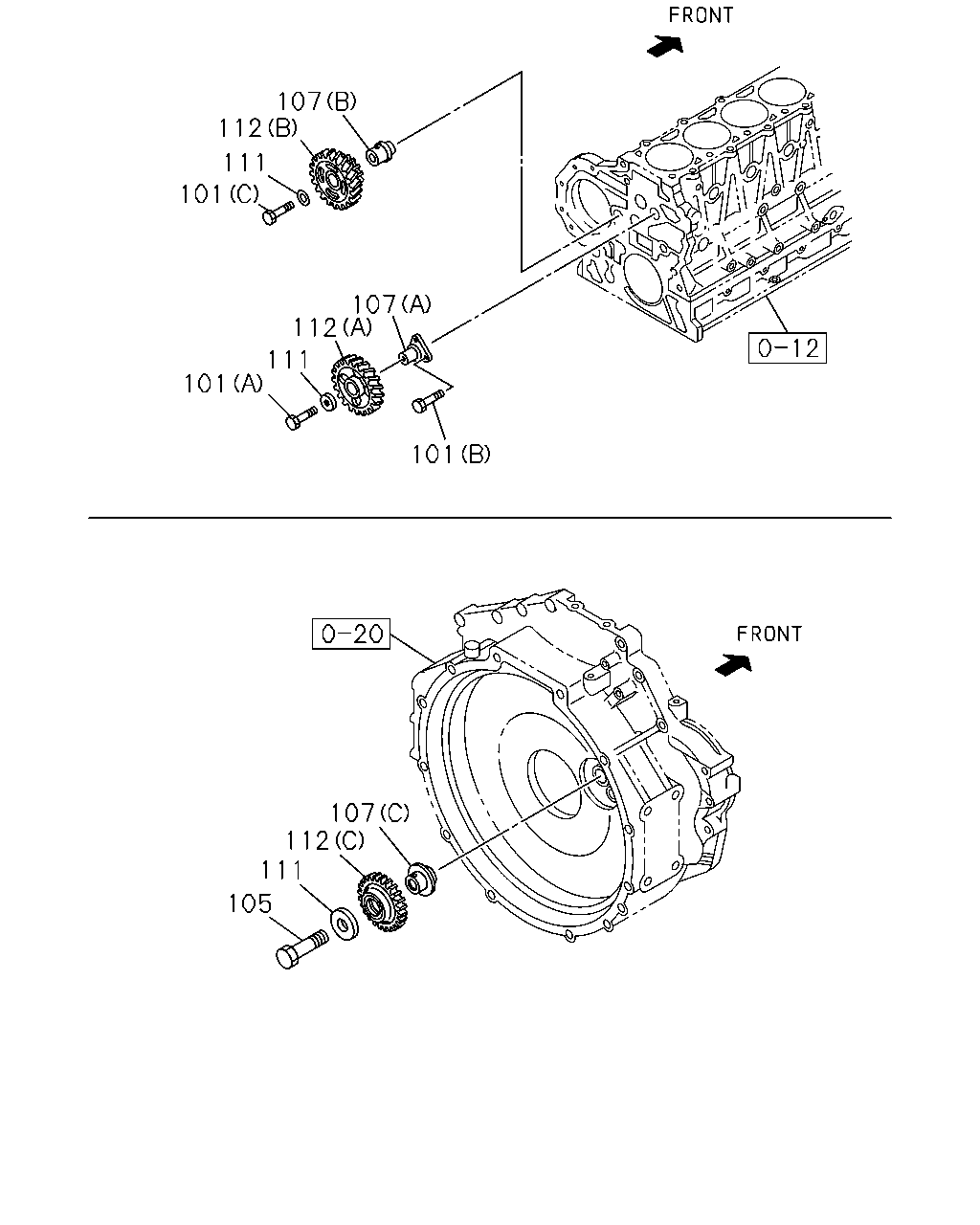

107 112 111 101 107 112 111 101 101 107 112 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	0712-	●
101	BOLT; THRUST COLLAR (E) M14X25	9-92361-425-0	01	1	0712-1310	●
101	BOLT; THRUST COLLAR (E) M14X25	0-23951-425-0	01	1	1311-	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0710-0711		●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0712-	●	●	●
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	0710-		●	●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	0710-		●	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0712-	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0710-		●	●
107	SHAFT; IDLE GEAR (D)	8-97606-990-1	01	1	0712-	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-0	01	1	0710-0711		●	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	0712-	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0710-0711		●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0712-	●	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0710-0711		●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0712-	●	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0712-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0710-		●	●
112	GEAR; IDLE (E) Z=34	8-97120-005-1	01	1	0712-	●
112	GEAR; IDLE (D) Z=41	8-98058-320-1	01	1	0712-	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0710-0711		●	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0712-1402	●	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-	●	●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	0710-0711		●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	0712-	●	●	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	0710-		●	●

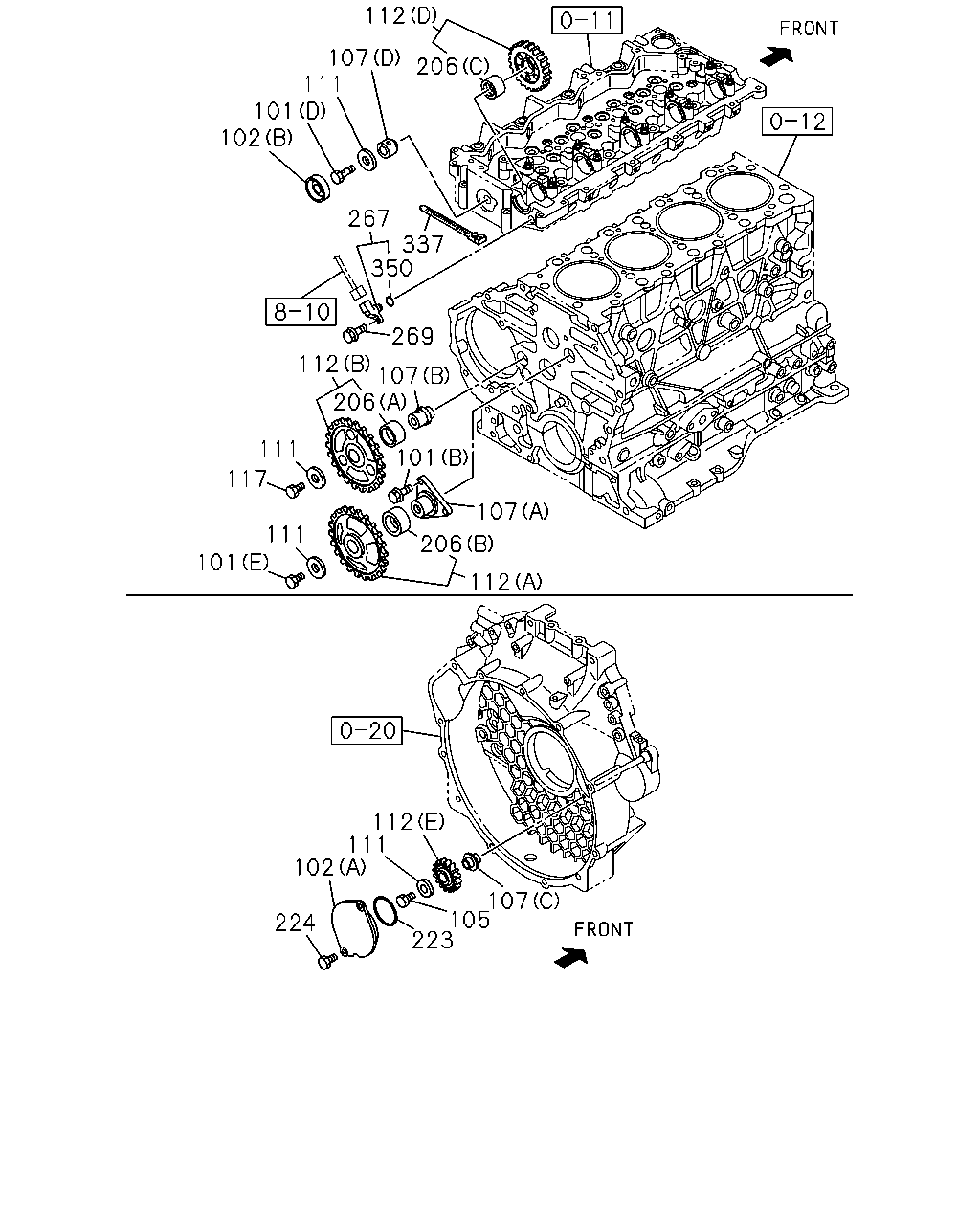

112 107 111 101 102 206 337 350 267 269 112 107 206 111 101 117 107 111 101 206 112 112 111 102 107 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	0712-	●
101	BOLT; THRUST COLLAR (E) M14X25	9-92361-425-0	01	1	0712-1310	●
101	BOLT; THRUST COLLAR (E) M14X25	0-23951-425-0	01	1	1311-	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0710-0711		●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0712-	●	●	●
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	0710-		●	●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	0710-		●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0712-	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0712-	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0712-	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0710-		●	●
107	SHAFT; IDLE GEAR (D)	8-97606-990-1	01	1	0712-	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-0	01	1	0710-0711		●	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	0712-	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0710-0711		●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0712-	●	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0710-0711		●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0712-	●	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0712-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0710-		●	●
112	GEAR; IDLE (E) Z=34	8-97120-005-1	01	1	0712-	●
112	GEAR; IDLE (D) Z=41	8-98058-320-1	01	1	0712-	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0710-0711		●	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0712-1402	●	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-	●	●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	0710-0711		●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	0712-	●	●	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	0710-		●	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0712-	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0712-1402	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0712-	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0712-	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0712-	●
224	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	0712-	●
269	BOLT; SENSOR M6X12 FLANGE	0-28050-612-0	01	1	0712-	●
337	CLIP; SENSOR L=170	5-09707-054-0	01	1	0712-0712	●
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8	8-97369-404-0	01	1	0712-	●

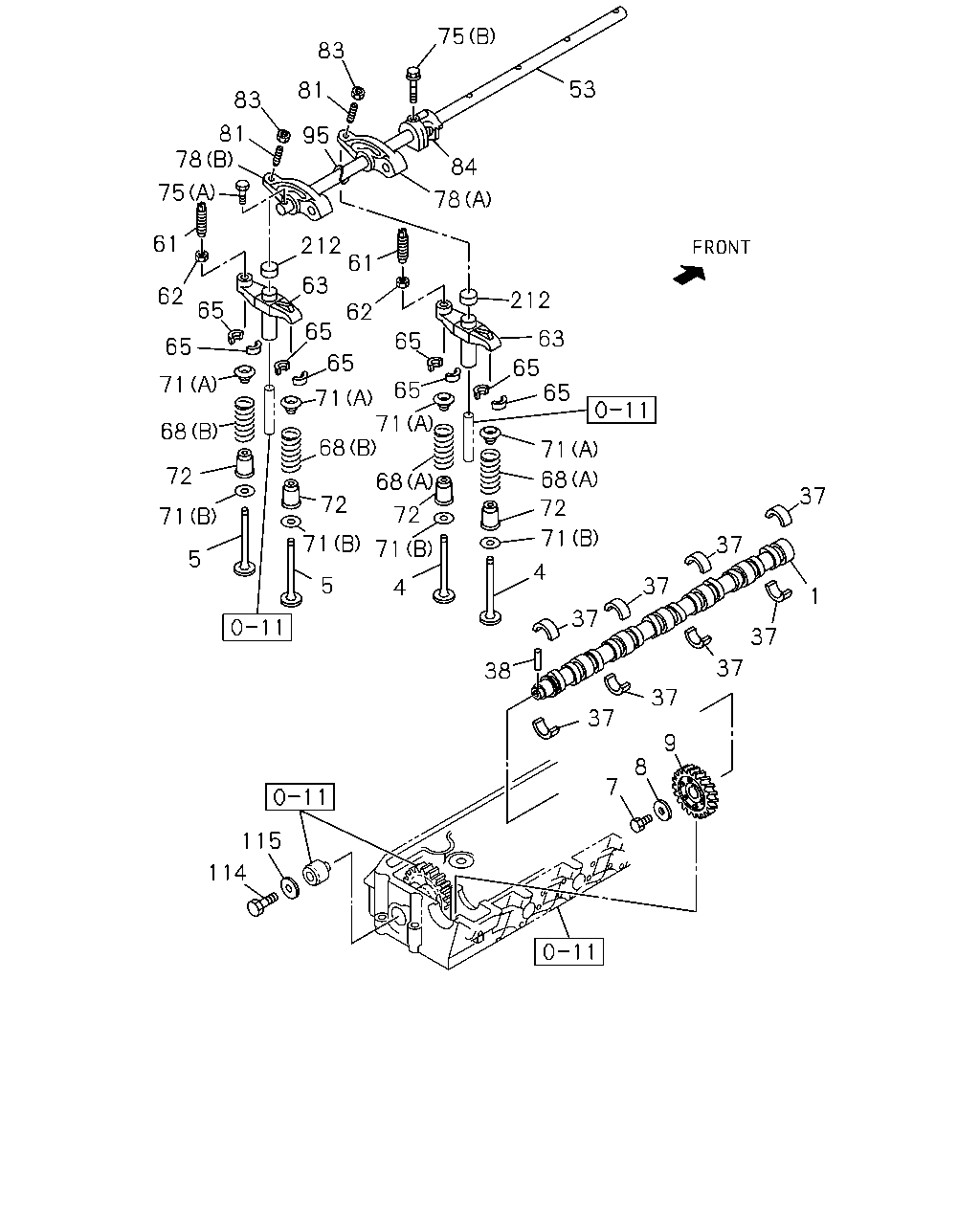

114 7 37 9 8 115 37 38 37 37 37 37 1 37 37 4 4 5 5 71 72 68 71 71 68 71 72 71 71 68 72 65 65 62 61 75 78 81 83 81 95 212 63 65 71 65 61 78 62 72 68 71 65 65 84 212 65 63 65 83 75 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	8-97262-166-0	01	1	0712-	●
1	CAMSHAFT	8-97601-438-0	01	1	0710-1311		●	●
1	CAMSHAFT	8-98227-261-1	01	1	1312-		●	●
4	VALVE; INL	8-94395-882-2	08	1	0712-	●
4	VALVE; INL	8-94395-882-2	12	1	0710-		●	●
5	VALVE; EXH	8-97209-876-4	08	1	0712-	●
5	VALVE; EXH	8-97209-876-4	12	1	0710-		●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0710-0711		●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0712-	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0710-		●	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	0712-	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	0710-		●	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0712-	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0710-		●	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0710-		●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0710-		●	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	0712-	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0710-		●	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	0712-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0710-		●	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	0712-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0710-		●	●
63	BRIDGE	8-94392-002-3	08	1	0712-	●
63	BRIDGE	8-94392-002-3	12	1	0710-		●	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	0712-	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0710-		●	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	0712-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	0712-	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	12	1	0710-0808		●	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	12	1	0809-0906		●
68	SPRING; VLV EURO4 SPECIFICATION<NT4> (B) EXHAUST MARK RED	8-97210-682-0	12	1	0809-0906			●
68	SPRING; VLV EURO4 SPECIFICATION<NT4> (B) EXHAUST MARK RED	8-97210-682-0	12	1	0907-		●	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	0710-0808		●	●
68	SPRING; VLV EURO2 SPECIFICATION<NT2> (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	0809-			●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	0809-		●	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	0712-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	0712-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	0710-		●	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	0710-		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0712-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0710-		●	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0710-		●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0710-		●	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	0712-	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	0712-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	0710-		●	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	0710-		●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0712-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0710-		●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0712-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0710-		●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0710-		●	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0712-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0710-		●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0710-		●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0710-		●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0710-		●	●

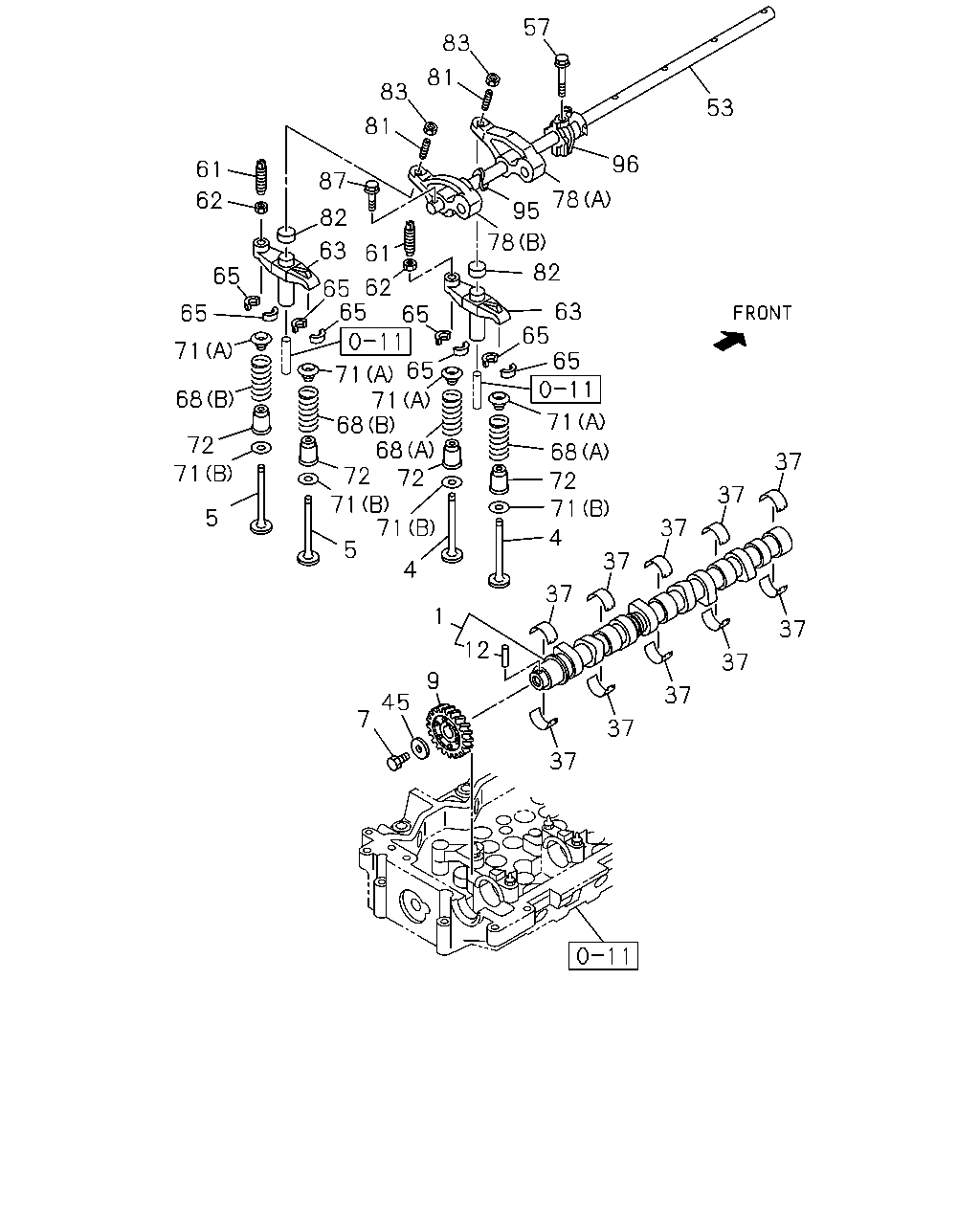

37 37 37 37 37 37 37 37 37 37 7 12 9 45 1 4 4 5 5 71 71 71 72 72 72 71 72 68 71 65 65 63 68 68 71 71 65 82 78 95 78 96 53 57 83 81 83 81 87 61 63 82 62 61 65 65 68 71 62 65 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	8-97262-166-0	01	1	0712-	●
1	CAMSHAFT	8-97601-438-0	01	1	0710-1311		●	●
1	CAMSHAFT	8-98227-261-1	01	1	1312-		●	●
4	VALVE; INL	8-94395-882-2	08	1	0712-	●
4	VALVE; INL	8-94395-882-2	12	1	0710-		●	●
5	VALVE; EXH	8-97209-876-4	08	1	0712-	●
5	VALVE; EXH	8-97209-876-4	12	1	0710-		●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0710-0711		●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0712-	●	●	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	0712-	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	0710-		●	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	0712-	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0712-	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0710-		●	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0710-		●	●
45	WASHER; GEAR CAM ID=14.5	9-09851-850-3	01	1	0712-	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	0712-	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0710-		●	●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	0712-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	0712-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0710-		●	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	0712-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0710-		●	●
63	BRIDGE	8-94392-002-3	08	1	0712-	●
63	BRIDGE	8-94392-002-3	12	1	0710-		●	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	0712-	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0710-		●	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	0712-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	0712-	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	12	1	0710-0808		●	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	12	1	0809-0906		●
68	SPRING; VLV EURO4 SPECIFICATION<NT4> (B) EXHAUST MARK RED	8-97210-682-0	12	1	0809-0906			●
68	SPRING; VLV EURO4 SPECIFICATION<NT4> (B) EXHAUST MARK RED	8-97210-682-0	12	1	0907-		●	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	0710-0808		●	●
68	SPRING; VLV EURO2 SPECIFICATION<NT2> (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	0809-			●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	0809-		●	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	0712-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	0712-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	0710-		●	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	0710-		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0712-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0710-		●	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	0712-	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	0712-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	0710-		●	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	0710-		●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0712-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0710-		●	●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	0712-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0712-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0710-		●	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28050-840-0	02	1	0712-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0712-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0710-		●	●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
