8-20 — METER CABLE (#66234) — 32 parça

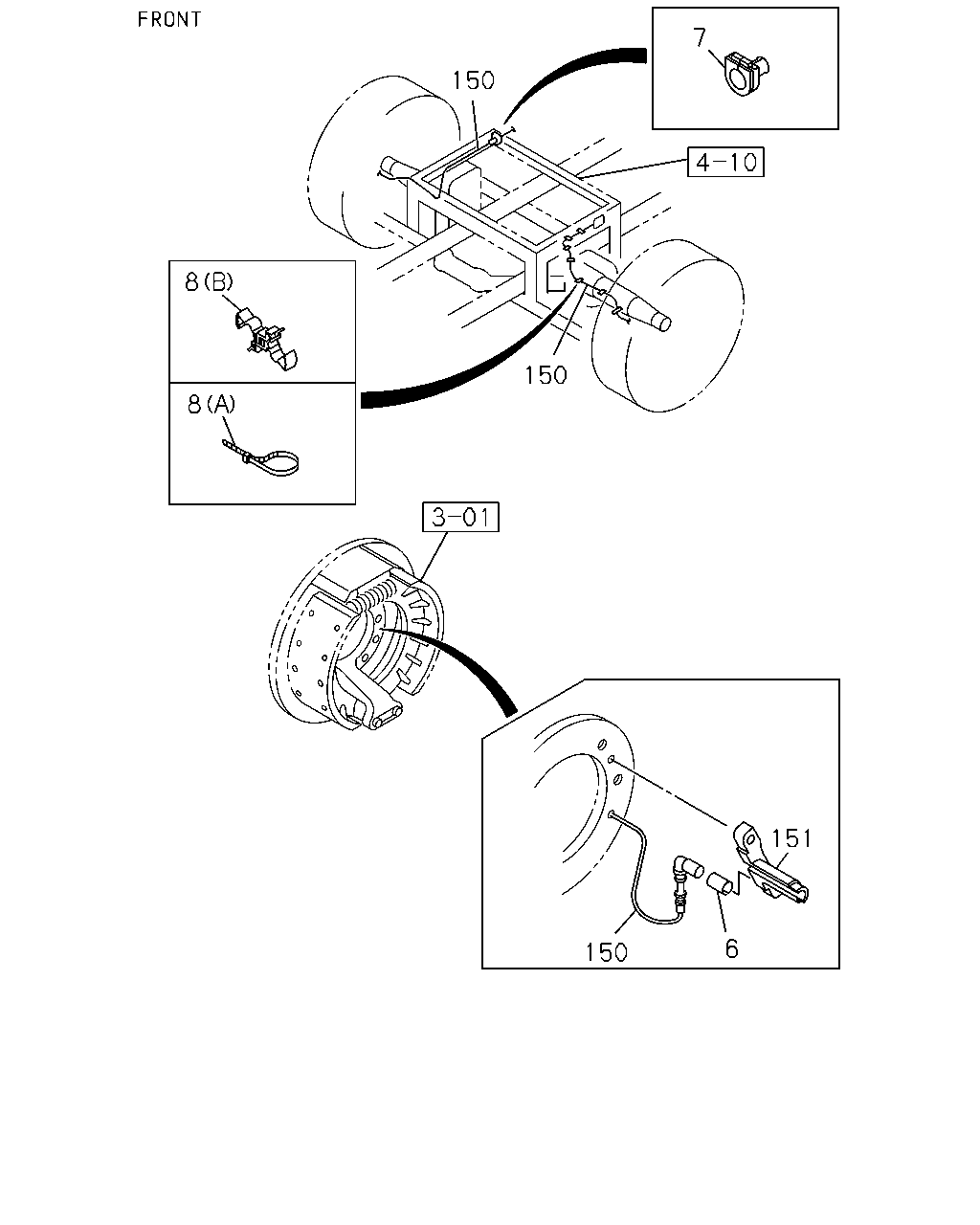

çizim 137748
7 150 8 150 8 151 6 150
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0611-
7 GROMMET; SPD SENSOR
ID=8 		1-82699-740-1 01 1 0611-
8 CLIP; HARNESS
(B) ID=6-10 & 6-10 		1-09709-192-1 01 1 0611-
8 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0611-
150 SENSOR; SPEED,ABS
REAR 		1-83127-771-1 01 1 0611-
150 SENSOR; SPEED,ABS
REAR 		1-83127-772-1 01 1 0611-
150 SENSOR; SPEED,ABS
FRONT 		1-83227-016-1 01 1 0611-1003
150 SENSOR; SPEED,ABS
FRONT 		8-98129-460-0 01 1 1004-
150 SENSOR; SPEED,ABS
FRONT 		1-83227-017-1 01 1 0611-1003
150 SENSOR; SPEED,ABS
FRONT 		8-98129-462-0 01 1 1004-
151 BRACKET; SPD SENSOR
REAR 		1-83129-405-0 01 1 0611-
151 BRACKET; SPD SENSOR
REAR 		1-83129-406-0 01 1 0611-
151 BRACKET; SPD SENSOR
FRONT 		1-83129-421-0 01 1 0611-
151 BRACKET; SPD SENSOR
FRONT 		1-83129-422-0 01 1 0611-

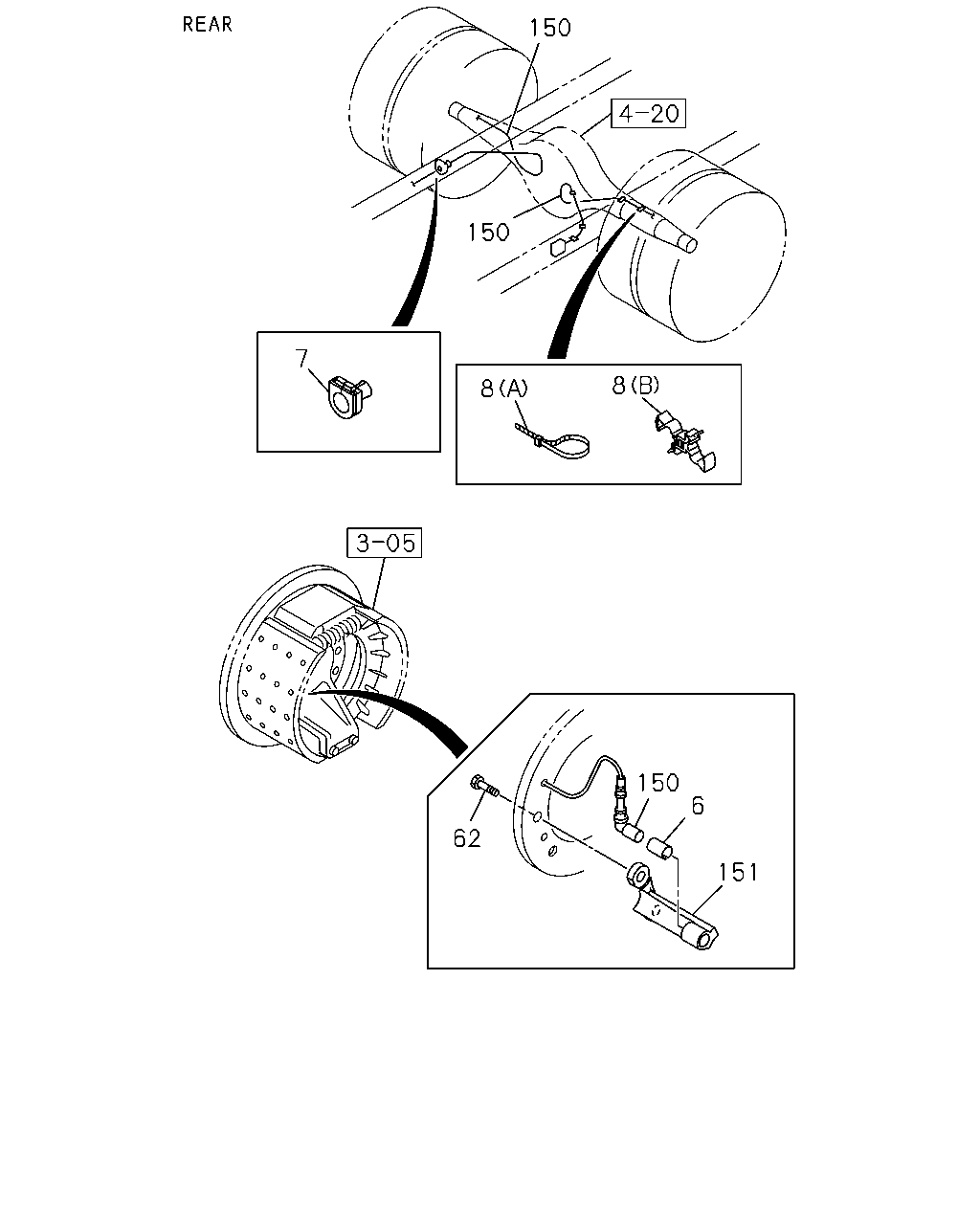

çizim 137945
150 150 7 8 8 150 6 62 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0611-
7 GROMMET; SPD SENSOR
ID=8 		1-82699-740-1 01 1 0611-
8 CLIP; HARNESS
(B) ID=6-10 & 6-10 		1-09709-192-1 01 1 0611-
8 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0611-
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0611-
150 SENSOR; SPEED,ABS
REAR 		1-83127-771-1 01 1 0611-
150 SENSOR; SPEED,ABS
REAR 		1-83127-772-1 01 1 0611-
150 SENSOR; SPEED,ABS
FRONT 		1-83227-016-1 01 1 0611-1003
150 SENSOR; SPEED,ABS
FRONT 		8-98129-460-0 01 1 1004-
150 SENSOR; SPEED,ABS
FRONT 		1-83227-017-1 01 1 0611-1003
150 SENSOR; SPEED,ABS
FRONT 		8-98129-462-0 01 1 1004-
151 BRACKET; SPD SENSOR
REAR 		1-83129-405-0 01 1 0611-
151 BRACKET; SPD SENSOR
REAR 		1-83129-406-0 01 1 0611-
151 BRACKET; SPD SENSOR
FRONT 		1-83129-421-0 01 1 0611-
151 BRACKET; SPD SENSOR
FRONT 		1-83129-422-0 01 1 0611-
çizim 192007
228 132
BalonParca AdiParca NoAdetTipApplied Date
132 SENSOR; SPD,SPEEDOMETER
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0611-
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0611-0808
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 0809-
