8-15 — FIXING PARTS; WIRING HARNESS (#66233) — 374 parça

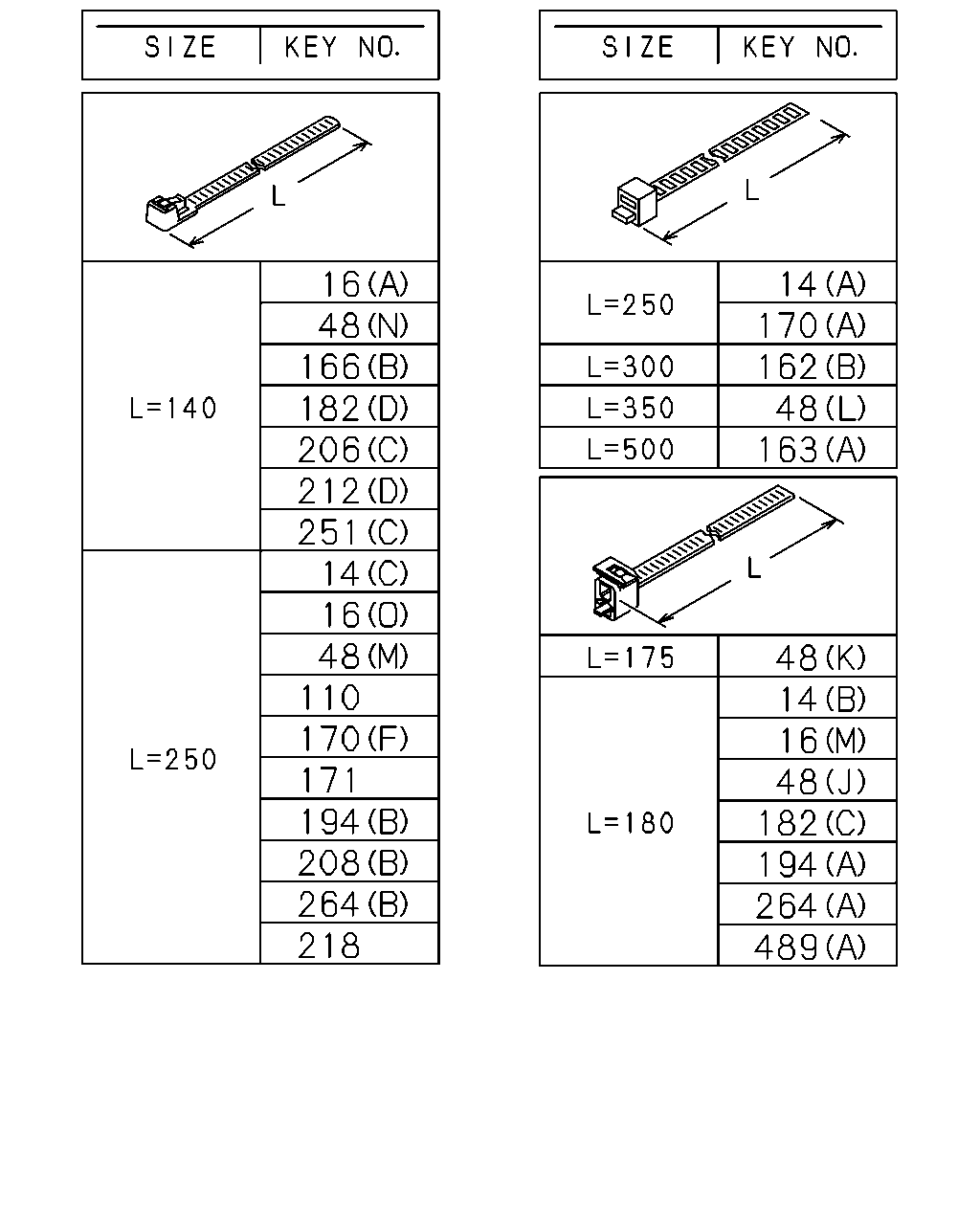

çizim 136793
16 48 166 182 206 212 251 14 16 48 110 170 171 194 208 264 218 14 170 162 48 163 48 14 16 48 182 194 264 489
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 15 1 0611-0702
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 16 1 0703-0905
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 17 1 0906-1205
14 CLIP; BAND,HARNESS
(C) L=250 		8-98216-430-0 17 1 1206-
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0611-1207
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 01 1 1208-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0611-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 03 1 0706-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 01 1 0611-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 06 1 0611-
16 CLIP; HARNESS
(H) ID=16 L=20 		0-95235-535-0 01 1 0611-
16 CLIP; HARNESS
(I) ID=11X2 L=16 		0-95325-025-0 01 1 0611-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0611-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 06 1 0611-
16 CLIP; HARNESS
(E) ID=11 L=30 		1-09700-511-0 01 1 0611-
16 CLIP; HARNESS
(J) ID=11X2 H=35 L=20 		1-09700-847-0 01 1 0611-
16 CLIP; HARNESS
(G) ID=22X11 L=20 		1-09700-871-0 02 1 0611-
16 CLIP; HARNESS
(K) ID=18 L=25 H=50 		1-09701-096-0 01 1 0611-
16 CLIP; HARNESS
(L) ID=18 L=38 H=23 		1-09701-147-0 01 1 0611-
16 CLIP; HARNESS
(M) L=180 		1-09707-162-1 02 1 0611-
16 CLIP; HARNESS
(N) OD=9 H=6 		1-09709-178-0 02 1 0611-
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 06 1 0611-0705
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 05 1 0706-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0611-0705
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0611-0705
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0706-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 02 1 0611-0712
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0801-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 0611-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0611-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 01 1 0611-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0611-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0611-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0611-
48 CLIP; FRAME HARNESS
(E) ID=35 L=33 		1-09700-945-0 03 1 0611-
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 09 1 0611-
48 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 01 1 0611-
48 CLIP; FRAME HARNESS
(G) ID=39 H=28 L=32 		1-09701-263-0 02 1 0611-
48 CLIP; FRAME HARNESS
(H) ID=39 H=40 L=32 		1-09701-267-0 02 1 0611-
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 0611-
48 CLIP; FRAME HARNESS
(J) L=180 		1-09707-162-1 04 1 0611-
48 CLIP; FRAME HARNESS
(K) L=175 		1-09707-176-1 02 1 0611-
48 CLIP; FRAME HARNESS
(L) L=350 		1-09707-183-0 02 1 0611-
48 CLIP; FRAME HARNESS
(M) L=250 		5-09707-030-1 02 1 0611-
48 CLIP; FRAME HARNESS
(N) L=140 		5-09707-031-1 01 1 0611-
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 02 1 0611-
48 CLIP; FRAME HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0611-
110 CLIP; BAND,DASH HARNESS
L=250 		5-09707-030-1 01 1 0801-
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 0706-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 0611-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 0611-
162 CLIP; SW HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0611-0705
162 CLIP; SW HARNESS
(E) ID=20 L=50 		9-09917-430-0 03 1 0706-
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0706-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0611-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0611-0705
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 0706-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0611-
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0611-
170 CLIP; ELEC HARNESS
(F) L=250 		5-09707-030-1 01 1 0611-
170 CLIP; ELEC HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0611-
170 CLIP; ELEC HARNESS
(C) ID=28 L=40 		1-09700-995-1 01 1 0611-
170 CLIP; ELEC HARNESS
(A) L=250 		1-09707-126-0 03 1 0611-
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 04 1 0611-
170 CLIP; ELEC HARNESS
(E) ID=20 L=50 		9-09917-430-0 02 1 0611-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 04 1 0611-
182 CLIP; HARNESS,OIL FILTER
(A) ID=11 L=16 		0-95235-025-0 01 1 0611-0805
182 CLIP; HARNESS,OIL FILTER
(B) ID=11 L=28 		0-95235-055-0 01 1 0611-0805
182 CLIP; HARNESS,OIL FILTER
(C) L=180 		1-09707-162-1 01 1 0611-
182 CLIP; HARNESS,OIL FILTER
(D) L=140 		5-09707-031-1 02 1 0611-
194 CLIP; BAND
(B) L=250 		5-09707-030-1 07 1 0611-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 05 1 0611-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0611-
206 CLIP; FUEL TANK HARNESS
(B) ID=5-12 L=26 		1-09709-289-0 01 1 0611-
206 CLIP; FUEL TANK HARNESS
(C) L=140 		5-09707-031-1 02 1 0611-
208 CLIP; HARNESS,MAG VLV
(A) ID=11 L=41 		1-09700-403-0 01 1 0611-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) ID=11 L=41 		1-09700-403-0 01 1 0611-
208 CLIP; HARNESS,MAG VLV
(B) L=250 		5-09707-030-1 02 1 0611-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (D) L=140 		5-09707-031-1 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) ID=5-12 L=18 		1-09709-287-0 01 1 0611-0705
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0611-0705
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0706-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) ID=11 L=41 		1-09700-403-0 03 1 0611-
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0611-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0611-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0611-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 		5-09707-031-1 01 1 0611-
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 0611-
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 0611-
489 CLIP; HARNESS,OIL PRESS SW
(B) ID=11 L=41 		1-09700-403-0 01 1 0611-
489 CLIP; HARNESS,OIL PRESS SW
(A) L=180 		1-09707-162-1 01 1 0611-

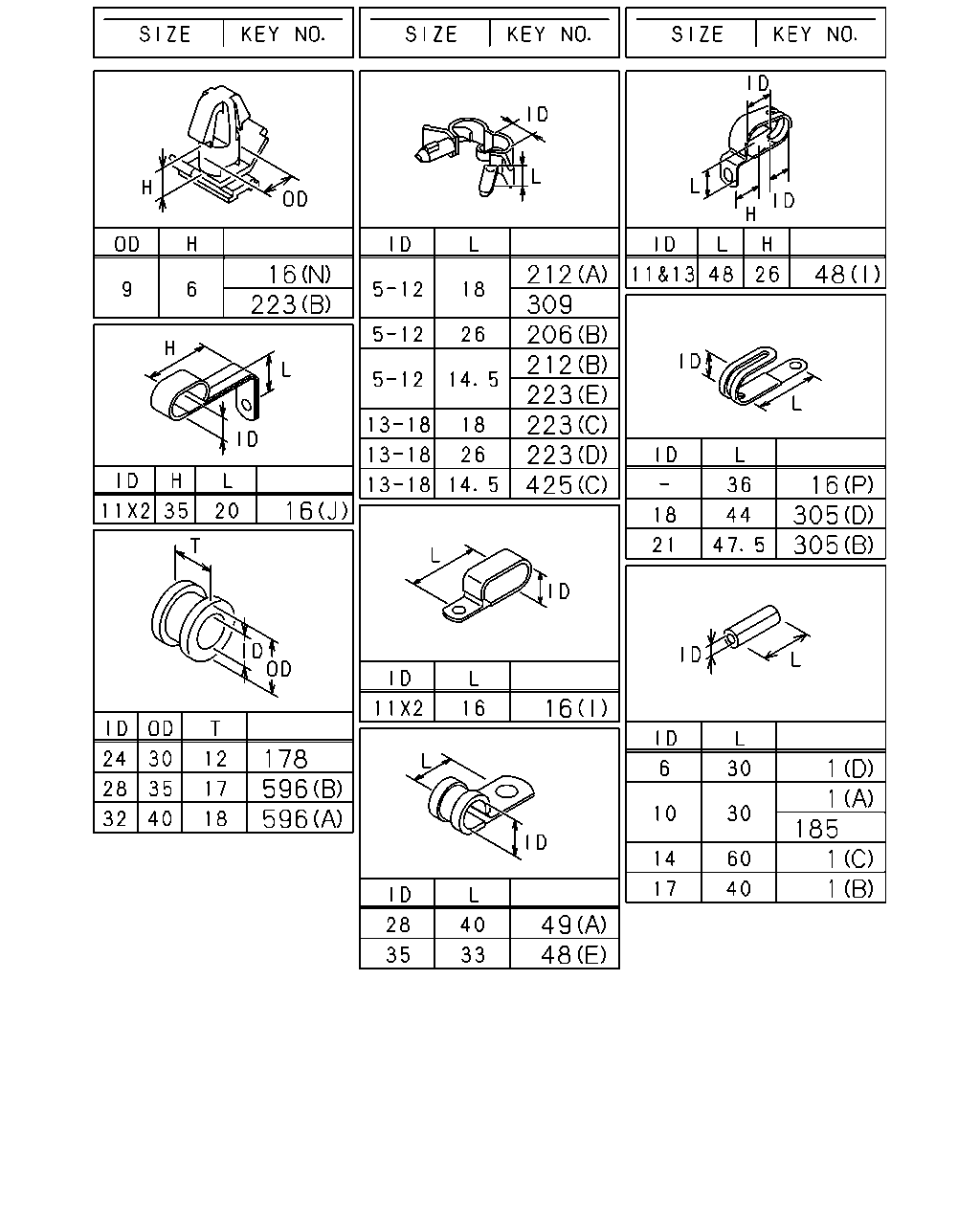

çizim 137050
16 223 212 309 206 212 223 223 223 425 48 16 305 305 16 16 178 596 596 1 1 185 1 1 49 48
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=17 OD=21 L=40 		1-09337-012-0 03 1 0611-
1 SLEEVE; RUBBER
(C) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0611-
1 SLEEVE; RUBBER
(D) ID=6 L=30 		5-09360-352-0 01 1 0611-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0611-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 03 1 0706-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 01 1 0611-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 06 1 0611-
16 CLIP; HARNESS
(H) ID=16 L=20 		0-95235-535-0 01 1 0611-
16 CLIP; HARNESS
(I) ID=11X2 L=16 		0-95325-025-0 01 1 0611-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0611-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 06 1 0611-
16 CLIP; HARNESS
(E) ID=11 L=30 		1-09700-511-0 01 1 0611-
16 CLIP; HARNESS
(J) ID=11X2 H=35 L=20 		1-09700-847-0 01 1 0611-
16 CLIP; HARNESS
(G) ID=22X11 L=20 		1-09700-871-0 02 1 0611-
16 CLIP; HARNESS
(K) ID=18 L=25 H=50 		1-09701-096-0 01 1 0611-
16 CLIP; HARNESS
(L) ID=18 L=38 H=23 		1-09701-147-0 01 1 0611-
16 CLIP; HARNESS
(M) L=180 		1-09707-162-1 02 1 0611-
16 CLIP; HARNESS
(N) OD=9 H=6 		1-09709-178-0 02 1 0611-
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 06 1 0611-0705
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 05 1 0706-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0611-0705
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0611-0705
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0706-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 02 1 0611-0712
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0801-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 0611-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0611-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 01 1 0611-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0611-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0611-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0611-
48 CLIP; FRAME HARNESS
(E) ID=35 L=33 		1-09700-945-0 03 1 0611-
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 09 1 0611-
48 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 01 1 0611-
48 CLIP; FRAME HARNESS
(G) ID=39 H=28 L=32 		1-09701-263-0 02 1 0611-
48 CLIP; FRAME HARNESS
(H) ID=39 H=40 L=32 		1-09701-267-0 02 1 0611-
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 0611-
48 CLIP; FRAME HARNESS
(J) L=180 		1-09707-162-1 04 1 0611-
48 CLIP; FRAME HARNESS
(K) L=175 		1-09707-176-1 02 1 0611-
48 CLIP; FRAME HARNESS
(L) L=350 		1-09707-183-0 02 1 0611-
48 CLIP; FRAME HARNESS
(M) L=250 		5-09707-030-1 02 1 0611-
48 CLIP; FRAME HARNESS
(N) L=140 		5-09707-031-1 01 1 0611-
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 02 1 0611-
48 CLIP; FRAME HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0611-
49 CLIP; GEN HARNESS
(C) ID=26 L=26 		1-09701-236-0 02 1 0611-
49 CLIP; GEN HARNESS
(B) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 0611-
49 CLIP; GEN HARNESS
(A) ID=28 L=40 		1-09701-261-0 01 1 0611-
178 GROMMET; HARNESS
ID=24 OD=30 T=12 		9-09956-093-1 01 1 0611-
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 04 1 0611-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0611-
206 CLIP; FUEL TANK HARNESS
(B) ID=5-12 L=26 		1-09709-289-0 01 1 0611-
206 CLIP; FUEL TANK HARNESS
(C) L=140 		5-09707-031-1 02 1 0611-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (D) L=140 		5-09707-031-1 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) ID=5-12 L=18 		1-09709-287-0 01 1 0611-0705
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0611-0705
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0706-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) ID=11 L=41 		1-09700-403-0 03 1 0611-
223 CLIP; AIR TANK HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0611-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0611-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0611-
223 CLIP; AIR TANK HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 03 1 0611-
223 CLIP; AIR TANK HARNESS
(D) ID=13-18 L=26 		1-09709-293-0 01 1 0611-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 06 1 0611-0702
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 05 1 0703-0801
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 05 1 0802-
305 CLIP; ENG HARNESS
(E) ID=16 L=28 		0-95235-556-0 02 1 0611-
305 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 0611-
305 CLIP; ENG HARNESS
(A) ID=11 L=20 		0-95235-036-0 01 1 0611-
305 CLIP; ENG HARNESS
(C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0611-0801
305 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-
309 CLIP; HARNESS,HAND BRAKE CABLE
ID=5-12 L=18 		1-09709-287-0 02 1 0611-
425 CLIP; MODULATOR
(A) ID=11 L=16 		0-95235-025-0 01 1 0611-
425 CLIP; MODULATOR
(B) ID=14.5 L=20 		1-09701-012-0 01 1 0611-
425 CLIP; MODULATOR
(C) ID=13-18 L=14.5 		1-09709-290-0 01 1 0611-
596 GROMMET
(A) ID=32 OD=40 T=18 		1-09891-003-0 01 1 0611-
596 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0611-
çizim 137351
69 211 211 211 308 308 308 334 308 375 375
BalonParca AdiParca NoAdetTipApplied Date
69 BRACKET; CLIP 8-98048-575-0 01 1 0611-
211 BRACKET; AXLE HARNESS
(A) L=105 		1-47477-409-0 01 1 0611-
211 BRACKET; AXLE HARNESS
(B) 		1-47479-841-0 01 1 0611-
211 BRACKET; AXLE HARNESS
(C) 		1-47479-845-0 02 1 0611-
211 BRACKET; AXLE HARNESS
(D) 		1-52171-250-0 01 1 0611-0706
211 BRACKET; AXLE HARNESS
(E) 		1-52171-251-1 02 1 0611-
211 BRACKET; AXLE HARNESS
(F) 		1-52171-252-0 01 1 0611-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 01 1 0611-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-97610-321-2 01 1 0611-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97612-280-1 01 1 0611-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0611-
334 BRACKET 1-82698-495-2 03 1 0611-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		8-98056-647-0 01 1 0611-
375 BRACKET; AC GEN HARNESS CLIP
(C) L=145 		1-47475-655-0 01 1 0611-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47475-702-0 01 1 0611-

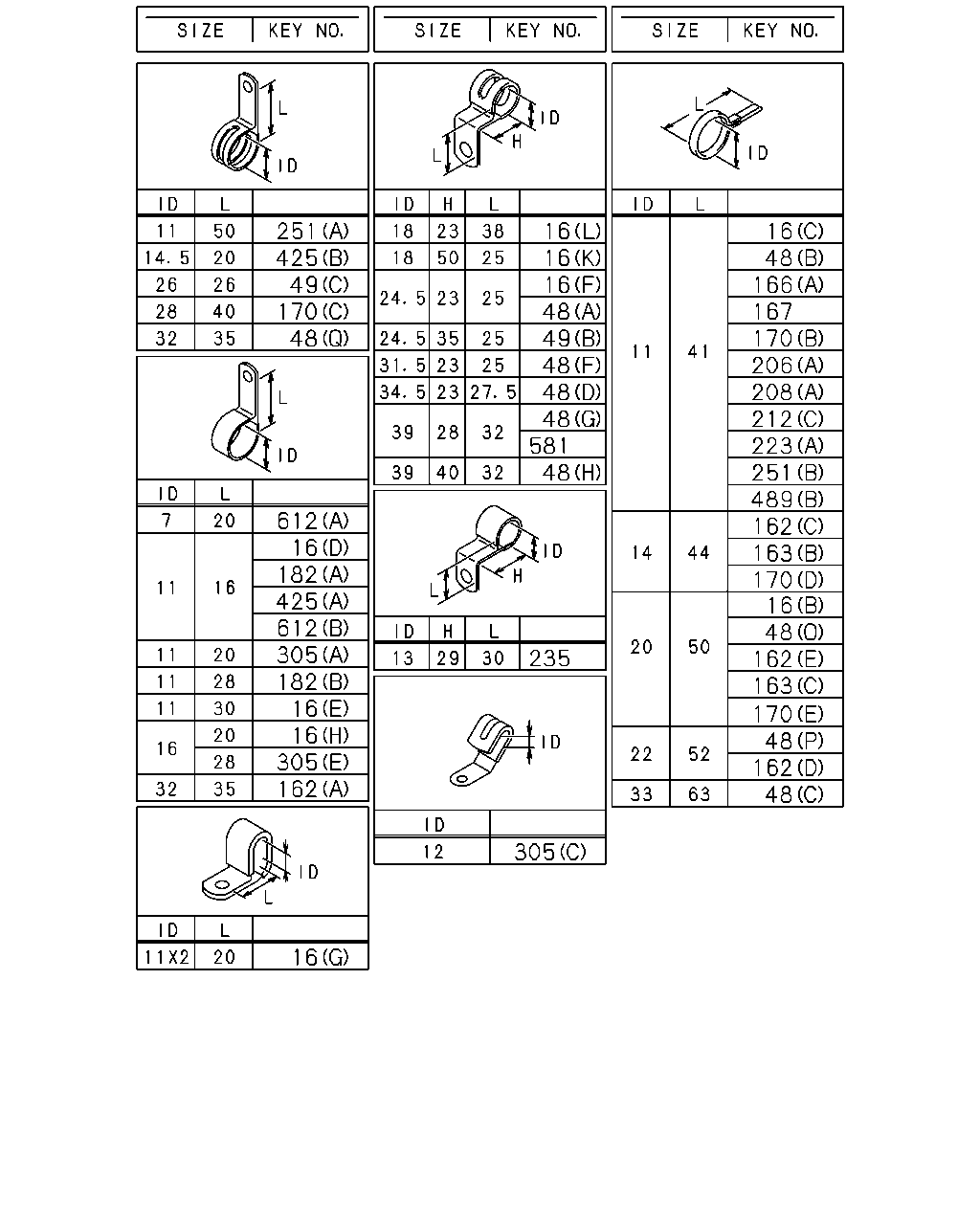

çizim 192006
251 425 49 170 48 16 16 16 48 49 48 48 48 581 48 16 48 166 167 170 206 208 212 223 251 489 162 163 170 16 48 162 163 170 48 162 48 612 16 182 425 612 305 182 16 16 305 162 235 305 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 03 1 0706-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 01 1 0611-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 06 1 0611-
16 CLIP; HARNESS
(H) ID=16 L=20 		0-95235-535-0 01 1 0611-
16 CLIP; HARNESS
(I) ID=11X2 L=16 		0-95325-025-0 01 1 0611-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0611-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 06 1 0611-
16 CLIP; HARNESS
(E) ID=11 L=30 		1-09700-511-0 01 1 0611-
16 CLIP; HARNESS
(J) ID=11X2 H=35 L=20 		1-09700-847-0 01 1 0611-
16 CLIP; HARNESS
(G) ID=22X11 L=20 		1-09700-871-0 02 1 0611-
16 CLIP; HARNESS
(K) ID=18 L=25 H=50 		1-09701-096-0 01 1 0611-
16 CLIP; HARNESS
(L) ID=18 L=38 H=23 		1-09701-147-0 01 1 0611-
16 CLIP; HARNESS
(M) L=180 		1-09707-162-1 02 1 0611-
16 CLIP; HARNESS
(N) OD=9 H=6 		1-09709-178-0 02 1 0611-
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 06 1 0611-0705
16 CLIP; HARNESS
(O) L=250 		5-09707-030-1 05 1 0706-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0611-0705
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0611-0705
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0706-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 02 1 0611-0712
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0801-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 0611-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0611-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 01 1 0611-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0611-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0611-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0611-
48 CLIP; FRAME HARNESS
(E) ID=35 L=33 		1-09700-945-0 03 1 0611-
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 09 1 0611-
48 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 01 1 0611-
48 CLIP; FRAME HARNESS
(G) ID=39 H=28 L=32 		1-09701-263-0 02 1 0611-
48 CLIP; FRAME HARNESS
(H) ID=39 H=40 L=32 		1-09701-267-0 02 1 0611-
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 0611-
48 CLIP; FRAME HARNESS
(J) L=180 		1-09707-162-1 04 1 0611-
48 CLIP; FRAME HARNESS
(K) L=175 		1-09707-176-1 02 1 0611-
48 CLIP; FRAME HARNESS
(L) L=350 		1-09707-183-0 02 1 0611-
48 CLIP; FRAME HARNESS
(M) L=250 		5-09707-030-1 02 1 0611-
48 CLIP; FRAME HARNESS
(N) L=140 		5-09707-031-1 01 1 0611-
48 CLIP; FRAME HARNESS
(O) ID=20 L=50 		9-09917-430-0 02 1 0611-
48 CLIP; FRAME HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0611-
49 CLIP; GEN HARNESS
(C) ID=26 L=26 		1-09701-236-0 02 1 0611-
49 CLIP; GEN HARNESS
(B) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 0611-
49 CLIP; GEN HARNESS
(A) ID=28 L=40 		1-09701-261-0 01 1 0611-
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 0706-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 0611-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 0611-
162 CLIP; SW HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0611-0705
162 CLIP; SW HARNESS
(E) ID=20 L=50 		9-09917-430-0 03 1 0706-
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0706-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0611-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0611-0705
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 0706-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0611-
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0611-
167 CLIP; HARNESS ACCEL & STOP
ID=11 L=41 		1-09700-403-0 02 1 0611-
170 CLIP; ELEC HARNESS
(F) L=250 		5-09707-030-1 01 1 0611-
170 CLIP; ELEC HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0611-
170 CLIP; ELEC HARNESS
(C) ID=28 L=40 		1-09700-995-1 01 1 0611-
170 CLIP; ELEC HARNESS
(A) L=250 		1-09707-126-0 03 1 0611-
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 04 1 0611-
170 CLIP; ELEC HARNESS
(E) ID=20 L=50 		9-09917-430-0 02 1 0611-
182 CLIP; HARNESS,OIL FILTER
(A) ID=11 L=16 		0-95235-025-0 01 1 0611-0805
182 CLIP; HARNESS,OIL FILTER
(B) ID=11 L=28 		0-95235-055-0 01 1 0611-0805
182 CLIP; HARNESS,OIL FILTER
(C) L=180 		1-09707-162-1 01 1 0611-
182 CLIP; HARNESS,OIL FILTER
(D) L=140 		5-09707-031-1 02 1 0611-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0611-
206 CLIP; FUEL TANK HARNESS
(B) ID=5-12 L=26 		1-09709-289-0 01 1 0611-
206 CLIP; FUEL TANK HARNESS
(C) L=140 		5-09707-031-1 02 1 0611-
208 CLIP; HARNESS,MAG VLV
(A) ID=11 L=41 		1-09700-403-0 01 1 0611-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) ID=11 L=41 		1-09700-403-0 01 1 0611-
208 CLIP; HARNESS,MAG VLV
(B) L=250 		5-09707-030-1 02 1 0611-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (D) L=140 		5-09707-031-1 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) ID=5-12 L=18 		1-09709-287-0 01 1 0611-0705
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0611-0705
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0706-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) ID=11 L=41 		1-09700-403-0 03 1 0611-
223 CLIP; AIR TANK HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0611-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0611-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0611-
223 CLIP; AIR TANK HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 03 1 0611-
223 CLIP; AIR TANK HARNESS
(D) ID=13-18 L=26 		1-09709-293-0 01 1 0611-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13 H=29 L=30 		1-09700-001-0 01 1 0611-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0611-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0611-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 		5-09707-031-1 01 1 0611-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 06 1 0611-0702
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 05 1 0703-0801
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 05 1 0802-
305 CLIP; ENG HARNESS
(E) ID=16 L=28 		0-95235-556-0 02 1 0611-
305 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 0611-
305 CLIP; ENG HARNESS
(A) ID=11 L=20 		0-95235-036-0 01 1 0611-
305 CLIP; ENG HARNESS
(C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0611-0801
305 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-
425 CLIP; MODULATOR
(A) ID=11 L=16 		0-95235-025-0 01 1 0611-
425 CLIP; MODULATOR
(B) ID=14.5 L=20 		1-09701-012-0 01 1 0611-
425 CLIP; MODULATOR
(C) ID=13-18 L=14.5 		1-09709-290-0 01 1 0611-
489 CLIP; HARNESS,OIL PRESS SW
(B) ID=11 L=41 		1-09700-403-0 01 1 0611-
489 CLIP; HARNESS,OIL PRESS SW
(A) L=180 		1-09707-162-1 01 1 0611-
581 CLIP; HARNESS,REAR SUSP
ID=39 H=28 L=32 		1-09701-263-0 02 1 0611-
612 CLIP; HARNESS DPD
(A) ID=7 L=20 		0-95234-635-0 02 1 0611-
612 CLIP; HARNESS DPD
(B) ID=11 L=16 		0-95235-025-0 02 1 0611-

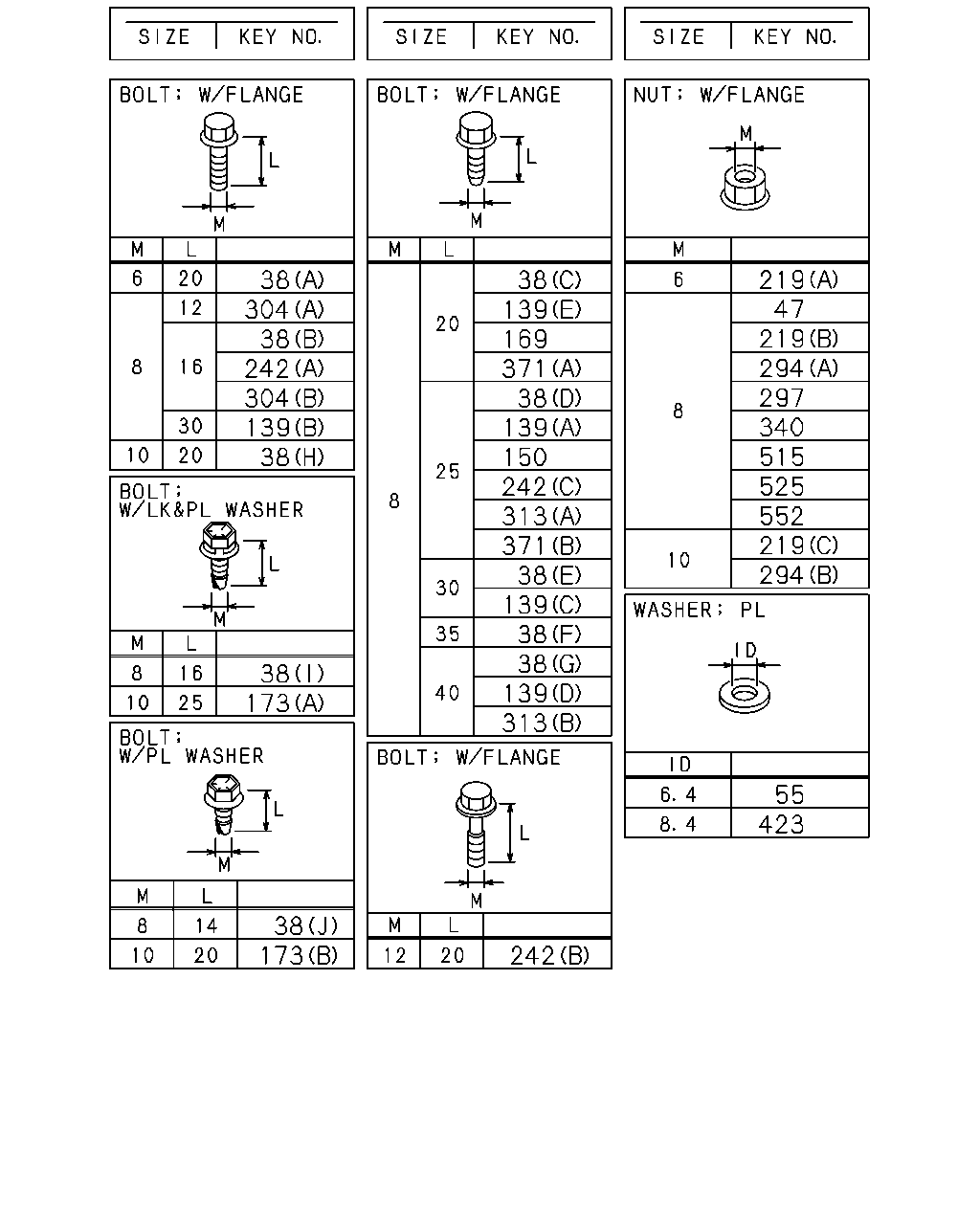

çizim 192009
219 47 219 294 297 340 515 525 552 219 294 38 304 38 242 304 139 38 38 139 169 371 38 139 150 242 313 371 38 139 38 38 139 313 38 173 55 423 38 173 242
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 20 1 0806-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 40 1 0611-0703
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 20 1 0704-0805
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 20 1 0704-0805
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 18 1 0806-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0611-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0611-
38 BOLT; CLIP,HARNESS
(A) M6X20 FLANGE 		0-28650-620-0 02 1 0611-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 04 1 0611-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 07 1 0611-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 01 1 0611-
38 BOLT; CLIP,HARNESS
(F) M8X35 FLANGE 		0-28650-835-0 06 1 0611-
38 BOLT; CLIP,HARNESS
(G) M8X40 FLANGE 		0-28650-840-0 02 1 0611-
38 BOLT; CLIP,HARNESS
(H) M10X20 FLANGE 		0-28751-020-0 01 1 0611-
38 BOLT; CLIP,HARNESS
(I) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0611-1201
38 BOLT; CLIP,HARNESS
(J) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1202-
47 NUT; GEN TERMINAL
M8 FLANGE 		0-91180-108-0 03 1 0611-
55 WASHER; PL,CLIP
ID=6.4 		0-91610-606-0 04 1 0611-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611-0805
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0806-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 09 1 0611-0706
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 07 1 0707-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0611-0706
139 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 04 1 0707-
139 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0611-
139 BOLT; BRKT
(D) M8X40 FLANGE 		0-28650-840-0 01 1 0611-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0611-
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0611-
173 BOLT; STARTER EARTH
(A) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0611-1201
173 BOLT; STARTER EARTH
(B) M10X20 W/PL WASHER 		8-98164-838-0 01 1 1202-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 23 1 0704-0906
219 NUT
(B) M8 FLANGE 		0-91180-108-0 44 1 0907-
219 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 0611-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 03 1 0611-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 44 1 0611-0703
219 NUT
(B) M8 FLANGE 		0-91180-108-0 21 1 0704-0906
219 NUT
(C) M10 FLANGE 		0-91180-210-0 02 1 0611-0712
219 NUT
(C) M10 FLANGE 		0-91180-210-0 01 1 0801-
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0611-
242 BOLT; BRKT,HARNESS
(B) M12X20 FLANGE 		0-28151-220-0 01 1 0611-
242 BOLT; BRKT,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 05 1 0611-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0704-0906
294 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0907-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0611-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 08 1 0611-0703
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0704-0712
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0801-0805
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0806-0906
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0611-
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 0611-
304 BOLT; ENG HARNESS CLIP
(A) M8X12 		0-20850-812-0 02 1 0611-
304 BOLT; ENG HARNESS CLIP
(B) M8X16 FLANGE 		0-28050-816-0 05 1 0611-
304 BOLT; ENG HARNESS CLIP
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0611-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0704-0906
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 0907-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 0611-0703
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0704-0906
313 BOLT; BRKT
(B) M8X40 FLANGE 		0-28650-840-0 01 1 0611-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0611-
371 BOLT; GEN HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0611-
371 BOLT; GEN HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0611-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0611-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0611-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0611-0805
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0806-
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 04 1 0611-

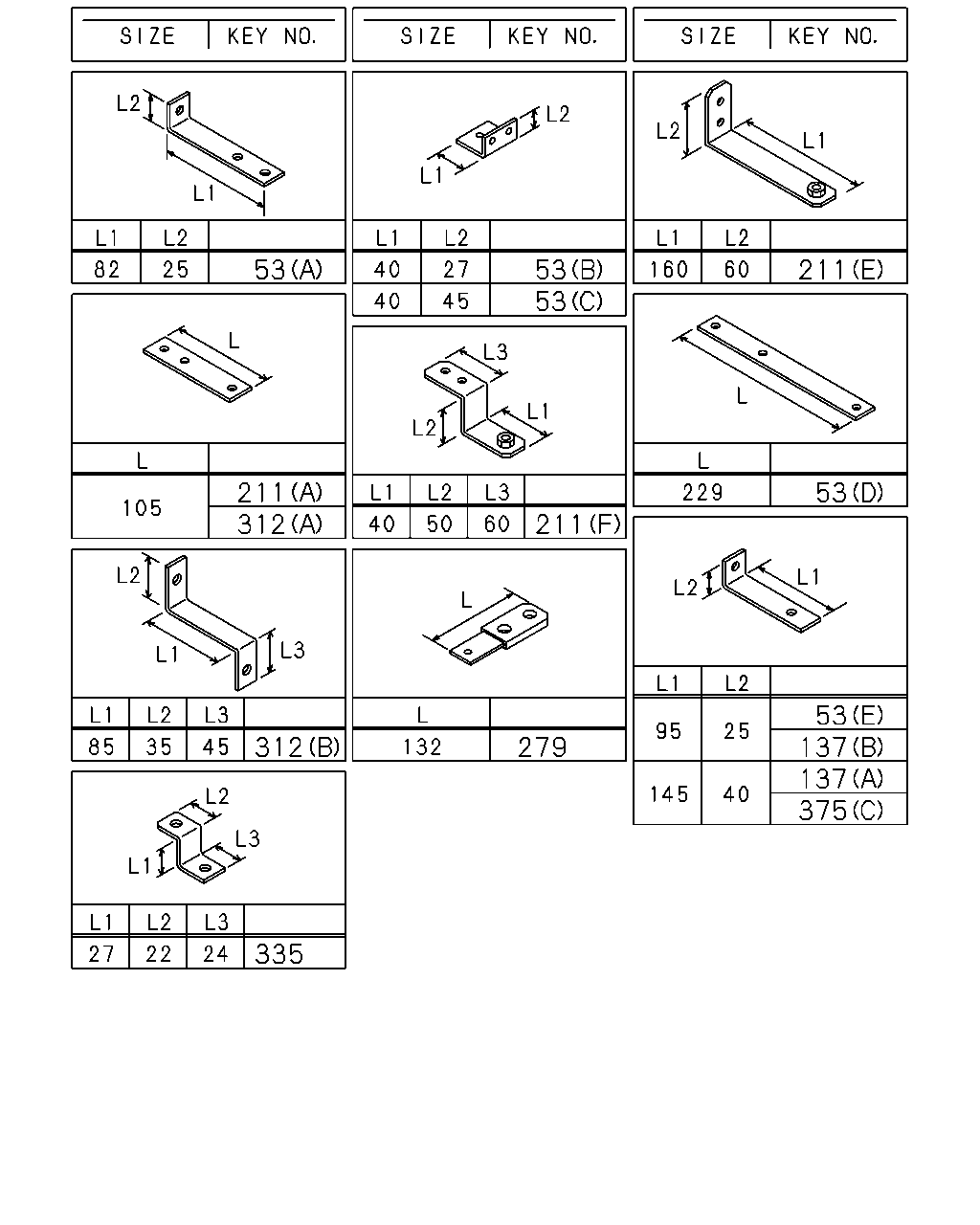

çizim 192011
53 53 53 211 211 312 53 211 53 137 137 375 312 279 335
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(E) L=95 		1-82699-085-0 03 1 0611-
53 BRACKET; HARNESS
(A) L=82 B=20 		1-47478-420-0 03 1 0611-1404
53 BRACKET; HARNESS
(A) L=82 B=20 		8-98259-390-0 03 1 1405-
53 BRACKET; HARNESS
(B) 		1-47478-422-0 01 1 0611-
53 BRACKET; HARNESS
(C) 		1-47478-919-0 01 1 0611-
53 BRACKET; HARNESS
(D) L=229 		1-47478-993-0 02 1 0611-
137 BRACKET; HARNESS CLAMP
(A) L=145 		1-47475-655-0 01 1 0611-0805
137 BRACKET; HARNESS CLAMP
(B) L=95 		1-82699-085-0 01 1 0611-
211 BRACKET; AXLE HARNESS
(A) L=105 		1-47477-409-0 01 1 0611-
211 BRACKET; AXLE HARNESS
(B) 		1-47479-841-0 01 1 0611-
211 BRACKET; AXLE HARNESS
(C) 		1-47479-845-0 02 1 0611-
211 BRACKET; AXLE HARNESS
(D) 		1-52171-250-0 01 1 0611-0706
211 BRACKET; AXLE HARNESS
(E) 		1-52171-251-1 02 1 0611-
211 BRACKET; AXLE HARNESS
(F) 		1-52171-252-0 01 1 0611-
279 STAY; HARNESS 1-82699-873-0 02 1 0611-
312 BRACKET; CLIP HARNESS
(A) L=105 		1-47477-409-0 01 1 0611-
312 BRACKET; CLIP HARNESS
(B) 		1-47477-954-0 01 1 0611-
335 BRACKET; CONNECTOR 1-82699-425-0 01 1 0611-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		8-98056-647-0 01 1 0611-
375 BRACKET; AC GEN HARNESS CLIP
(C) L=145 		1-47475-655-0 01 1 0611-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47475-702-0 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
