9-01 — TOOLS (#6623) — 104 parça

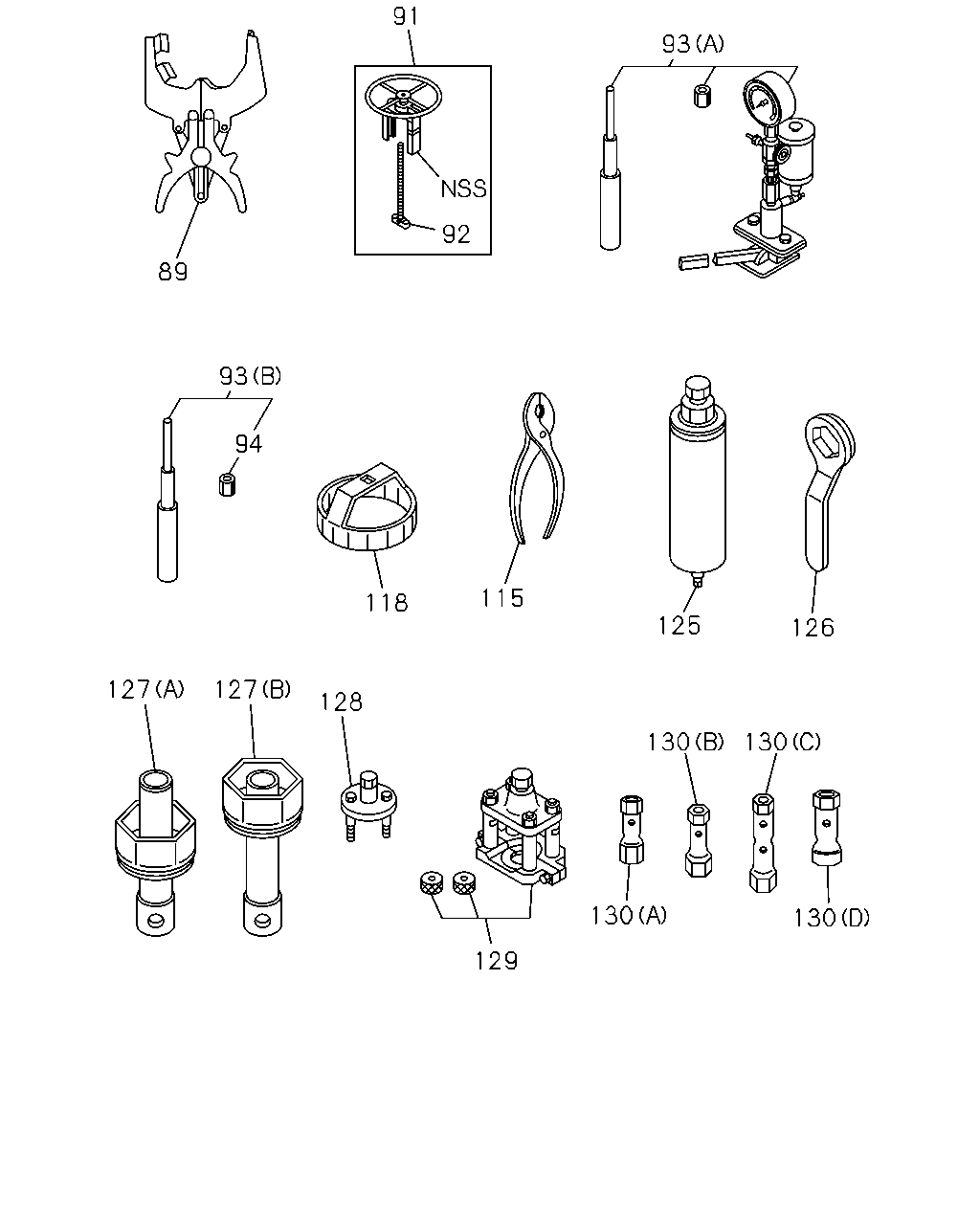

çizim 42661
91 93 92 89 93 94 115 118 125 126 127 127 128 130 130 130 130 129
BalonParca AdiParca NoAdetTipApplied Date
89 TOOL; PISTON RING 1-85221-029-0 01 1 0101-
91 REPLACER ASM; CYL LINER
6HE1 TC ENG<57L> 		8-94396-849-0 01 1 0101-
91 REPLACER ASM; CYL LINER
6HH1 STD ENG<65L> 		8-94391-526-0 01 1 0101-
92 ANKLE; REPLACER,CYL LINER
6HE1 TC ENG<57L> 		8-94396-821-0 01 1 0101-
92 ANKLE; REPLACER,CYL LINER
6HH1 STD ENG<65L> 		8-94391-554-0 01 1 0101-
93 SETTING KIT; VALVE GUIDE
6HE1 TC ENG<57L> (A) 		1-85220-001-0 01 1 0101-
93 SETTING KIT; VALVE GUIDE
6HH1 STD ENG<65L> (B) 		8-97600-910-0 01 1 0101-
94 RING; VALVE GUIDE SET
6HH1 STD ENG<65L> 		8-97600-912-0 01 1 0101-
115 PLIER
THA 		5-85171-002-0 01 1 0101-
118 WRENCH; OIL FILTER 1-85221-097-0 01 1 0101-
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 0101-
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 0101-
127 WRENCH ASM; HUB BRG NUT
(A) L=400 B=105 		9-85113-509-0 01 1 0101-
127 WRENCH ASM; HUB BRG NUT
(B) B=98 L=305 		9-85113-533-0 01 1 0101-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0101-
129 PULLER ASM; PITMAN ARM 9-85210-147-0 01 1 0101-
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 0101-
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 0101-
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 0101-
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 0101-

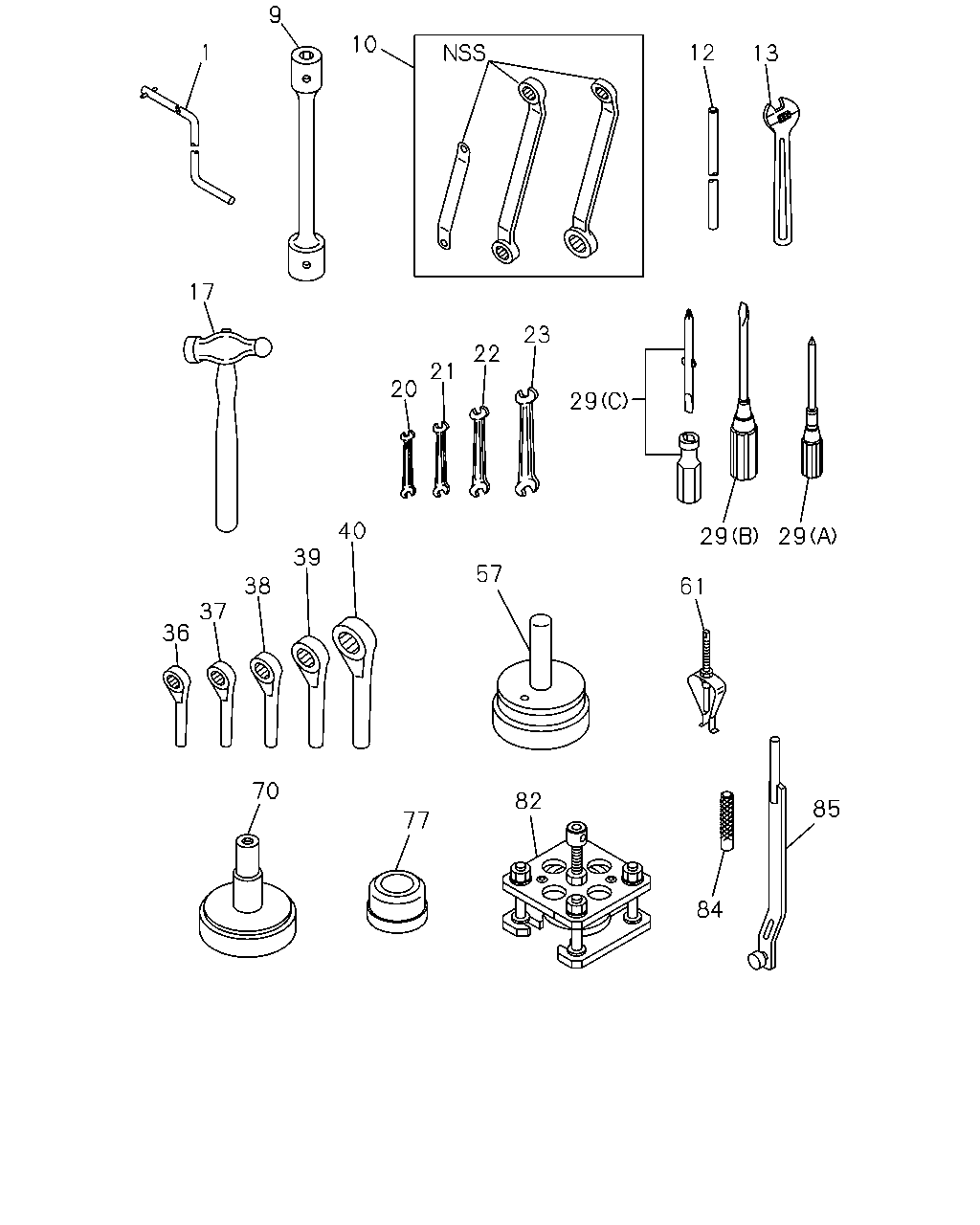

çizim 42664
9 10 12 1 13 17 23 22 21 20 29 40 29 29 39 57 38 61 37 36 70 82 85 77 84
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-019-0 01 1 0101-
9 WRENCH; WHEEL PIN
B=41X21 L=440 THA 		1-85113-015-1 01 1 0101-
9 WRENCH; WHEEL PIN
B=41X21 L=445 THA 		8-97118-906-0 01 1 0101-
10 WRENCH KIT; BRK ADJ 9-85110-013-0 01 1 0101-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 THA 		1-85116-011-0 01 1 0101-
13 WRENCH; MONKEY
L=255 THA 		1-85117-002-1 01 1 0101-0211
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0212-
17 HAMMER
THA 		9-85121-406-0 01 1 0101-
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0101-
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0101-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0101-
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0101-
29 DRIVER; SCREW
(B) <-> L=285 THA 		1-85151-004-0 01 1 0101-
29 DRIVER; SCREW
(C) <+>,<-> L=160 THA 		8-94242-798-1 01 1 0101-
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0101-
36 WRENCH; 24 9-85111-377-0 01 1 0101-
37 WRENCH; 27 9-85111-375-0 01 1 0101-
38 WRENCH; 32 9-85111-358-0 01 1 0101-
39 WRENCH; 36 9-85111-374-0 01 1 0101-
40 WRENCH; 41 9-85111-356-0 01 1 0101-
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 0101-
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 0101-
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 0101-
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG<57L> 		8-94396-816-0 01 1 0101-
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 0101-
84 REPLACER; VALVE SEAL
6HE1 TC ENG<57L> 		8-94396-815-0 01 1 0101-
84 REPLACER; VALVE SEAL
6HH1 STD ENG<65L> 		8-94391-525-0 01 1 0101-
85 REPLACER ASM; VALVE SPR
6HE1 TC ENG<57L> 		8-94396-861-0 01 1 0101-
85 REPLACER ASM; VALVE SPR
6HH1 STD ENG<65L> 		8-94391-528-0 01 1 0101-
çizim 42697
146 146 141 141 141 153 158 154 151 149 167 166 160 162 161 162 174 170 173 171 172 169
BalonParca AdiParca NoAdetTipApplied Date
141 HANDLE; WRENCH
(C) OD=25 L=480 THA 		1-85116-011-0 01 1 0101-
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 0101-
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 0101-
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-016-0 01 1 0101-
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 0101-
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 0101-
151 REMOVER; OIL BRK,FRT RETURN SPR 1-85237-002-0 01 1 0101-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0101-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0101-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0101-
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 0101-
161 REMOVER; TIE ROD ARM 9-85141-603-0 01 1 0101-
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0101-
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0101-
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 0101-
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 0101-
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 0101-
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 0101-
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 0101-
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 0101-
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 0101-
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0101-
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0101-
çizim 43166
180 180 180 178 179 193 208 192 182 274 271 209 268 230 237
BalonParca AdiParca NoAdetTipApplied Date
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0101-
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 0101-
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 02 1 0101-
180 PULLER; FRT & RR HUB
(B) 		1-85210-003-0 01 1 0101-
180 PULLER; FRT & RR HUB
(C) M20 		9-85210-187-0 01 1 0101-
182 REMOVER ASM 9-85210-095-0 01 1 0101-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0101-
193 JACK ASM
10TON THA 		1-85510-013-1 01 1 0101-
208 HANDLE; JACK
L=600 THA 		1-85515-008-0 01 1 0101-0105
208 HANDLE; JACK
L=600 THA 		1-85515-009-0 01 1 0106-
209 CLIP; JACK HANDLE
THA 		1-73638-011-1 02 1 0101-
230 PUMP; GREASE
THA 		1-85556-007-2 01 1 0101-
237 BAG; TOOL
THA 		8-97917-409-1 01 1 0101-
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0101-
271 CLIP; TIRE HANGER
THA 		1-73638-012-1 02 1 0101-
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0101-

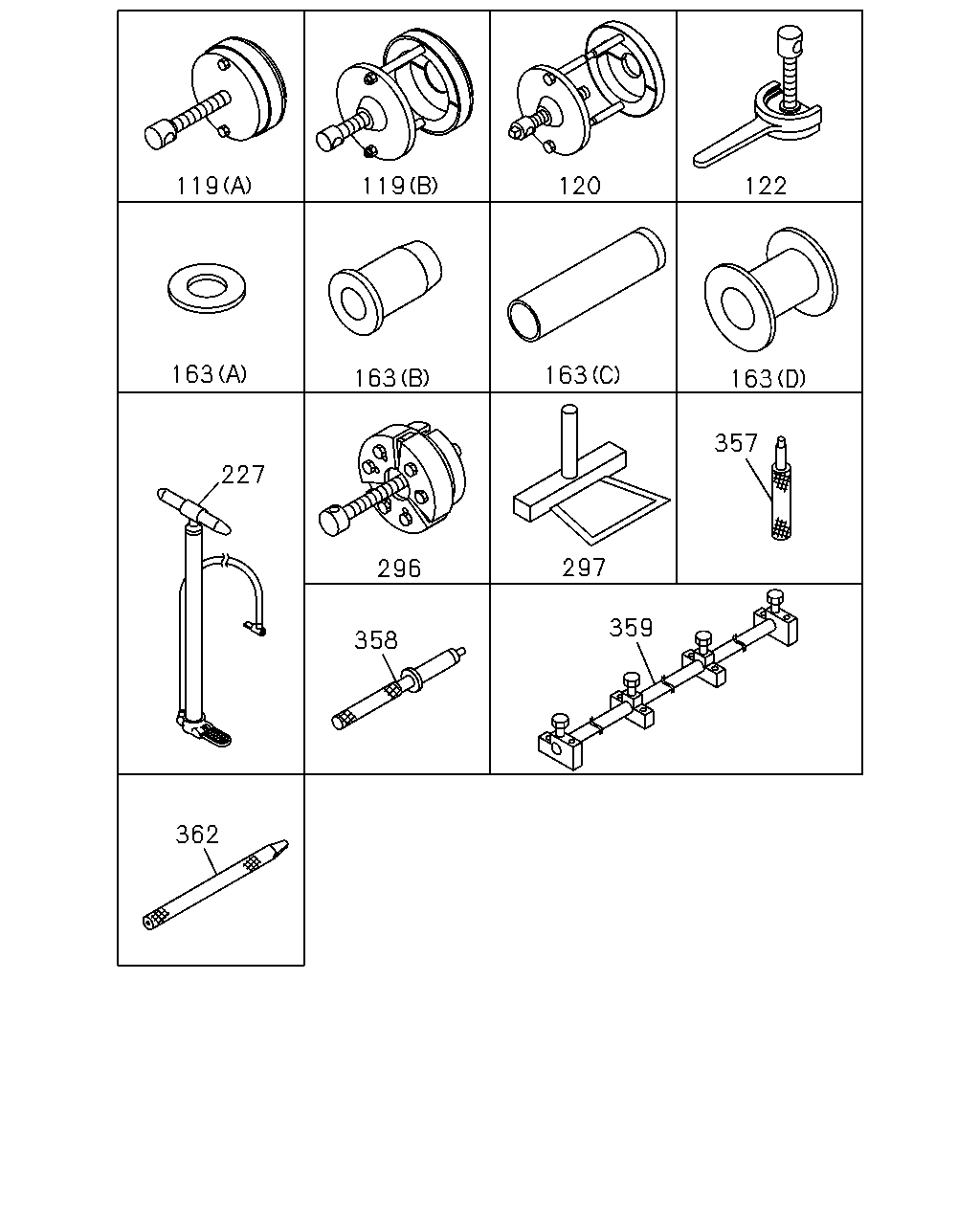

çizim 43616
119 119 120 122 163 163 163 163 357 227 297 296 359 358 362
BalonParca AdiParca NoAdetTipApplied Date
119 PULLER ASM; TOP GEAR BRG
(B) 		9-85210-185-0 01 1 0101-
119 PULLER ASM; TOP GEAR BRG
(A) 		9-85210-186-0 01 1 0101-
120 PULLER ASM; MAIN REAR BRG 9-85210-192-0 01 1 0101-
122 PULLER ASM; COUNTER FRT 9-85210-129-1 01 1 0101-
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 0101-
163 TOOL; SETTING
(D) L=150 		1-85221-163-0 01 1 0101-
163 TOOL; SETTING
(A) OD=120 		1-85221-164-0 01 1 0101-
163 TOOL; SETTING
(B) L=150 		9-85221-248-0 01 1 0101-
163 TOOL; SETTING
(C) L=350 		9-85221-310-0 01 1 0101-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0101-
296 REPLACER; SLINGER 8-94396-858-0 01 1 0101-
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 0101-
357 REPLACER; NOZZLE SLEEVE
6HH1 STD ENG<65L> 		8-94391-555-0 01 1 0101-
358 PLACER; NOZZLE SLEEVE
6HH1 STD ENG<65L> 		8-94391-556-0 01 1 0101-
359 PIVOT
6HH1 STD ENG<65L> 		8-94396-862-0 01 1 0101-
362 PLACER; GUIDE BRIDGE
6HH1 STD ENG<65L> 		8-94392-014-0 01 1 0101-
