5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

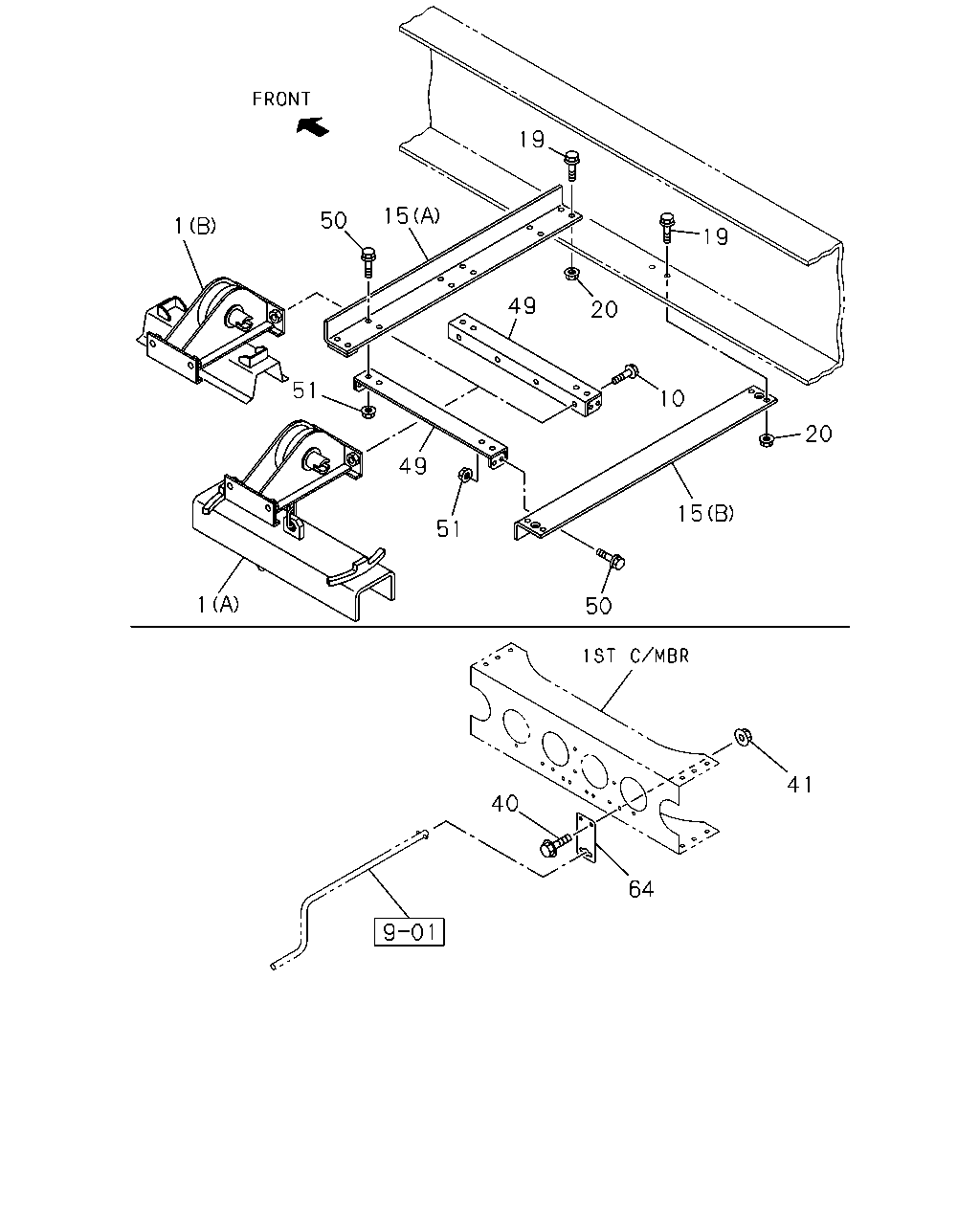

5-30 — SPARE TIRE CARRIER AND COVER
(#66219) — 13 parça
19
15
50
1
19
49
20
51
10
20
49
15
51
1
50
41
40
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER<SFB> (A)
1-53630-210-4
01
1
0611-
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER<SFB> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)
1-53630-208-3
01
1
0611-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER<SFB> M12X30 FLANGE
0-28651-230-0
04
1
0611-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER<SFB> (A)
1-53618-055-2
01
1
0611-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER<SFB> (B)
1-53618-057-2
01
1
0611-
19
BOLT; C/MBR
SPARE WHEEL CARRIER<SFB> M12X40 FLANGE
0-28651-240-0
08
1
0611-
20
NUT; C/MBR
SPARE WHEEL CARRIER<SFB> M12 FLANGE
0-91180-212-0
08
1
0611-
40
BOLT; GUIDE TO FRAME
SPARE WHEEL CARRIER<SFB> M8X25 FLANGE
0-28650-825-0
02
1
0611-
41
NUT; GUIDE
SPARE WHEEL CARRIER<SFB> M8 FLANGE
0-91180-108-0
02
1
0611-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER<SFB>
1-53618-066-0
02
1
0611-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER<SFB> M12X35 FLANGE
0-28651-235-0
08
1
0611-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER<SFB> M12 FLANGE
0-91180-212-0
08
1
0611-
64
GUIDE; HANDLE
SPARE WHEEL CARRIER<SFB>
1-53631-465-0
01
1
0611-
