5-01 — FRAME AND OTHER PARTS
(#66217) — 70 parça
◀

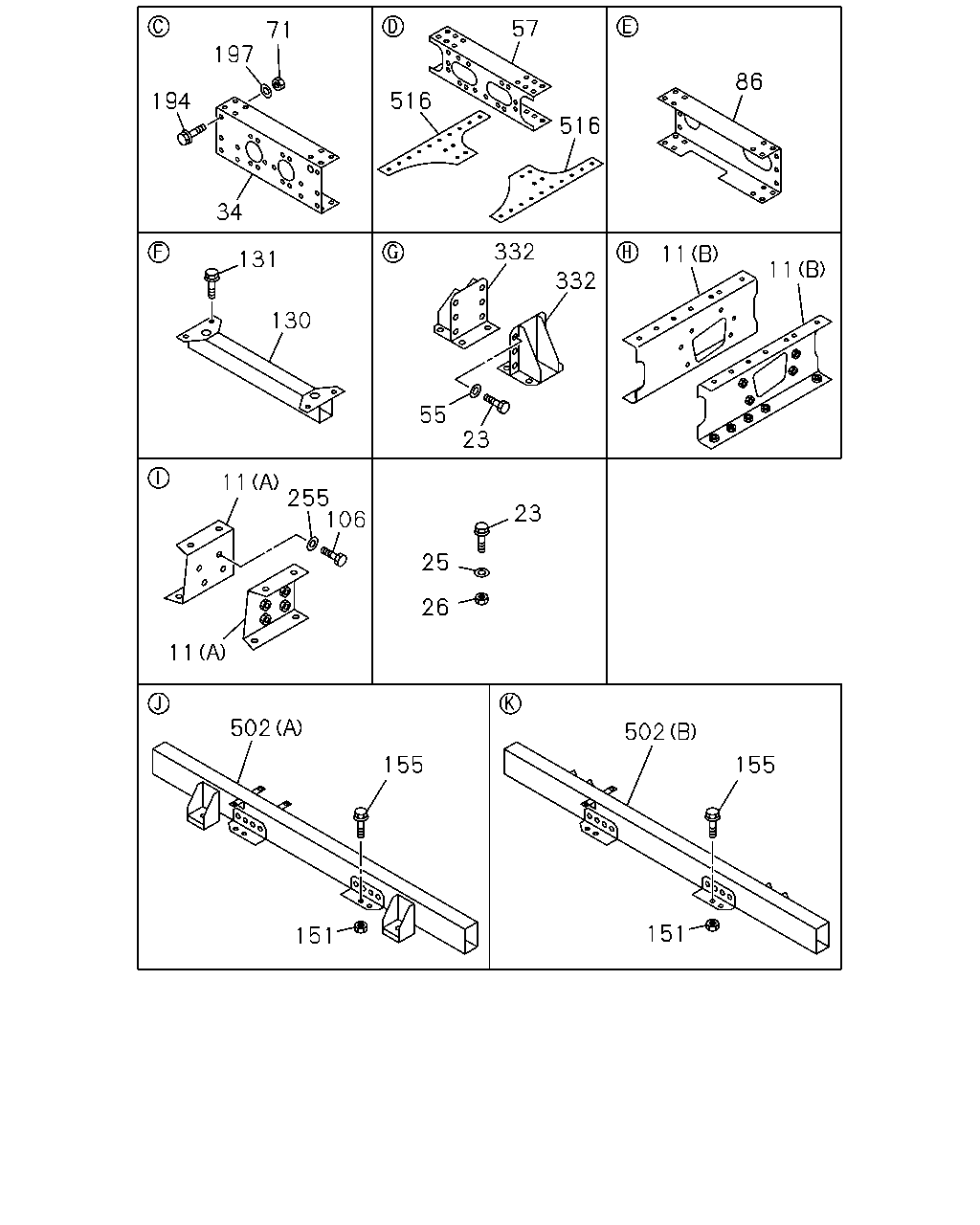

[501A] NO.2 (35 parça)
[501A] NO.3 (21 parça)

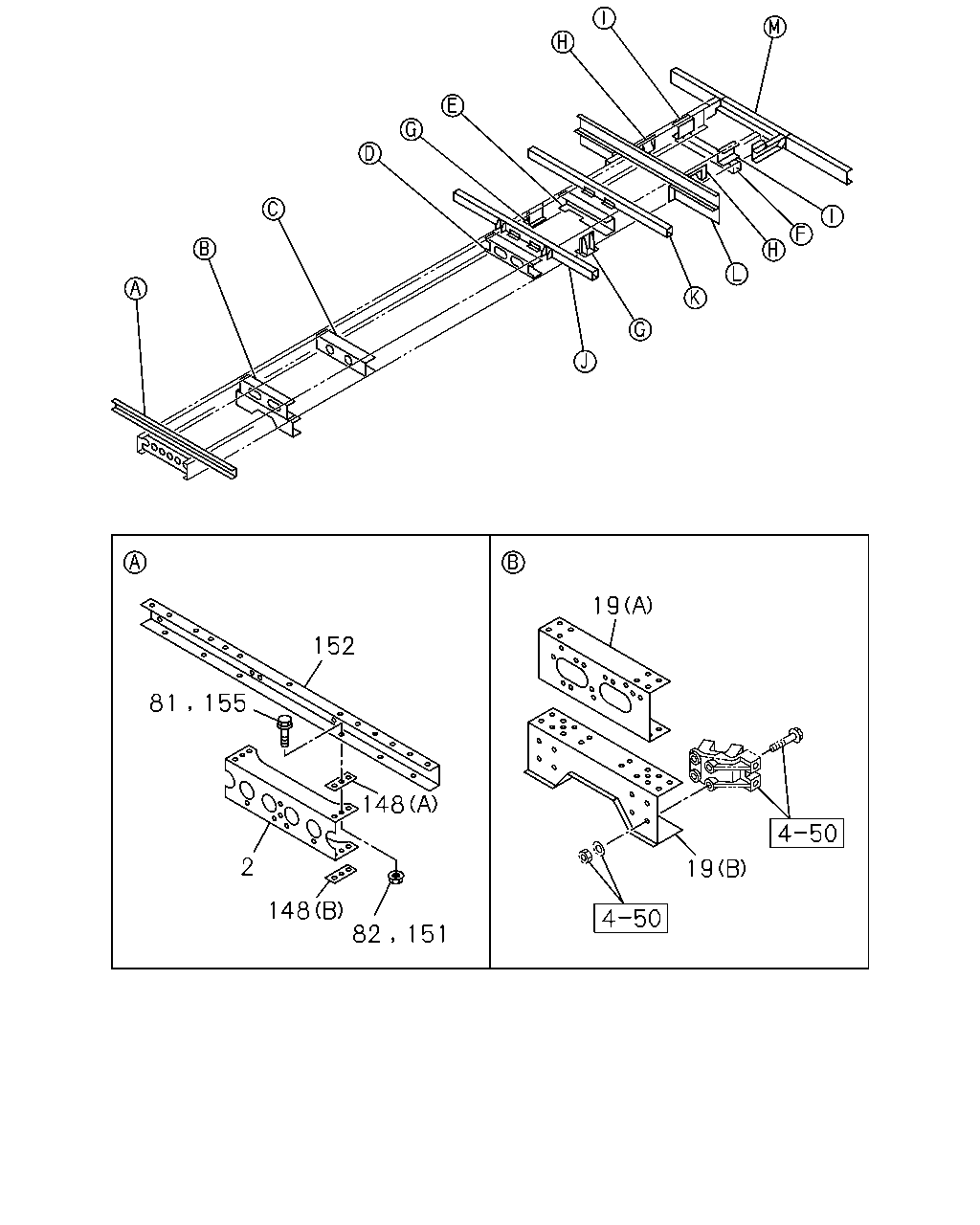

[501A] NO.1 (14 parça)
▶
86
11
11
57
516
516
332
332
55
23
23
25
26
71
197
194
34
131
130
11
255
106
11
502
155
151
502
155
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-402-1
01
1
0611-
11
BRACKET; ENG MTG
(A)
1-53211-403-1
01
1
0611-
11
BRACKET; ENG MTG
(B)
1-53221-242-2
01
1
0611-
11
BRACKET; ENG MTG
(B)
1-53221-243-2
01
1
0611-
23
BOLT; BRKT,SPR
M14X30
0-20951-430-0
12
1
0611-0706
23
BOLT; BRKT,SPR
M14X40
0-20951-440-0
36
1
0611-
25
WASHER; PL,BRKT
ID=15
9-09651-069-0
36
1
0611-0706
25
WASHER; PL,BRKT
ID=15
9-09651-069-0
24
1
0707-1201
25
WASHER; PL,BRKT
ID=15
8-98010-627-1
24
1
1202-
26
NUT; BRKT,SPR
M14
0-91110-514-0
12
1
0611-0710
26
NUT; BRKT,SPR
M14
0-91110-514-0
24
1
0711-
34
MEMBER; CROSS,3RD
1-53181-950-2
01
1
0611-
55
WASHER; PL
ID=15
9-09651-069-0
12
1
0611-1201
55
WASHER; PL
ID=15
8-98010-627-1
12
1
1202-
57
MEMBER; CROSS,RR SUSP FRT
1-53181-945-2
01
1
0611-
71
NUT; 2ND C/MBR
M12
0-91110-512-0
08
1
0611-
86
MEMBER; CROSS,RR SUSP RR
1-53181-946-5
01
1
0611-
106
BOLT; BRKT
M16X35
0-20951-635-0
20
1
0611-
106
BOLT; BRKT
M14X40
0-20951-440-0
04
1
0611-
130
MEMBER; CROSS,END
1-53182-099-0
01
1
0611-
131
BOLT; END C/MBR
M12X35
0-20951-235-0
08
1
0611-
151
NUT; OUTRIGGER
M12 FLANGE
0-91180-212-0
25
1
0611-
151
NUT; OUTRIGGER
M14 FLANGE
0-91180-214-0
16
1
0611-
155
BOLT; OUTRIGGER
M12X40 FLANGE
0-28651-240-0
14
1
0611-
155
BOLT; OUTRIGGER
M12X30 FLANGE
0-28661-230-0
11
1
0611-
155
BOLT; OUTRIGGER
M14X30 FLANGE
0-28661-430-0
08
1
0611-
155
BOLT; OUTRIGGER
M14X45 FLANGE
0-28861-445-0
16
1
0611-
194
BOLT; 2ND C/MBR
M12X35
0-20951-235-0
08
1
0611-
197
WASHER; PL,2ND C/MBR
ID=12.5
9-09164-512-0
08
1
0611-
255
WASHER; PL,BRKT
ID=15
9-09651-069-0
04
1
0611-1201
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1202-
332
BRACKET; BUFFER RUBBER
1-53369-199-0
02
1
0611-
502
OUTRIGGER; RR SUSP
(B)
1-53456-367-2
01
1
0611-
502
OUTRIGGER; RR SUSP
(A)
1-53456-486-1
01
1
0611-
516
GUSSET; LWR
1-53167-612-2
02
1
0611-
81
155
503
82
151
504
81
155
504
81
155
155
505
505
155
127
539
151
106
127
106
505
539
106
151
539
539
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
81
BOLT; BRKT
M12X30 FLANGE
0-28661-230-0
08
1
0611-
82
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
0611-
106
BOLT; BRKT
M16X35
0-20951-635-0
20
1
0611-
106
BOLT; BRKT
M14X40
0-20951-440-0
04
1
0611-
127
NUT; BRKT
M16 FLANGE
0-91180-216-0
20
1
0611-
151
NUT; OUTRIGGER
M12 FLANGE
0-91180-212-0
25
1
0611-
151
NUT; OUTRIGGER
M14 FLANGE
0-91180-214-0
16
1
0611-
155
BOLT; OUTRIGGER
M12X40 FLANGE
0-28651-240-0
14
1
0611-
155
BOLT; OUTRIGGER
M12X30 FLANGE
0-28661-230-0
11
1
0611-
155
BOLT; OUTRIGGER
M14X30 FLANGE
0-28661-430-0
08
1
0611-
155
BOLT; OUTRIGGER
M14X45 FLANGE
0-28861-445-0
16
1
0611-
503
OUTRIGGER; ENG RR
8-98058-465-2
01
1
0611-
504
OUTRIGGER; LWR
8-98058-470-2
01
1
0611-
504
OUTRIGGER; LWR
1-53456-458-1
01
1
0611-
505
OUTRIGGER; END
(A)
1-53456-460-0
01
1
0611-
505
OUTRIGGER; END
(B)
1-53456-461-1
01
1
0611-
505
OUTRIGGER; END
(B)
1-53456-462-1
01
1
0611-
539
BRACKET; OUTRIGGER
(A)
8-98059-506-0
02
1
0611-
539
BRACKET; OUTRIGGER
(A)
8-98059-507-0
02
1
0611-
539
BRACKET; OUTRIGGER
(B)
1-53456-463-1
01
1
0611-
539
BRACKET; OUTRIGGER
(B)
1-53456-464-1
01
1
0611-
19
152
81
155
148
2
19
148
82
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-951-1
01
1
0611-
19
MEMBER; CROSS,2ND
(A)
1-53181-947-1
01
1
0611-
19
MEMBER; CROSS,2ND
(B)
1-53181-948-1
01
1
0611-
81
BOLT; BRKT
M12X30 FLANGE
0-28661-230-0
08
1
0611-
82
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
0611-
148
SPACER; C/MBR
(A)
1-53167-554-0
01
1
0611-
148
SPACER; C/MBR
(B)
1-53167-555-0
01
1
0611-
151
NUT; OUTRIGGER
M12 FLANGE
0-91180-212-0
25
1
0611-
151
NUT; OUTRIGGER
M14 FLANGE
0-91180-214-0
16
1
0611-
152
OUTRIGGER
1-53456-308-2
01
1
0611-
155
BOLT; OUTRIGGER
M12X40 FLANGE
0-28651-240-0
14
1
0611-
155
BOLT; OUTRIGGER
M12X30 FLANGE
0-28661-230-0
11
1
0611-
155
BOLT; OUTRIGGER
M14X30 FLANGE
0-28661-430-0
08
1
0611-
155
BOLT; OUTRIGGER
M14X45 FLANGE
0-28861-445-0
16
1
0611-
