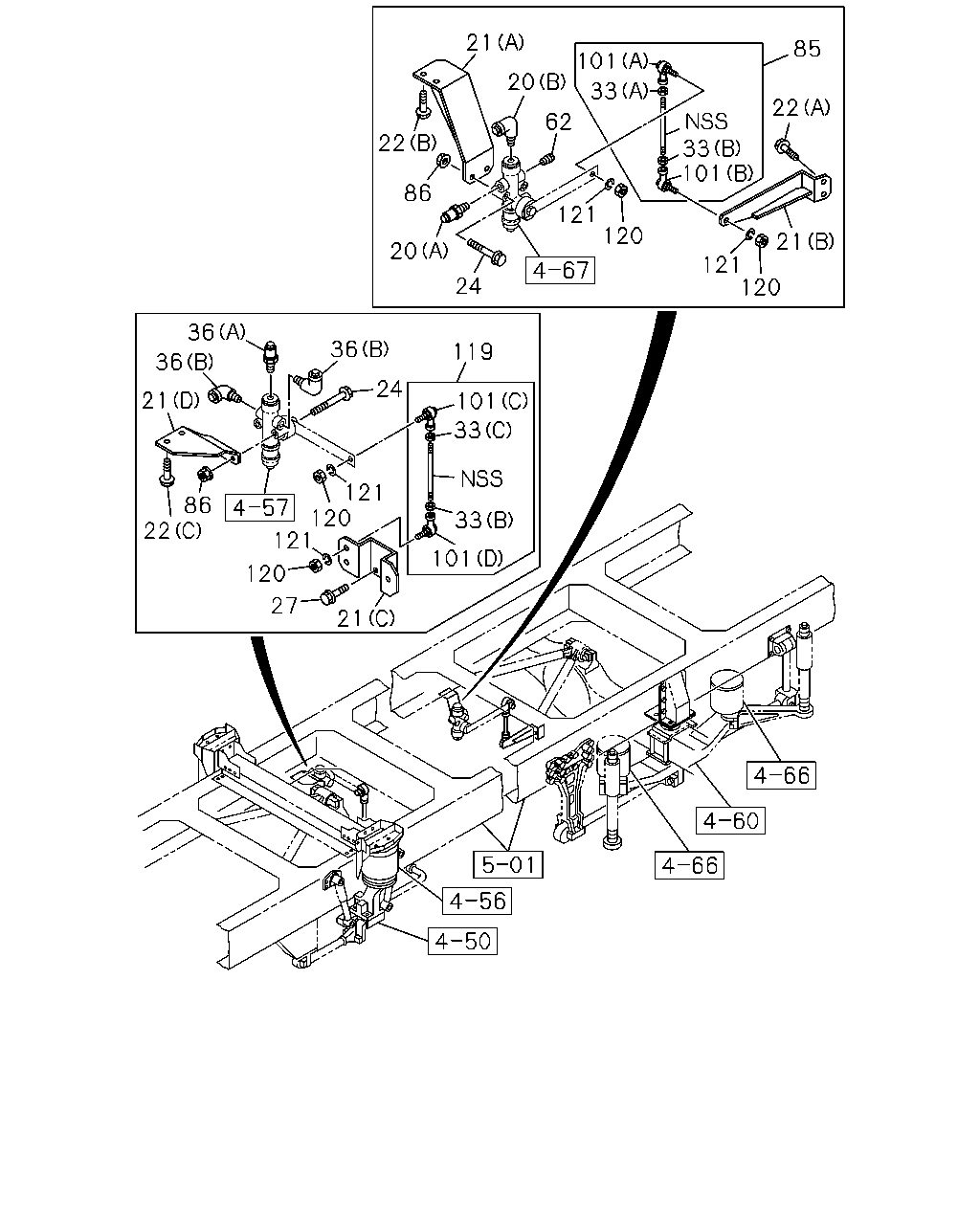

4-70 — AIR SUSPENSION VALVE AND CONTROL
(#66214) — 31 parça
120
21
121
22
85
33
101
21
22
20
62
86
20
24
121
120
101
33
36
36
24
119
101
33
33
101
21
27
120
121
121
120
86
22
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
CONNECTOR; LEVELING VLV
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0611-
20
CONNECTOR; LEVELING VLV
(A) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
0611-
21
BRACKET; LEVELING VLV
(D)
1-52171-253-1
01
1
0611-
21
BRACKET; LEVELING VLV
(C)
1-52171-315-0
01
1
0611-
21
BRACKET; LEVELING VLV
(B)
1-52171-187-1
01
1
0611-
21
BRACKET; LEVELING VLV
(A)
1-52171-316-0
01
1
0611-0909
21
BRACKET; LEVELING VLV
(A)
1-52171-186-0
01
1
0910-
21
BRACKET; LEVELING VLV
(B)
1-52171-188-1
01
1
0611-
21
BRACKET; LEVELING VLV
(A)
1-52171-317-0
01
1
0611-0909
21
BRACKET; LEVELING VLV
(A)
1-52171-210-0
01
1
0910-
22
BOLT; BRKT
(A) M8X20 FLANGE
0-28660-820-0
04
1
0611-
22
BOLT; BRKT
(B) M12X30 FLANGE
0-28661-230-0
04
1
0611-
22
BOLT; BRKT
(C) M12X35 FLANGE
0-28661-235-0
02
1
0611-
24
BOLT; LEVELING VLV
M8X45 FLANGE
0-28060-845-0
06
1
0611-
27
BOLT; BRKT
M8X25 FLANGE
0-28660-825-0
02
1
0611-
33
NUT
(A) M10
0-91111-510-0
02
1
0611-
33
NUT
(C) M10
9-09111-410-0
01
1
0611-
33
NUT
(B) M10 LH THREAD
9-09840-167-0
03
1
0611-
36
CONNECTOR; PIPE,LEVELING VALVE
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0611-
36
CONNECTOR; PIPE,LEVELING VALVE
(A) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0611-
62
PLUG; VLV
PT1/4
9-99204-513-0
02
1
0611-
85
ROD; LEVELING VLV
1-52137-046-0
02
1
0611-
86
NUT; LEVELING VLV
M8 FLANGE
0-91180-208-0
06
1
0611-0801
86
NUT; LEVELING VLV
M8 FLANGE
0-91180-108-0
06
1
0802-
101
JOINT ASM; BALL
(A) RH THREAD
1-09760-119-1
02
1
0611-
101
JOINT ASM; BALL
(C) RH THREAD MINEBEA
8-94151-324-0
01
1
0611-
101
JOINT ASM; BALL
(D) LH THREAD MINEBEA
8-94151-325-0
01
1
0611-
101
JOINT ASM; BALL
(B) LH THREAD
8-94178-868-1
02
1
0611-
119
ROD; LEVERING VLV
1-52137-044-2
01
1
0611-
120
NUT; ROD
M8
0-91110-508-0
06
1
0611-
121
WASHER; LK,ROD
ID=8.2
0-91510-508-0
06
1
0611-
