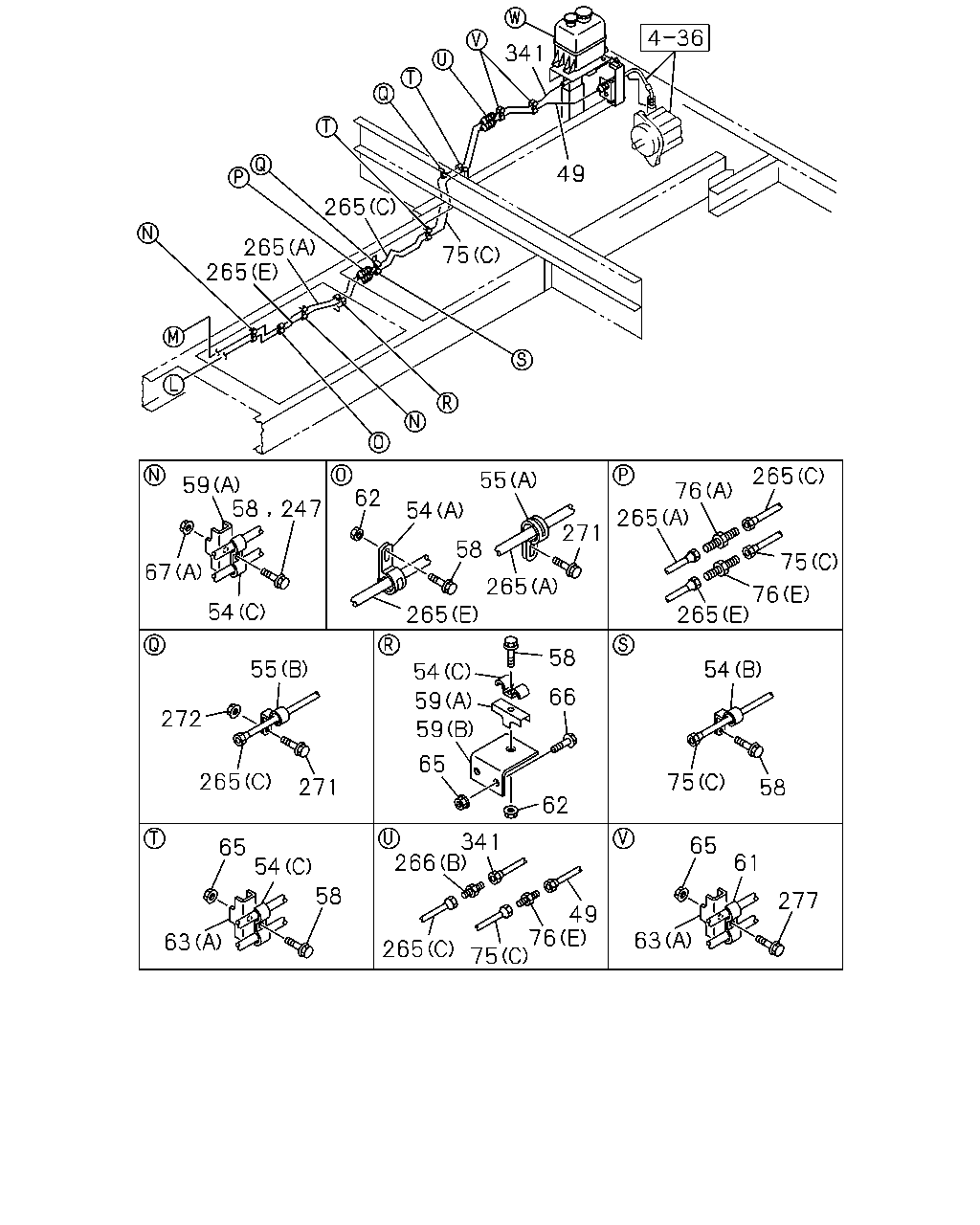

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#66203) — 221 parça

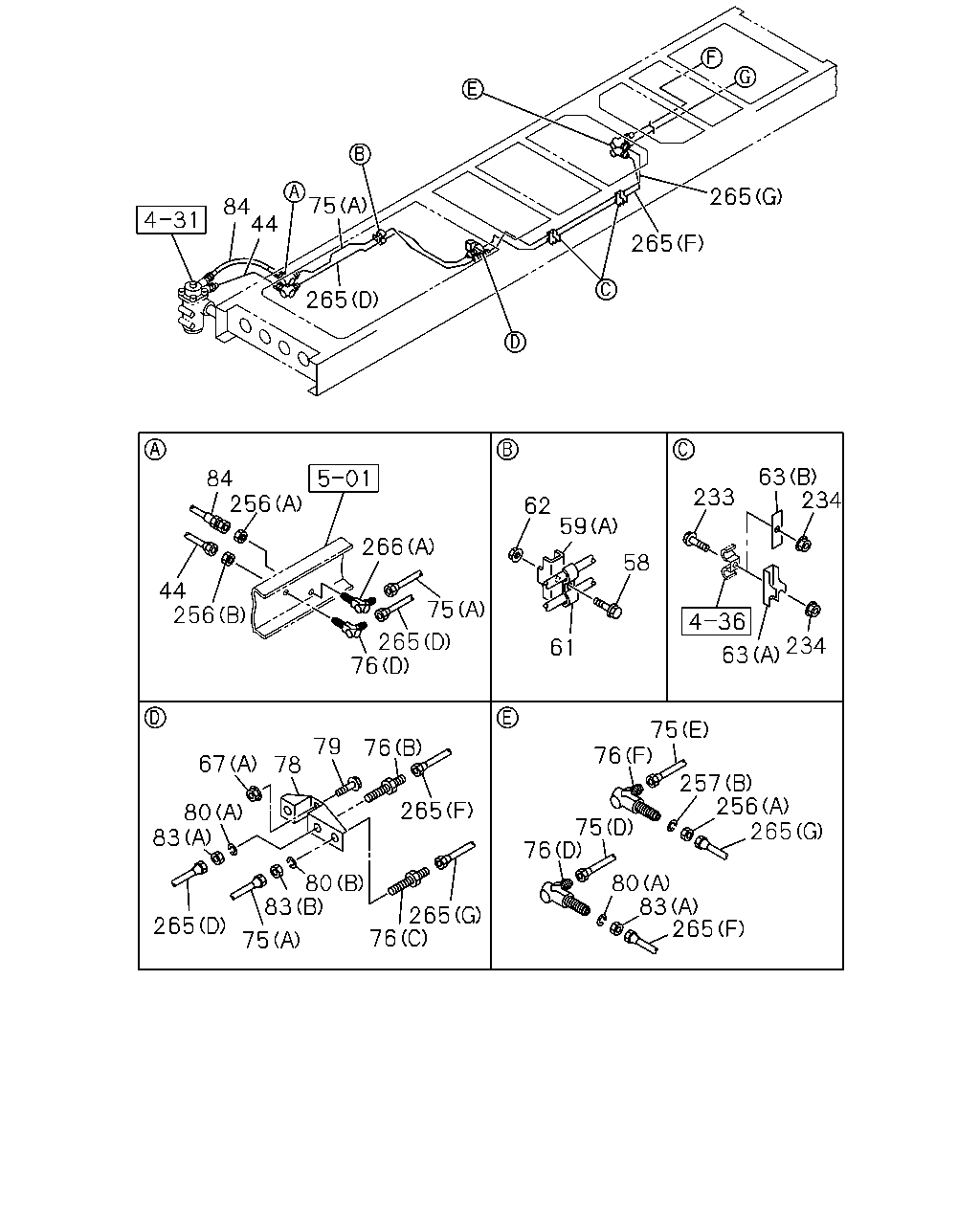

75 265 84 44 265 265 63 234 84 256 233 62 59 266 58 44 256 75 265 76 234 61 63 75 76 79 76 67 78 257 256 265 265 80 83 75 76 80 83 80 83 265 265 76 265 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21116-754-0	01	1	0611-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	06	1	0611-0703
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0611-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0611-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0611-0703
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0704-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	01	1	0611-0703
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	04	1	0704-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	0611-0703
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	01	1	0611-
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0611-0703
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0704-
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0611-0703
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0611-
63	BRACKET; CLIP,P/S (B) L=50	1-47475-299-2	01	1	0611-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	08	1	0611-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0611-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1374	1-21117-097-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=822 SERVICED BY L=900	1-49115-484-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1533 SERVICED BY L=1600	1-49115-490-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1679 SERVICED BY L=1800	1-49115-491-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1660	8-97616-159-0	01	1	0611-
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	03	1	0611-
76	UNION; OIL PIPE (A) M22	0-92123-015-0	02	1	0611-
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	01	1	0611-
76	UNION; OIL PIPE (C) M22	0-92123-315-0	01	1	0611-
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0611-0703
76	UNION; OIL PIPE (D) M20	0-92135-212-0	03	1	0704-
76	UNION; OIL PIPE (D) M20	0-92135-212-0	02	1	0611-0703
76	UNION; OIL PIPE (F) M22	0-92135-215-0	02	1	0611-
78	BRACKET; UNION	1-47478-921-0	01	1	0611-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0611-
80	WASHER; LK,UNION,OIL PIPE (A) ID=20.2	0-91510-520-0	02	1	0611-
80	WASHER; LK,UNION,OIL PIPE (B) ID=22.5	0-91510-522-0	02	1	0611-0903
80	WASHER; LK,UNION,OIL PIPE (B) ID=22.5	0-91510-622-0	02	1	0904-
83	NUT; UNION,OIL PIPE (A) M20	0-91111-520-0	02	1	0611-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0611-
84	HOSE; FLEX,P/S L=520	0-89671-520-0	01	1	0611-0611
84	HOSE; FLEX,P/S L=520	8-98072-097-0	01	1	0612-
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	02	1	0611-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0611-0709
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0611-0703
256	NUT; UNION (B) M20	0-91111-520-0	03	1	0704-
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0611-0703
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0704-
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0611-0703
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0611-0703
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	02	1	0611-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0611-0903
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	01	1	0904-
265	PIPE; OIL,UNION TO UNION (A) L=1323	1-21117-101-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (B) L=776	1-21117-722-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (C) L=1481	1-21117-723-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (D) L=1341 SERVICED BY L=1450	1-49115-489-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (E) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (F) L=1554 SERVICED BY L=1600	1-49115-490-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (G) L=1515	8-97616-158-0	01	1	0611-
266	UNION; OIL PIPE,P/S (A) M22 & M22 ELBOW	1-09654-163-1	01	1	0611-
266	UNION; OIL PIPE,P/S (B) M22	1-09654-409-0	01	1	0611-

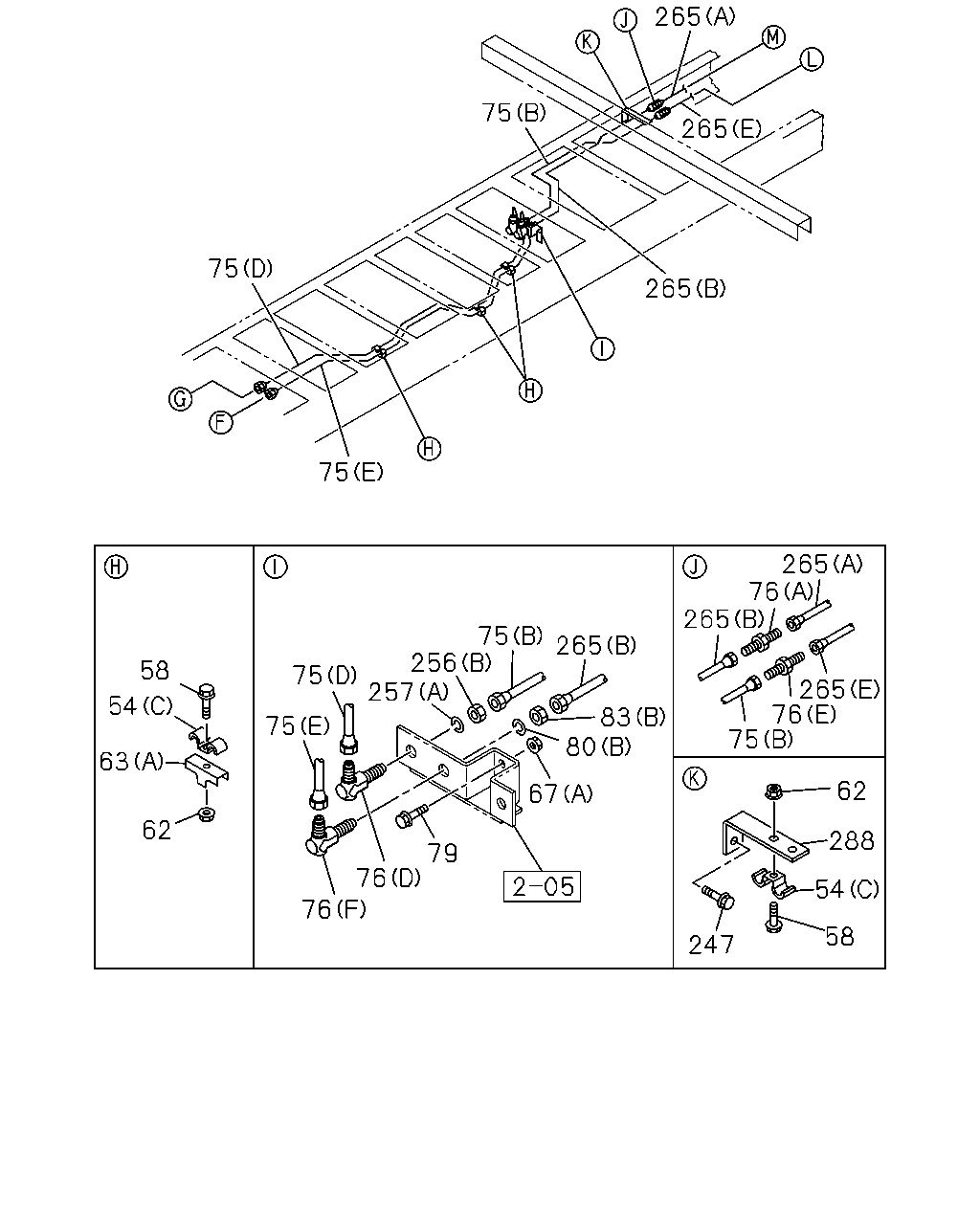

265 75 265 75 265 75 265 76 265 75 256 75 257 265 58 265 76 75 54 83 80 75 63 62 67 62 288 79 76 76 54 58 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (E) ID=19 L=40	0-95235-876-0	01	1	0611-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0611-
54	CLIP; OIL PIPE (A) ID=13 L=20	0-95235-235-0	01	1	0611-
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0611-
54	CLIP; OIL PIPE (D) ID=19 L=58	1-09700-733-1	01	1	0611-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	06	1	0611-0703
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0611-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0611-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0611-0703
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0704-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0611-
63	BRACKET; CLIP,P/S (B) L=50	1-47475-299-2	01	1	0611-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	08	1	0611-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0611-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1374	1-21117-097-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=822 SERVICED BY L=900	1-49115-484-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1533 SERVICED BY L=1600	1-49115-490-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1679 SERVICED BY L=1800	1-49115-491-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1660	8-97616-159-0	01	1	0611-
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	03	1	0611-
76	UNION; OIL PIPE (A) M22	0-92123-015-0	02	1	0611-
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	01	1	0611-
76	UNION; OIL PIPE (C) M22	0-92123-315-0	01	1	0611-
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0611-0703
76	UNION; OIL PIPE (D) M20	0-92135-212-0	03	1	0704-
76	UNION; OIL PIPE (D) M20	0-92135-212-0	02	1	0611-0703
76	UNION; OIL PIPE (F) M22	0-92135-215-0	02	1	0611-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0611-
80	WASHER; LK,UNION,OIL PIPE (A) ID=20.2	0-91510-520-0	02	1	0611-
80	WASHER; LK,UNION,OIL PIPE (B) ID=22.5	0-91510-522-0	02	1	0611-0903
80	WASHER; LK,UNION,OIL PIPE (B) ID=22.5	0-91510-622-0	02	1	0904-
83	NUT; UNION,OIL PIPE (A) M20	0-91111-520-0	02	1	0611-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0611-
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	01	1	0611-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0611-0703
256	NUT; UNION (B) M20	0-91111-520-0	03	1	0704-
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0611-0703
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0704-
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0611-0703
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0611-0703
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	02	1	0611-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0611-0903
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	01	1	0904-
265	PIPE; OIL,UNION TO UNION (A) L=1323	1-21117-101-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (B) L=776	1-21117-722-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (C) L=1481	1-21117-723-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (D) L=1341 SERVICED BY L=1450	1-49115-489-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (E) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (F) L=1554 SERVICED BY L=1600	1-49115-490-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (G) L=1515	8-97616-158-0	01	1	0611-
288	BRACKET; CLIP,P/S	1-47478-918-0	01	1	0706-

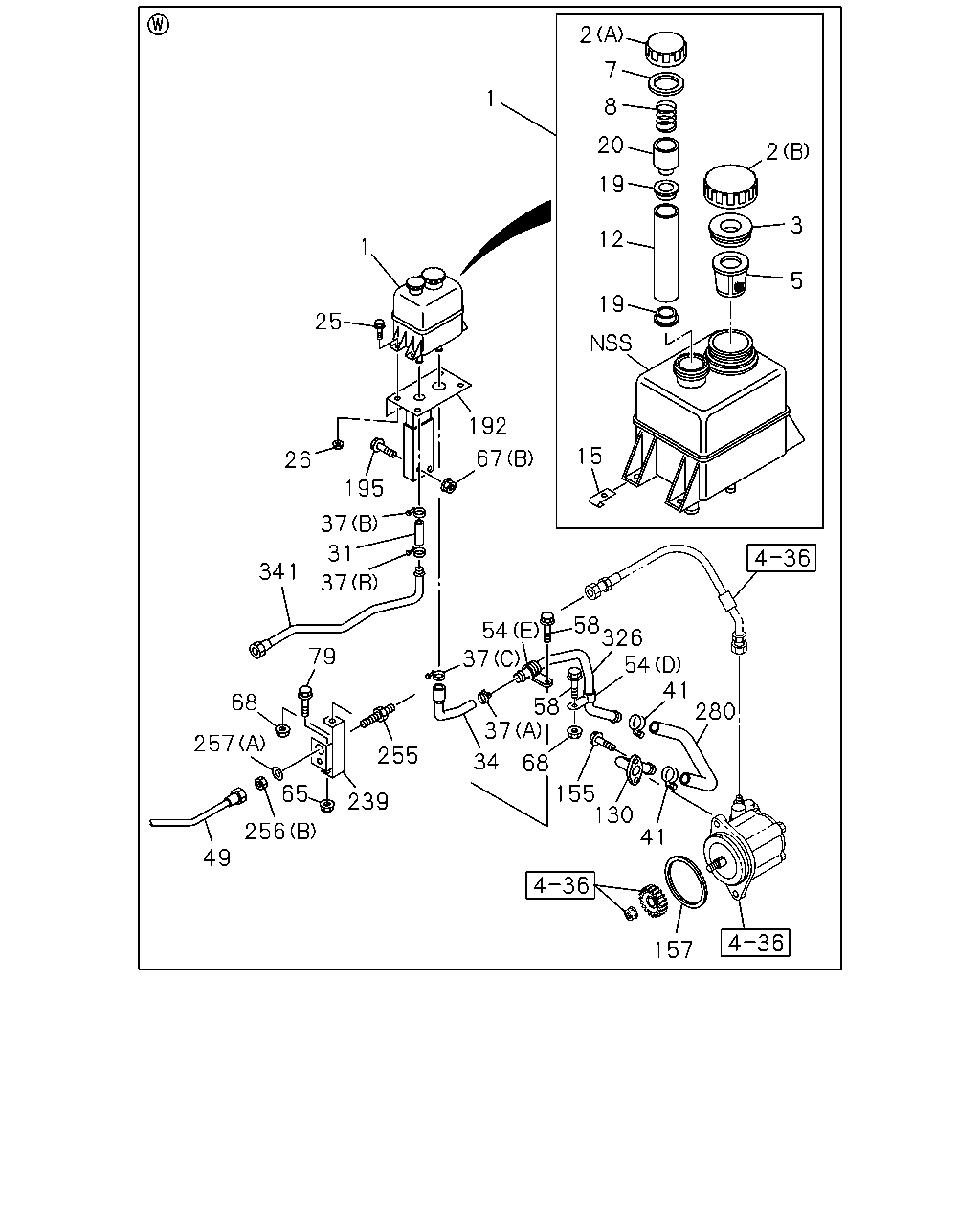

2 7 1 8 20 2 19 3 12 1 5 19 25 192 15 67 26 195 37 31 341 37 58 326 54 41 280 54 79 37 68 58 37 257 255 34 68 65 155 130 41 239 256 49 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0611-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0611-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0611-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0611-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0611-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0611-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0611-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0611-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0611-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0611-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0611-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0611-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	0611-
31	HOSE; P/S OIL TANK,INL	0-09814-080-0	01	1	0611-
34	HOSE; P/S OIL TANK,OUTLET	1-21116-094-0	01	1	0611-
37	CLIP; HOSE,P/S (A) ID=36	1-09704-094-0	01	1	0611-
37	CLIP; HOSE,P/S (C) ID=38	9-09915-041-1	01	1	0611-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0611-0706
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0707-
41	CLIP; HOSE,P/S ID=36	1-09704-094-0	02	1	0611-
49	PIPE; OIL,FLEX HOSE TO UNION L=687 SERVICED BY L=700	1-49115-481-0	01	1	0611-
54	CLIP; OIL PIPE (E) ID=19 L=40	0-95235-876-0	01	1	0611-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0611-
54	CLIP; OIL PIPE (A) ID=13 L=20	0-95235-235-0	01	1	0611-
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0611-
54	CLIP; OIL PIPE (D) ID=19 L=58	1-09700-733-1	01	1	0611-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	06	1	0611-0703
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0611-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0611-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0611-0703
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0704-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0611-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0611-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0611-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0611-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0611-
130	ADAPTER; P/S PUMP	8-94390-583-0	01	1	0611-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0611-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0611-
192	BRACKET; P/S OIL TANK	8-98068-128-0	01	1	0611-
195	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0611-
239	BRACKET; FLEX HOSE	8-98068-129-0	01	1	0611-
255	UNION; FLEX HOSE	1-09650-045-1	01	1	0611-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0611-0703
256	NUT; UNION (B) M20	0-91111-520-0	03	1	0704-
256	NUT; UNION (B) M20	0-91111-520-0	02	1	0611-0703
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0704-
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0611-0703
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0611-0703
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	02	1	0611-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0611-0903
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	01	1	0904-
280	HOSE; P/S OIL PUMP,INL	1-21117-899-0	01	1	0611-
326	PIPE; OIL,OIL TANK TO PUMP	8-98068-100-0	01	1	0611-
341	PIPE; OIL,UNION TO OIL TANK	8-98068-101-0	01	1	0611-

341 49 265 265 265 75 265 62 55 59 76 265 54 271 58 75 67 265 76 265 54 265 58 55 54 54 66 59 272 59 65 265 75 271 58 62 341 266 65 65 54 61 58 277 49 76 75 63 63 265 58 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=687 SERVICED BY L=700	1-49115-481-0	01	1	0611-
54	CLIP; OIL PIPE (E) ID=19 L=40	0-95235-876-0	01	1	0611-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0611-
54	CLIP; OIL PIPE (A) ID=13 L=20	0-95235-235-0	01	1	0611-
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0611-
54	CLIP; OIL PIPE (D) ID=19 L=58	1-09700-733-1	01	1	0611-
55	CLIP; P/S RUBBER HOSE (A) ID=16 L=20	0-95235-535-0	01	1	0611-
55	CLIP; P/S RUBBER HOSE (B) ID=15 H=30 L=30	1-09700-832-0	02	1	0611-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	06	1	0611-0703
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0611-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0611-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0611-0703
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0704-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	01	1	0611-0703
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	04	1	0704-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	0611-0703
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	01	1	0611-
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0611-0703
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0704-
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0611-0703
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0611-
63	BRACKET; CLIP,P/S (B) L=50	1-47475-299-2	01	1	0611-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	08	1	0611-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0611-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0611-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0611-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1374	1-21117-097-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=822 SERVICED BY L=900	1-49115-484-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1533 SERVICED BY L=1600	1-49115-490-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1679 SERVICED BY L=1800	1-49115-491-0	01	1	0611-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1660	8-97616-159-0	01	1	0611-
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	03	1	0611-
76	UNION; OIL PIPE (A) M22	0-92123-015-0	02	1	0611-
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	01	1	0611-
76	UNION; OIL PIPE (C) M22	0-92123-315-0	01	1	0611-
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0611-0703
76	UNION; OIL PIPE (D) M20	0-92135-212-0	03	1	0704-
76	UNION; OIL PIPE (D) M20	0-92135-212-0	02	1	0611-0703
76	UNION; OIL PIPE (F) M22	0-92135-215-0	02	1	0611-
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (A) L=1323	1-21117-101-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (B) L=776	1-21117-722-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (C) L=1481	1-21117-723-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (D) L=1341 SERVICED BY L=1450	1-49115-489-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (E) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (F) L=1554 SERVICED BY L=1600	1-49115-490-0	01	1	0611-
265	PIPE; OIL,UNION TO UNION (G) L=1515	8-97616-158-0	01	1	0611-
266	UNION; OIL PIPE,P/S (A) M22 & M22 ELBOW	1-09654-163-1	01	1	0611-
266	UNION; OIL PIPE,P/S (B) M22	1-09654-409-0	01	1	0611-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	03	1	0611-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0611-
277	BOLT; HOSE CLIP M8X40 FLANGE	0-28650-840-0	02	1	0611-
341	PIPE; OIL,UNION TO OIL TANK	8-98068-101-0	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
