8-73 — BLOWER UNIT (#6620) — 41 parça

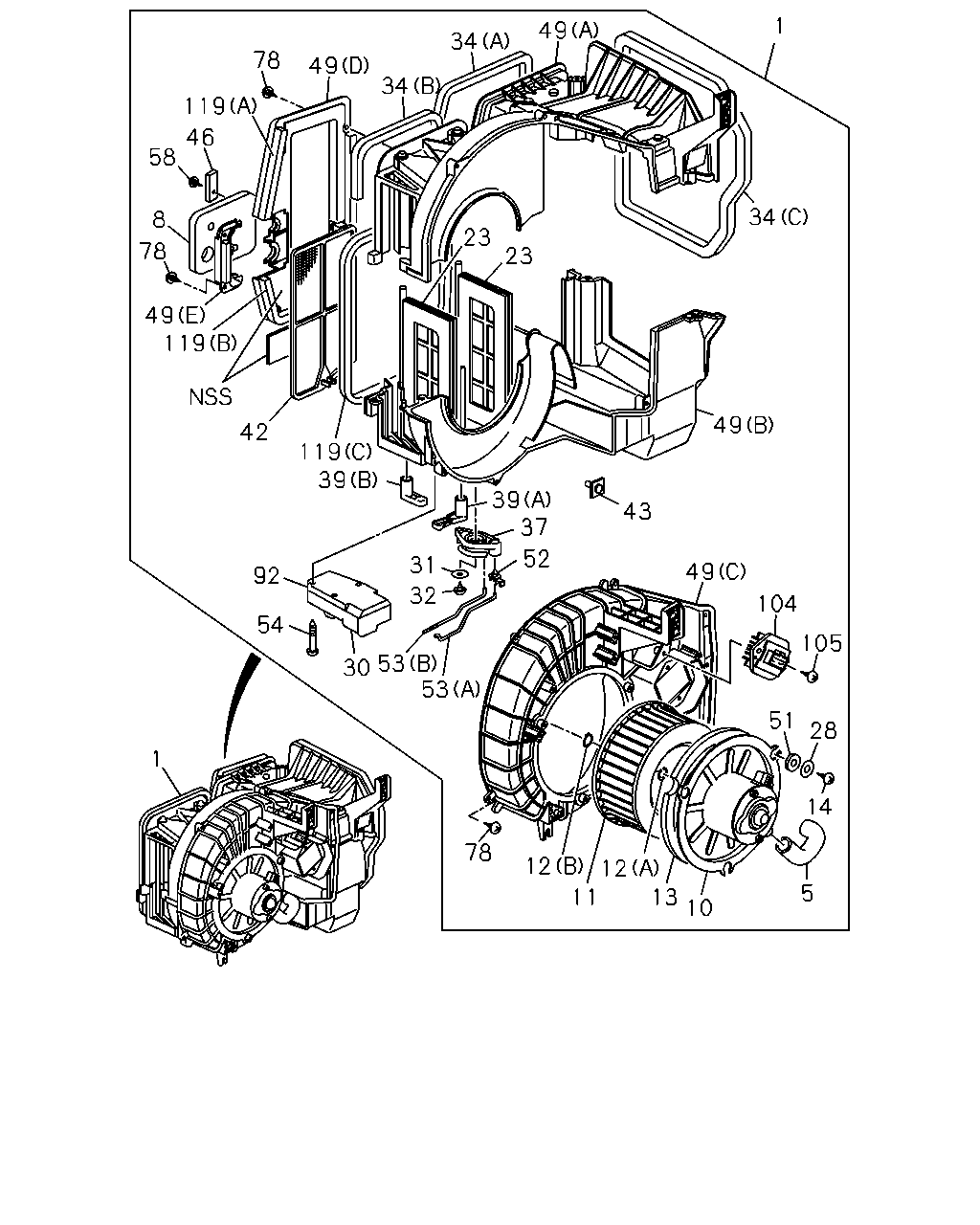

çizim 6037
1 49 34 78 49 34 119 46 58 34 8 78 49 119 23 23 49 42 119 39 39 37 52 43 31 32 49 104 92 54 105 30 53 53 51 28 14 1 78 12 12 11 13 10 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM 1-83561-105-8 01 1 0101-
5 HOSE; AIR 1-83563-140-0 01 1 0101-
8 SEAL; BLOWER UNIT 1-83579-801-1 01 1 0101-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0101-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0101-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0101-
12 RING; SNAP,FAN MOTOR
(B) THA 		8-94243-962-0 01 1 0101-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0101-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0101-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0101-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0101-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0101-
31 WASHER; LEVER 1-83579-095-0 01 1 0101-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0101-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0101-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0101-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0101-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0101-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0101-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0101-
42 FILTER; BLOWER UNIT 1-83579-643-2 01 1 0101-
43 BOLT; CASE 1-83579-657-2 04 1 0101-
46 PLATE; BLOWER UNIT 1-83571-870-1 01 1 0101-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0101-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0101-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0101-
49 CASE; BLOWER UNIT
(B) 		1-83564-352-5 01 1 0101-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0101-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0101-
52 CLIP; LEVER TO CASE
THA 		8-94248-794-0 02 1 0101-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0101-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0101-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0101-
58 SCREW; PLATE TO CASE
M4X16 THA 		8-94324-850-0 01 1 0101-
78 SCREW; CASE TO CASE
M4X16 THA 		8-94324-850-0 17 1 0101-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0101-
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 0101-
105 SCREW; RESISTOR
M4X16 THA 		8-94324-850-0 02 1 0101-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0101-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0101-
119 LINING; CASE
(C) 		1-83579-839-0 02 1 0101-
